Scrubbing through hours of security camera footage is genuinely painful — Google thinks two timelines are better than one. This patent describes a video playback UI that splits navigation into a horizontal axis for fine-grained scrubbing and a vertical axis for jumping across longer time spans.

What Google's dual-timeline video player actually does

Imagine you have a smart home camera and you want to find the moment a package was delivered — but the recording is 12 hours long. Today, most video apps give you a single timeline bar to drag around, which makes it hard to both jump to a general time and scrub precisely through a specific moment.

Google's patent describes a player with two separate timelines: a horizontal one for detailed, frame-by-frame scrubbing within a shorter window, and a vertical one for navigating across a much larger time span. Moving the horizontal indicator changes which frames you're watching. Moving the vertical indicator jumps you to a different part of the day.

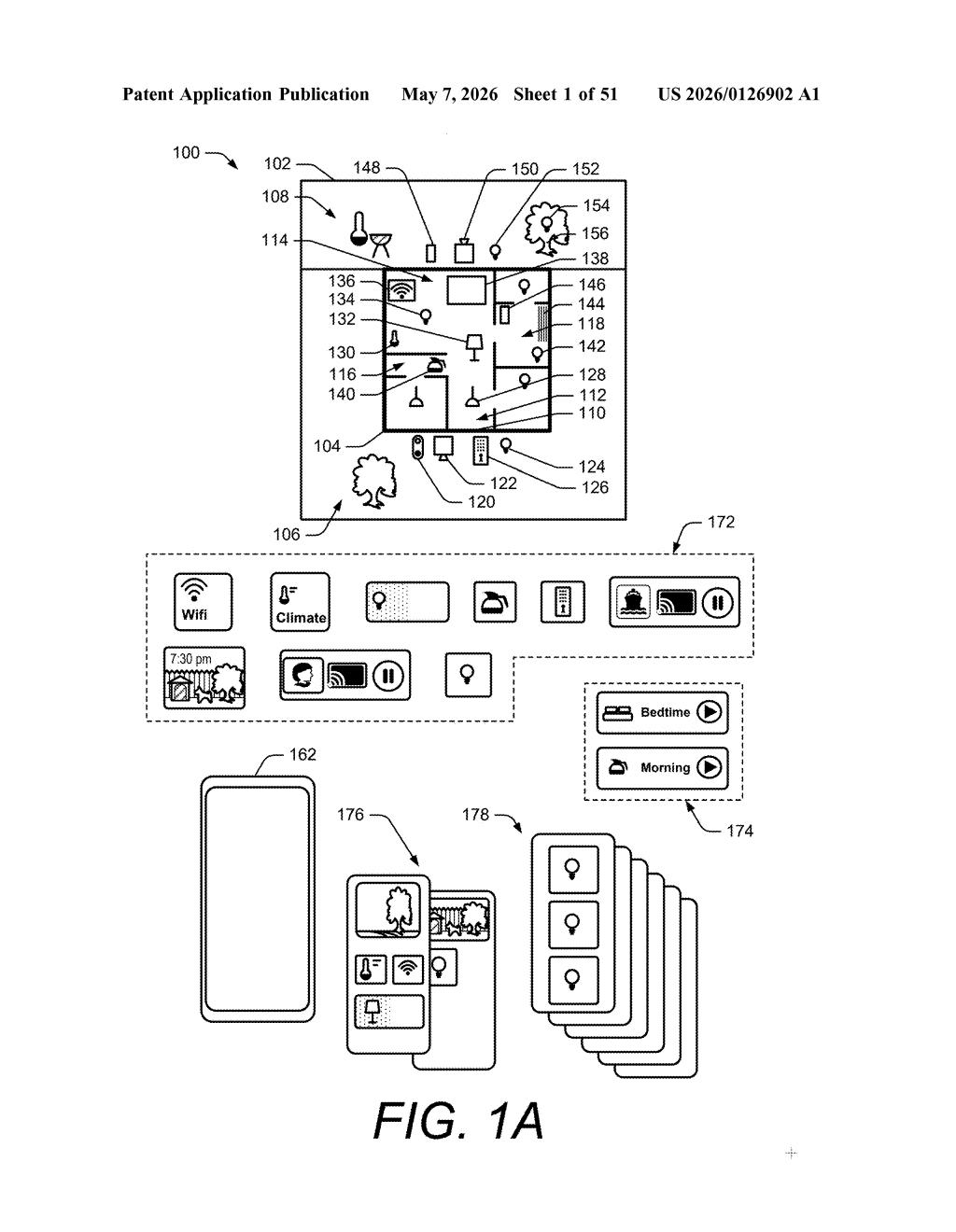

This is designed for a device management system — think Google Home or Nest — where you're reviewing footage from multiple network-connected cameras. The idea is to give you coarse and fine controls in the same view, so you can quickly zero in on the moment you actually care about.

How the horizontal and vertical timelines divide scrubbing control

The patent describes a user interface divided into two visible regions displayed simultaneously on the same screen.

Region one (the main viewing area) shows the actual video frames alongside a horizontal timeline and a movable horizontal time indicator. Dragging or animating this indicator scrubs through footage at a rate defined by how many frames-per-second the UI displays during the transition — essentially controlling the resolution of your scrub.

Region two sits alongside it and contains a vertical timeline with its own vertical indicator. This axis handles navigation at a different granularity — think hours of the day versus minutes within a clip. Transitioning the vertical indicator repositions where you are in the broader recording, which in turn updates what the horizontal timeline is anchored to.

The claim specifically ties the horizontal indicator's behavior to two variables:

• Rate: how many images from the full set are shown per second during scrubbing (coarse vs. fine)
• Displacement: how far the indicator moved, which maps to how far forward or backward in the recording you've jumped

The whole system is framed as part of a network-connected device management platform, pulling image data from cameras on the local network — consistent with how Google Nest cameras stream footage to the Home app.

What this means for smart home camera review UX

For anyone who's ever tried to find a specific moment in a long Nest camera recording using the current single-bar timeline, this is a real UX improvement. The dual-axis approach — borrowed from how mapping apps separate zoom level from pan direction — solves a genuine usability problem: you can't easily do both coarse navigation and fine scrubbing with a single draggable bar.

The broader signal here is that Google is investing in the playback and review experience for its Nest camera ecosystem, not just the recording side. As Nest cameras become more common in homes (and as Google pushes Nest Aware subscriptions that include extended recording history), making that footage actually reviewable becomes a real competitive differentiator against Ring, Arlo, and Apple's HomeKit Secure Video.
