IBM Patents an AI Method for Sharpening Low-Resolution Images
Blurry images are an old problem, but IBM is tackling it with an AI approach that teaches itself which visual patterns matter most before trying to fill in the missing detail.
What IBM's image-sharpening AI actually does

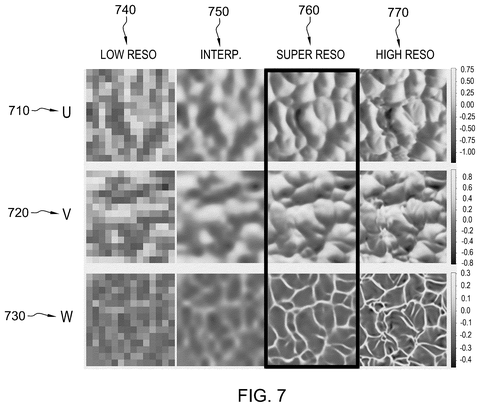

Imagine you have a photo taken from a weather satellite. The image is fuzzy because the camera only captured a low number of pixels, and zooming in just makes it blurrier. What IBM's system does is take that blurry input and try to reconstruct a sharper, more detailed version automatically.
The AI doesn't just guess at the missing pixels. It first studies the structure of the blurry image to understand how information is arranged spatially, for instance how temperature or color changes from one region to the next. It then builds a kind of attention map, a picture of which parts of the image carry the strongest, most reliable signals.
Finally, it applies what the patent calls a "penalty term," which turns up the volume on the strong signals and turns it down on the weak, noisy ones. The result is a high-resolution reconstruction that preserves the real patterns rather than inventing details that were never there.
How the attention map amplifies the right signals

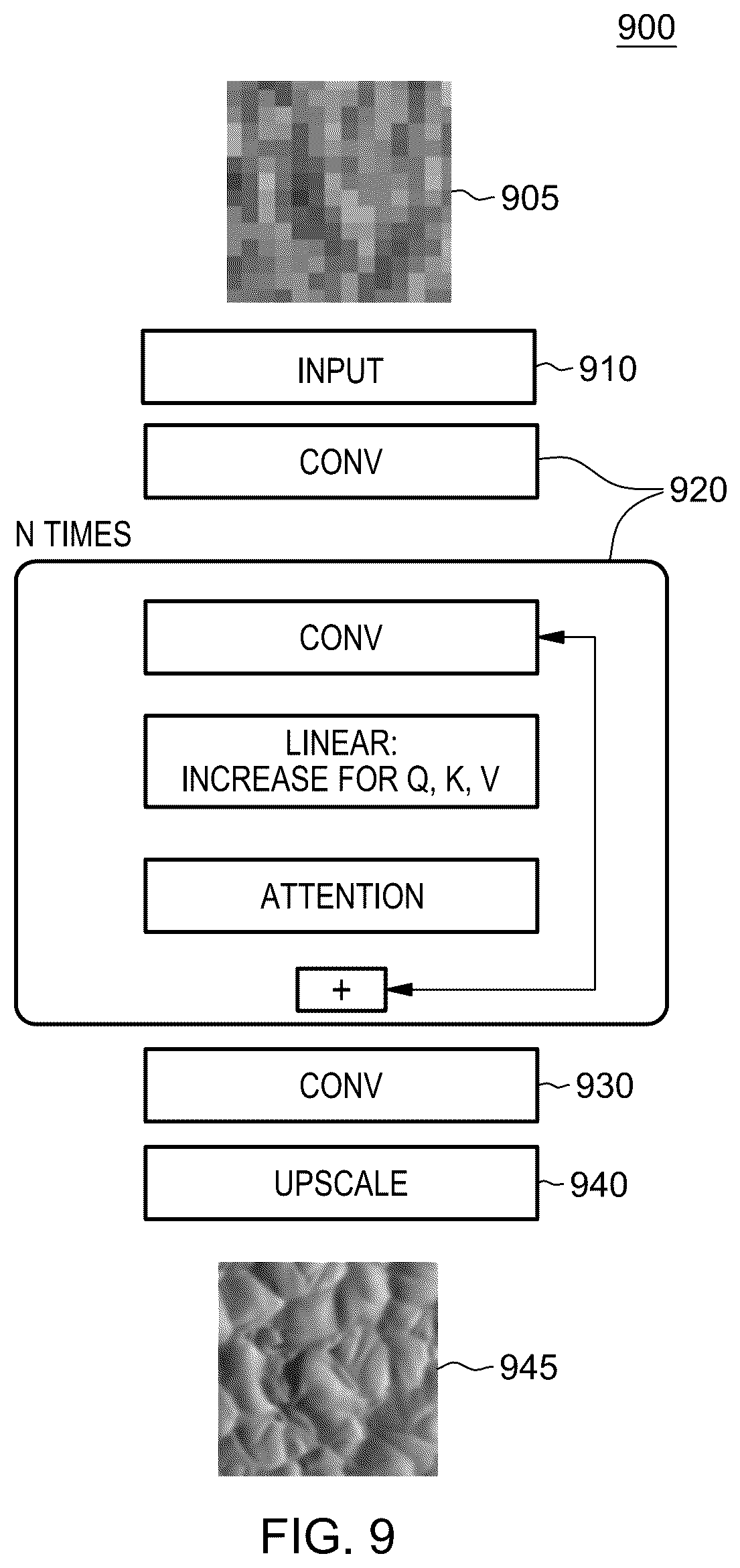

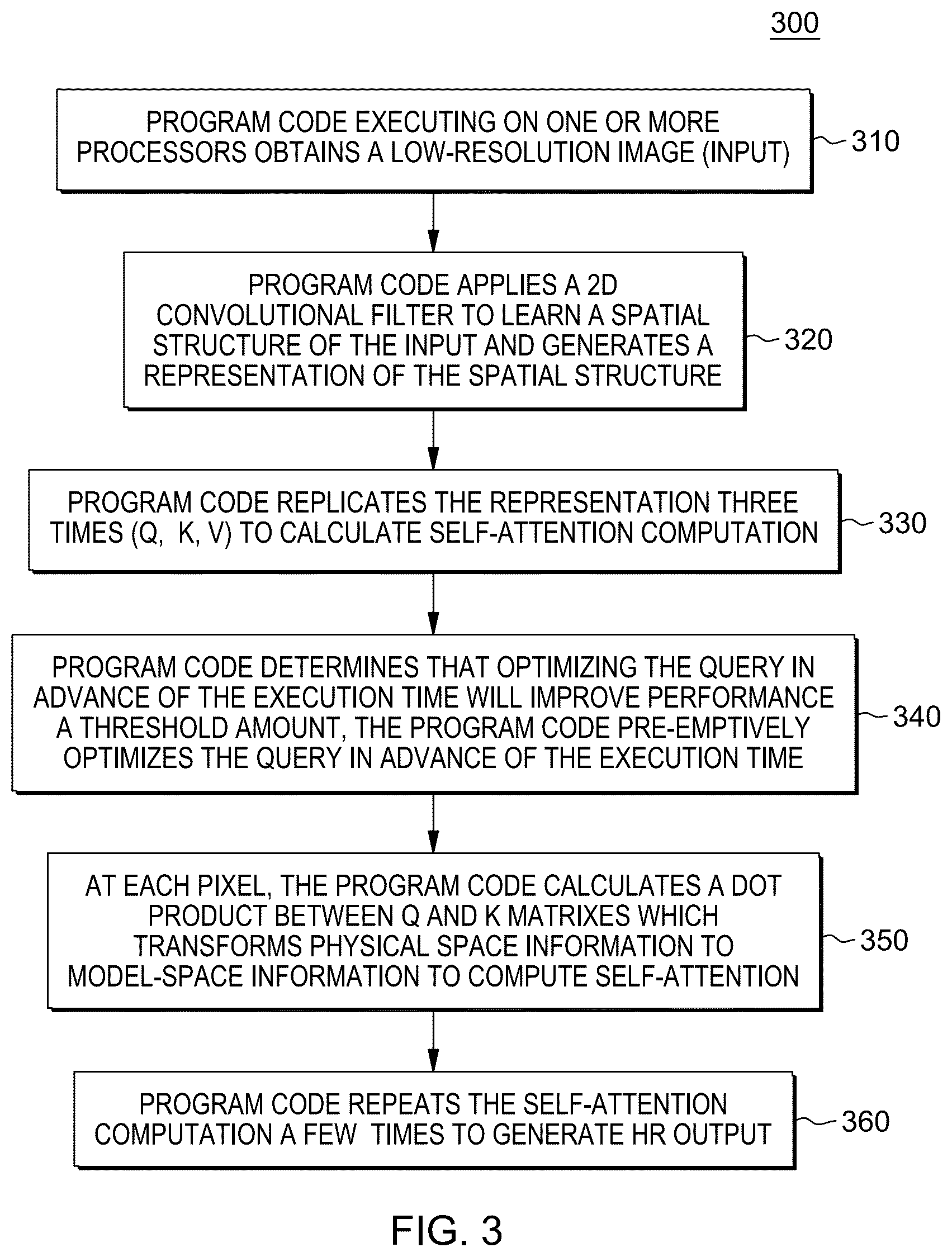

The method starts by running the low-resolution image through a two-dimensional convolutional filter (a standard AI technique that slides a small detection window across an image to spot local patterns like edges or gradients). From that, the system builds an internal representation of the image's spatial structure.

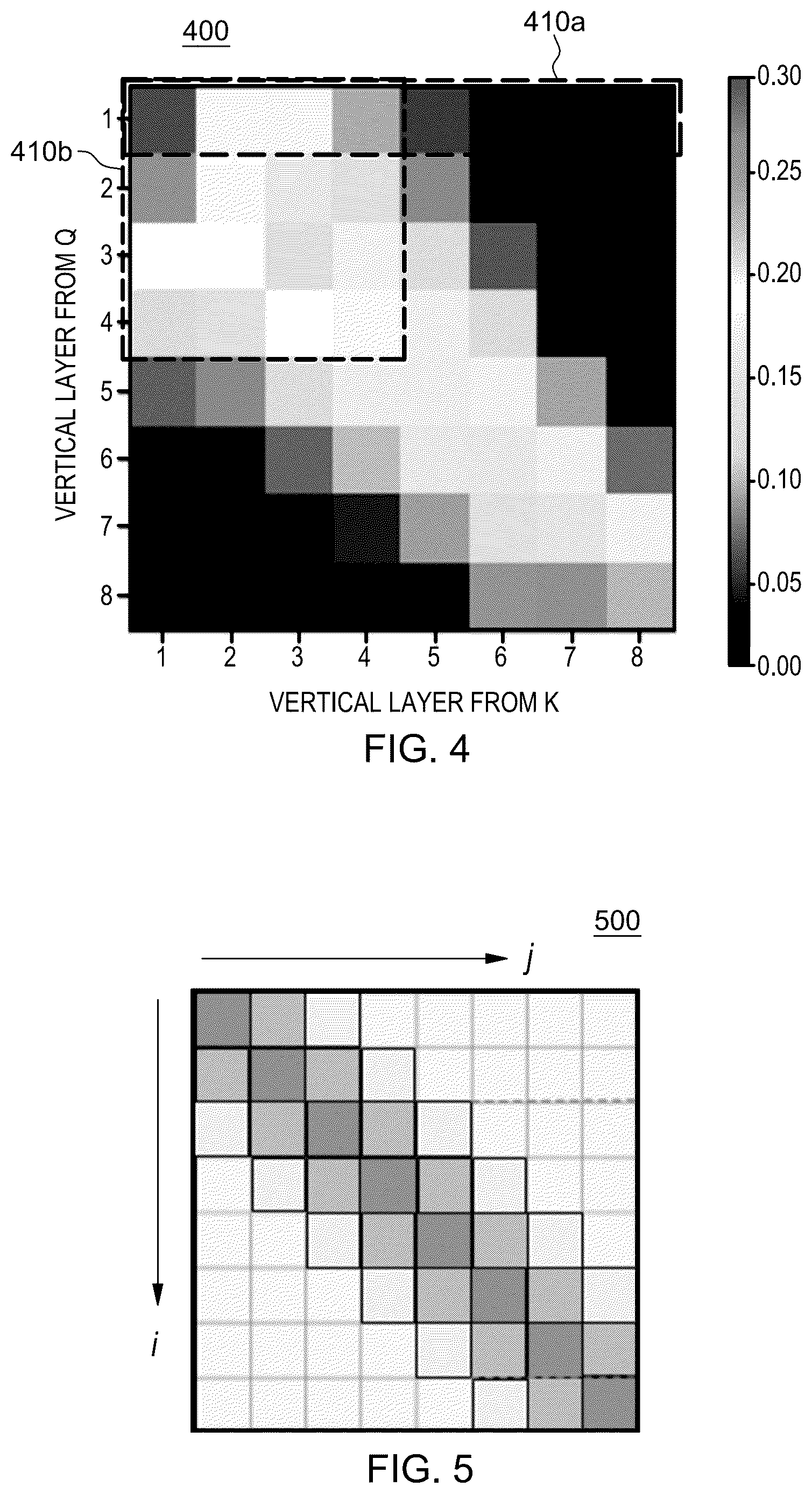

That representation is then replicated into multiple versions, each aligned with different mathematical vectors. The system computes a self-attention map by taking the dot product between these representations (dot product here means multiplying two sets of numbers together and summing them, a way to measure how similar or related two things are). The attention map captures what the patent calls "vertical mixing of information," meaning how values at one spatial location relate to values at other locations, even if they are far apart.
The final step applies a penalty term to that attention map:
- Strong, consistent signals get amplified
- Weak or noisy signals get suppressed
- The result feeds into the final high-resolution output
This penalty step is essentially the system's quality filter: it prevents the model from confidently reconstructing details that were never reliably present in the original data.
What this means for satellite and medical imaging
The most immediate applications are fields where low-resolution data is a hard physical constraint, not just a camera limitation. Satellite imagery, weather modeling, and medical imaging (like low-dose CT scans) all involve trade-offs between resolution and cost or safety. A method that reconstructs finer detail without introducing hallucinated artifacts could meaningfully improve how scientists and clinicians interpret that data.
For IBM, this fits into a broader push around geospatial AI, an area where the company has been active with foundation models trained on satellite and climate data. If this technique is integrated into those pipelines, it could sharpen the inputs those models see, which matters because better input data generally leads to better predictions.
This is solid, specific AI research rather than a flashy consumer-facing idea. The penalty-term mechanism for sharpening attention maps is the genuinely interesting piece here: it addresses a real failure mode in image super-resolution where models confidently invent plausible-looking but wrong detail. Whether IBM turns this into a product or it stays in the research layer, the technique is worth watching in satellite and climate-data contexts.

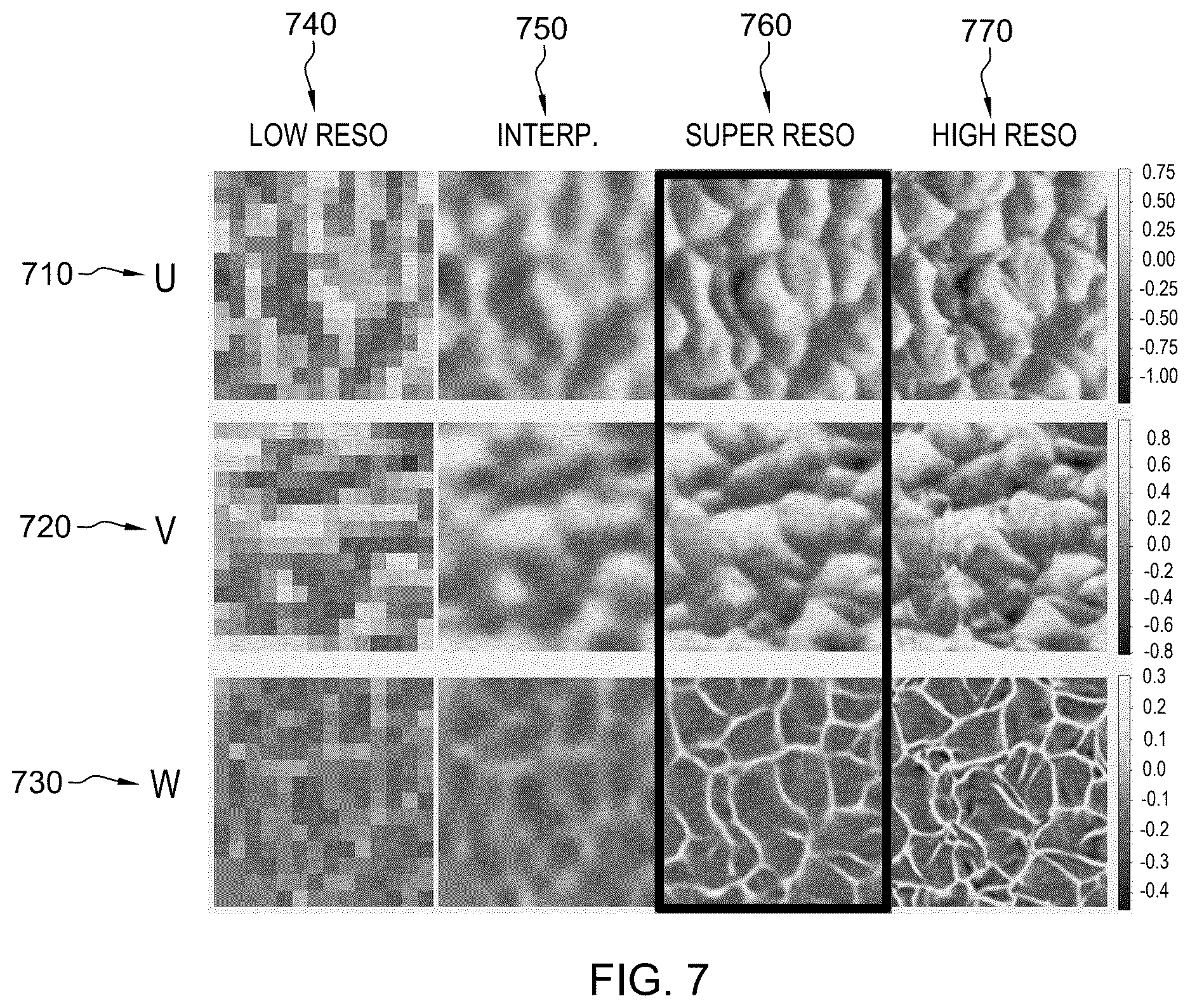

The drawings
9 drawing sheets from US 2026/0220739 A1 · click any drawing to enlarge
