Meta Patents a Metal-Sheathed Camera Lens Assembly for AR Glasses
Meta is patenting a very specific way to wrap a camera lens in metal — and the tiny air gap built into the design is doing more work than it looks.
What Meta's metal camera sheath actually does

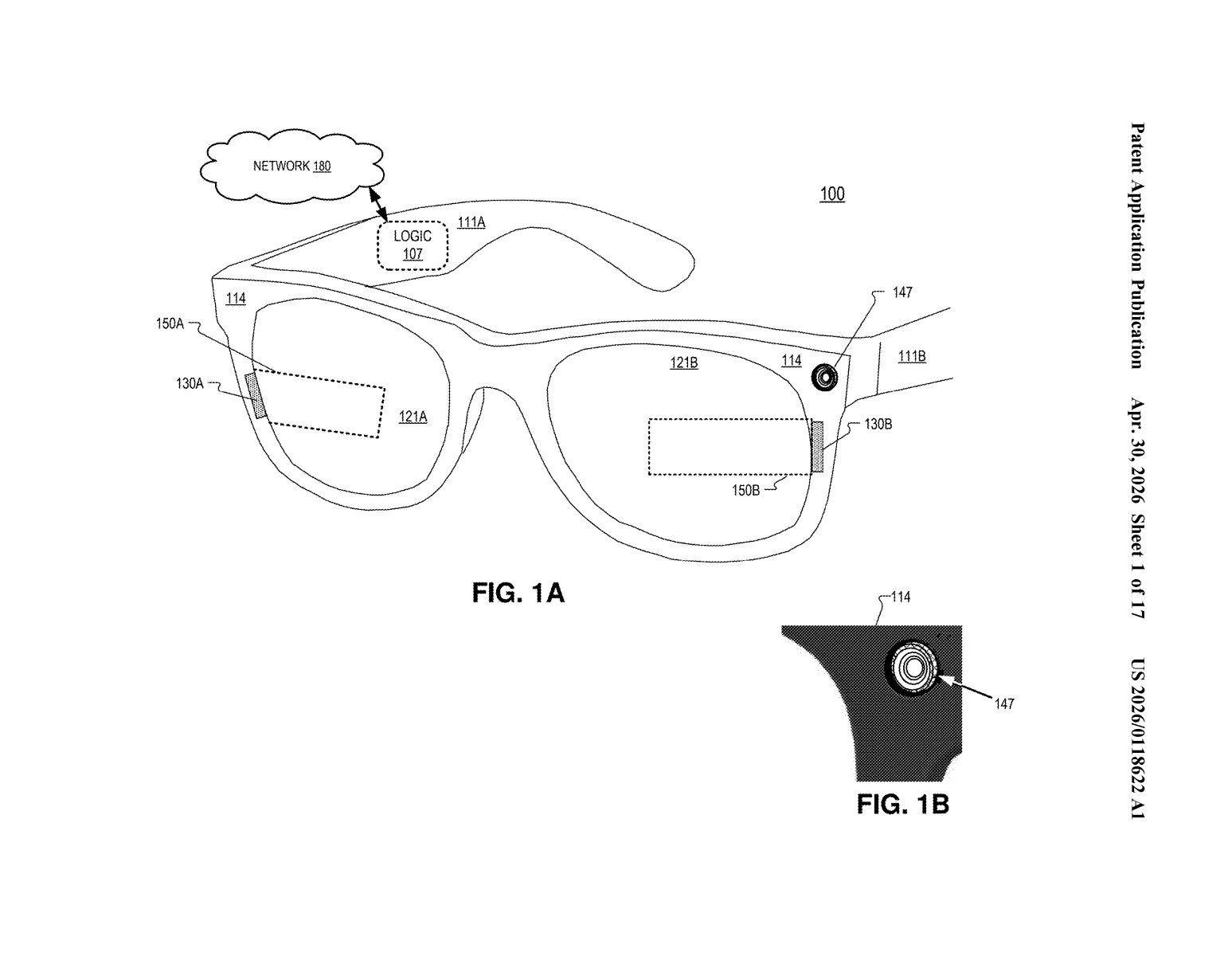

Imagine the little camera module on a pair of smart glasses. It's tiny, it has to survive bumps and heat, and it needs to stay precisely aligned so your photos don't come out blurry. Getting that right in a package small enough to sit on your face is genuinely hard.
Meta's patent describes a camera assembly where a metal sheath wraps around the outside of the lens barrel — the cylindrical tube that holds your lens in place. The clever bit is that the sheath doesn't just hug the barrel tightly on all sides. It extends over the top of the barrel but leaves a small void — an intentional air gap — between the sheath and the top face of the barrel.
That gap isn't sloppiness. It's deliberate engineering. By decoupling the sheath from direct contact with the top of the barrel, Meta can protect the lens from physical stress and thermal expansion without letting the sheath deform or crush the optics underneath. Small detail, big consequences when you're building camera hardware meant to live on someone's face all day.
How the sheath wraps the lens barrel with a built-in void
The patent claims a camera assembly made of three main parts working together:
- A lens — focuses incoming light onto an image sensor, just like any camera optic.
- A lens barrel — the cylindrical housing that holds the lens in precise alignment. Think of it as the lens's exoskeleton.
- A metal sheath — a metal sleeve that surrounds the barrel, coupled to its side and extending partially over the barrel's top face.
The key innovation is the void — a deliberate gap between the top face of the lens barrel and the portion of the metal sheath that extends over it. The sheath wraps around the sides and reaches over the top, but it doesn't make full contact with the top surface.
Why does that gap matter? In compact optics, thermal expansion (materials growing slightly when they heat up) and mechanical stress can shift a lens out of alignment by fractions of a millimeter — enough to degrade image quality. A metal sheath provides structural rigidity and EMI shielding (blocking electromagnetic interference that could corrupt the image sensor), but if it clamps too tightly onto every surface of the barrel, any flex or expansion in the sheath transfers directly into the optics.
The void acts as a compliance buffer — it lets the sheath do its protective job without mechanically coupling every stress force directly to the lens itself.
What this means for Meta's AR camera hardware
AR glasses live in a brutal environment for precision optics: they get warm from electronics, cold from weather, bumped around constantly, and they need cameras small enough to hide in a frame. Meta's Ray-Ban smart glasses already ship with cameras, and the next generation of true AR glasses — the kind that overlay digital content on the real world — will need those cameras to be even more precise and reliable.
This patent is less about a breakthrough and more about the kind of meticulous mechanical engineering that separates a camera that works great on day one from one that stays sharp after a year of daily wear. If Meta is filing patents on lens sheath geometry, it signals active, detail-oriented work on miniaturized camera hardware for wearables — the kind of foundational IP that quietly underpins a whole product line.
This is classic deep-hardware IP — not flashy, but exactly the kind of precision mechanical patent that matters when you're trying to build reliable cameras into eyeglass frames. The void-gap mechanic is a genuinely thoughtful solution to a real thermal and mechanical engineering problem in miniaturized optics. Worth noting, not because it's exciting to read about, but because it signals Meta is doing serious component-level work on AR camera hardware.
