New Patent Reveals Earbud Case That Tracks Users in 3D Space
Samsung is patenting an earbud case that doesn't just sit on your desk. It tracks where you are in the room and physically reorients itself to face you.
What Samsung's position-tracking earbud case actually does
Imagine setting your earbud case on a table and having it figure out exactly where you're standing, then turn to face you. That's the core idea in this Samsung patent.
The case communicates with your earbuds while you're wearing them. By combining motion sensor data from both the case and the earbuds with the strength of the wireless signal between them, the system works out your position in three-dimensional space relative to the case.
Once it knows where you are, the case adjusts its physical orientation, essentially pointing itself at you. It's an unusual concept for something most people treat as a passive charging box.

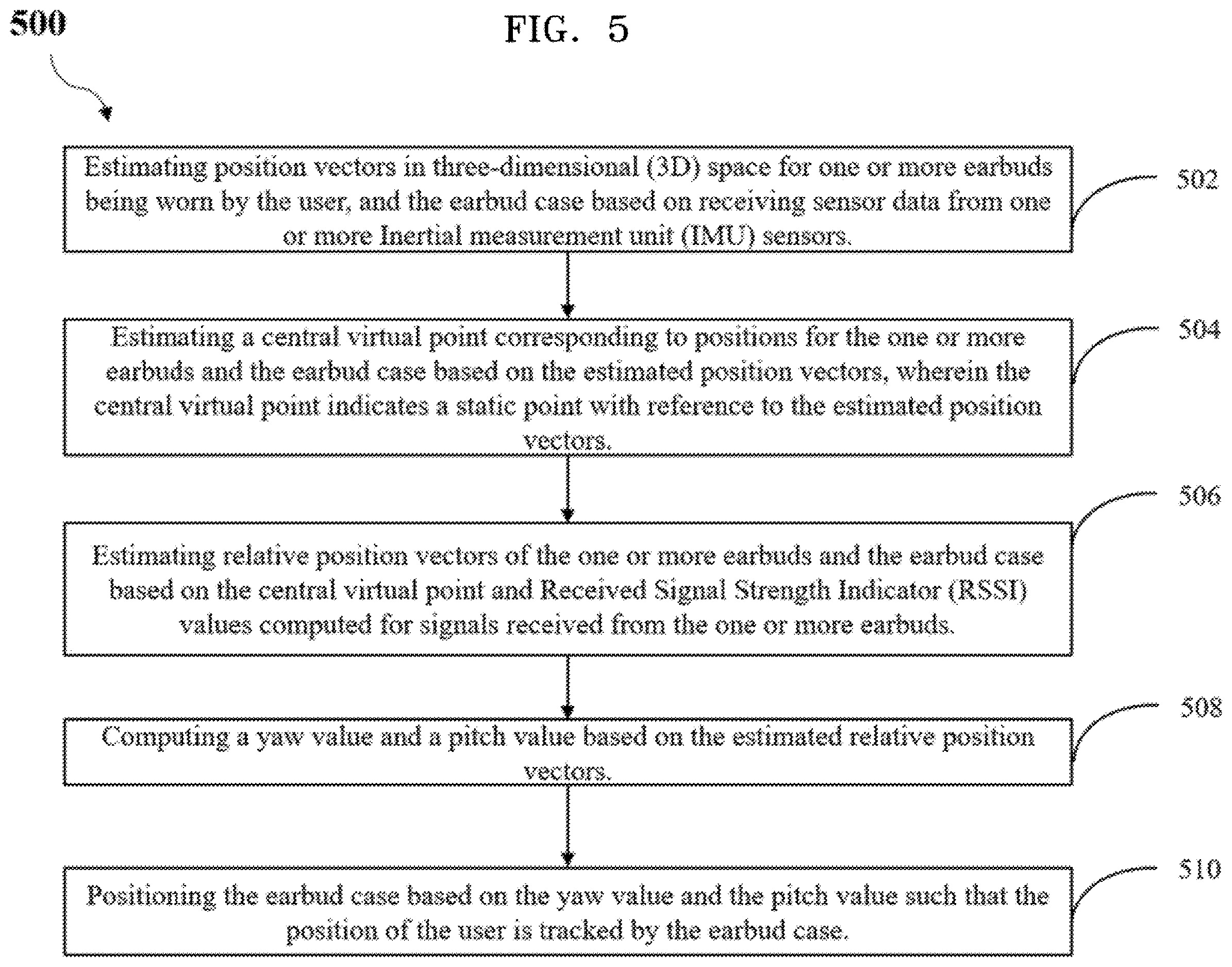

estimating position vectors in three-dimensional (3D) space for one or more earbuds being worn by the user and the earbud case based on sensor data received from one or more inertial measurement unit (IMU) sensors; …
Translation: Sensors track where your earbuds and their charging case are in a 3D space.
How the case calculates where you are in 3D space
The system pulls together two types of data to figure out where you are. First, IMU sensors (inertial measurement units, the same kind of motion chips in your phone that detect orientation and movement) in both the earbuds and the case map out their positions in 3D space.
Second, the case measures RSSI values (received signal strength indicator, basically how strong the wireless signal is between the case and each earbud). Stronger signal means closer; weaker means farther. By combining signal strength with the motion data, the system builds a more accurate picture of where you are relative to the case.
The patent describes the system computing a central virtual point, a calculated reference position that accounts for both earbuds and the case at once. From there, it derives two orientation values:
- Yaw: the left-right angle (like turning your head)
- Pitch: the up-down angle (like nodding)
Using those two values, the case physically repositions itself so it is always oriented toward the user.
… estimating a central virtual point corresponding to positions for the one or more earbuds and the earbud case based on the estimated position vectors, wherein the central virtual point indicates a static point with reference to the estimated position vectors; …
Translation: The system calculates a single fixed reference point between your ears and the case.
What a self-orienting earbud case could mean for you
The most obvious application is directional audio or speaker output. If the case has a speaker or microphone, always knowing which way to face the user would meaningfully improve sound quality and voice pickup. It could also support hands-free assistant interactions or act as a small smart speaker when your earbuds are docked.
Beyond audio, a case that tracks your position could feed into broader room-awareness features, telling your phone or smart home system roughly where you are without relying on cameras. For Samsung, this fits a pattern of building more intelligence into accessories that most competitors treat as dumb plastic.
This is a genuinely unusual patent. Earbud cases are the most ignored corner of personal audio hardware, and Samsung is proposing to make one that physically tracks you. The engineering challenge of mounting a motorized or repositionable case is real, and it's unclear what the primary use case is supposed to be. But the combination of IMU and RSSI data to locate a moving person cheaply and without cameras is a legitimately interesting approach.
