Samsung Patents UV-Blocking Layer Technology Built Directly Into Display Panels
Sunlight slowly degrades the materials inside your phone's screen, and Samsung's latest patent proposes a fix baked directly into the screen's protective film layers rather than bolted on from the outside.
What Samsung's UV-blocking screen film actually does
Imagine leaving your phone face-up on a beach towel all afternoon. The display you can see is fine, but the thin layers of material sandwiched inside the screen are being damaged by ultraviolet light. Over time, that can affect how the screen looks and how long it lasts.
Samsung's patent describes a screen construction where UV-absorbing chemicals are mixed directly into the protective layers that sit on top of the display panel. Specifically, those layers include a base film, a coating on top of that film, and the adhesive that holds everything together. Any one of those three can carry the UV blocker.
The idea is similar to how sunscreen works on your skin: instead of relying on the glass alone to block harmful light, multiple layers of the screen's own structure share the job. Samsung specifies a fairly tight range for how much UV absorbent to include (between 1 and 10 percent by weight), which suggests the company has tested exactly how much protection is needed without compromising how the screen looks or feels.
How the UV absorbent is distributed across screen layers

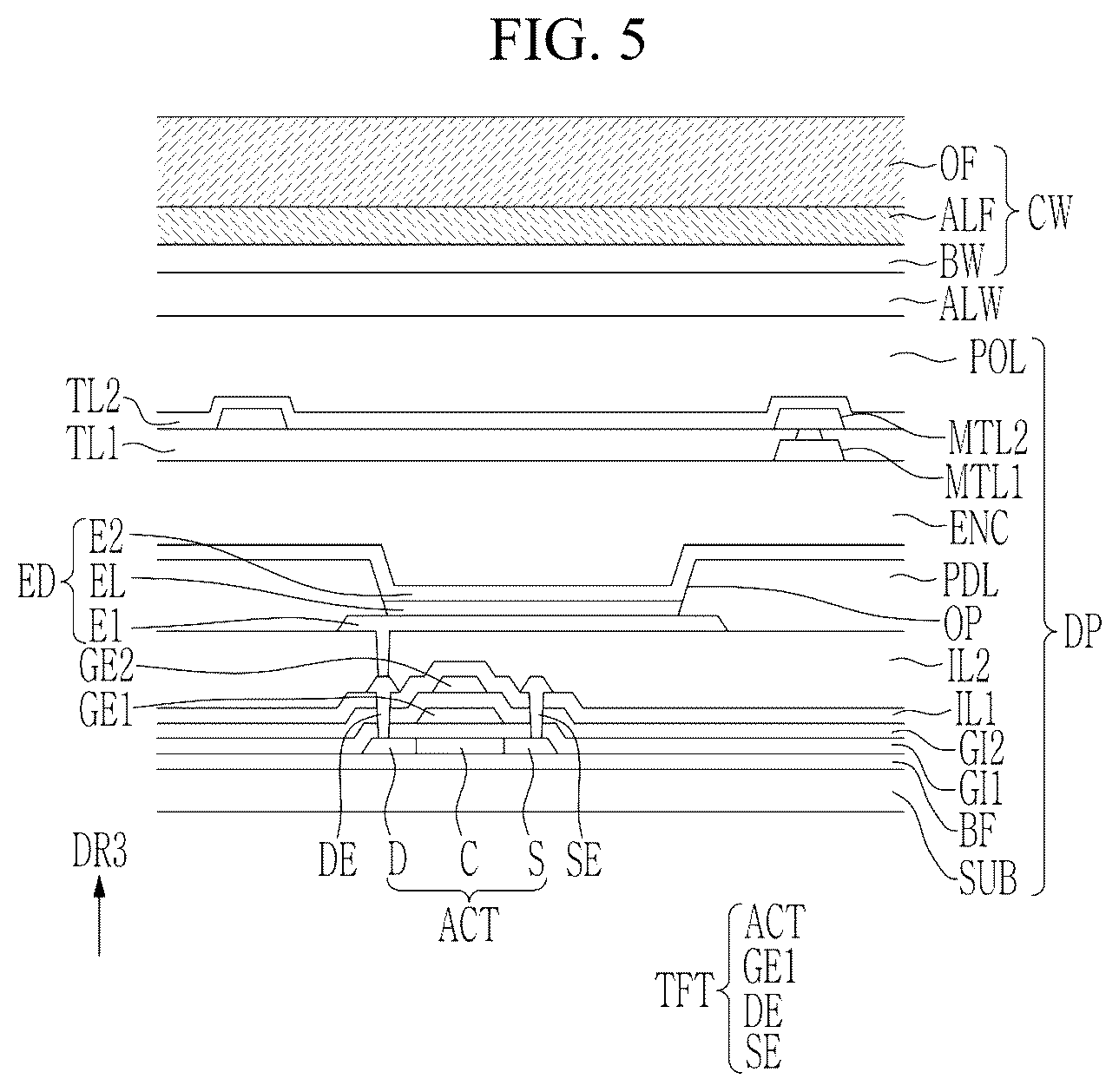

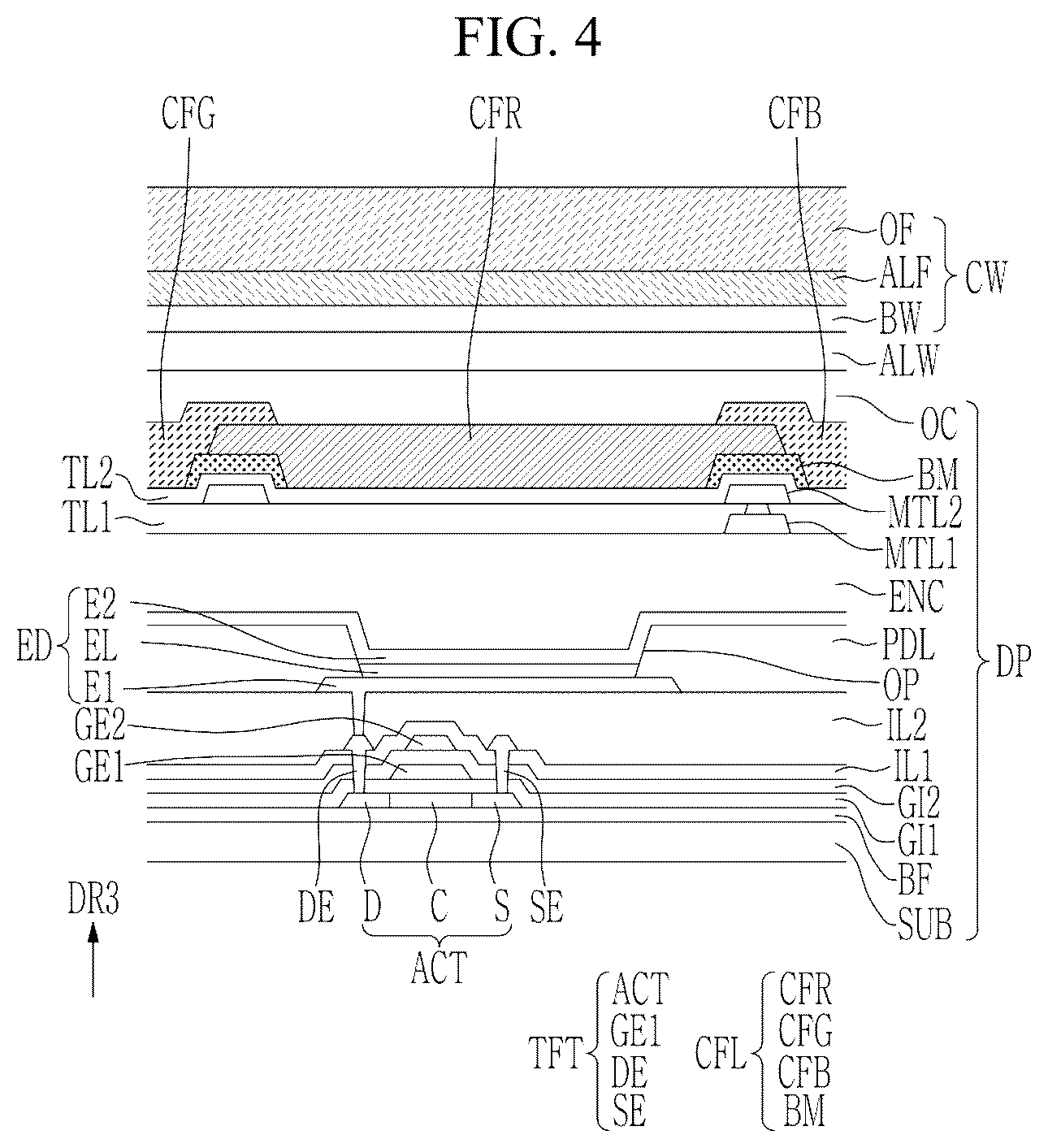

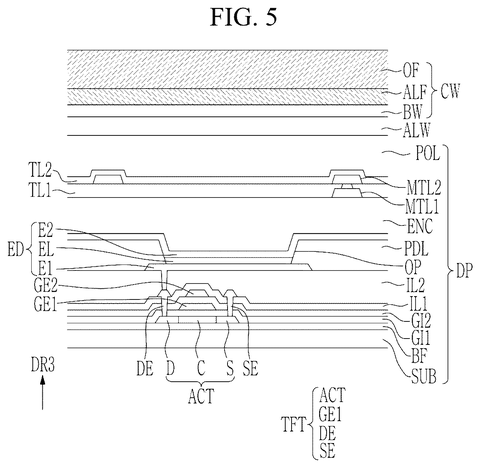

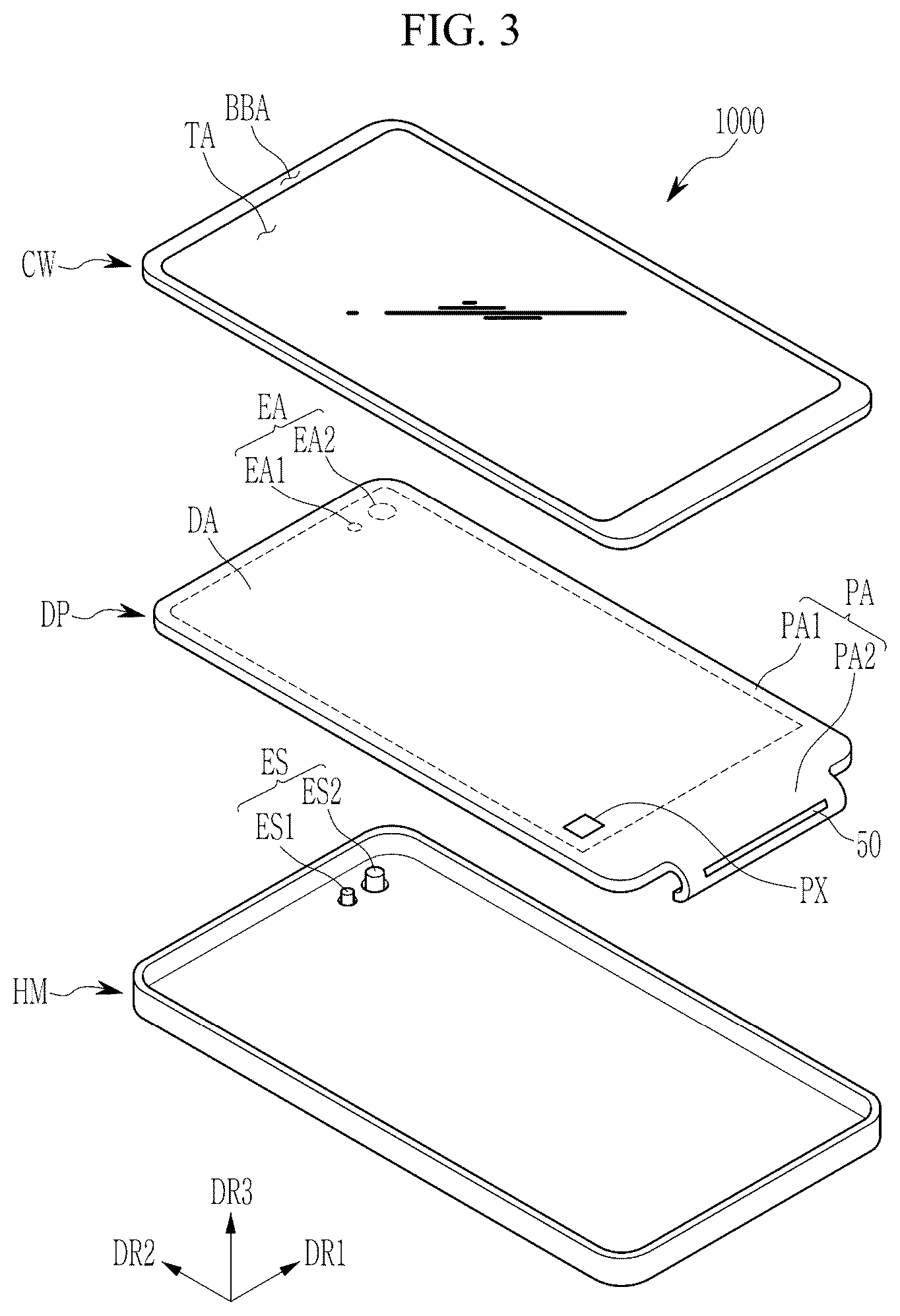

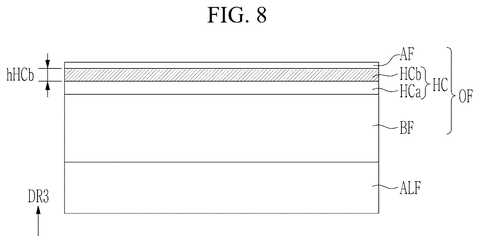

The patent describes an optical film stack placed on top of a display panel's front window (the outermost glass or plastic surface you touch). That film stack has two main parts: a base layer and a coating layer on top of it. Between the window and the optical film sits an adhesive layer that bonds everything together.
The key claim is that at least one of those three layers (base, coating, or adhesive) contains a UV absorbent, a chemical compound that soaks up ultraviolet radiation before it can penetrate deeper into the display. The specified concentration range is 1 wt% to 10 wt% (meaning 1 to 10 percent of the layer's total mass is the UV-blocking compound).
Why does concentration matter? Too little UV absorbent and it won't adequately protect the underlying display materials. Too much and it could tint the screen, reduce light transmission, or compromise the mechanical properties of the film or adhesive. Samsung's claimed range appears to reflect a tested balance between protection and optical clarity.
- Base layer: the main structural film sitting on the window
- Coating layer: a thinner surface treatment on top of the base layer
- Adhesive layer: the bonding material between window and film
What this means for screen durability in Samsung devices

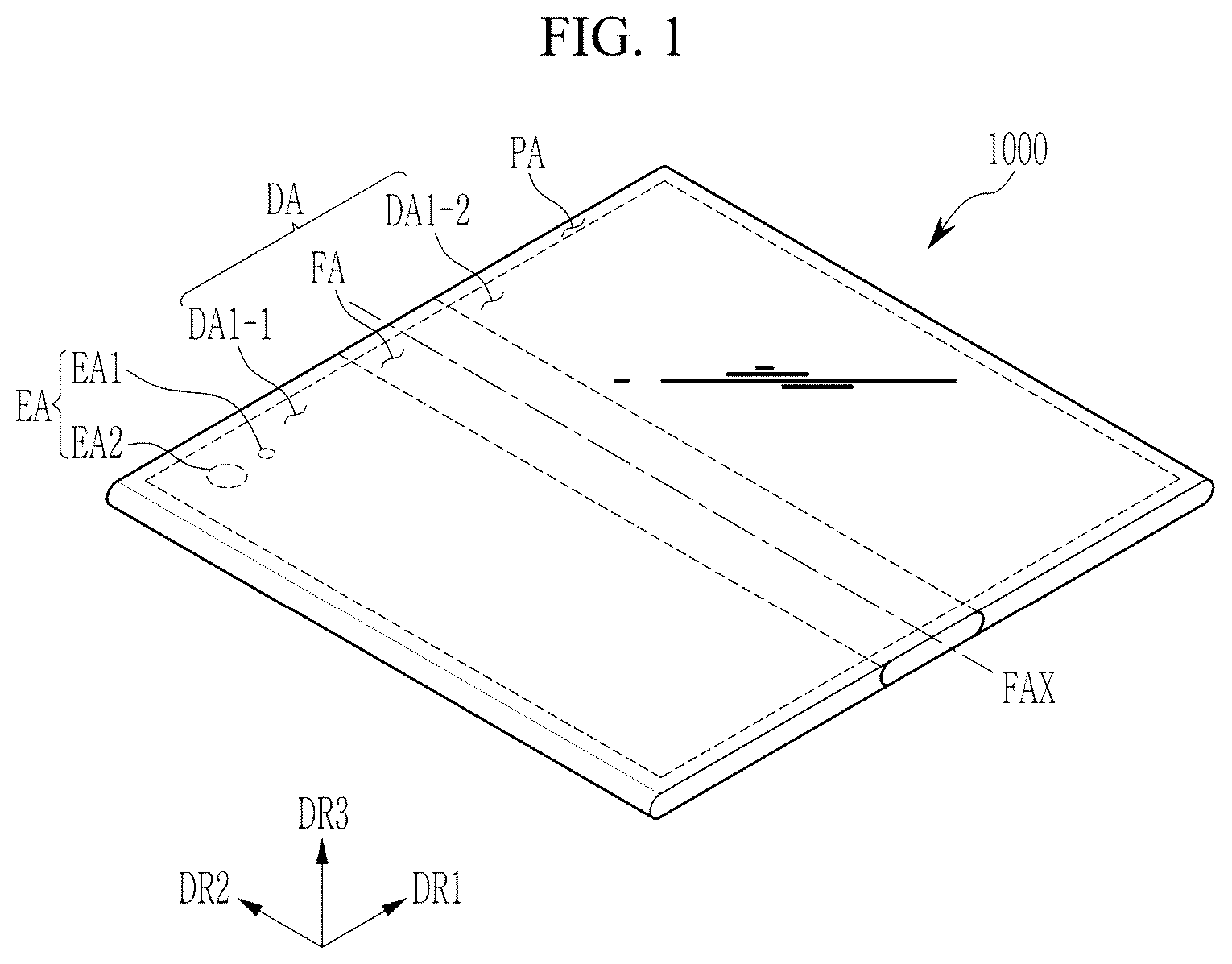

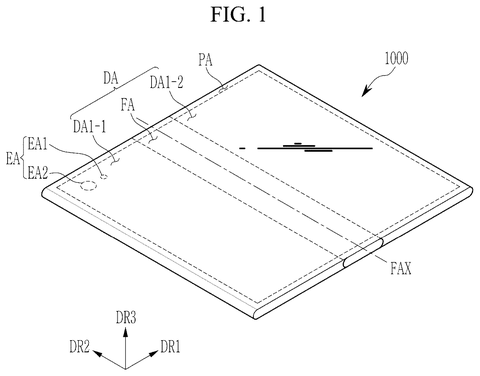

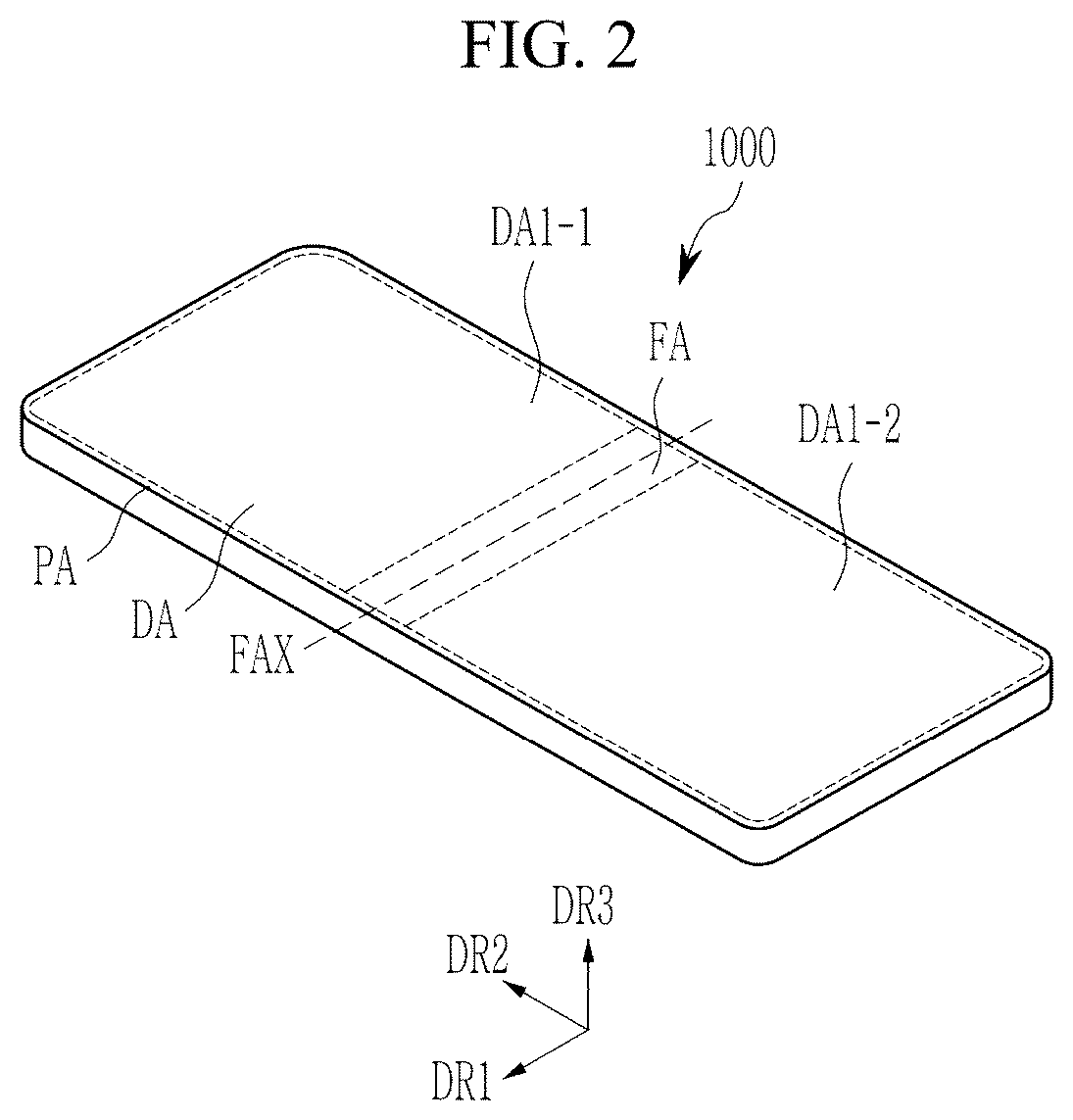

Display panels, particularly OLED panels of the type Samsung manufactures at scale, contain organic compounds that degrade when exposed to UV light. Most existing protection comes from the glass cover itself, but that coverage can be inconsistent, especially in flexible or foldable devices where the glass may be thinner or replaced by plastic. Distributing UV absorption across multiple film layers provides a more thorough and controllable barrier.

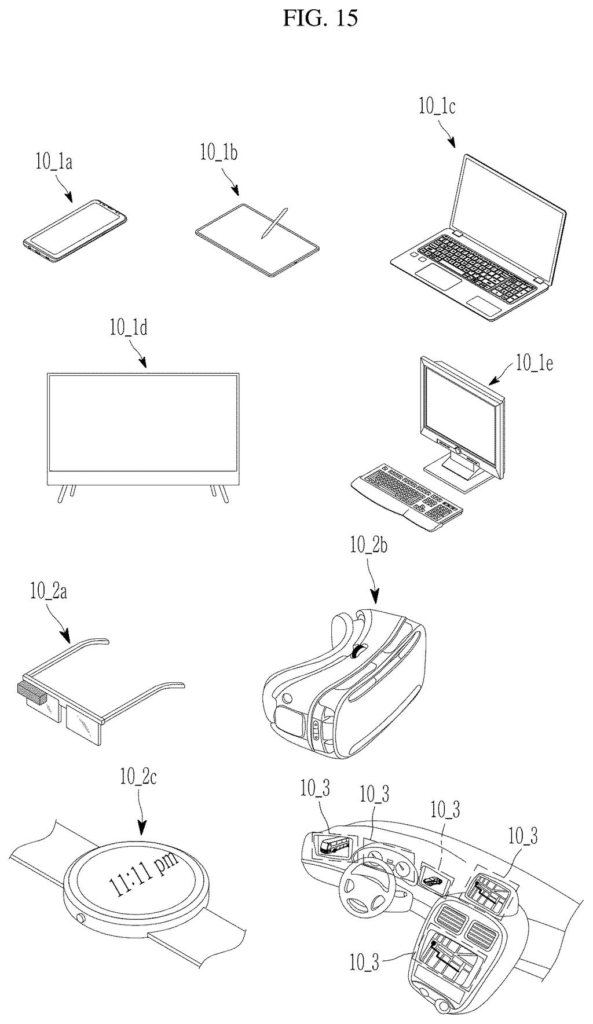

For consumers, this could translate to screens that hold their color accuracy and brightness longer, particularly in devices used frequently outdoors. For Samsung, which supplies display panels to its own Galaxy phones as well as other manufacturers, a standardized UV-protection film layer could become a quality differentiator across its product lineup.
This is a fairly narrow materials engineering patent, not a flashy software feature or a new form factor. But it addresses a real and underappreciated problem: UV degradation in OLED screens is a slow, invisible process that users only notice years into ownership. If Samsung has genuinely nailed the right concentration range for UV absorbents across multiple film types, this is the kind of unglamorous detail that adds up to a phone that looks better for longer.
