Qualcomm Patents a Chip That Checks Its Own Safety Systems While Running
Most chips only check their safety systems at startup. Qualcomm's new patent describes a chip that keeps running those checks in the background while it's already doing real work, so faults don't go undetected until it's too late.
How Qualcomm's chip tests itself without stopping
Imagine a car's airbag system that only tests itself when you turn the ignition. If something breaks an hour into your drive, you wouldn't know until you actually needed it. Chips inside cars, medical devices, and industrial equipment have the same problem: their built-in safety checks often only run at boot-up.
Qualcomm's patent describes a way for a processor to test its own safety systems while it's actively processing data. The chip generates a kind of probe signal, feeds it through the safety circuitry, and checks whether the output looks right. If something is wrong, the chip flags it immediately.
The key difference from older approaches is the timing. The self-test doesn't require the chip to pause or restart. It runs in the background, so a fault that develops mid-operation gets caught right away rather than sitting silently until the next reboot.

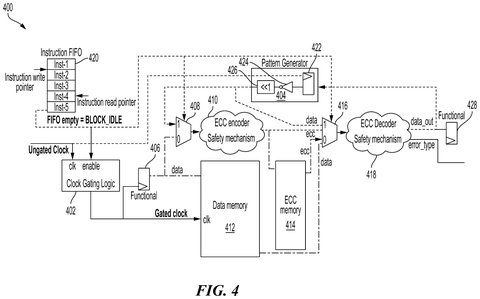

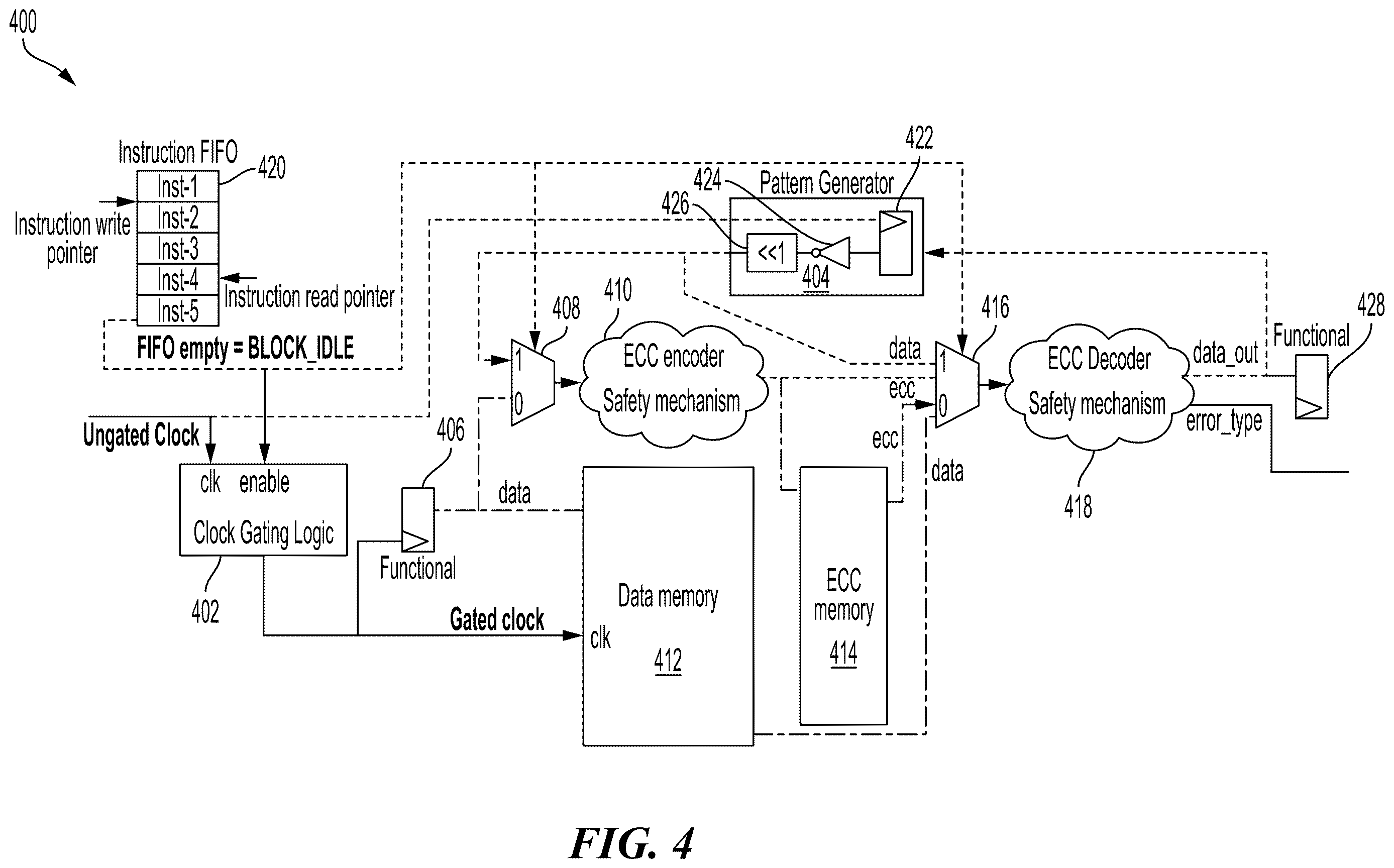

How the test pattern and syndrome detection work
The patent covers a hardware-based system for testing a processor's safety mechanisms (the built-in circuits designed to detect errors in computation) while the chip is actively running.

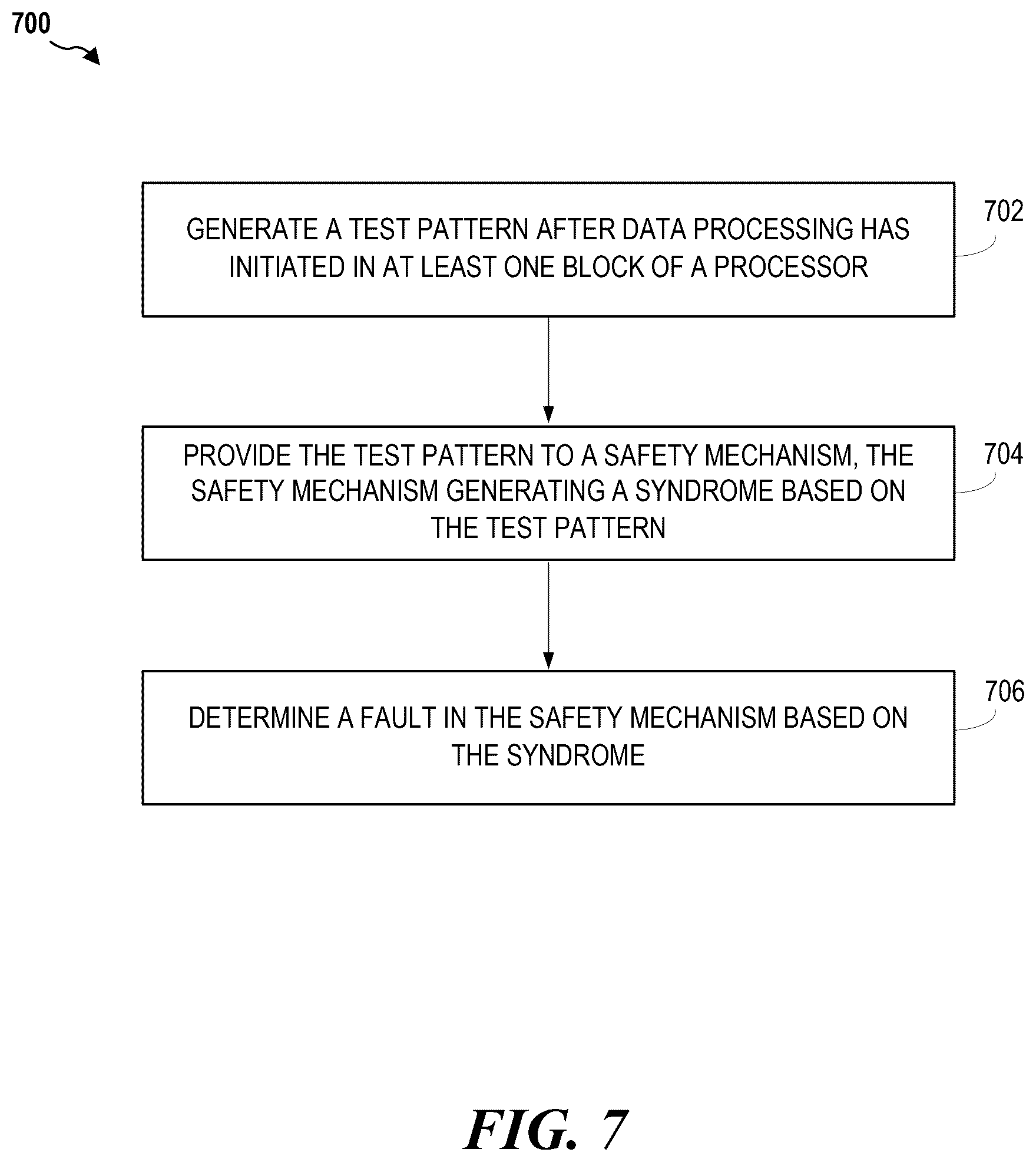

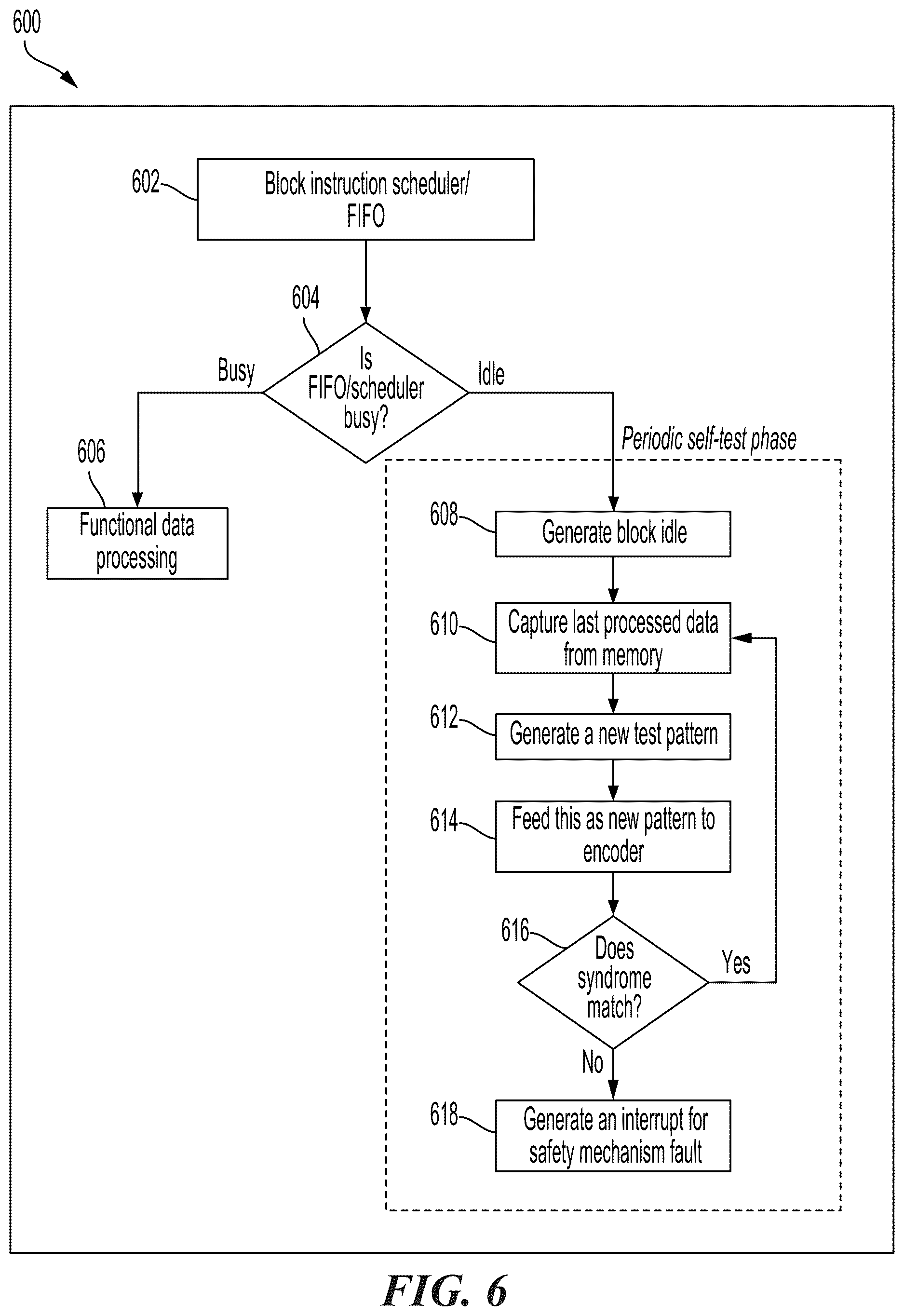

Here's how the process works:
- After the processor has already started handling real data, the logic generates a test pattern, a known input designed to produce a predictable response.
- That test pattern is fed into the safety mechanism under test.
- The safety mechanism produces a syndrome (a mathematical fingerprint of the output). If the circuitry is working correctly, the syndrome matches an expected value. If it doesn't match, a fault is reported.

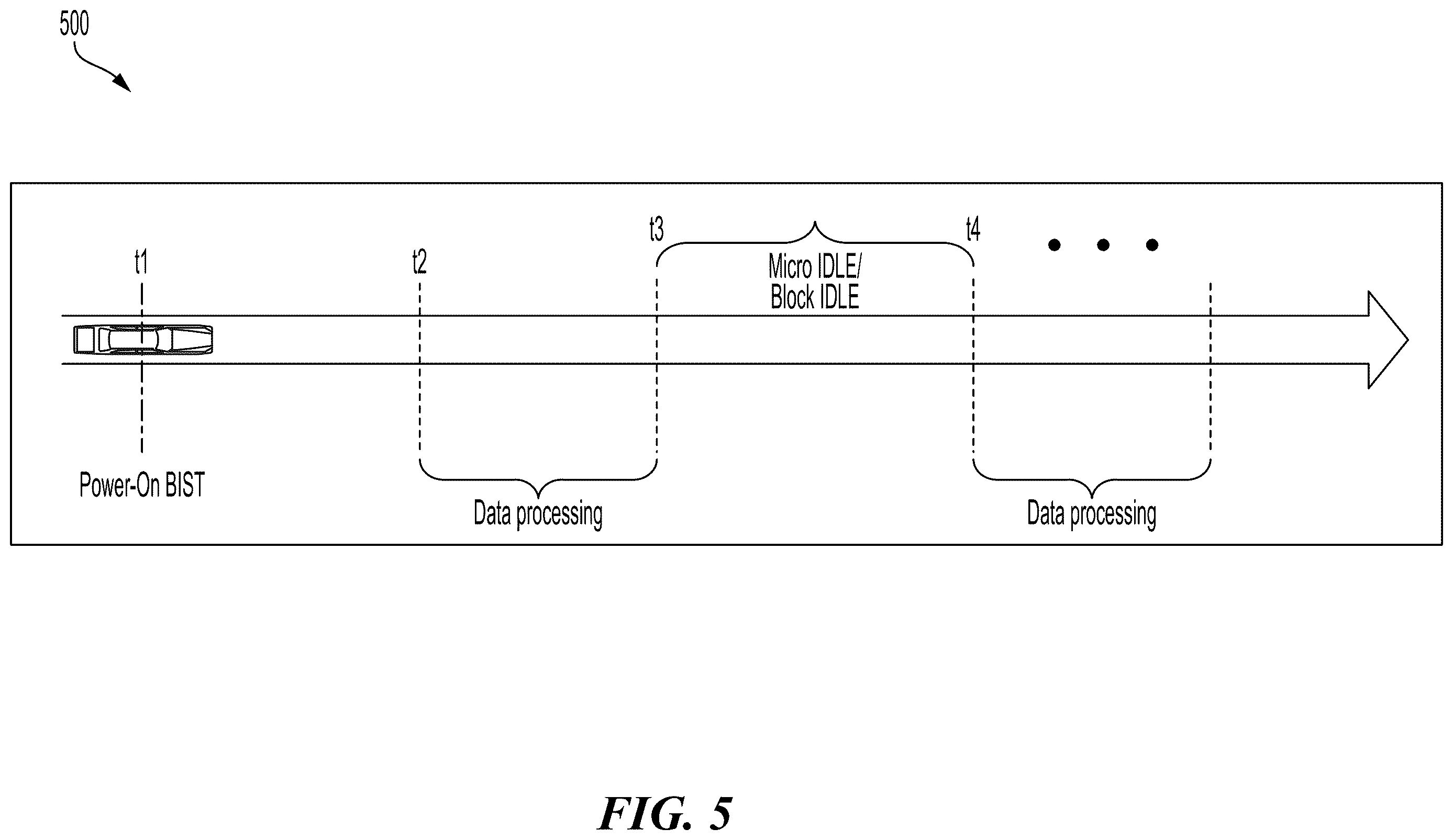

The phrase "after data processing has initiated" is the core technical claim. Traditional Built-In Self-Test (BIST) approaches run at startup or during dedicated idle windows. This patent describes testing that happens during normal operation, which means faults that develop over time, due to heat, wear, or radiation exposure, get caught in a live session rather than waiting for the next cold boot.
What self-testing chips mean for cars and critical devices

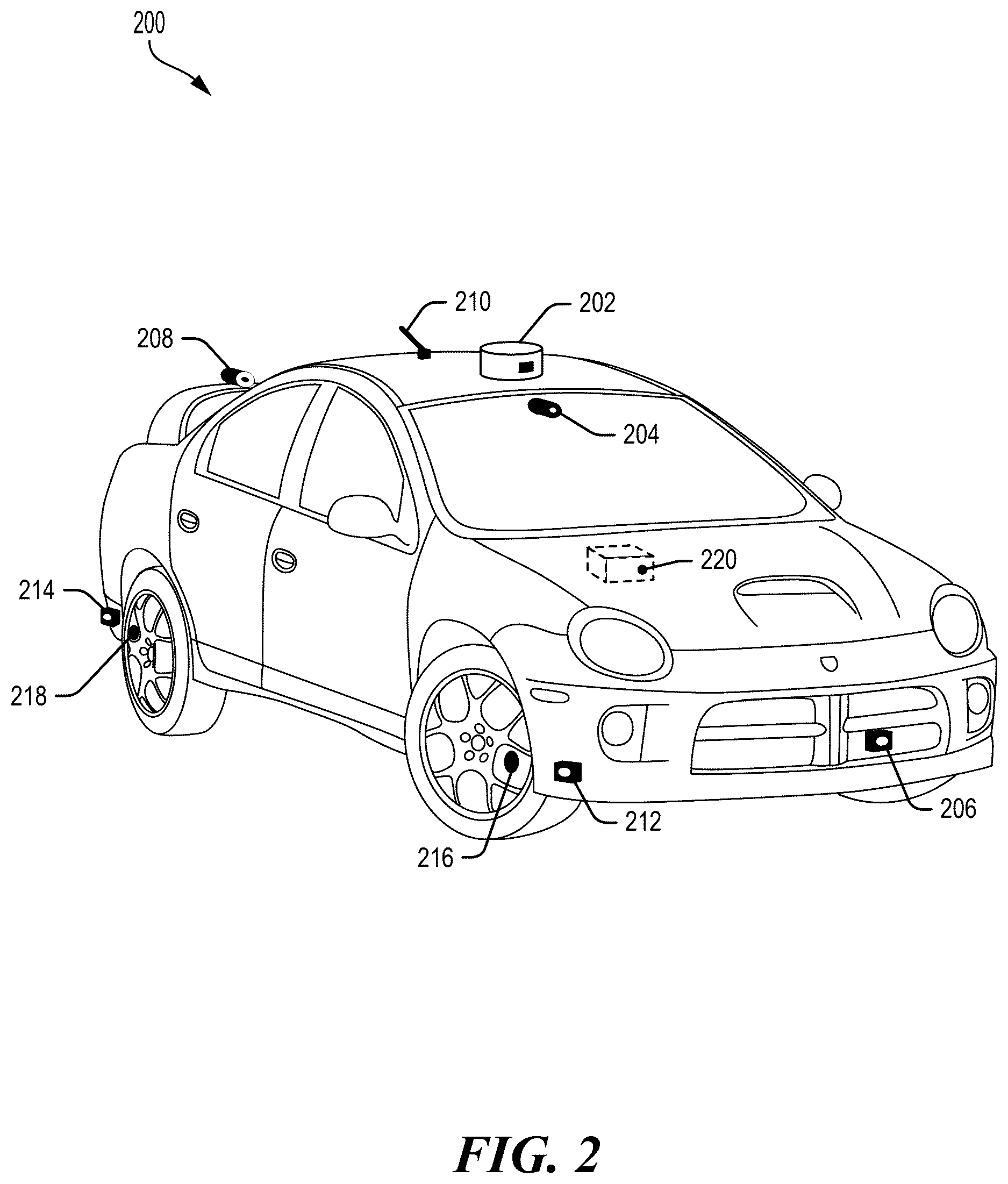

Automotive and industrial chips must meet strict safety standards (like ISO 26262 for vehicles) that require fault detection within a defined time window. A chip that only tests itself at startup can miss faults that develop while the vehicle is already on the road. Qualcomm's approach could help its automotive-grade processors satisfy those continuous-monitoring requirements without adding dedicated idle time that slows performance.
For everyday consumers, you probably won't see a settings toggle for this. But if Qualcomm's Snapdragon Ride or similar automotive silicon ships with this capability, it becomes part of the infrastructure that makes advanced driver-assistance systems more trustworthy. The same logic could apply to any safety-critical deployment where a chip needs to stay reliable for extended periods without a restart.
This is unglamorous but genuinely useful work. Continuous in-operation self-testing is exactly what automotive and industrial certification bodies are pushing chip vendors toward, and a hardware-level implementation is cleaner than patching it in firmware. It won't make headlines, but it's the kind of foundational IP that matters when Qualcomm is competing for design wins in vehicles and medical hardware.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

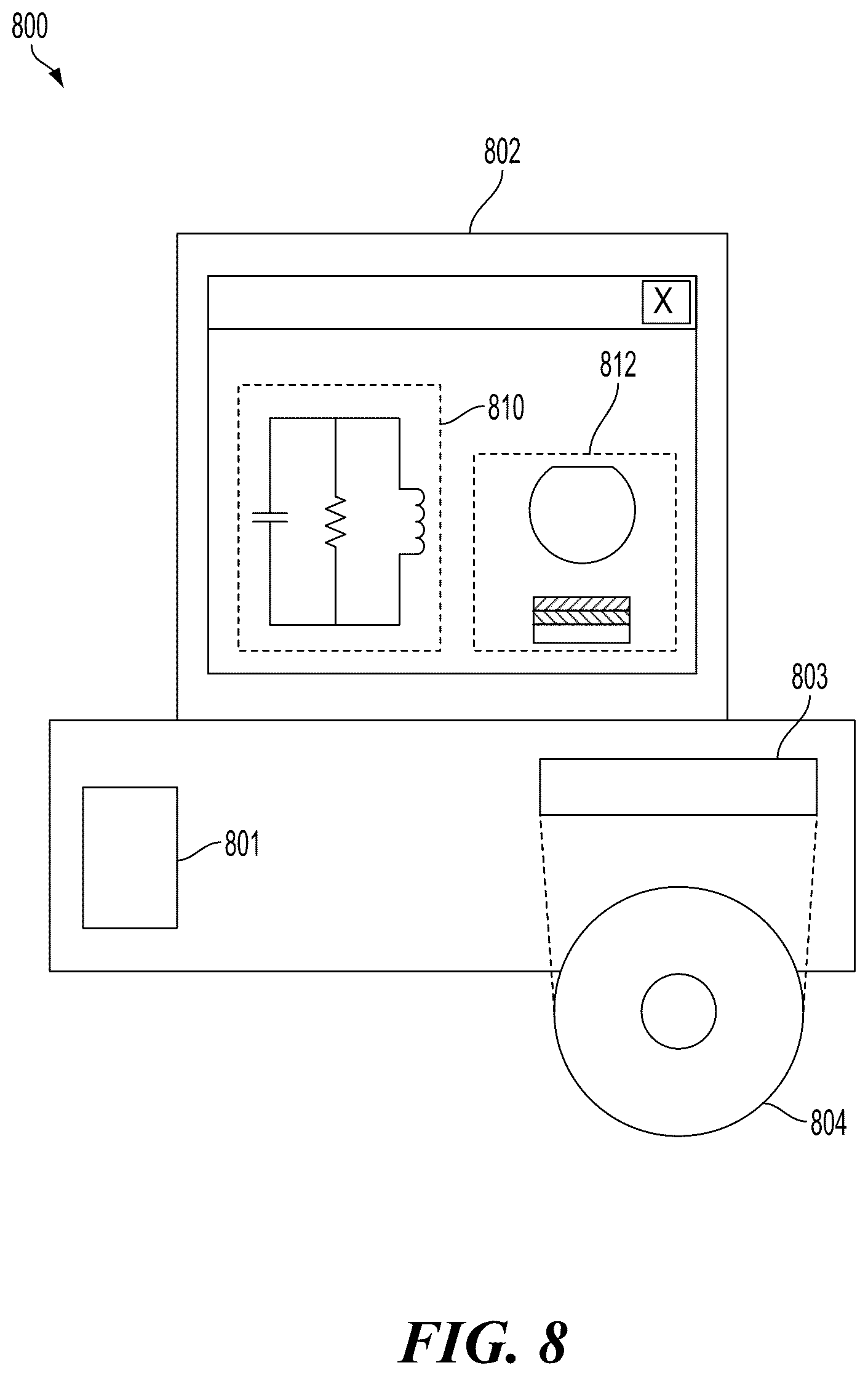

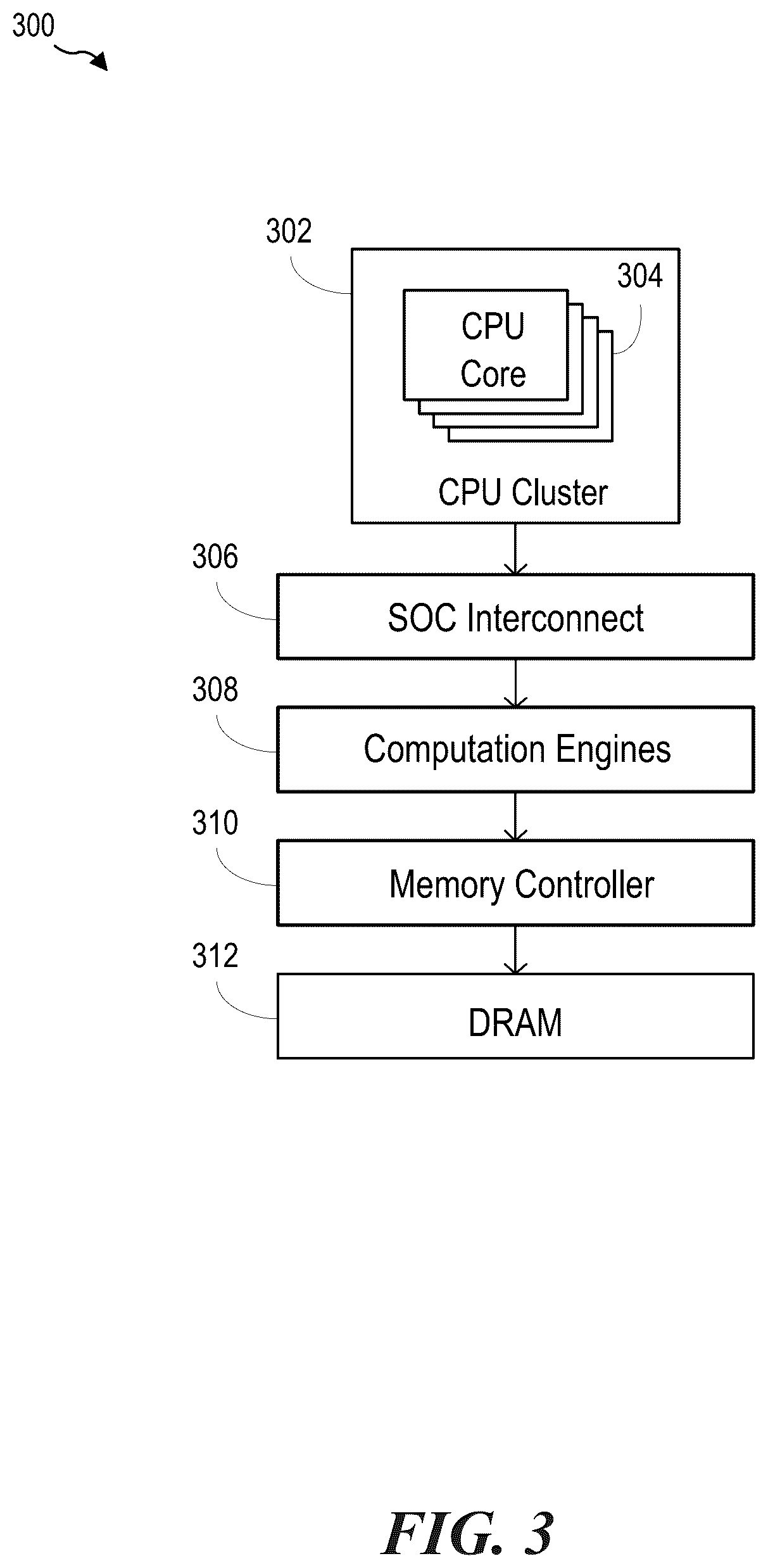

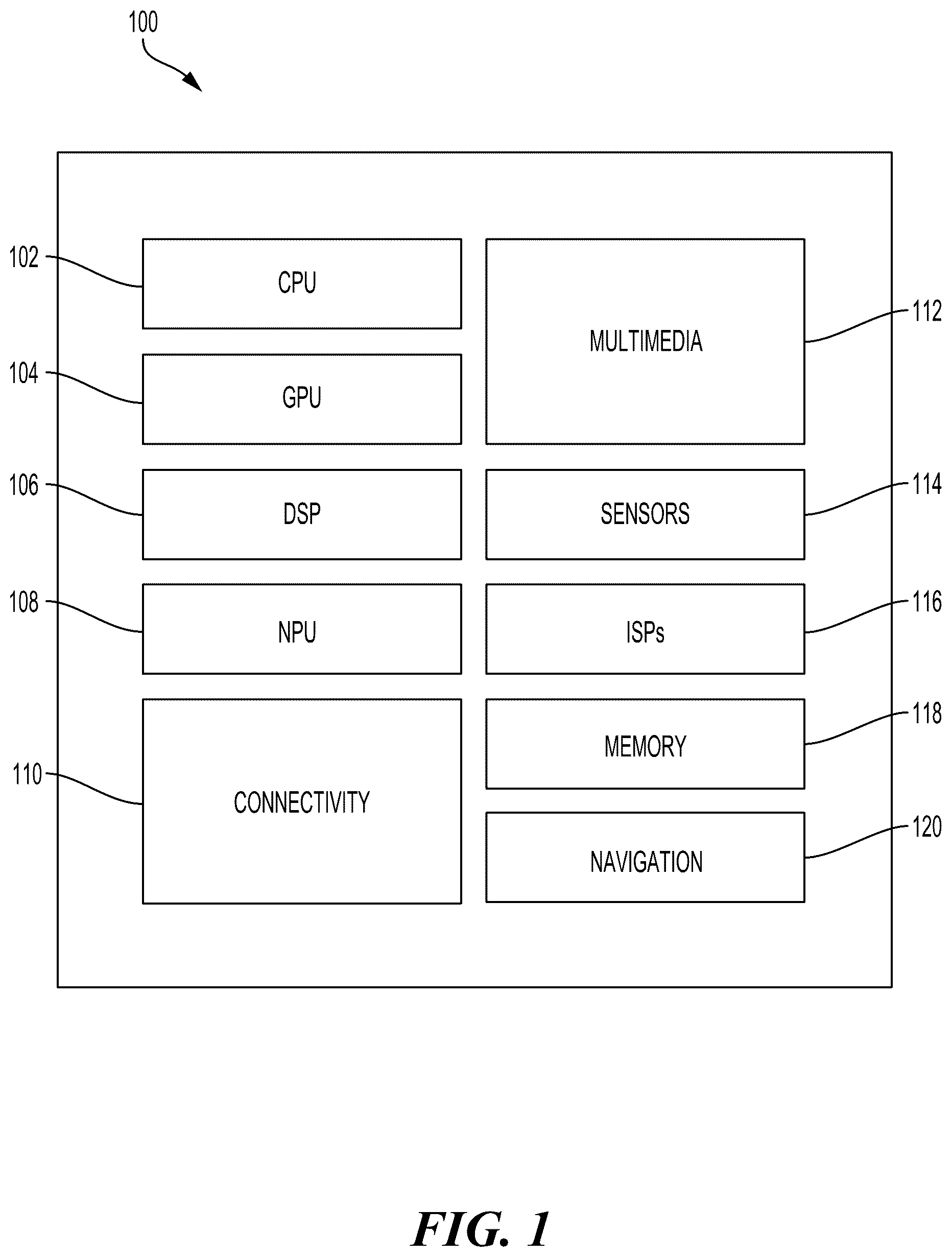

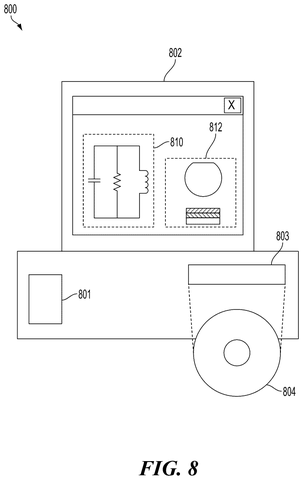

8 drawing sheets from US 2026/0227441 A1 · click any drawing to enlarge
