Samsung Patents an Antenna That Wraps Around the Camera to Save Space
As smartphone cameras keep growing, they're eating up the real estate that antennas need. Samsung's latest patent tackles that trade-off head-on by routing antenna hardware directly around the camera assembly itself.
How Samsung fits antennas around a bulky camera bump
Imagine trying to cram a full-size antenna into a phone that's already got a massive camera system bulging out of one corner. There's just not enough room — unless you get creative about where you put the antenna.
That's exactly what this Samsung patent addresses. It describes a flexible circuit board — basically a thin, bendable strip of electronics — that bends and wraps around the protrusion that holds the camera module in place. Instead of the antenna living somewhere else in the phone and competing for space, it conforms to the camera's own shape, covering two angled or perpendicular faces of that protrusion.
The result is a phone that can carry both its cellular antenna hardware and a large camera assembly in roughly the same corner of the device, without one forcing the other out. It's the kind of quiet engineering that makes thinner, more capable phones possible without obvious trade-offs.
How the flex PCB wraps the camera support protrusion

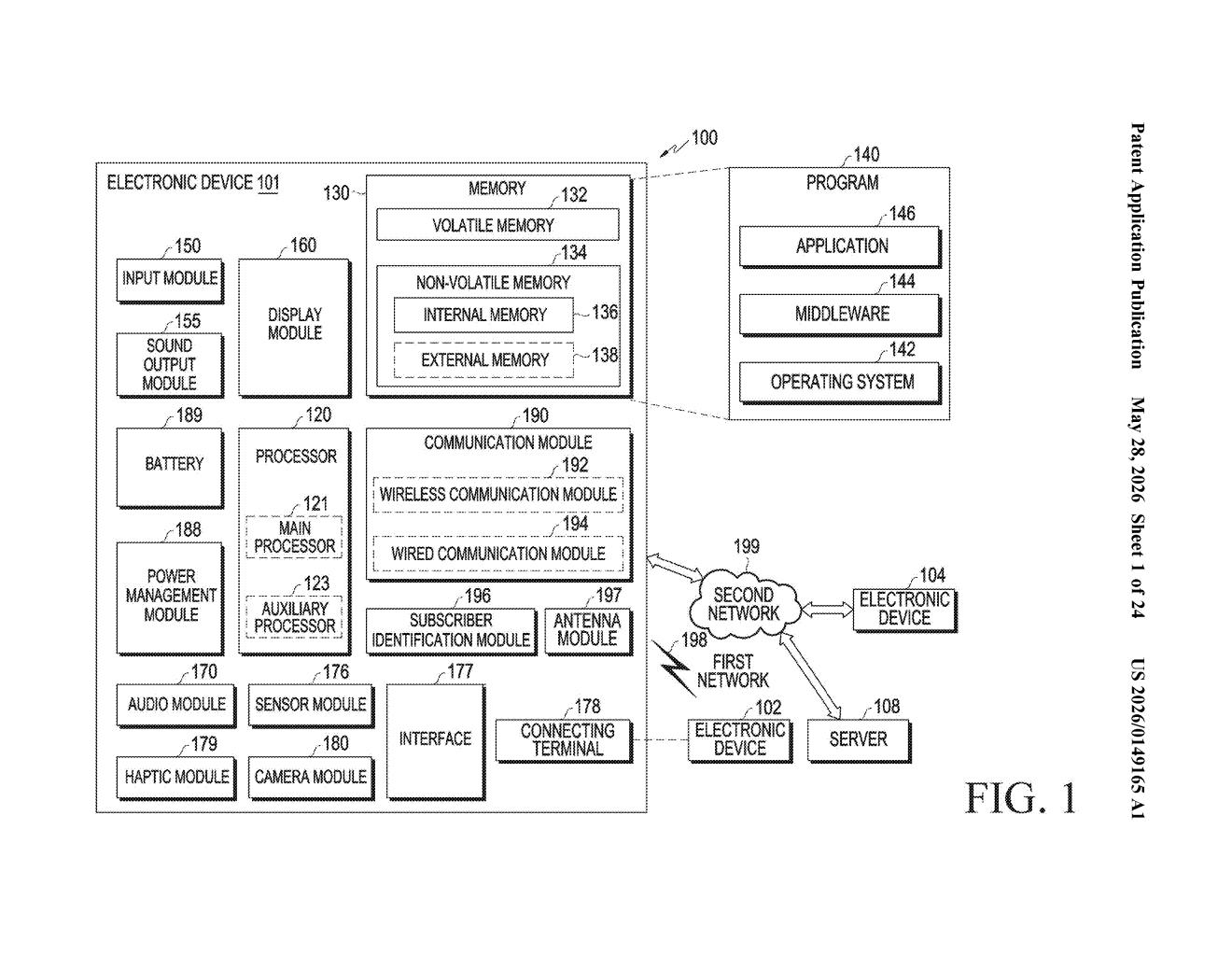

The patent describes an electronic device — almost certainly a smartphone — with two distinct antenna systems operating in two different frequency bands, both packed into the corner of the device near the camera.
The first radiator is built directly into part of the side wall of the housing (think: the metal frame of the phone). It handles wireless communication in a first frequency band — likely sub-6GHz cellular or Wi-Fi.
The antenna module handles a second frequency band — potentially mmWave 5G or a separate cellular band — and is tucked between the camera assembly and an adjacent section of the side wall.
The clever part is the first flexible printed circuit board (FPCB) — a bendable electrical connector that extends from the antenna module and wraps around a "support protrusion," a physical tab or bracket that sticks out from the camera assembly. The FPCB is specifically routed to cover or surround two faces of that protrusion that are angled or perpendicular to each other, meaning:
- The antenna substrate can follow the camera's three-dimensional contours
- Wiring doesn't need to take a longer path around the camera
- Both antenna systems can coexist in a tight corner without signal interference compromises
This is fundamentally a mechanical packaging patent — it's about how to arrange components physically, not a new RF technology per se.
What this means for Galaxy antenna and camera design
Camera modules on flagship phones — especially Samsung's Galaxy S and Z series — have grown significantly, and they don't share space graciously. Antenna placement is one of the most constrained problems in smartphone design: put them in the wrong spot and you get dropped calls or reduced throughput. This patent shows Samsung engineering a way to use the camera module's own structure as an antenna scaffold, which could allow for larger sensors or more camera hardware without sacrificing wireless performance.
For you as a user, the payoff is less visible but real: better antenna coverage in thinner or more camera-heavy phones. It's also worth noting Samsung files many structural antenna patents like this — it's a consistent signal that the company is investing seriously in making mmWave 5G practical in real-world handset form factors.
This is unglamorous but necessary engineering — the kind of patent that never makes a keynote slide but absolutely shapes what a flagship phone can be. Samsung is clearly wrestling with how to keep antenna performance high as cameras take over more of the device's interior. It's not a breakthrough, but it's a real solution to a real constraint, and that makes it worth tracking.
