Samsung Patents a Sensor Design That Captures Light From Wider Angles
Most light sensors only see what's directly in front of them. Samsung Display is patenting a way to physically tilt the angle of incoming light so a single flat sensor panel can pick up signals from multiple directions at once.
What Samsung's angled light-guide sensor actually does
Imagine a camera that can only photograph things directly above it, not very useful if you want it hidden under a screen and still able to detect things at an angle. That's basically the problem with today's under-display sensors.

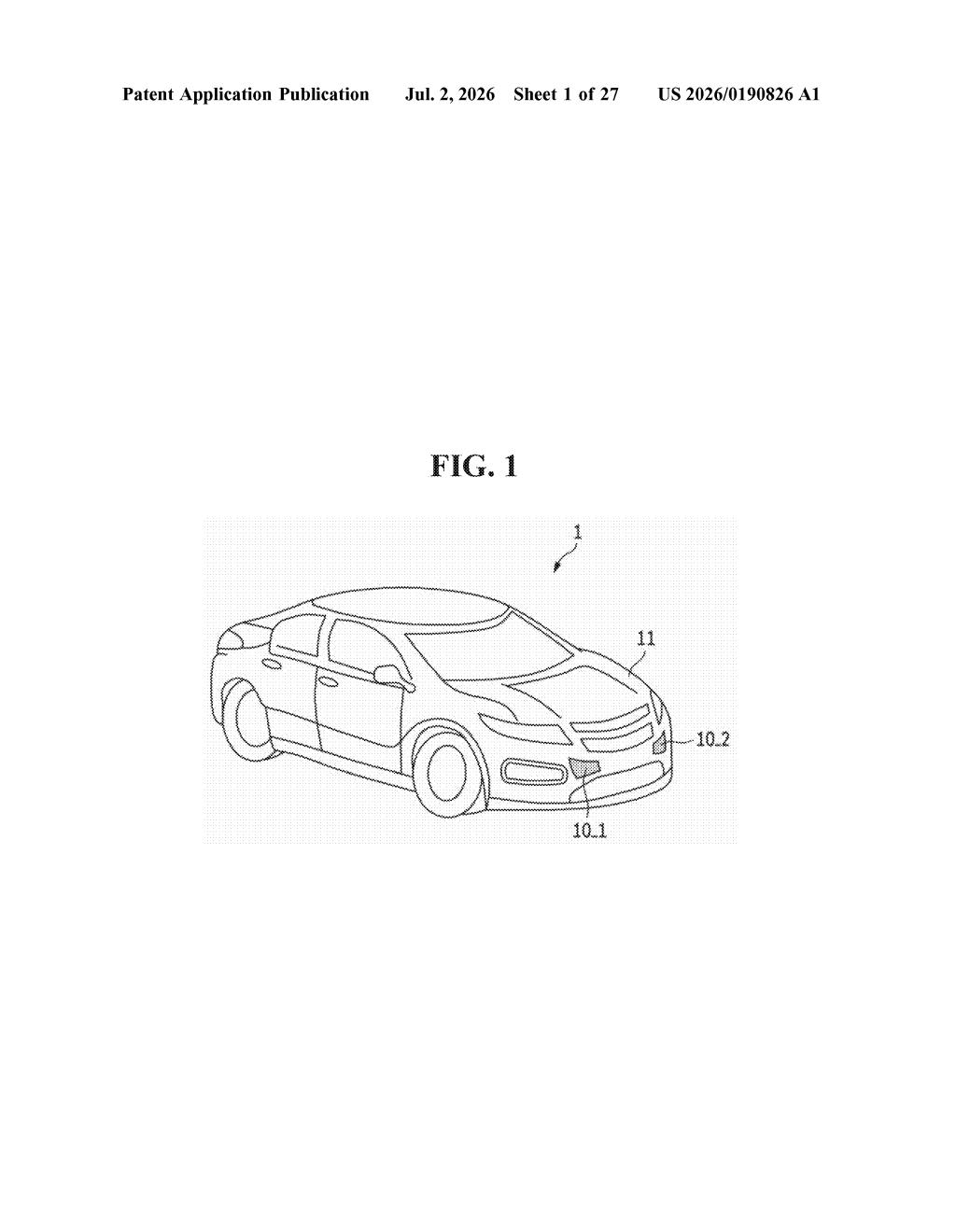

Samsung Display's patent describes a thin optical layer that sits on top of a sensor panel and uses tiny hollow tubes (called light-guide holes) to steer incoming light. One set of these tubes is lined up straight, so light hits the sensor head-on. A second set is deliberately shifted to one side, which means light coming in from an angle gets routed down to a different part of the sensor below.
The result: one flat panel can effectively 'see' in more than one direction without needing separate sensor modules or extra thickness. That matters a lot for smartphones and other devices where every millimeter counts.
How the shifted light-guide holes redirect incoming light
The patent describes a layered sensor structure built on a substrate divided into at least two zones. On top of the sensor elements sits an optical layer made up of two parts: a light-blocking layer peppered with tiny transmission holes, and a light-guide layer of patterned columns sitting above it.
Those light-guide columns are the key. In the first zone, each column's hollow core (the first light-guide hole) lines up exactly with the opening in the sensor below it, so only light coming from straight above reaches that sensor area. Standard stuff.
In the second zone, the column's hollow core (the second light-guide hole) is laterally shifted relative to the sensor opening beneath it. Think of it like angling a straw sideways: light now has to enter at an off-axis angle to travel all the way down and hit the sensor. Light coming straight down misses the target entirely.
- Zone 1 (aligned): captures direct, overhead light, good for ambient brightness or face-detection at zero angle
- Zone 2 (shifted): captures angled light, useful for detecting objects or signals coming from the side
- Light-blocking layer: blocks stray light that would otherwise muddy the signal from either zone
The patent also mentions that this structure is compatible with display panels, strongly implying it is designed for under-display sensor applications.
What this means for under-display sensors and slim devices
Under-display sensors are already in some Samsung phones for fingerprint reading, but this patent goes further by encoding directional sensitivity into the optics themselves. That could let a single thin sensor panel handle tasks that today require separate hardware, like detecting both ambient light levels and proximity at different angles without adding bulk.
For consumers, the practical upside is thinner devices with fewer visible sensor cutouts. For Samsung Display's business, it is a way to add sensor capability as a built-in feature of the display panel itself, which is a meaningful selling point for phone makers who license Samsung's screens.
This is focused, incremental engineering work rather than a conceptual leap. Samsung Display is solving a real physical constraint (light sensors only see in one direction) with a clever but straightforward optical trick. It is the kind of quiet panel-level innovation that makes its way into flagship display specs without anyone noticing until a reviewer says 'the under-display sensor is faster and more accurate.'
