Patent Filing Could Make Foldable Displays More Durable and Crack-Resistant
Foldable phones are impressive, but they have always had a reputation for being fragile. Samsung's latest patent targets that weakness with an extra structural layer built directly into the display stack.
What Samsung's internal display reinforcement actually does
Imagine stacking a few thin sheets of cardboard together to make a stiffer backing for a poster. Samsung's patent does something similar inside a foldable phone screen, adding a reinforcing piece between the layers that hold the flexible display in place.
The display inside a foldable phone isn't just one piece of glass or plastic. It sits on top of a support structure made of multiple parts. Samsung's design inserts a reinforcing member between two of those structural layers, called the module support member and the multi-bars, to make the whole assembly stiffer and more resistant to bending stress.
The goal is straightforward: a foldable screen that flexes thousands of times without the internal structure shifting, creasing, or failing. You probably wouldn't notice this part during normal use, but it could mean your foldable phone holds up much better over the years.
How the reinforcing member fits between the support layers

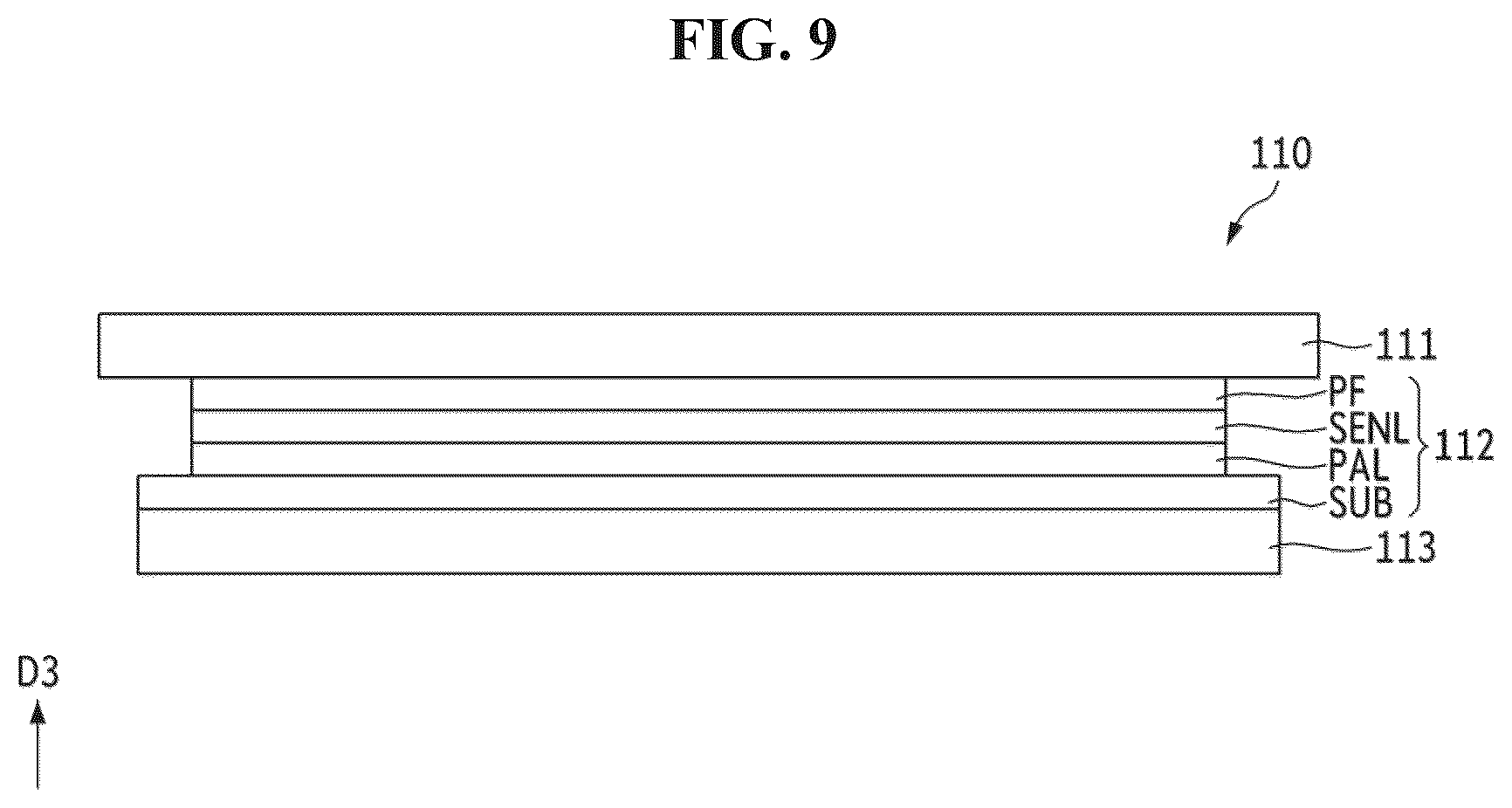

The patent describes a display device with four main layers stacked in the thickness direction of the screen:

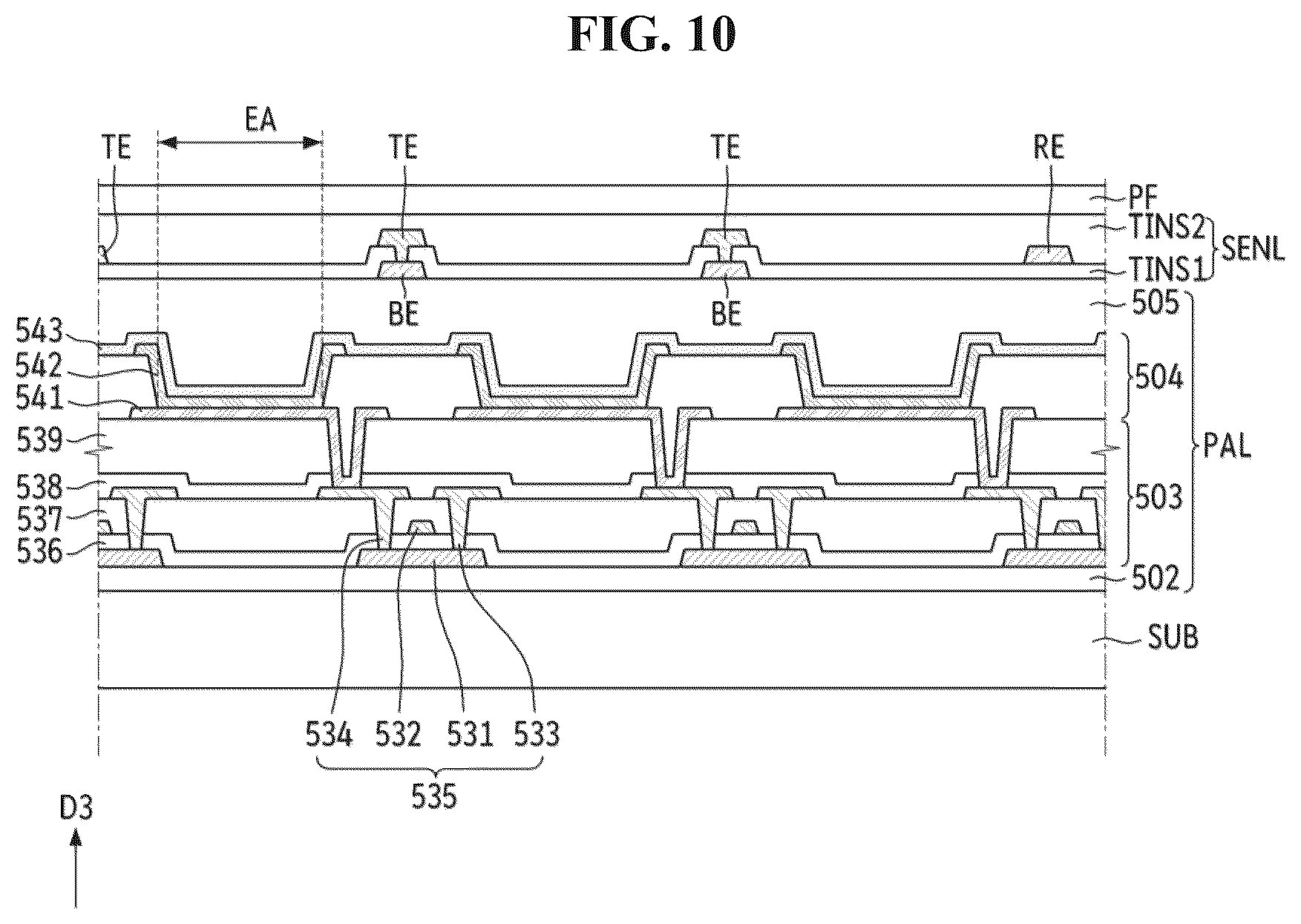

- Display module, the actual flexible screen panel that shows the image.
- Module support member, a backing layer placed directly on the display module to give it a rigid base.

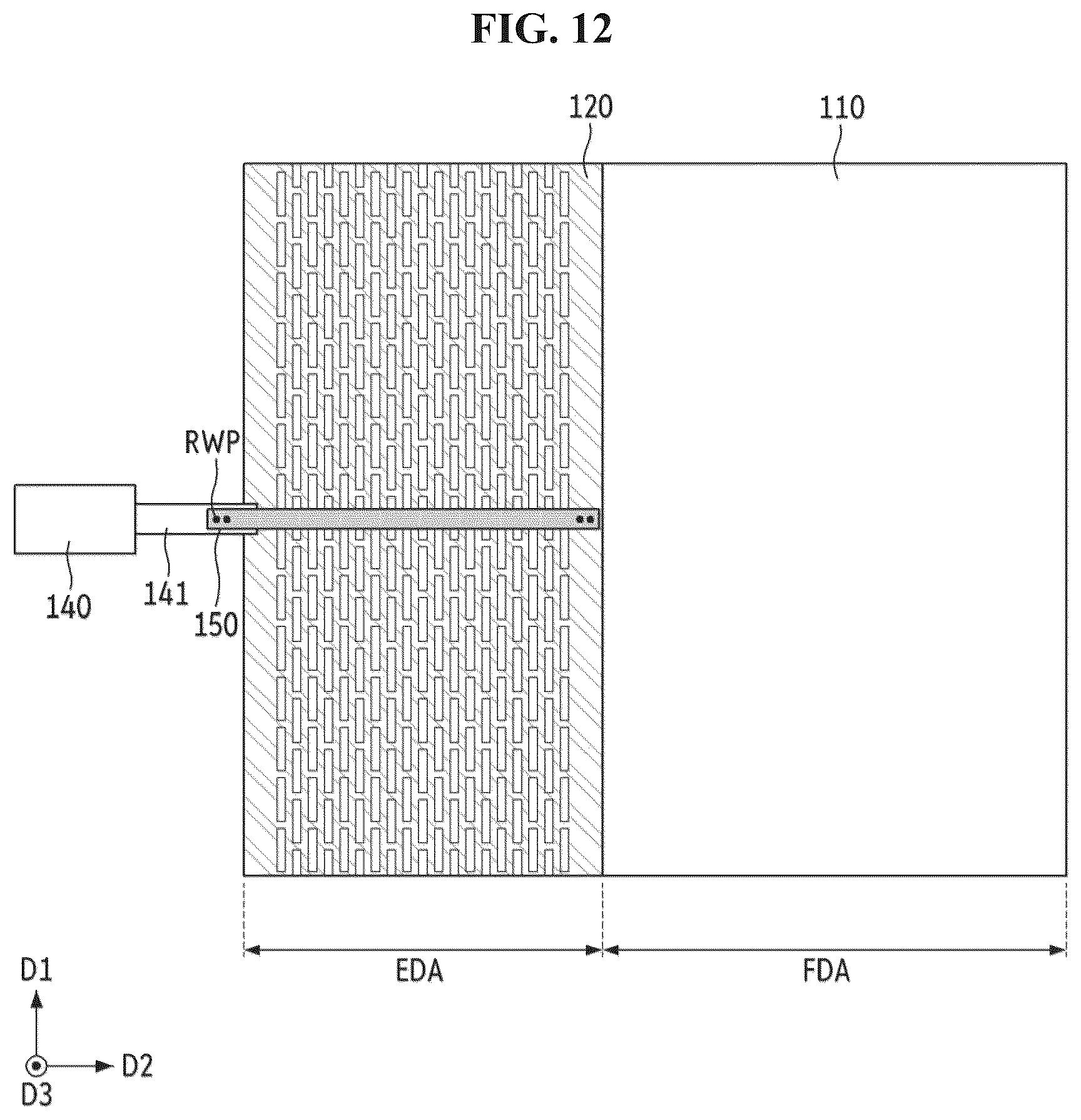

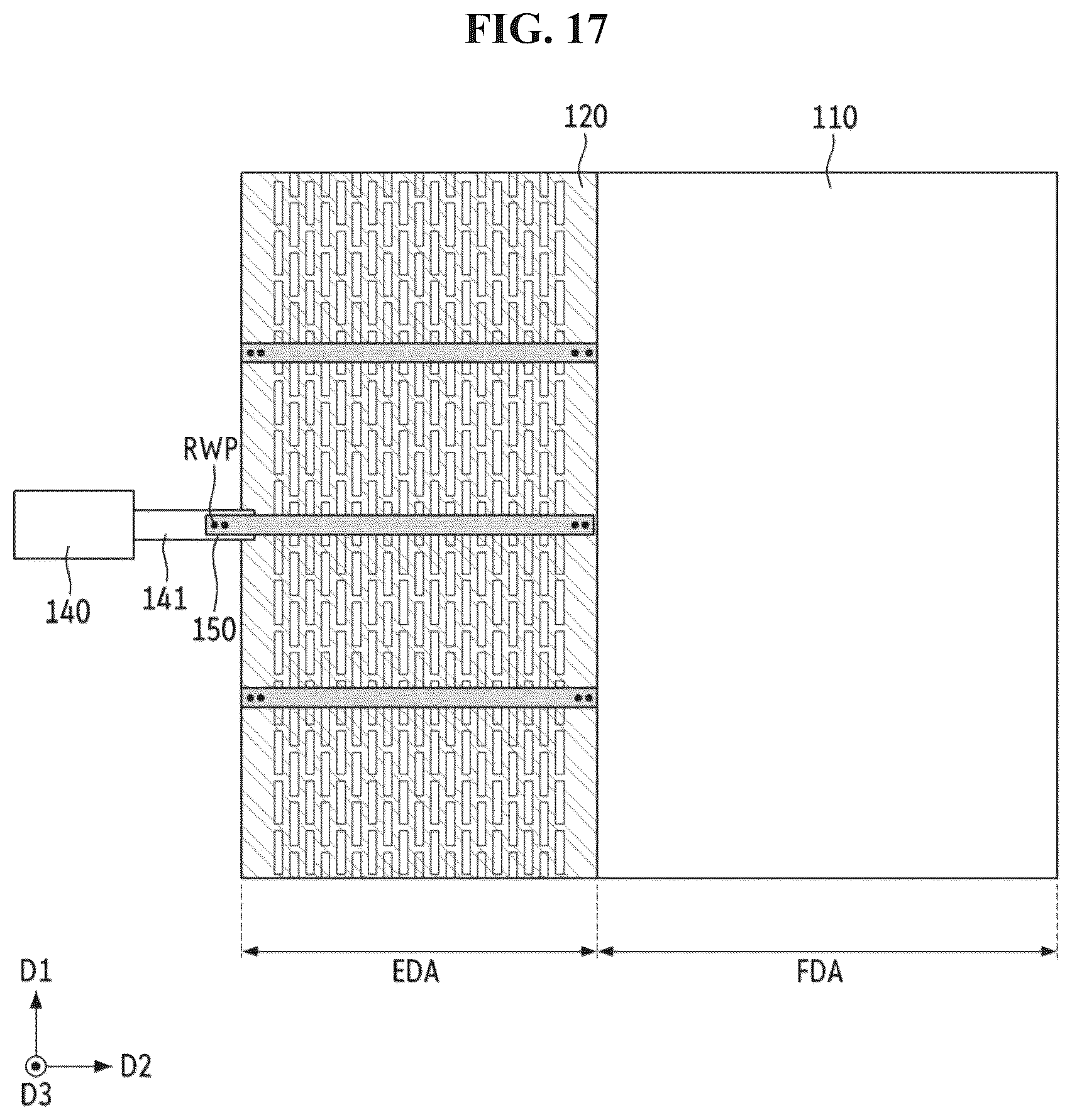

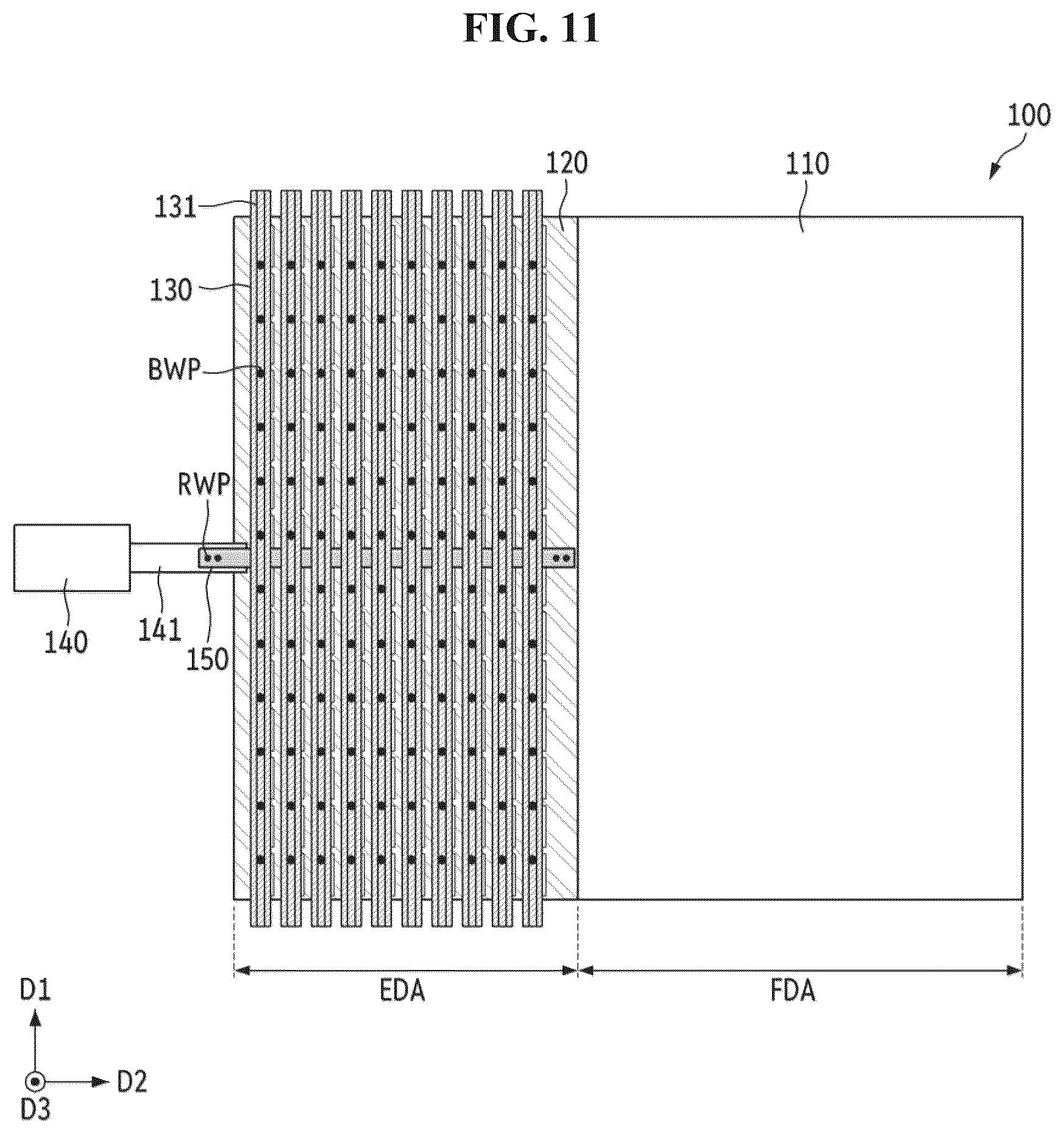

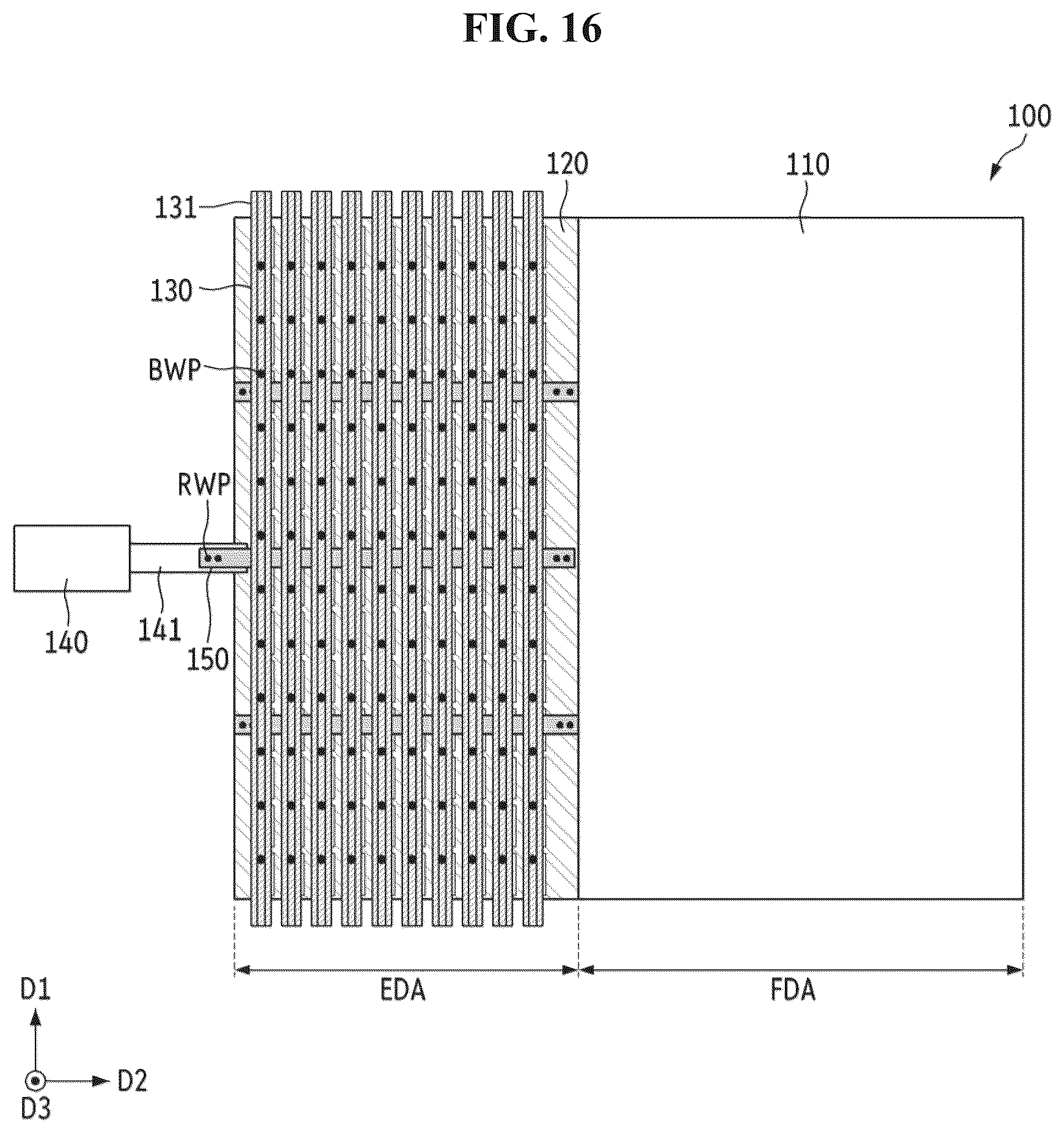

- Multi-bars, a set of narrow parallel bars arranged on the support member, a common approach in foldable designs to allow controlled bending while maintaining some stiffness.
- Reinforcing member, a new structural insert placed between the module support member and the multi-bars.

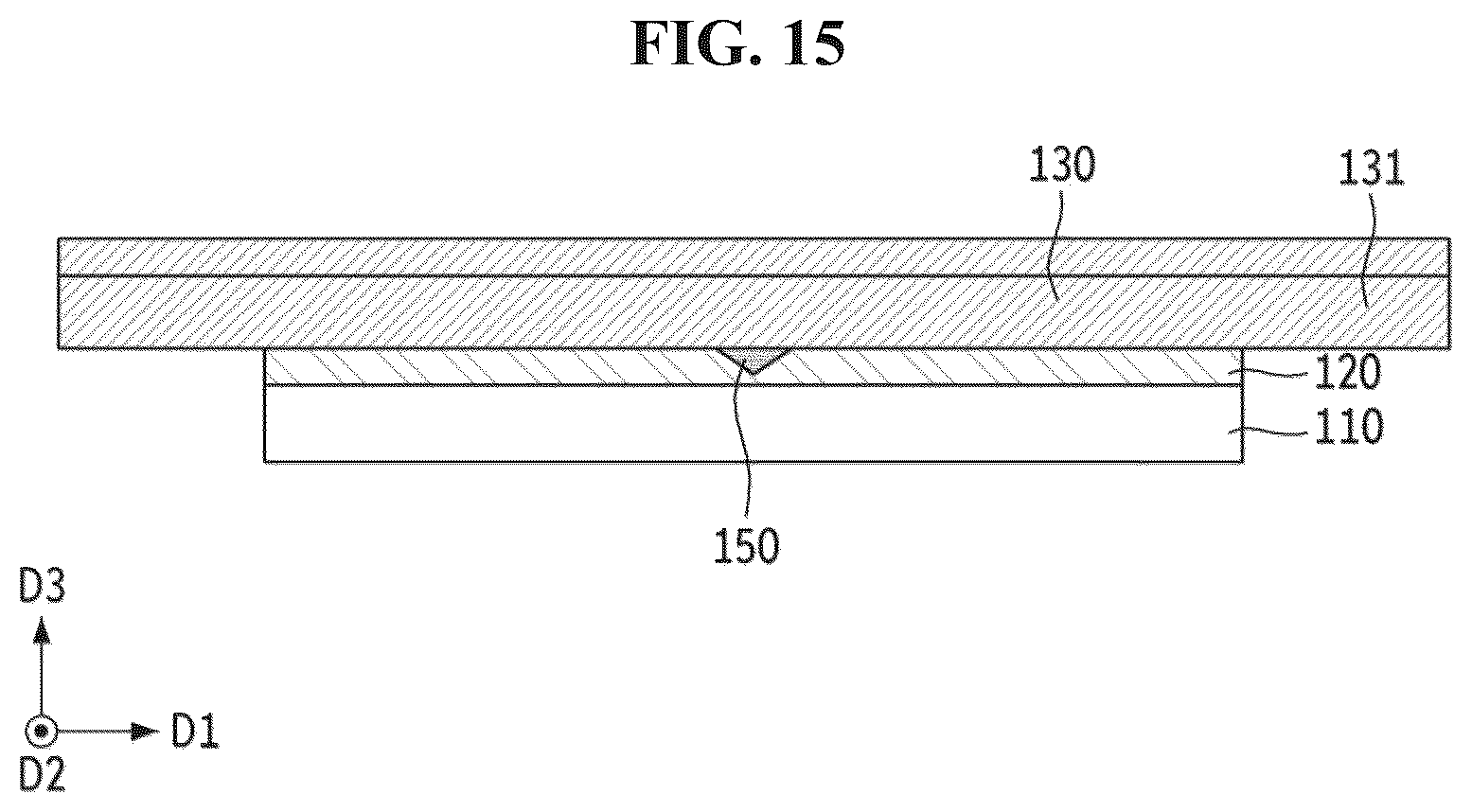

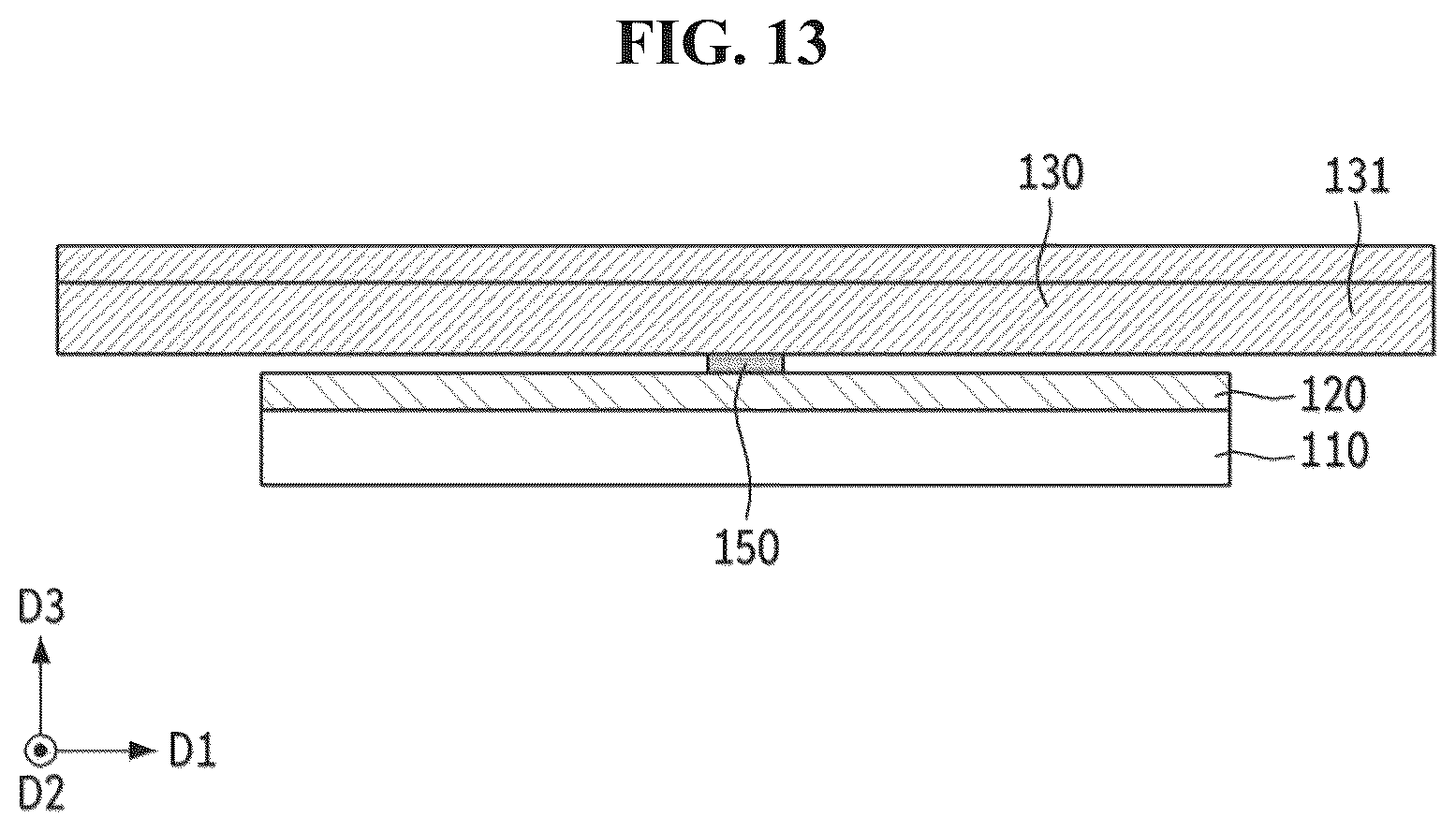

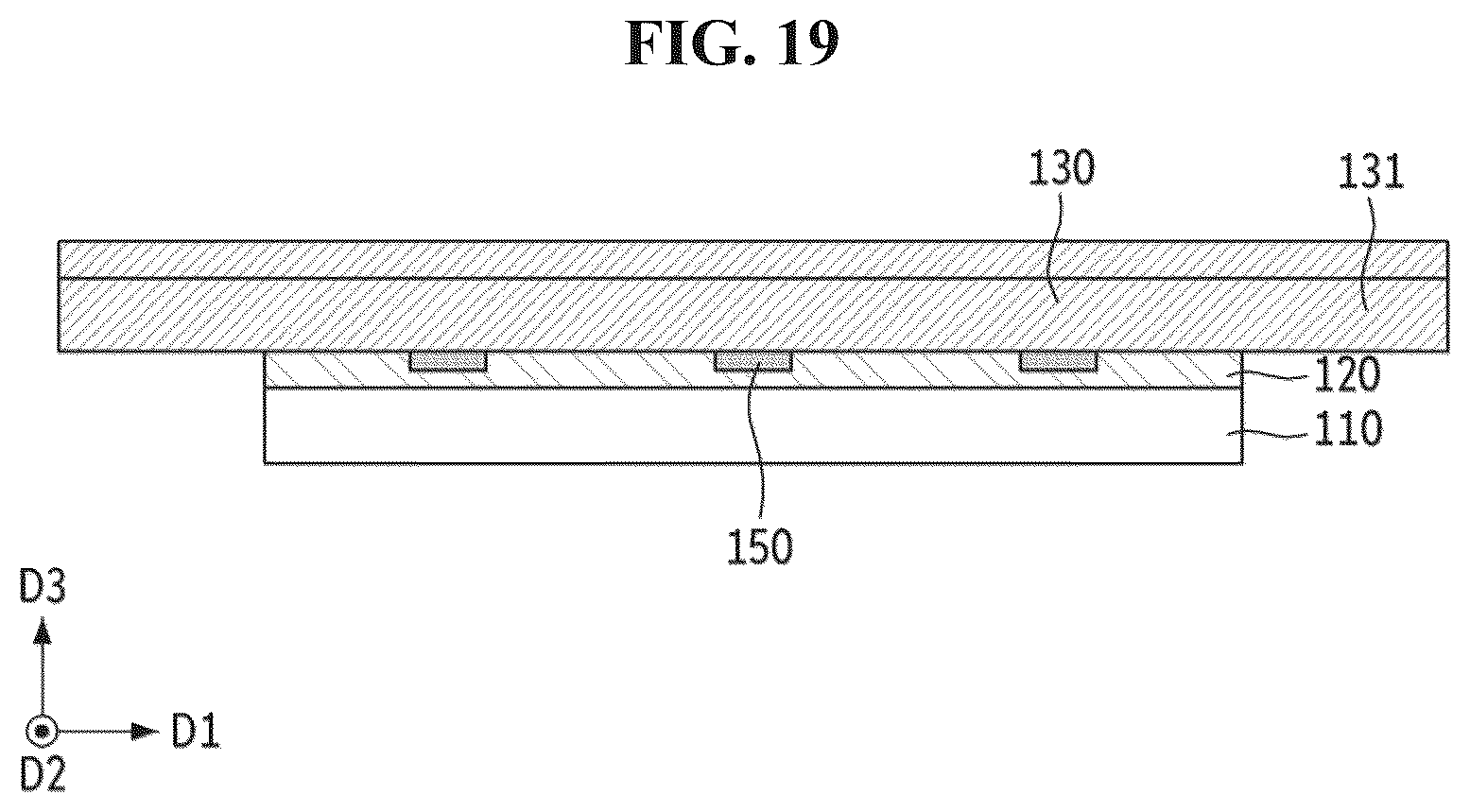

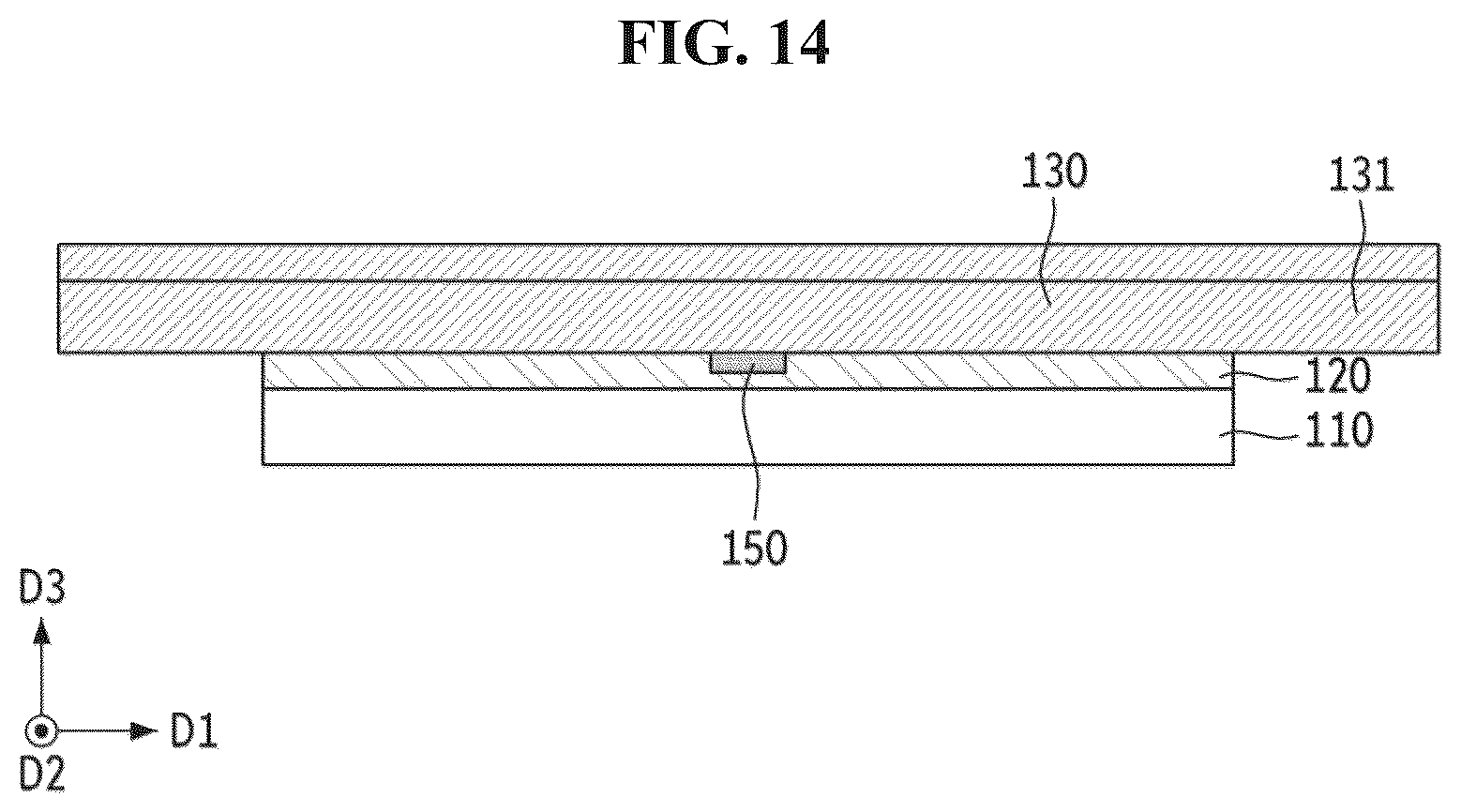

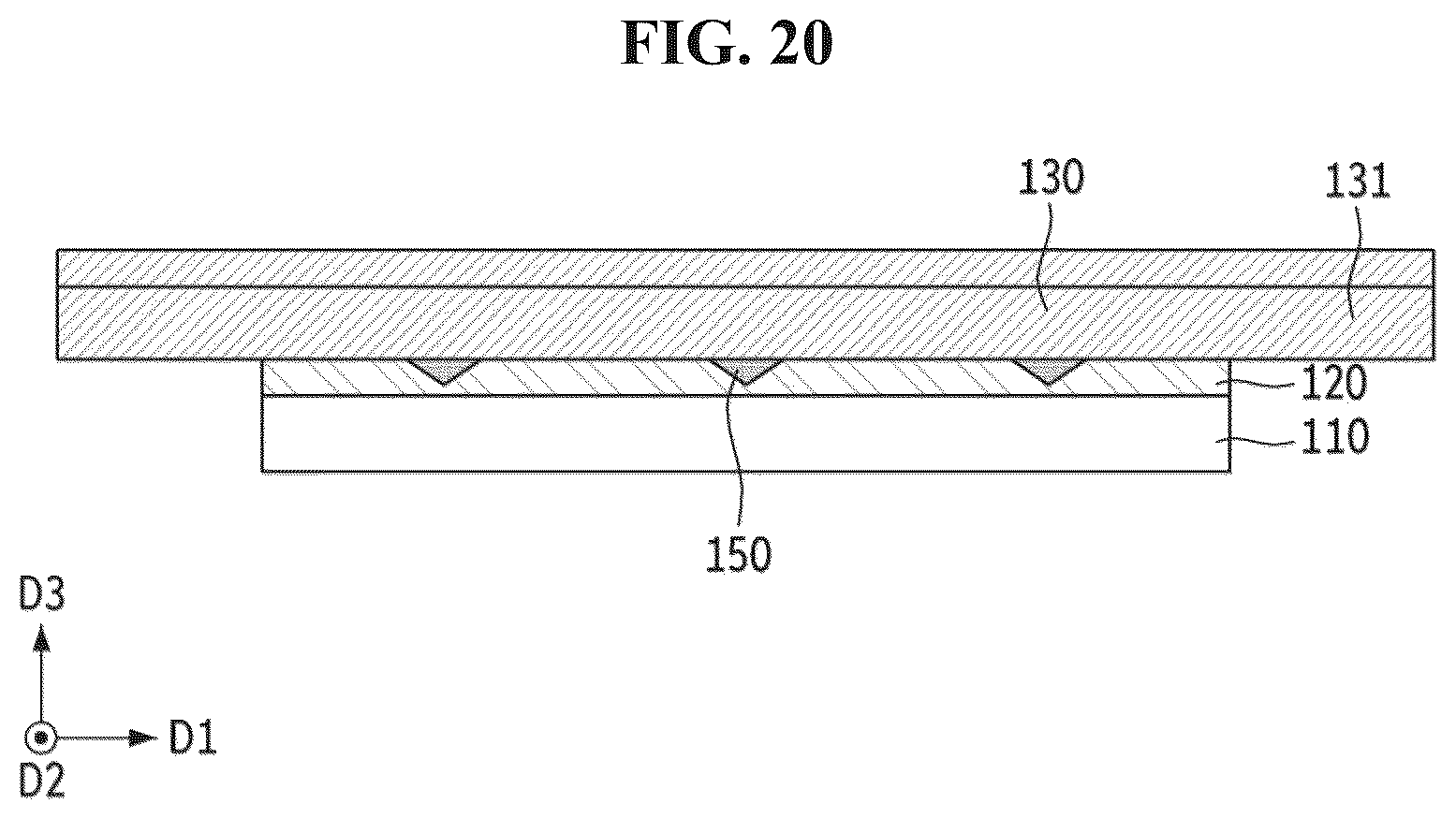

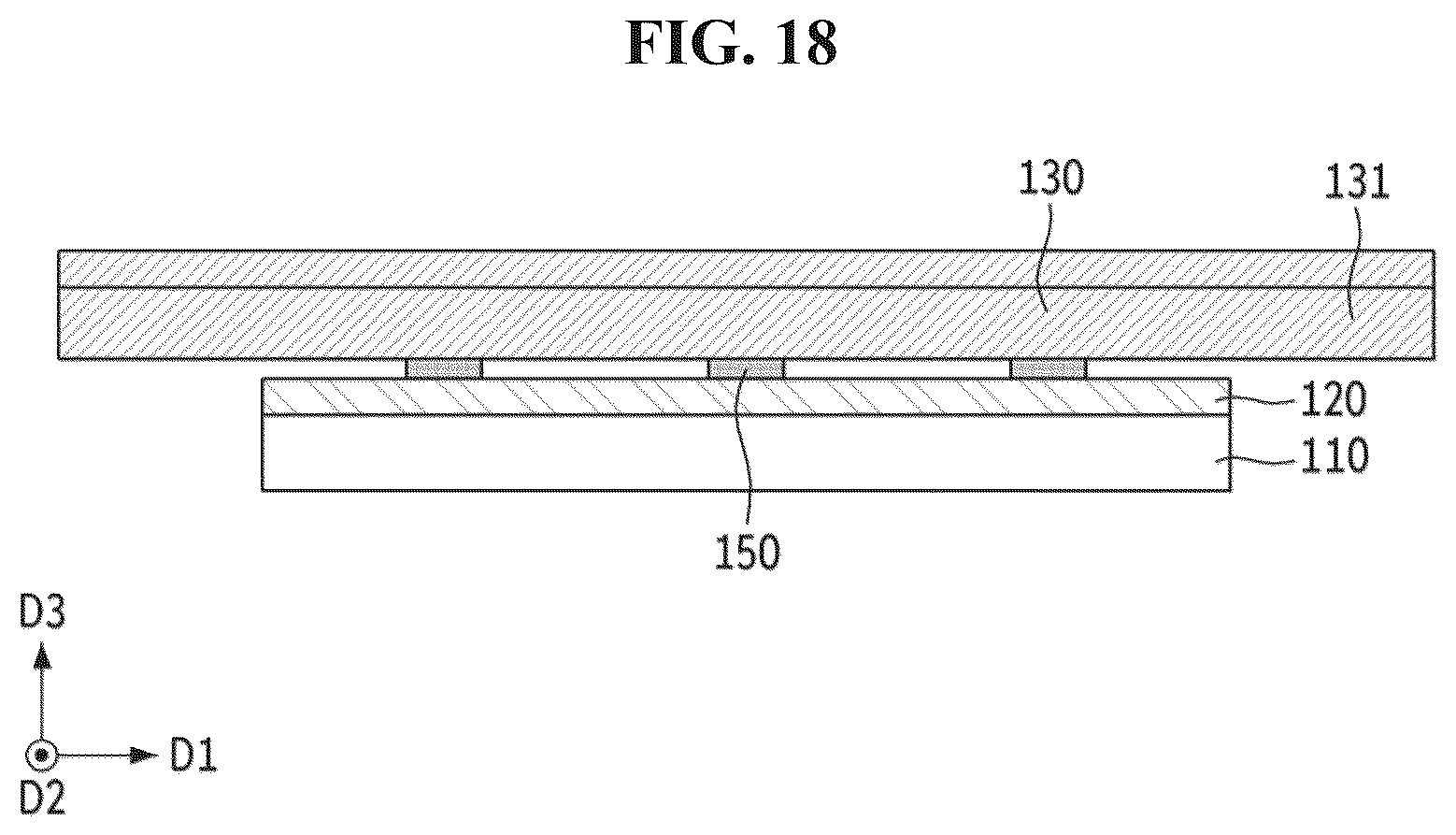

The reinforcing member sits in the gap between the support layer and the multi-bar array, specifically in the thickness direction (meaning it runs through the cross-section of the display stack, not along its surface). This placement is meant to prevent the layers from shifting relative to each other when the device flexes.
Multi-bar systems are already used in foldable devices to distribute bending forces across a controlled hinge area. Adding a reinforcing member between those bars and the support backing reduces the stress concentrations that can cause micro-fractures or visible creasing over time.
What this means for foldable phone durability
Foldable phones have struggled with long-term screen durability since the category launched. Display creasing at the fold and hinge-area failures are the two most common complaints from users. A patent targeting the internal structural stack directly is a sign Samsung Display is working on the problem at the component level, not just through software or external protective films.
If this design makes it into a production device, you would likely see the benefit as a foldable phone that retains its flat, crease-free appearance longer and survives more open-close cycles before showing wear. That is the core value proposition of every foldable upgrade cycle, and shoring up the internal structure is a sensible place to focus.
This is an unglamorous but genuinely practical patent. Structural reinforcement inside foldable displays is exactly the kind of incremental engineering that separates a product people keep for three years from one they replace after one. It is not a headline feature, but it is the sort of work that matters.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
20 drawing sheets from US 2026/0211457 A1 · click any drawing to enlarge
