Samsung Patents a Protective Edge Cover for Foldable Phone Displays
The edges of a foldable phone's flexible screen are one of its most vulnerable spots. Samsung is patenting a dedicated cover piece designed to protect exactly that.
What Samsung's foldable display edge cover actually does
Imagine folding a thin plastic screen in half hundreds of times a day. The middle bends fine, but the edges, where the screen meets the frame, are under constant stress and easy to nick or lift.
Samsung's patent describes a small cover piece that wraps around the edge of the flexible display and locks onto the internal support plate underneath it. The support plate is a rigid backing that keeps the screen flat when the phone is open. The cover member works together with that plate to hold the screen's edge in place.
The goal is simple: stop the flexible screen from peeling, chipping, or catching on anything at its most exposed perimeter. It's a structural fix aimed at one of the most common complaints about foldable phones.
How the cover member attaches to the support plate

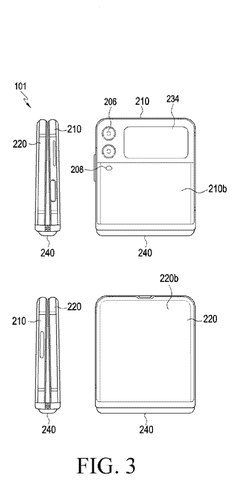

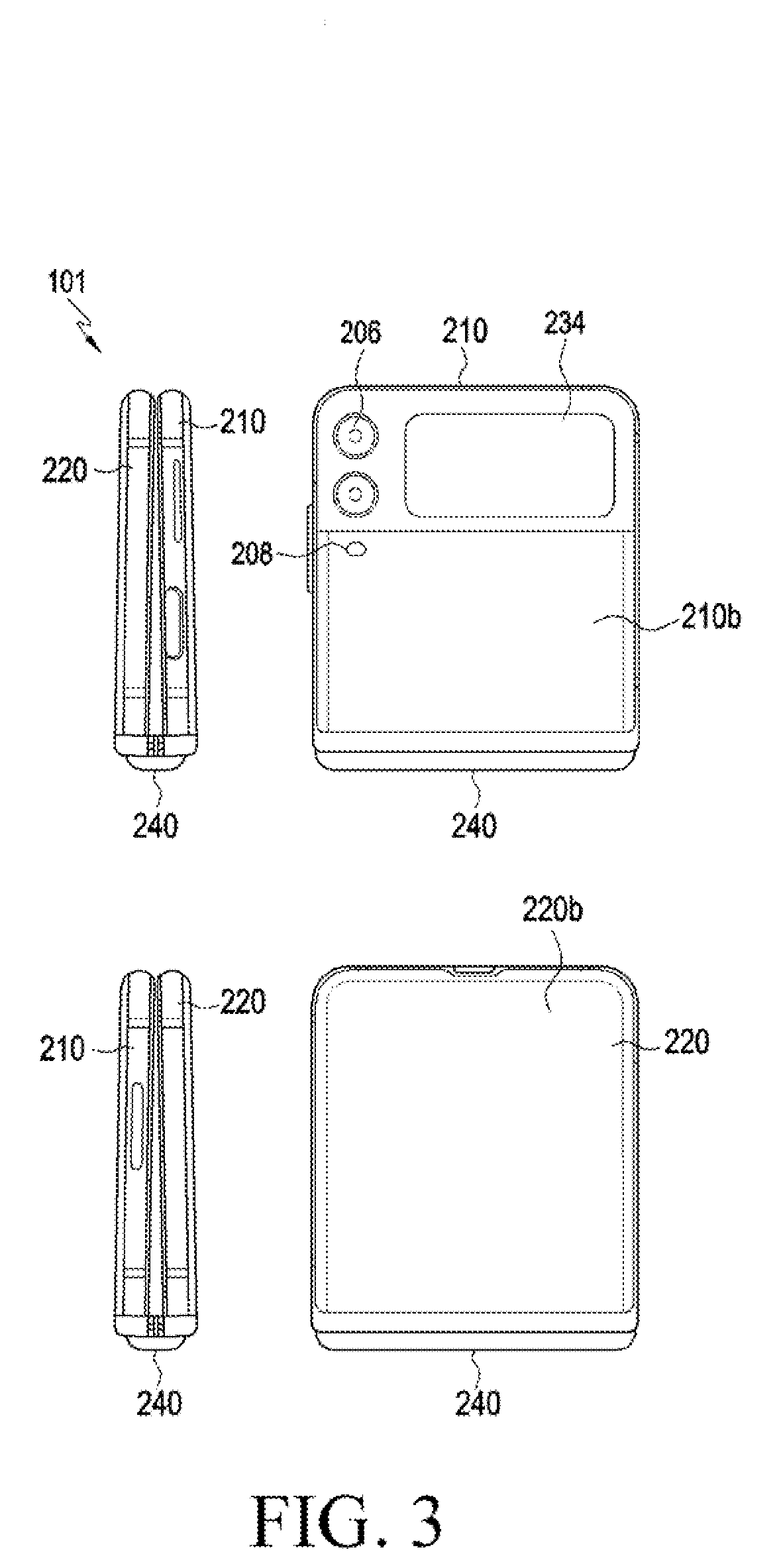

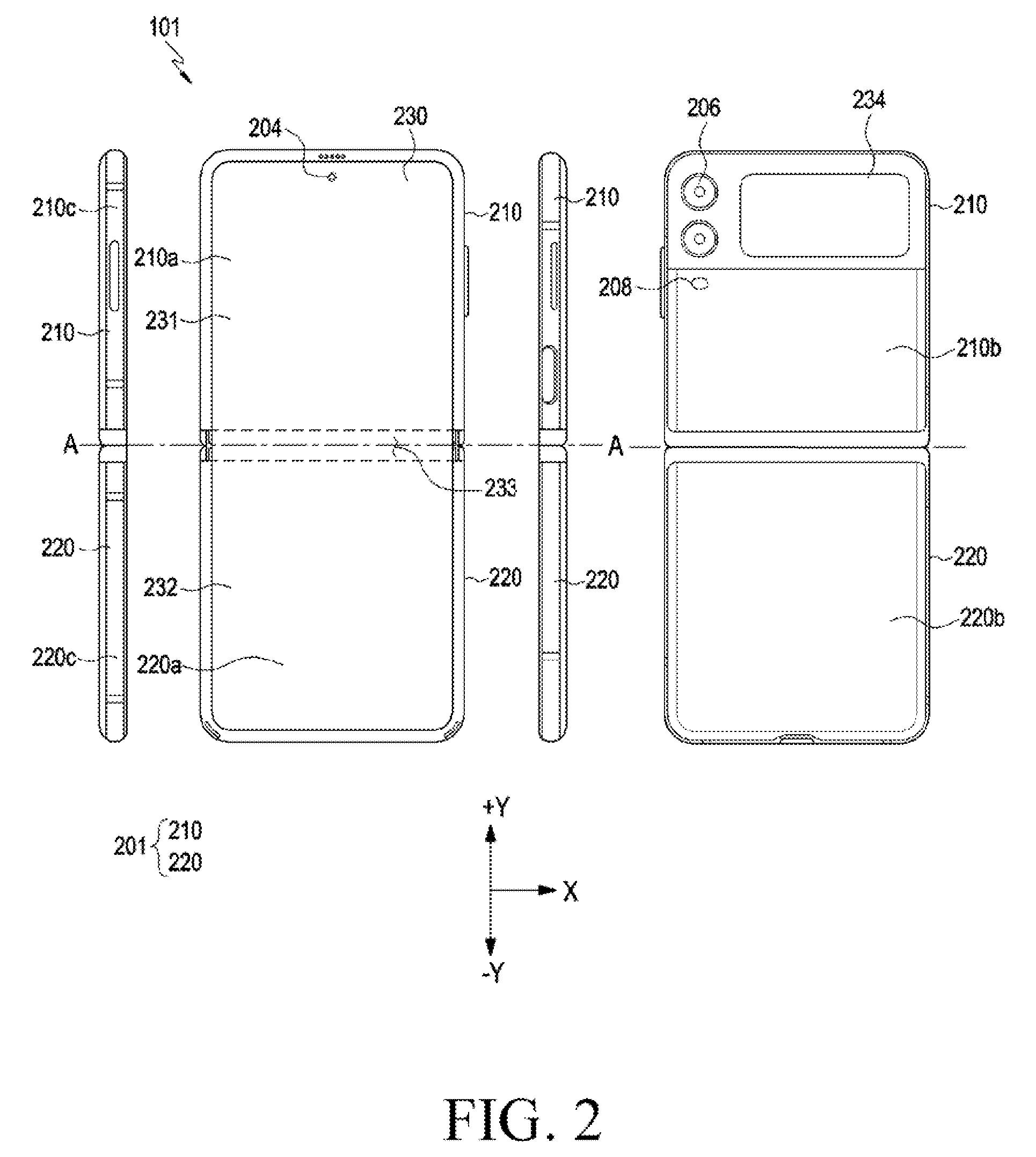

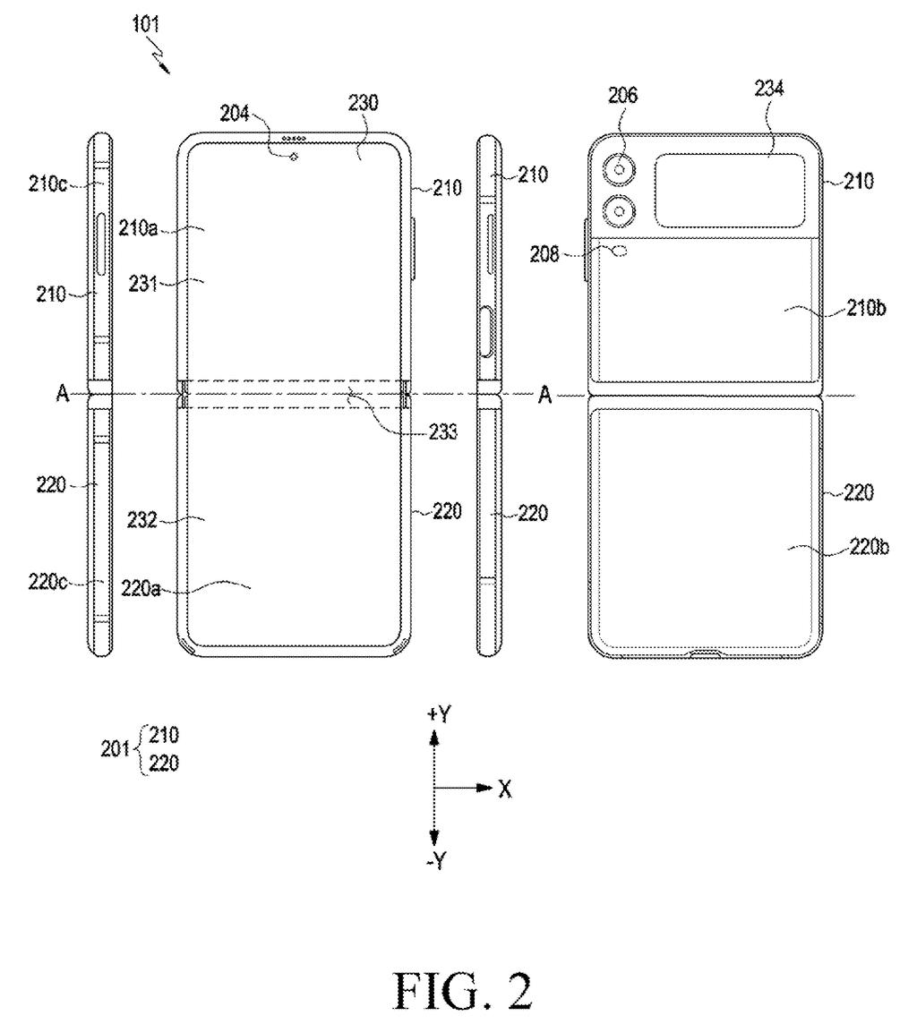

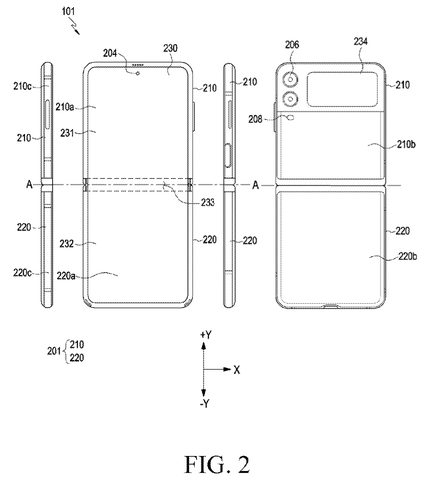

The patent covers a foldable device with two housing halves that rotate relative to each other, the classic clamshell or book-fold form factor. Stretched over both halves is a flexible display, the type of screen that can bend without cracking.

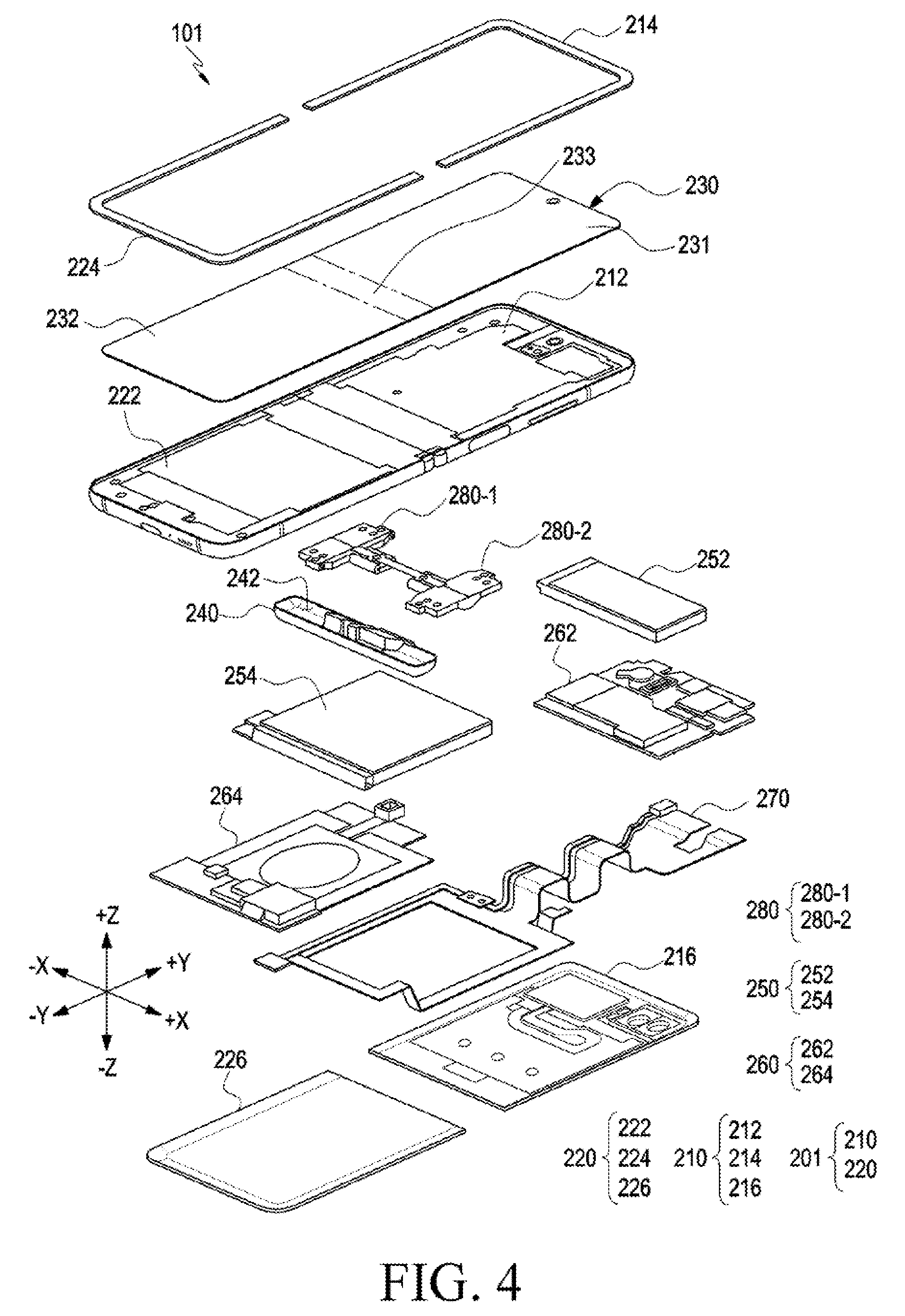

Between the housing and the display sits a support plate, a rigid or semi-rigid layer that keeps the screen from sagging or deforming when the phone is flat open. Think of it as the spine behind the flexible screen.

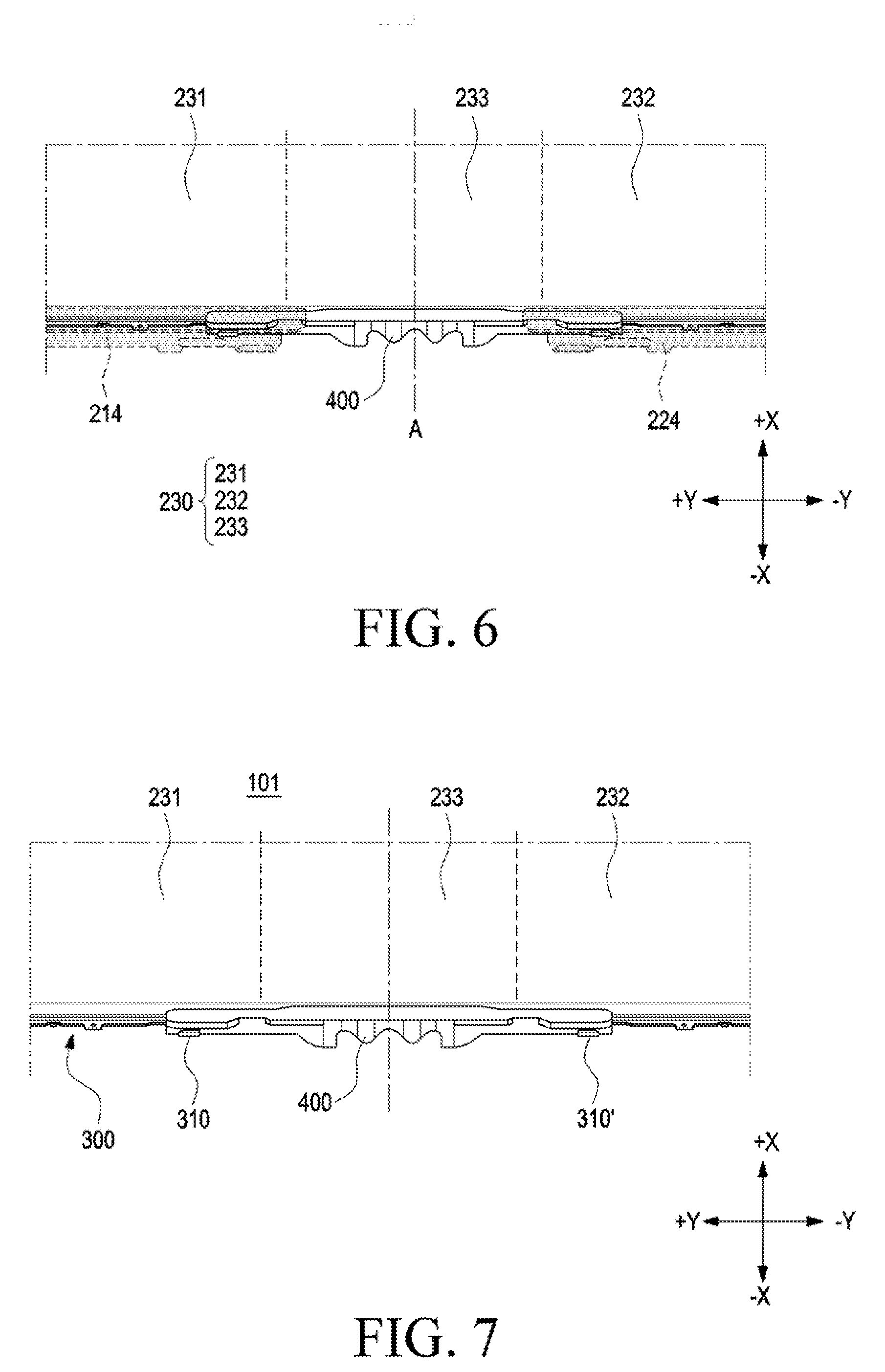

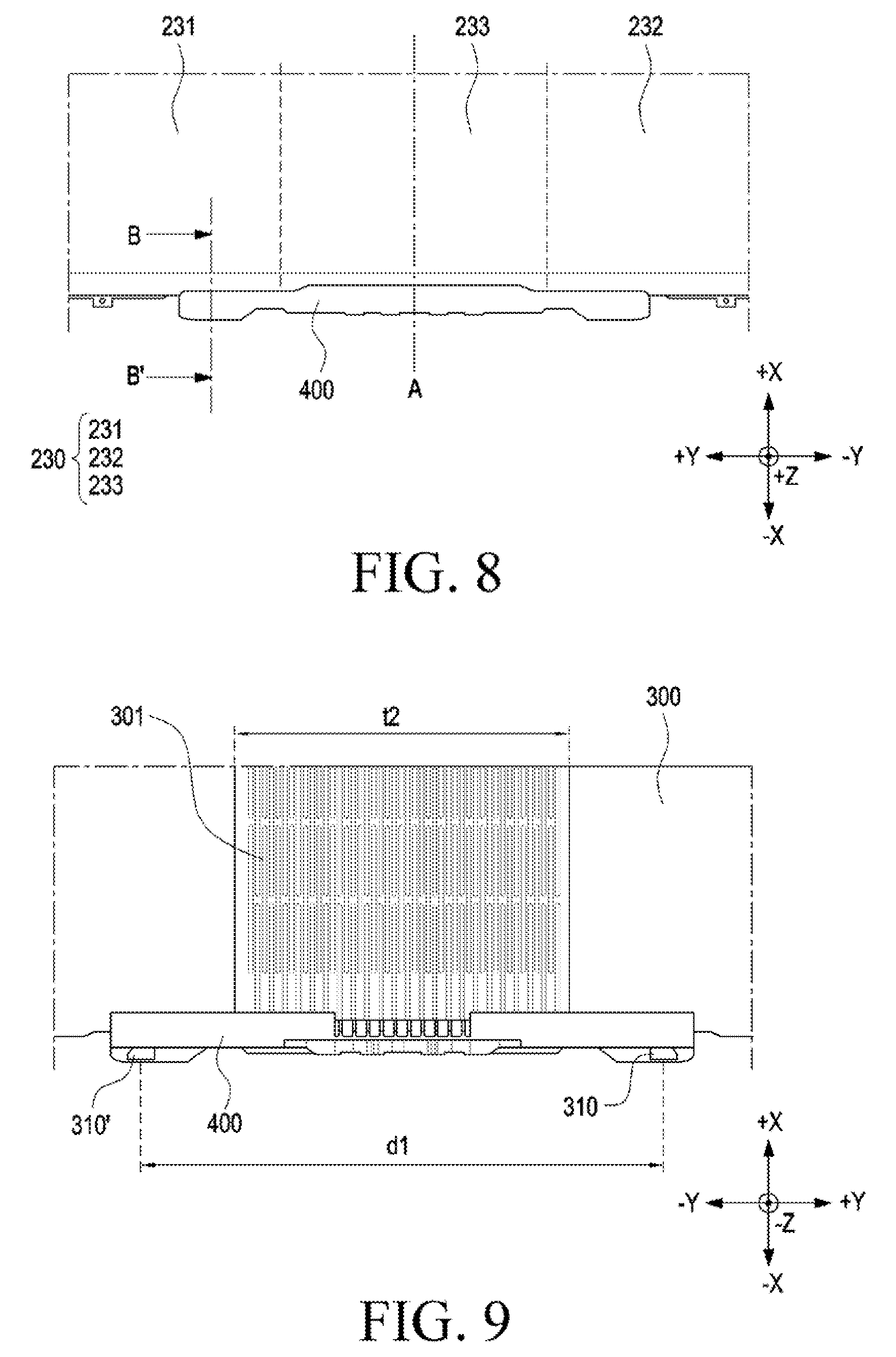

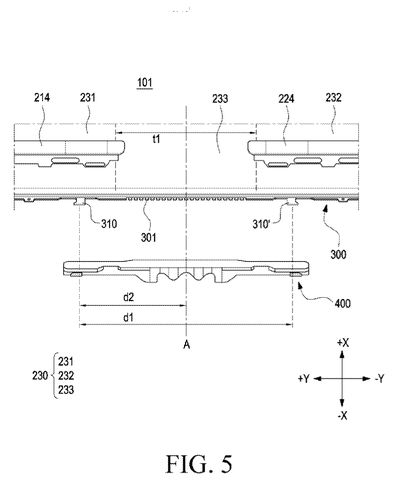

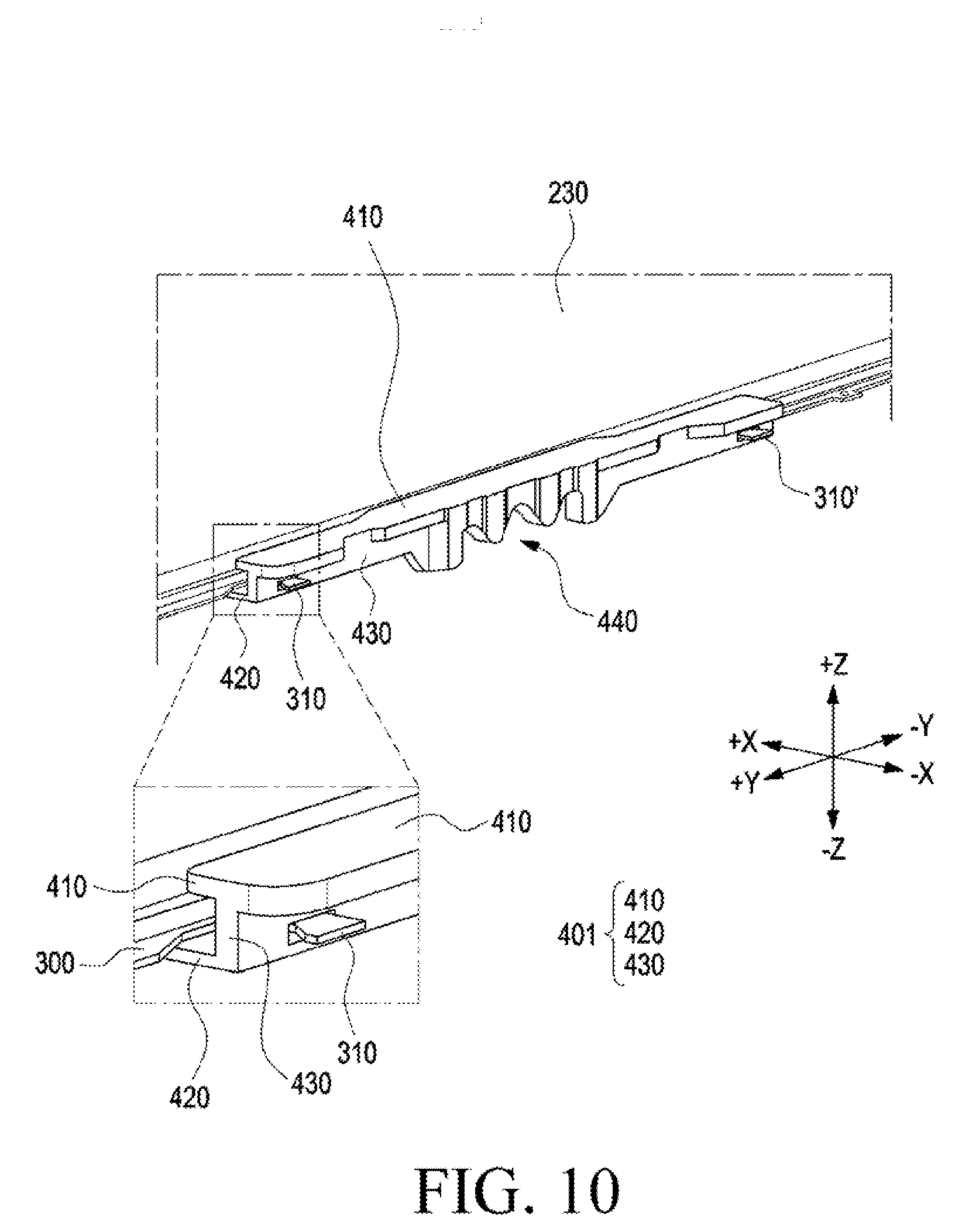

The key new element is the cover member: a separate component that physically wraps around at least part of the display's outer edge and mechanically couples (attaches) to that support plate. By anchoring the cover to the plate rather than just to the housing or screen adhesive alone, the design creates a more secure hold at the perimeter.
The claim is intentionally broad, covering the core combination of:
- A foldable two-part housing
- A flexible display over it
- A support plate underneath the display
- A cover member attached to the plate and covering the display edge
What this means for Galaxy Z Fold durability
Flexible display edges are where foldable phones tend to show wear first. Screen protectors lift at corners, and the thin plastic layers that make up a flexible screen can delaminate (separate) at the perimeter after repeated folding. A cover member anchored to the internal support plate adds a mechanical clip that adhesive alone can't provide.
For Samsung's Galaxy Z Fold and Z Flip lines, this kind of structural detail is a direct answer to durability criticism. If this design makes it into production, you'd likely see tighter, more consistent screen edges that hold up better over a phone's lifetime, which matters a lot when a foldable costs $1,000 or more.
This is a small, focused engineering patent, not a headline feature. Samsung is solving a real and well-documented problem with foldable phones, screen edges that loosen or lift over time, with a structural fix rather than a software workaround. It won't generate buzz, but it's the kind of detail that separates a phone that feels solid at year two from one that doesn't.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

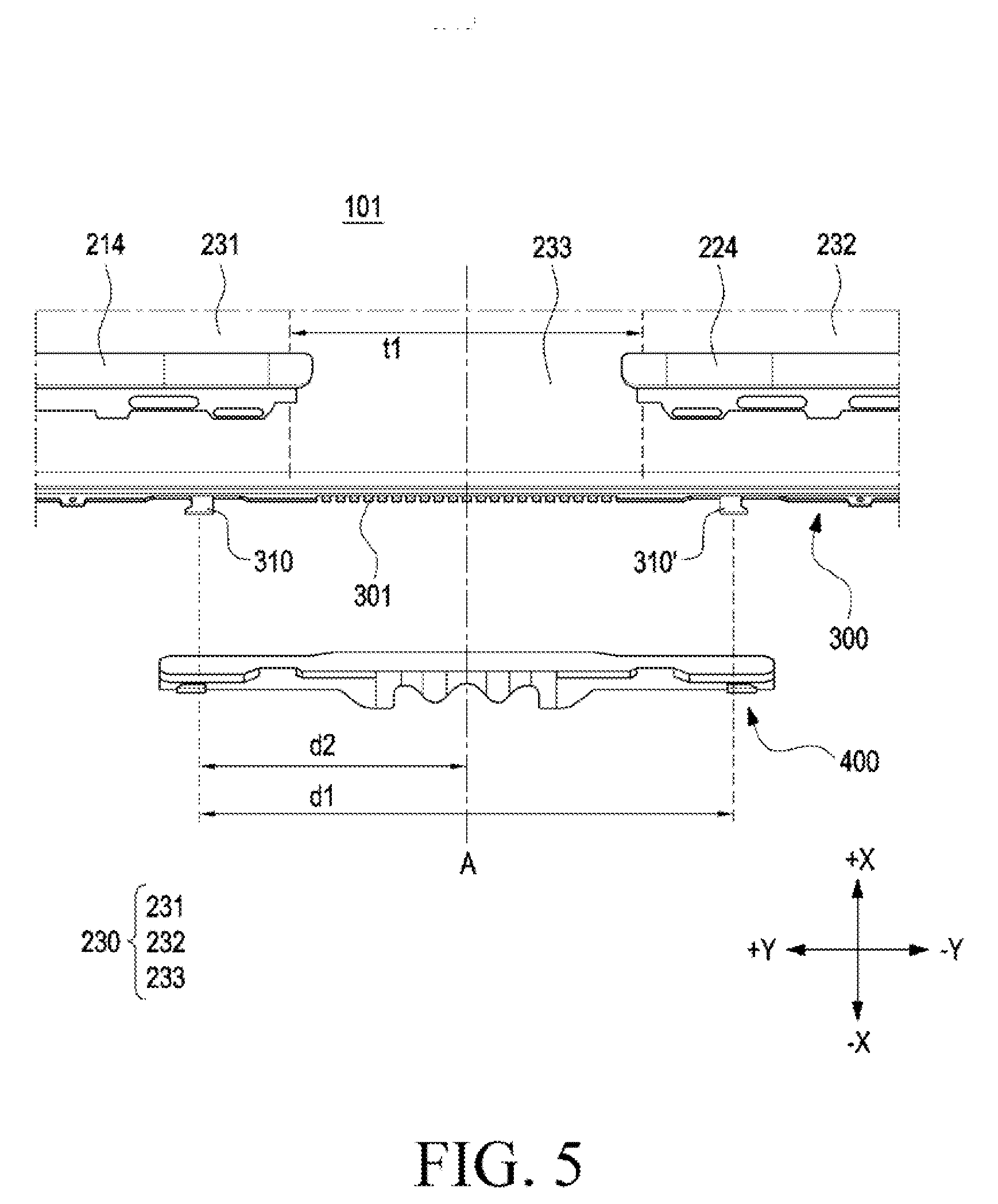

The drawings
15 drawing sheets from US 2026/0223300 A1 · click any drawing to enlarge
