Samsung Patent Dims Foldable Display's Lower Half to Reduce Power Consumption
When you prop a foldable phone on a table in tent or stand mode, half the screen is literally pointing at the floor. Samsung's new patent makes the device smart enough to notice that, and stop wasting power on it.
What Samsung's fold-aware display dimming actually does
Imagine you fold your Galaxy Z Fold partway, like a little tent, to watch a video hands-free. The screen is split: one half faces you, the other faces the table. Right now, both halves glow at full brightness regardless. Samsung's patent wants to fix that.
The idea is straightforward: when the phone detects it has been folded into a partial position, it figures out which display panel is closer to the ground and automatically reduces the power going to that half. The half you're actually looking at keeps running normally.
The patent also describes how the phone adjusts what's shown on screen when you fold it, switching from one full-screen layout to a new layout designed for the folded position, before applying the power reduction. So the experience adapts in two steps: the content rearranges, then the power gets trimmed.
How the phone knows which screen half faces the ground

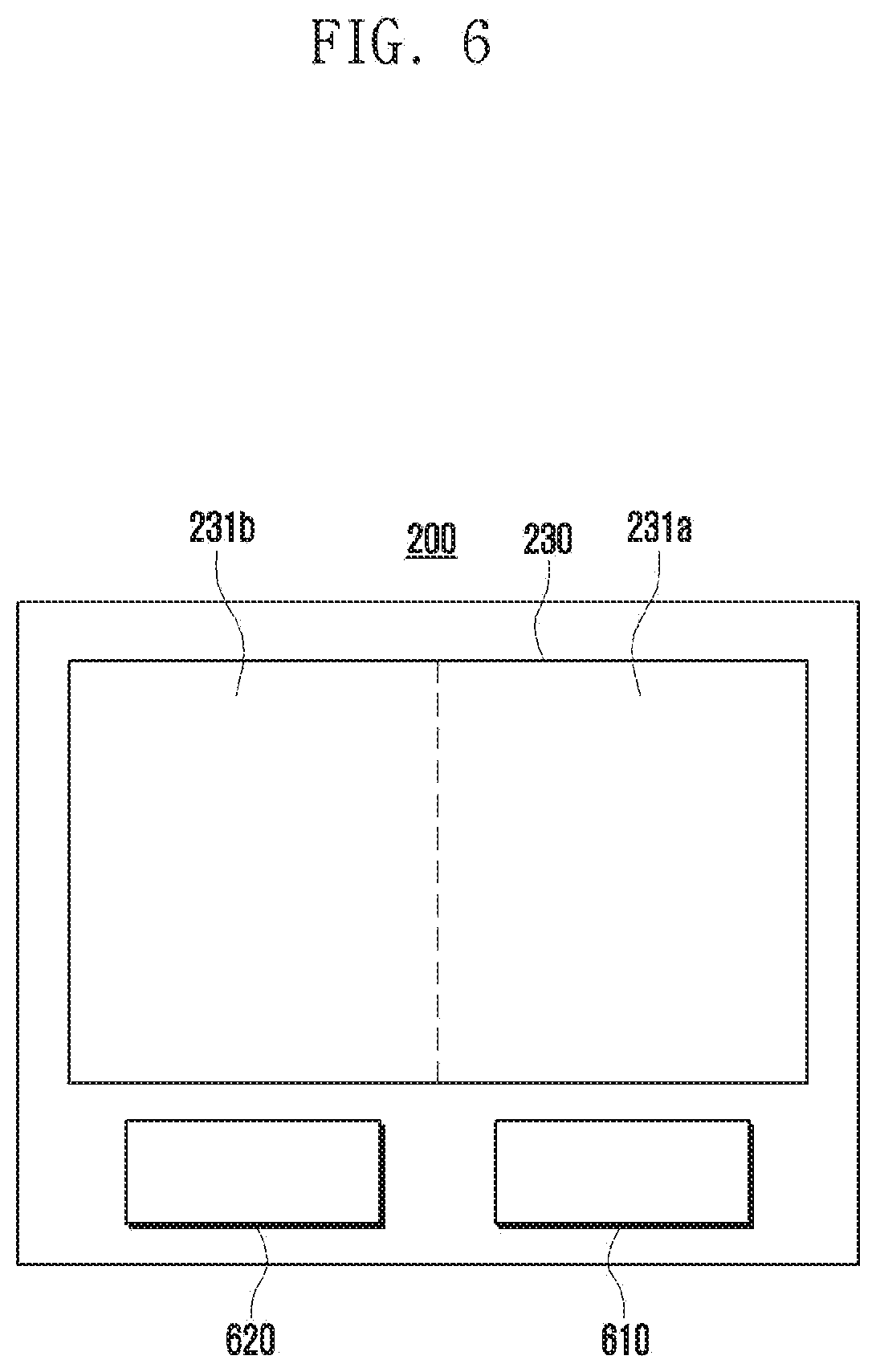

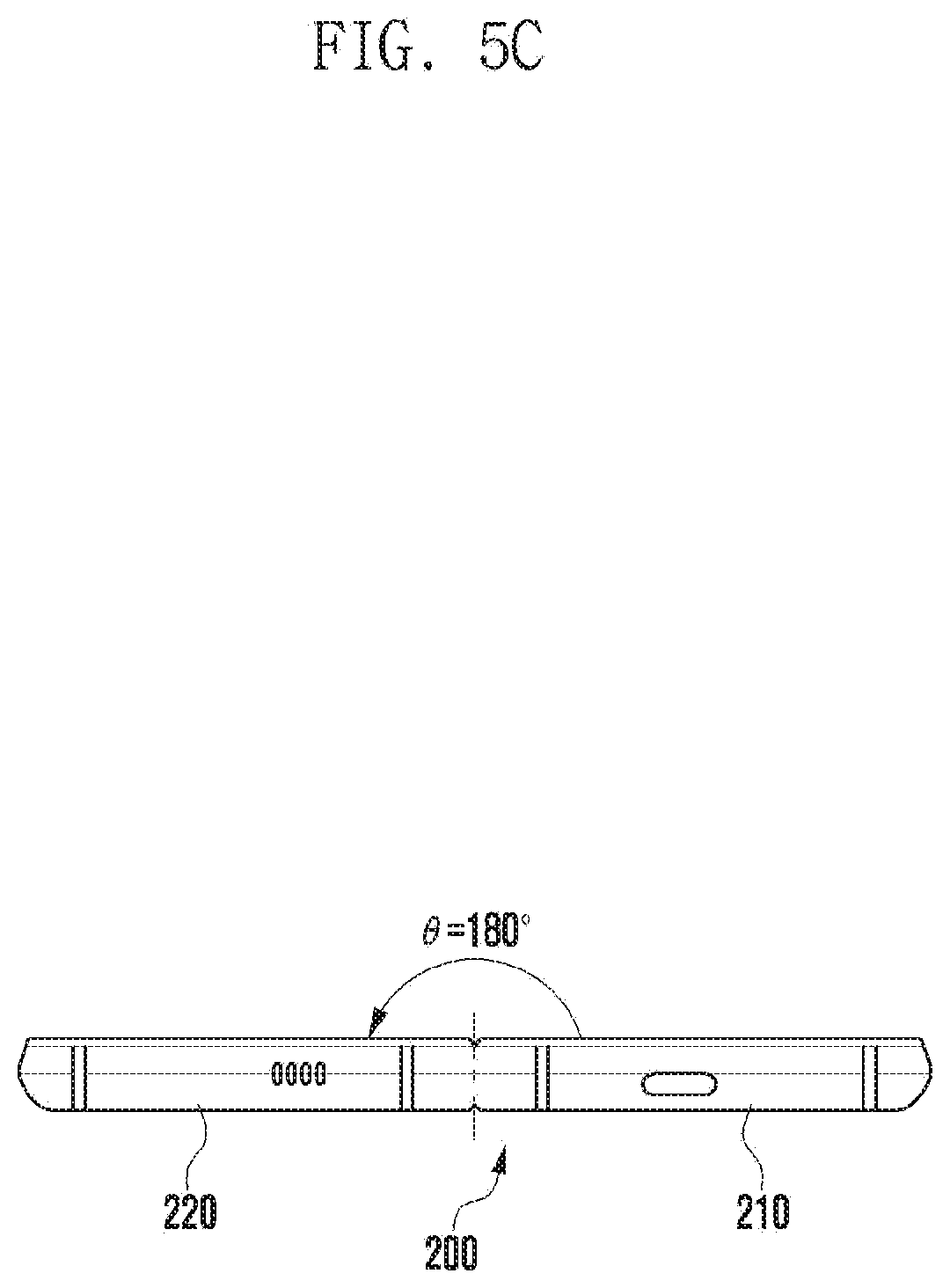

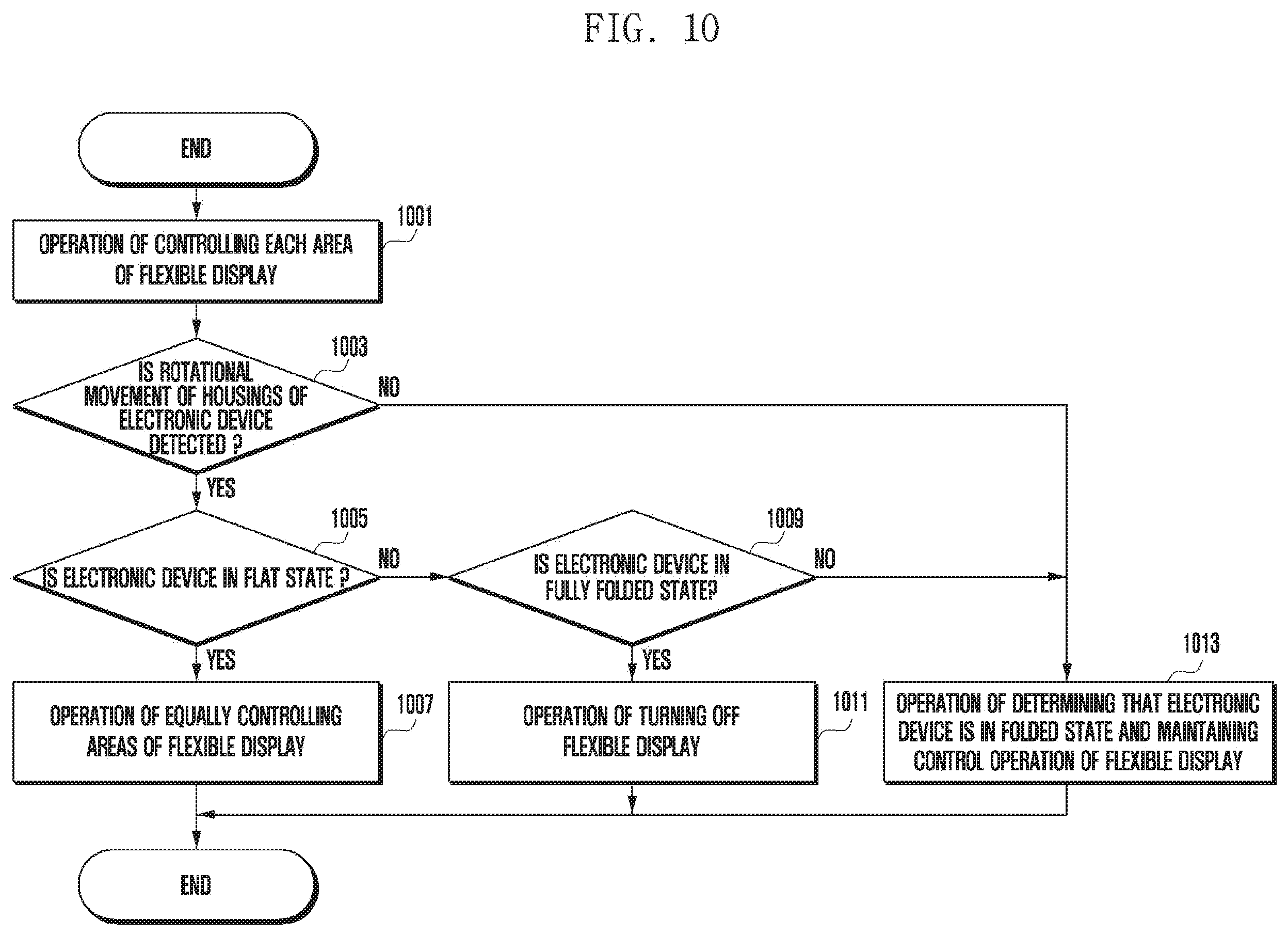

Samsung's patent describes a foldable phone with a flexible display split into two areas, each controlled by its own display driving circuit. A processor monitors the physical state of the hinge, distinguishing between a fully flat state, a partially folded state, and a more deeply folded state.

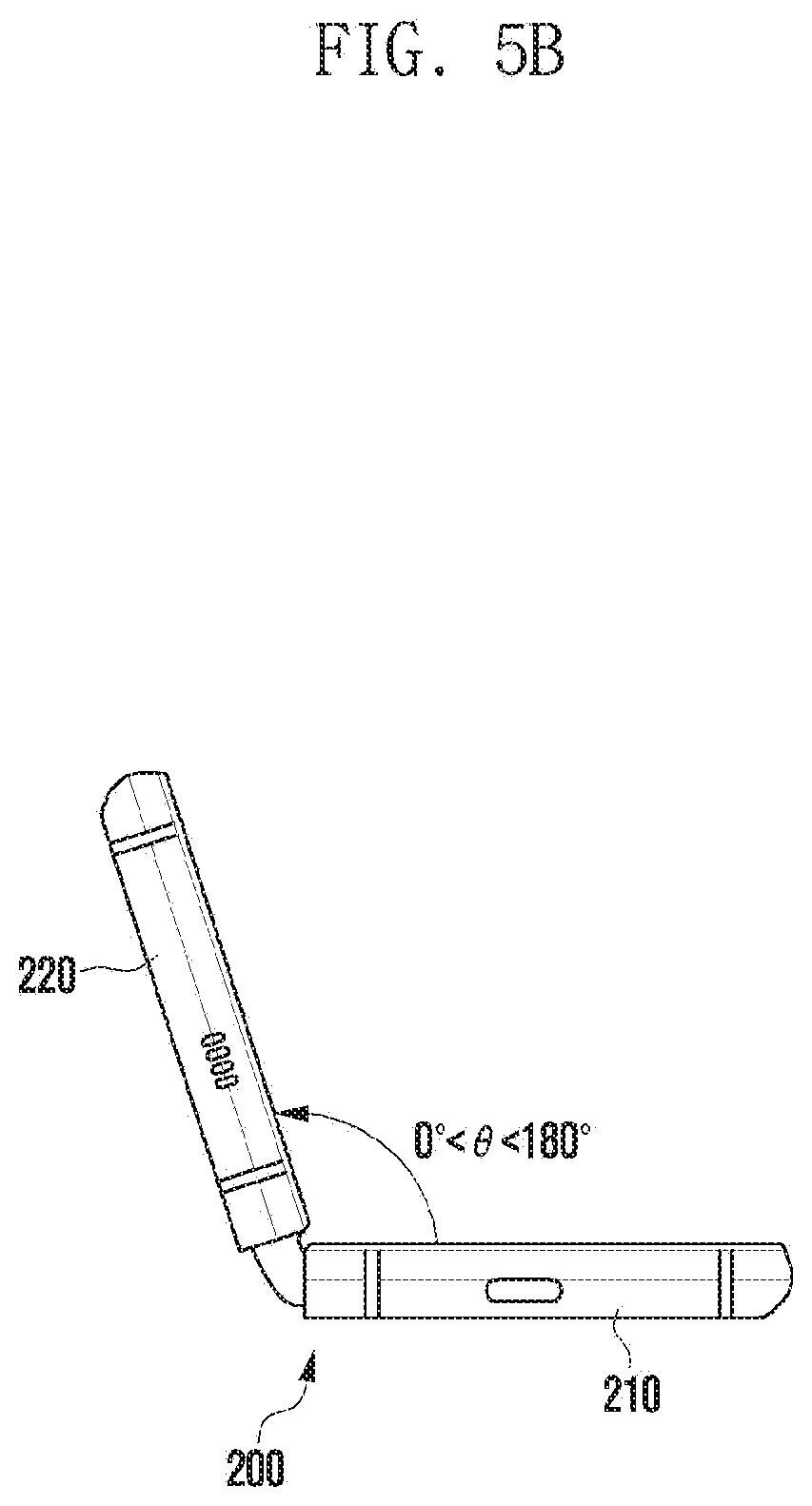

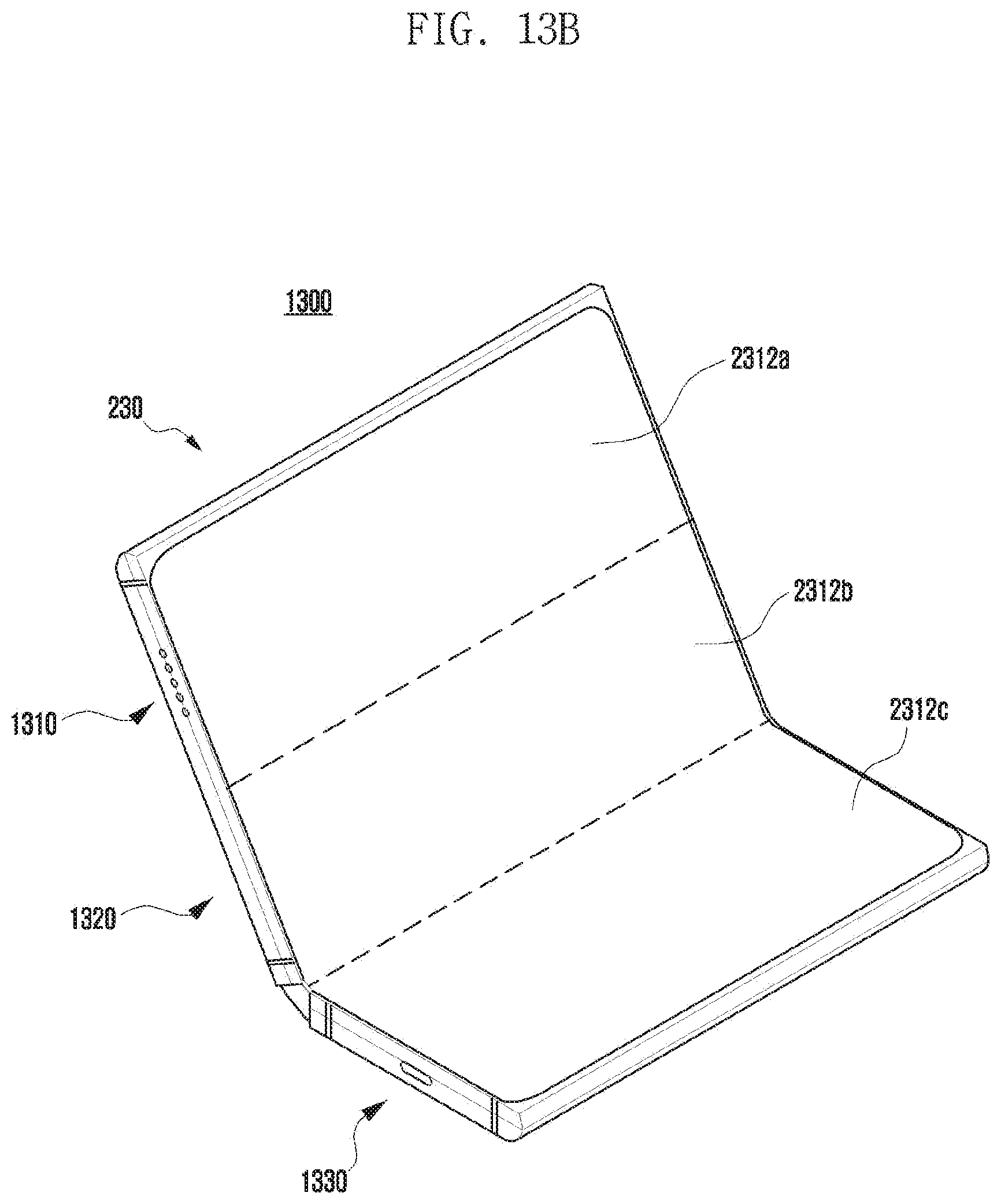

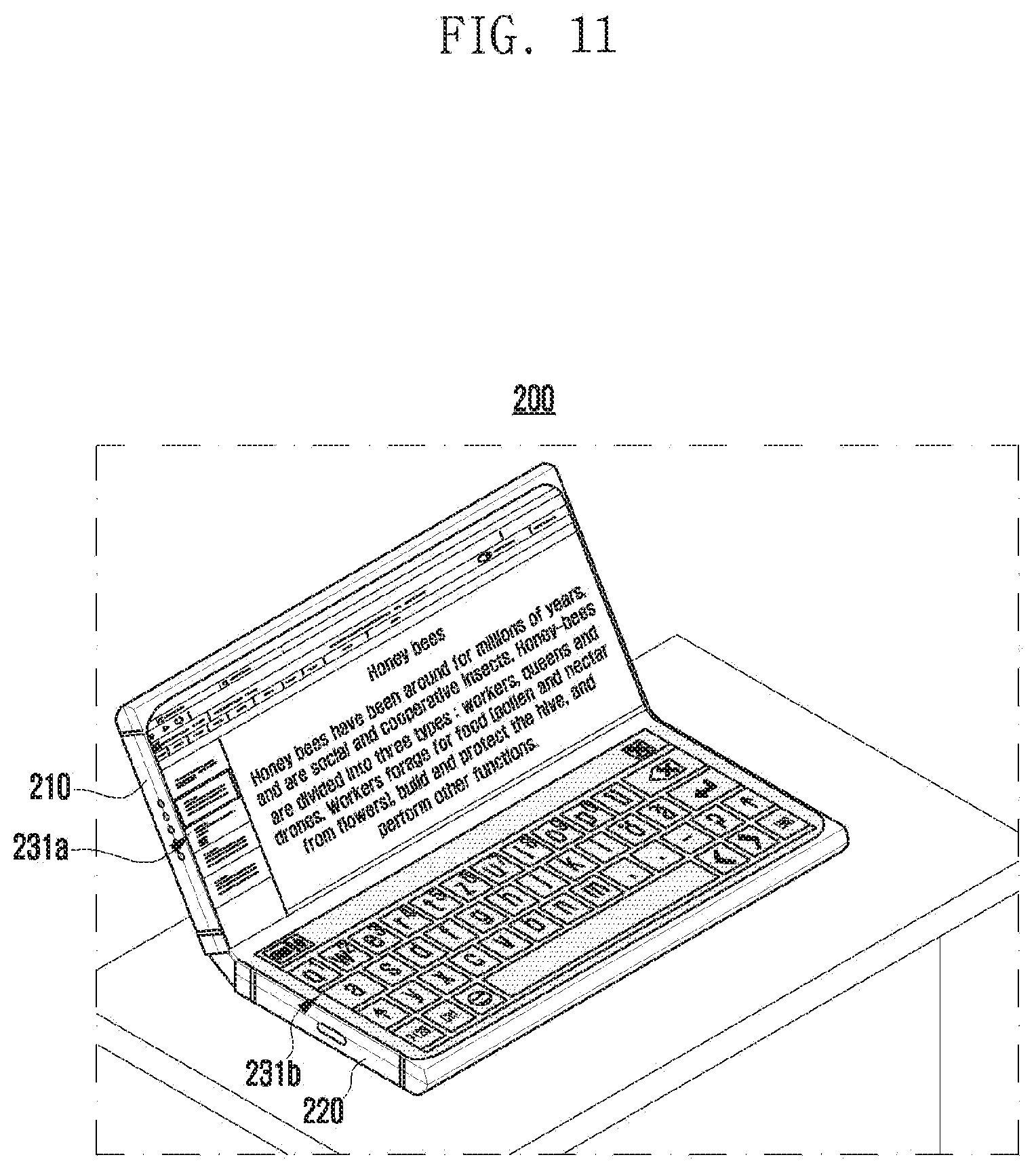

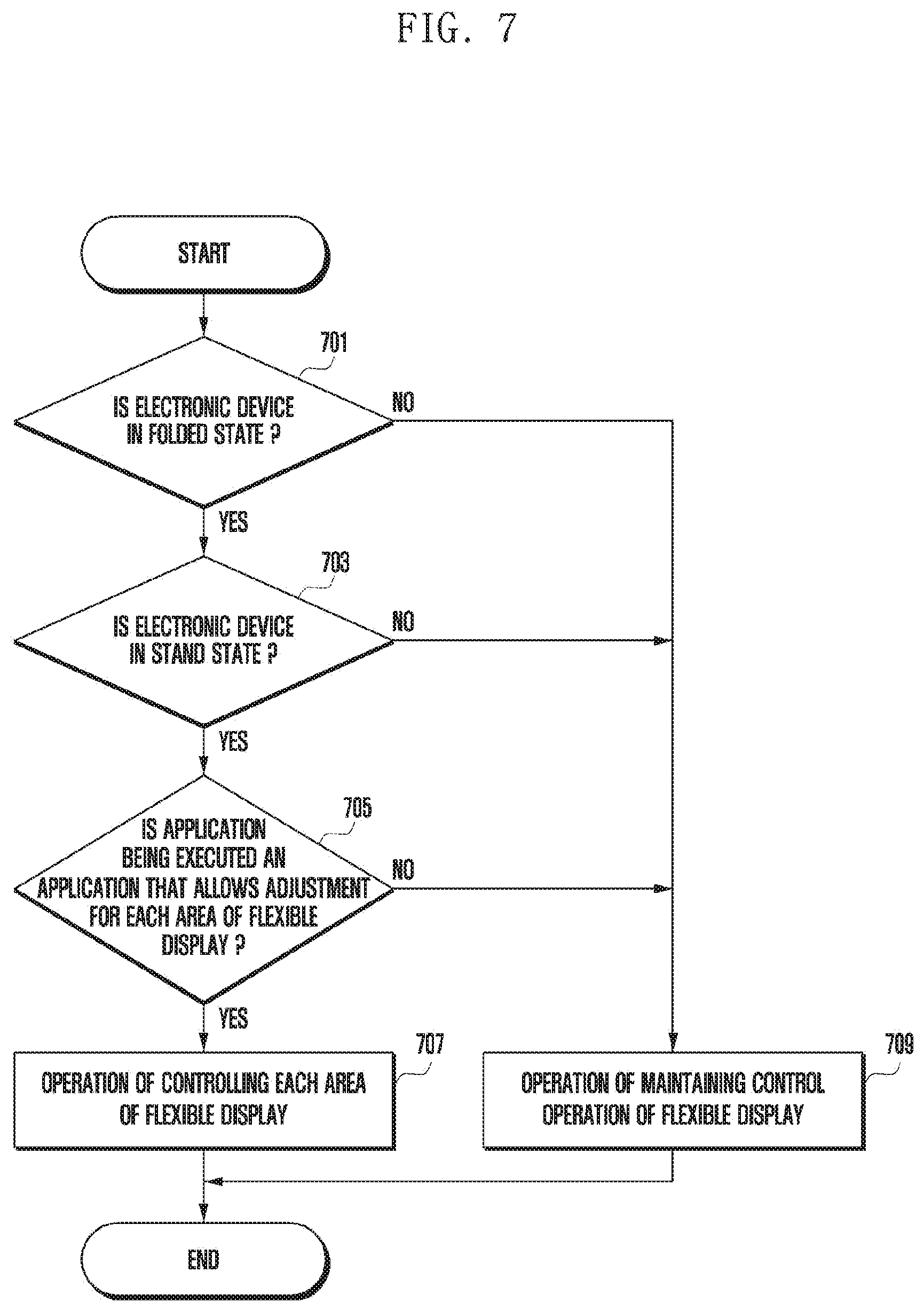

When the device moves from flat to partially folded (think laptop-mode or tent-mode), the software first swaps the on-screen content to a layout suited to that posture. Then it checks which of the two display panels is geometrically closer to the ground plane, basically whichever half is angled downward.
Once identified, the system instructs the display driving circuit for that lower panel to operate at reduced electrical power. The patent doesn't lock in one specific dimming level; it sets up a framework where:
- The upward-facing panel runs at full power
- The downward-facing panel draws less power
- The split is managed by separate driving circuits for each display half

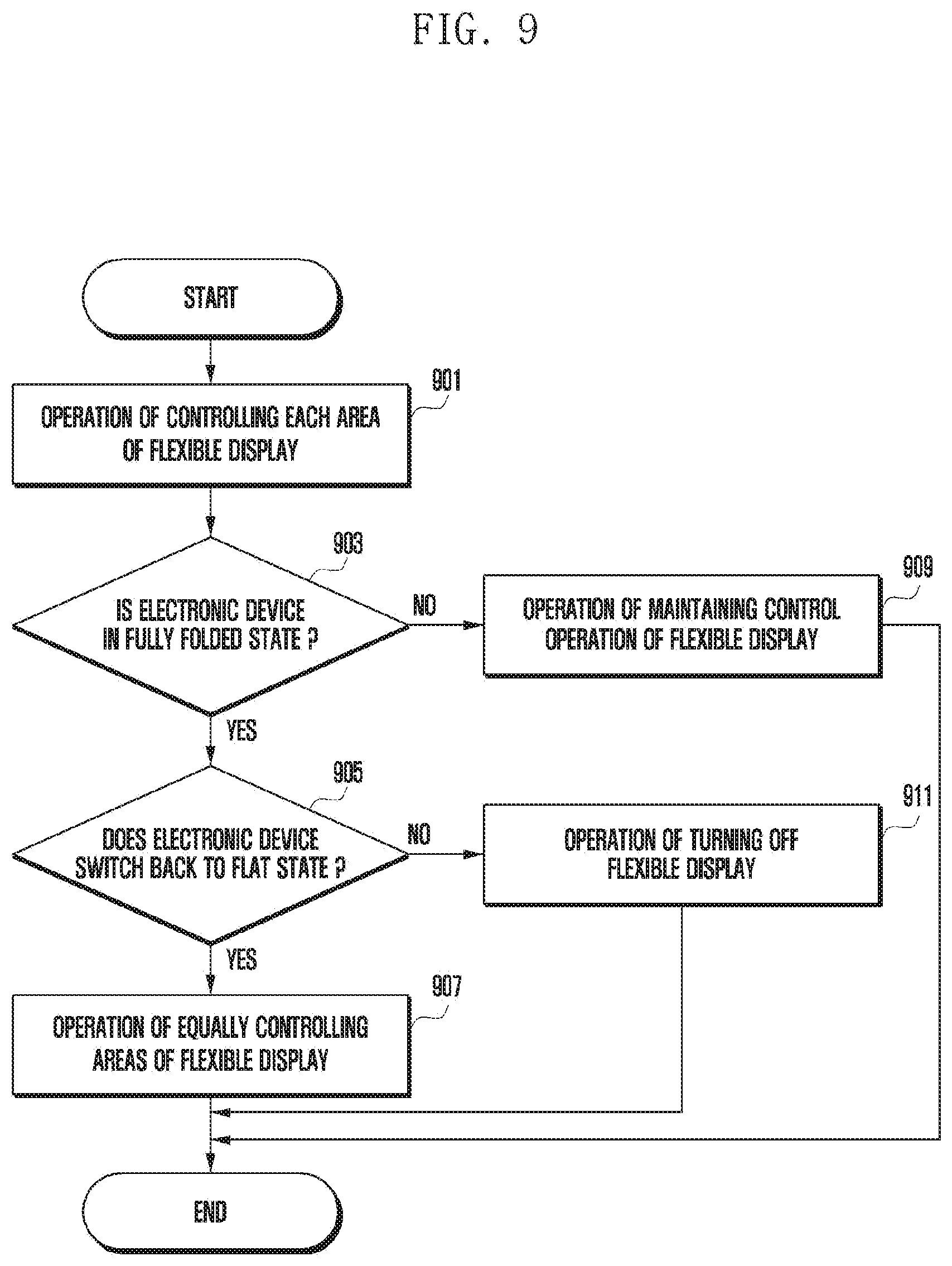

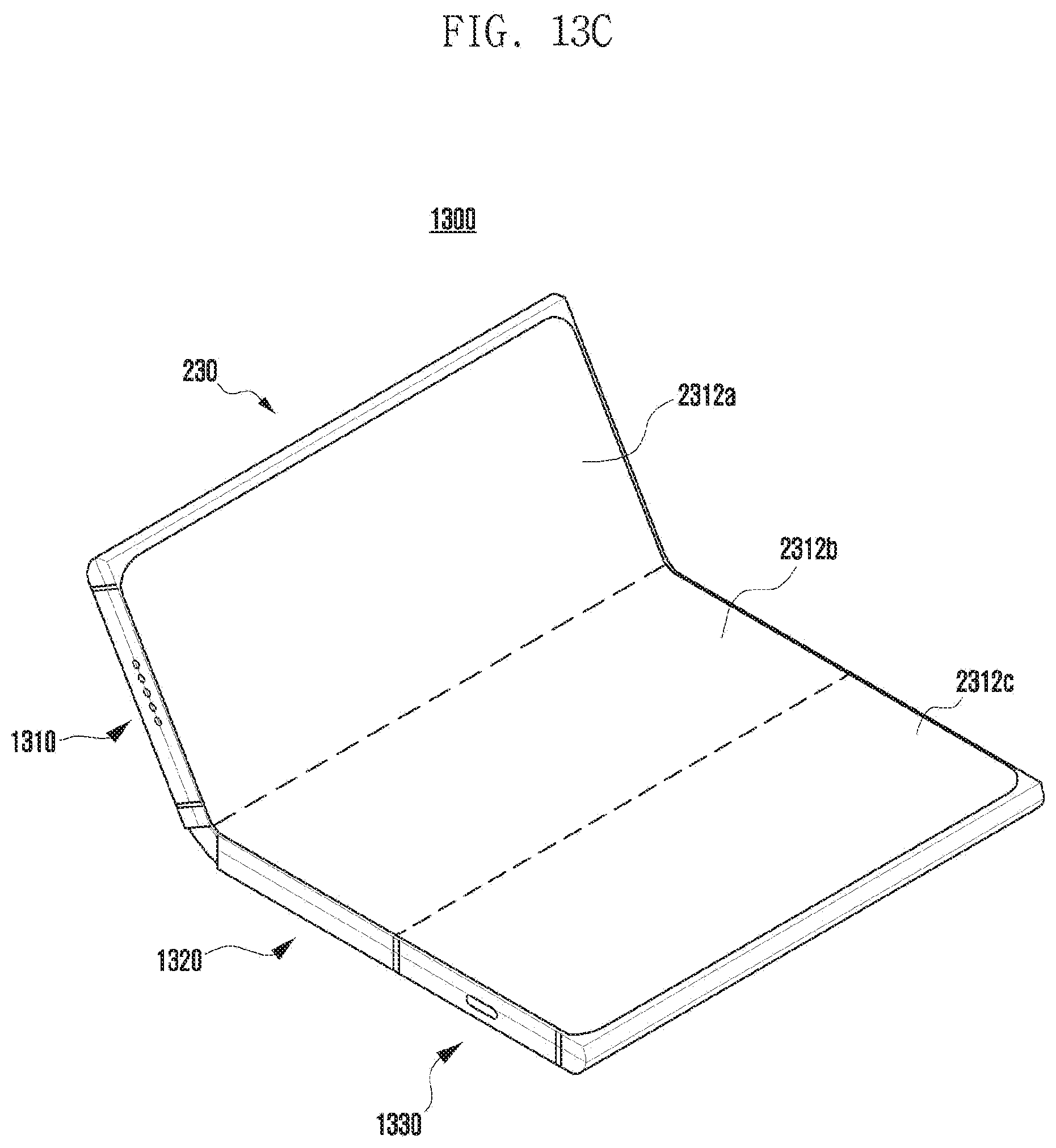

The patent covers multiple folding states, meaning the logic could apply differently depending on how far the hinge is open.

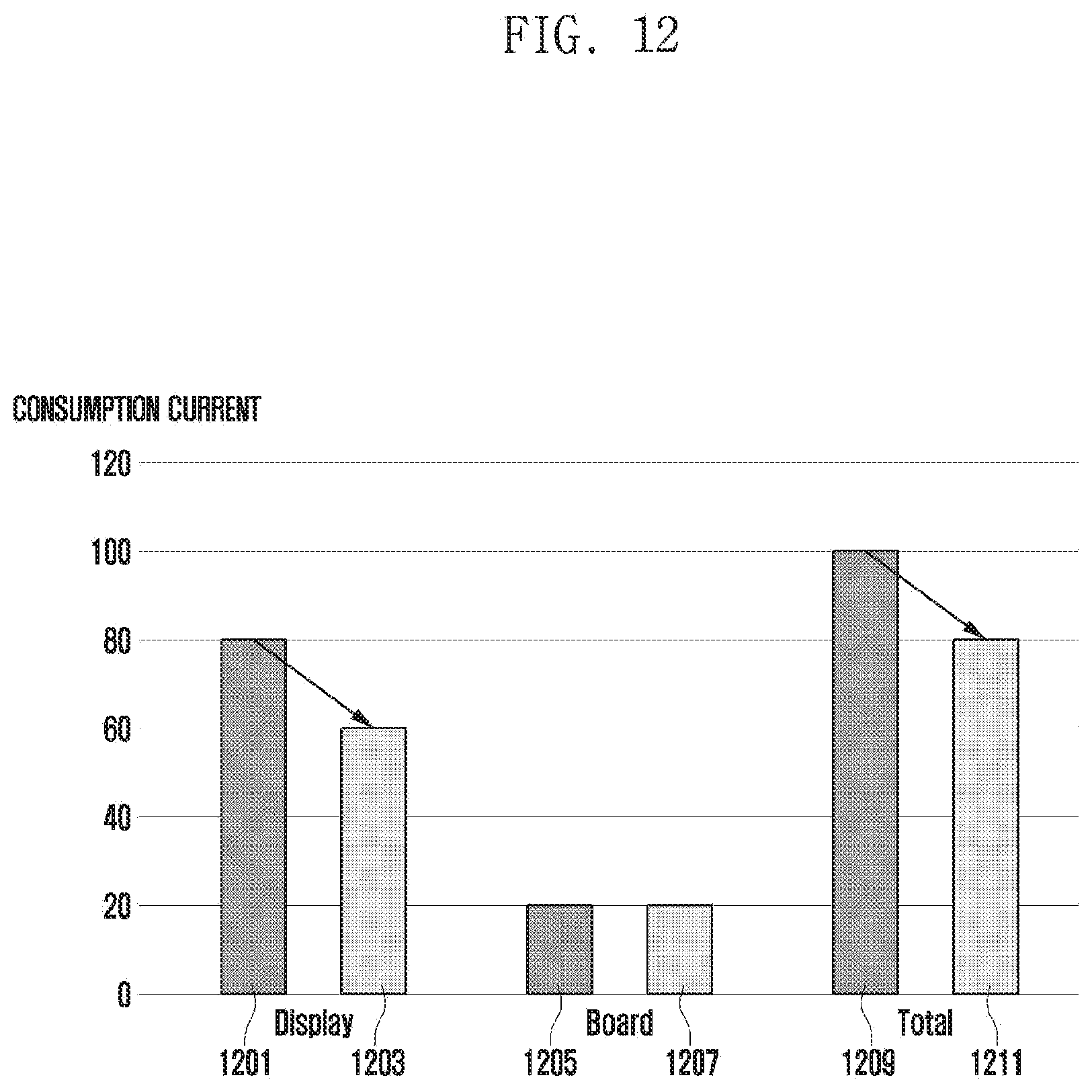

What this means for foldable phone battery life
Foldable phones already take a battery hit from running a large flexible display. Any time you use your phone in a propped-up position, like watching a video or following a recipe, you're burning power on a panel that nobody is looking at. This patent targets exactly that inefficiency, and given how common hands-free foldable use cases are becoming, the real-world savings could add up noticeably over a day.
For Samsung specifically, this fits a broader push to make its Galaxy Z Fold and Z Flip lines more competitive on battery life, which has historically been a weak point compared to traditional slab phones. A software-driven power reduction that kicks in automatically, without asking you to do anything, is the kind of background improvement that doesn't show up in a spec sheet but does show up in how long your phone lasts.
This is a practical, well-scoped idea, not a flashy one. The problem it solves (wasting power on a screen panel facing the floor) is real and currently unsolved in any obvious way on shipping foldables. Whether Samsung can implement it without creating weird visual artifacts at the panel boundary is the actual engineering challenge, and the patent doesn't address that. Worth watching for inclusion in a future One UI update.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

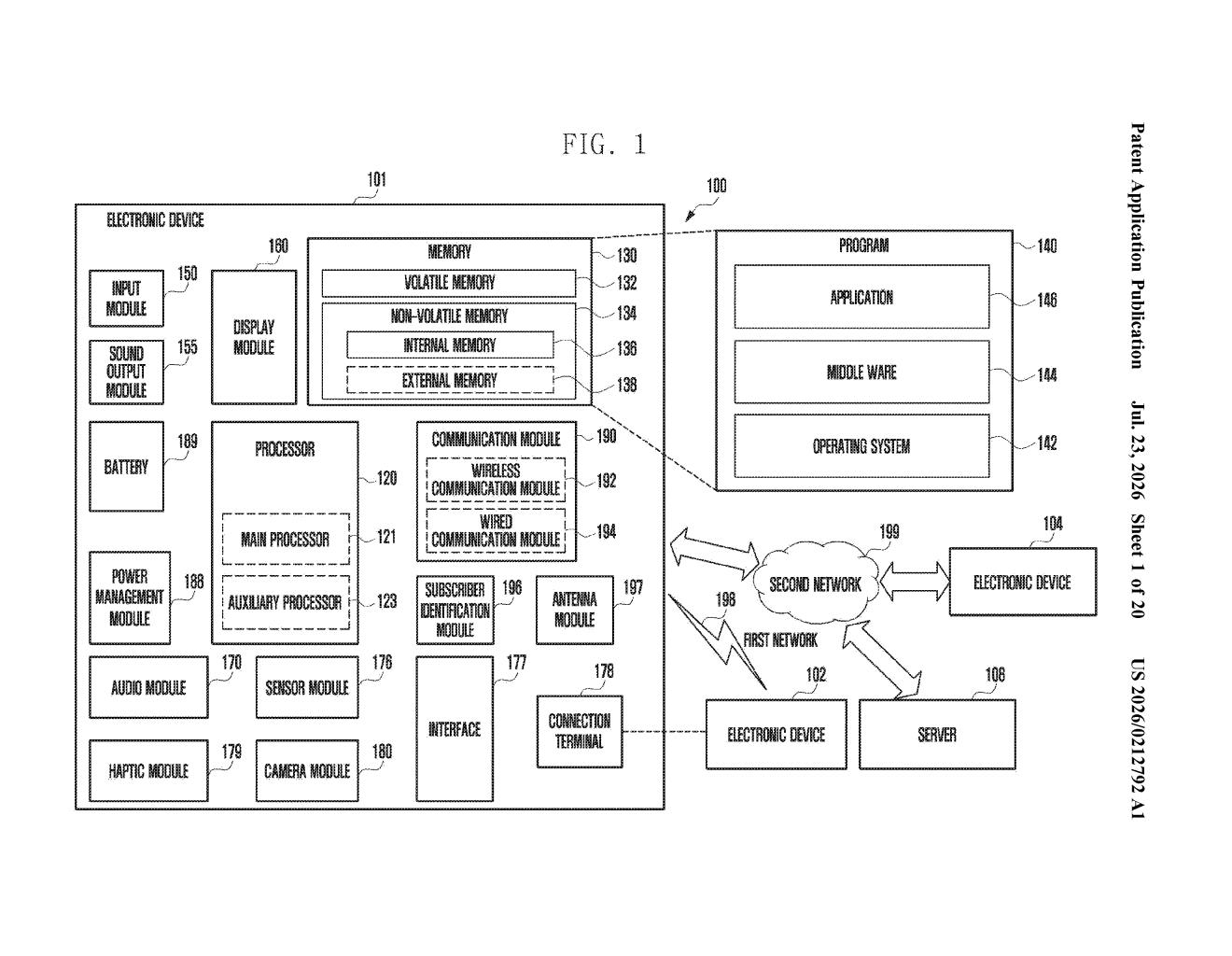

20 drawing sheets from US 2026/0212792 A1 · click any drawing to enlarge
