Samsung Patents a Mechanism That Controls How Far a Foldable Phone Bends
Getting a foldable phone to open and close smoothly, without wobble or premature snap, is harder than it looks. Samsung is filing patents on the exact mechanical choreography that makes it happen.
What Samsung's new foldable hinge actually does
Imagine a foldable phone as a tiny book. Every time you open or close it, the spine has to move in a precise, controlled arc so the screen doesn't crease and the two halves don't flop around. Achieving that takes a surprisingly elaborate hinge mechanism hiding inside the device.
Samsung's patent describes a system where small protruding pins sit inside carefully shaped grooves. As the phone folds, the pins travel through those grooves, and the shape of the groove itself tells each moving part exactly where to go at each stage of the fold. Think of it like a roller-coaster track guiding a car through a turn.
The key detail is that each groove has two connected sections that go in different directions. That two-part path lets the hinge do different things at different points in the fold, giving engineers fine control over the motion, the stopping points, and how firm or light the fold feels in your hand.
How the pins and grooves guide the folding motion

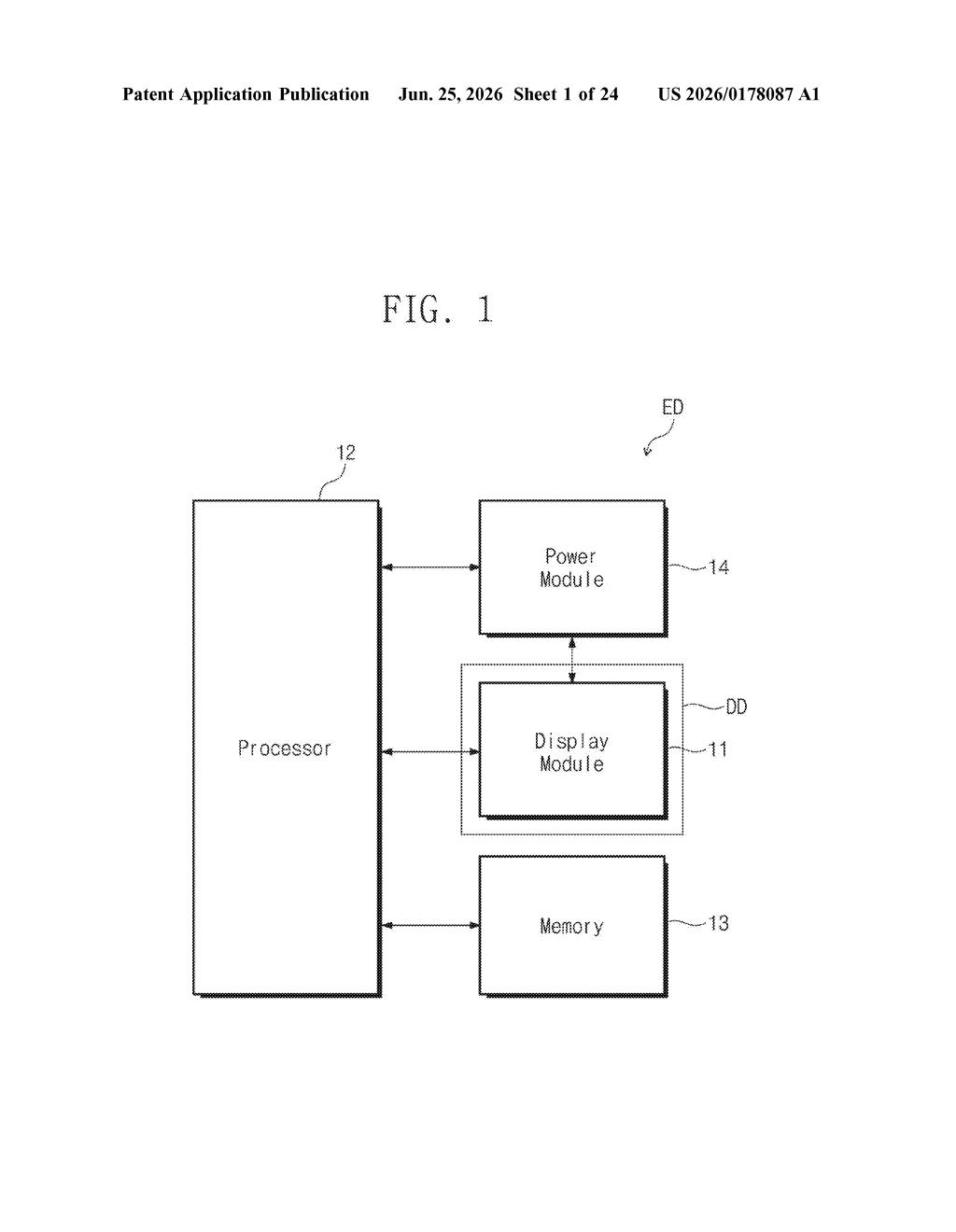

The patent covers a folding assembly designed to sit underneath a flexible display. It includes two rigid body sections (the left and right halves of the phone), a central bracket connecting them, and a set of rotating parts called rotators and rotation links.
The core mechanism is a set of protruding pins that stick out from the rotation links toward the rotators. Those pins sit inside shaped channels called guide grooves cut into the surfaces of the rotators. As the device folds, the pins travel through the grooves, and the groove geometry physically constrains the motion.
The distinctive engineering detail is the groove shape itself. Each groove has two sections:
- A first guide groove that handles one phase of the folding arc
- A second guide groove branching off in a different direction, handling another phase
By changing direction mid-path, the groove can produce a non-linear hinge motion. That means the hinge can move freely at first, then stiffen or redirect force as the fold completes. This kind of shaped-path control is common in precision mechanical design (think watch movements or camera shutters) but is particularly tricky to miniaturize for a phone-scale hinge.
What this means for the feel of future foldable phones
Foldable phones live or die by their hinges. A hinge that feels mushy, snaps shut too fast, or develops wobble after a few thousand folds is a dealbreaker. The precision of the folding path directly affects how premium the device feels and how long the display survives.
Samsung Display, the display-and-component arm of Samsung, is the supplier for many foldable screens beyond Samsung's own phones. A hinge design that gets filed here could eventually show up in any number of devices. For Galaxy Z Fold and Z Flip buyers, this kind of incremental hinge refinement is what separates a phone that still feels tight after two years from one that doesn't.
This is a quiet but real piece of engineering work. Foldable hinge mechanisms are one of the least glamorous and most important parts of any folding device, and Samsung has more real-world hinge data than almost anyone. A two-stage groove path is a specific, implementable idea, not a vague concept, and that makes this patent more credible than most mechanical-design filings.
