Samsung Patents Phone Design Where Cooling System Doubles as Speaker Channel

By Patentlyze Team · Updated Jul 21, 2026

Samsung is exploring a way to make the metal component that cools your phone's processor do double duty as part of the speaker's sound tunnel. It's a compact engineering trick that could let phones get thinner without sacrificing audio volume or thermal management.

How Samsung's heat pipe moonlights as a speaker channel

Imagine the inside of your phone as a very cramped apartment. Your processor generates heat that needs to escape, and your speaker needs a clear path to push sound toward your ear. Normally those are two separate systems taking up two separate slices of space.

Samsung's patent describes a component that handles both jobs at once. The heat pipe (a flat metal piece that wicks heat away from chips) is shaped so that sound from the speaker can also travel through it on its way out of the device. One part, two functions.

For you, the payoff would likely be a phone that runs cooler, sounds better, or is simply thinner than it would be if engineers had to fit two separate components into the same space.

How the heat transfer unit forms part of the audio path

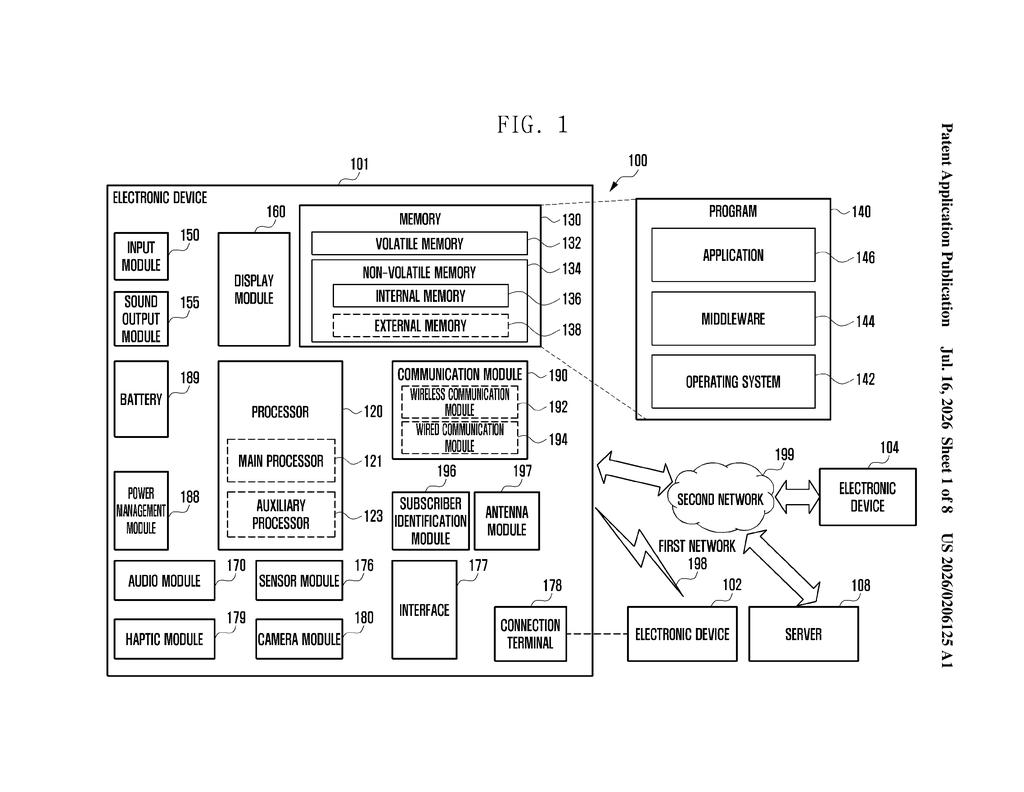

The patent describes an electronic device (almost certainly a smartphone) with a standard layered build: a support bracket in the middle, a display on the front, and a circuit board on the back. An electronic component on the circuit board generates heat during normal use.

Normally, a heat transfer unit (typically a graphite sheet or vapor chamber that pulls heat away from hot chips) sits between the display and the bracket. Here, Samsung engineers have redesigned that unit so it also forms part of the acoustic passage, the physical tunnel that carries sound waves from the speaker module out through the phone body.

Key design elements the patent covers:

• A support bracket that anchors display, board, and heat unit together
• A sound output module whose acoustic path runs partly through the heat transfer unit rather than around it
• A heat transfer unit shaped to both conduct thermal energy and guide sound waves simultaneously

The claim is deliberately broad, covering any configuration where the heat-moving component also provides a section of the sound output passage. Specific materials and exact geometry are left open, giving Samsung flexibility in how it implements the idea across different device sizes.

What this means for thinner phones with louder speakers

Inside a modern smartphone, the fight for internal volume is constant. Every millimeter given to a speaker channel is a millimeter taken from battery, camera optics, or structural support. By combining the thermal and acoustic paths, Samsung could free up meaningful internal space, which is real budget that could go toward a larger battery or a slimmer profile.

For audio quality specifically, a well-designed sound passage affects how loud and full a phone speaker sounds. If this design lets engineers make that passage larger or better shaped than a standalone acoustic channel would allow, the speaker could actually benefit from sharing space with the heat pipe rather than competing with it.

Editorial commentary on a publicly published patent application. Not legal advice.
