IBM · Quantum · Filed Dec 13, 2024 · USPTO published Jun 18, 2026 · Jun 18 release

IBM Patents a Way to Snap Quantum Computer Chambers Together Like Building Blocks

Quantum computers have to run at temperatures colder than outer space — and right now, that's a serious bottleneck on how big they can get. IBM is patenting a way to snap multiple frozen chambers together like modular blocks.

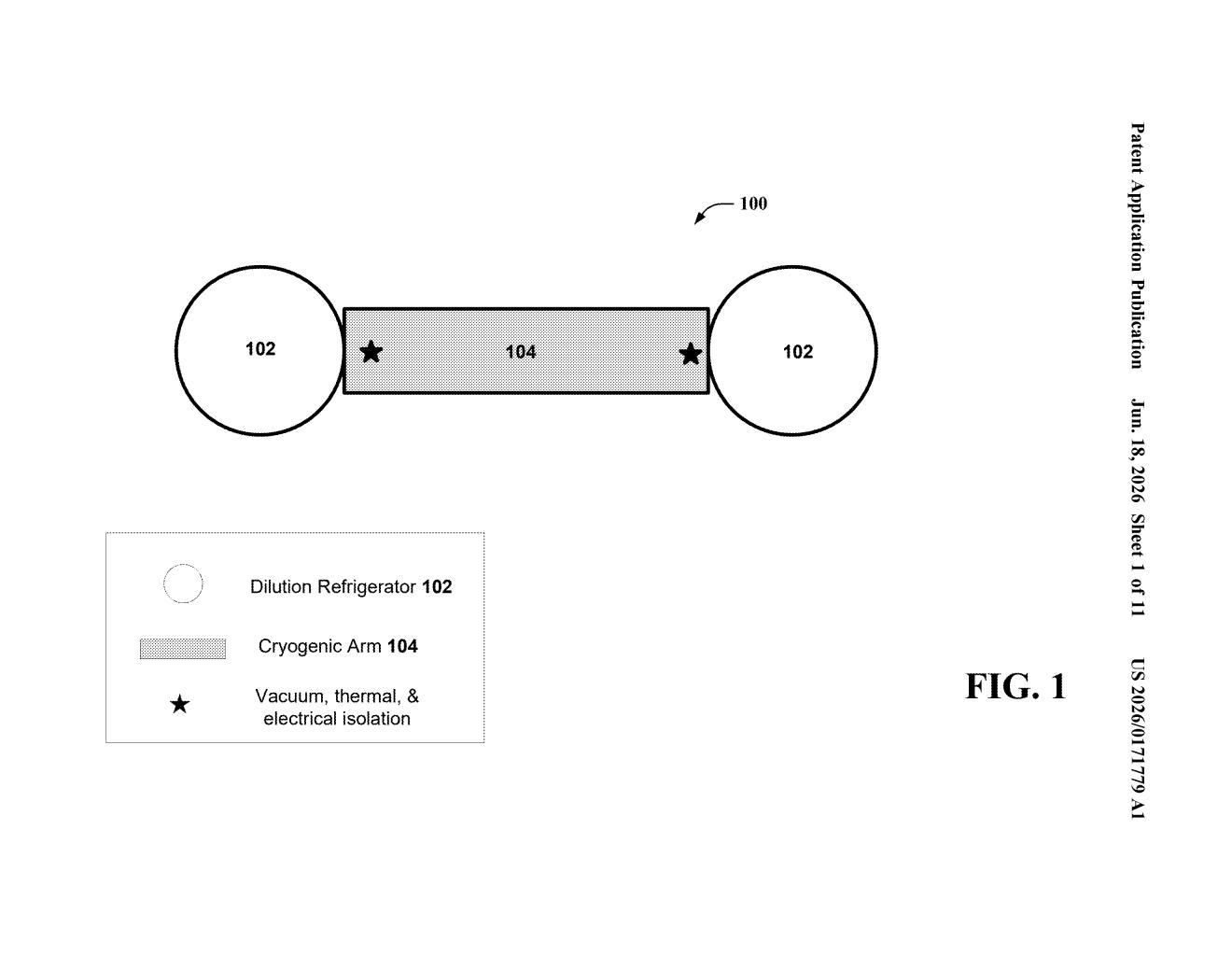

IBM Patent: Modular Cryogenic Chambers for Quantum Computers, figure from US 2026/0171779 A1
Figure from the official USPTO publication.
Publication number
US 2026/0171779 A1(US20260171779A1)
Applicant
International Business Machines Corporation
Filed · Published
Dec 13, 2024 · Jun 18, 2026
Inventors
Ashutosh Rao, Stephen W. Bedell
Status when we published
Waiting for an examiner
Document
20 claims
US classification
62/6

What IBM's modular cryo-connector actually does

Imagine your home freezer, but instead of 0°F, it needs to stay just a hair above absolute zero — roughly -459°F. That's the environment a quantum computer requires to function. The problem is, those ultra-cold enclosures (called cryogenic chambers) are very hard to build big, and making one giant chamber is expensive and technically brutal.

IBM's patent describes a connector that lets engineers link two or more of these separate cold chambers together like building blocks, while keeping an airtight, vacuum-sealed bond between them. Signals can travel between the chambers through the connector without breaking the frozen environment inside.

The idea is essentially to stop trying to cram everything into one enormous refrigerator and instead snap smaller ones together as needed. That could make it far easier to scale quantum computers up without redesigning the whole cooling system from scratch.

How the vacuum-sealed connector links the chambers

The patent describes a cryogenic connector — a physical joining piece that bonds two or more separate cold chambers together while maintaining a vacuum-tight seal. That seal is critical: any leak of warm air or gas would instantly destroy the ultra-low temperatures quantum hardware depends on.

Inside the connector sits a fixed signal-carrying member — essentially a carefully engineered conduit that passes quantum signals from the wiring inside one chamber to the wiring inside the next. This allows the separate chambers to act, from a signals perspective, as a single connected system even though they are physically distinct enclosures.

The modular design means you could, in theory, add chambers incrementally rather than building one monolithic cryostat (the technical term for the entire refrigeration vessel). Each chamber can be attached or detached through the standardized connector interface.

The patent's first claim is notably minimal — it stakes out the core idea of two or more cryogenic chambers joined by a connector with a vacuum-tight seal, leaving room for a broad range of specific implementations to be covered by dependent claims.

What this means for building bigger quantum machines

The single biggest obstacle to practical quantum computing isn't the qubits themselves — it's the cooling infrastructure. Today's quantum processors are essentially prisoners of a single refrigerator. If you want more qubits, you need a bigger fridge, and bigger fridges become exponentially harder and more expensive to engineer.

A modular connector approach could let IBM (and eventually others) grow quantum systems horizontally rather than vertically — adding capacity by attaching new chambers rather than rebuilding the whole thing. For you as a potential user, this could eventually translate into cloud-accessible quantum systems with far more processing power than what exists today, without waiting for a single engineering moonshot.

Source: US 2026/0171779 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
