Nvidia Patent Covers AI-Designed Virtual Data Centers Before Any Hardware Is Ordered
Building a data center for the wrong workload is an expensive mistake. Nvidia is patenting a system that uses AI and digital twins to figure out the right hardware before anything gets ordered or installed.
How Nvidia's AI picks data center hardware before you build
Imagine you're opening a restaurant and you have to choose all your kitchen equipment before knowing your full menu. Buy too little, and service grinds to a halt. Buy too much, and you've wasted a fortune. Data centers face the exact same problem, just with servers and networking gear instead of ovens and fridges.
Nvidia's patent describes a system that builds a virtual copy of a data center inside a simulation, then asks an AI to suggest which hardware combinations would run a given workload best. The system runs those simulated experiments, checks the results, and keeps refining its guesses until it lands on a setup that meets the performance targets.
The goal is to take the guesswork (and the expensive trial-and-error) out of planning large-scale computing infrastructure. Instead of committing to a hardware order and hoping for the best, you'd get a data-driven answer from the simulation before you spend a dollar.
generate a digital representation of a physical data center in a digital simulation environment; provide, as input to a machine learning model, information about a workflow to be performed in the physical data center, the machine learning model trained using benchmark data for a plurality of processing jobs performed using combinations of hardware in the physical data center; …
Translation: The system builds a virtual data center and uses past performance data to figure out the best hardware setup for a specific workload.

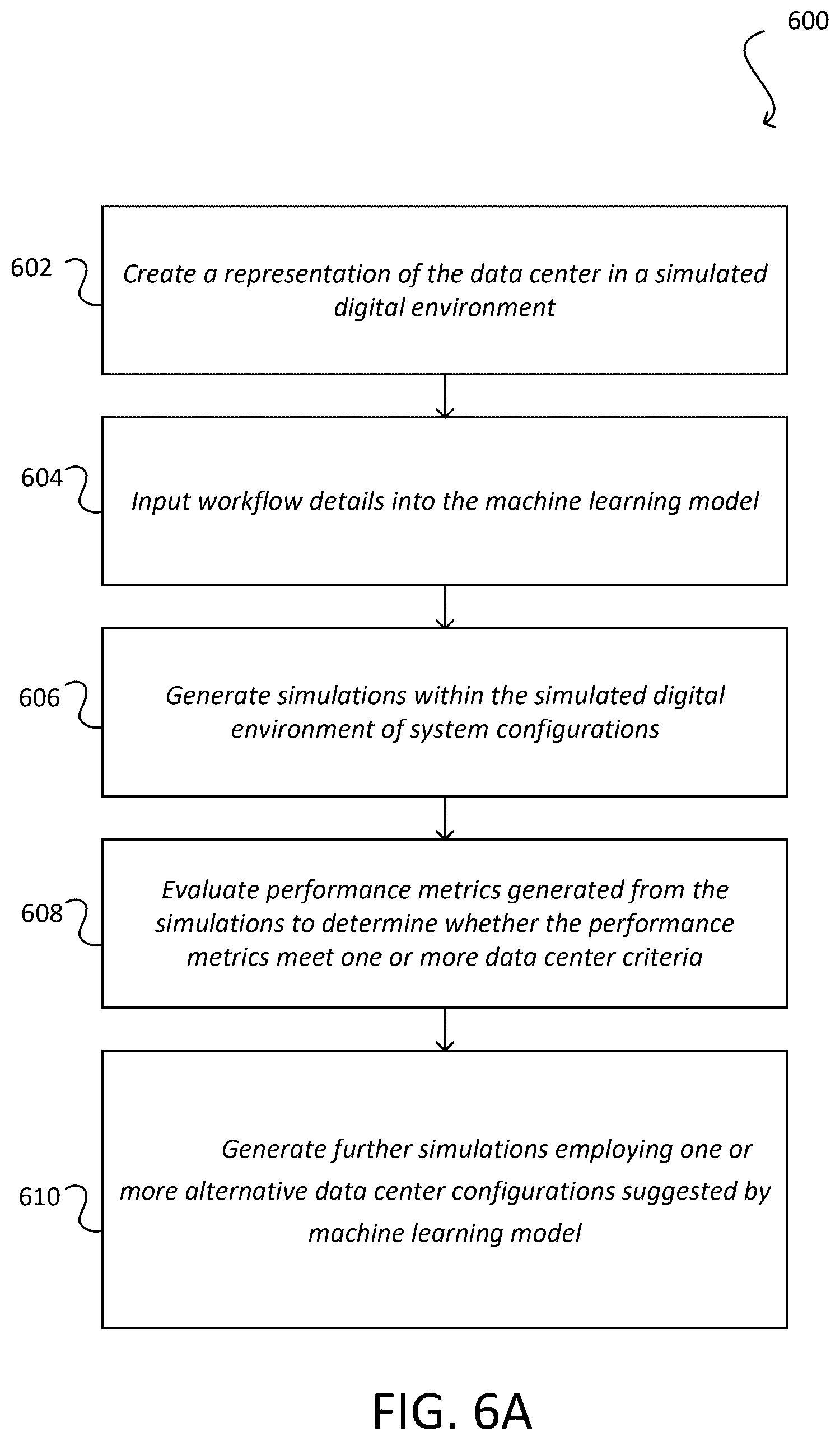

How the simulation loop narrows down hardware candidates

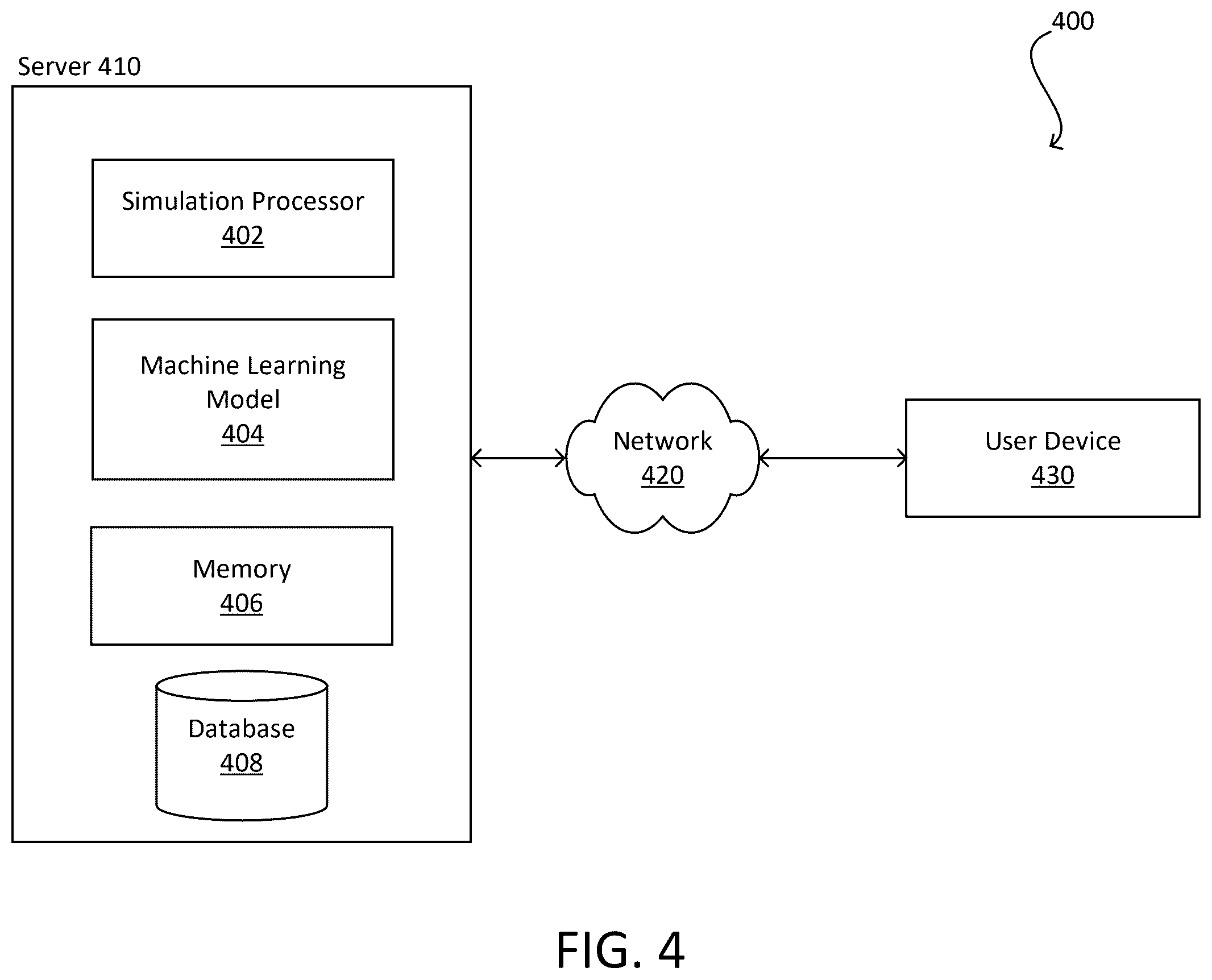

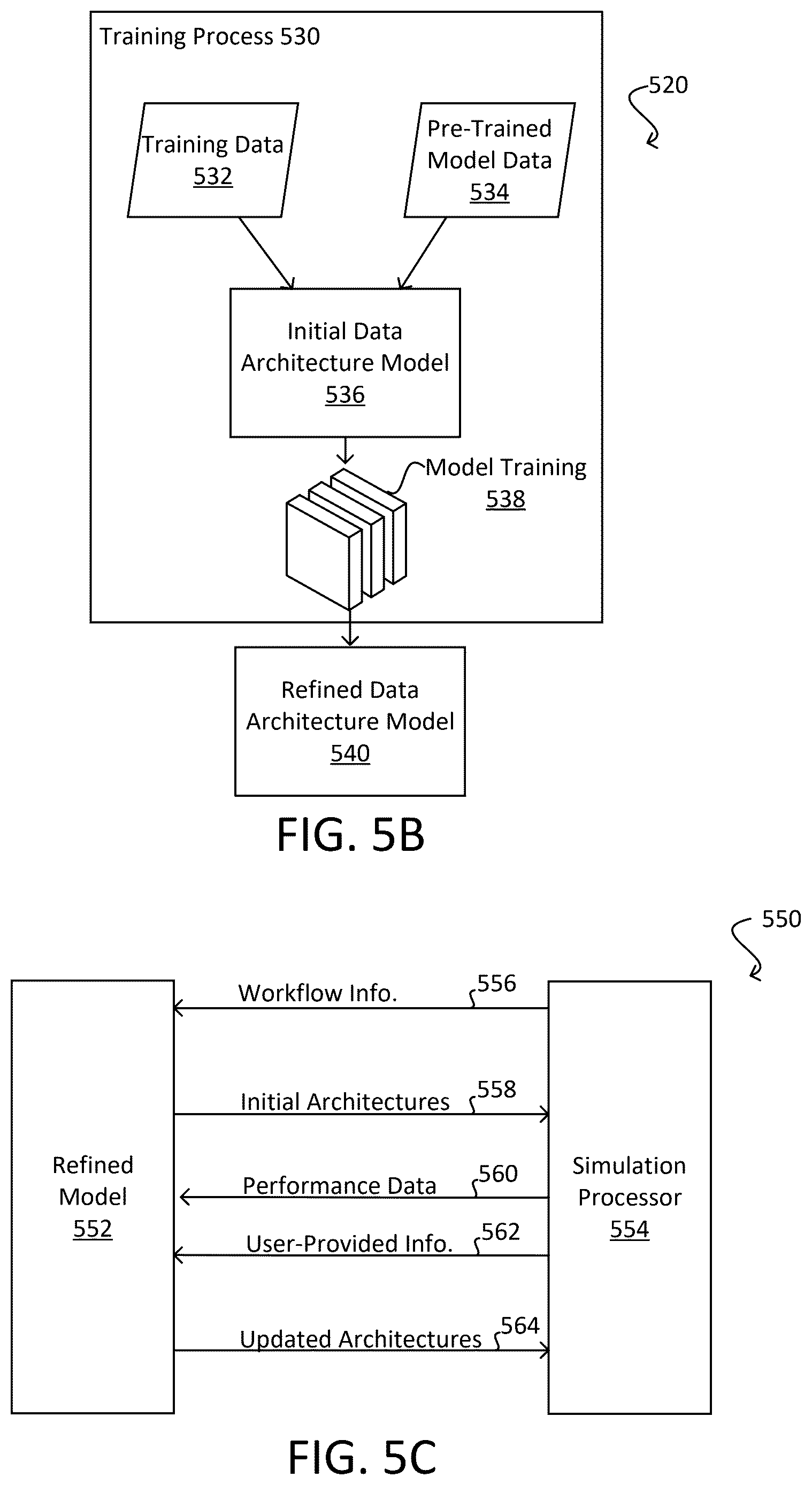

The patent describes a closed feedback loop that combines digital twin simulation (a virtual model of a real data center) with a machine learning model trained on historical benchmark data from actual hardware runs.

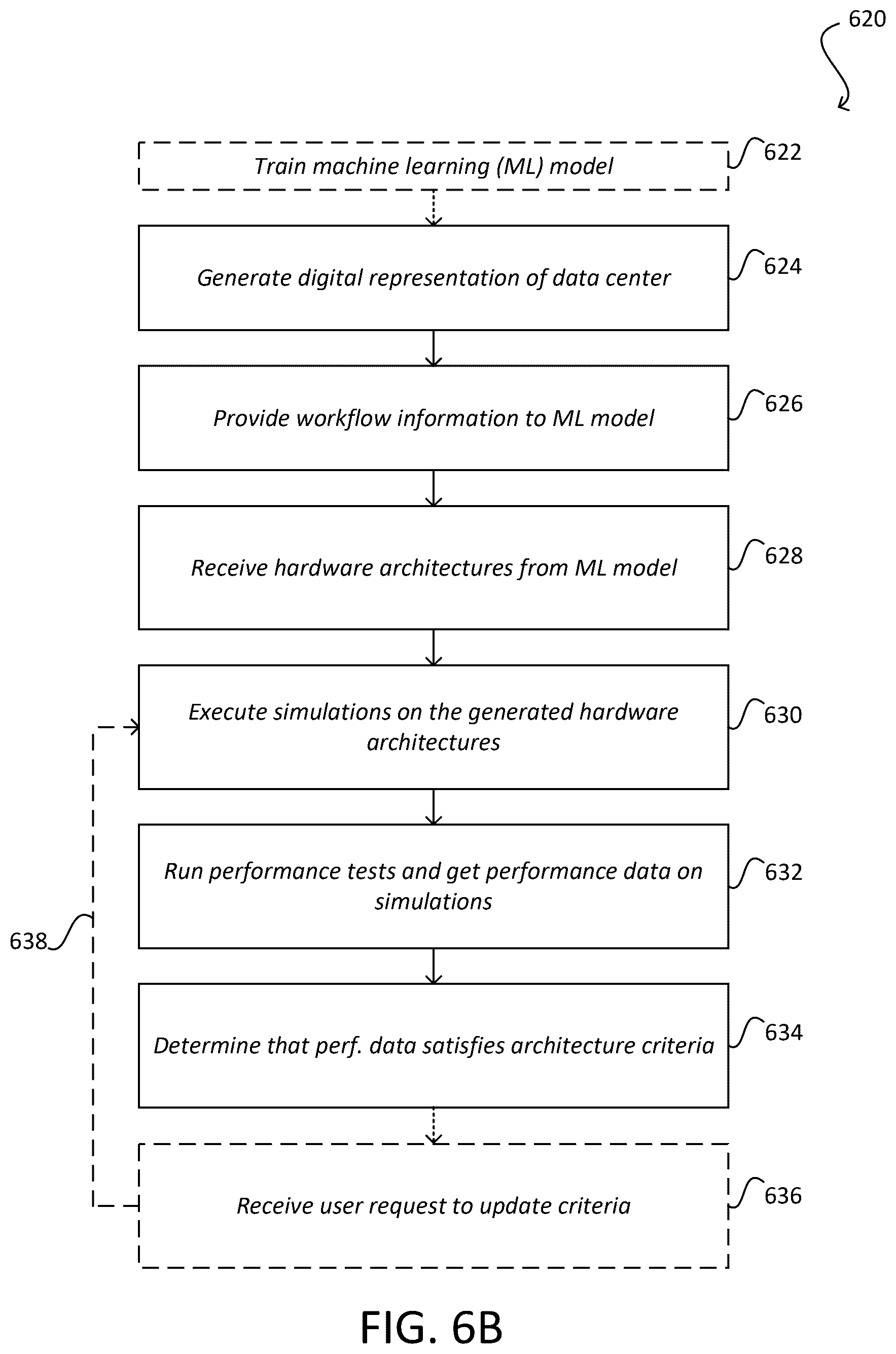

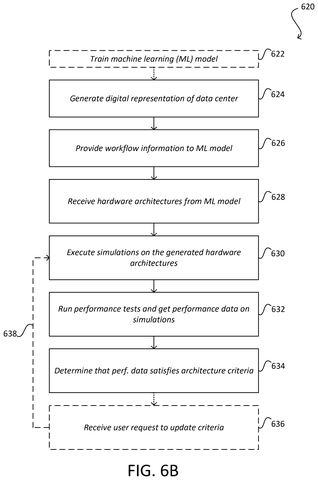

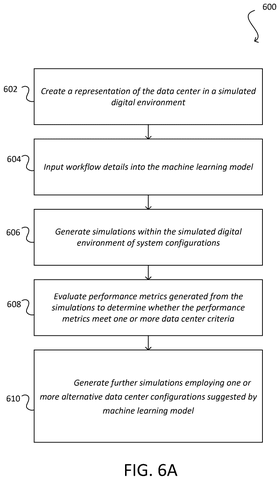

Here's how the loop works:
- You describe the workflow you want to run, such as training a large AI model or processing video at scale, and feed that description to the ML model.
- The ML model outputs one or more hardware architecture candidates, meaning combinations of processors, memory, networking gear, and storage it thinks are worth testing.

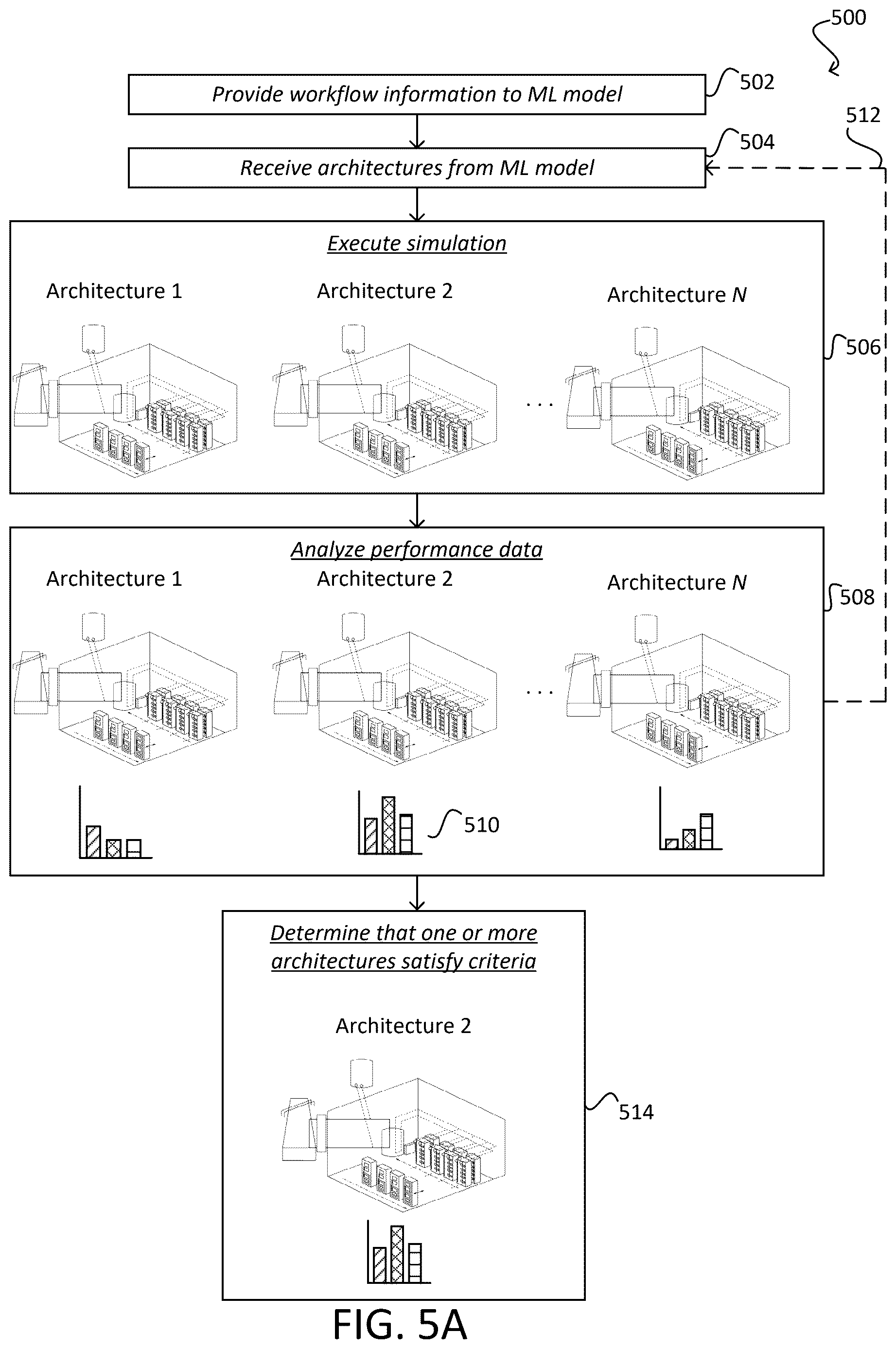

- Those candidates are run inside the digital simulation environment, which mimics how the real data center would behave under that workload.
- The system checks whether the simulation results meet the architecture selection criteria (performance targets, cost limits, power budgets, etc.).
- If no candidate passes, the ML model uses the simulation results as new training signal and proposes revised candidates, and the loop repeats.
The ML model is trained on benchmark data from real hardware combinations already tested in the physical data center, so its suggestions are grounded in observed behavior, not just theory. This iterative refinement is similar to how a search algorithm narrows down options, except here the "search space" is the enormous range of possible server configurations.
A system generates a digital representation of a data center, simulates how the digitally represented data center would perform under a certain workflow, and determines which of the simulated data centers satisfies the one or more criteria.
Translation: It tests different virtual setups to find the one that meets performance goals before buying any physical equipment.
What this means for AI infrastructure spending
Data centers, especially those built to run AI workloads, involve enormous upfront hardware commitments. Getting the architecture wrong can mean wasted capital or performance bottlenecks that take months to fix. A system that stress-tests configurations in simulation before any purchase order is signed could meaningfully reduce that risk.
For Nvidia specifically, this patent fits its push into data center planning software alongside its hardware sales. If Nvidia can offer a tool that tells customers exactly which of its GPUs, networking chips, and interconnects to buy for a given job, that's a powerful sales and engineering advantage. It also points toward tighter integration between Nvidia's simulation platforms (like Omniverse) and its AI infrastructure business.
This is genuinely useful infrastructure work, not a flashy consumer feature. The feedback loop between simulation and ML-driven hardware suggestion is the kind of engineering that saves large operators real money, and it positions Nvidia as a full-stack data center consultant, not just a chip vendor. Worth watching as AI infrastructure spending scales up.
