Samsung Patents a System That Recalibrates Your Phone's Altitude Sensor After You Drop It
Drop your phone and the barometric pressure sensor inside it can shift out of calibration feeding bad altitude data to every app that depends on it. Samsung's new patent describes a way to catch that moment and fix the reading automatically.
What Samsung's drop-triggered sensor fix actually does

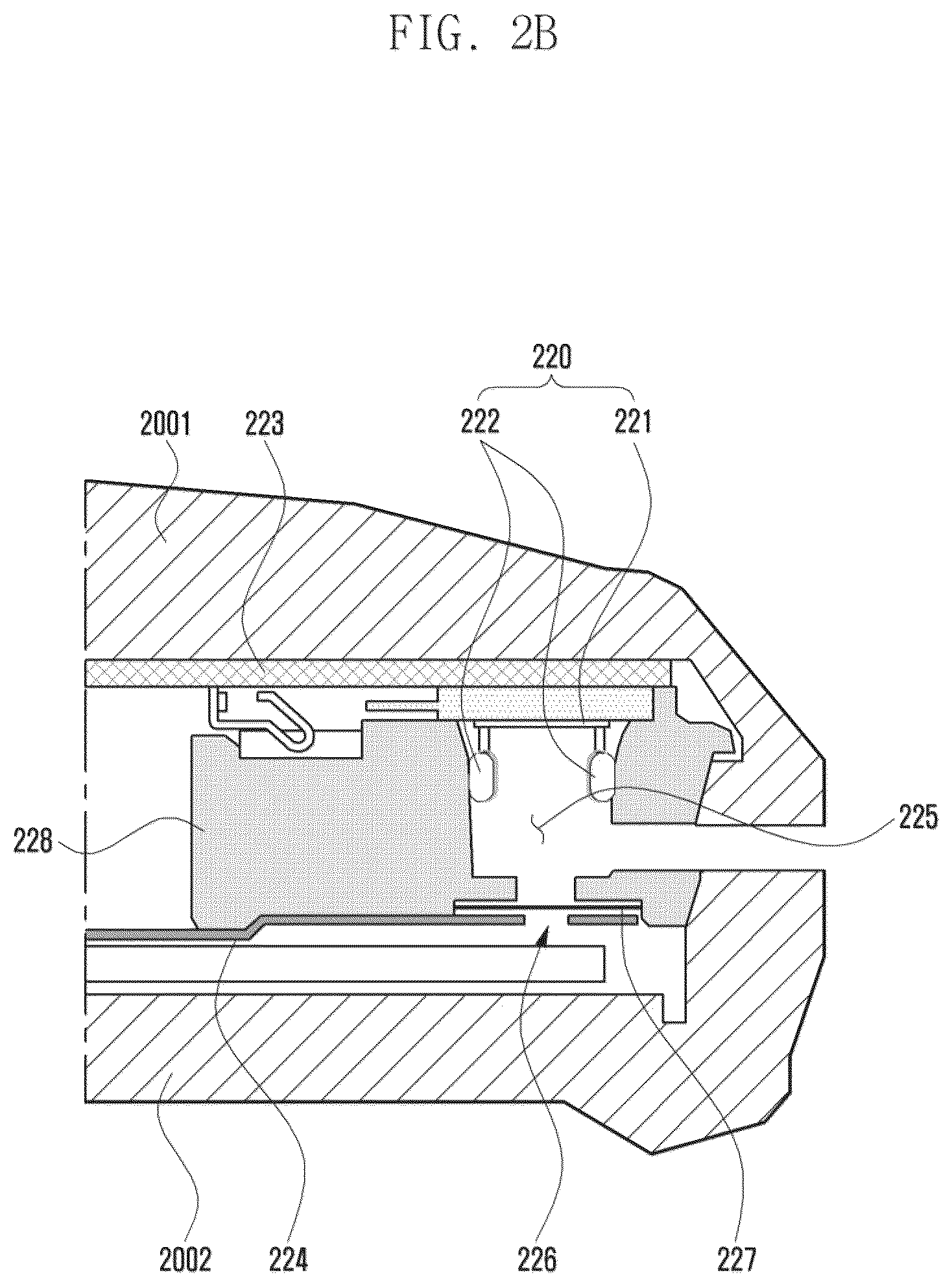

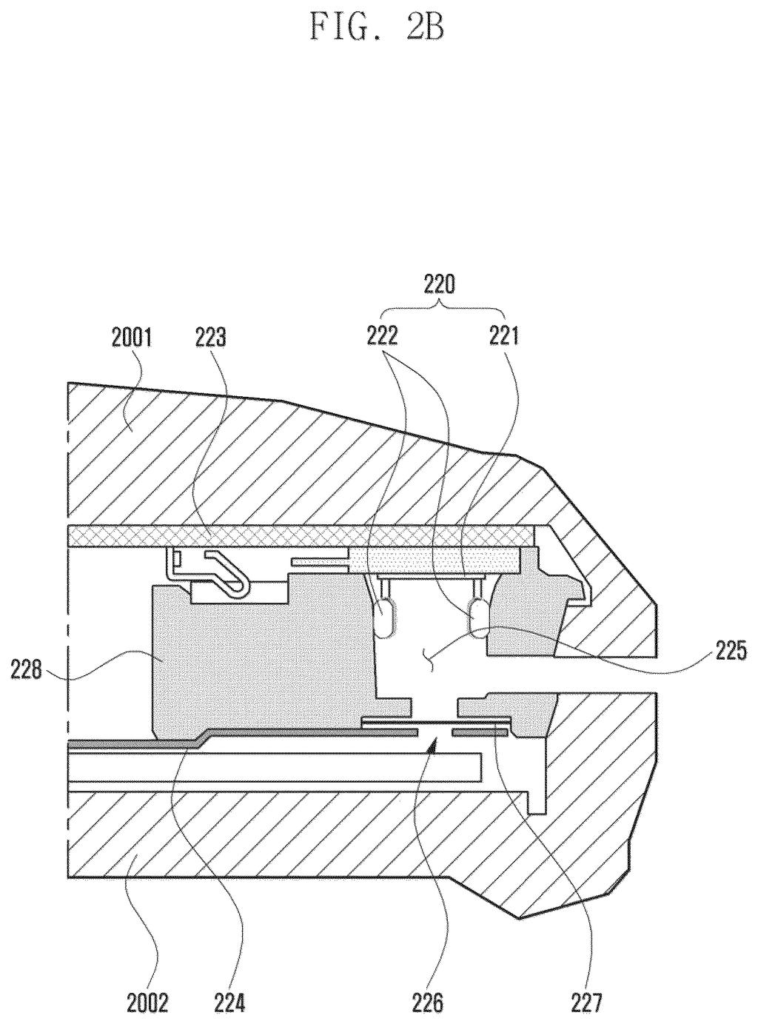

Your phone contains a tiny barometric pressure sensor that measures air pressure to estimate altitude. Fitness apps use it to count stairs climbed; navigation apps use it to figure out which floor of a building you're on. The problem: if you drop your phone or it takes a hard knock, the sensor can get physically jolted and start reading slightly wrong. You'd never know, but your step-tracking data would drift.
Samsung's patent describes a system that watches for drops and impacts using the phone's built-in motion sensor, then automatically recalibrates the pressure sensor before and after the event. It looks at a moment when the phone was perfectly still just before the drop, uses that as a reference point, then adjusts the pressure reading once the phone comes to rest again.

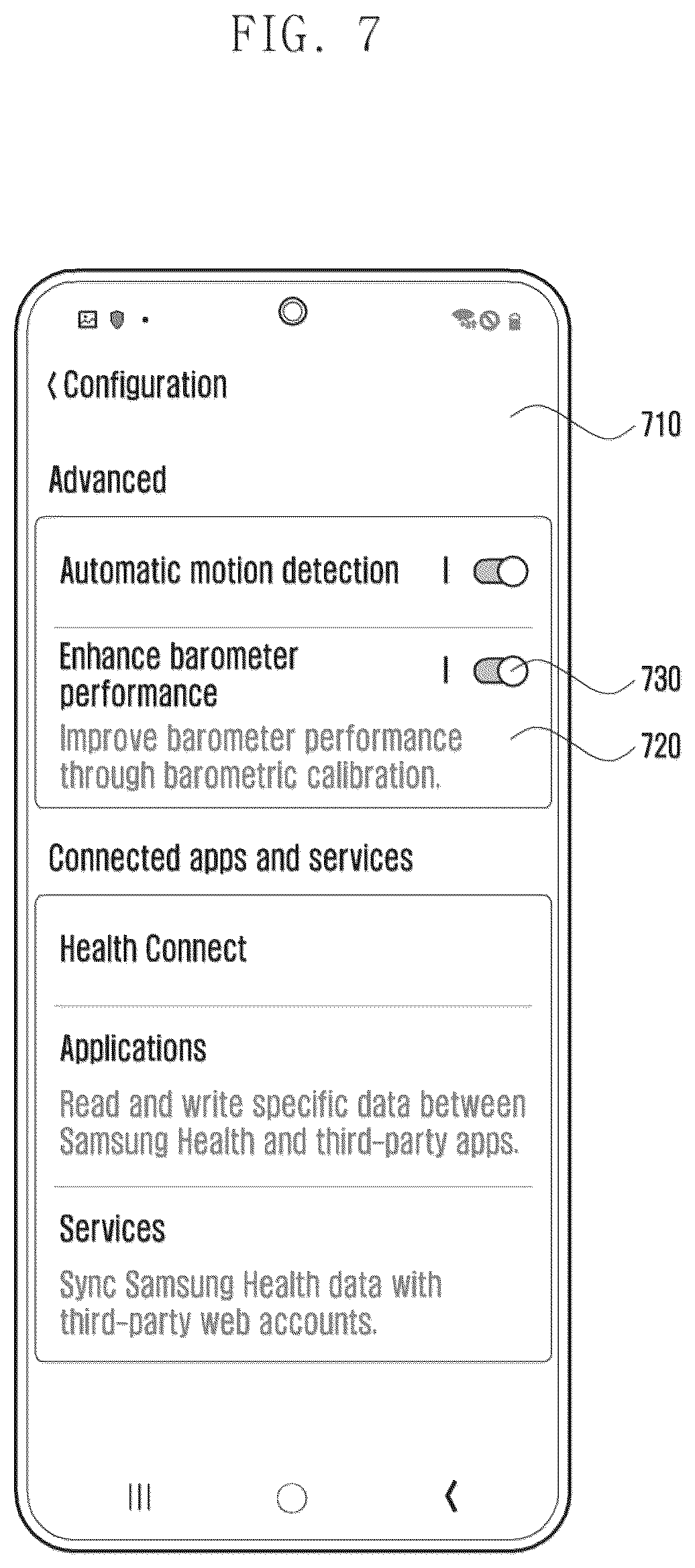

The result is that the phone corrects itself without you lifting a finger. No settings menu, no factory reset, no lost workout data.
How the device remodels its pressure estimate around a fall

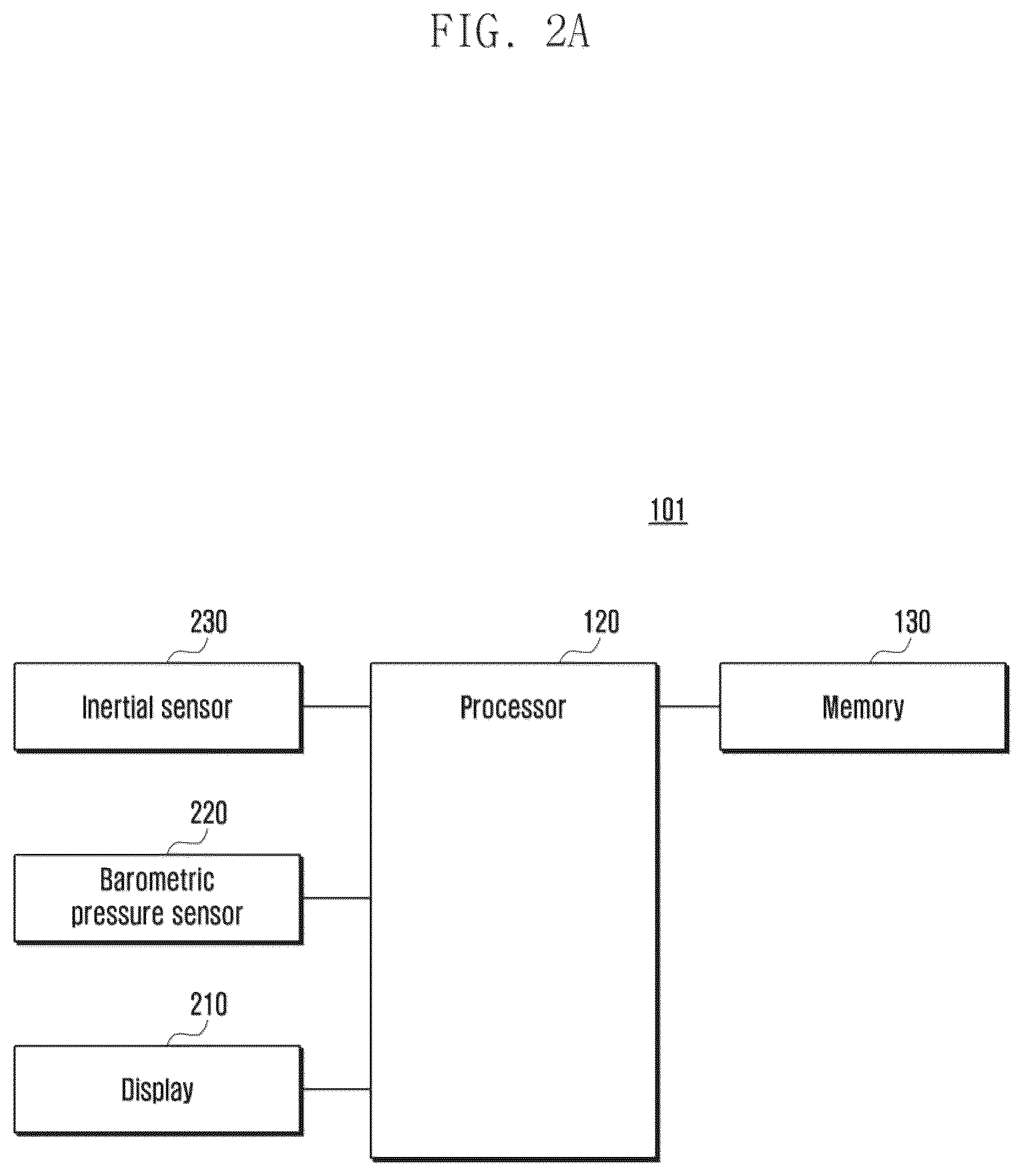

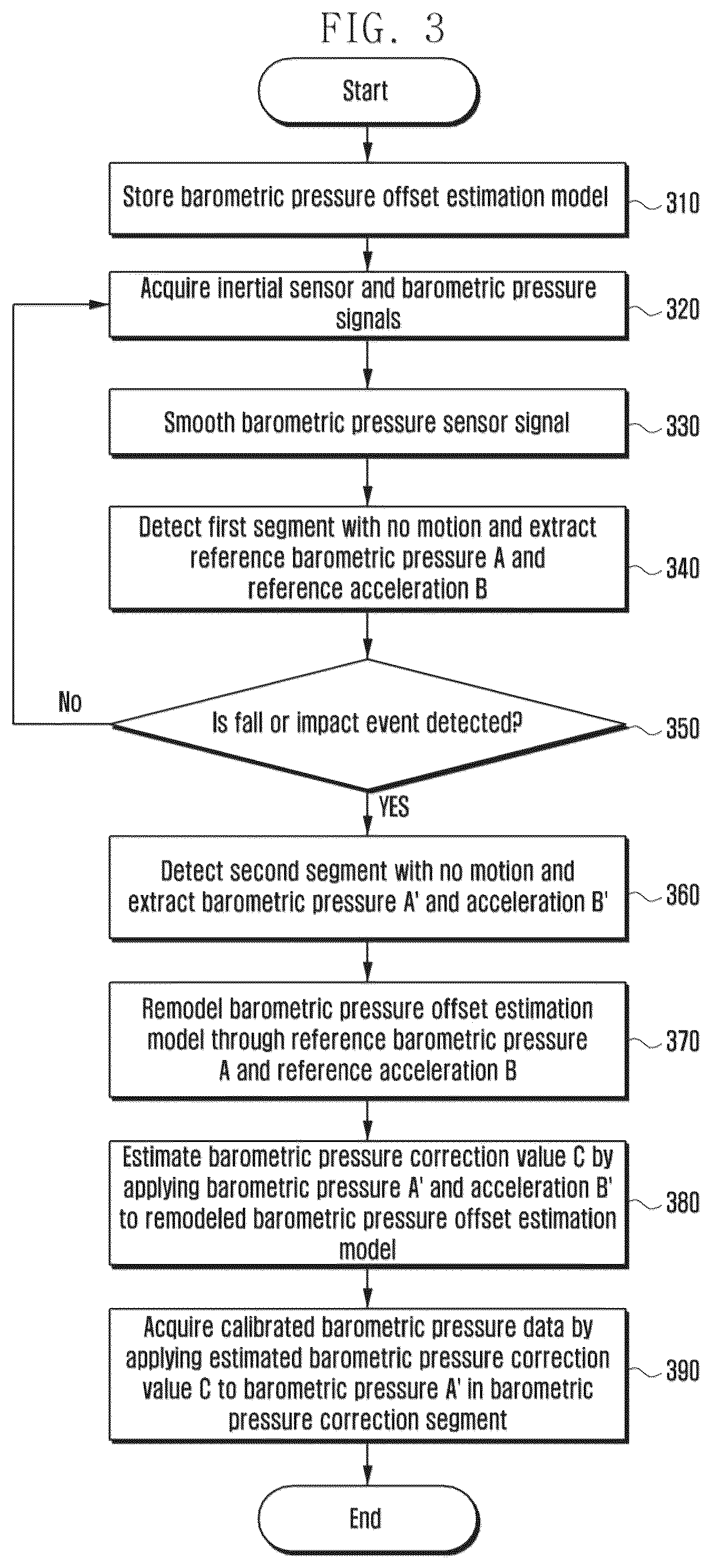

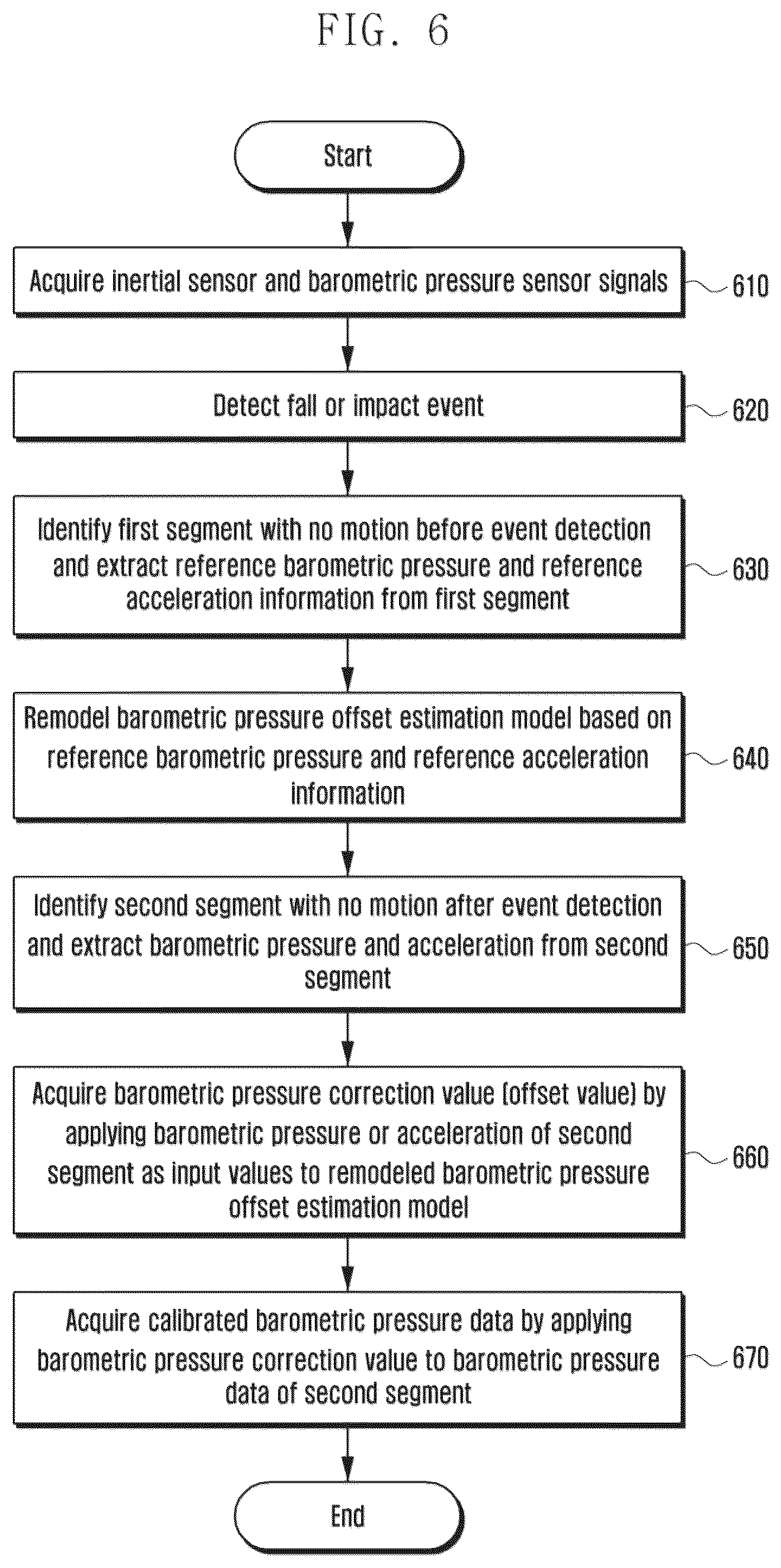

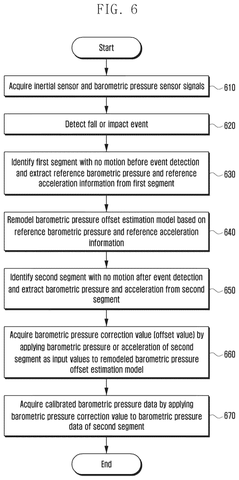

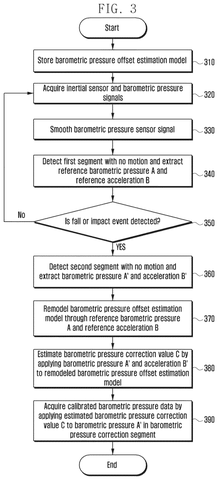

The patent describes a four-step calibration loop that runs whenever the phone detects a fall or significant impact via its inertial sensor (the accelerometer and gyroscope already inside most phones).

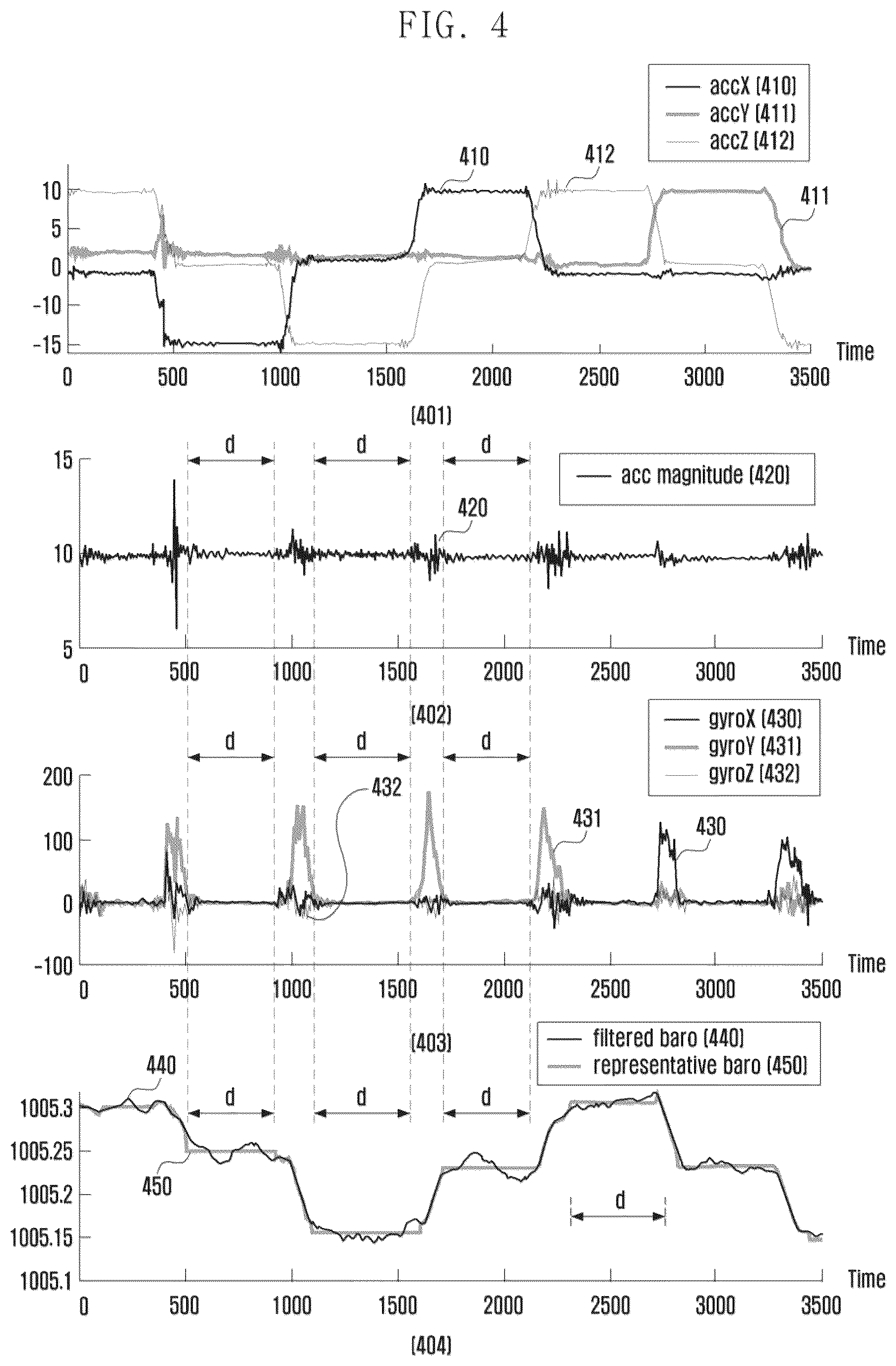

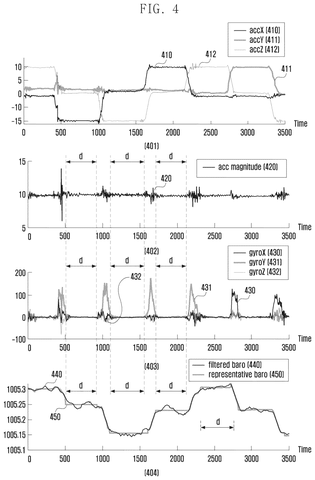

- Before the drop: The system finds a "first segment" in the motion data, a window of time just before the fall when the phone was completely still. It reads the air pressure and acceleration values from that calm moment and uses them to update its internal barometric offset estimation model (essentially a learned formula that accounts for how the phone's posture affects its pressure reading).
- After the drop: It finds a second still window once the phone has landed and stopped moving. It feeds the pressure and acceleration from that window into the now-updated model to calculate a correction value.
- Apply the fix: That correction value is subtracted from all subsequent pressure readings, so the altitude data coming out of the sensor is accurate again.

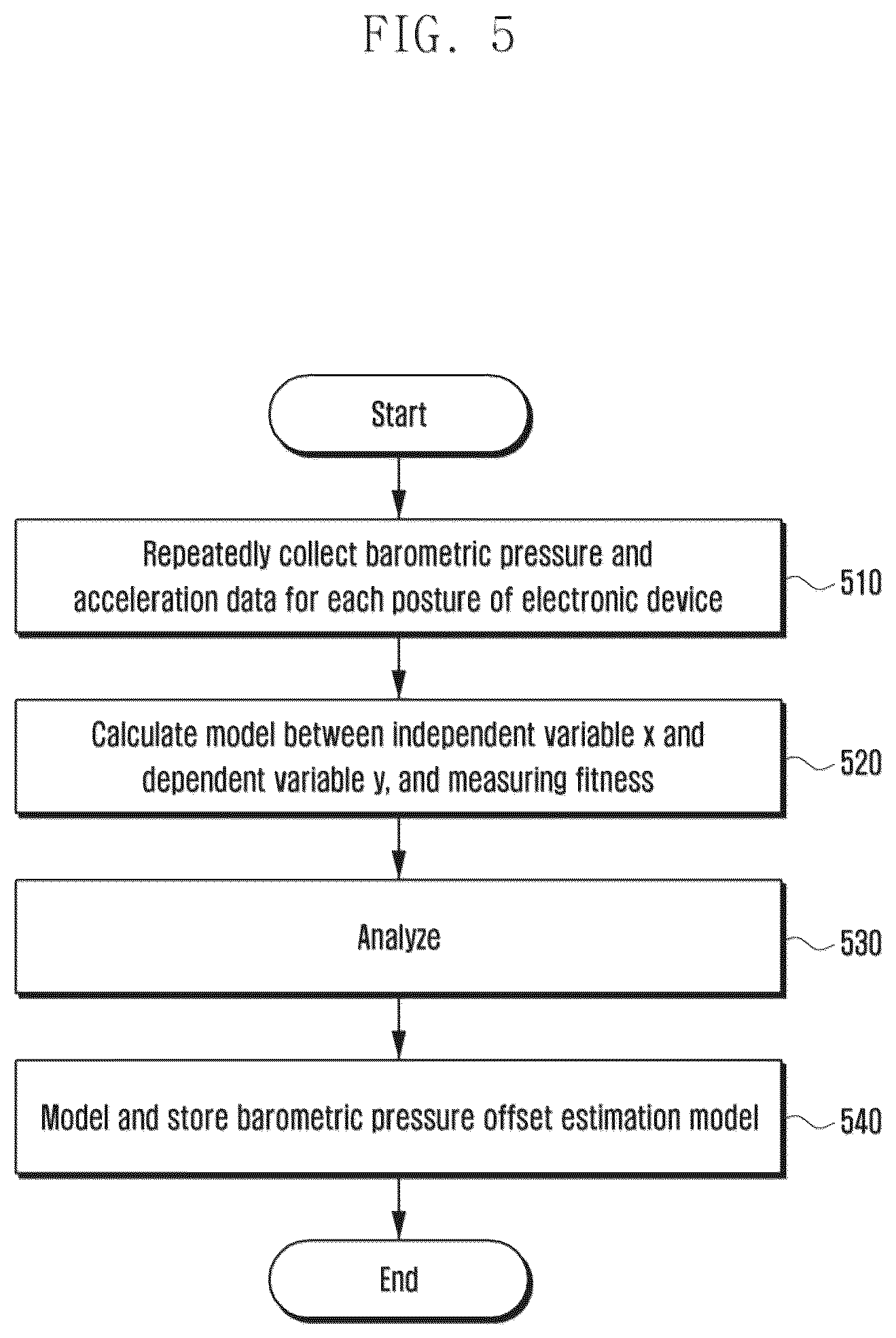

The key insight is that the system uses posture characteristics, meaning whether the phone is lying flat, standing upright, or tilted, as part of the model. A phone face-down on a table reads pressure slightly differently than one sitting upright in a pocket, so the model accounts for that before computing the correction.
What this means for fitness tracking and indoor navigation
Barometric altitude data feeds into more places than most people realize: floor-level navigation in airports and malls, stair counts in fitness trackers, emergency location services that need to report which floor a caller is on. A sensor that's 5 or 10 pascals off after a drop can translate to a meaningful altitude error, enough to confuse indoor positioning systems or undercount flights of stairs.
For Samsung specifically, this is relevant across its entire Galaxy lineup, from phones to smartwatches, all of which carry barometric sensors. A self-healing calibration system that requires no user action keeps that data reliable across the life of a device, even after the bumps and drops that come with everyday use.
This is quiet, practical engineering work, exactly the kind of thing that never shows up in a product announcement but makes devices more trustworthy over time. The calibration problem it solves is real and the approach is elegant: use the phone's own stillness before and after a drop as a natural calibration window. Worth paying attention to for anyone tracking Samsung's wearables and health-data accuracy strategy.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

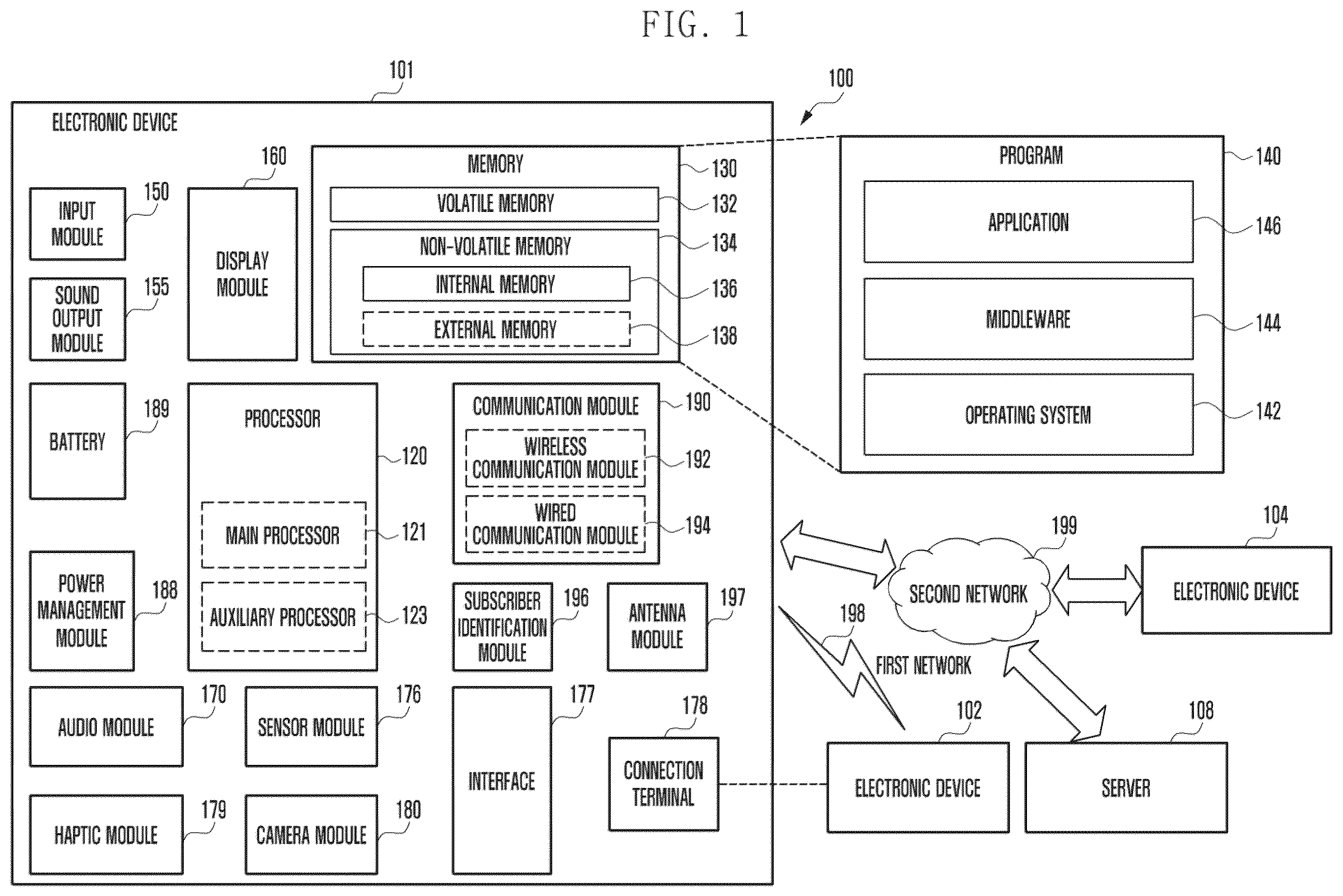

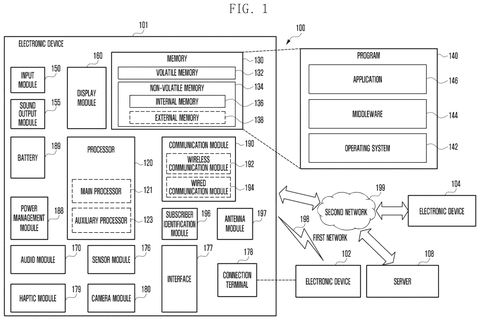

The drawings
11 drawing sheets from US 2026/0227261 A1 · click any drawing to enlarge
