IBM Patents a Snake Robot That Drills Curved Holes With Electrochemistry

Drilling a curved hole through metal sounds like something out of a spy gadget catalog — but IBM has filed a patent for exactly that, using a snake-like robot and chemistry instead of brute mechanical force.

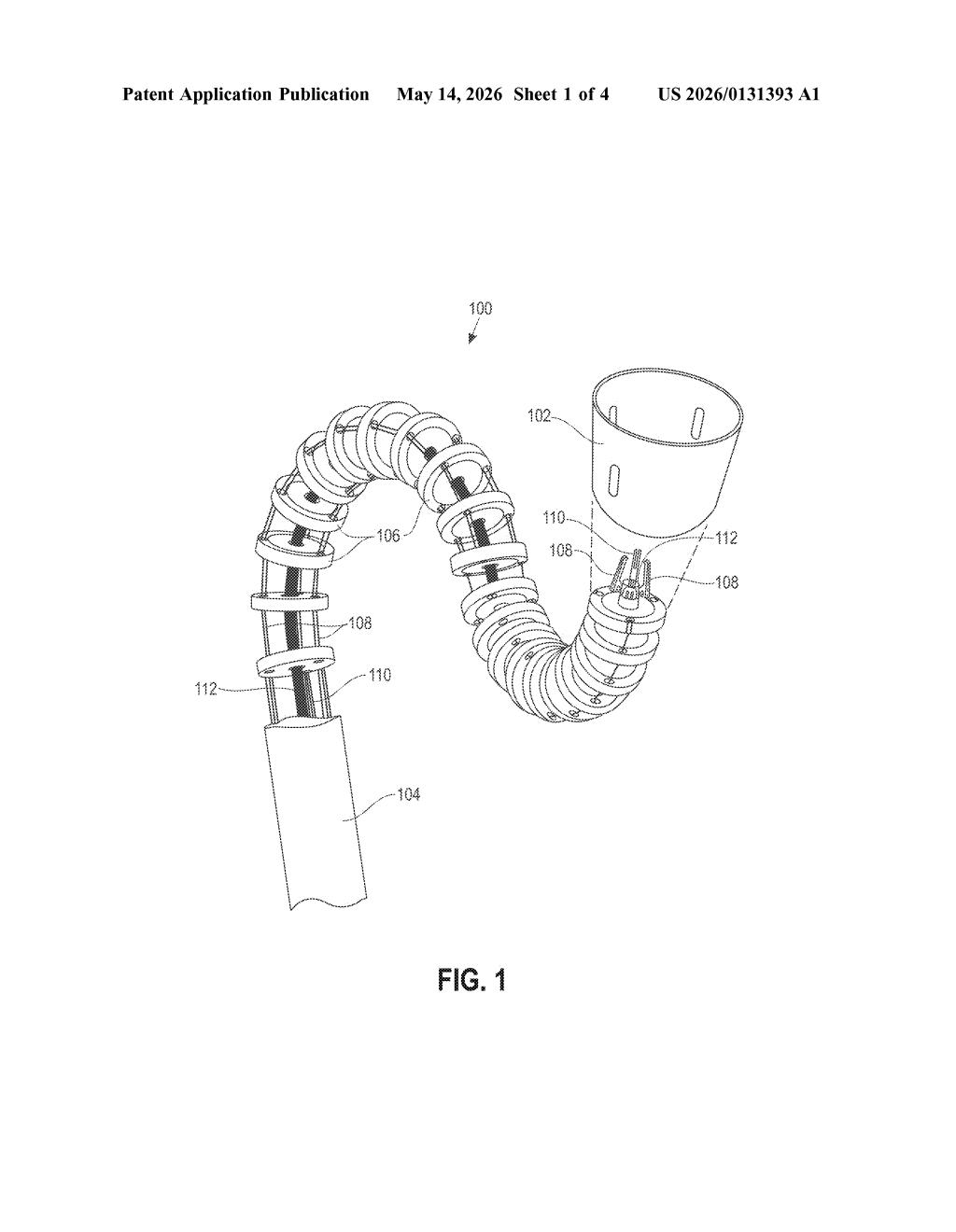

IBM Patent: Snake Robot for Curved Electrochemical Drilling, figure from US 2026/0131393 A1
Figure from the official USPTO publication.
Publication number
US 2026/0131393 A1(US20260131393A1)
Applicant
INTERNATIONAL BUSINESS MACHINES CORPORATION
Filed · Published
Nov 11, 2024 · May 14, 2026
Inventors
Sarbajit Kumar Rakshit, Sathya Santhar, Sridevi Kannan
Status when we published
Waiting for an examiner
Document
20 claims
US classification
205/649

What IBM's snake robot ECM drill actually does

Imagine you need to drill a hole through a solid metal part — but it can't be straight. Maybe you're routing a cooling channel inside an aircraft engine component, or threading a passage through a complex industrial part with no straight-line access. Normal drill bits can't bend. This is a real engineering headache.

IBM's solution is a flexible snake robot tipped with an electrochemical machining (ECM) drill head. Instead of grinding through metal with a spinning bit, ECM dissolves the metal using an electrical charge and a liquid chemical — so there's no heat buildup, no mechanical stress, and the robot can bend its way through curved paths that rigid drills can't follow.

The robot carries internal tubes (conduits) that pipe the chemical solution to the drill tip and suck debris back out, keeping the process clean as it goes. A layer of insulating material wraps the outside so only the tip does the cutting — not the sides of the robot as it snakes through the hole.

How the snake robot steers, dissolves, and cleans as it cuts

The apparatus has three main components working together:

  • ECM drill head — attached to the front of the snake robot, this is where metal removal actually happens. ECM works by running electrical current through an electrolyte solution (a conductive liquid) between the tool and the workpiece, dissolving metal atoms without any physical contact or cutting force.
  • Snake robot body — a flexible, segmented robot that can steer and bend as it advances into the workpiece. A movement control assembly handles articulation, allowing the robot to navigate curved trajectories rather than drilling in a fixed straight line.
  • Internal conduit system — multiple tubes run the length of the robot's body. One delivers fresh electrolyte to the drill head; another carries dissolved metal debris back out. This closed-loop fluid management keeps the cutting zone clear and the chemistry active.

The entire robot body is wrapped in an insulative material — essentially an electrical insulator — so that the electrochemical reaction is confined to the drill head tip. Without that insulation, current could leak along the robot's body and erode metal in unintended spots as the robot travels through the hole it's creating.

The result is a system that can machine non-linear, curved drill holes through solid workpieces — something conventional rigid drill bits physically cannot do.

What curved ECM drilling means for precision manufacturing

Curved internal channels are extremely valuable in high-precision manufacturing — think turbine blade cooling passages, complex hydraulic manifolds, or medical implant components where a straight-line approach is geometrically impossible. Today, engineers work around this with multi-part assemblies or expensive multi-axis CNC setups. A single snake robot that navigates and dissolves its own path could simplify that considerably.

ECM itself is already well-regarded in aerospace and defense manufacturing because it leaves no heat-affected zones and no mechanical stress in the surrounding material — both of which matter enormously in safety-critical metal parts. Combining ECM with a steerable robotic platform extends that advantage to geometries that were previously off-limits.

Source: US 2026/0131393 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
