Sony Patents a System for Teaching Cameras to See Colors They Can't Directly Measure
Most camera sensors can only measure a handful of color wavelengths at once, which means they're always guessing at the full picture. Sony's new patent describes a way to train a mathematical shortcut that fills in those missing colors as accurately as possible.
What Sony's color-reconstruction sensor method actually does
A scientific instrument stares at a colorful scene, but it can only "see" in three or four broad color bands instead of the full rainbow of light. The result is a color reading that's an approximation at best. If you've ever wondered why machine-vision cameras struggle to tell certain blues from greens, or why food inspection cameras miss subtle ripeness differences, this is the core problem.
Sony's patent describes a method for building a smarter algorithm that bridges that gap. The system simulates what a given sensor would see under different lighting conditions, then works backward to find the best mathematical recipe for reconstructing a fuller, more accurate color picture from the sensor's limited output.

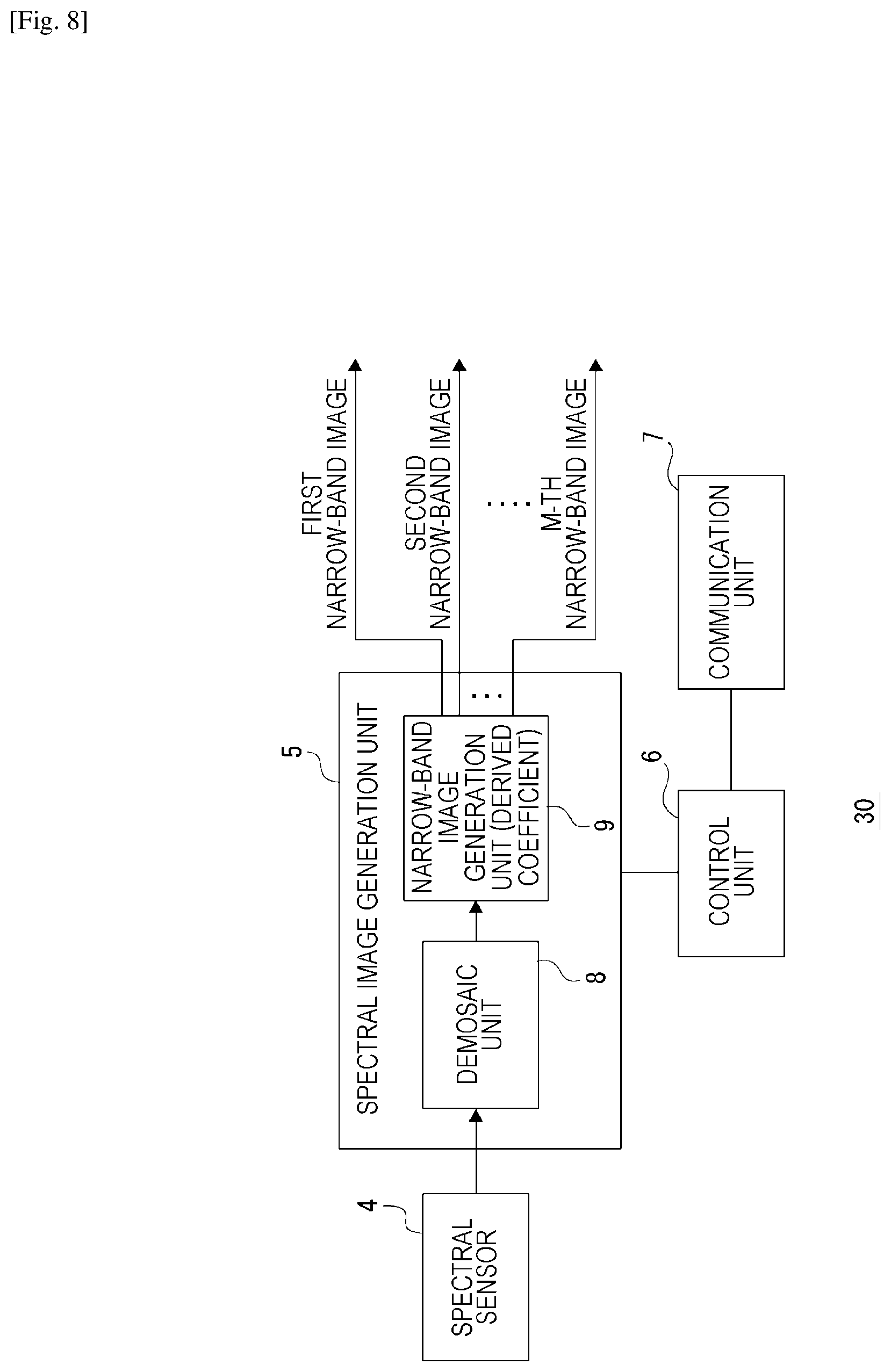

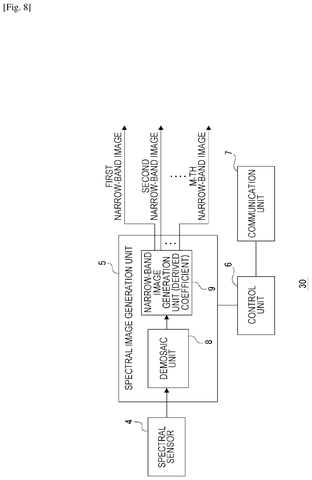

The goal isn't to build a new sensor. It's to get more accurate color data out of sensors that already exist, by calculating the right translation formula before the camera even ships. That formula is then baked in as a processing step that runs automatically every time the camera captures an image.
a sensor input estimation unit that estimates a sensor input that is spectral information of input light to a spectral sensor on a basis of spectral reflectance information of a target subject and spectral information of a target light source; …
Translation: This part figures out the exact light bouncing off an object and hitting the sensor.
How the algorithm closes the gap between sensor output and real light

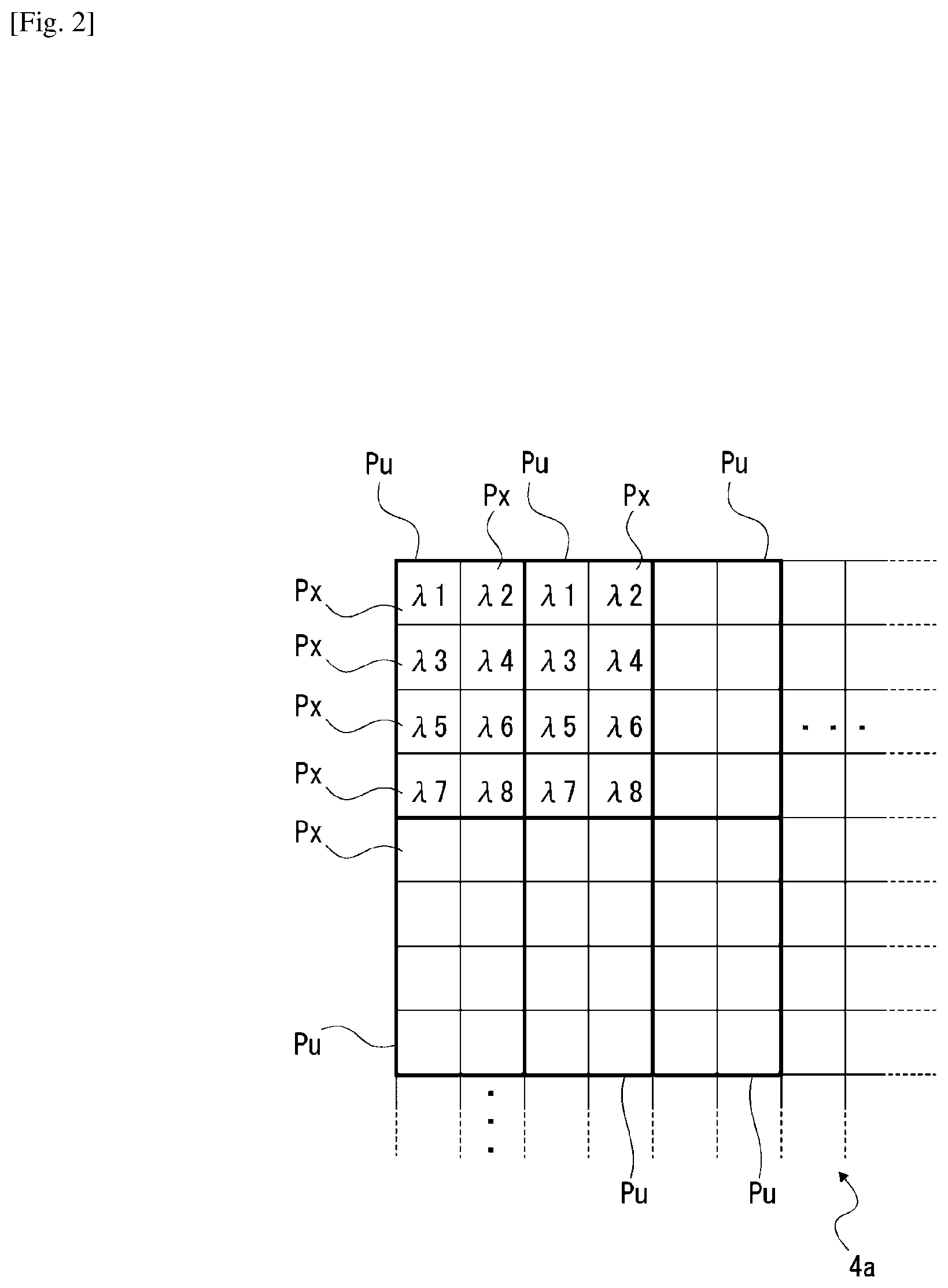

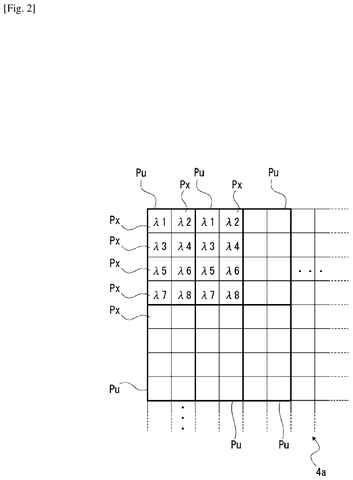

A spectral sensor (a camera that measures the intensity of light at specific wavelengths, used in science, medicine, and industrial inspection) typically outputs far fewer wavelength readings than exist in real light. Sony's system addresses this mismatch through three coordinated steps.

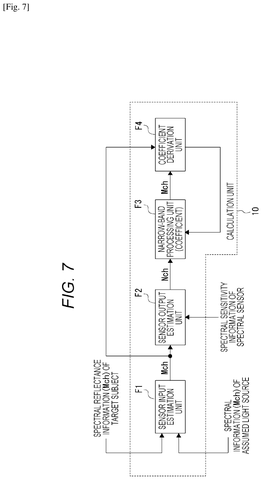

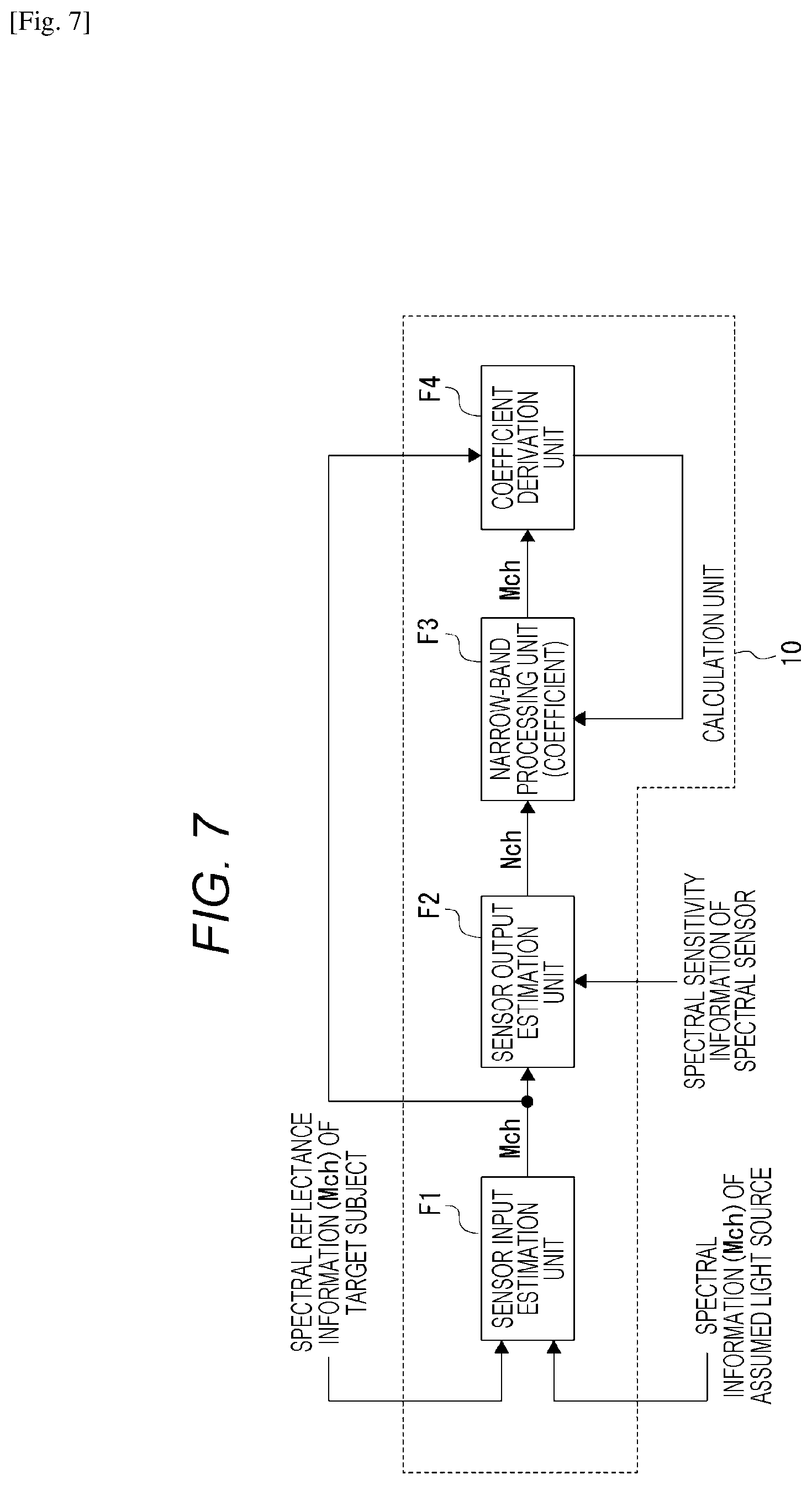

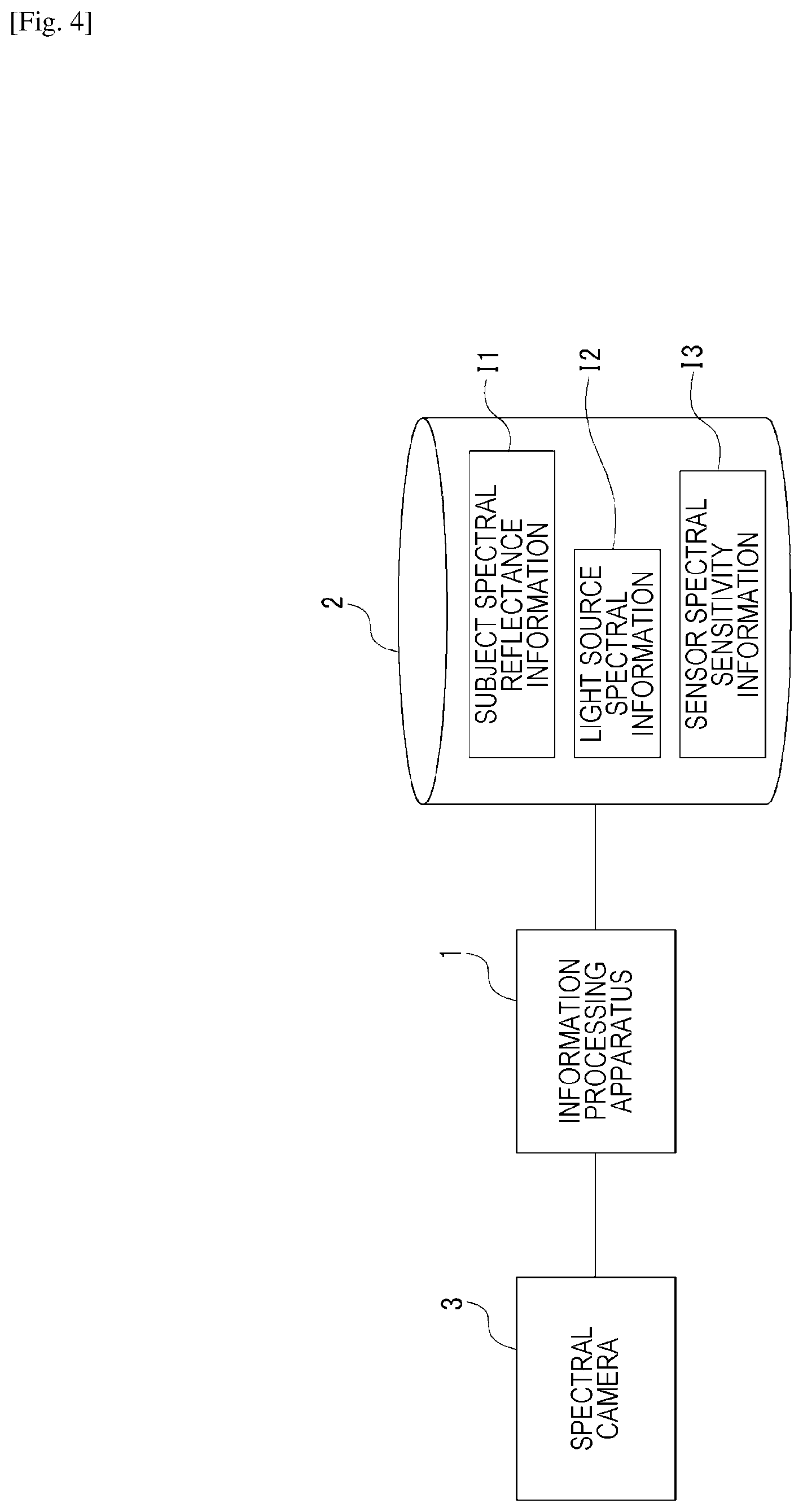

First, a sensor input estimation unit simulates what light the sensor would actually receive by combining two inputs: the reflectance profile of the object being imaged (how it bounces different colors of light) and the spectral character of the light source illuminating it. This gives the system a realistic synthetic "ground truth" to work against.
Second, a sensor output estimation unit applies the sensor's known sensitivity profile to that simulated input, predicting what the hardware would actually record. This is essentially a digital twin of the sensor's behavior.

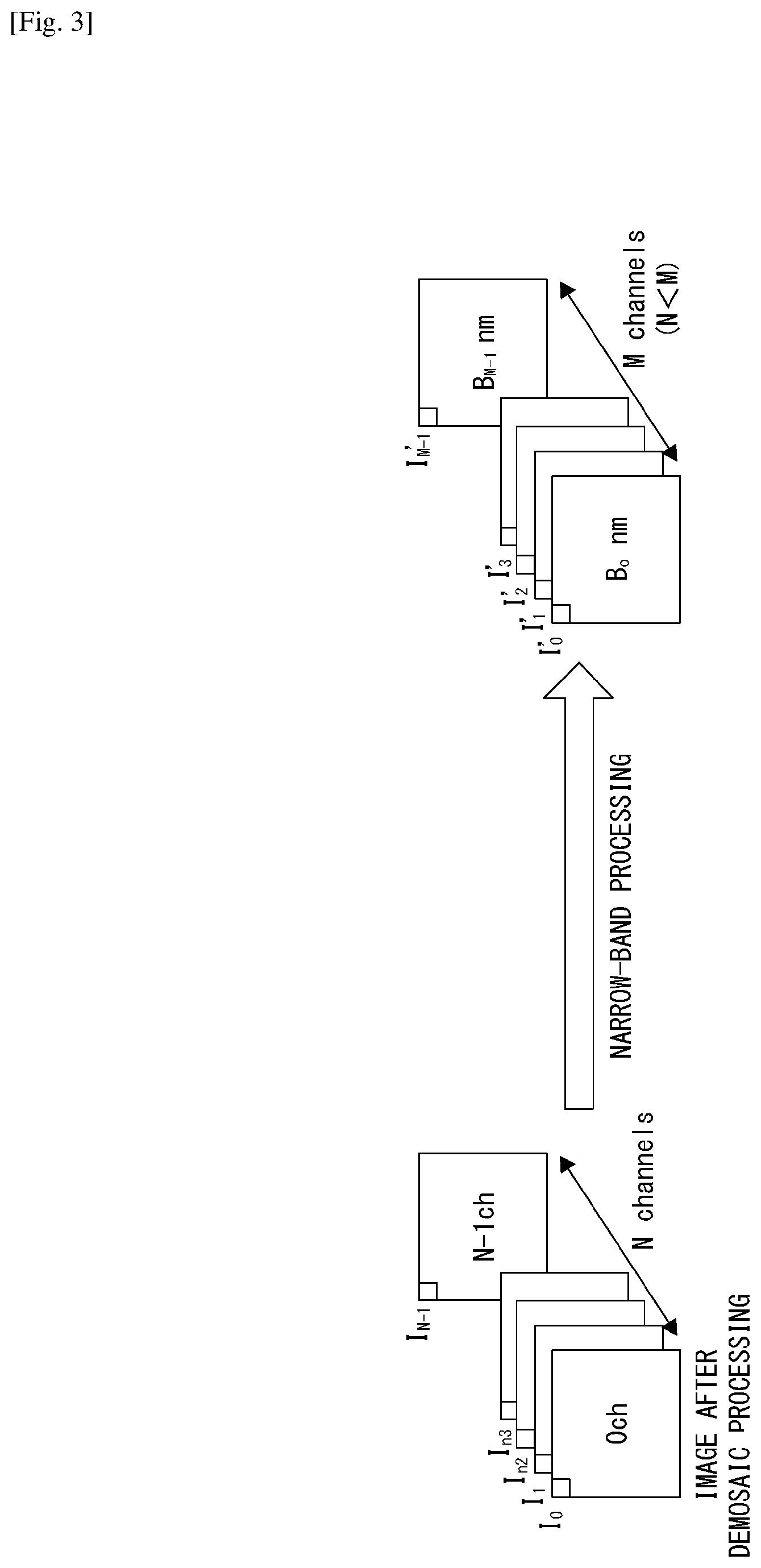

Third, a derivation processing unit runs an optimization loop (finding settings that minimize a defined error) to identify the arithmetic algorithm that, when applied to the sensor's limited output, produces wavelength data as close as possible to the original full-spectrum input. This derived algorithm is the narrow-band processing method that will later run on real captured images. The key insight is that the algorithm is tuned specifically to the sensor, the expected subjects, and the lighting environment before deployment.
… obtains an arithmetic algorithm that minimizes error between a wavelength characteristic indicated by post-narrow-band spectral information obtained by performing narrow-band processing based on the sensor output and a wavelength characteristic indicated by the sensor input …
Translation: It creates a formula to shrink the gap between the camera's guess and the actual light.
What this means for cameras that need true-color accuracy
For industrial and scientific cameras, color accuracy isn't cosmetic. It determines whether a food-sorting machine passes or rejects produce, whether a medical imager spots tissue differences, or whether a manufacturing line detects coating defects. A pre-calibrated algorithm of the kind Sony describes could mean fewer errors without requiring more expensive sensor hardware.
For consumer devices, the implications are more distant but not absent. Phones and cameras that rely on software to reconstruct color from limited sensor data could, in principle, use a similar pre-tuned approach to improve consistency across different lighting environments. Sony keeps filing on sensor signal processing suggests this is part of a broader push to extract more from existing hardware rather than simply adding more pixels or sensor channels.
Sony's 69th filing in our camera patent coverage since May follows work like a zoom focus system and a camera rerouting method in the cases we've tracked.
Sony's patent describes a method for calculating a calibration recipe during camera design, not a feature that runs on your phone or camera in real time. The math gets solved once in a lab, then baked into the device before it ships.
That means the path to a product is relatively short by hardware standards. Sony already manufactures the sensors this would apply to, and the optimization math is established engineering practice. What the patent contributes is a structured, repeatable way to generate that calibration, replacing guesswork with a systematic process.
For anyone tracking Sony's sensor business, this signals investment in software-side accuracy that will surface in a spec sheet or an industrial camera datasheet, rather than a headline product launch.
