Samsung Files Patent for a Display Panel Circuit That Controls Multiple Scan Signals at Once
Inside every display panel is a layer of circuitry that tells each row of pixels when to turn on. Samsung's latest patent describes a new way to organize and coordinate those timing signals from a single control point.
What Samsung's scan-signal routing circuit actually does
Imagine a large stadium scoreboard that needs to light up row by row in perfect sequence. The electronics behind that effect rely on tiny circuits called stage circuits, which pass timing pulses down the display like a relay baton. If the coordination breaks down, you get flickering, ghosting, or a screen that doesn't refresh properly.

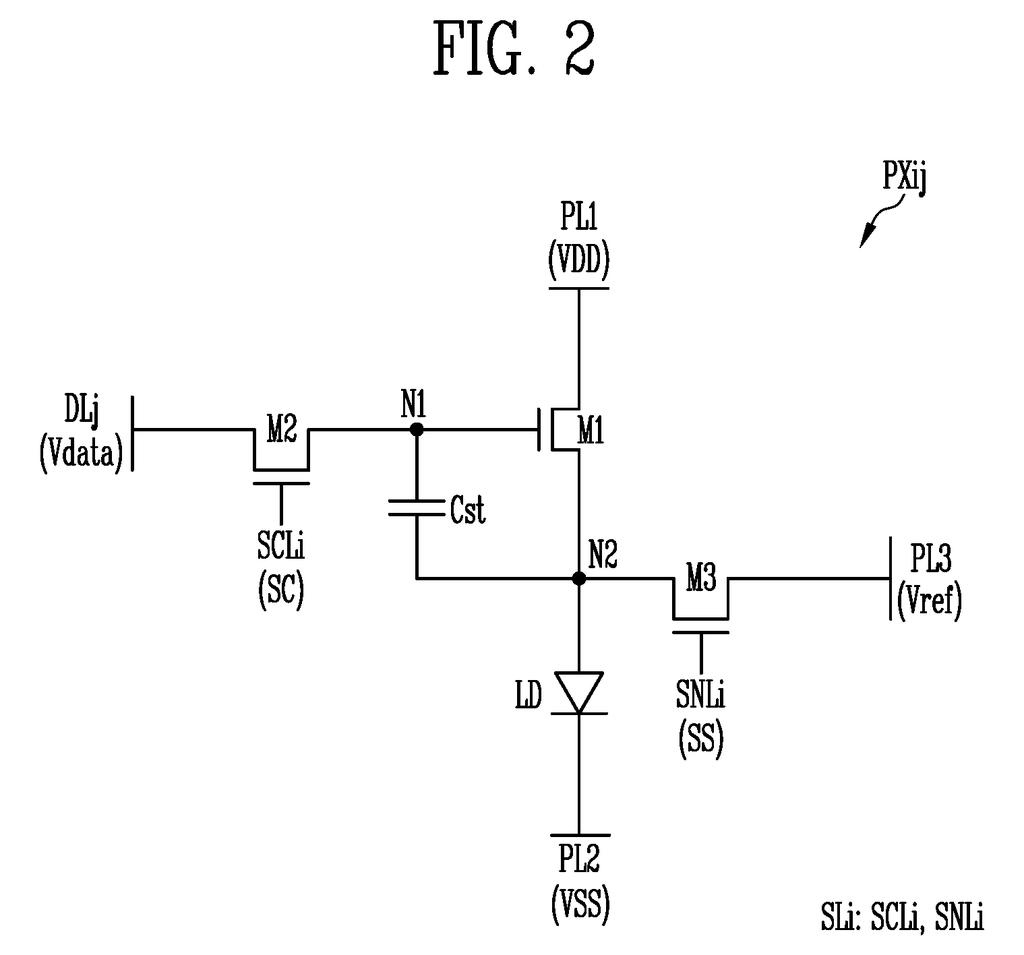

Samsung's patent describes a stage circuit that handles two separate types of scan signals at the same time: one set that tells pixels to display new content, and another that resets (initializes) them. A central controller manages a shared control line that decides how those signals get distributed across the panel.
The practical goal is tighter, more efficient control over a display's refresh process. By routing both signal types through one coordinated circuit, Samsung could reduce the number of components needed, which often translates to thinner panels, lower power draw, or better image consistency.
How the connection control line coordinates signal outputs

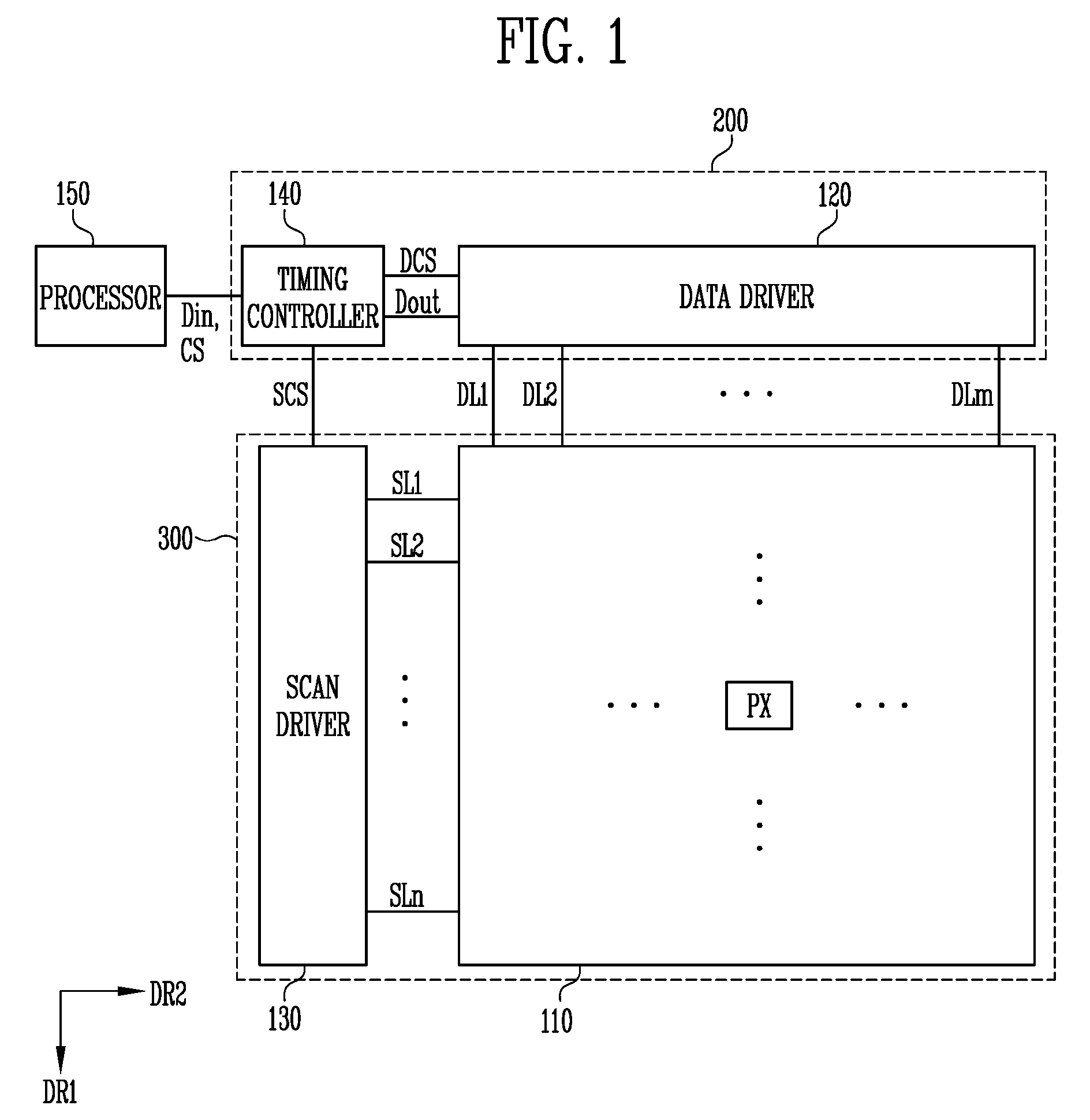

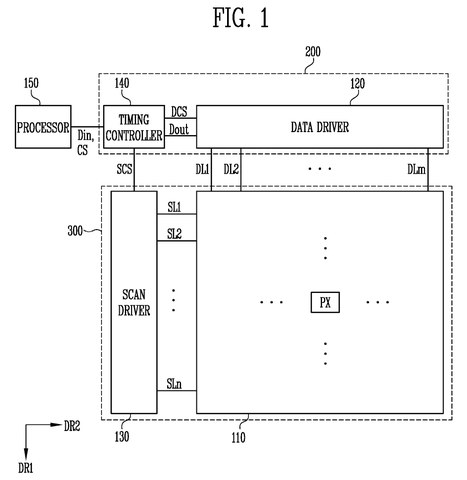

The patent covers a stage circuit, the basic building block of the gate driver circuitry built directly into a display panel (rather than as a separate chip). These circuits chain together to scan through every row of pixels on the screen.

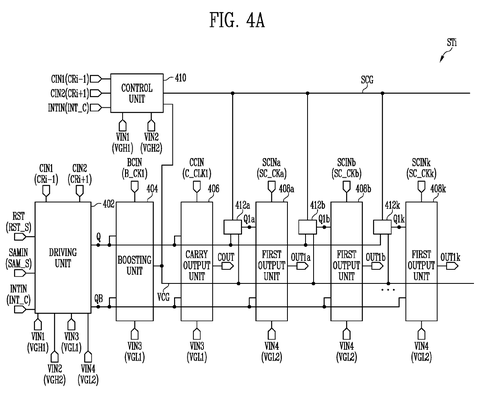

This particular design has several key parts working together:

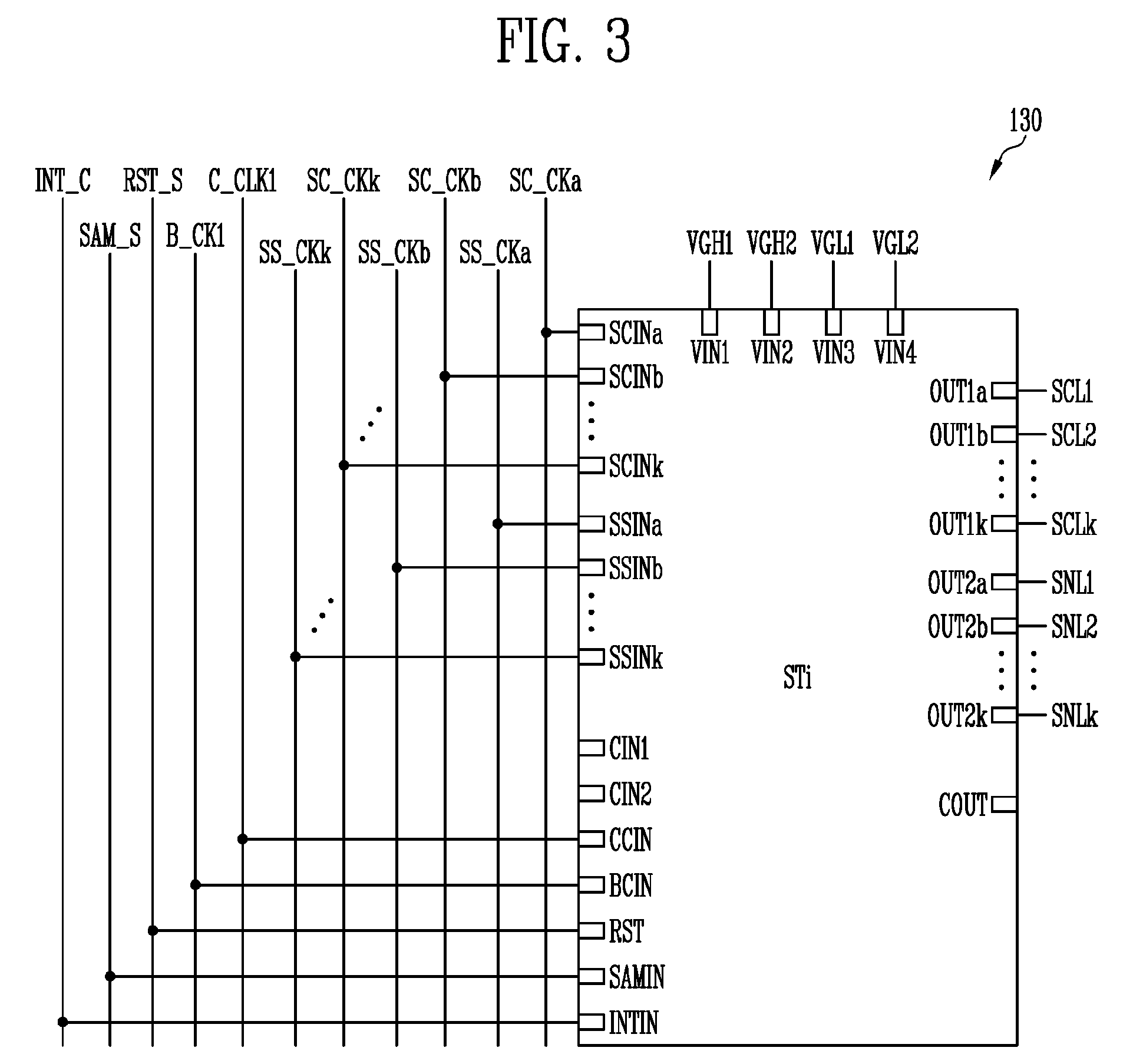

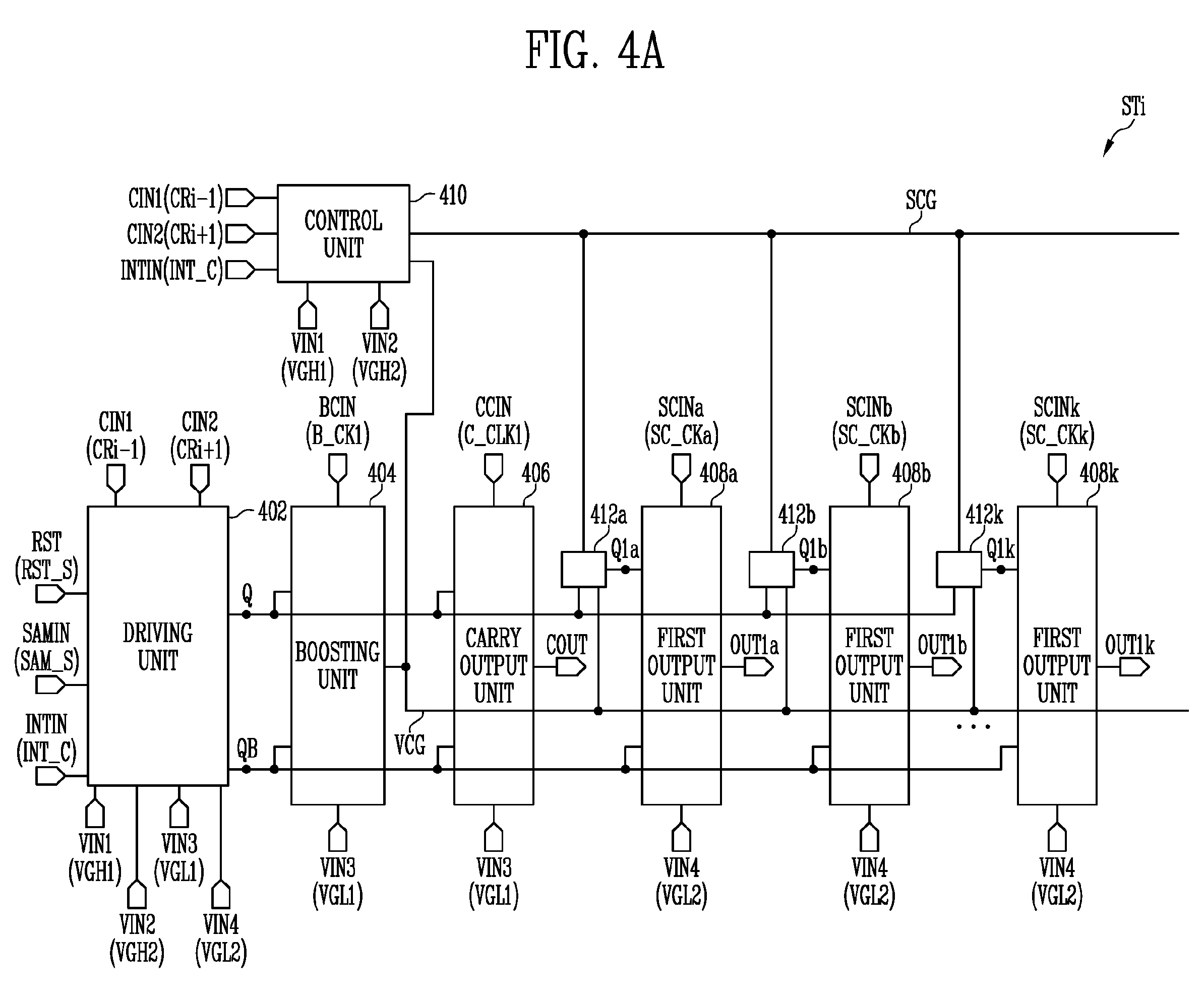

- A controller connected to power inputs, carry signals (the timing pulses passed from one stage to the next), and an initialization terminal, which sets a shared connection control line.
- First outputs that send enable scan signals to pixel rows using scan clock signals.

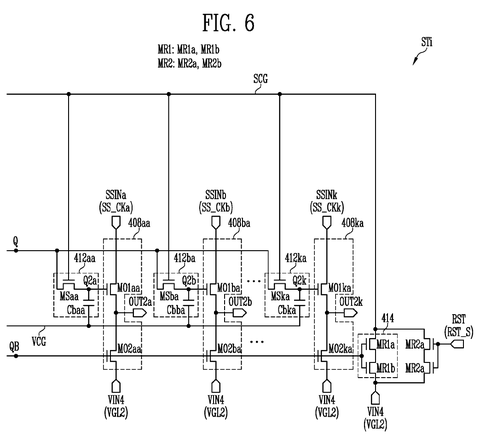

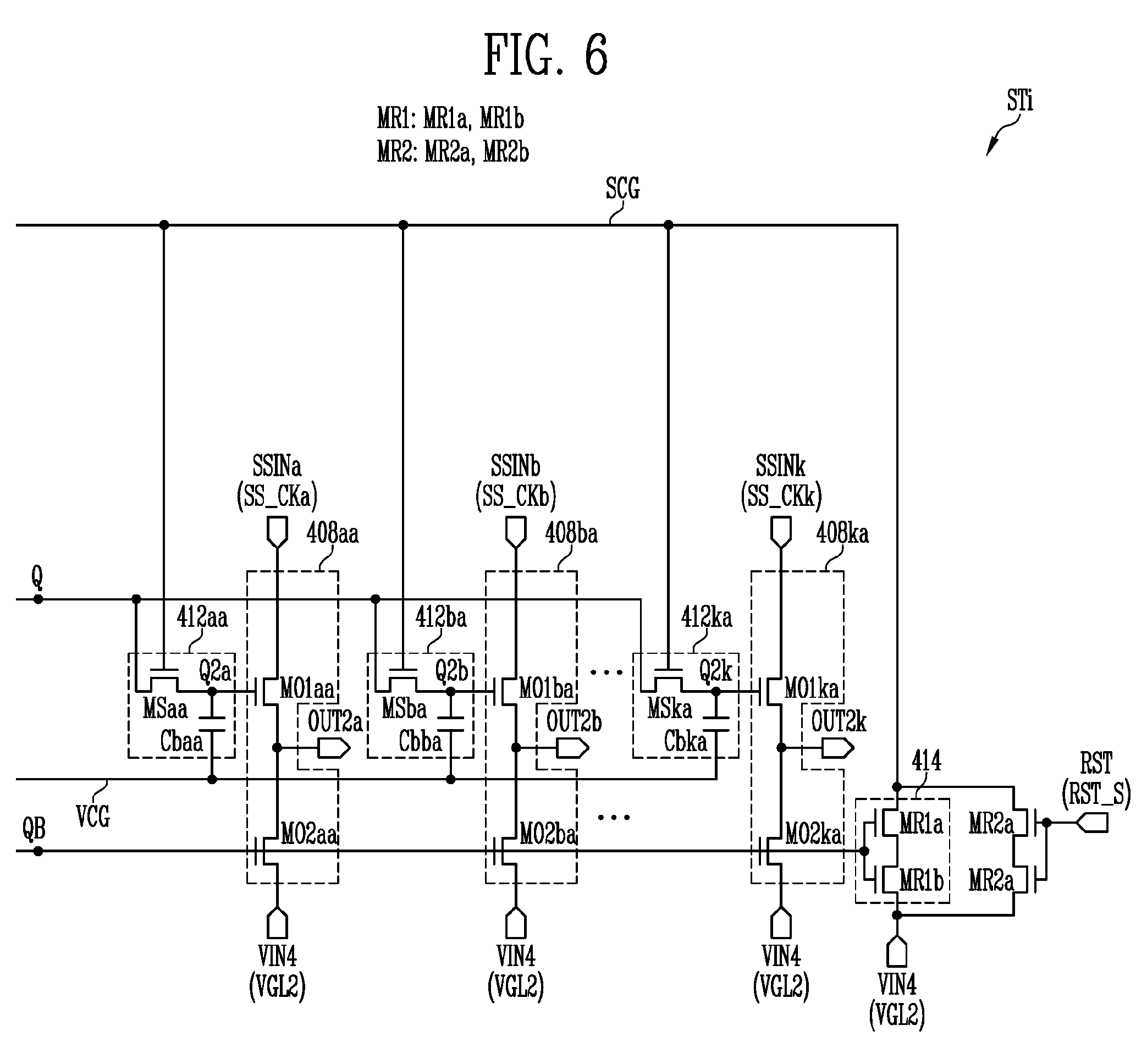

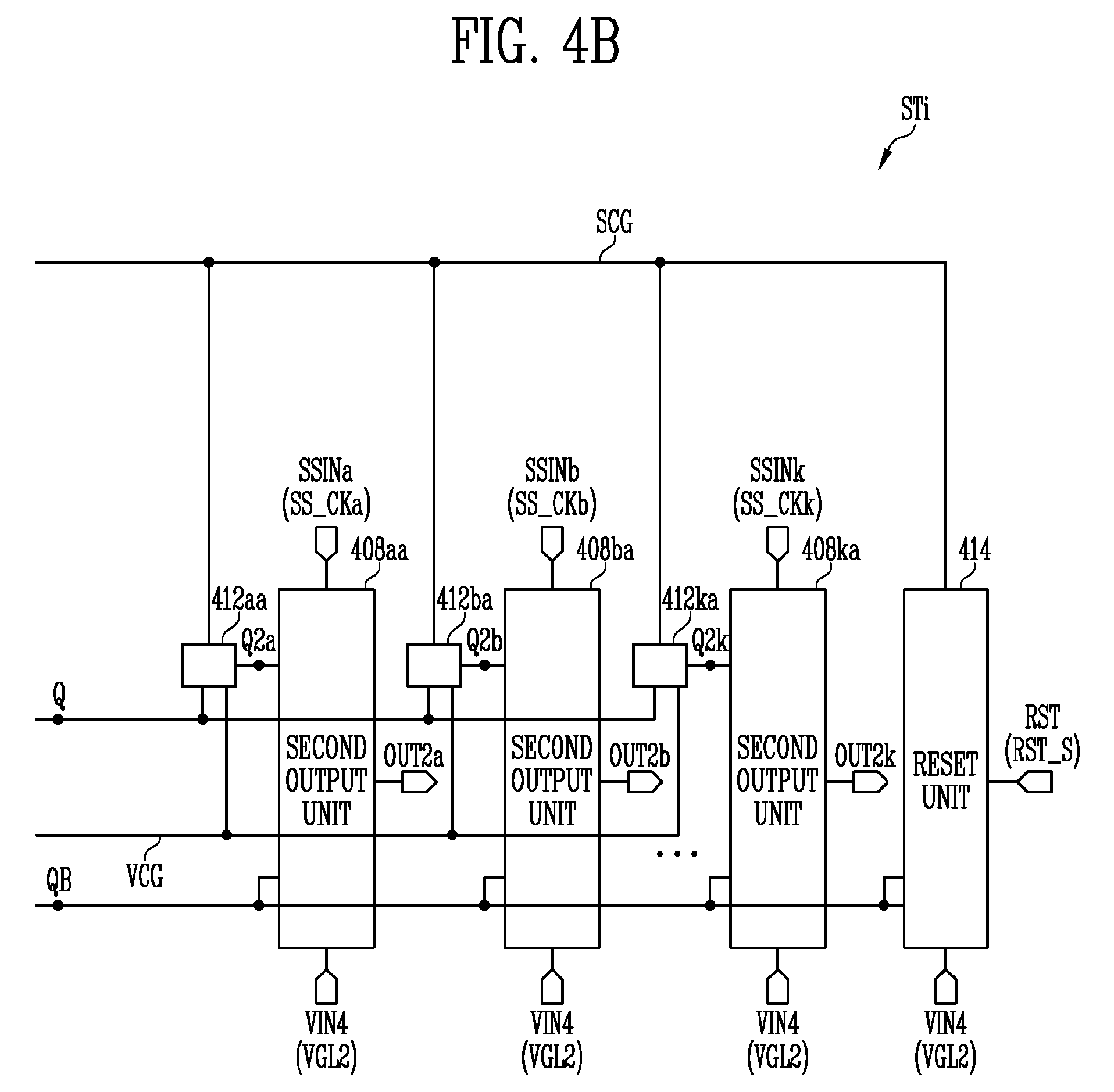

- Second outputs that send enable initialization signals to pixel rows using initialization clock signals.

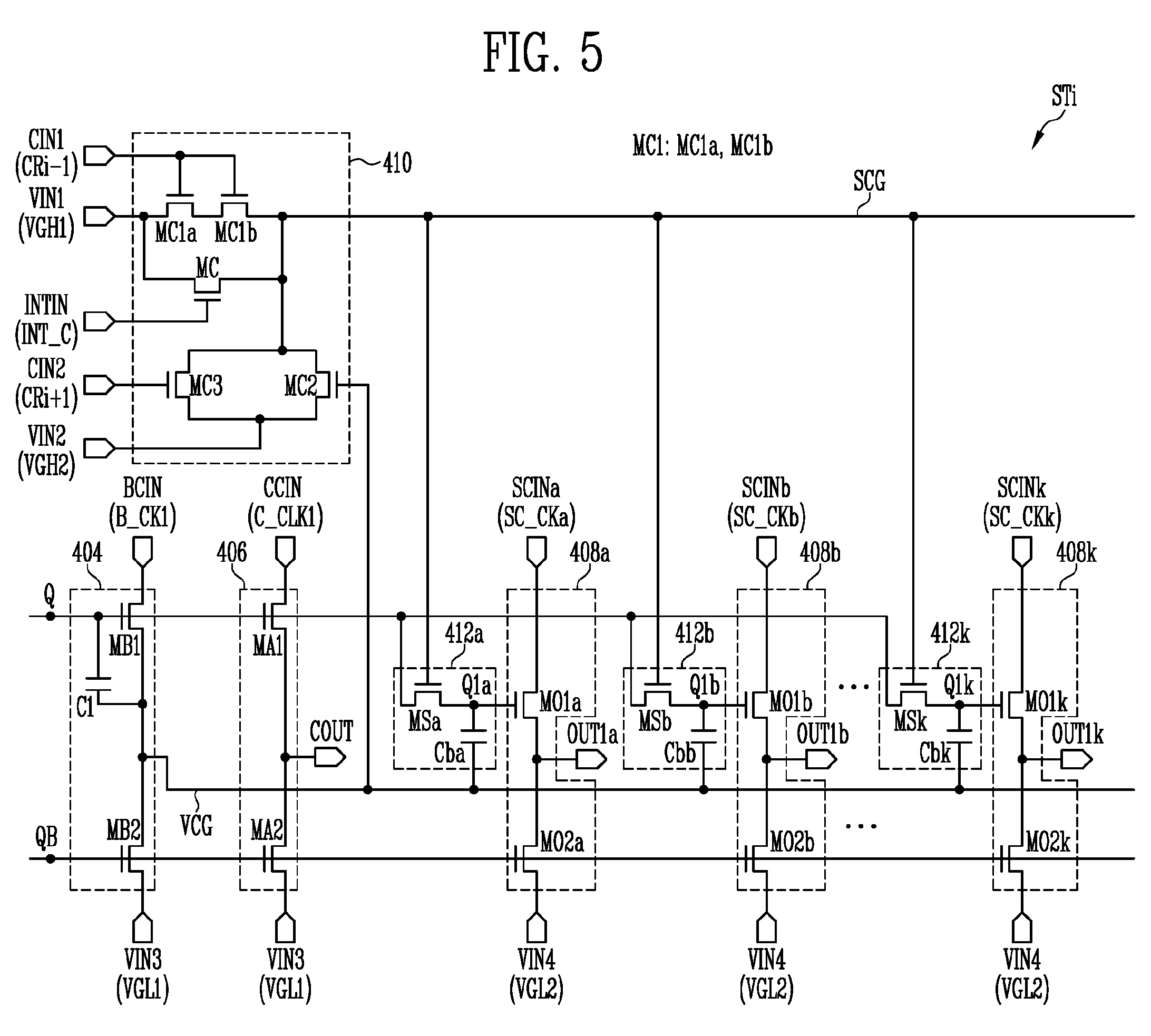

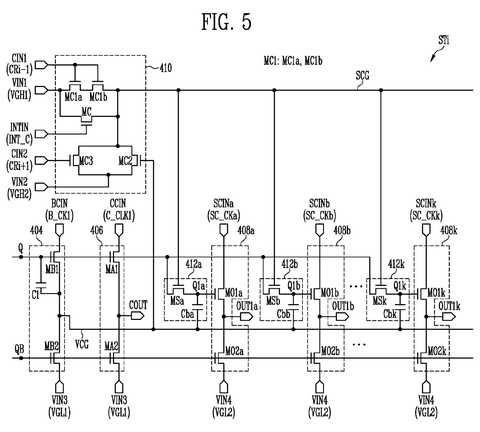

- First and second connectors that open or close electrical paths between a central node and local nodes, based on what the connection control line tells them to do.

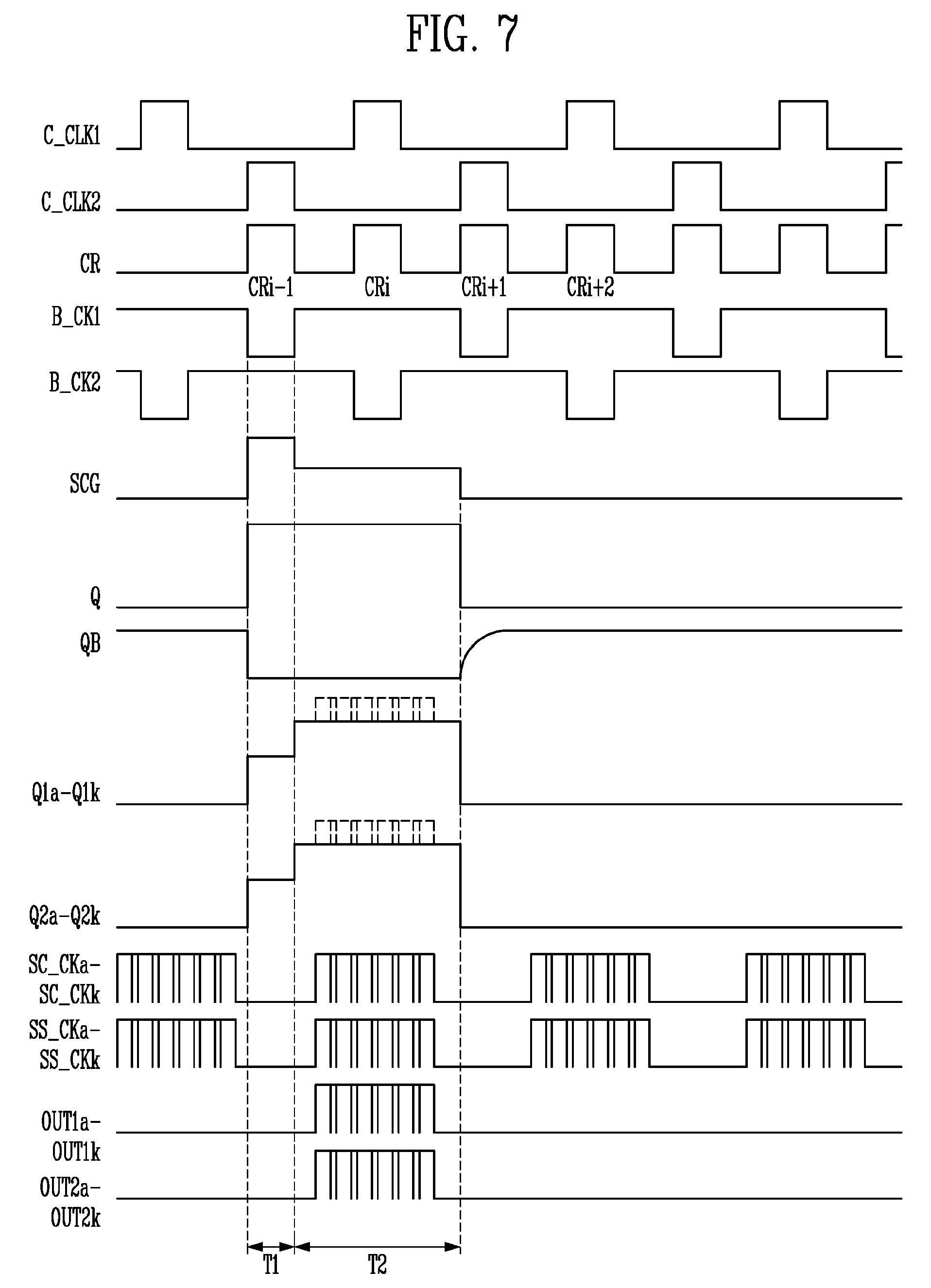

The central node acts like a switchboard. By toggling the connection control line, the circuit can share voltage conditions between its scan path and its initialization path, potentially reducing redundant transistors and simplifying the overall gate driver layout.
What this means for future Samsung display panels
Gate driver circuits built into the display panel itself (called Gate-in-Panel or GIP circuits) are standard in modern OLED and LCD screens, including the ones in Samsung Galaxy phones and tablets. Any improvement in how those circuits are structured can affect how thin a panel can be, how little power it consumes during a refresh cycle, and how cleanly images render.
This patent is specifically about handling initialization alongside regular scanning in one unified stage circuit. That matters for high-refresh-rate and variable-refresh-rate displays, where initialization timing becomes more complex. If this design makes it into production panels, you might not notice it directly, but it would be part of what keeps fast-scrolling and gaming screens looking sharp.
This is deep-inside-the-display plumbing work, the kind of incremental circuit refinement that rarely gets attention but ships in every new panel generation. It's not the kind of patent that signals a product pivot. For anyone following Samsung's display manufacturing edge, it's a small but real data point about how the company keeps trimming complexity from gate driver layouts.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
19 drawing sheets from US 2026/0221103 A1 · click any drawing to enlarge

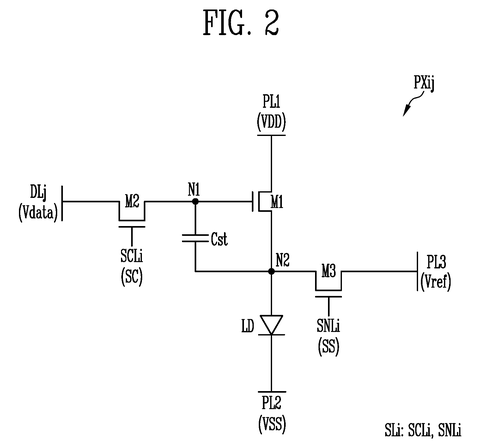

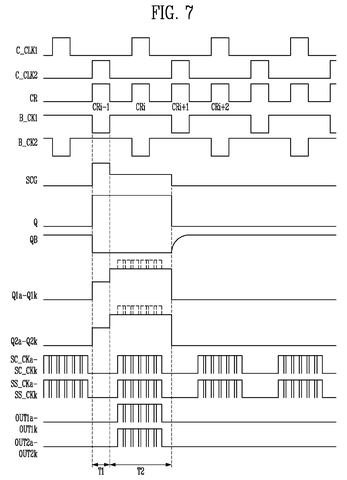

Show the other 11 sheets
