This storyline gathers Apple's filings on foldable iPhone engineering, from hinge wear and screen crease control to pixel crosstalk and edge-to-edge curved displays. Together the filings show Apple working through the mechanical and display problems that separate a folding concept from a device people can actually use.
6 filings · tracking since Apr 2026 · latest May 2026 · updates automatically as new filings publish

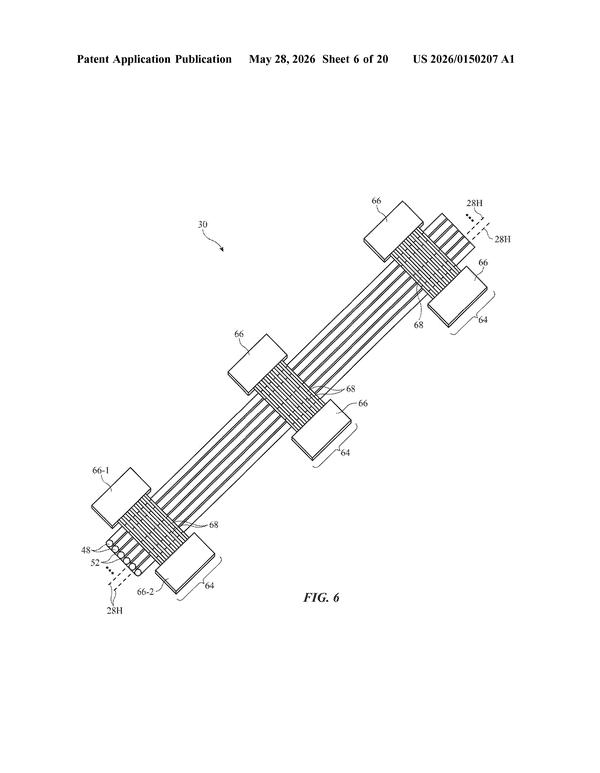

US 2026/0150207 A1
Hinge friction and stopping precision, the tactile feel of repeated folds. Apple's leaf-based design controls resistance across multiple axes so the phone opens and closes the same way after hundreds of uses.
US 2026/0150211 A1
Microscopic mirrors embedded in each pixel redirect light outward on curved edges, compensating for the dimmer appearance that occurs when viewing bent sections from an angle.
US 2026/0133663 A1
The foldable storyline so far has centered on the screen folding inward. This filing pivots to wrapping the display outward around the device edges, converting the sides into responsive surfaces that could replace physical buttons.
US 2026/0122799 A1
Screen creasing from repeated flexing gets countered by a mechanical system that adjusts display tension based on fold position, distributing stress rather than concentrating it at the crease line.
US 2026/0120650 A1
A dual-transistor design in the gate driver lets fast silicon handle switching speed while oxide transistors minimize power drain, solving the speed-versus-stability tradeoff that matters when you're bending a display thousands of times.
US 2026/0120616 A1
A folded screen needs pixel-perfect uniformity across the crease. This patent's crosstalk fix prevents brightness bleeding along rows, keeping image quality consistent even when the display bends.
Across these filings, Apple spends real engineering effort on the fold itself. One patent covers a multi-axis hinge designed to keep folding motion smooth over repeated use, while another describes a mechanical system aimed at managing screen stress at the crease. Both point to the same worry: a foldable iPhone has to survive years of opening and closing without the display or hinge showing wear at the fold line.
Other filings focus on the screen surface rather than the fold. Apple describes a hybrid silicon-oxide gate driver meant to combine fast pixel switching with lower power draw, a fix for pixel crosstalk where neighboring pixels bleed into each other, a flexible display that wraps around the phone's edges, and a four-edge curved display that uses per-pixel side mirrors to handle light at sharp curves. Each one chips away at a different flaw that shows up once a display stops being flat.
Taken together, the filings suggest Apple is working the problem from both directions at once: making the fold durable and making the screen itself behave like flat glass despite the curves and creases. Readers tracking this storyline should watch for filings that connect the mechanical and display work directly, since a real foldable iPhone will need the hinge, the crease management, and the pixel-level fixes to work as one system rather than as separate patents.
These filings show Apple researching the mechanical and display problems a foldable iPhone would need to solve, like hinge wear, screen crease stress, and pixel crosstalk. Patents describe engineering directions, not confirmed products, so this storyline tracks where Apple's research is heading rather than promising a release.
The crease is the visible and physically weaker line where a foldable screen bends. One filing describes a mechanical system meant to actively manage stress at that fold line, which suggests Apple is trying to reduce both the visible crease and the long-term wear it causes on the display.
A folding phone's hinge has to open and close thousands of times without loosening or letting the screen sag at the crease. Apple's hinge filing describes a multi-axis design aimed at keeping that motion smooth over repeated use, which points to durability as a central concern in this storyline.
Some filings target the display panel itself, like the hybrid silicon-oxide gate driver and the pixel crosstalk fix, while others target the screen's shape, like the flexible edge-wrapping display and the four-edge curved display with side mirrors. Together they cover both how the screen lights up and how it physically bends.
