Apple Patents a Fluid-Filled Lens That Physically Reshapes Itself to Focus

By Patentlyze Team · Updated Jul 21, 2026

Most lenses are fixed pieces of glass. Apple is patenting a lens that squishes and stretches a fluid-filled chamber to change its focus on the fly, and the clever part is how little power it needs to do it.

What Apple's shape-shifting headset lens actually does

Imagine putting on a pair of glasses where the lenses automatically adjust their shape to match exactly how your eyes focus, whether you are reading something up close or looking across a room. That is roughly what Apple is working toward here.

The patent describes a lens filled with fluid, sandwiched between two thin flexible surfaces. Tiny motors around the edge push and pull on one of those surfaces, bending it to change how the lens focuses light. The tricky engineering challenge is doing all that bending without draining the battery, so Apple proposes several mechanisms that store and release energy, like a spring, to reduce how hard the motors have to work.

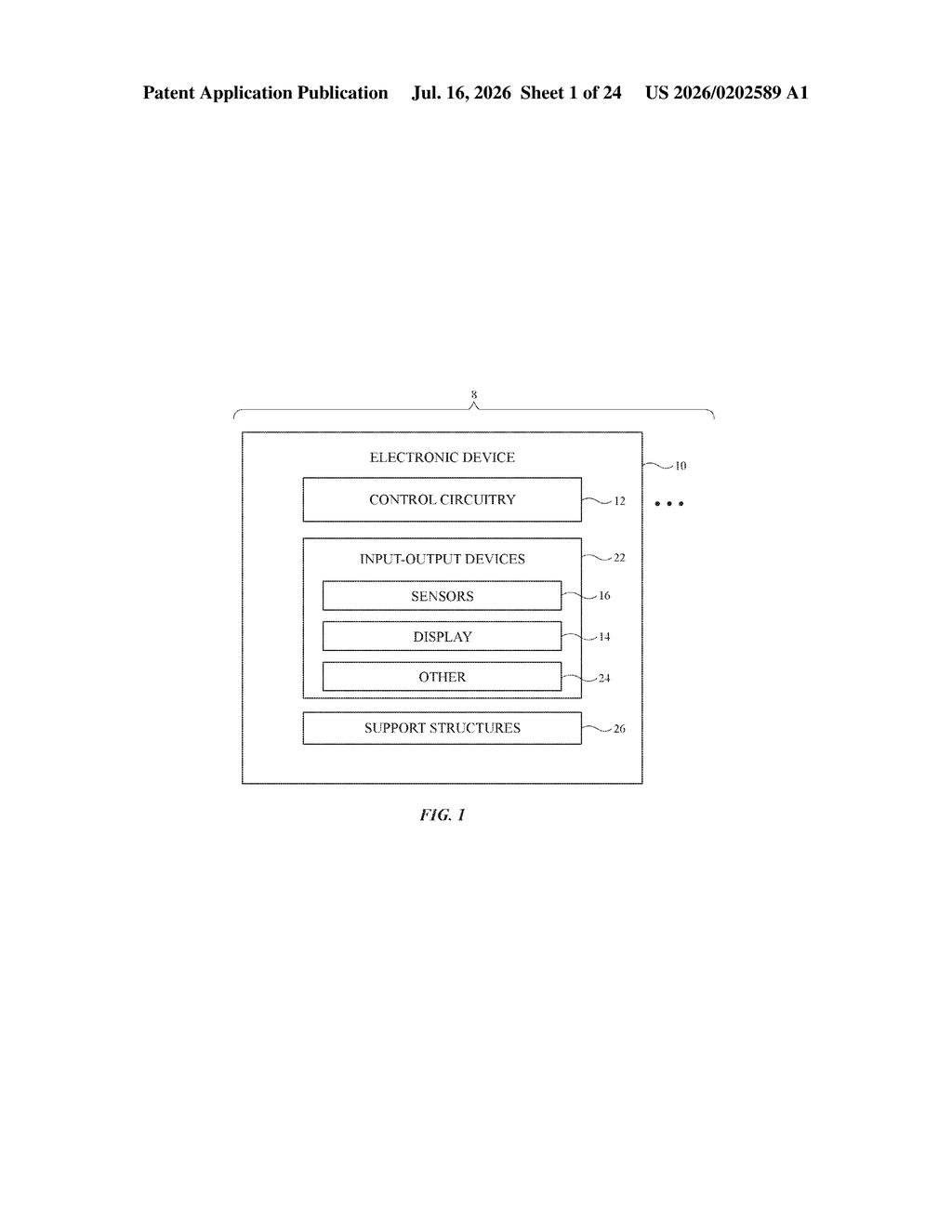

The target device appears to be a head-mounted headset, where getting focus right matters a great deal for both visual comfort and image sharpness. A lens that can actively adapt could reduce eye strain compared to fixed optics.

How actuators and bellows control the fluid lens shape

The patent describes a tunable lens built around a fluid-filled chamber sitting between two lens elements. A thin, flexible membrane called the lens shaping element forms one wall of that chamber. When actuators push or pull it, the membrane curves inward or outward, changing the focal length of the lens the way a human eye's own lens does.

The actuators are arranged in a ring around the edge of the lens. Each one independently adjusts its portion of the membrane, allowing fine control over the lens shape across its full range of motion.

The core engineering problem the patent addresses is actuation energy (the power it takes to hold and move the membrane against the pressure of the fluid inside). To reduce that energy cost, Apple proposes several mechanical tricks:

• Bellows structures held in tension, which act like stretched rubber bands that passively assist the actuators
• A pre-deformed membrane that starts in a bent state so less work is needed to reach useful shapes
• Negative stiffness elements using magnets, bistable springs, or cam-and-roller mechanisms (these are components engineered to "push back" in the opposite direction of normal spring resistance, canceling out the membrane's natural reluctance to move)
• A torsion spring as an additional passive energy store

Together these approaches let the motors do less work while still delivering precise, continuous focus adjustment.

What this means for comfort and clarity in AR headsets

For headset users, fixed lenses are one of the main reasons extended wear causes eye fatigue. Your eyes constantly strain to accommodate a lens that never adapts to what you are actually looking at. A lens that adjusts in real time could make long sessions in a headset feel much closer to wearing nothing at all.

The energy-saving focus of this patent is equally telling. Headsets run on batteries, and any component that draws significant power to maintain its state is a liability. Apple's emphasis on passive mechanical assist rather than continuous powered actuation suggests the company is trying to solve one of the hardest practical problems in headset optics: making adaptive lenses that last all day without cooking the battery.

Editorial commentary on a publicly published patent application. Not legal advice.
