Apple Patents a Way to Flip Virtual Windows from Walls to Tabletops in 3D Space
When you tap something on a wall-mounted virtual screen in Apple's Vision Pro, this patent describes a way to instantly move that content down onto a virtual tabletop, changing its angle and orientation in the process. It even lets multiple people look at it together in a live call.
What Apple's vertical-to-horizontal window trick actually does
In modern spatial computing headsets, virtual windows mostly stay where you put them. If you mount a window on a virtual wall, it stays there. That makes collaboration harder and makes it awkward when you want to look at something from a different angle, like spreading documents across a table instead of hanging them in the air.
Apple's patent covers a system that lets you tap a file or item shown on a vertical virtual window (think: a floating screen on a wall) and have it immediately appear on a horizontal virtual surface (think: a virtual table in front of you), rotated correctly for that new position. The content moves from one orientation to another in response to your tap.
The patent also describes sharing that horizontal view with other people during a live video call, so everyone in the session can see and interact with the same virtual surface. It's the kind of workflow that makes spatial computing feel less like a solo tech demo and more like an actual collaboration tool.
displaying, via the one or more display generation components, a second object, different from the first object, in the environment, the second object having a second orientation, different from the first orientation, relative to the current viewpoint of the user …
Translation: The system shows a new virtual window angled differently from the original one.
How the system reorients content between two virtual objects
The patent describes a three-dimensional environment (the kind you'd see through a spatial computing headset) containing two distinct types of virtual objects:
- A first object with a vertical orientation relative to the user's viewpoint (like a window on a wall)
- A second object with a horizontal orientation (like a table surface in front of you)
When the user taps an item shown on the vertical object, the system checks whether that input meets certain criteria. If it does, the item reappears displayed relative to the horizontal object, now shown flat instead of upright. The objects can visually change appearance depending on whether they're "open" or not, giving the user a clear signal about the current state.
A second part of the patent covers real-time session sharing: the horizontal surface and its contents can be shared with multiple participants in a live communication session. Each participant can then interact with that shared surface.
The claim language is deliberately broad on what counts as a "virtual asset" (it just says representations of virtual assets) and what the "first input" looks like, which gives Apple wide coverage over many types of files, apps, or objects that might appear in a 3D space.
… facilitates interactions with one or more virtual assets associated with a vertical virtual object in a three-dimensional environment, including adding the one or more virtual assets for display on a horizontal virtual object …
Translation: Users can move items from a virtual wall surface down onto a flat horizontal table surface.
What this means for spatial computing and shared AR workspaces
For anyone using a spatial computing headset like Apple Vision Pro, this describes a more intuitive way to work. Instead of content being locked to wherever you placed a window, you could flip it to a more natural viewing position with a single tap, then hand it to colleagues in a shared session.
The broader claim scope means Apple is staking out territory around any system that moves content between differently oriented virtual surfaces in 3D space. If granted in its current form, the pattern in Apple's spatial computing filings suggests the company is building a dense set of overlapping patents around exactly how objects behave in virtual environments, which could shape the design space for competitors building their own headsets or 3D interfaces.
Apple's 80th filing we've tracked in our AR glasses work since May builds on ideas like shared AR document editing and AI image pre-rendering.
Claim 1 is broad. It does not specify a headset, a hand gesture, or even a particular type of content. It covers any input to any representation on a vertically oriented virtual object that causes a differently oriented object to appear with that content shown relative to it. That breadth is significant.
In practice, a claim this wide could cover basic workflow interactions in any 3D operating system where you move content from a wall panel to a flat surface. That is a lot of ground to hold, and it will almost certainly face scrutiny from patent examiners looking at prior art in spatial computing and mixed reality.
The real-time sharing piece is more specific and arguably more interesting from a product standpoint. Shared virtual tabletops with live participants is a concrete feature that separates this from routine window-management logic. Whether that specificity makes it into the granted claims is the key question.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

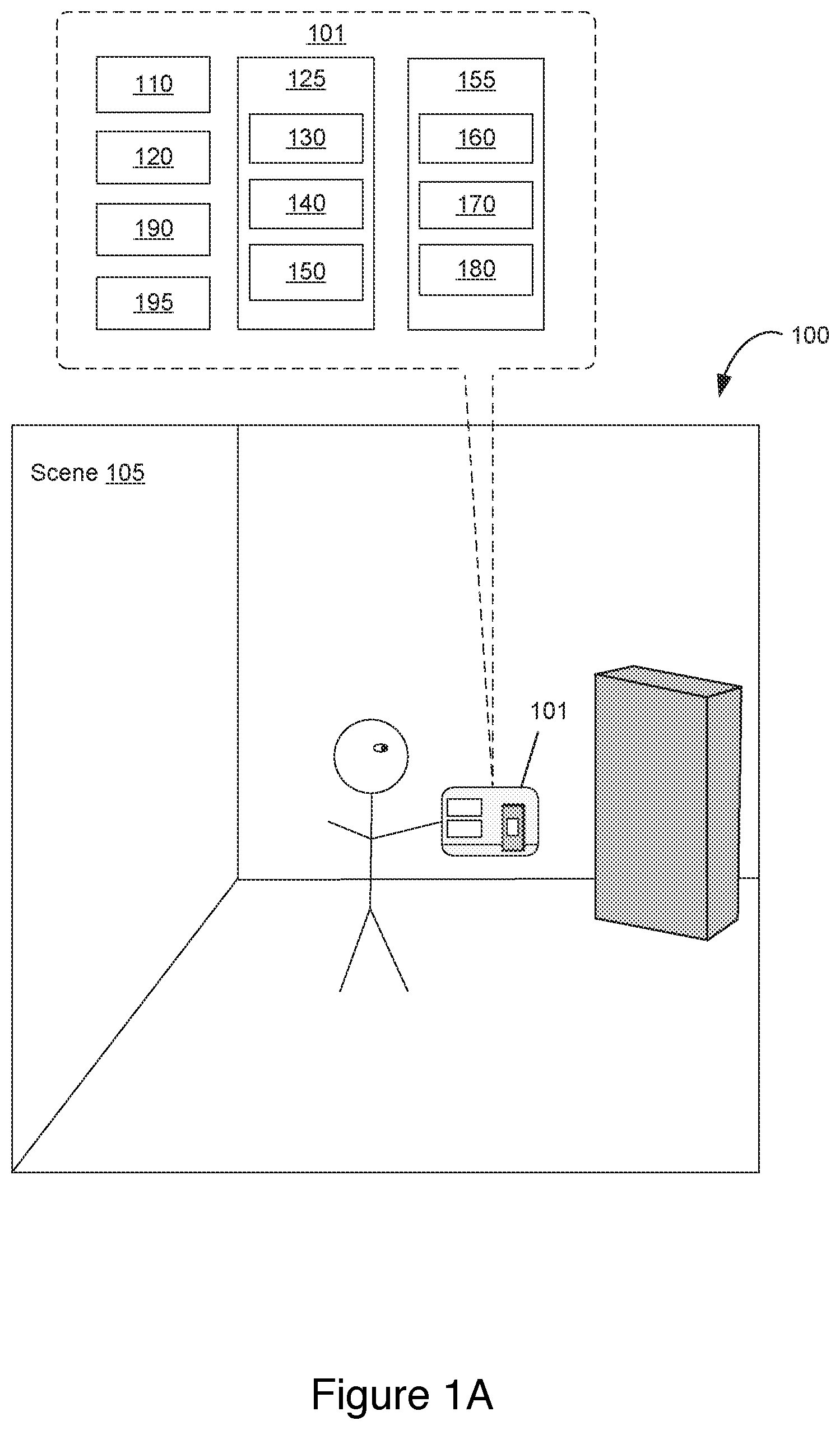

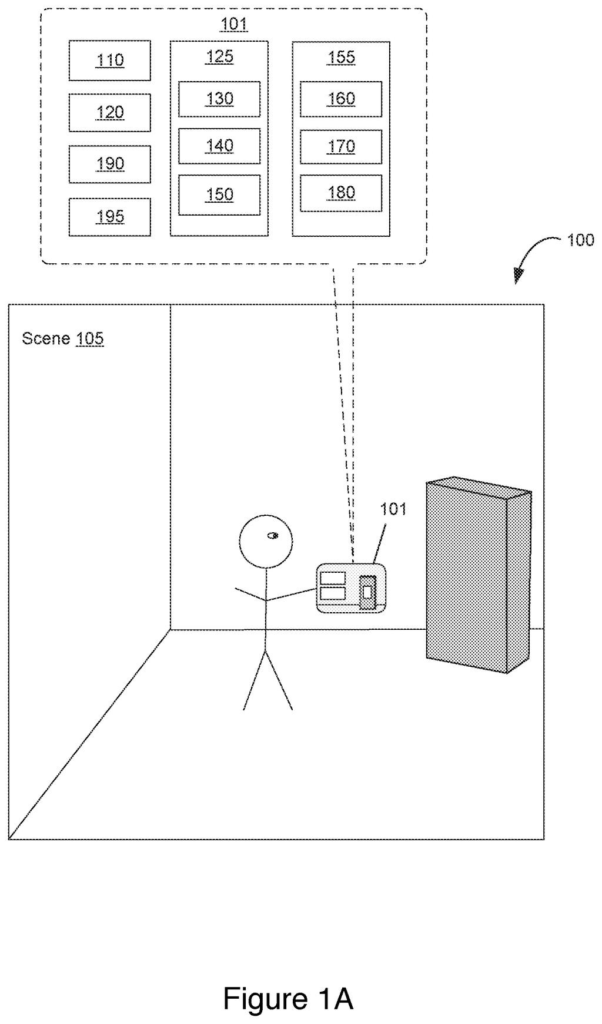

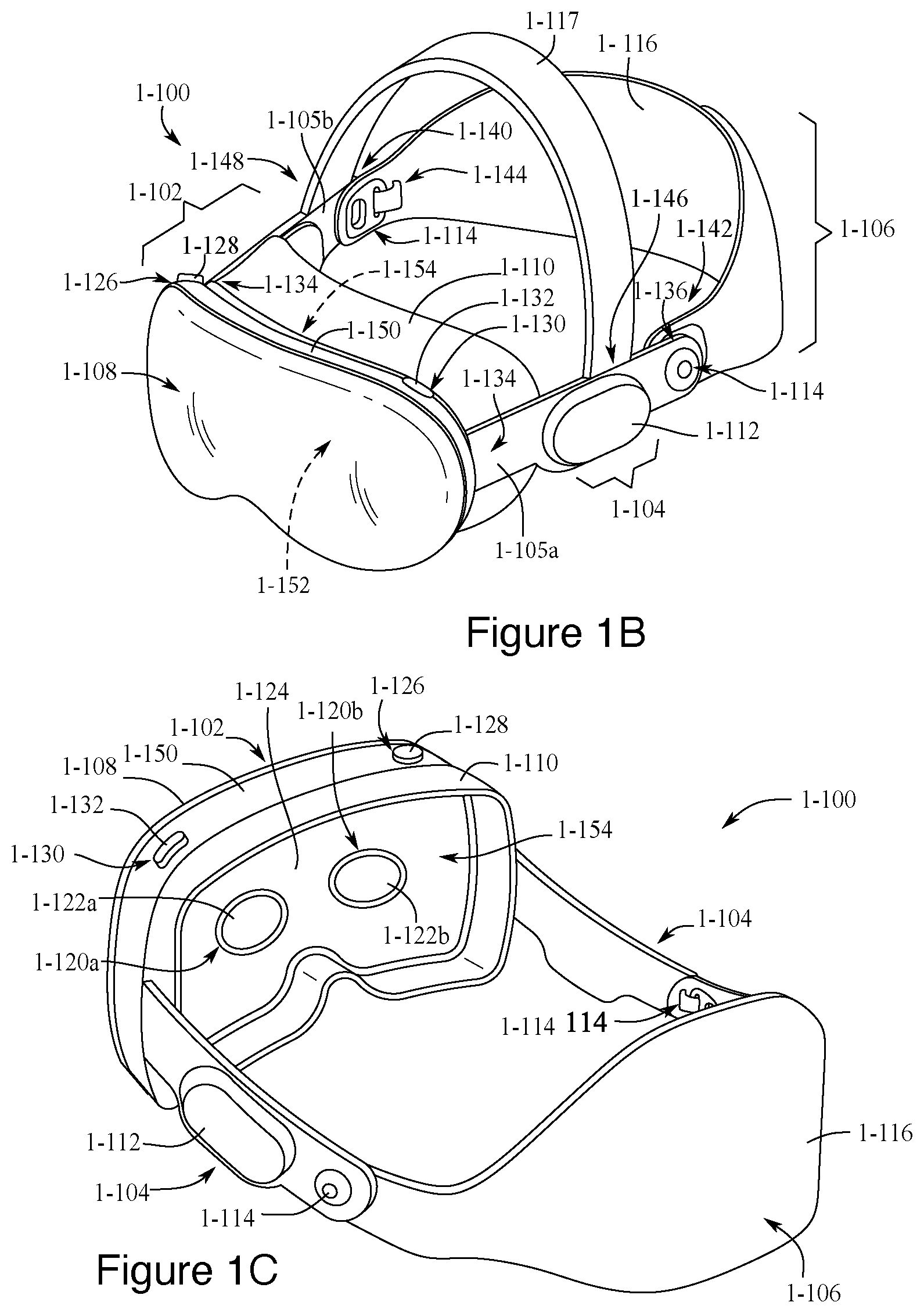

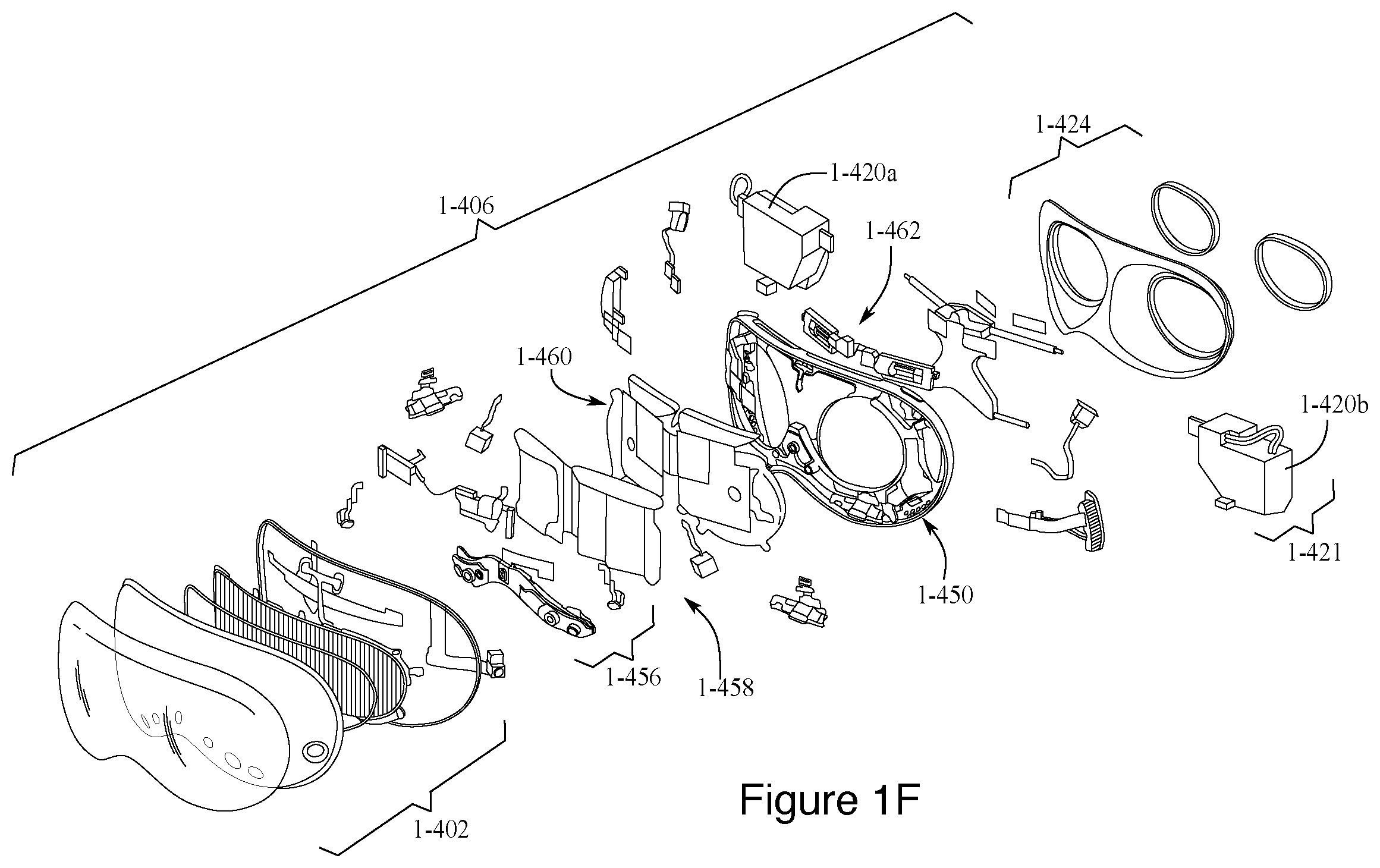

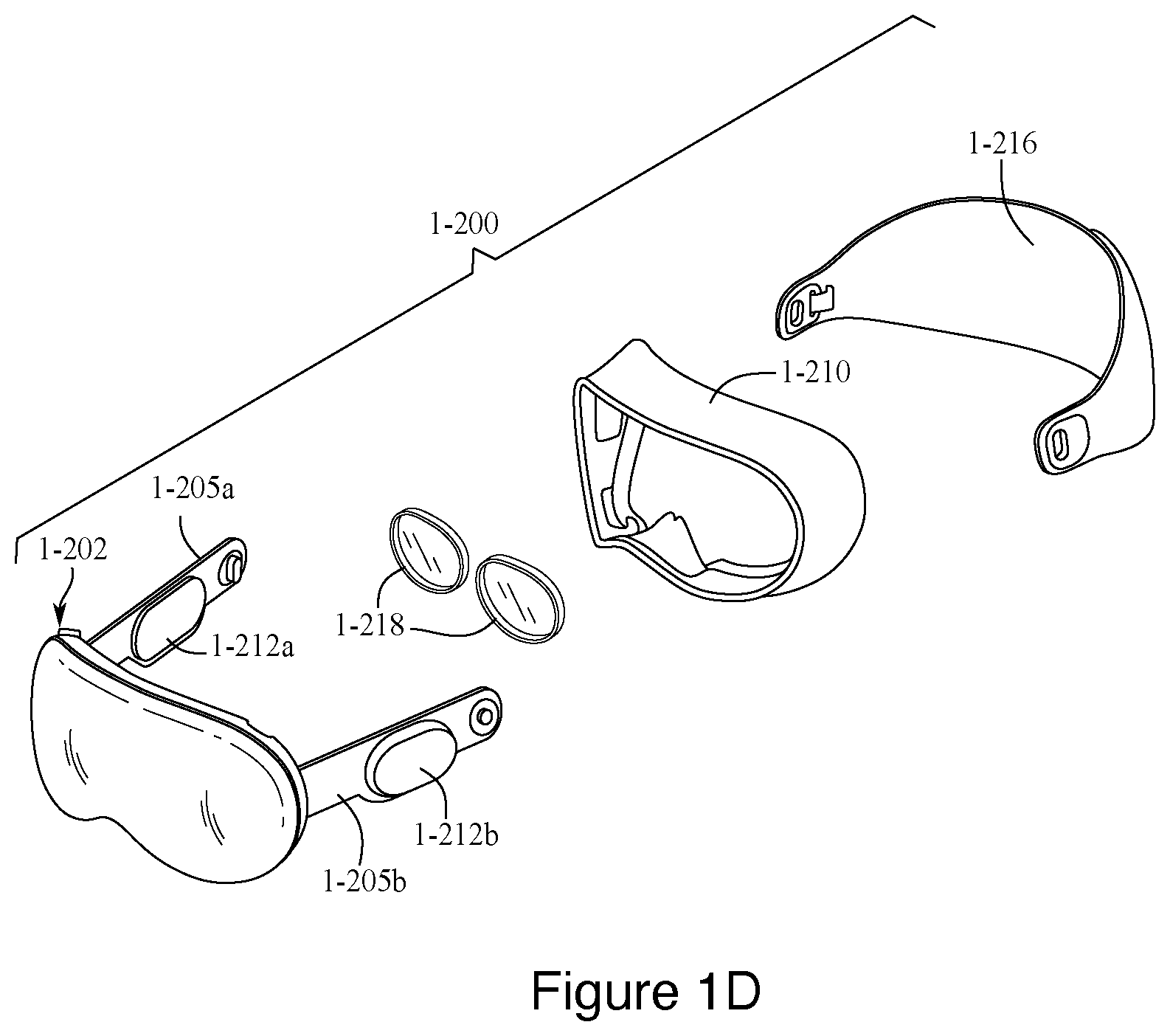

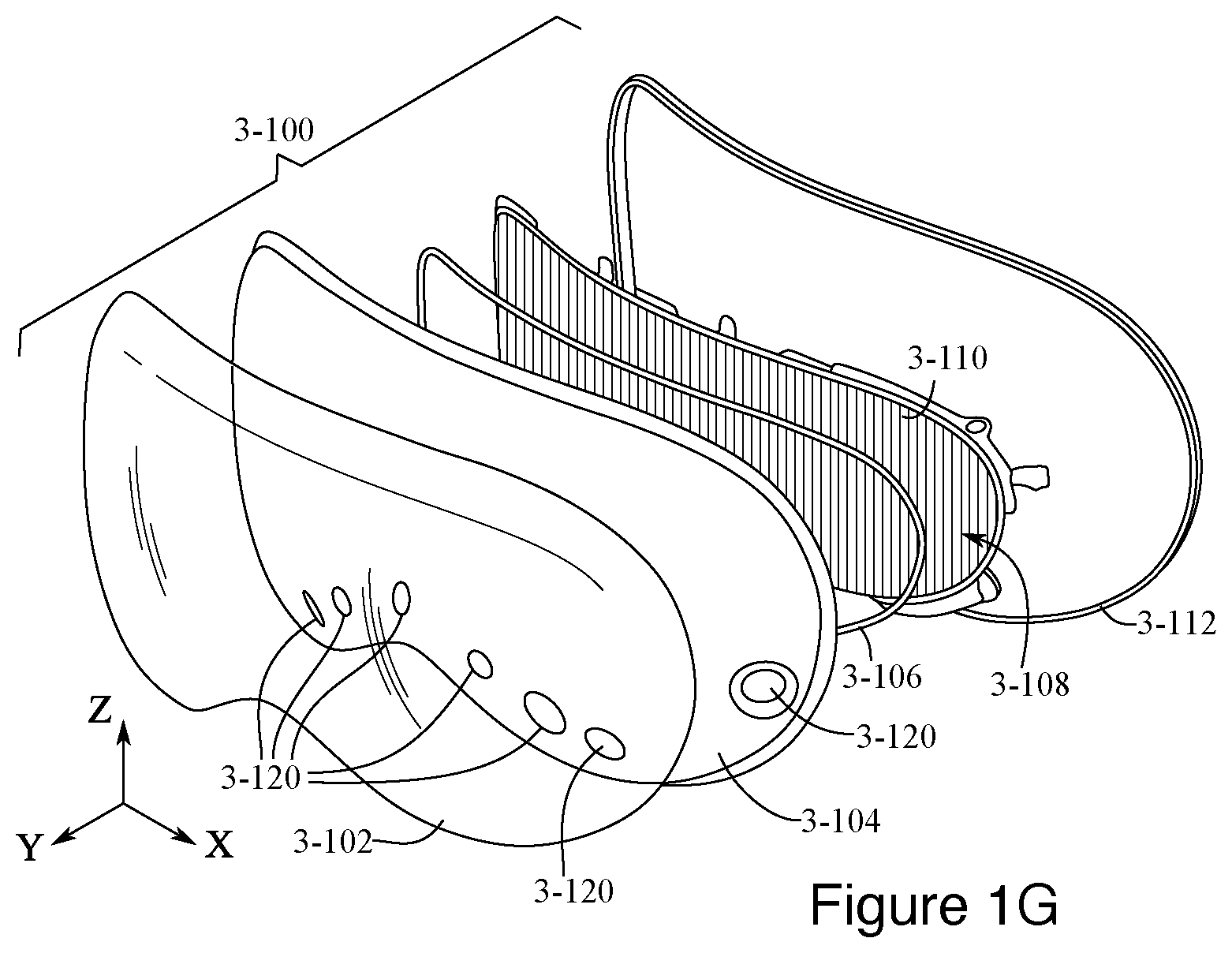

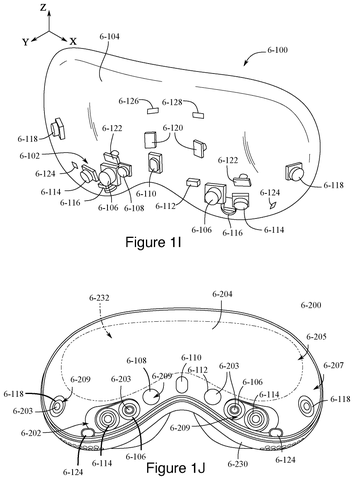

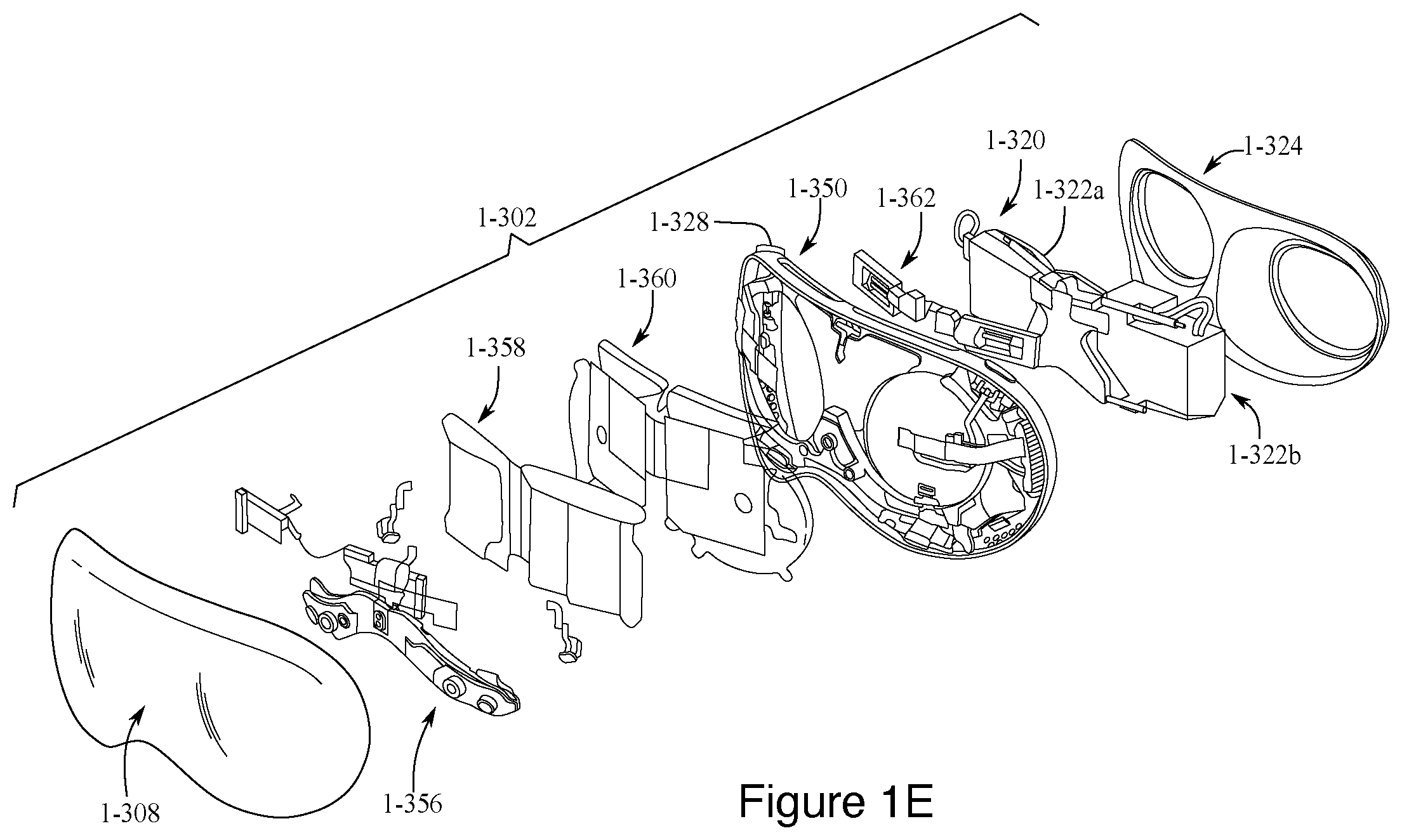

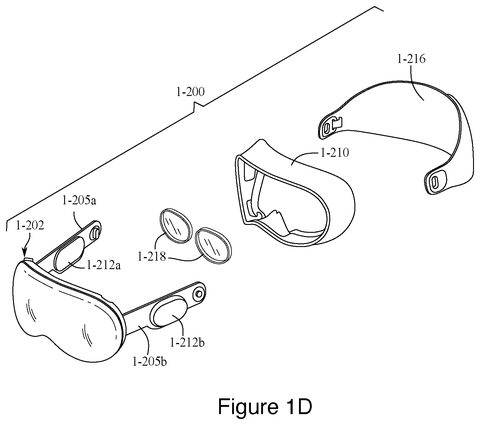

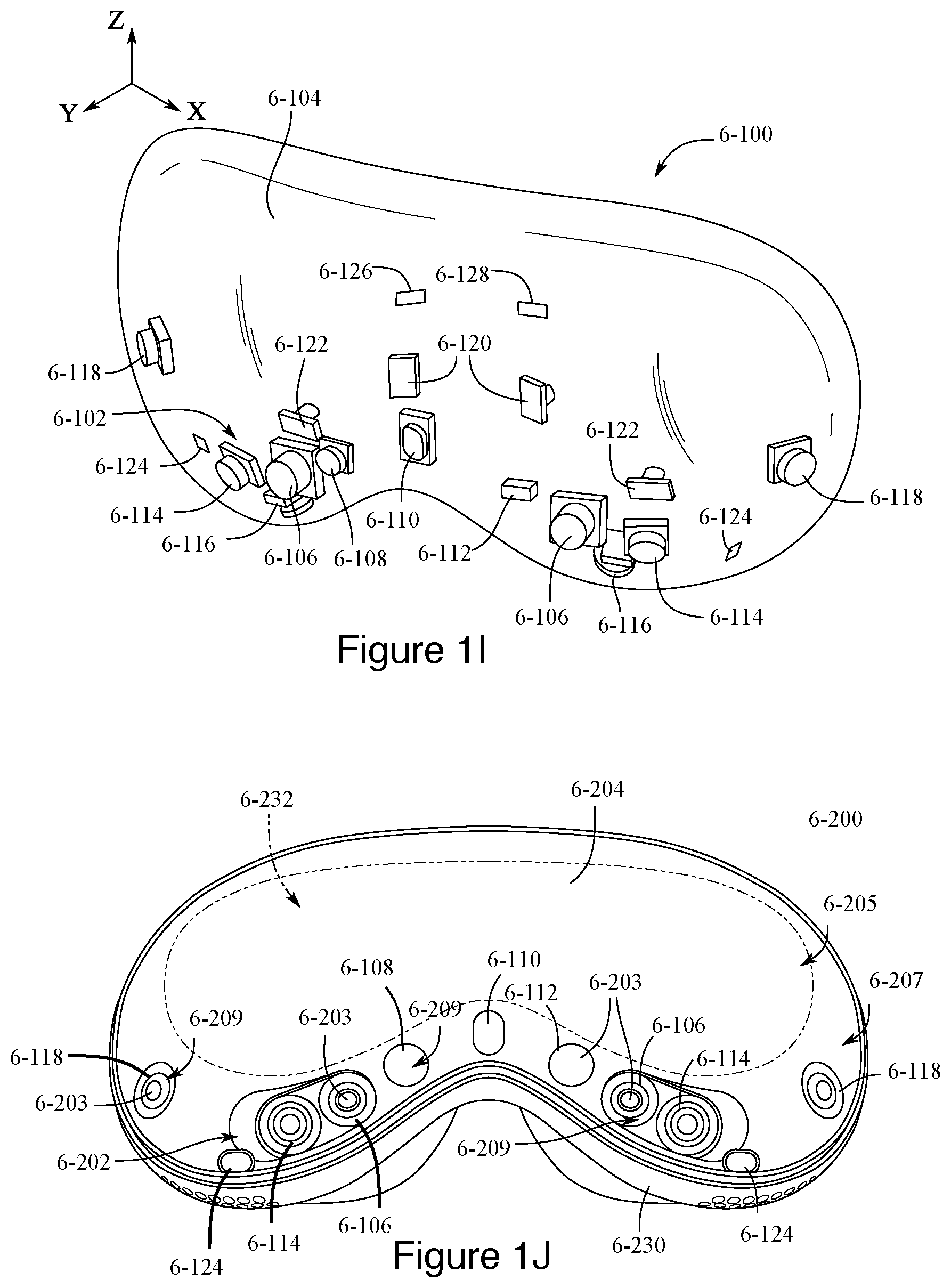

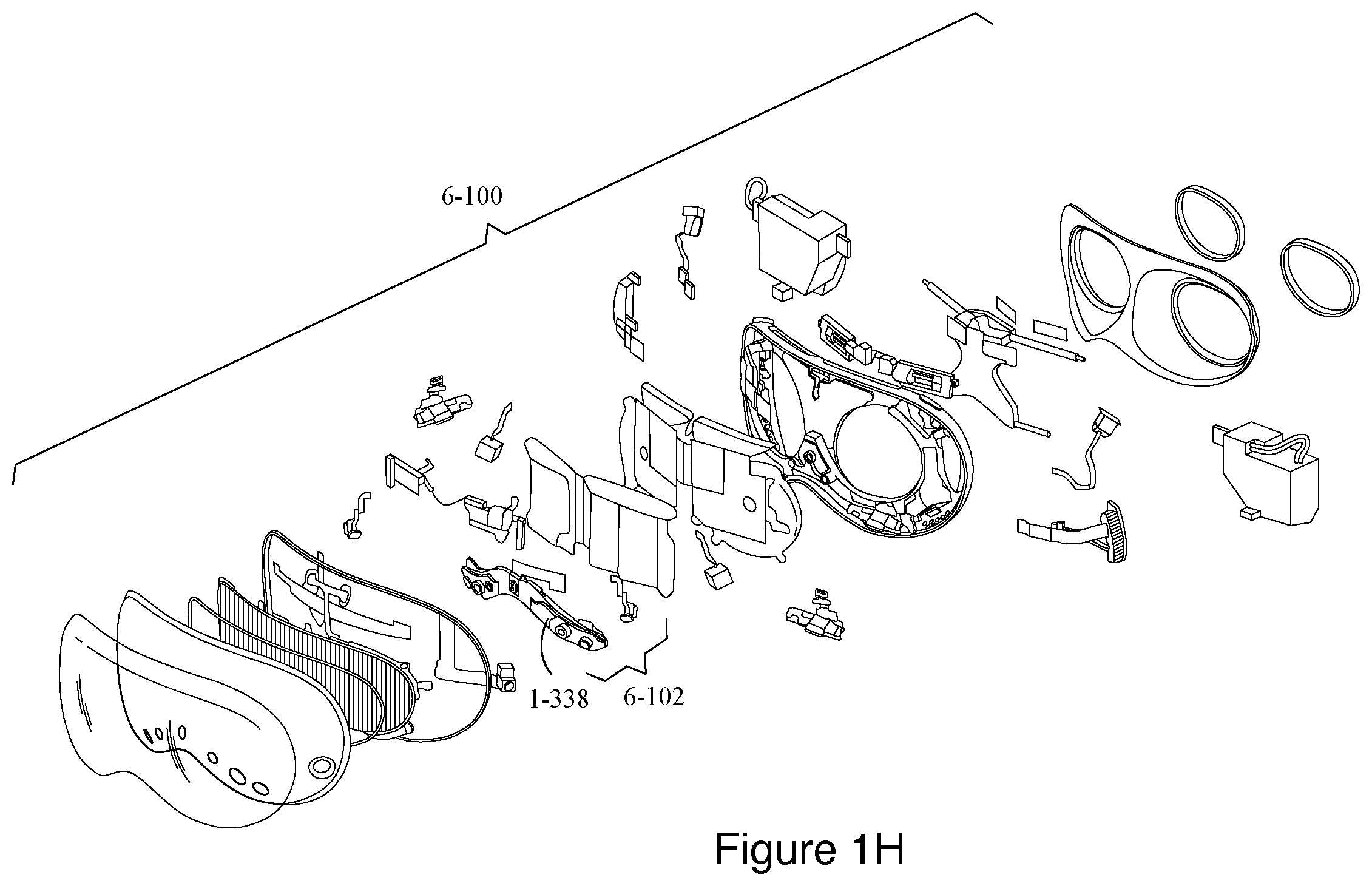

64 drawing sheets from US 2026/0299746 A1 · click any drawing to enlarge
