Sony · Robotics · Filed Oct 21, 2025 · USPTO published Oct 1, 2026 · Oct 1 release

Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons

Sony has patented a small device that snaps onto a game controller and presses its buttons using mechanical arms, no human hands required. It's essentially a robot that plays games for you, physically.

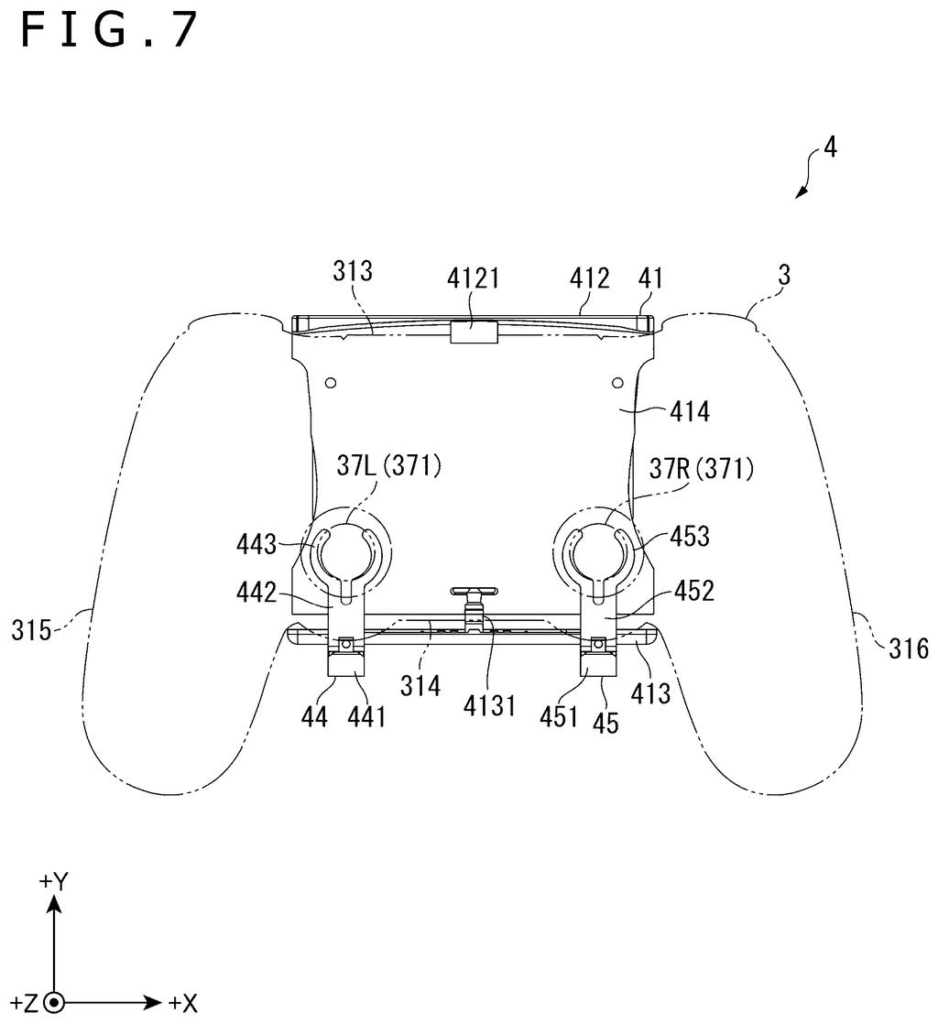

A motorized clip-on device attached to a game controller, showing how it physically interacts with the controller's joysticks. Drawing from patent filing US 2026/0295446 A1.
A motorized clip-on device attached to a game controller, showing how it physically interacts with the controller's joysticks.All 18 drawings ↓
Publication number
US 2026/0295446 A1(US20260295446A1)
Applicant
Sony Interactive Entertainment Inc.
Filed · Published
Oct 21, 2025 · Oct 1, 2026
Inventors
Yumi Ueda, Naoki Kudo, Airi Takeuchi
Status when we published
Waiting for an examiner
Document
18 claims
US classification
463/37
Parent application
National Stage Entry of PCT/JP2023/016536 (filed Apr 26, 2023)(PCTJP2023016536)

What Sony's button-pressing robot attachment actually does

You're mid-game and your hands are full, or your fingers just can't reach a button fast enough, or you have a physical condition that makes holding a controller painful. Sony's new patent describes a clip-on device designed to handle the button-pressing for you.

The device attaches to a standard game controller and extends small mechanical arms that hook onto the controller's buttons and triggers. Motors inside the attachment move those arms on command, pressing or releasing buttons just like a finger would, but mechanically.

The key idea is that nothing about the controller itself changes. You don't need a special controller, a modified console, or new firmware. You clip this device onto the controller you already own, and it takes over the physical inputs.

From the filing · CLAIM 1
… an arm engaged with the operation member; a driving unit configured to move the arm; and an action control unit configured to cause the driving unit to drive the arm to operate the operation member.

Translation: A motorized arm physically moves and presses the controller buttons for you.

How the arms clamp on and trigger controller inputs

The patent describes what Sony calls an attachment device: a clip-on unit that physically operates a game controller's buttons and triggers using motorized arms.

Here's how the pieces fit together:

  • Attachment unit: a frame or clamp that fastens the device to a standard controller without modifying it.
  • Arms: mechanical limbs that reach over and engage directly with the controller's buttons, triggers, or other input surfaces.
  • Driving units: small motors or actuators (the components that convert electrical signals into physical movement) that push and pull the arms on demand.
  • Action control unit: the onboard logic that decides when and how to move each arm, essentially the device's brain.

The action control unit tells each driving unit when to fire, and the arm presses the corresponding button with physical force, the same way a thumb would. The claim doesn't specify what sends commands to the action control unit, so the trigger could be software, a secondary input, or an automated sequence.

Because the device operates at the physical layer rather than the software layer, it doesn't need to talk to the game or the console directly. It just presses buttons.

From the filing · THE ABSTRACT
… arms ( 44 , 45 ) that engage with the operation members, driving units ( 42 , 43 ) that move the arms, and an action control unit ( 493 ) that causes the driving units to drive the arms to operate the operation members.

Translation: Motors push specific mechanical arms to interact directly with the gamepad controls.

What this means for gaming accessibility and automation

The most immediate use case is accessibility. Players with limited hand mobility, reduced grip strength, or conditions like arthritis often struggle with controllers designed around two-handed, ten-finger operation. A clip-on device that handles some or all of the physical inputs could open games to people who've been locked out by the hardware design.

There's also an obvious automation angle: a device like this could replay repetitive in-game actions (grinding, farming, timed sequences) without requiring software exploits or modified hardware. Whether that's a feature or a problem depends entirely on how Sony decides to position it. The trade between accessibility tool and automation shortcut will be the real design question if this ever ships.

Sony's 36th filing in the robotics work we cover since May builds on ideas like keeping sensors in alignment and mapping robot photo angles.

Source: US 2026/0295446 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 18 sheets

18 drawing sheets from US 2026/0295446 A1 · click any drawing to enlarge

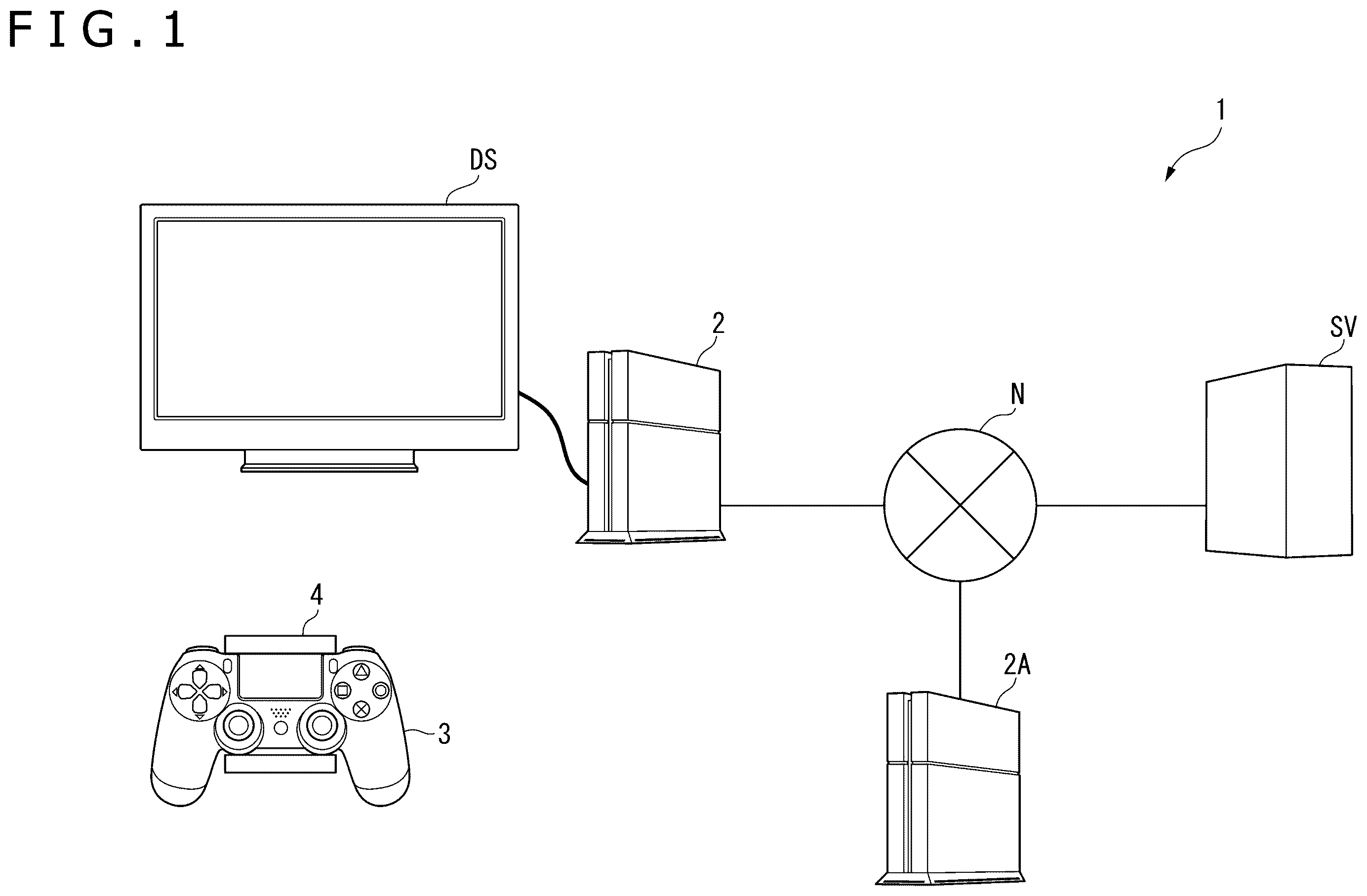

Gaming system with controller and server., drawing sheet 1 from US 2026/0295446 A1
Sheet 1 Gaming system with controller and server.

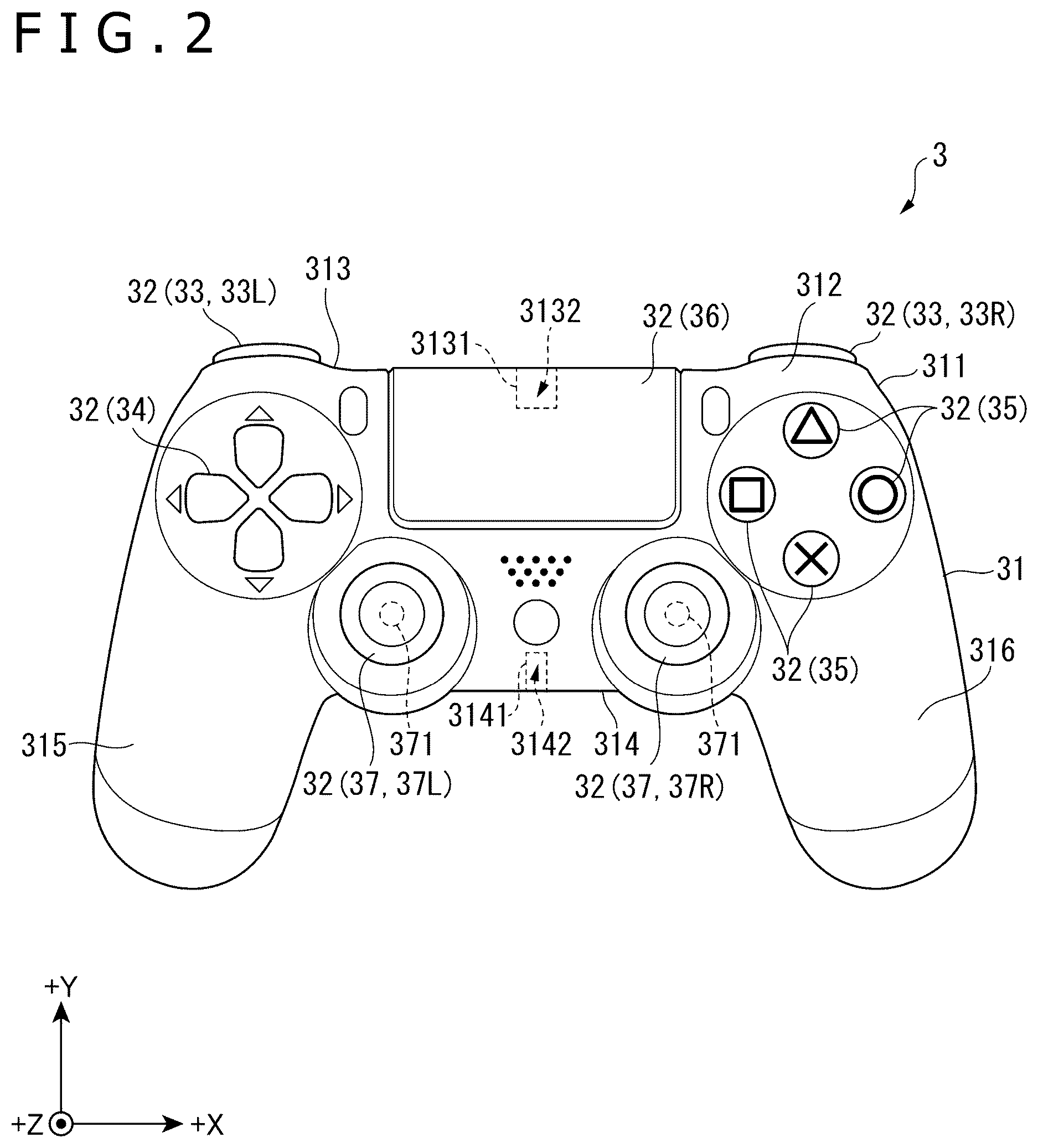

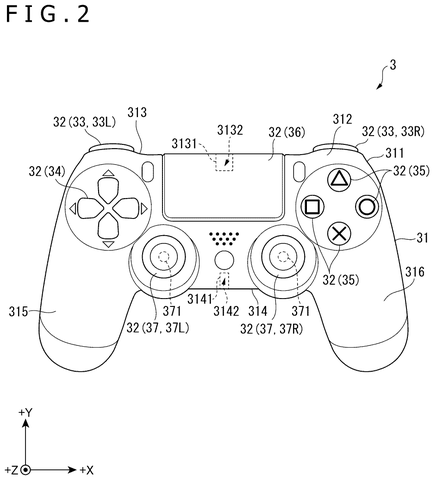

Top view of a game controller., drawing sheet 2 from US 2026/0295446 A1
Sheet 2 Top view of a game controller.

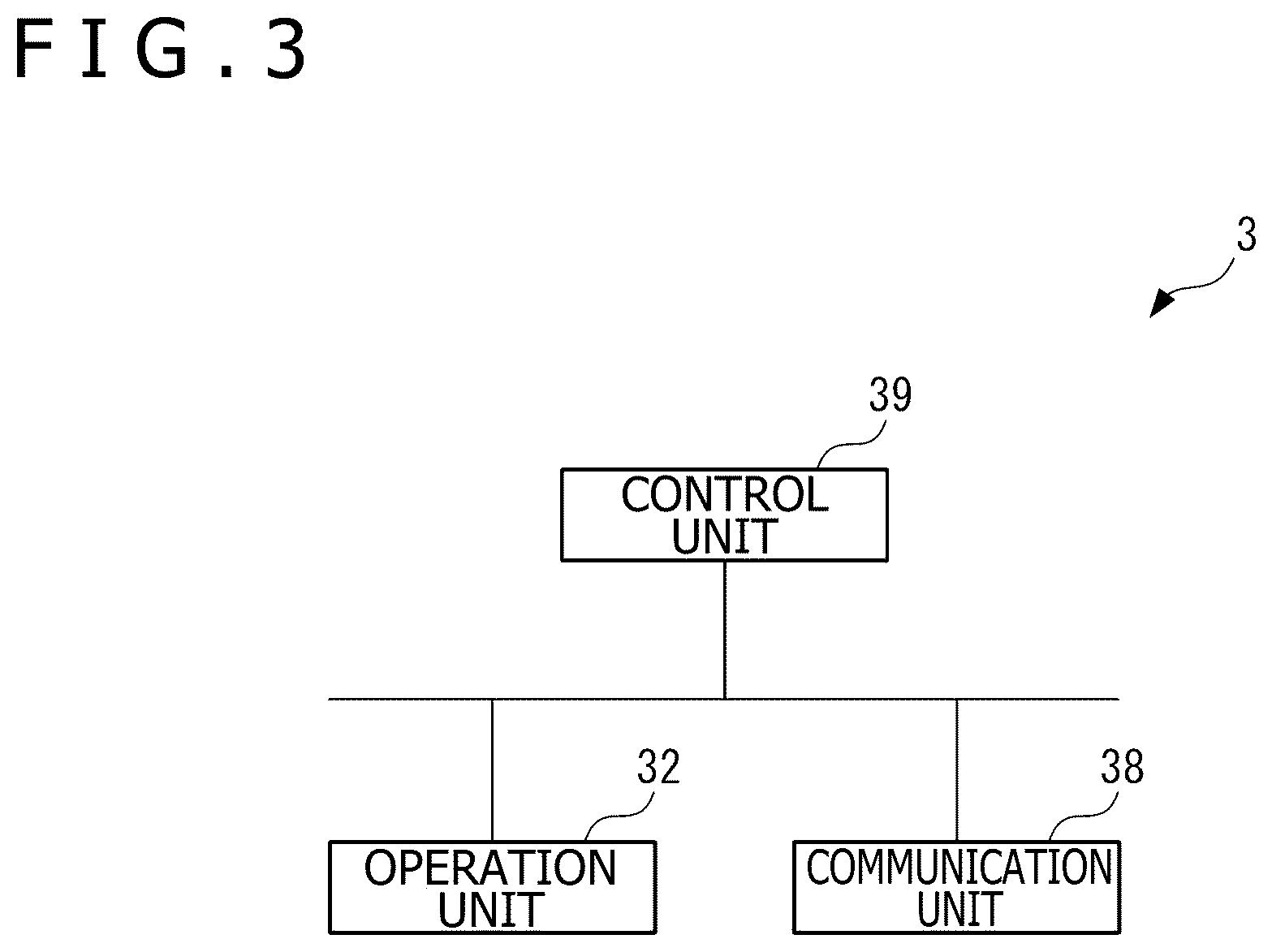

Game controller's internal components., drawing sheet 3 from US 2026/0295446 A1
Sheet 3 Game controller's internal components.

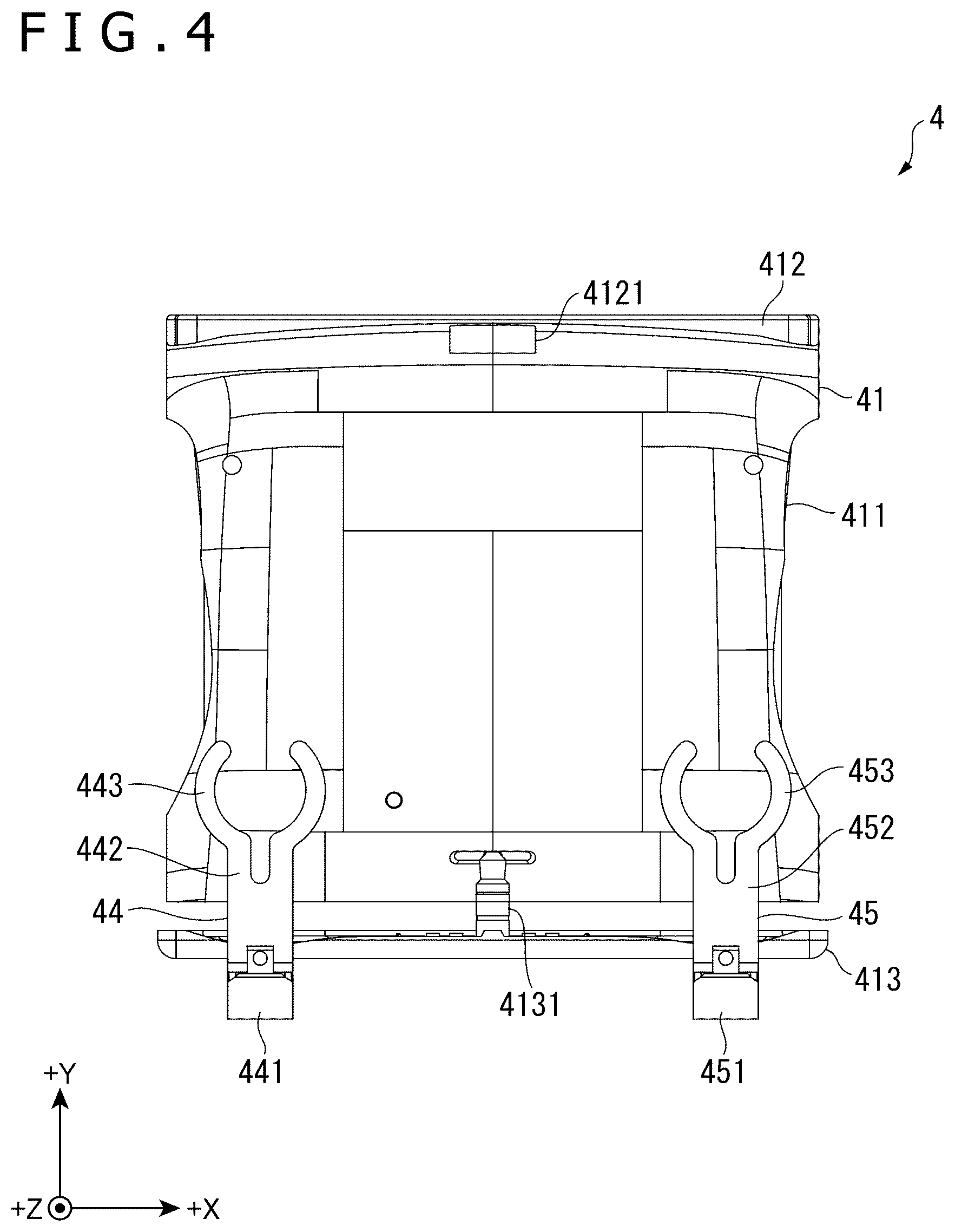

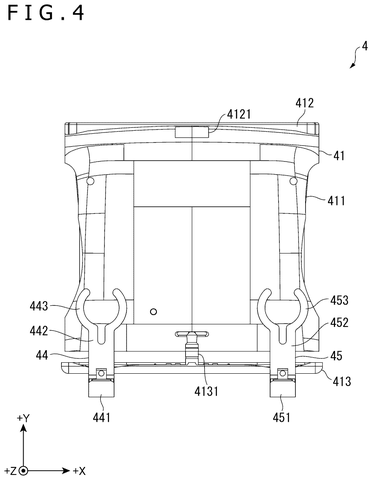

Front view of the clip-on device., drawing sheet 4 from US 2026/0295446 A1
Sheet 4 Front view of the clip-on device.

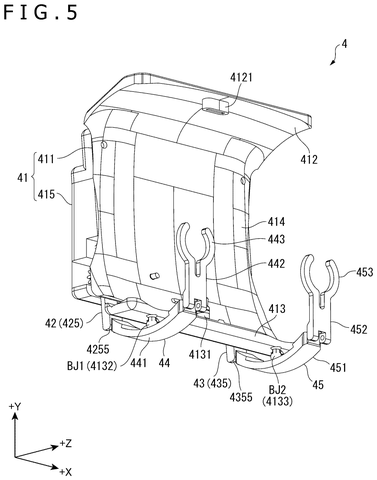

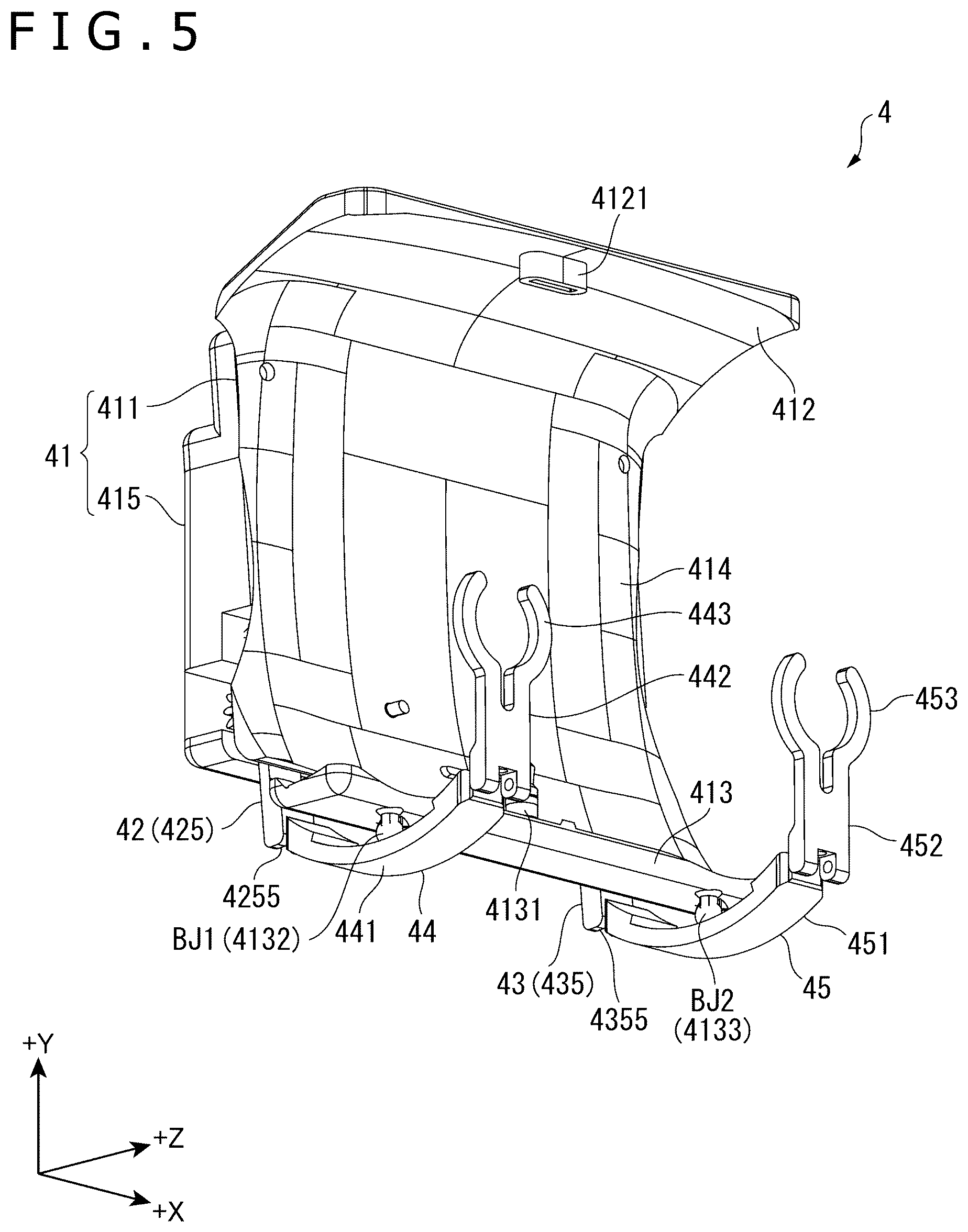

Angled view of the clip-on device., drawing sheet 5 from US 2026/0295446 A1
Sheet 5 Angled view of the clip-on device.

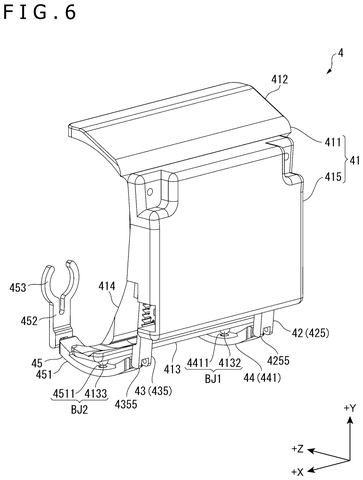

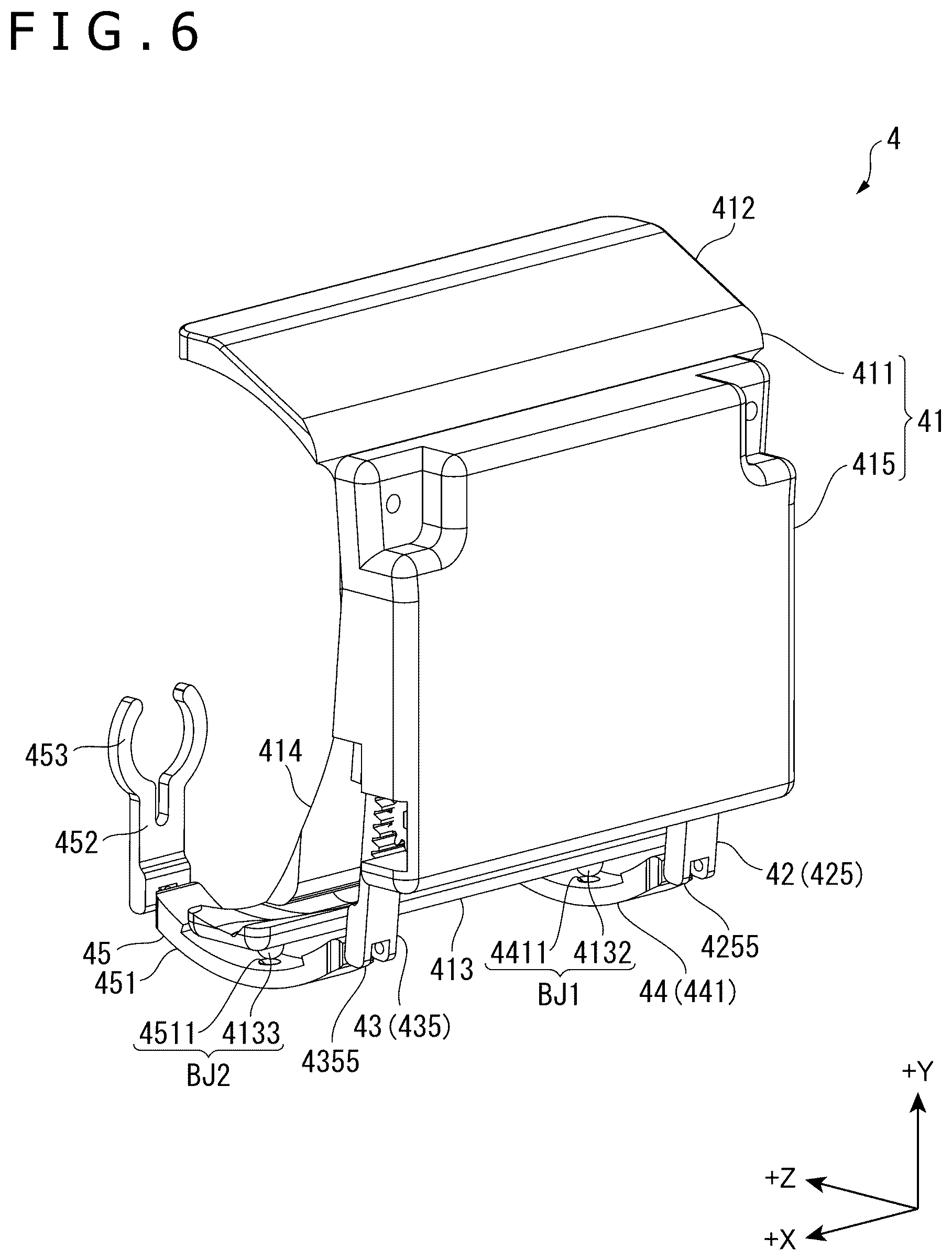

Rear angled view of the clip-on device., drawing sheet 6 from US 2026/0295446 A1
Sheet 6 Rear angled view of the clip-on device.

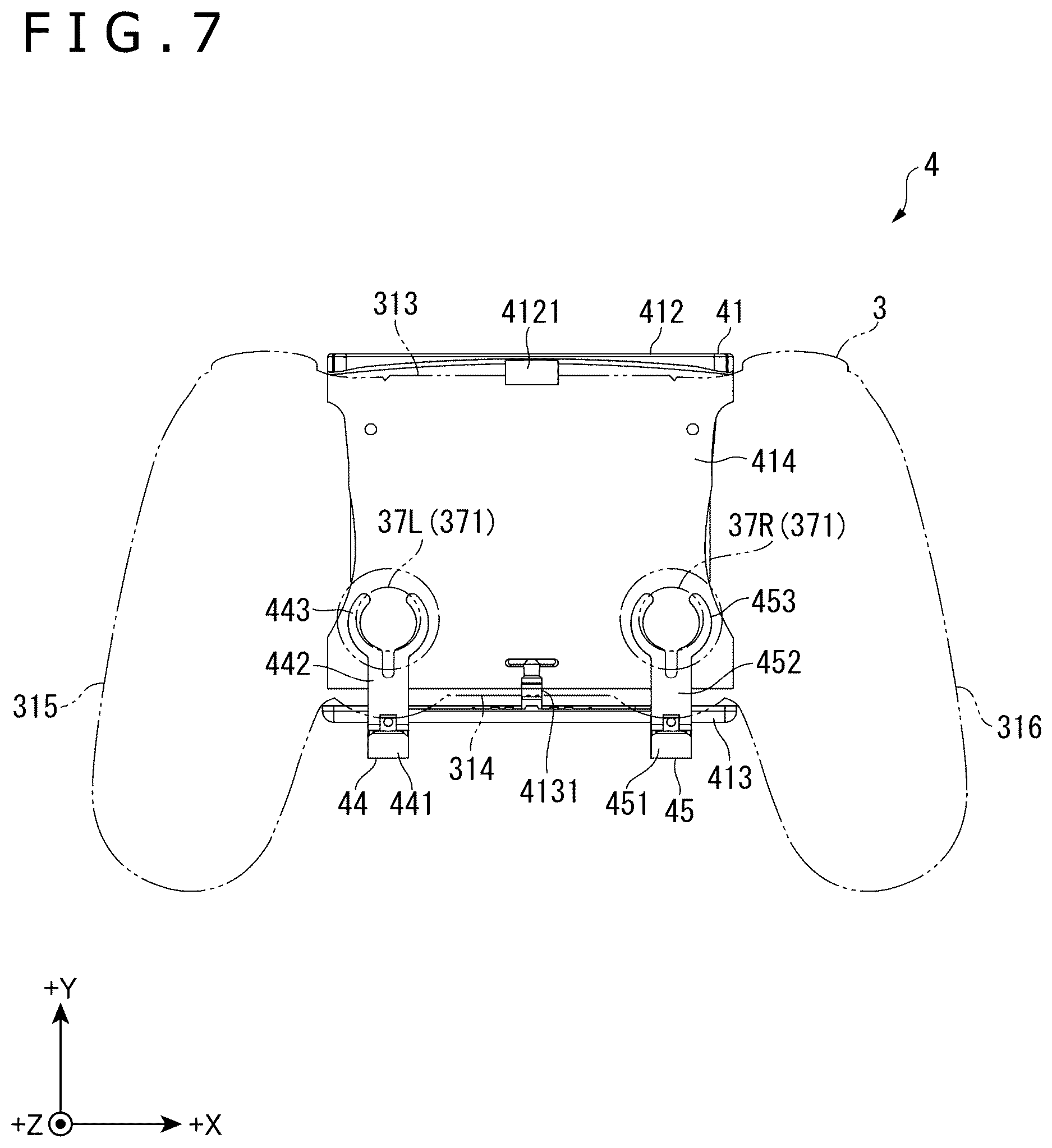

Clip-on device attached to a game controller., drawing sheet 7 from US 2026/0295446 A1
Sheet 7 Clip-on device attached to a game controller.

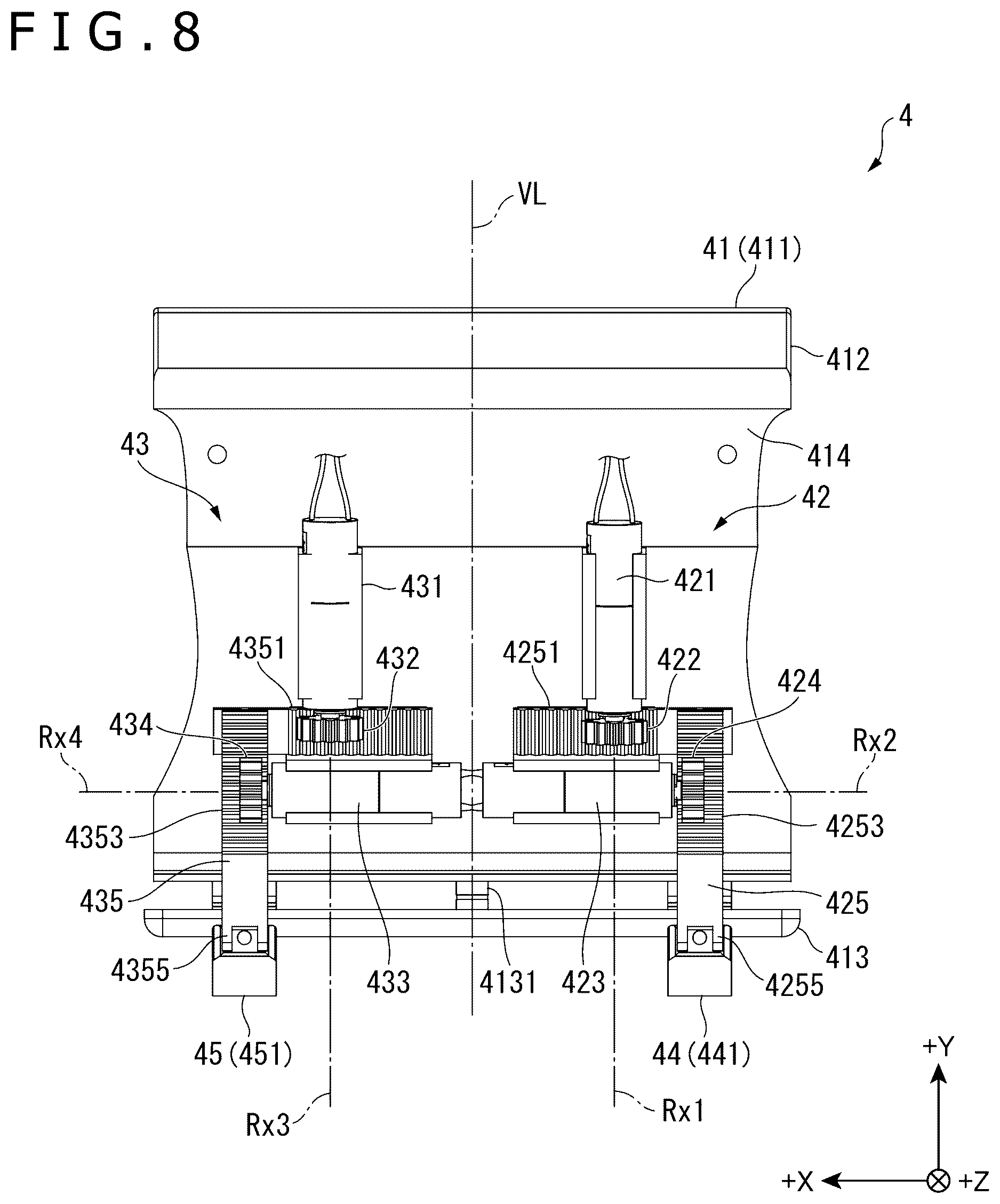

Internal mechanisms of the clip-on device., drawing sheet 8 from US 2026/0295446 A1
Sheet 8 Internal mechanisms of the clip-on device.
Show the other 10 sheets
Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons patent drawing, sheet 9
Sheet 9
Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons patent drawing, sheet 10
Sheet 10
Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons patent drawing, sheet 11
Sheet 11
Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons patent drawing, sheet 12
Sheet 12
Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons patent drawing, sheet 13
Sheet 13
Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons patent drawing, sheet 14
Sheet 14
Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons patent drawing, sheet 15
Sheet 15
Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons patent drawing, sheet 16
Sheet 16
Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons patent drawing, sheet 17
Sheet 17
Sony Patents a Motorized Clip-On That Physically Presses Your Controller Buttons patent drawing, sheet 18
Sheet 18
