Samsung Patents a Luminance Waveform Method for Detecting Display Failures
Spotting a broken pixel or a light-bleed defect on a display panel sounds simple — until you're doing it at factory scale across millions of screens. Samsung's new patent describes a precise, waveform-based method to catch those flaws automatically.

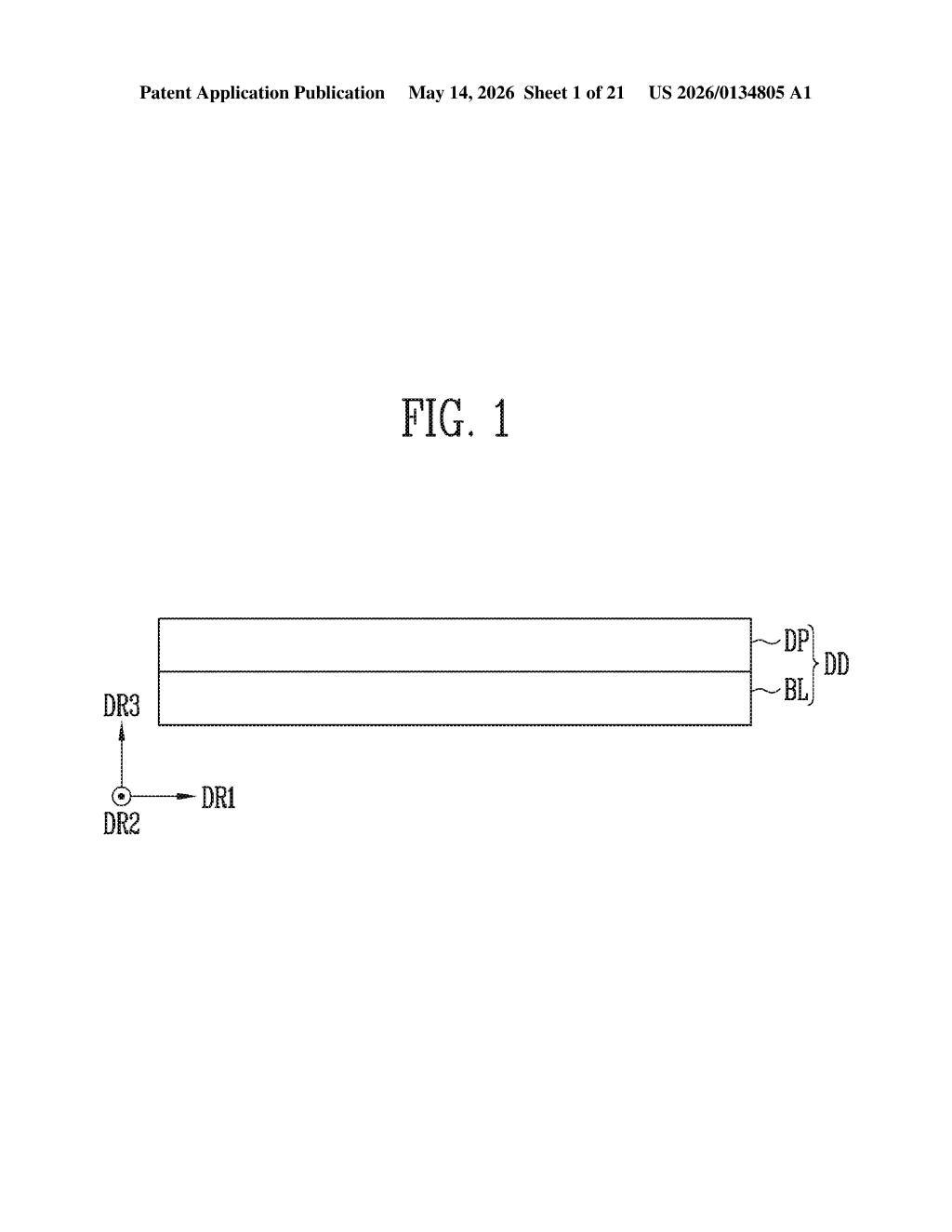

What Samsung's display failure detection actually does
Imagine shining a flashlight at a frosted window and watching where the light bleeds beyond the edges. That uncontrolled glow is called halation, and it's one of the ways a display panel can fail — light leaks where it shouldn't, blurring the picture and washing out contrast.
Samsung's patent describes a way to automatically detect this kind of defect. The idea is to scroll a test pattern across the screen while a sensor measures the brightness at a specific spot. The resulting brightness curve — a luminance waveform — is then compared against a reference curve taken from a healthy display with no halation.
If the two curves don't match, the difference in the area between them is calculated as a ratio. A big ratio means something is wrong. It's essentially a quality-control checklist for screens, done with math instead of a technician's eyeball.
How the waveform area ratio flags screen defects
The method works in four defined steps:
- Define a reference waveform: First, a "first luminance waveform" is recorded in a target area of the screen under ideal conditions — specifically when no halation (light bleed) is present. This becomes the gold-standard baseline.
- Measure a live waveform: A luminance sensor is placed facing the display panel while a test pattern is moved (scrolled) across the screen. The sensor captures brightness over time in the same target area, producing a "second luminance waveform."
- Align the waveforms: The starting points of both waveforms are synchronized so the comparison is apples-to-apples — the same moment in the pattern's movement.
- Calculate the area difference ratio: The system computes how much the area under the two curves differs, expressed as a ratio. Think of it like measuring how much two hills differ in size on a topographic map — a large discrepancy signals a defect.
The use of a moving pattern is key: by sweeping the test image across pixels rather than holding it static, the method captures how adjacent pixels influence each other's brightness — exactly the condition where halation tends to appear.
What this means for display panel quality control
Display manufacturing is a volume game, and even a tiny defect rate across tens of millions of panels adds up to significant cost and warranty claims. A reliable, automated way to quantify light-bleed failures — rather than relying on subjective visual inspection — could speed up quality control lines and reduce the number of defective screens that ship.
For you as a consumer, better factory-floor defect detection means a lower chance of receiving a phone, monitor, or TV with subtle halation issues around bright UI elements. It's unglamorous infrastructure work, but the kind that quietly improves the average quality of every Samsung Display panel that makes it into a finished product.
This is straightforward manufacturing quality-control IP — not a flashy consumer feature. The waveform-comparison approach is clean and well-defined, and Samsung Display clearly wants to protect a specific algorithmic method for quantifying halation defects at scale. It's worth noting for anyone tracking display supply chain tech, but don't expect this to show up in a product announcement.
