IBM Patents a System That Cross-Checks What a Vehicle's Cameras and Sensors Are Reporting
When a self-driving car reports what it saw on the road, how do you know the data is accurate or hasn't been tampered with? IBM has patented a system that automatically cross-checks a vehicle's camera footage and audio against its own sensor readings, past driving records, and map data to flag anything that doesn't add up.
How IBM's vehicle data verification system actually works

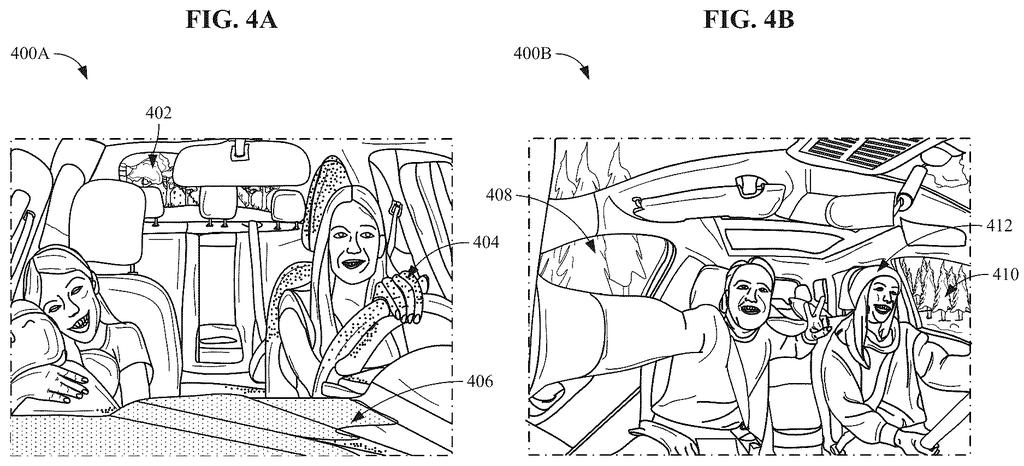

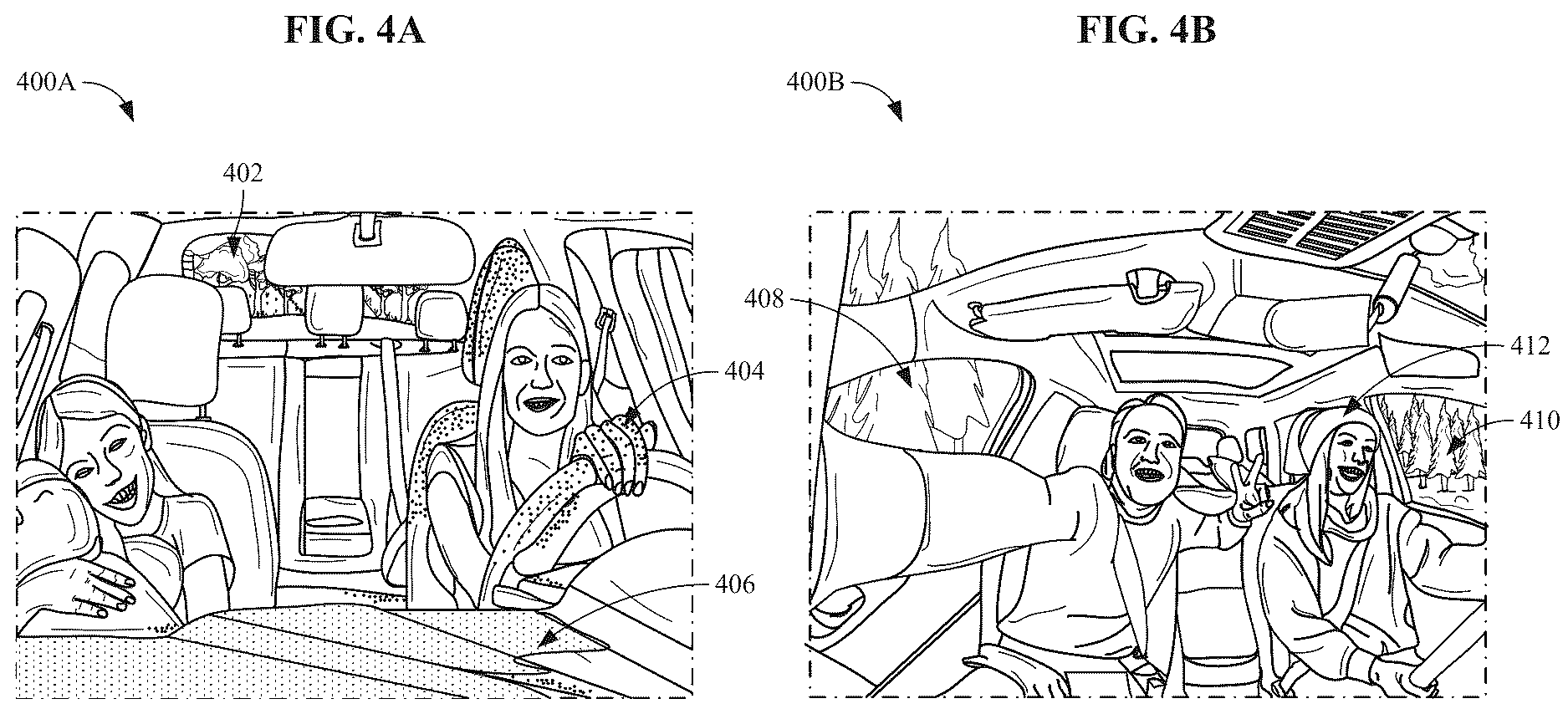

You're reviewing a clip from a vehicle's dashcam after an accident. The footage says the car was on one street, but something feels off. Did the camera actually capture what it claims? IBM's new patent tackles exactly that kind of doubt, building a system that checks vehicle data from multiple angles at once.

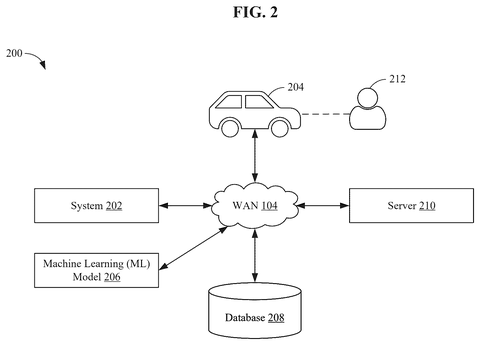

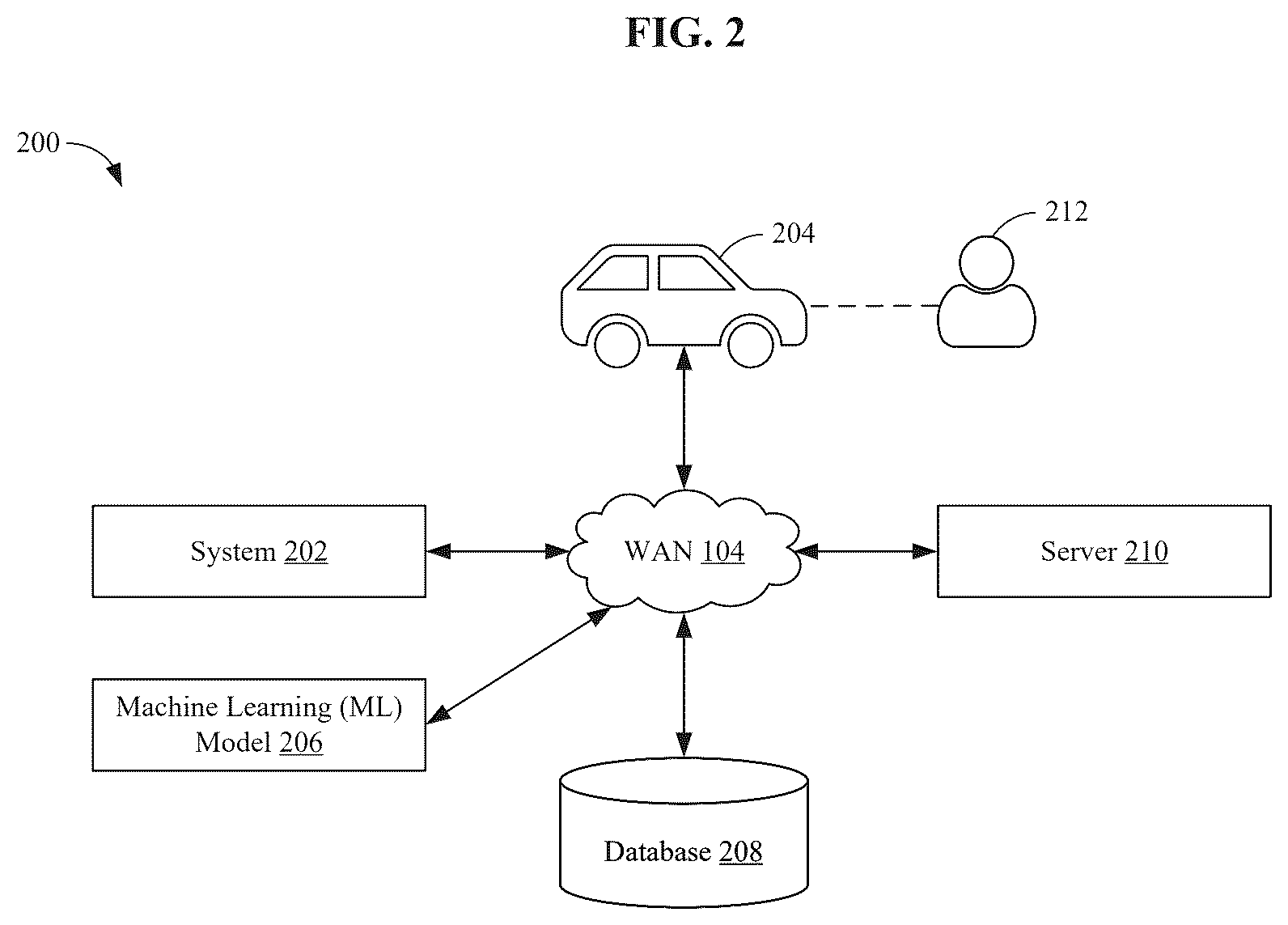

The system takes in camera footage or audio from a vehicle and then pulls in a second set of information: readings from the car's own sensors, its driving history, and reference data like maps or traffic conditions. It compares all of these sources against each other to see if the story they tell is consistent.
The checks cover three areas: whether the vehicle's physical state looks right (integrity), whether the route it reportedly took is plausible (route verification), and whether the environment in the footage matches what conditions were actually like at that time and place (alignment). If something is off, the system flags it.
… retrieving, by the computer, second data associated with the vehicle, wherein the second data comprises sensor data, historical driving data, and multi-dimensional reference data; …
Translation: The computer gathers background info like past driving habits and sensor readings.
How the system compares video, sensors, and history
The patent describes a multi-layer verification pipeline for vehicle data, primarily aimed at footage and audio captured by or about a vehicle in motion.
On the input side, the system receives what the patent calls first data: video frames, audio recordings, or both. It then retrieves second data, which includes:
- Sensor data from the vehicle itself (speed, location, orientation, and similar onboard readings)

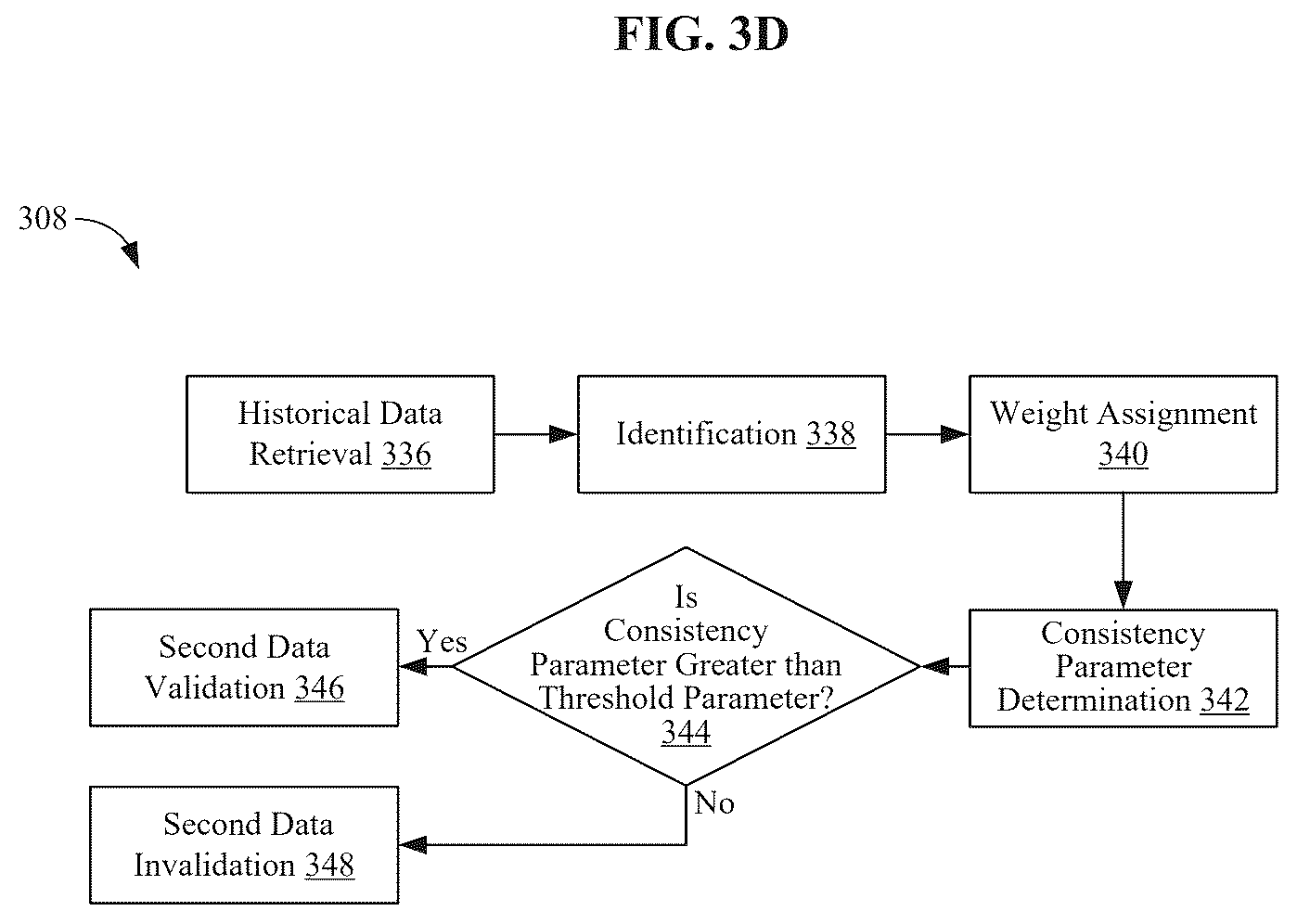

- Historical driving data (past routes and behavior patterns for that vehicle)
- Multi-dimensional reference data (think maps, road databases, or environmental benchmarks)
The system then extracts a set of attributes from the footage or audio. These are measurable characteristics that can be checked against the other data sources. The verification step applies three distinct checks:
- Integrity verification: Does the vehicle look physically consistent with its reported state?

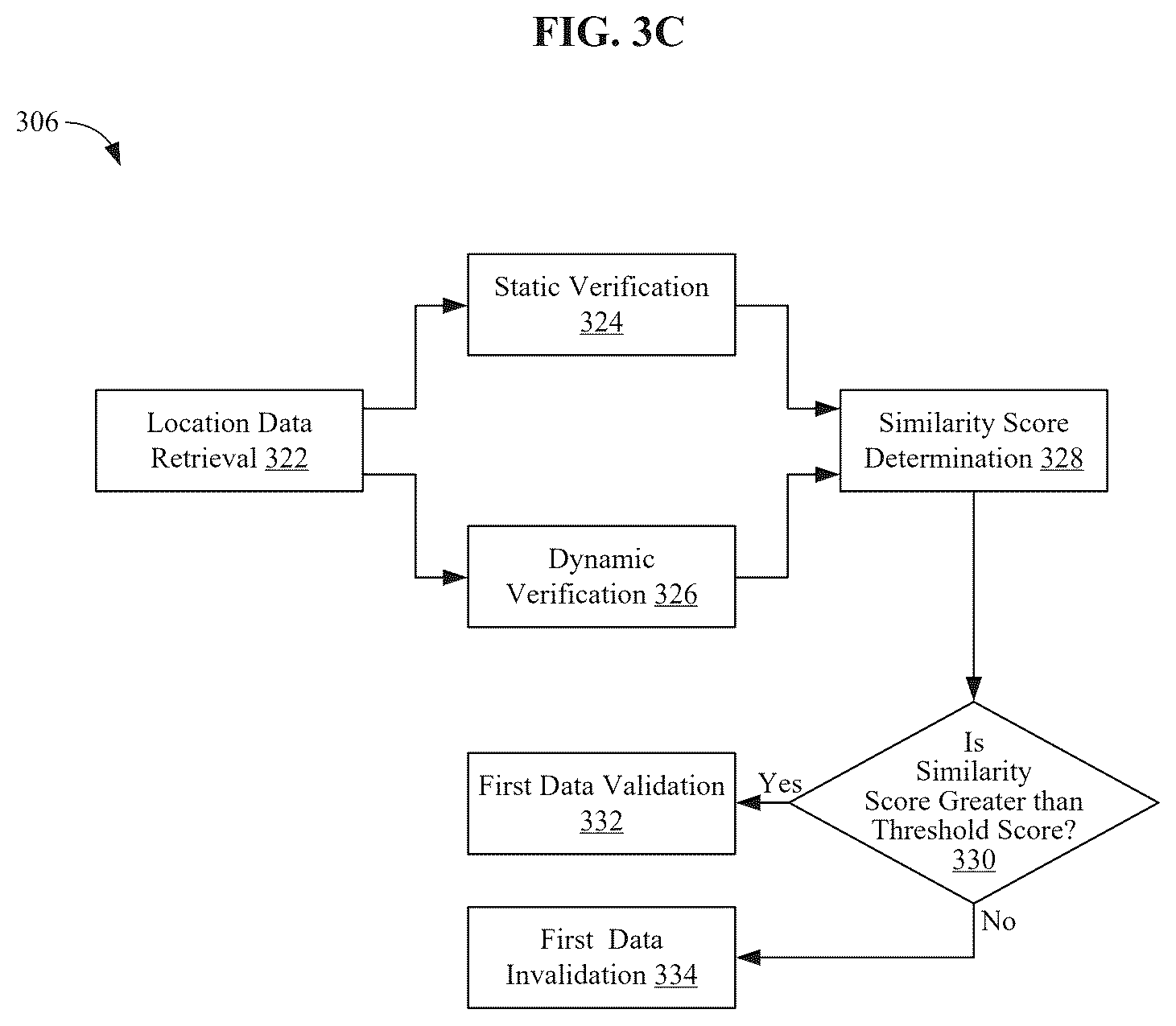

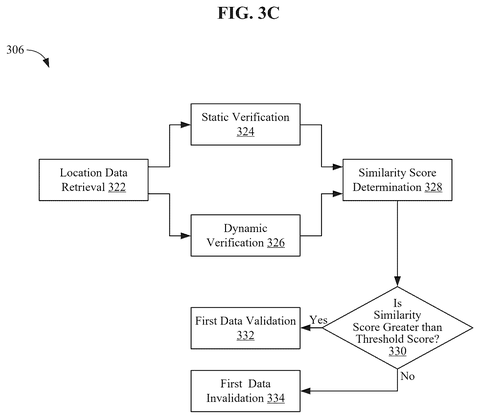

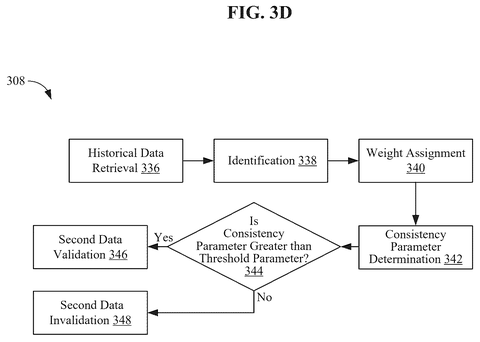

- Route verification: Is the path shown in the footage consistent with known roads and the vehicle's recorded movement?

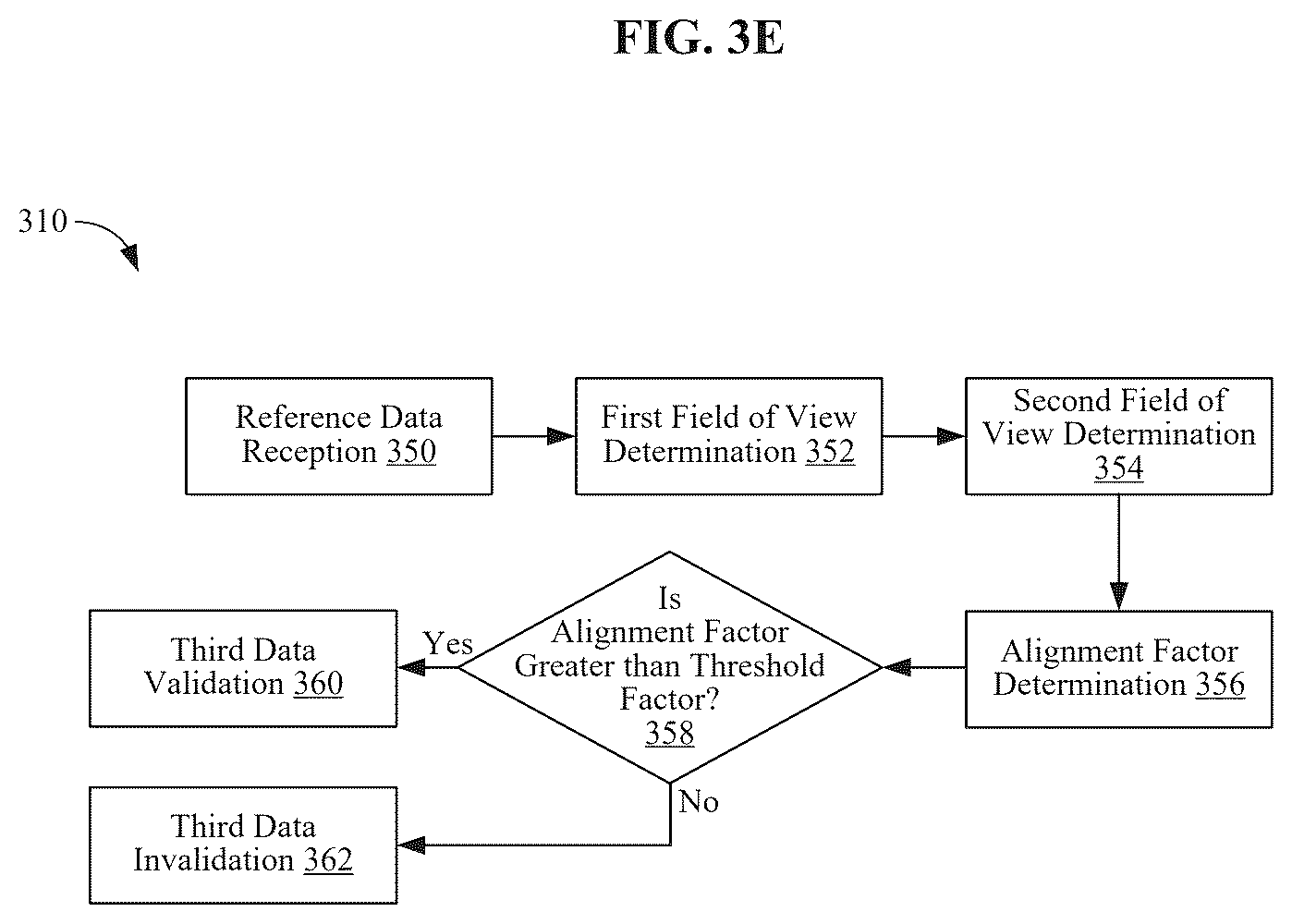

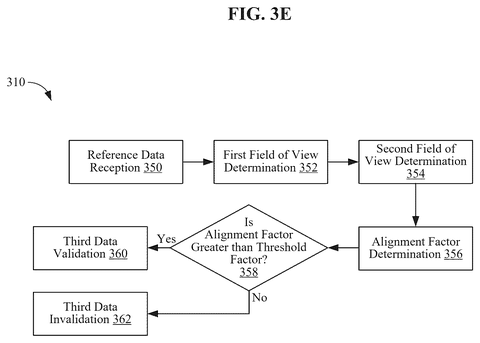

- Alignment verification: Does the surrounding environment (weather, lighting, road markings) match what external records say conditions were like?
Dynamic contextual data (real-time environmental factors like weather at the time of capture) is also folded in, so the system is not just checking static records but conditions as they actually existed. The output is a structured result that flags discrepancies or confirms consistency.
The verification of the set of attributes includes at least one of integrity verification associated with the vehicle, route verification of the vehicle, or alignment verification associated with the vehicle.
Translation: The system checks if the vehicle's parts, travel route, and positioning are all telling the truth.
What this means for autonomous vehicles and insurance
For autonomous vehicles, fleet operators, and insurers, the integrity of vehicle data is not an abstract concern. If a self-driving car's sensor log can be spoofed or a dashcam clip can be altered, liability decisions and safety audits built on that data become unreliable. A system that automatically cross-references multiple independent data streams makes it much harder for any single corrupted source to slip through unchallenged.
For everyday drivers, the downstream effects could show up in insurance claims processing or accident investigations, where verified footage could carry more weight than raw, unvalidated recordings. IBM's run of vehicle-intelligence filings suggests the company sees the data-trust layer as a real gap in the autonomous vehicle stack, separate from the driving algorithms themselves.
IBM files its eighth application we've tracked since May on our self-driving sensing watchlist, joining earlier ones like one on safe drop-off scoring and one on reading driver brain signals.
The core bet here is that cross-checking more independent data sources makes bad data harder to fake or miss. That is a reasonable bet, but every additional source is also another thing that has to be working, available, and accurate at the right moment. In a rural area with thin map coverage, or after a sensor fails, the system has fewer anchors and is more likely to return an uncertain or wrong answer.
There is also a timing question the document leaves open. Catching a problem in real time while a vehicle is moving is a completely different engineering challenge than analyzing footage hours after an incident, and the two cases fail in different ways.
The tradeoff reads as worth making for most conditions, which is where the volume of useful data actually lives. The gaps matter, but they are the expected cost of building on real-world data rather than a sign the design is fundamentally broken.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
11 drawing sheets from US 2026/0285334 A1 · click any drawing to enlarge
