Two sensors on the same car can see the same street from slightly different angles, which creates conflicting maps. Qualcomm's new patent describes a way to automatically line those maps up and merge them into one.

How Qualcomm's 3D map-merging works for cars

Imagine two security cameras covering a parking lot from opposite corners. Each camera sees the same space, but the footage doesn't line up without some work. The same problem happens in self-driving and driver-assistance systems, where multiple 3D sensors on a car each build their own map of the surroundings from their own vantage point.

Qualcomm's patent describes a process for taking two of those separate 3D sensor maps, figuring out exactly how they relate to each other in space, and then combining them into one single, complete picture of the area around the vehicle. The result is a richer, more accurate view than either sensor could produce alone.

This kind of map-merging is important behind the scenes in systems that help your car avoid obstacles, stay in a lane, or park itself. Getting the individual sensor maps to agree with each other is one of the less glamorous but genuinely important steps in making those features reliable.

How the transformation matrix aligns two point clouds

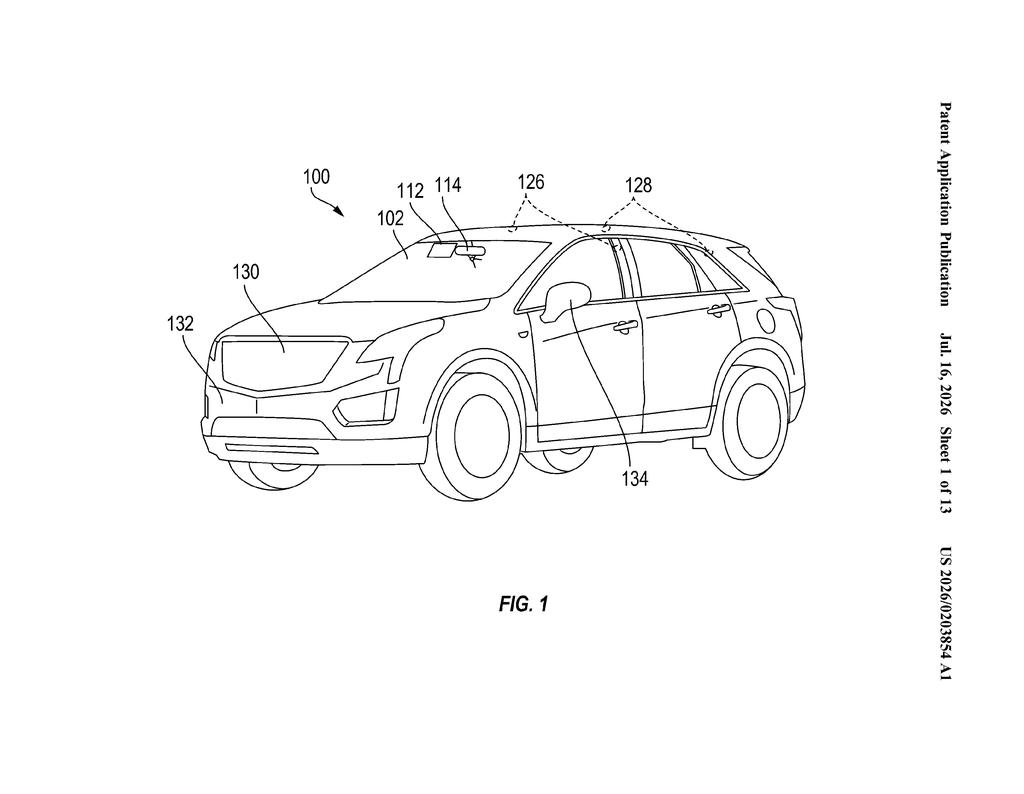

The patent covers a method for combining two point clouds (three-dimensional grids of dots, each dot representing a surface the sensor detected in the real world) that were captured from at least two different physical positions on or around a vehicle.

The core process works in three steps:

• Receive the two separate point clouds from different sensor positions.
• Calculate a transformation matrix (a mathematical formula that describes the exact rotation and translation needed to shift one cloud so it lines up with the other).
• Apply that matrix to the first point cloud to produce an aligned version, then merge the aligned cloud with the second cloud to create one combined map of the full area.

The transformation matrix is the key piece. Think of it as a set of precise instructions: rotate this map by exactly X degrees, shift it Y meters to the left, and Z meters forward. Once applied, both clouds describe the same physical space in the same coordinate system, so they can be layered together without duplication or gaps.

The patent is filed under vehicle driving assistance systems, meaning the combined point cloud is intended for real-time or near-real-time use by onboard chips that power features like obstacle detection and automated maneuvering.

What unified 3D maps mean for driver-assistance systems

Driver-assistance and autonomous driving systems rely on a detailed, accurate model of the space around the vehicle. A single sensor has blind spots and range limits, so modern vehicles use multiple sensors, often LiDAR units, radar, or depth cameras, positioned at different points on the car. The problem is that each sensor produces its own local map, and those maps need to be reconciled before any downstream software can act on them reliably. This patent addresses exactly that reconciliation step.

For Qualcomm, which supplies the processing chips inside many automotive systems, owning the pipeline from raw sensor data to a unified 3D map is a meaningful piece of the stack. If this approach ships in their automotive chipsets, it means car manufacturers using Qualcomm silicon get a cleaner, more complete picture of their surroundings without having to solve the alignment problem themselves.
