Microsoft Patents Technology to Keep AR Images the Right Size for Glasses Wearers
Anyone who wears prescription lenses inside an AR headset knows the problem: things look the wrong size. Microsoft's new patent tackles that directly by pre-shrinking or pre-enlarging the image before it hits the display, so the lens bends it back to exactly the right size.
How Microsoft wants to fix blurry-size AR for glasses wearers
Today, if you wear corrective lenses inside a mixed-reality headset, the lens doesn't just focus the image, it also changes how big things appear. That size shift can make virtual objects look off compared to the real world, which is disorienting and tiring.
Microsoft's patent describes a system that measures how strong your prescription is (using a unit called a diopter, which is just the number your eye doctor writes on the prescription) and then calculates how much that lens will shrink or stretch what you see. Before the headset even shows you an image, it resizes that image in the opposite direction by the same amount, so the two effects cancel out.
The result is that you'd see virtual objects at their intended size, not a warped version of it. This is a correction happening invisibly in software, with no special hardware required beyond knowing your prescription strength.
accessing diopter information for a lens that is physically disposed between an eye of the user and a display of the ER system …
Translation: The system reads the prescription details of the corrective lenses sitting inside the headset.
How diopter data drives the image-scaling calculation
The patent describes a software service running inside an extended-reality (ER) headset, such as a mixed-reality or AR device, that performs image calibration before anything appears on screen.
Here's the sequence:
- The system reads diopter information for the corrective lens sitting between the user's eye and the display. A diopter is simply a number that describes how strongly a lens bends light; higher numbers mean stronger prescriptions.
- It uses that diopter value to calculate a scaling factor, a multiplier that captures how much the lens is going to magnify or shrink the image.
- Before the frame is sent to the display, the software applies that scaling factor in reverse, generating a scaled image that is intentionally larger or smaller than the original.
- When the lens then distorts that pre-adjusted image, the two effects cancel, and the user perceives the image at its intended, predetermined size.
The claim covers both the case where a lens makes things look bigger (so the software pre-shrinks) and where a lens makes things look smaller (so the software pre-enlarges). It's essentially pre-distortion compensation, a technique used in projectors and camera optics, applied here to headset prescriptions.
What this means for AR headset users who wear prescriptions
For the millions of people who wear glasses or contacts, AR and mixed-reality headsets have always involved a compromise. Either you squeeze glasses inside the headset (uncomfortable), buy custom prescription inserts (expensive and slow), or just live with slightly distorted visuals. Software-level correction like this could lower that barrier considerably, since no physical swap of lenses would be needed to get correctly sized images.
This matters most for Microsoft's HoloLens line and any future mixed-reality hardware in that family, where precise spatial alignment between virtual and real objects is central to the whole experience. If virtual and real objects appear at mismatched scales because of a user's prescription, the illusion of mixed reality breaks down quickly.
That makes this Microsoft's ninth filing we've tracked in the AR glasses race since May, adding to work like stopping eyes from glowing and faster 3D line drawing.
Claim 1 is written at a fairly high level of abstraction. It covers any ER system that reads diopter data, derives a scaling factor from it, and applies that factor to an image before display. There is no restriction on how the diopter information is obtained, how the scaling math works, or what hardware is involved. That breadth means the claim, if granted, could potentially cover a wide range of AR and VR headsets that implement prescription-aware image scaling in any form.
In practice, though, the real novelty here is narrow: it's specifically about correcting size distortion caused by a prescription lens, not focus, not color, not distortion geometry. Any competing system that accounts for the same effect through a different route, say by adjusting the display's optical path rather than resizing the image in software, would likely fall outside the claim.
Microsoft's steady investment in mixed-reality patents suggests this is infrastructure work rather than a headline feature. The correction this patent describes would be invisible to the user if it works correctly, which is exactly the point. It's the kind of fix that determines whether a headset feels right or subtly wrong, and those details tend to matter enormously for adoption.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Microsoft patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

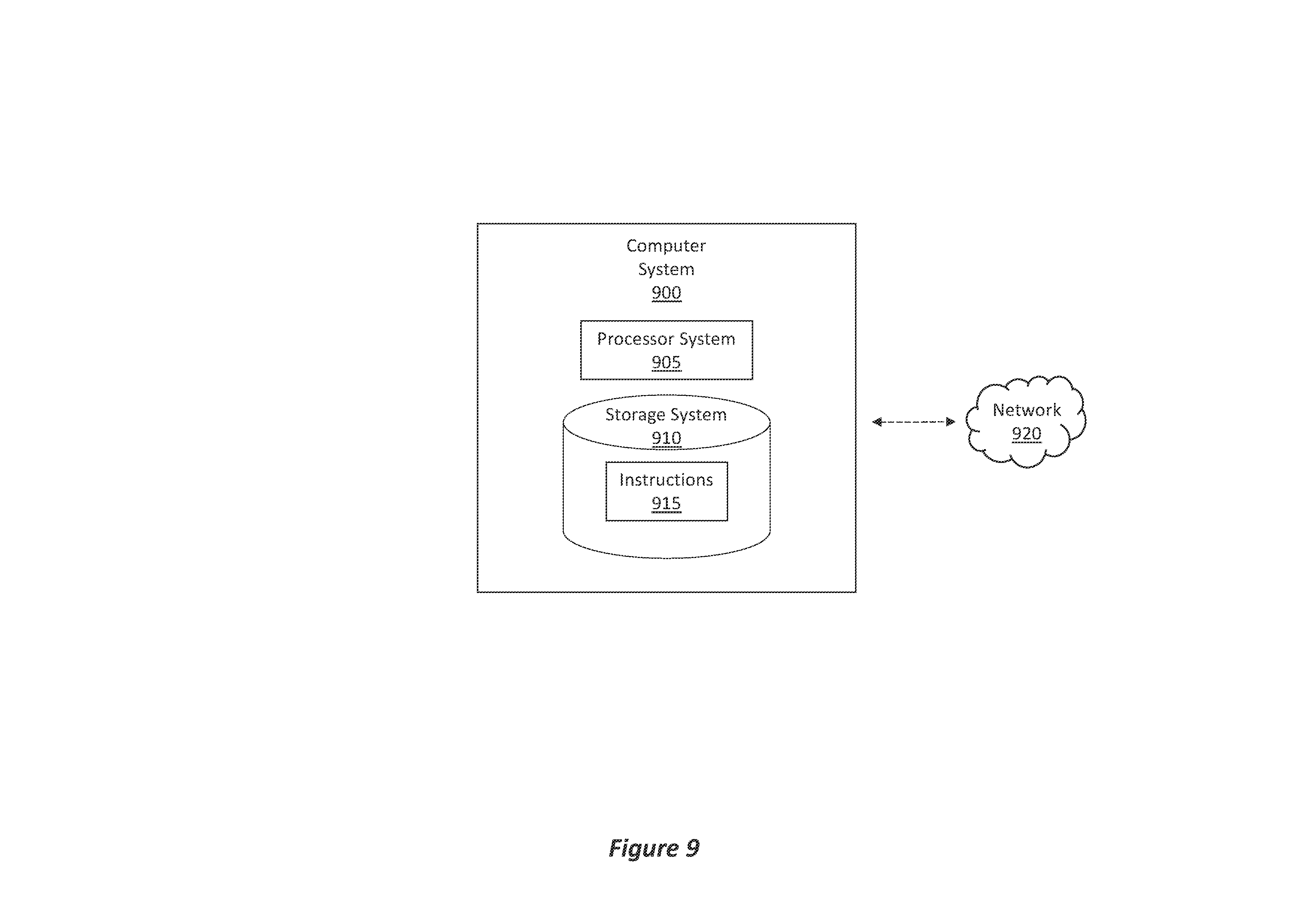

9 drawing sheets from US 2026/0268594 A1 · click any drawing to enlarge
