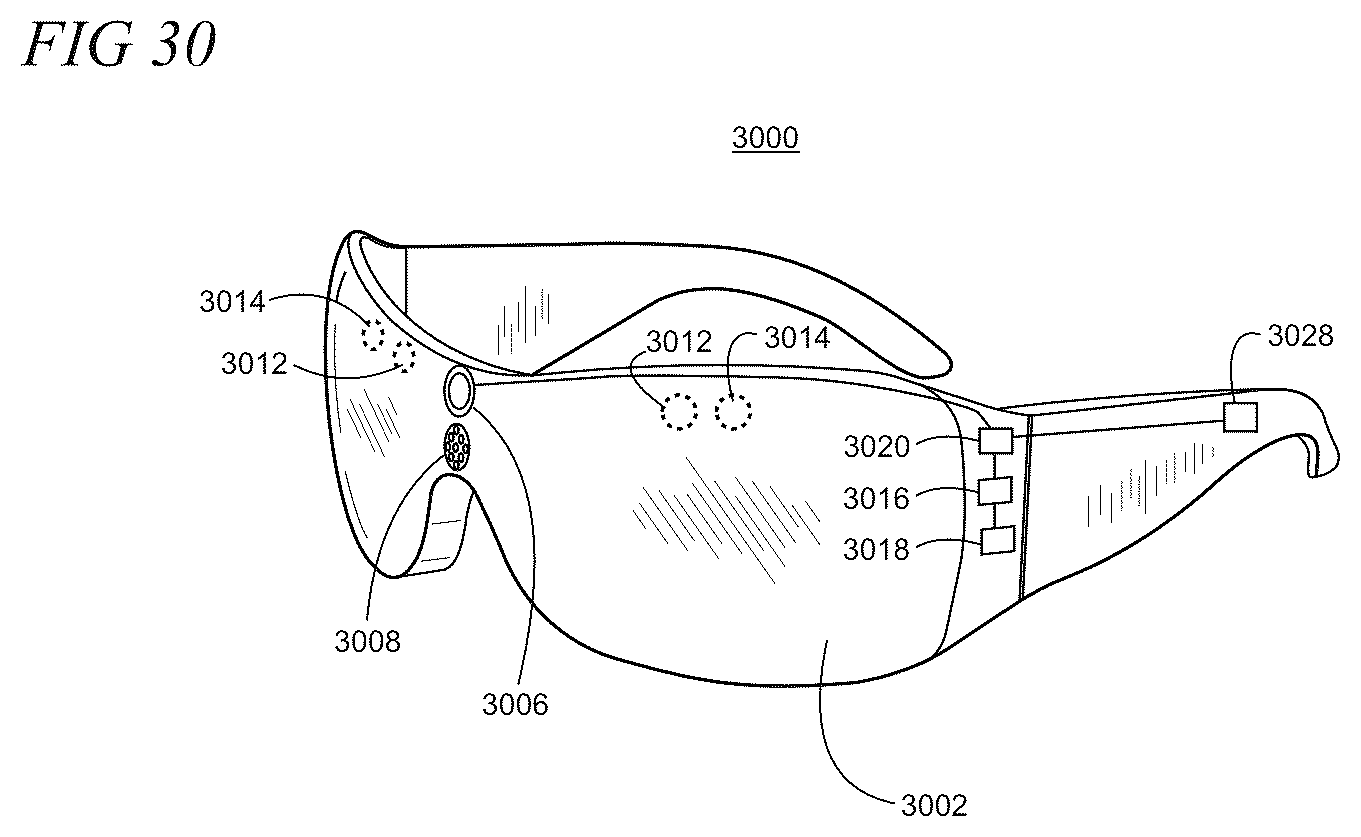

Microsoft Patents a Way to Stop AR Headsets from Making Your Eyes Glow
Anyone who has seen someone wearing an AR headset knows the eerie glow that leaks from the lenses back toward onlookers. Microsoft has filed a patent for a new optical layer design that targets exactly that problem.
What Microsoft's eye-glow fix actually does
Imagine you're at a coffee shop wearing a mixed-reality headset, digital overlays floating in your field of view, and the person across from you can barely see your eyes because the lenses are glowing like a flashlight. That glow has a name in the industry: eye glow. It happens when light meant for your eyes bounces the wrong way and leaks outward.
Microsoft's new patent describes a redesigned lens component, called a waveguide combiner, that stacks several carefully tuned layers together to trap virtual-image light and send it only toward your eyes. The key idea is varying both the depth of tiny microscopic ridges in the lens and how dense the glass-like material is, so light is steered more precisely and far less escapes outward.
The practical upside is a headset that looks far less alien to people around you, and one that is harder to notice across a room. For mixed-reality devices to become everyday wearables, that kind of social comfort turns out to matter as much as raw display quality.
… an output-coupling surface relief grating (SRG) disposed on the substrate, the SRG including grating structures having increasing depth along the propagation direction of the virtual images …
Translation: The grating that sends images into the user's eyes changes depth across its surface to control how the light behaves.
How the layered grating traps light inside the lens

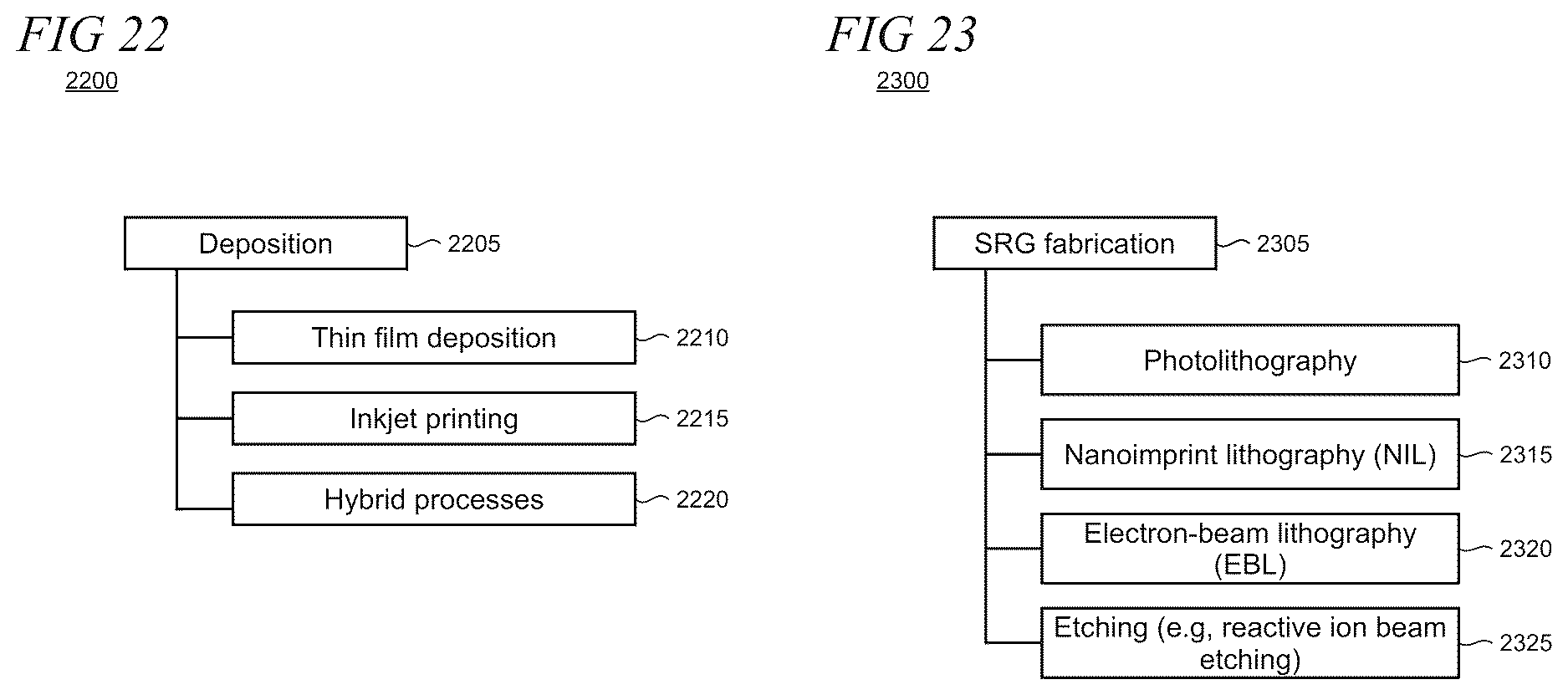

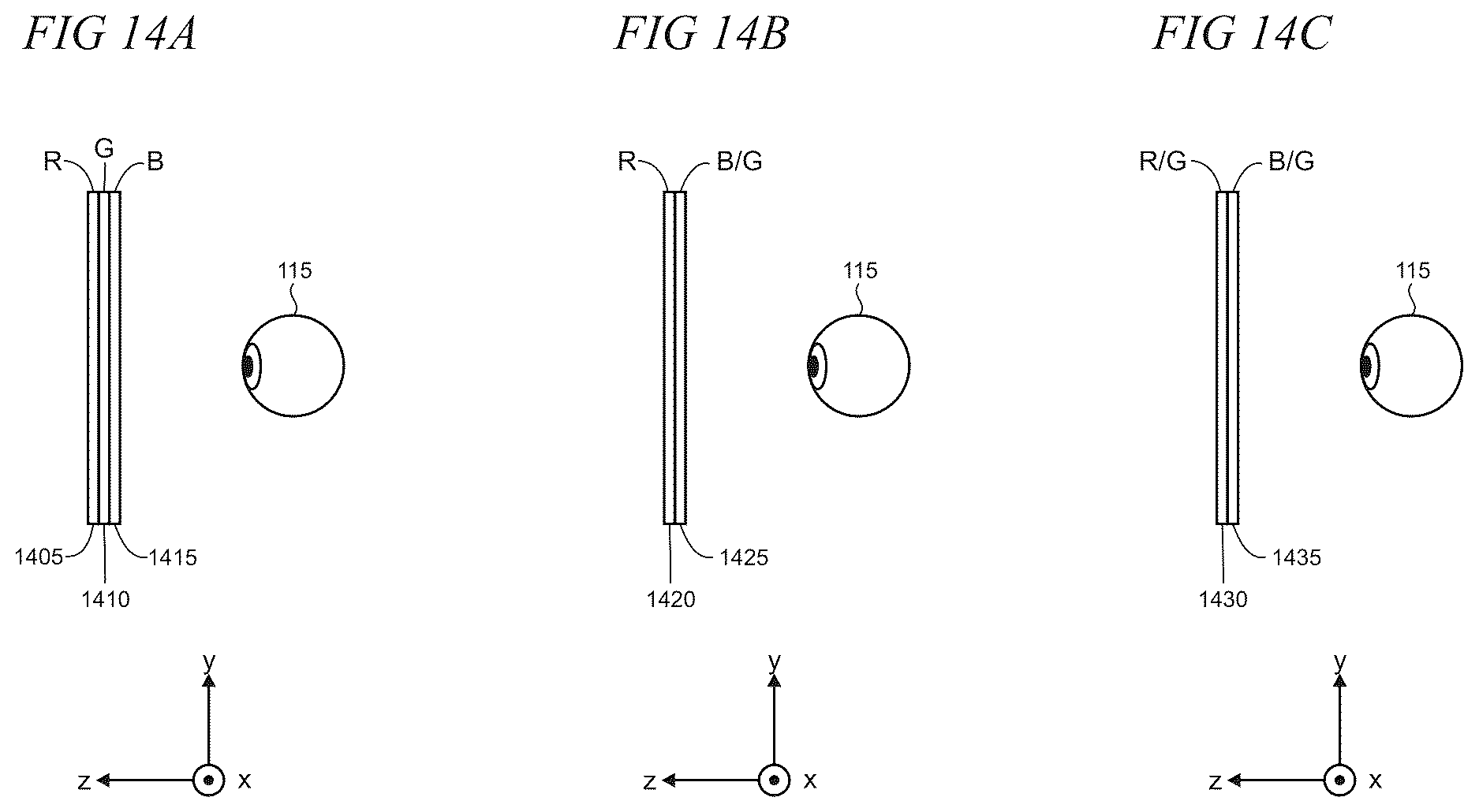

The patent centers on the output-coupling surface relief grating (SRG), the part of a waveguide lens responsible for bending light out of the lens and into your eye. In a conventional design, some of that light escapes in the wrong direction, toward the world rather than toward the wearer.
Microsoft's approach stacks three innovations together:

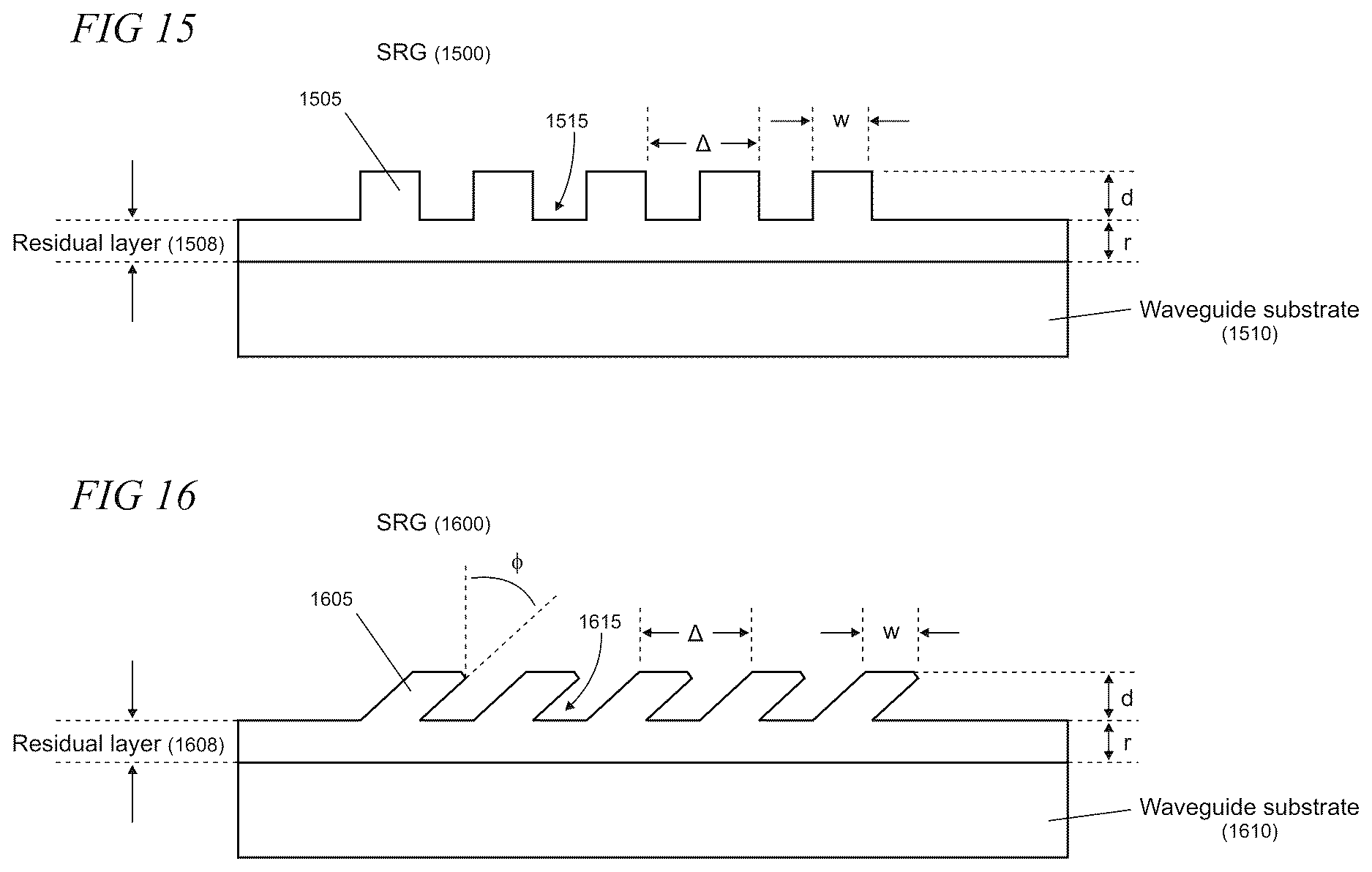

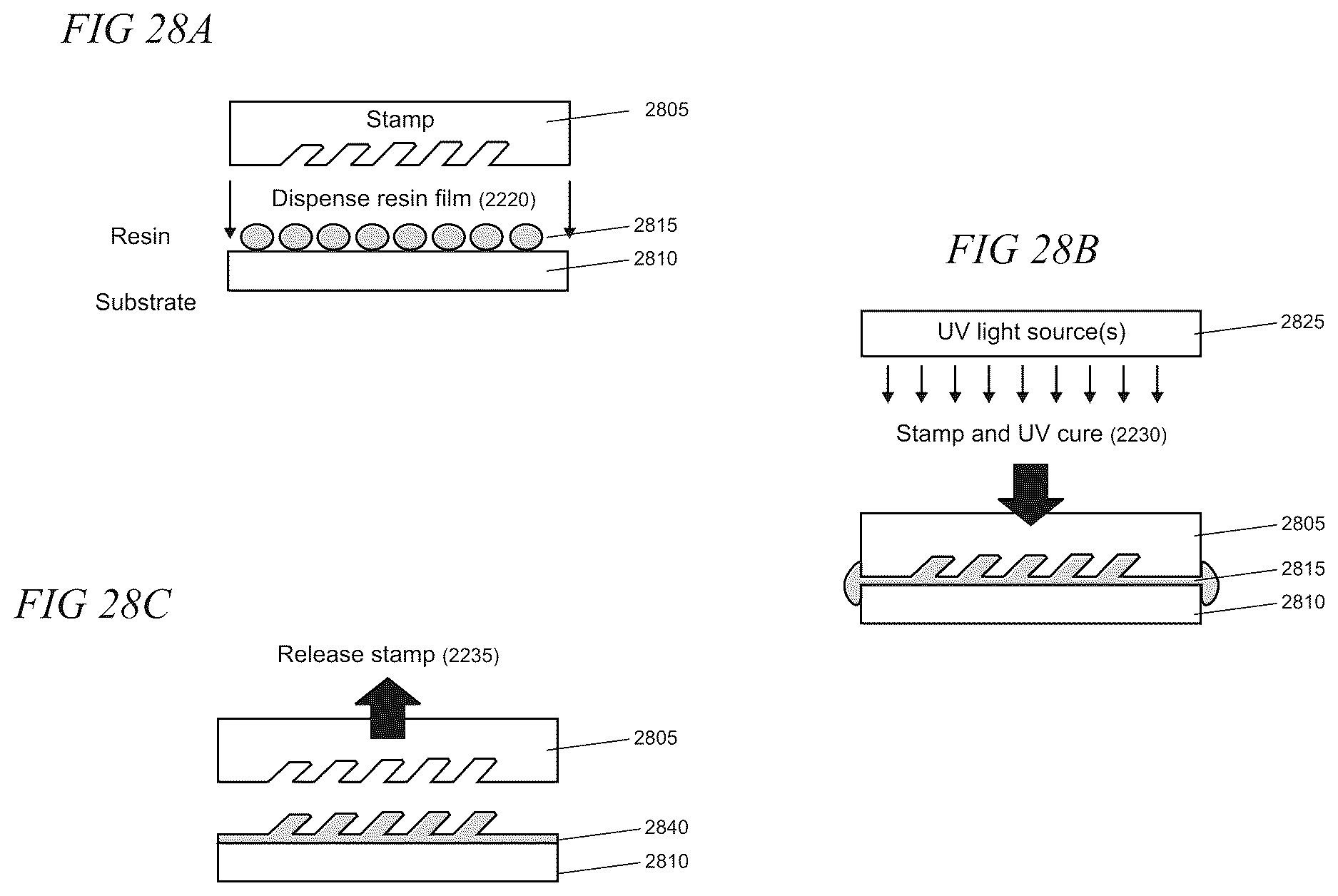

- Depth-modulated grating structures: the microscopic ridges that make up the grating get progressively deeper as they run across the lens. This gradual change helps distribute light more evenly and reduces unwanted scattering.

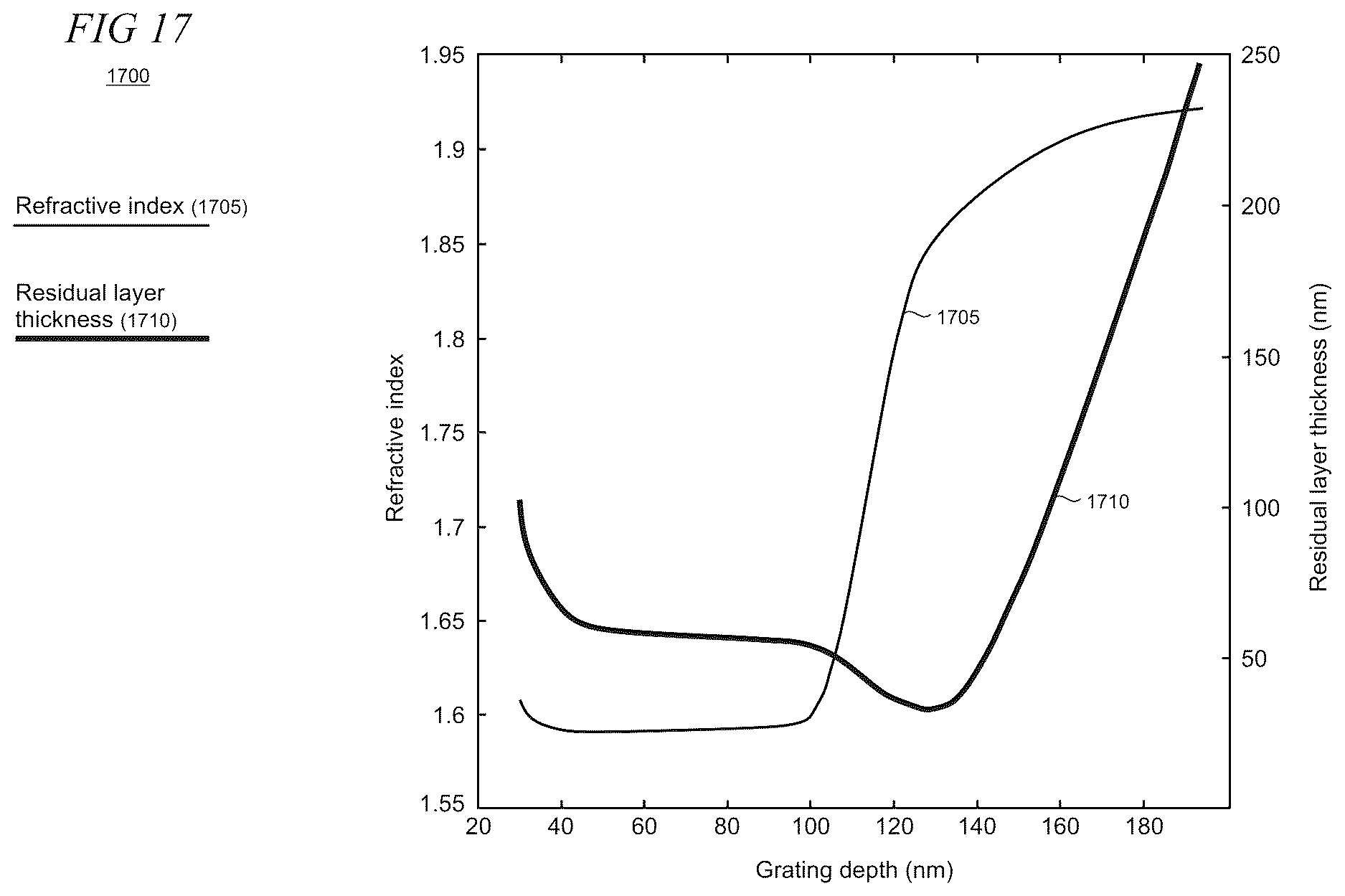

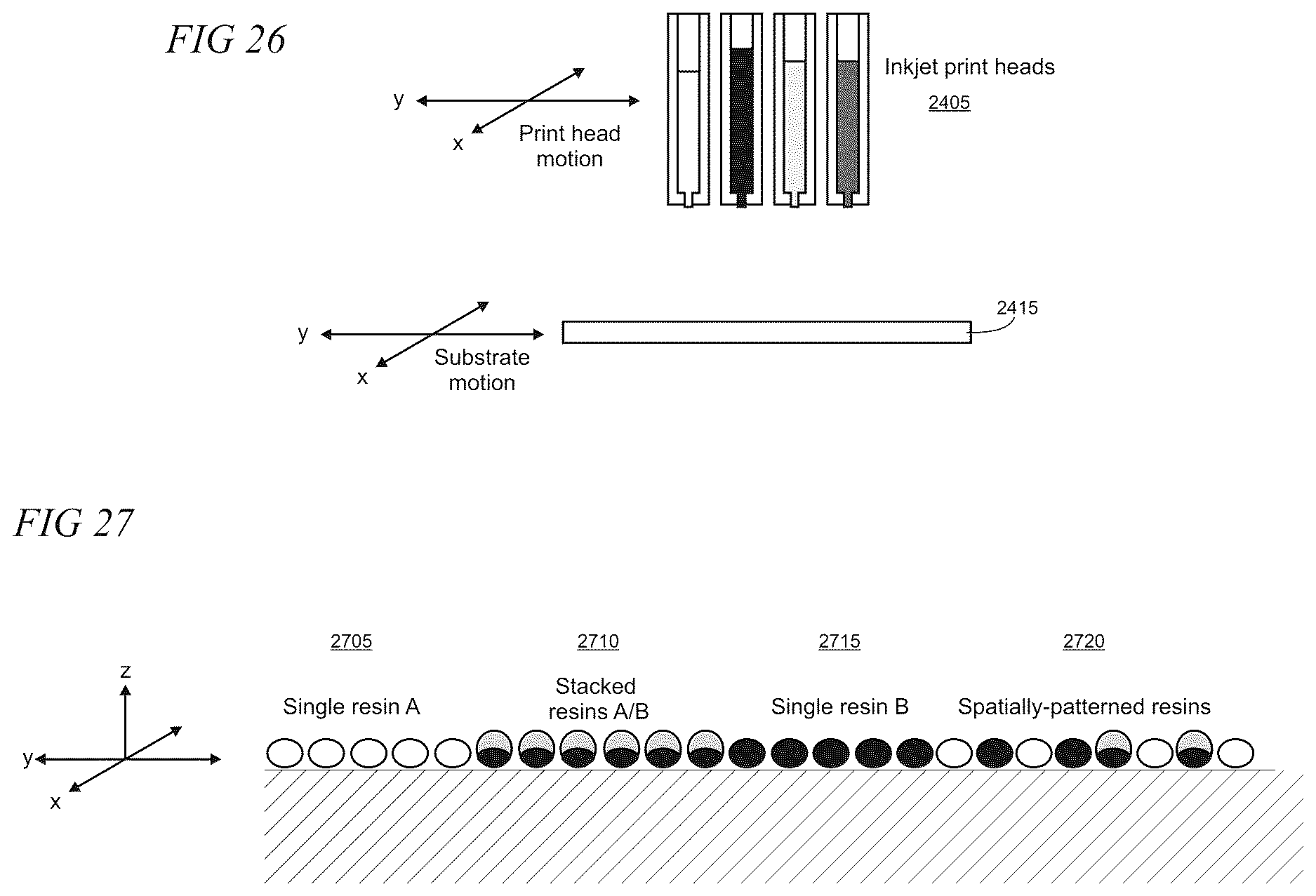

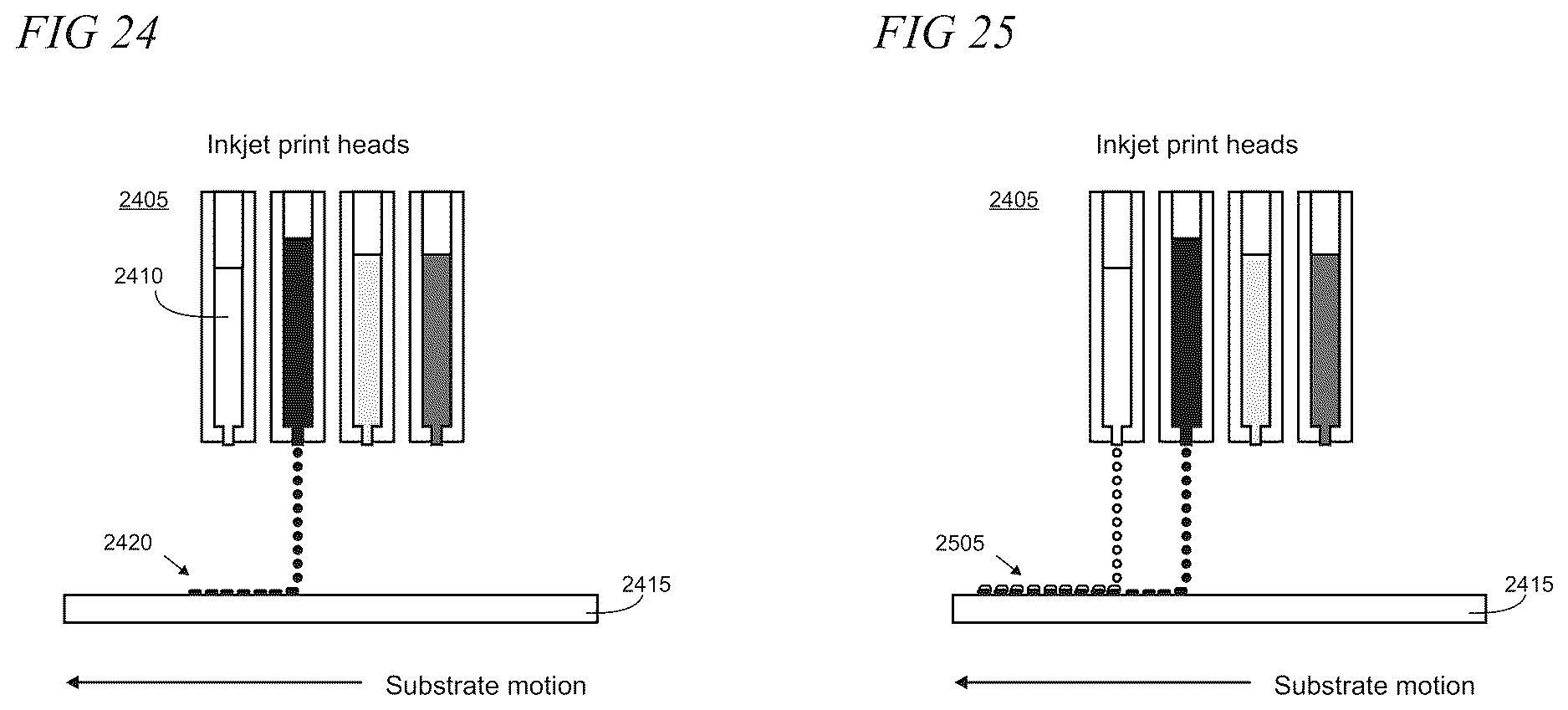

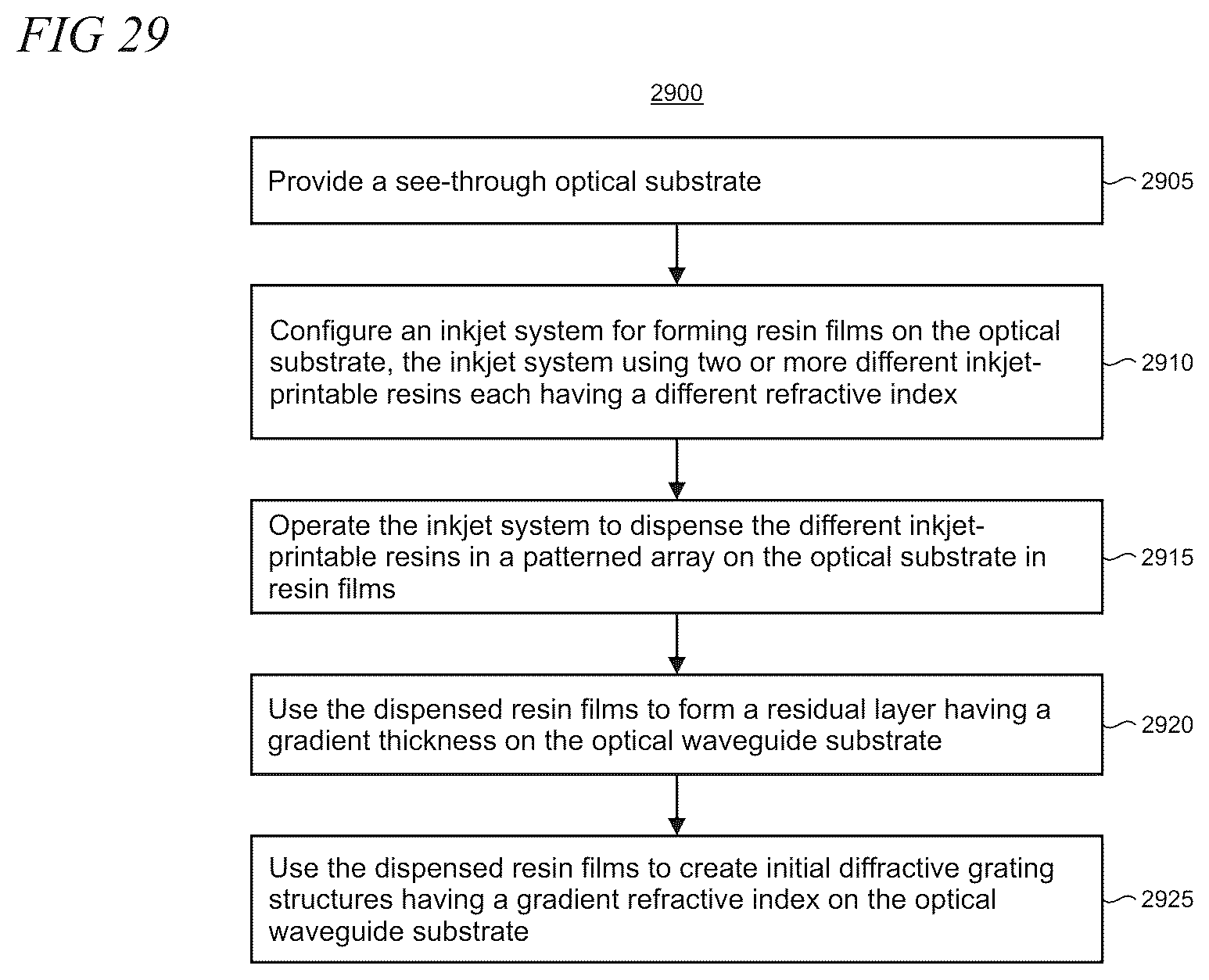

- Gradient refractive index profile: the density of the optical material (which controls how fast light travels through it) also varies across the grating. By tuning both depth and density together, light is steered with much finer control than either method alone.

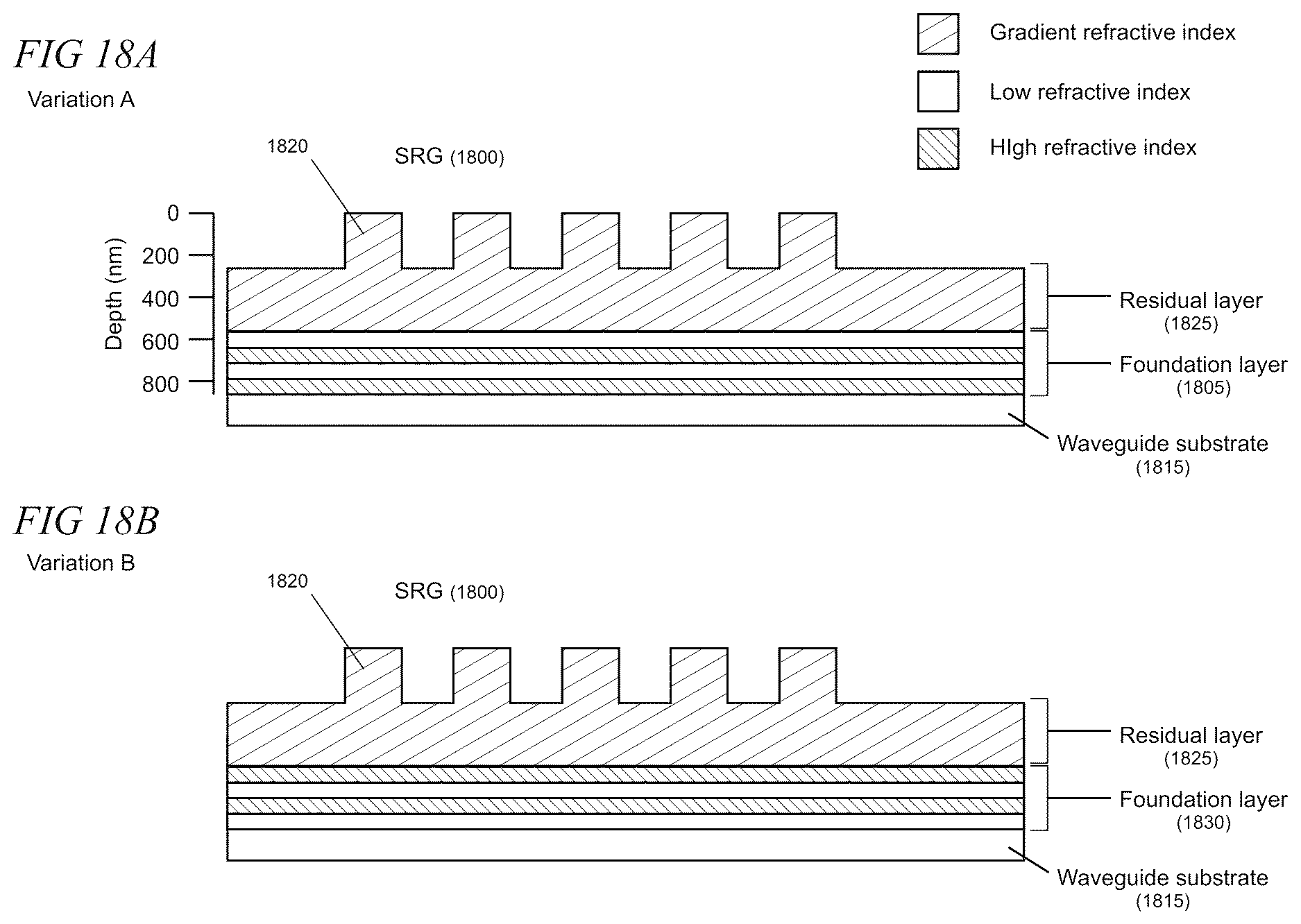

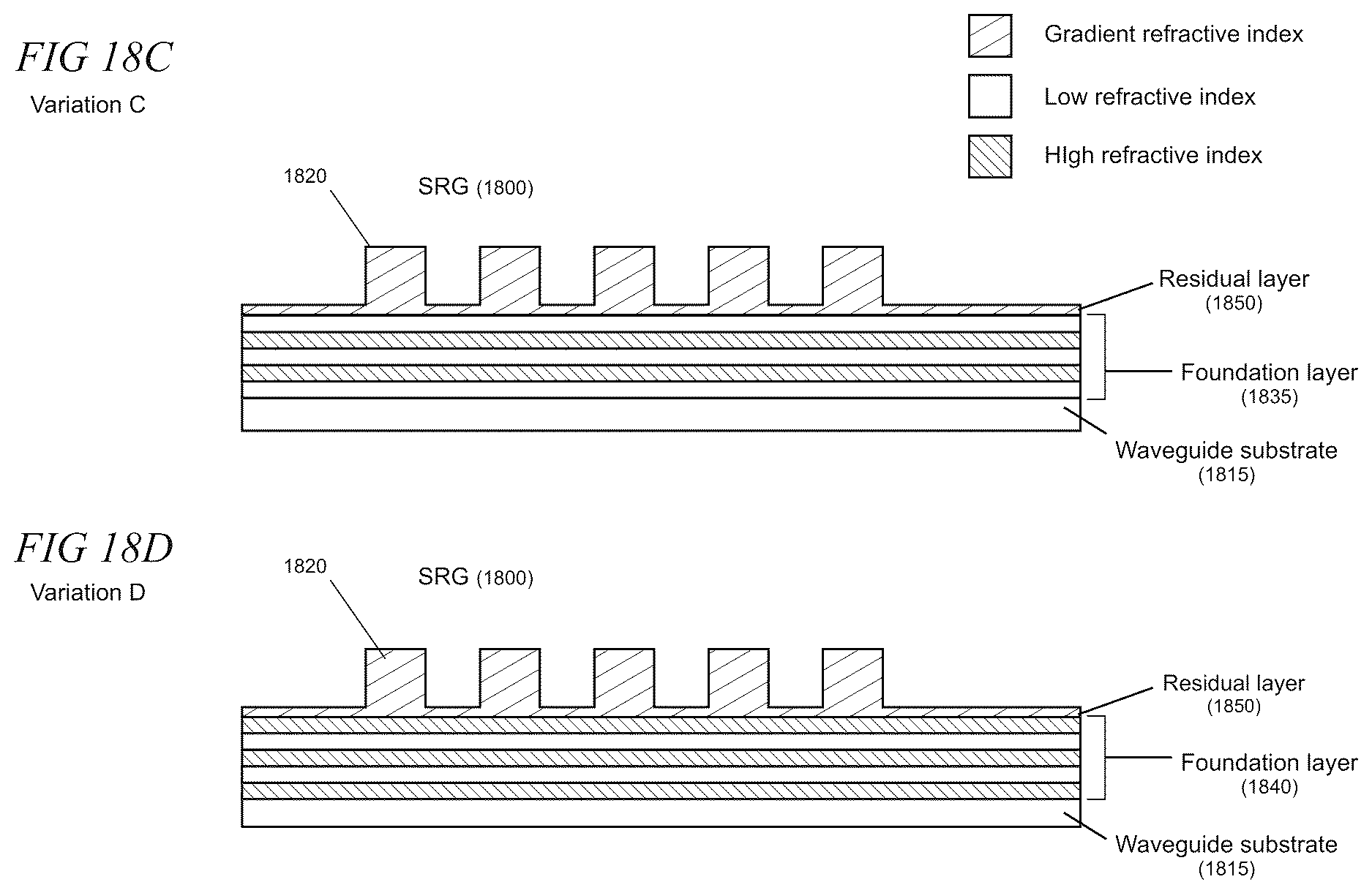

- Thickness-modulated residual layer with a contrasting foundation: beneath the ridges sits a thin base layer whose thickness varies to match, and below that a foundation layer made of a different optical material. That contrast acts as a kind of optical backstop, redirecting stray light away from the outward-leaking path.

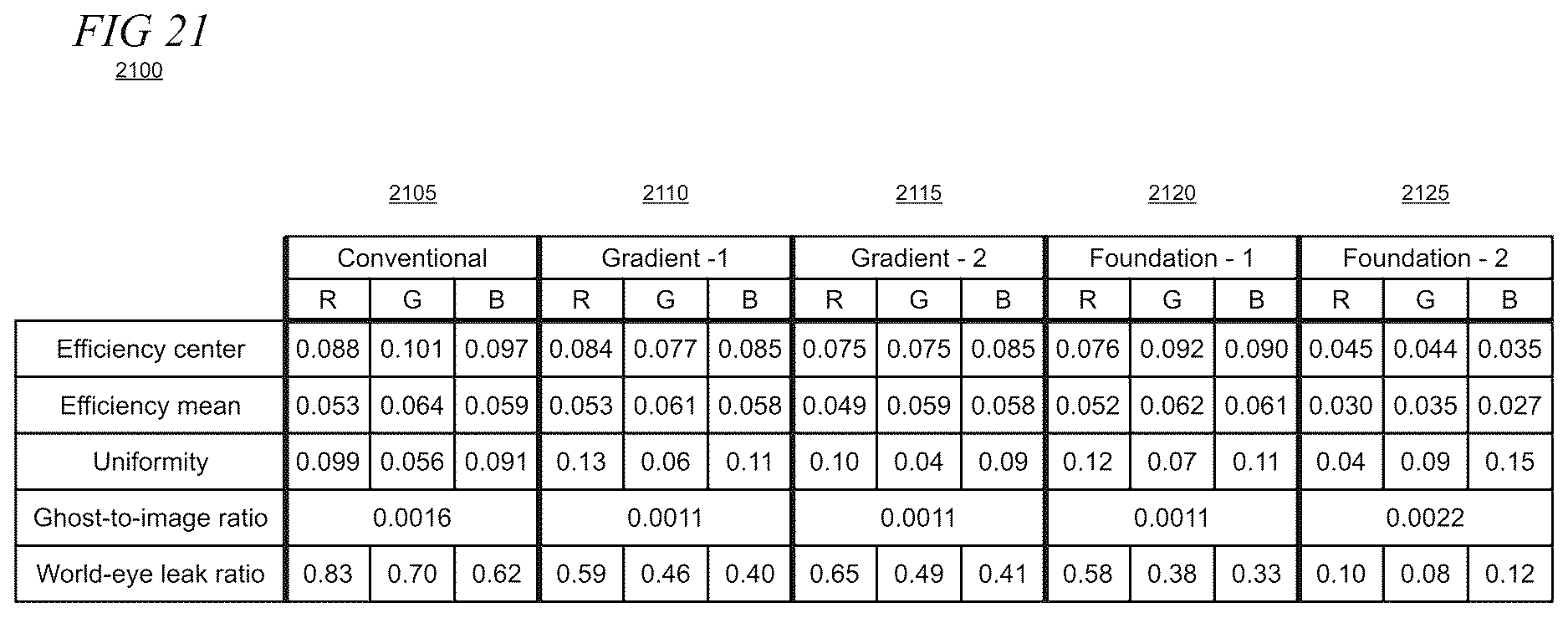

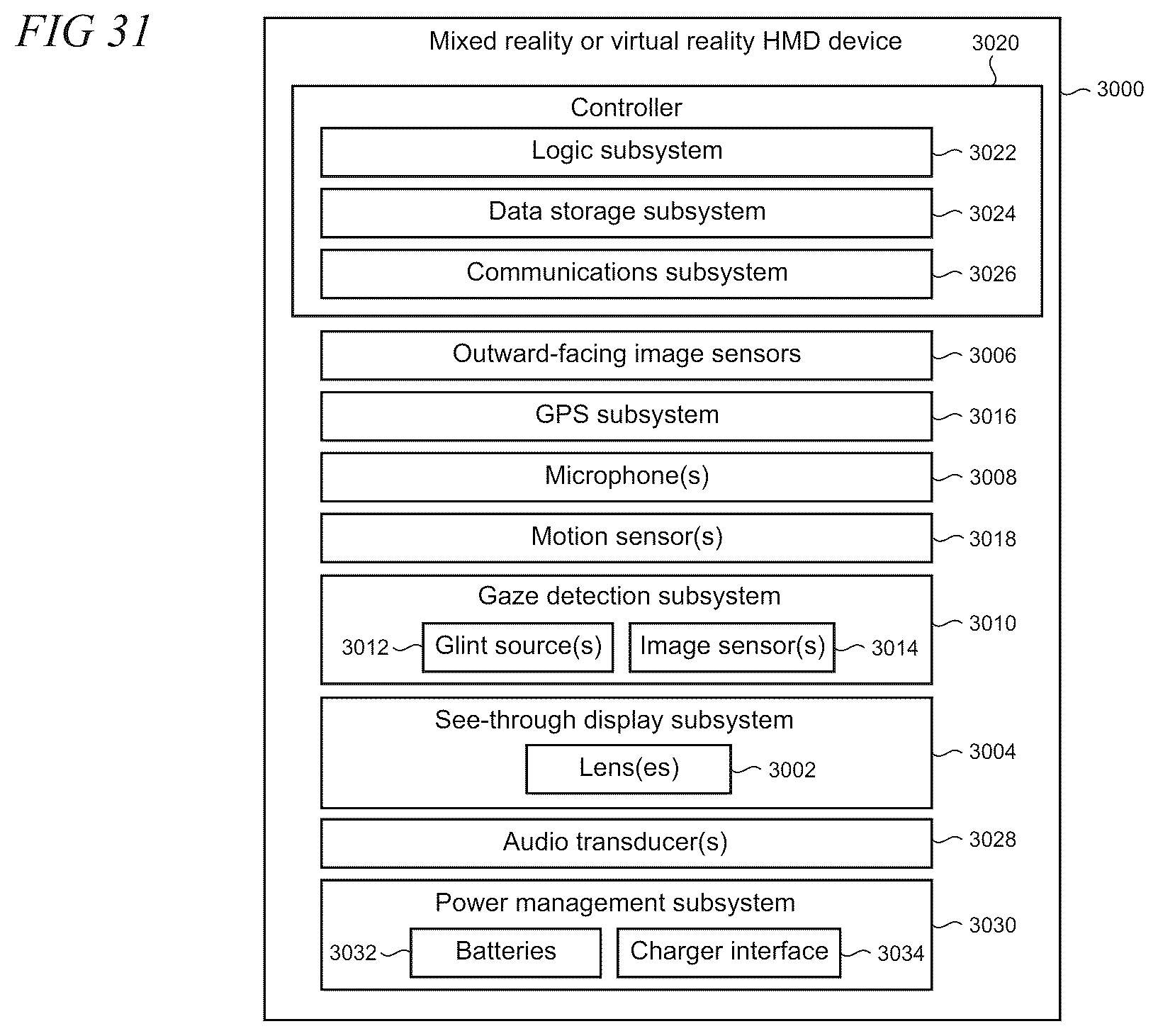

Together these layers suppress what the patent calls parasitic diffraction, light that diffracts in the wrong direction. The claim covers this structure for any see-through waveguide combiner used in a mixed-reality display, which is a fairly broad territory.

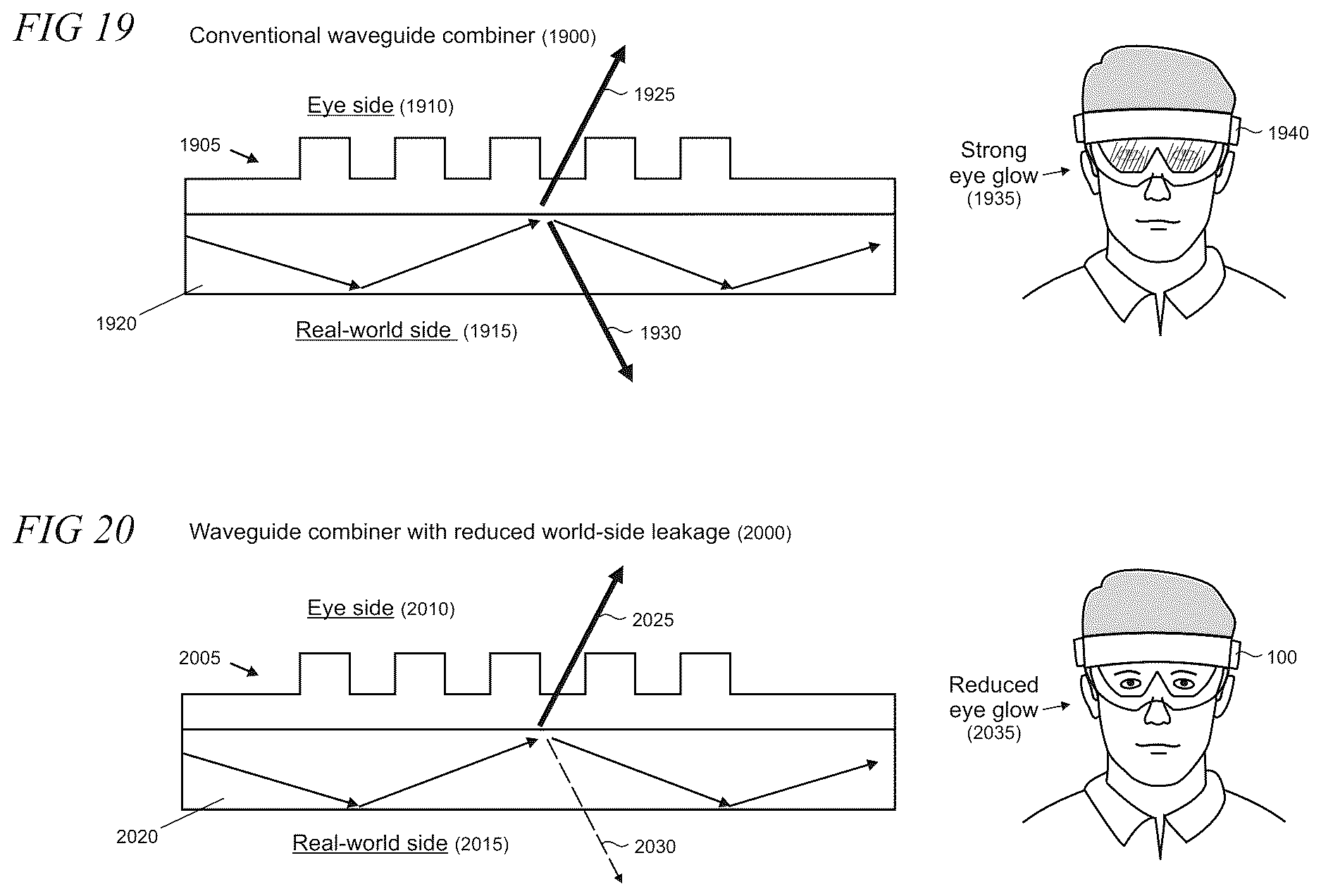

Such world-side leakage causes a phenomenon known as “eye glow” which can reduce social comfort by obscuring the user's eyes or undesirably increase HMD device observability.
Translation: Light escaping outward creates an unwanted glowing effect that makes the headset more noticeable and awkward to wear.
What this means for the future of AR headsets in public
Eye glow is one of the least-discussed barriers to AR headsets going mainstream, and one of the most socially real ones. People notice when someone's face is obscured by light leaking from a device. It signals to everyone nearby that the wearer is in a different perceptual world, which makes ordinary social interaction awkward. A device that eliminates or dramatically reduces that leakage is easier to wear in public without drawing attention.

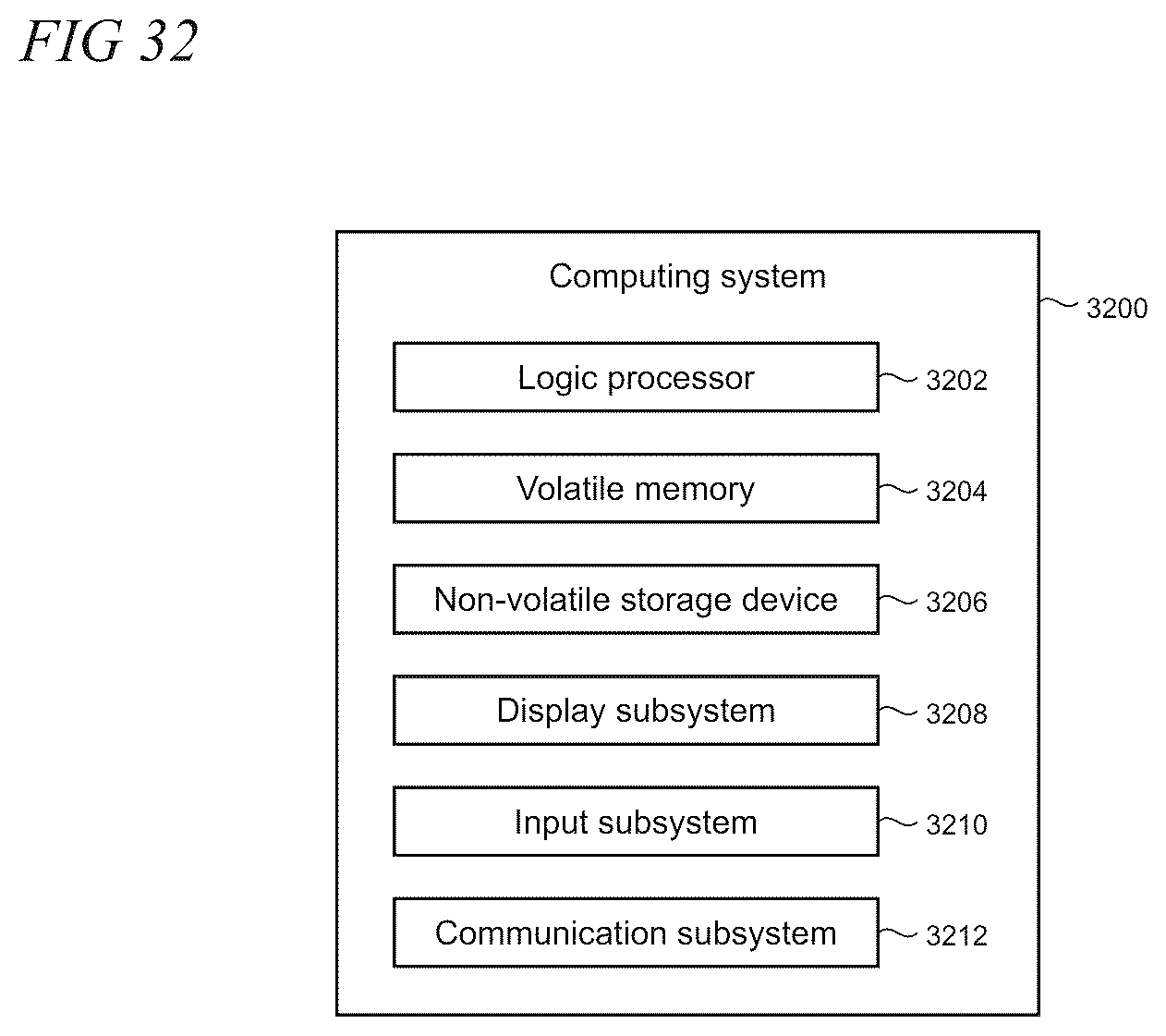

Microsoft's run of mixed-reality optics filings suggests the company is pushing hard on the physical comfort and social acceptance side of HMD design, not just raw display resolution. If this optical stack makes it into a shipping device, it would be a quiet but meaningful step toward AR hardware that people are willing to wear around other people.
Microsoft's eighth filing we've tracked in the AR glasses race since May connects to earlier applications like faster line drawing on 3D surfaces and wider field-of-view glasses.
Claim 1 is worth reading carefully because it is not narrow. It covers any see-through waveguide combiner that combines all three elements: grating structures with increasing depth, a residual layer with a modulated thickness profile, and a gradient refractive index profile, all in the same direction across the lens. That combination, as a single claim, could be read to cover a wide range of future waveguide designs that independently arrive at the same three-part structure.
In practice, that breadth cuts both ways. A granted claim this broad would give Microsoft leverage over competitors working on similar optical stacks for AR eyewear. But it also invites challenge, because prior-art searchers will immediately look for any existing lens design that happens to vary depth, thickness, and refractive index together, even if it was not built to solve eye glow.
The underlying engineering problem is real and has real social consequences. But the patent's value will hinge on whether that three-part structural combination is genuinely new or whether it turns out to describe what happens naturally when engineers optimize a waveguide for even light distribution.
