Microsoft · AI / ML · Filed Feb 16, 2026 · USPTO published Jun 25, 2026 · Jun 25 release

Microsoft Patent Shrinks AI Memory Costs With Live Compression

Every word an AI generates requires it to remember everything it has already read. Microsoft's new patent describes a system that automatically compresses that memory as it grows, so the model can keep going without running out of room.

By · Updated · 3 min read

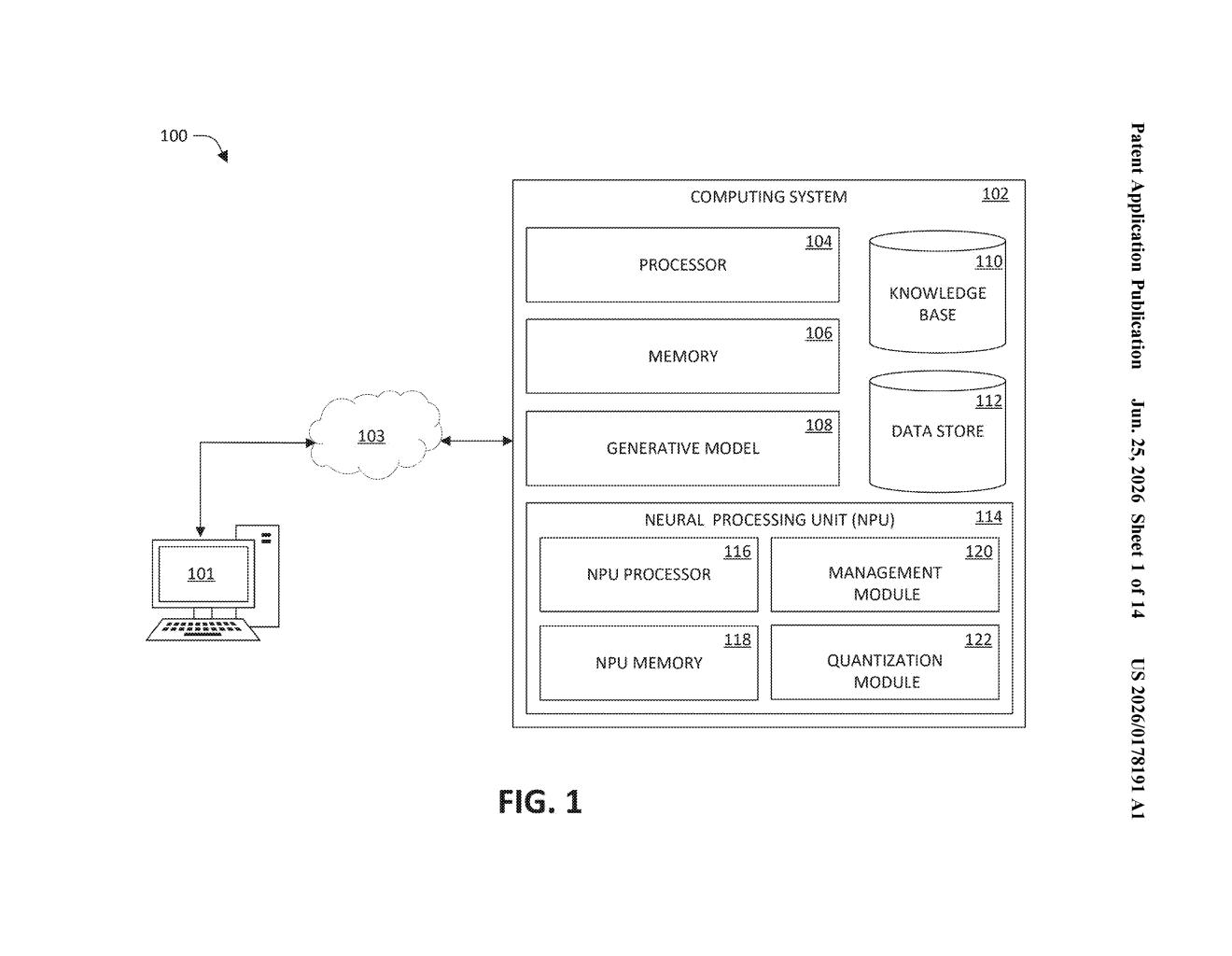

Microsoft Patent: KV Cache Quantization for AI Models, figure from US 2026/0178191 A1
Figure from the official USPTO publication.
Publication number
US 2026/0178191 A1(US20260178191A1)
Applicant
Microsoft Technology Licensing, LLC
Filed · Published
Feb 16, 2026 · Jun 25, 2026
Inventors
Ori LASLO, Gilad KIRSHENBOIM
Status when we published
Waiting for an examiner
Document
20 claims
US classification
711/154
Parent application
Continuation of 18/772,712 (filed Jul 15, 2024)(18772712)
AI assistant & agent

How Microsoft shrinks AI working memory mid-conversation

Imagine reading a very long book and having to keep notes on every sentence before you can answer a question about it. Now imagine your notepad filling up halfway through the book. That's essentially the problem AI chat systems face: the longer the conversation, the more notes they need to hold in fast memory, and fast memory is expensive.

Microsoft's patent describes a system that watches those notes accumulate and, once a batch reaches a set size, automatically compresses the whole batch into a smaller form before moving it to a bigger, cheaper storage area. The original detail is reduced slightly, but the key meaning is preserved, and the model can still read those compressed notes when it needs them.

The system also handles an edge case: if a batch isn't quite full yet, it temporarily pads it with placeholder values so the compression math works out correctly, then discards those placeholders afterward. The result is more efficient memory use without the model needing to stop and wait.

How the block-quantization pipeline batches and compresses values

The patent addresses a specific bottleneck in transformer-based generative AI models: the KV cache (key-value cache). Every time a model processes a token (a word or word-fragment), it stores numerical representations of context in this cache so it doesn't have to recompute them. For long documents or long conversations, that cache can consume enormous amounts of fast GPU memory.

Microsoft's system introduces a pipeline that compresses those cached values in blocks:

  • New value-matrix entries are written to a first memory (fast, on-chip or high-bandwidth memory).
  • Once a configurable number of entries accumulates (the group size parameter), the system applies data quantization (a process that represents full-precision floating-point numbers using fewer bits, trading a tiny amount of precision for a large reduction in storage size).
  • The compressed block is then moved to a second memory (larger, lower-cost storage), freeing up the fast memory for new entries.
  • When the model needs to look back at earlier context, it retrieves the compressed blocks from second memory.

The patent also describes a padding mechanism: if the current batch of entries is smaller than the required group size, the system inserts dummy placeholder values to reach the threshold, runs the compression, then discards the placeholders. This prevents the compression algorithm from failing or producing corrupt results on undersized batches.

What cheaper AI memory means for cloud and on-device models

The KV cache is one of the biggest memory bottlenecks stopping AI models from handling very long conversations or very long documents efficiently. Compressing it in structured blocks, rather than all at once at the end, means the model can process far more context on the same hardware. For cloud providers, that translates directly into lower cost per query.

For on-device AI (think a model running on a phone or a laptop), this kind of technique is even more important. Those devices have strict memory limits, and any system that lets a model stay within those limits for longer conversations without degrading quality is worth watching. This patent suggests Microsoft is thinking carefully about both ends of the deployment spectrum.

Source: US 2026/0178191 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
