Microsoft Patents a System That Maps Blueprint Labels Onto Real-World Photos

By Patentlyze Team · Updated Jun 12, 2026

Imagine pointing a camera at a server rack or a factory machine and seeing every part automatically labeled — pulled directly from the official schematic diagram. That's exactly what Microsoft has patented.

What Microsoft's schematic-to-camera overlay actually does

Picture a technician standing in front of a complicated piece of industrial equipment. They have the official blueprint on their tablet, but figuring out which physical part matches which labeled box on the diagram takes real mental effort — and mistakes happen.

Microsoft's patent describes a system that bridges that gap automatically. You feed it the schematic diagram and a live camera image of the actual equipment, and it figures out how to line them up. The result is a segmented view — a version of the camera image where each physical component is highlighted and labeled, using the text straight from the original diagram.

The system uses several AI layers working in sequence: one reads the text labels from the schematic, another traces the pointer lines, a third matches those reference points to the real image, and a fourth draws clean boundaries around the actual physical parts. The technician ends up with a camera view that automatically annotates what they're looking at.

How the system reads diagrams and matches them to real images

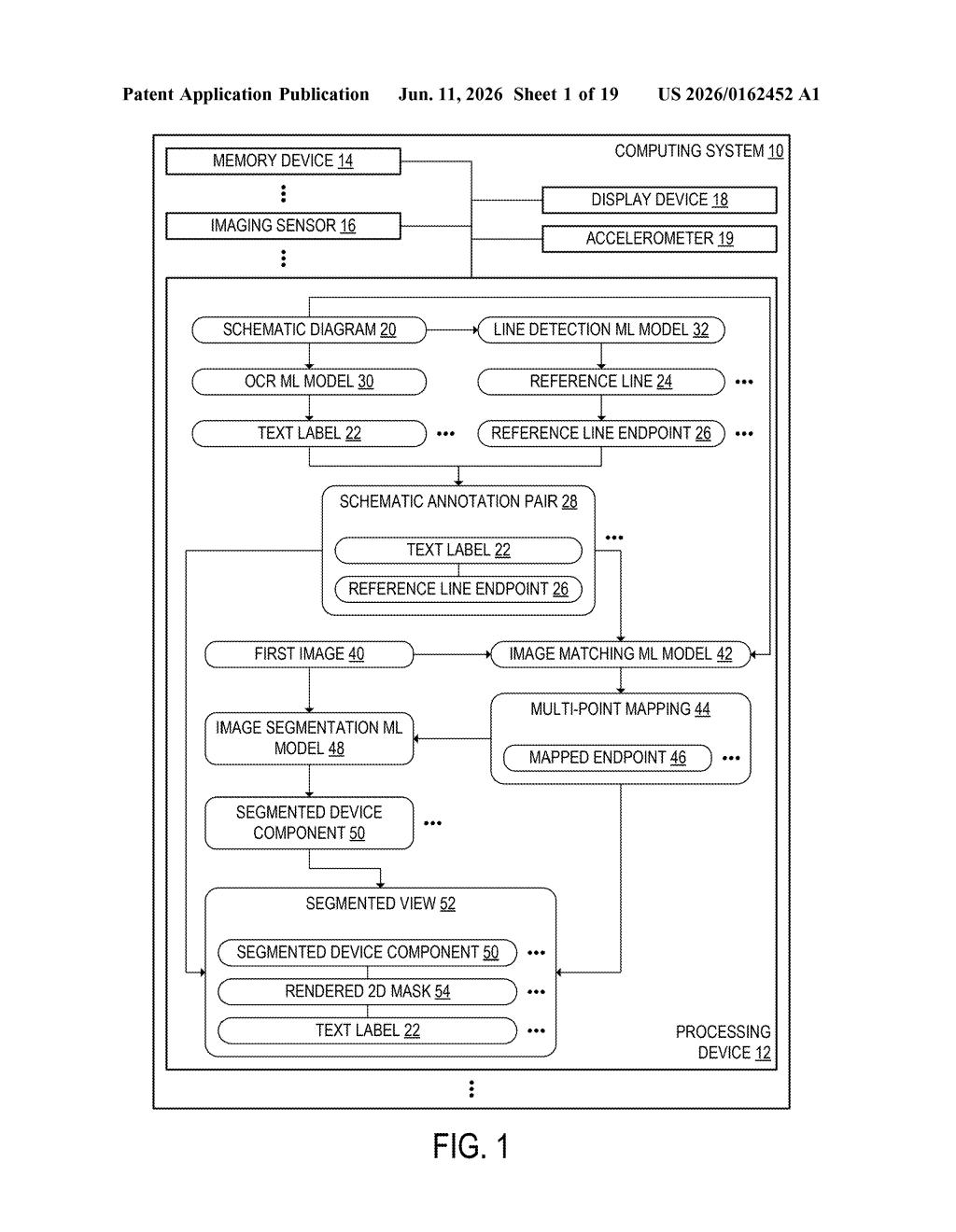

The system chains four machine-learning models together to go from a raw schematic to an annotated real-world image.

• OCR model — reads the text labels printed on the schematic diagram (things like 'power supply' or 'relay switch').
• Line detection model — traces the leader lines (the pointer arrows or callout lines that connect a label to the part it describes) and records the tip of each line — the exact point on the diagram where the line meets the component.
• Image matching model — takes those tip coordinates and finds the corresponding spots in a real camera photograph of the equipment, computing a multi-point mapping (think of it as pinning multiple landmarks on both the diagram and the photo so the two images warp into alignment).
• Image segmentation model — uses those matched anchor points to draw boundaries around each physical component in the camera image, isolating it from its surroundings.

The output is a segmented view — the camera image with each component visually highlighted and labeled. The patent specifies that the imaging sensor and display device are part of the same computing system, suggesting a tablet, AR headset, or handheld device as the intended form factor.

What this means for workers using technical diagrams on the job

Field technicians, maintenance engineers, and factory workers spend significant time cross-referencing printed or digital schematics with actual equipment. Getting that lookup wrong can mean misidentifying a component under repair. A system that does the matching automatically — and overlays the result on a live camera view — removes a whole category of human error from that process.

Microsoft already sells productivity and industrial tools through products like Teams, HoloLens (now discontinued as a standalone product, but the IP lives on), and its Dynamics 365 Field Service platform. A schematic-overlay capability would fit naturally into any of those contexts. For you as an end user, this is the kind of feature that could eventually show up in a work-oriented tablet app or a next-generation mixed-reality headset.

Editorial commentary on a publicly published patent application. Not legal advice.
