Smart Ring Patent Reveals How Health Sensors Stay Pressed Against Your Skin
Getting accurate heart rate or blood oxygen readings from a ring depends on one deceptively simple problem: keeping the sensor touching your skin. Samsung's latest patent tackles exactly that.
What Samsung's ring protrusion design actually does
Imagine wearing a ring that tracks your heart rate, but every time your finger shifts, the sensor drifts away from your skin and the reading goes haywire. That's a real challenge with wearable health rings, and it's the problem this patent is designed to fix.
Samsung's patent describes a smart ring with small raised bumps, called protrusions, molded into the inside surface of the ring. These bumps are precisely positioned so that the ring's optical sensors, the kind that shine light into your skin to measure things like pulse or blood oxygen, always sit directly opposite one of those raised contact points.
The effect is that the bumps gently press the sensor against your finger, maintaining consistent contact even as the ring rotates slightly during everyday movement. It's a purely mechanical solution to a very practical problem.
How the inner housing guides light sensors to your skin

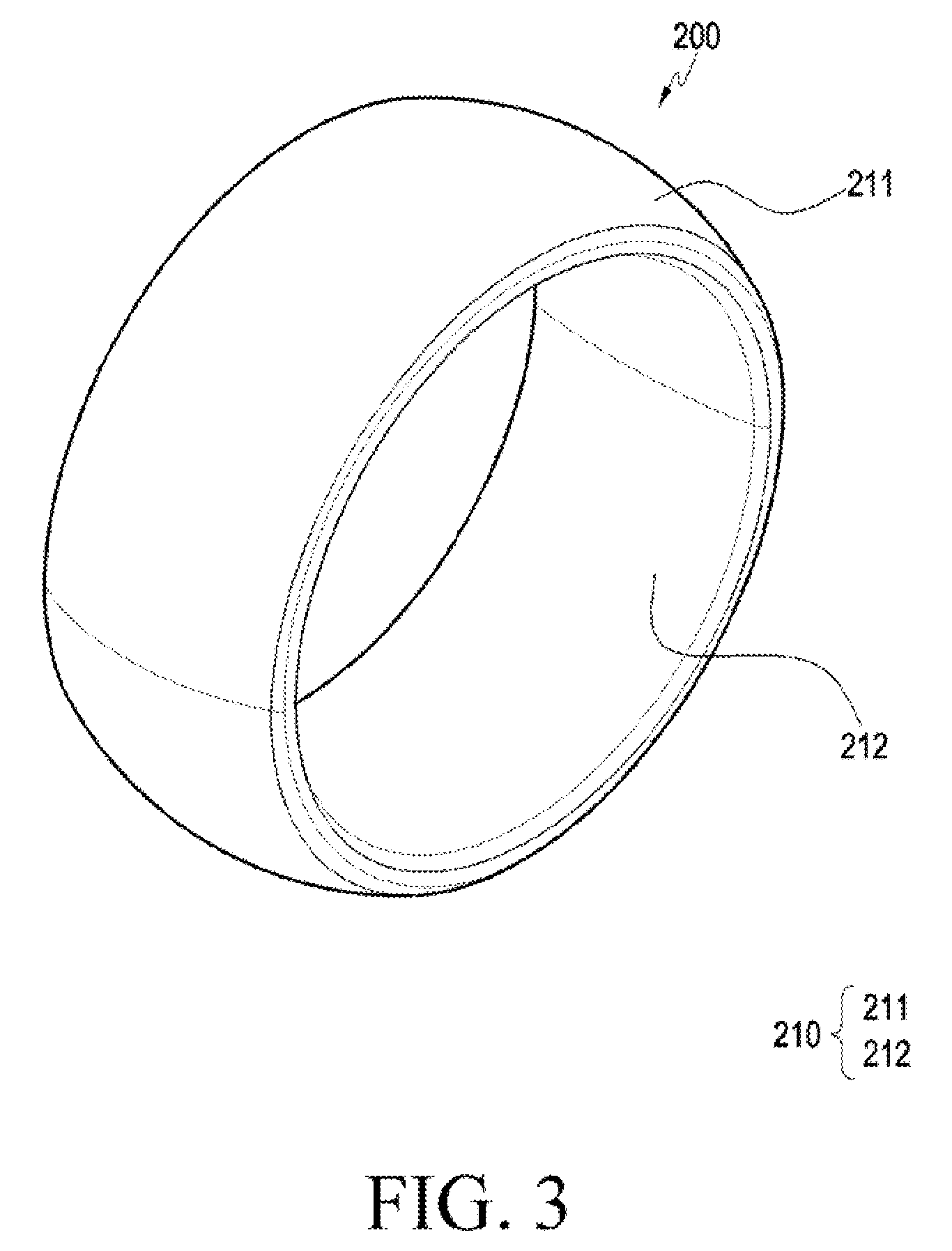

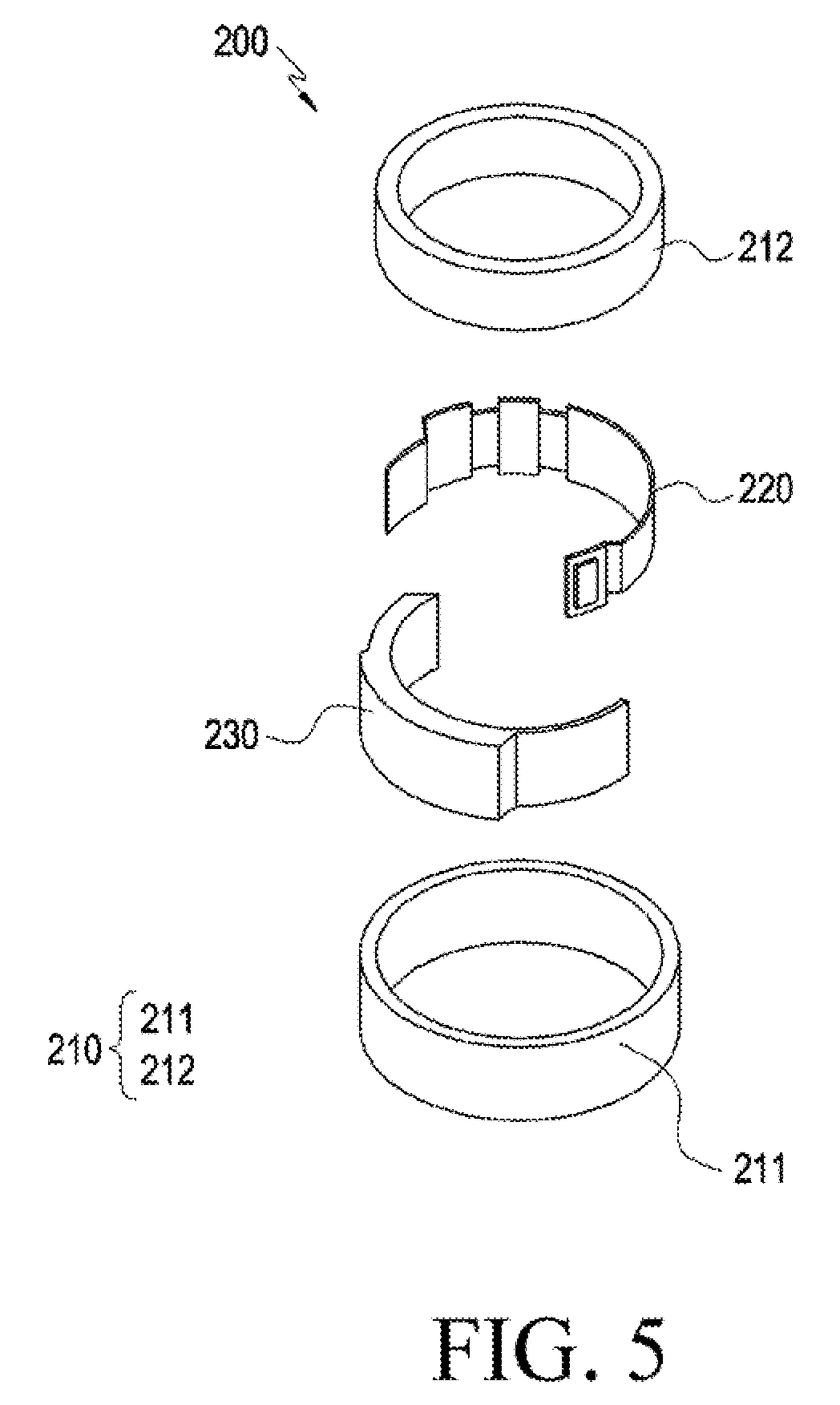

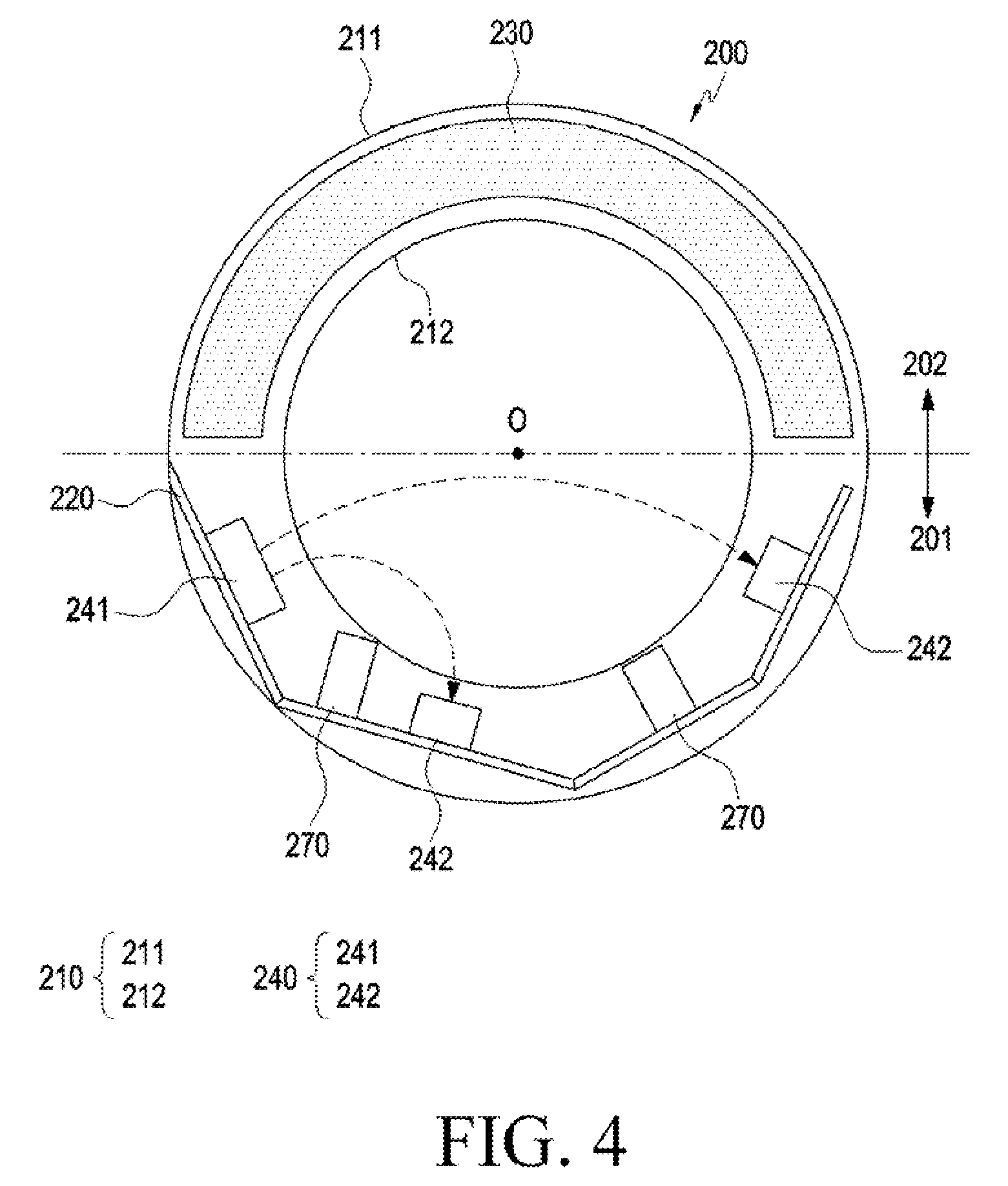

The patent describes a ring-shaped electronic device built from two interlocking housing parts: an outer shell and an inner shell that clips into it. The electronics, including a circuit board and at least one optical element (a light-based sensor), sit inside that housing sandwich.

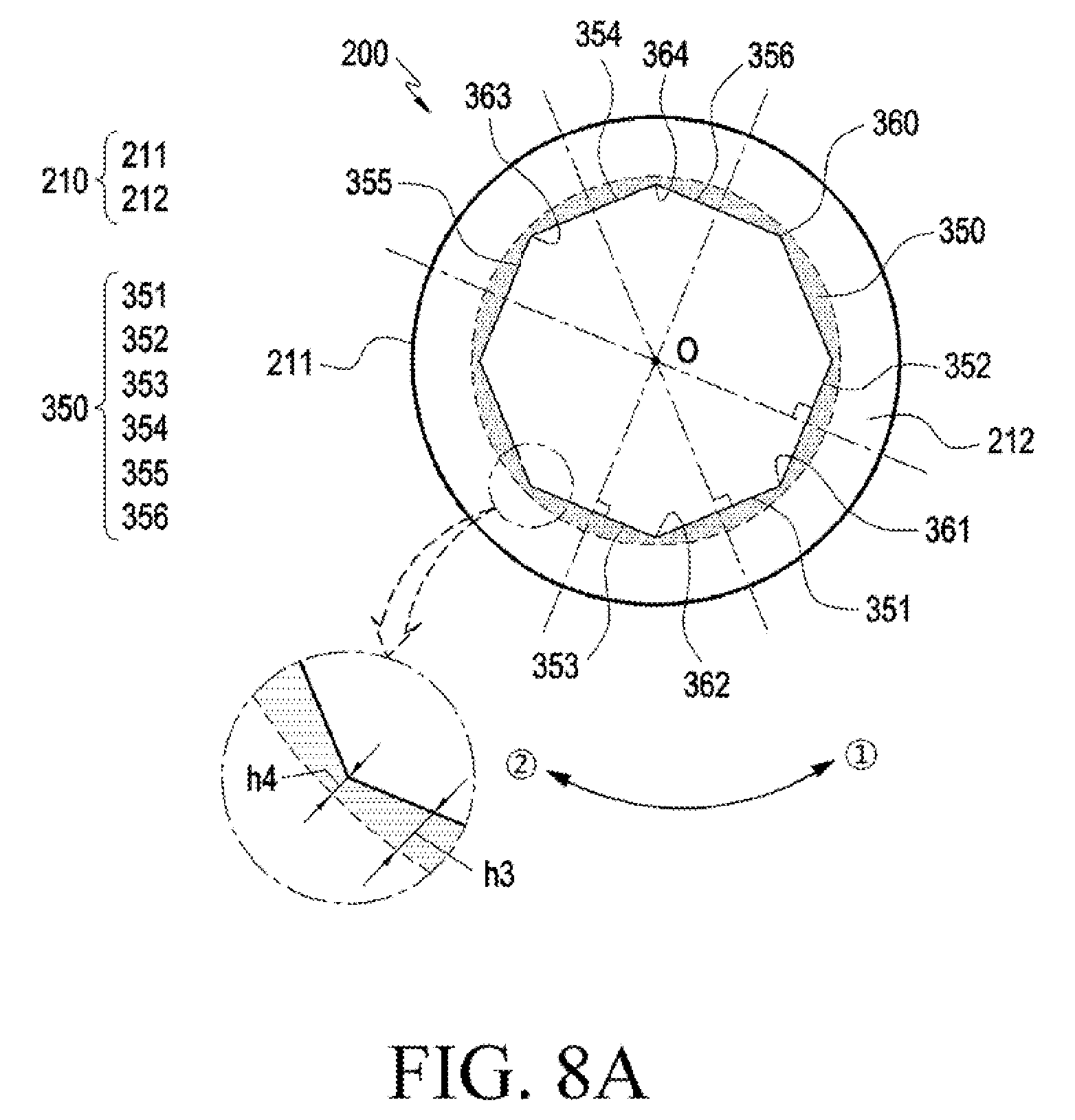

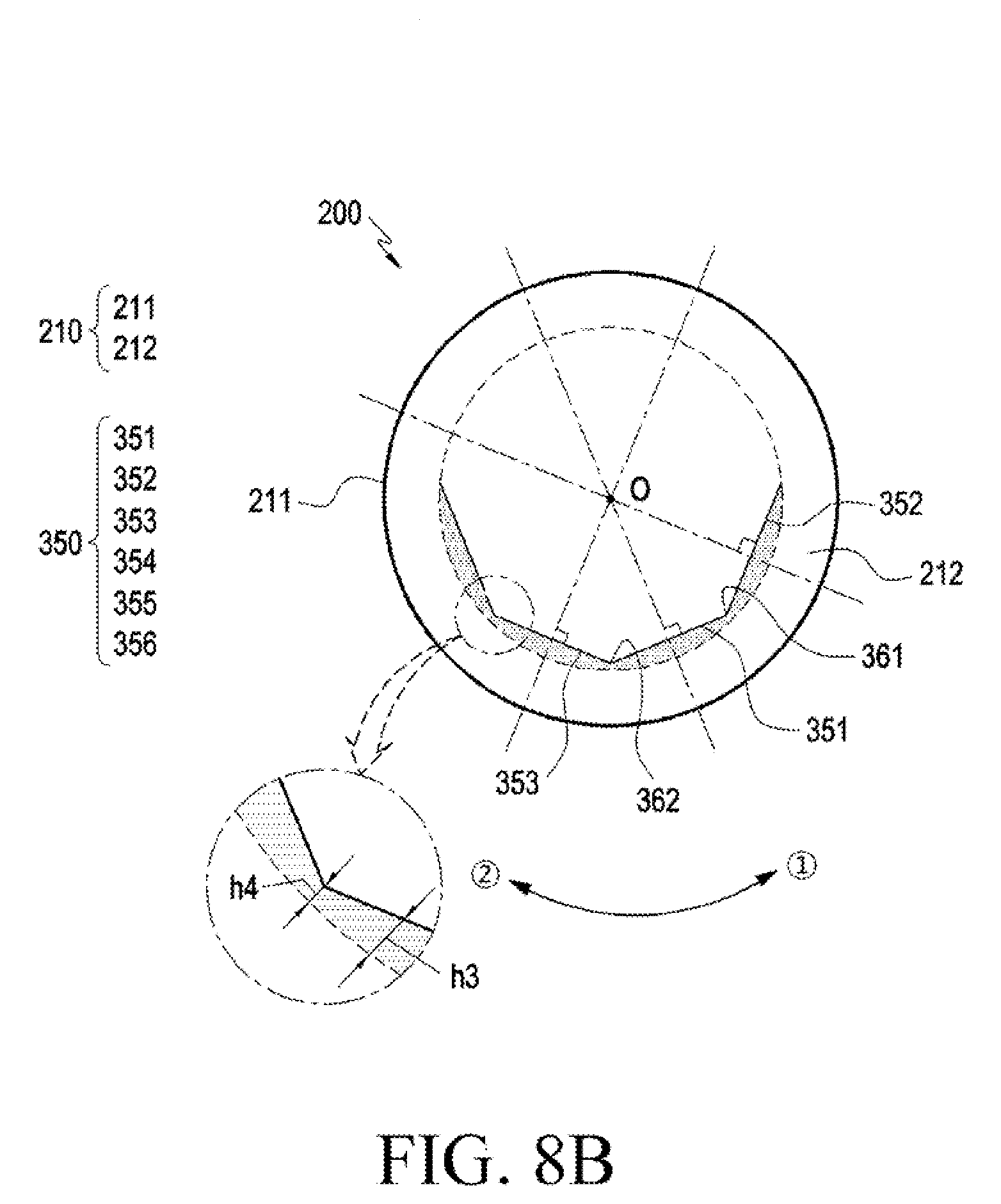

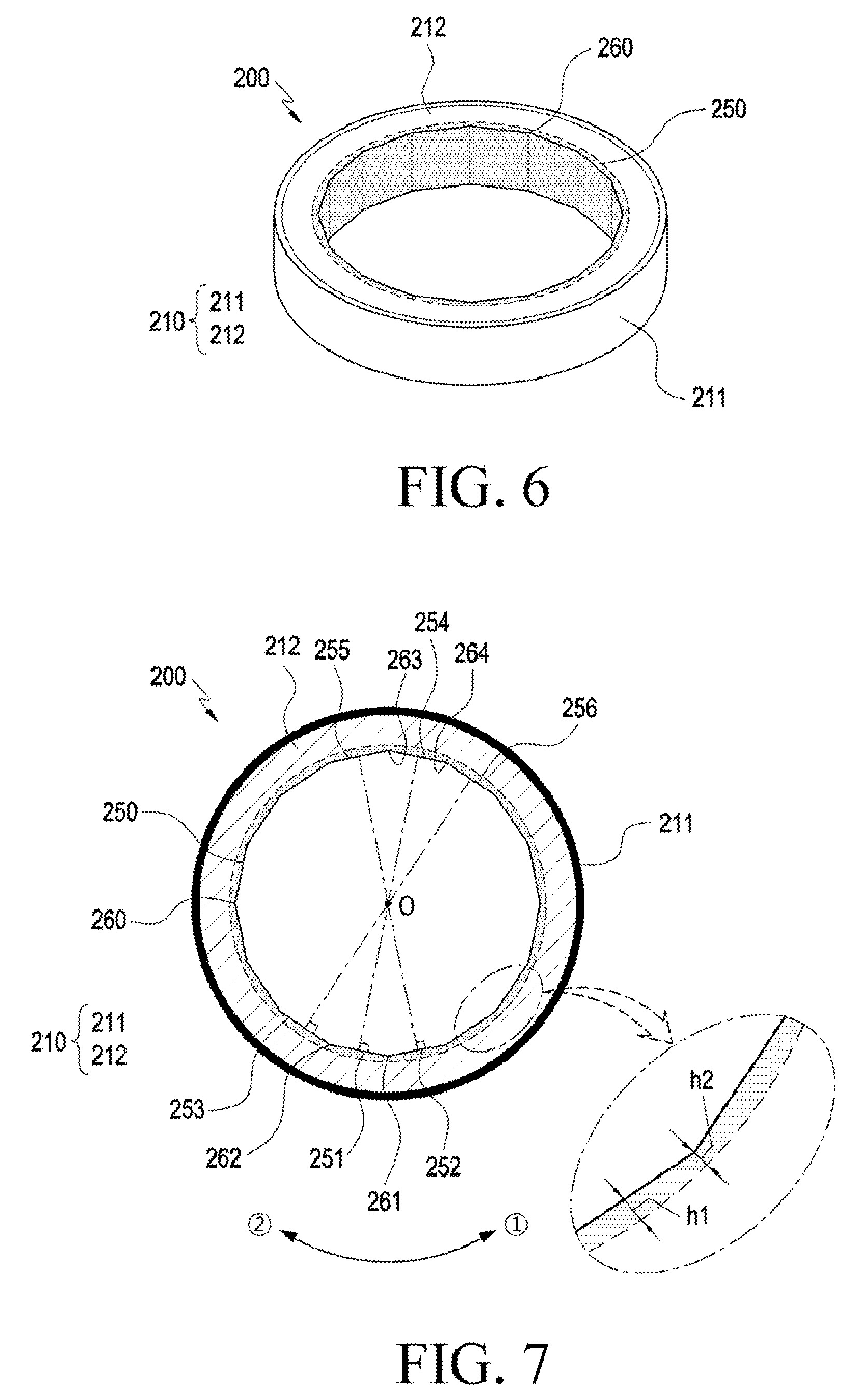

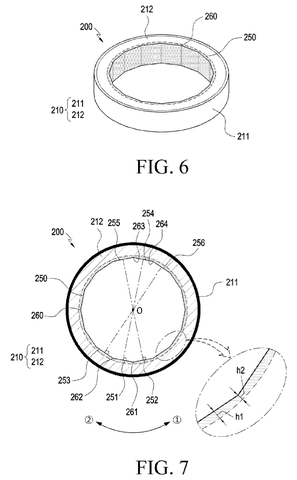

The key innovation is a series of protrusions, small raised ridges or nubs, arranged along the inner circumferential surface (the part of the ring that actually touches your finger). Each optical sensor is positioned so it faces one of these protrusions directly.
Why does that matter mechanically? When the ring sits on your finger, the protrusions push inward slightly, closing the gap between the sensor and the skin. This improves what engineers call optical coupling, meaning more of the light the sensor emits actually enters your skin and bounces back to be measured, rather than scattering into the air gap.
- Outer and inner housing parts lock together around the electronics
- Protrusions are placed on the inner surface, aligned with each sensor
- Physical contact pressure keeps sensors stable against the finger during motion
What this means for Samsung Galaxy Ring health tracking
Samsung already sells the Galaxy Ring, its first consumer health-tracking ring, so this patent almost certainly reflects real engineering work being done on a current or future version of that product. Accurate continuous health monitoring, heart rate, SpO2, sleep tracking, depends entirely on sensor contact quality. A mechanical fix that requires no extra power or software is an elegant approach.
For you as a potential buyer, this translates to readings you can actually trust during sleep, exercise, or any time the ring shifts on your finger. It also signals that Samsung is investing in the hardware fundamentals of ring wearables, not just software features.
This is quiet but genuinely useful engineering. Ring-form-factor health trackers have a well-documented accuracy problem compared to wrist wearables, and it's largely a contact problem. A mechanical solution built into the housing geometry is the right kind of fix: it adds no battery drain, no software complexity, and no user friction. Worth paying attention to if you follow Samsung's wearables roadmap.
The drawings

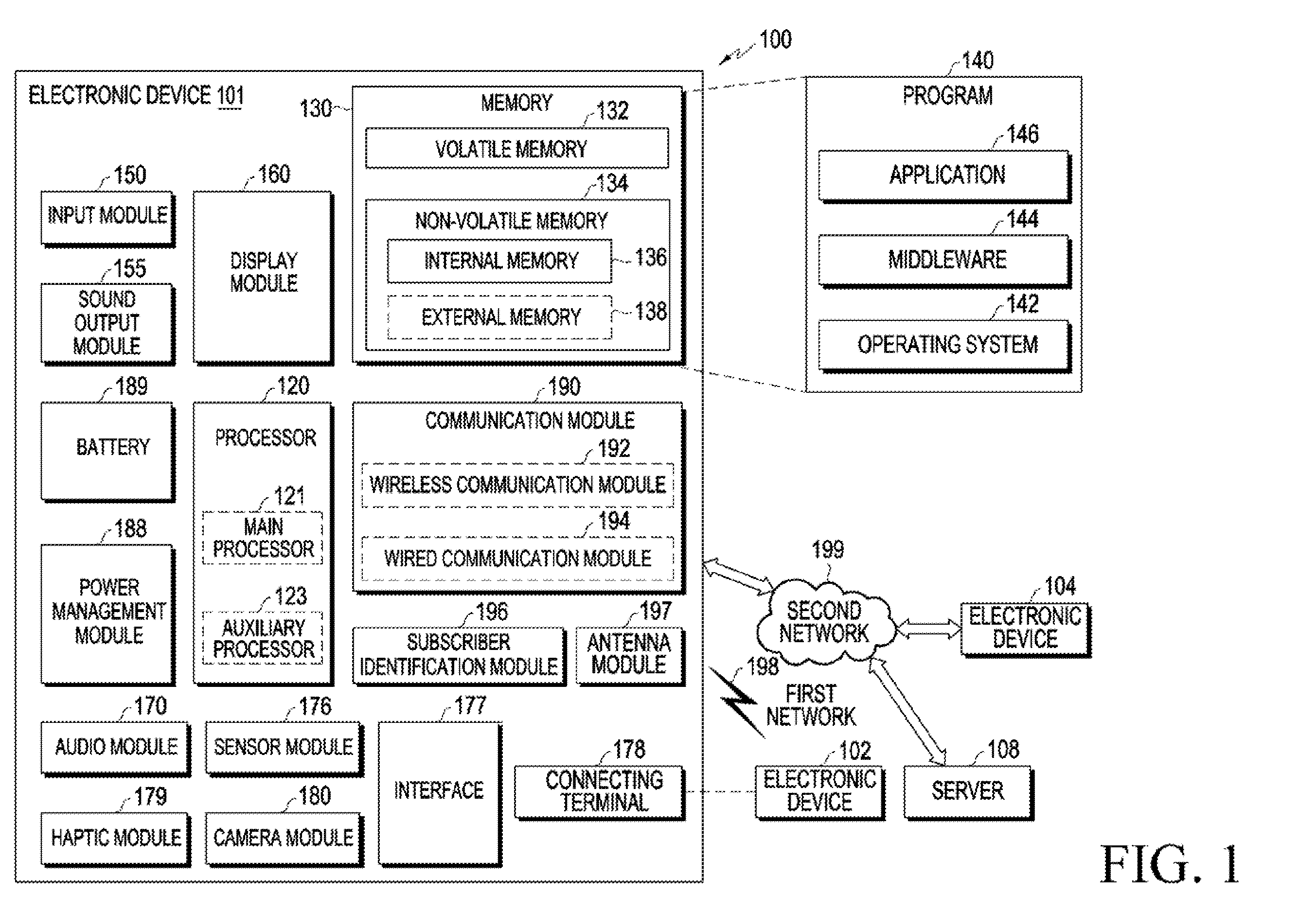

11 drawing sheets from US 2026/0215696 A1 · click any drawing to enlarge
