Samsung · Display · Filed Jan 8, 2026 · USPTO published May 14, 2026 · May 14 release

Samsung Patents a Layer-Aware Privacy Filter for Displays

What if your phone could make just your banking app invisible to the person sitting next to you on the subway — without dimming the rest of your screen? That's the core idea behind this Samsung display patent.

By · Updated · 3 min read

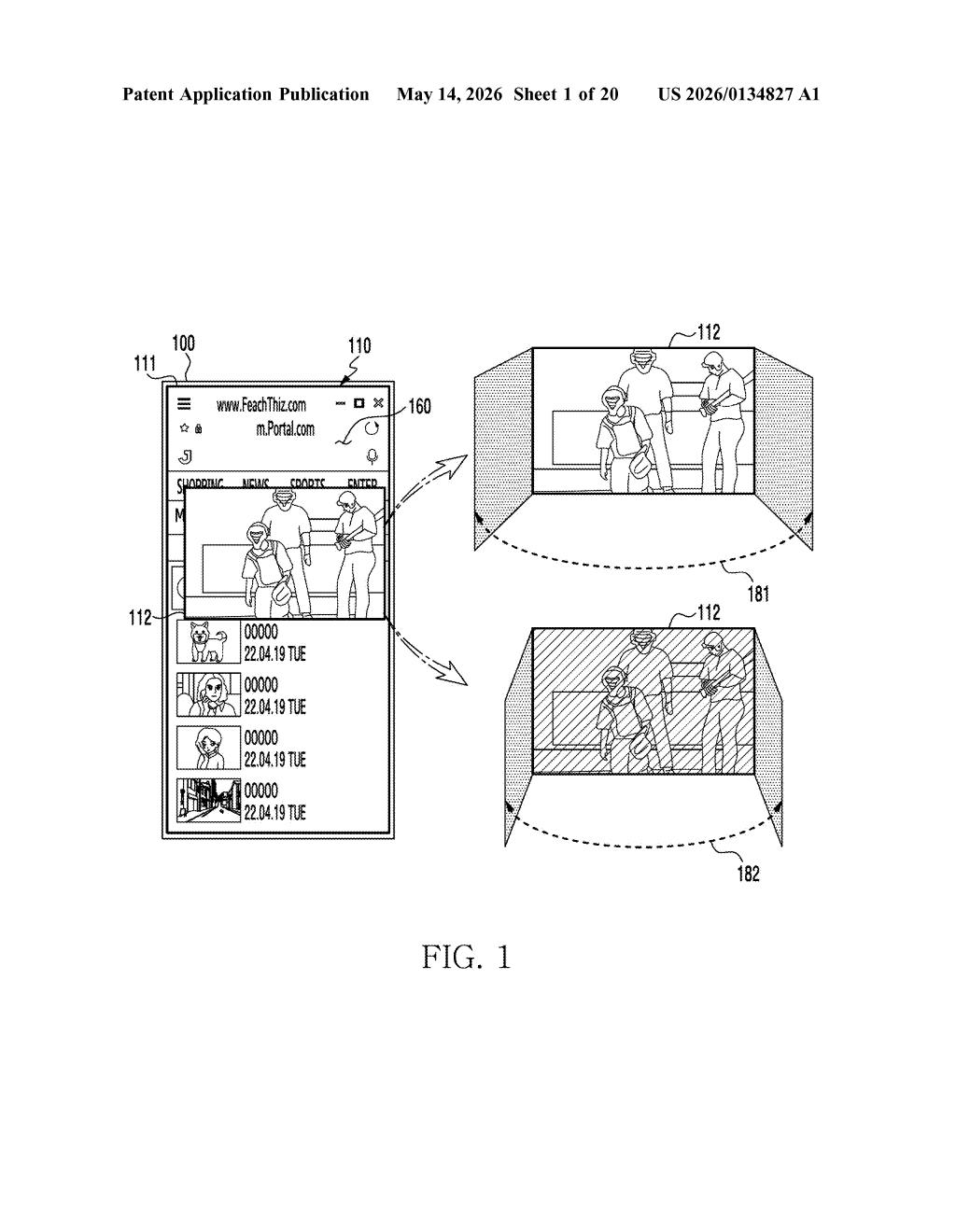

Samsung Patent: Per-Layer Display Privacy Filter Explained, figure from US 2026/0134827 A1
Figure from the official USPTO publication.
Publication number
US 2026/0134827 A1(US20260134827A1)
Applicant
Samsung Electronics Co., Ltd.
Filed · Published
Jan 8, 2026 · May 14, 2026
Inventors
Jaesung LEE, Taewoong LEE, Kwangtai KIM, Suyeon KIM, Jinhyun KIM, Jongkon BAE, Byungduk YANG, Donghyun YEOM
Status when we published
Waiting for an examiner
Document
20 claims
US classification
345/690
Parent application
Continuation of PCT/KR2025/003645 (filed Mar 21, 2025)(PCTKR2025003645)
Cell phone

What Samsung's per-layer privacy display actually does

Imagine you're on a crowded bus, checking your bank balance while a map app is open underneath. Right now, if you want to stop the person next to you from seeing your account number, your only real option is a whole-screen privacy screen protector — which makes everything harder to see.

Samsung's patent describes a smarter approach. Your display would be able to narrow the viewing angle of just one part of the screen — specifically, a floating layer like a notification, pop-up, or active app window — while leaving the rest of the screen visible at normal angles.

You'd have two levels of control. A first tap applies the privacy filter to just the foreground layer (say, a chat bubble). A second input also narrows the angle of the area behind that layer, so even the background content in that zone gets shielded. The screen looks normal to you head-on, but blurry or dark to anyone off to the side.

How Samsung's pixel processing narrows angles by layer

The patent describes a layered display architecture where an image on screen is composed of at least two layers: a base layer (first layer) and an overlay layer (second layer) positioned on top of a portion of it — think of a floating app window or notification card sitting on top of your home screen.

The display driver circuitry handles two distinct privacy modes triggered by user input:

  • First input: Narrow the viewing angle of only the second (overlay) layer. The pixel processing is applied to the specific screen area where that overlay lives, leaving the background fully visible from any angle.
  • Second input: Extend the privacy zone — narrow the viewing angle of both the overlay layer and the portion of the base layer directly underneath and around it (a "second area" surrounding the first).

The mechanism for actually narrowing the viewing angle is described as pixel processing — a technique where individual pixels are manipulated (typically by adjusting their light output in a direction-dependent way, often using a switchable liquid crystal layer or similar optical element integrated into the display stack) so the image washes out at oblique angles.

Notably, this logic lives in the display driver circuitry itself, not just software — meaning the privacy filter can operate at a hardware level, tied directly to which screen region is rendering which layer.

What this means for Galaxy privacy and on-device UI

For Samsung's Galaxy lineup, this kind of granular privacy control could be a meaningful differentiator. Current privacy screen solutions are all-or-nothing — physical films or software-level dimming that affect the whole panel. A layer-aware filter means you could keep navigation or media visible to others while shielding sensitive UI elements like password fields, payment screens, or private messages without interrupting your workflow.

The fact that the patent ties the filter to the display driver — not just the OS — also suggests this could work consistently across apps, since it operates at a lower level than individual app developers need to implement anything. If Samsung ships this in a future Galaxy display, it could become a selling point in the same category as Samsung DeX or Knox-level security features.

Source: US 2026/0134827 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
