Qualcomm Patents a Way for Chips to Predict Signal Problems Before They Happen
Instead of reacting to a dropped signal after the fact, Qualcomm's latest patent describes a chip that predicts signal quality moments into the future and adjusts its transmission settings before anything goes wrong.
How Qualcomm's signal-prediction system actually works
You're on a video call and your connection keeps stuttering as you move through the house. Your phone isn't doing anything wrong exactly, it's just reacting too late. By the time it notices the signal has gotten worse, you've already frozen on screen.

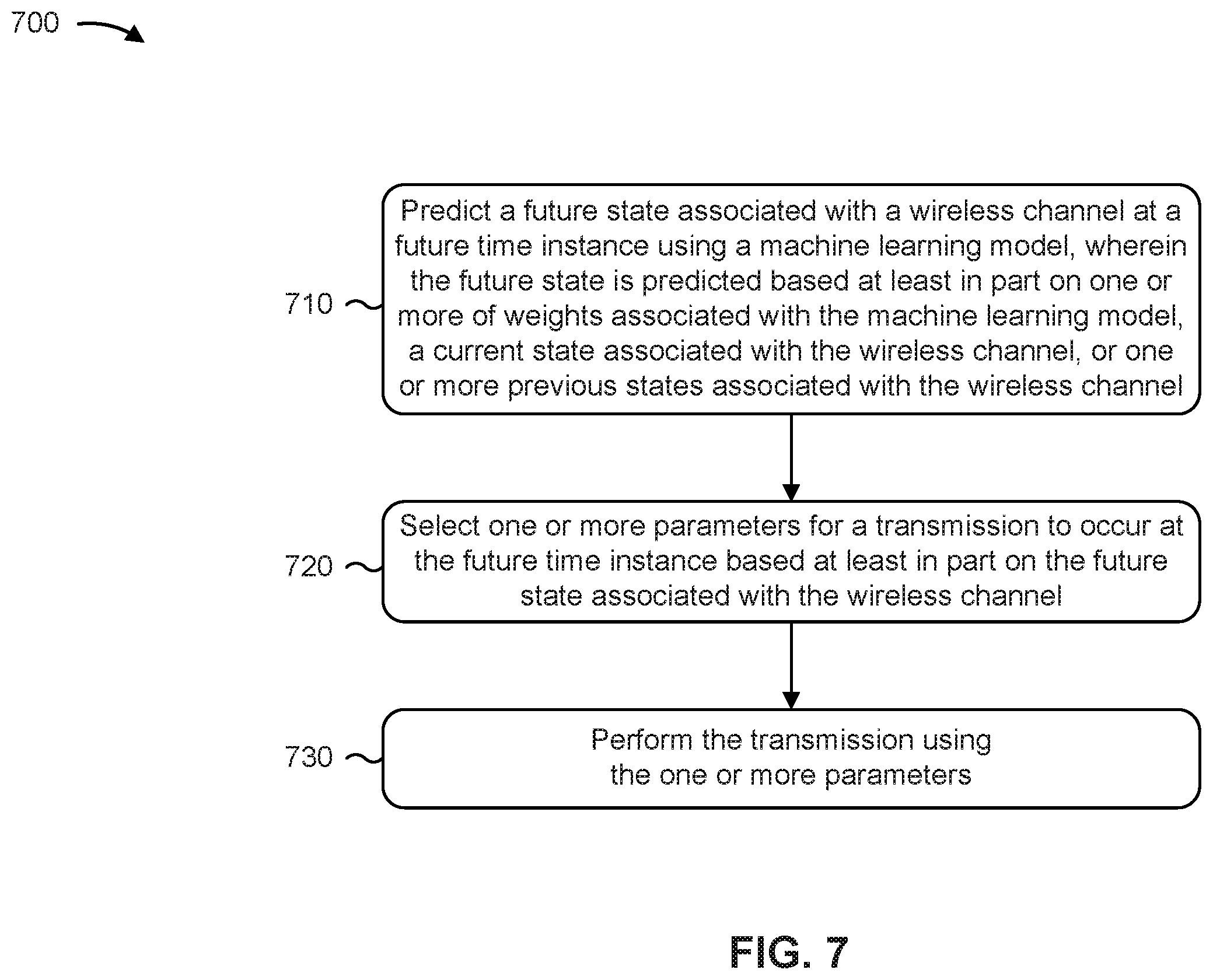

Qualcomm's new patent tackles that delay directly. It describes a system where the chip inside a phone or other wireless device uses a small AI model to look at the current and recent state of the wireless connection, then predict what that connection will look like a moment from now. Based on that forecast, it picks the best settings for the next transmission before the signal actually degrades.
There's also a self-repair loop built in. If the AI's predictions start going wrong too often, the device flags it as an "outage event" and asks a nearby network node to send an updated model. The whole thing is designed to keep the wireless link running as efficiently as possible without the user noticing anything.
… one or more parameters for detecting the machine learning outage event include a mean channel prediction error over a time period or a number of transmissions that resulted in incorrect hybrid automatic repeat request feedback; …
Translation: The chip tracks prediction errors and failed transmissions to know when its forecasting model is failing.
How the AI model reads channel states and self-corrects

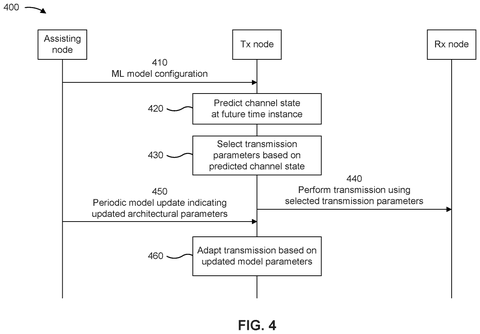

The system has two main jobs: predicting channel state and adapting transmission parameters in response to that prediction.
Channel state is a wireless term for how good (or bad) the connection between two devices is at any moment. It covers signal strength, interference, and how fast conditions are changing. Traditional systems measure channel state, react to it, and send data using settings that matched what the channel looked like a moment ago. This patent proposes predicting what the channel will look like at the moment the next transmission actually arrives, so settings can be chosen proactively.
The prediction engine is a machine learning model (a compact AI program) that runs on the transmitting device. It takes the current and recent channel states as inputs and outputs a forecast. The model's weights (its learned parameters, essentially its "knowledge") and architecture are configured by an assisting wireless node, which could be a base station or another network element.

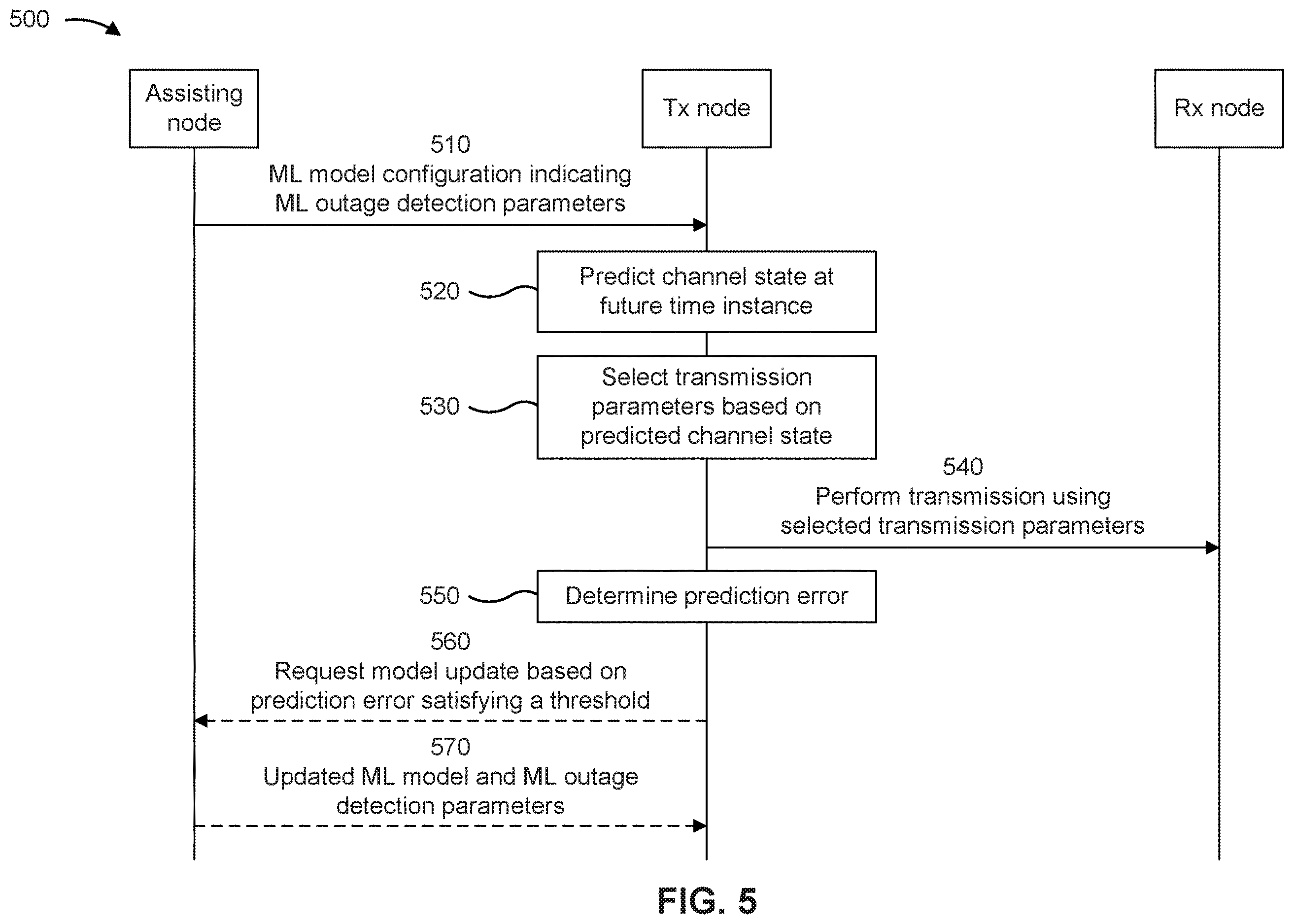

A key feature is the ML outage detection mechanism. The patent defines specific failure signals:
- Mean channel prediction error rising above a threshold over time
- Too many transmissions triggering a HARQ (Hybrid Automatic Repeat reQuest) failure, meaning the receiver had to ask for a resend because the data arrived corrupted
When either condition is detected, the device requests an updated model from the assisting node, which can send revised architectural parameters to improve future predictions.
What this means for 5G call quality and data speeds
For everyday users, better channel prediction means fewer video call freezes, faster file transfers, and more consistent speeds as you move around. The gain comes not from a faster network but from using the existing network more efficiently, fitting more useful data into the same airtime.
For the wireless industry, Qualcomm's track record in AI-for-wireless patents makes this filing a natural next step. The combination of on-device prediction with a network-assisted model-update mechanism maps cleanly onto how modern 5G networks are already structured, where base stations and devices co-manage connection quality. That architecture makes the transition from patent to actual chip feature more straightforward than it might look.
Qualcomm's 432nd filing in our Qualcomm coverage since May extends its wireless precision work, building on the Wi-Fi time sync application and the phone distance fix.
The shortest path to a working product here runs through software, not new chips. The prediction system described needs a small learning model running on the radio processor already inside modern phones, and Qualcomm already makes those processors for a large share of the market.
What has to exist first is a network willing to send updated model instructions down to devices, which requires carriers and standards bodies to agree on how that works. That process moves slowly and independently of any single company's timeline.
The most durable piece of this patent is the fallback loop, a mechanism that notices when predictions are going wrong and asks the network for a correction. That defensive design can survive a long standardization process and ship as a modest reliability improvement long before the full prediction system ever reaches a consumer's hands.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

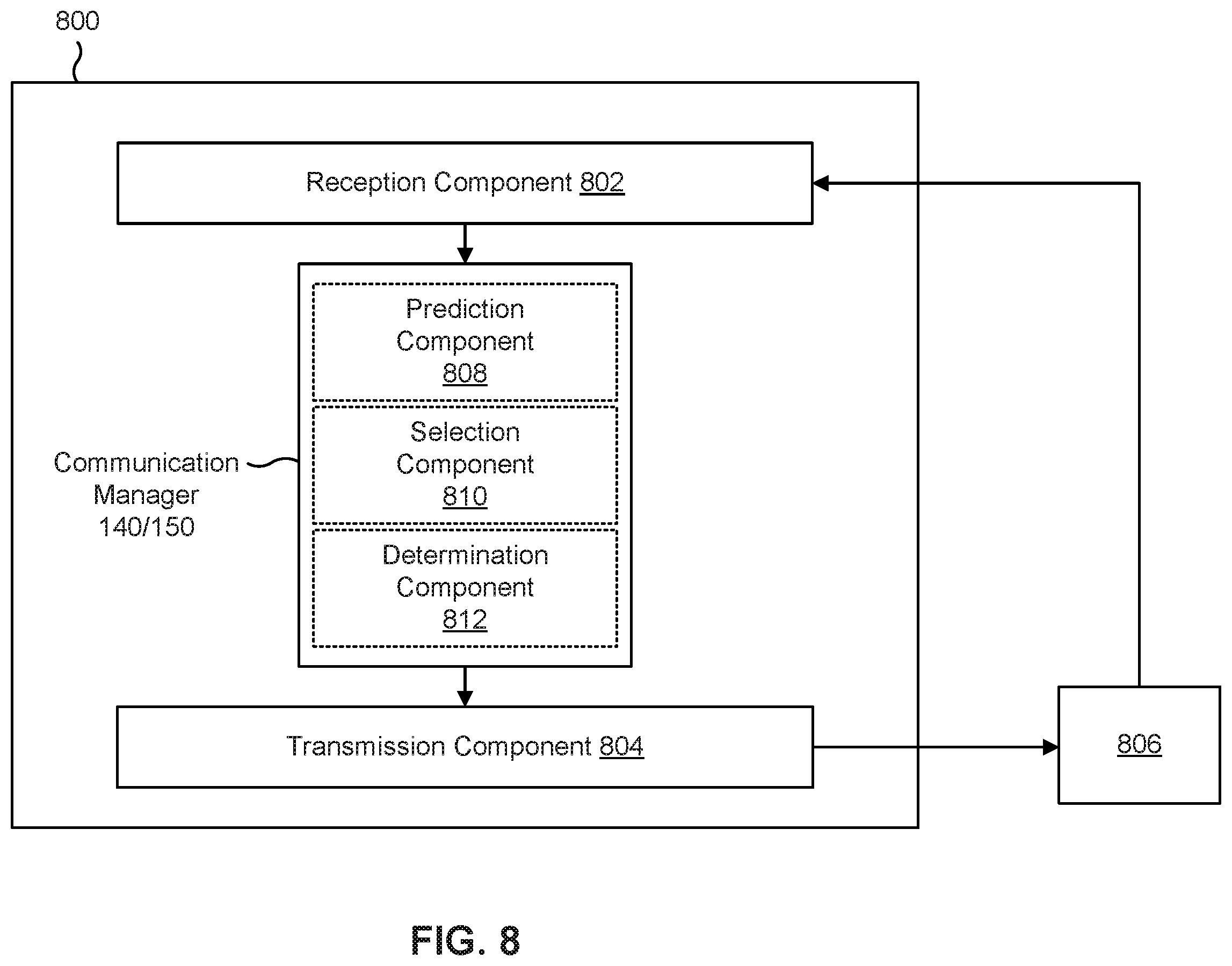

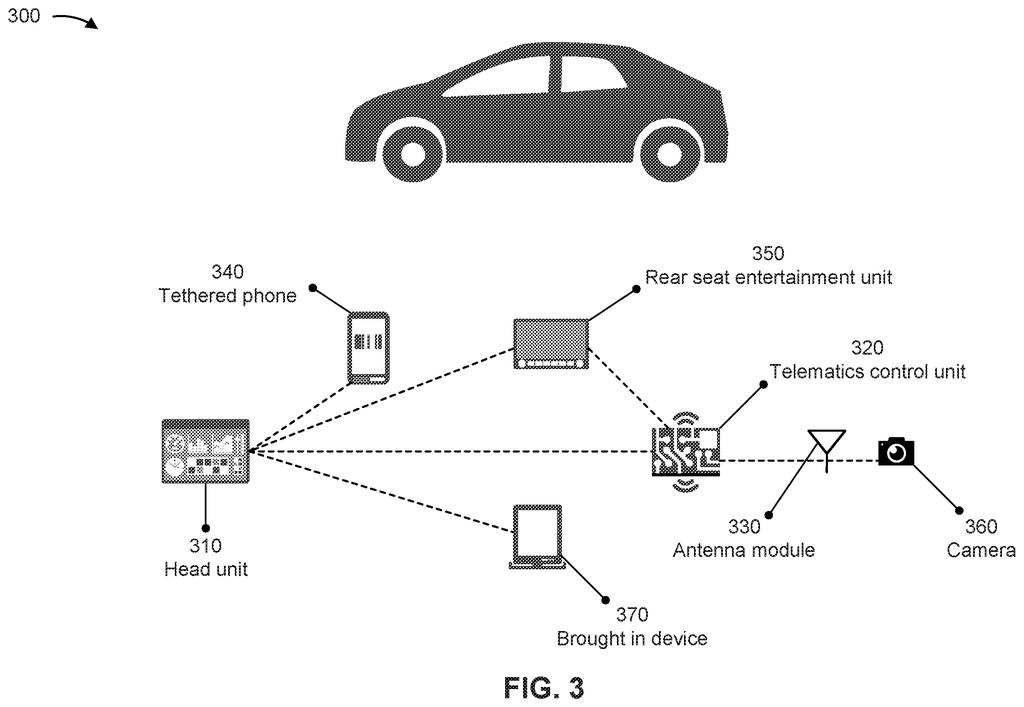

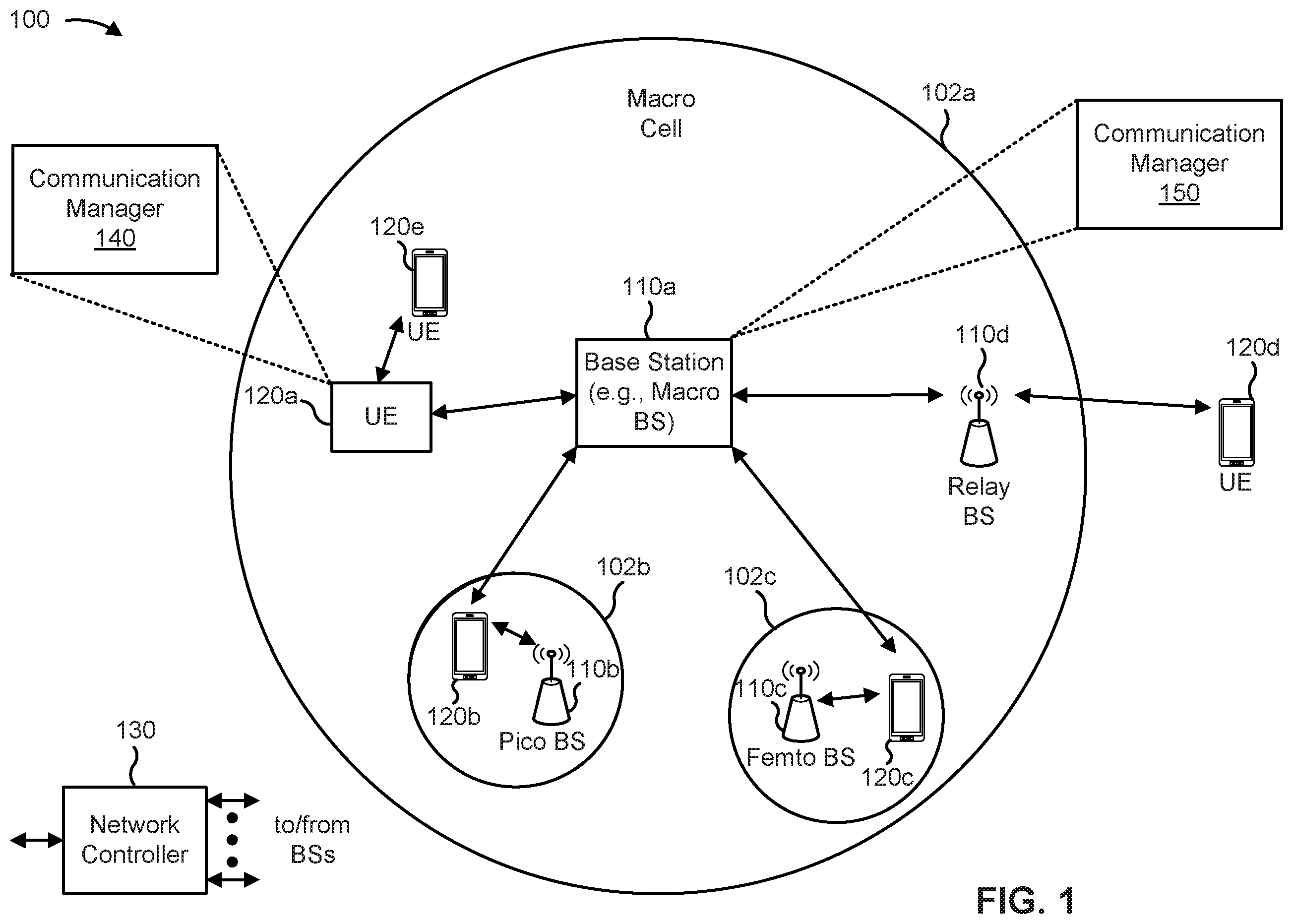

8 drawing sheets from US 2026/0292652 A1 · click any drawing to enlarge
