Qualcomm Patents AI Upscaling Method to Improve AR Graphics Rendering Efficiency
Rendering sharp AR graphics in real time is brutally expensive for a small battery. Qualcomm's new patent proposes doing the hard visual work at low resolution first, then using AI to fill in the detail right before the image hits your eyes.
How Qualcomm's AR rendering shortcut actually works
Imagine your AR glasses need to show you a 3D map floating over the street in front of you. Drawing every pixel of that map at full sharpness, 60 or 90 times per second, takes a lot of processing power, which drains the battery fast.
Qualcomm's idea is to cheat a little, in a good way. Instead of rendering the image at full quality from the start, the device draws everything at a lower resolution first. Then an AI upscaling step quickly rebuilds the fine detail, similar to how streaming services use AI to make compressed video look crisp on your TV.
The patent covers doing this separately for different visual layers, like the digital overlay and the real-world background, before combining them into the final image you see. The goal is the same sharp result with less power consumed to get there.

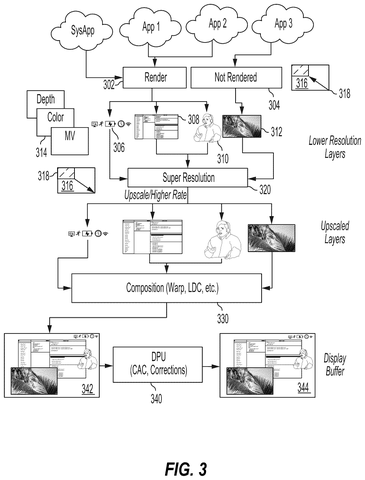

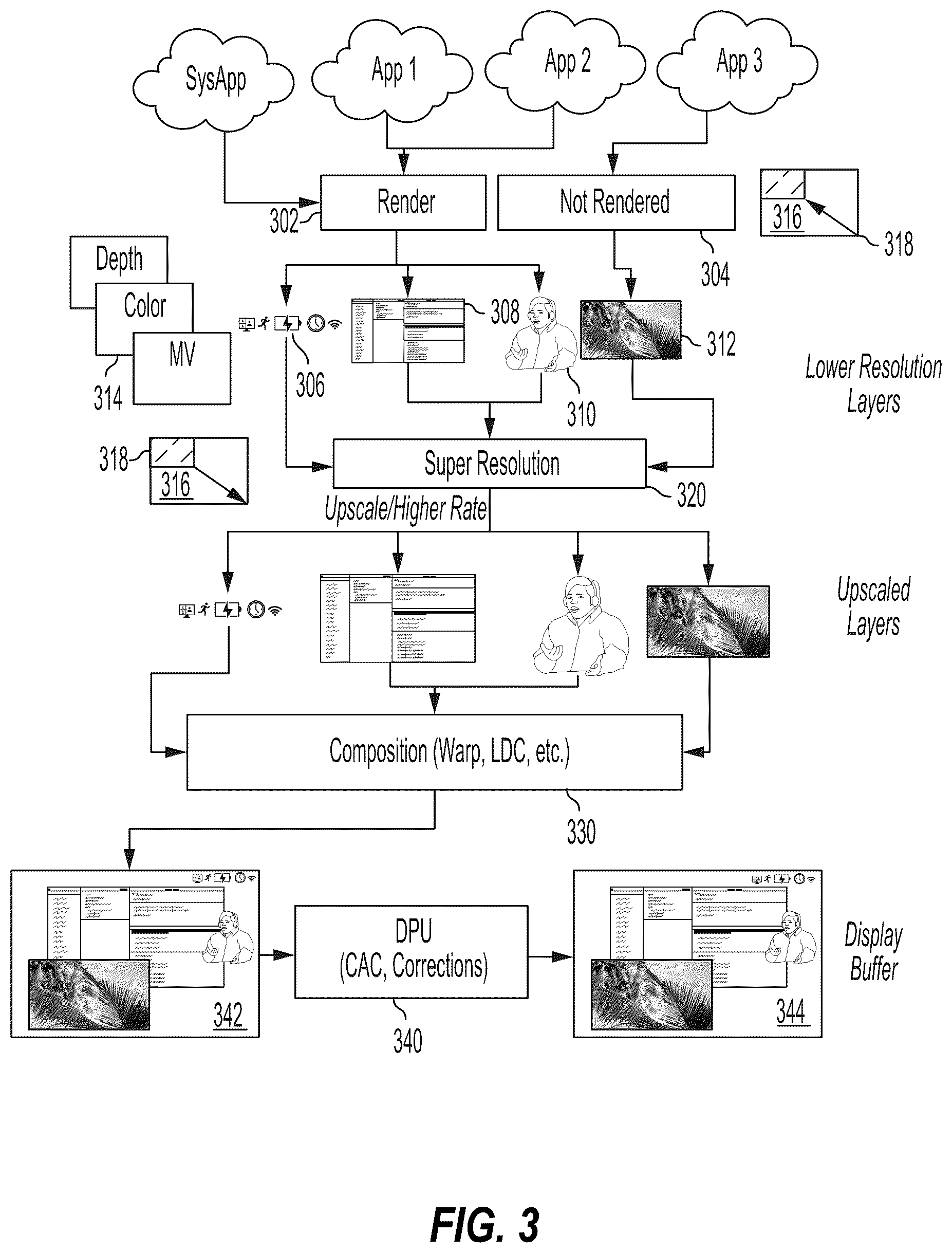

How the two-layer upscaling pipeline is structured
The patent describes a two-stage rendering pipeline designed specifically for augmented reality (AR) devices like smart glasses or headsets.
In the first stage, the device renders content in lower resolution. There are at least two separate layers:
- A first layer, typically the digital or synthetic AR content (think floating menus, 3D objects, navigation arrows)
- A second layer, which may represent a background or passthrough camera feed of the real world

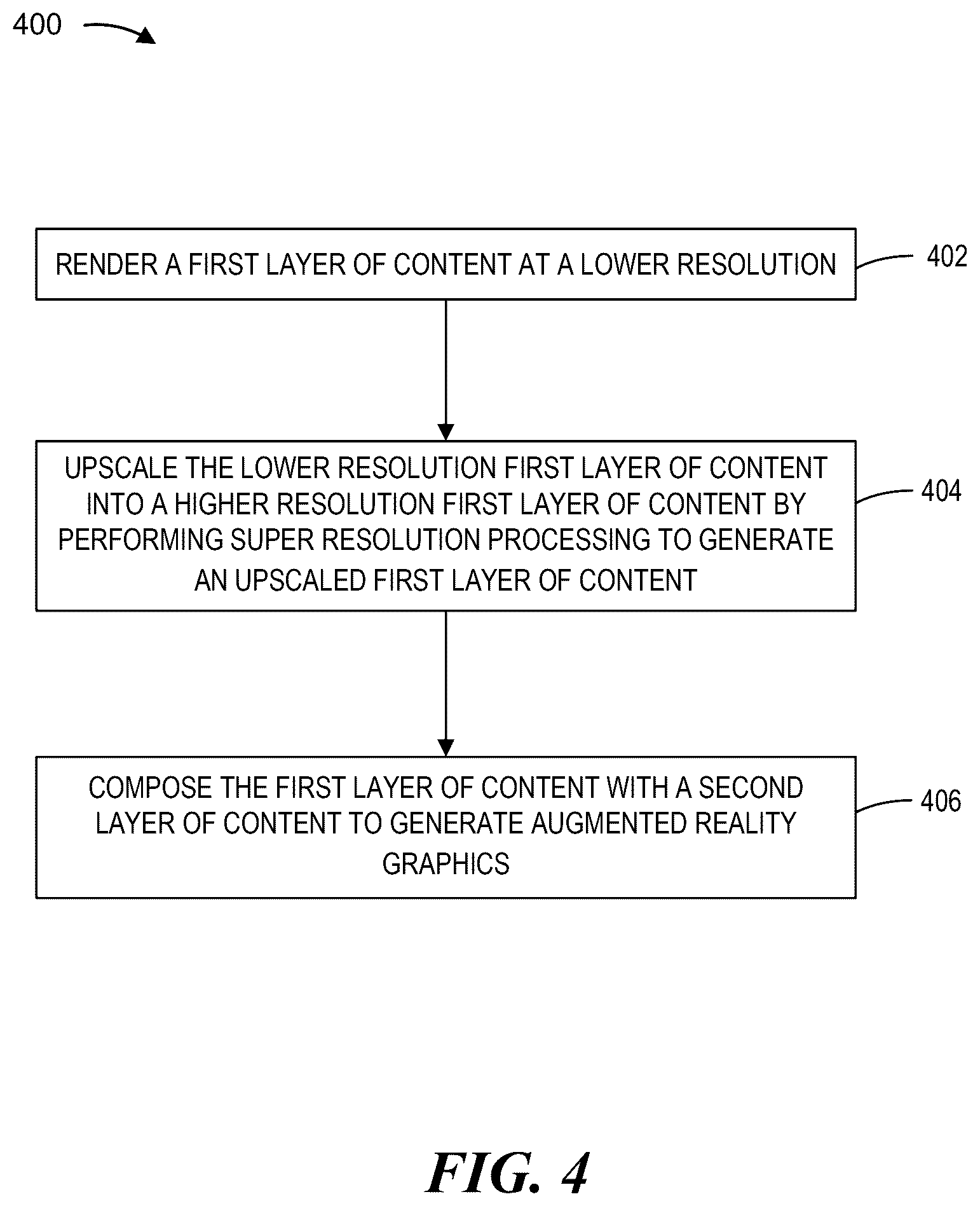

In the second stage, super resolution processing (an AI technique that predicts and reconstructs fine pixel detail from a low-resolution input, rather than just stretching the image) is applied to each layer independently to upscale them to full display resolution.
Finally, the upscaled layers are composited (blended together) to produce the final AR image shown to the user. By keeping both the rendering and upscaling steps on-device, the patent avoids any cloud-round-trip latency that would make the experience feel laggy.
What this means for battery life in AR headsets
AR headsets and smart glasses face a fundamental tradeoff: the battery is small but the display demands are enormous. Rendering at full resolution every frame is one of the biggest power draws. If Qualcomm can make AI upscaling fast and accurate enough to substitute for native high-resolution rendering, it could meaningfully extend how long a device lasts on a charge, or allow thinner, lighter hardware without sacrificing visual quality.
Qualcomm supplies the chips inside many AR and XR platforms, so a rendering approach patented here would likely show up as a feature in its Snapdragon XR chip line. For you as a user, the practical effect would be an AR device that either lasts longer, runs cooler, or both.
This is a real engineering problem with a well-motivated solution. AI upscaling has already proven itself in gaming (Nvidia DLSS, AMD FSR) and video streaming, so applying it to AR rendering layers is a logical next step, not a stretch. The per-layer approach before compositing is the specific wrinkle that makes this worth watching.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
6 drawing sheets from US 2026/0230593 A1 · click any drawing to enlarge
