Qualcomm Patents a Camera Sensor Trick for Capturing Bright and Dark Scenes at Once
Taking a photo in a room with a bright window behind your subject almost always ends badly. Qualcomm's new patent targets exactly that problem, describing a camera sensor that captures bright and dark parts of a scene simultaneously, without stitching two separate shots together.
What Qualcomm's dual-exposure camera sensor actually does
Most phone cameras still struggle when a scene mixes extreme brightness with deep shadow. Snap a friend standing in front of a sunny window and you'll get either a silhouette or a blown-out background. Qualcomm wants to fix that at the sensor level, before any software even touches the picture.
The patent describes a sensor design where a single tiny pixel unit contains two separate light-collecting elements. One collects light for a longer stretch of time (good for capturing dark areas) while the other collects light for a much shorter burst (good for bright areas). The key is a voltage signal that switches on and off at an adjustable rate, essentially telling each collector when to work and for how long.
Because both exposures happen inside the same pixel at the same time, the camera doesn't have to take two full pictures and blend them. That means less blur from moving subjects and a faster overall capture. You get a photo that holds detail in shadows and highlights together.
modulate a voltage at a modulation electrode of a current assisted photonic demodulator (CAPD) sensor with an adjustable duty cycle, wherein the adjustable duty cycle causes a first photodiode of a pixel of the CAPD sensor to have a longer integration time relative to a second photodiode of the pixel of the CAPD sensor; …
Translation: It changes electrical signals inside the sensor so different parts can capture light for different amounts of time.
How the CAPD sensor splits one pixel into two exposure times

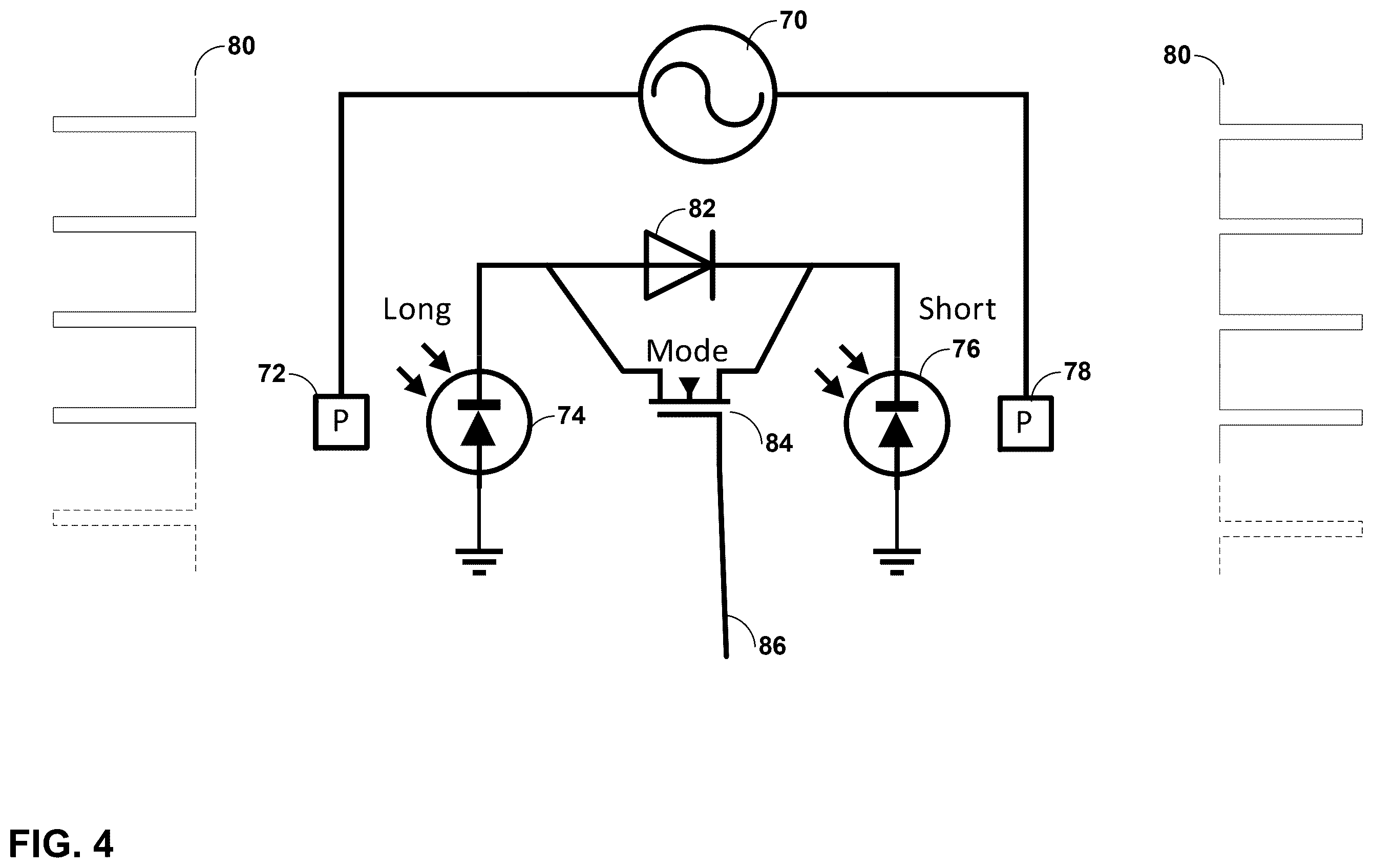

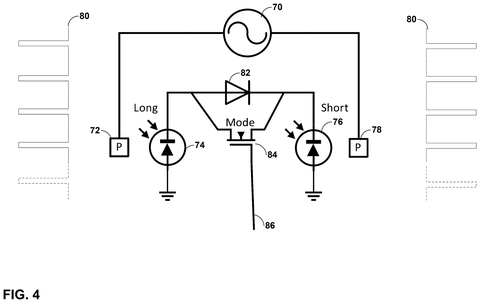

The system uses a type of image sensor called a Current Assisted Photonic Demodulator, or CAPD. The name is a mouthful, but the concept is straightforward: a CAPD pixel uses an electric current flowing across the sensor surface to steer incoming light toward one of two photodiodes (tiny light-collecting wells inside the pixel).

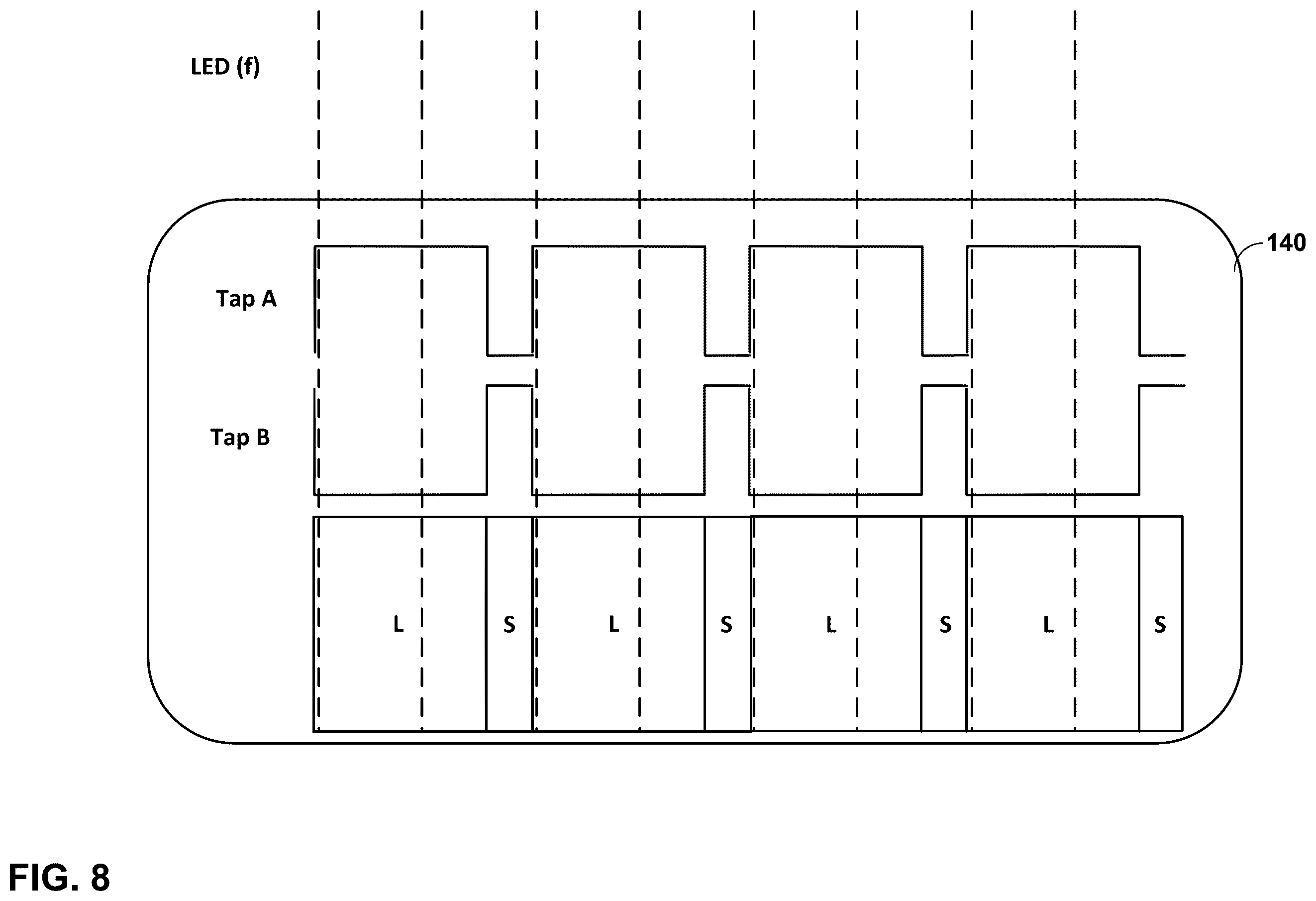

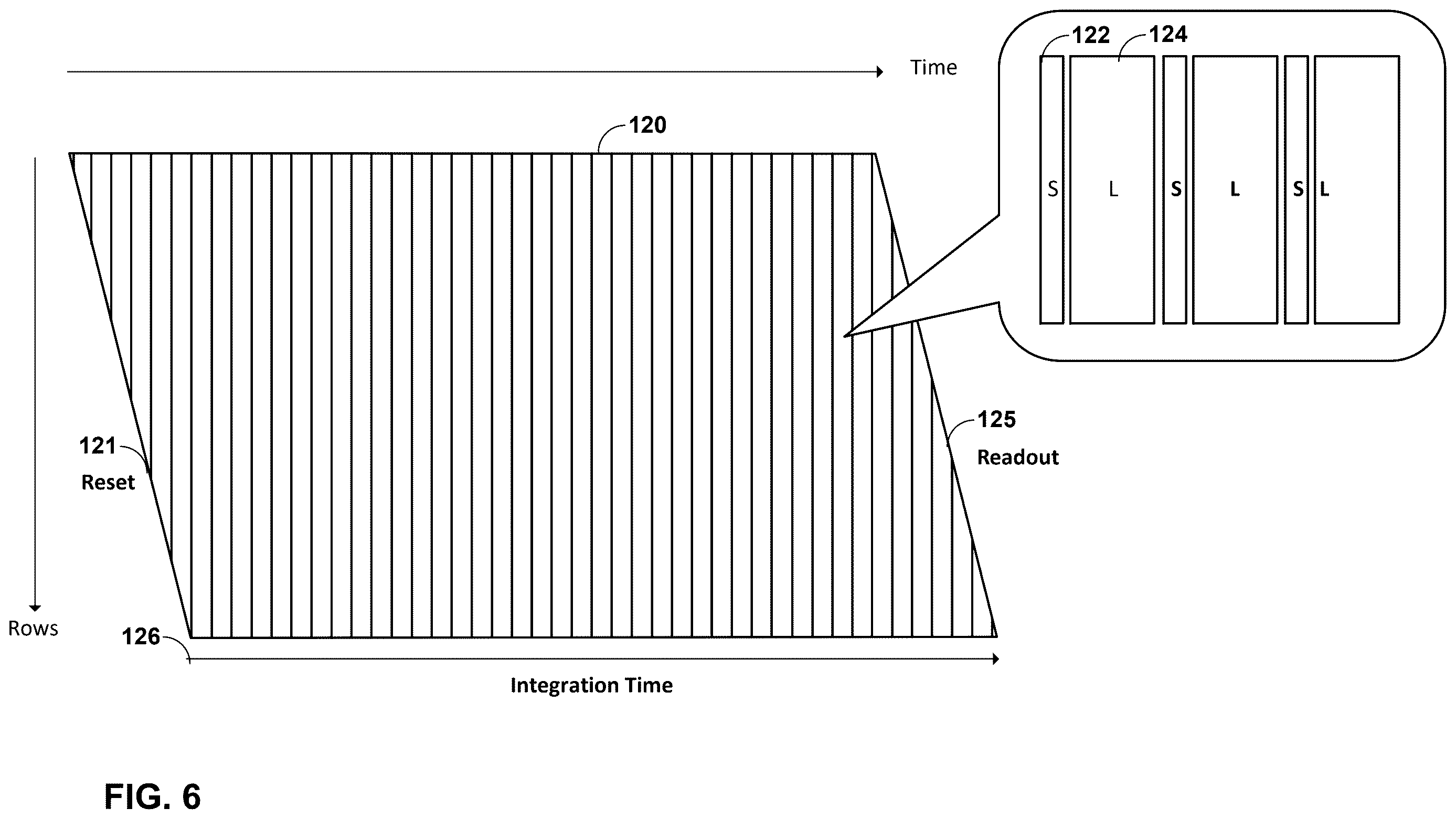

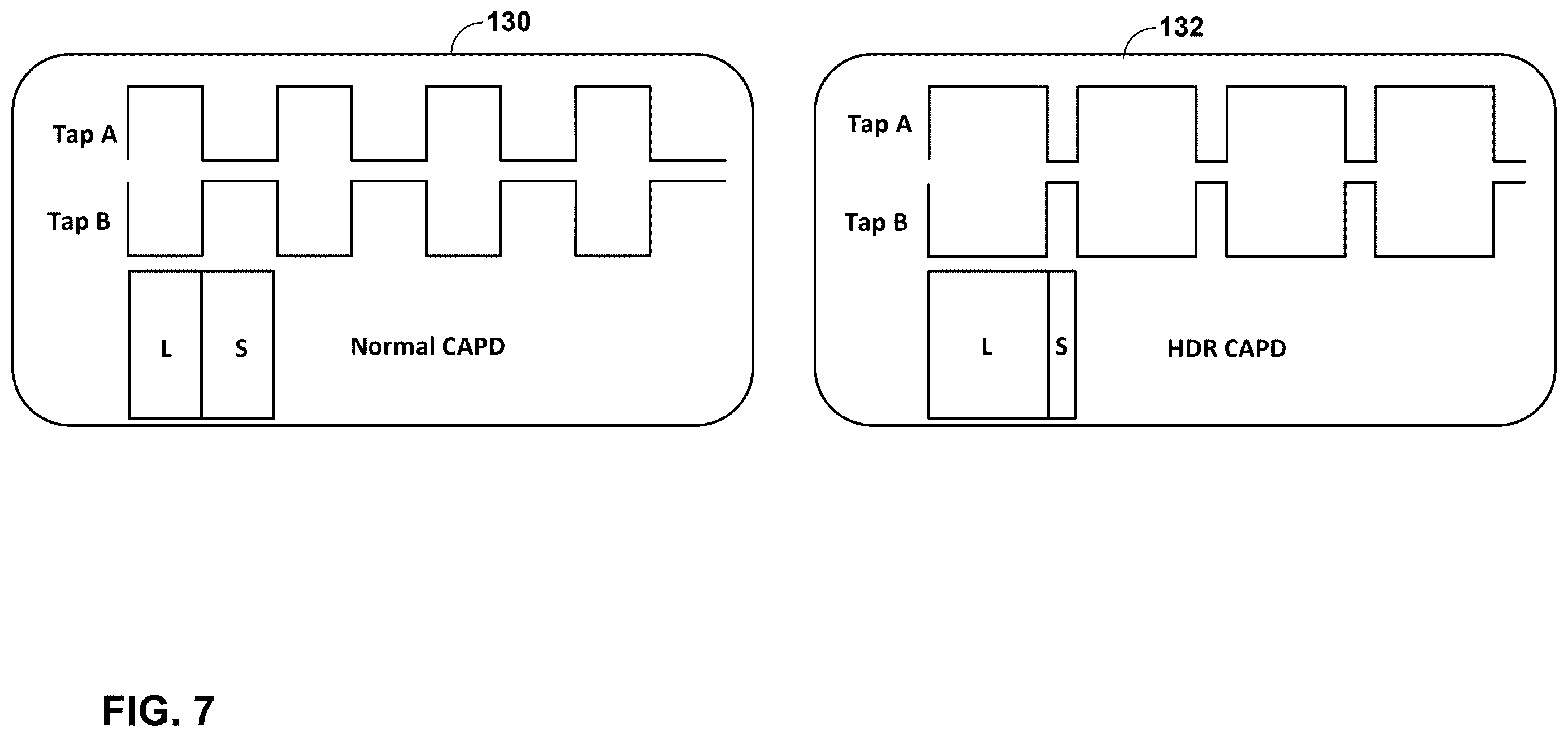

Qualcomm's patent adds an adjustable duty cycle to the voltage applied at a control electrode on the sensor. A duty cycle just describes how long a signal is "on" versus "off" during each repeating interval. By changing that ratio, the processing circuitry can make one photodiode collect light for a longer period and the other for a shorter period within the same frame.
The result is two simultaneous exposures from a single pixel:
- Long integration time on the first photodiode, capturing shadow detail that a fast exposure would miss.
- Short integration time on the second photodiode, preventing bright highlights from blowing out.

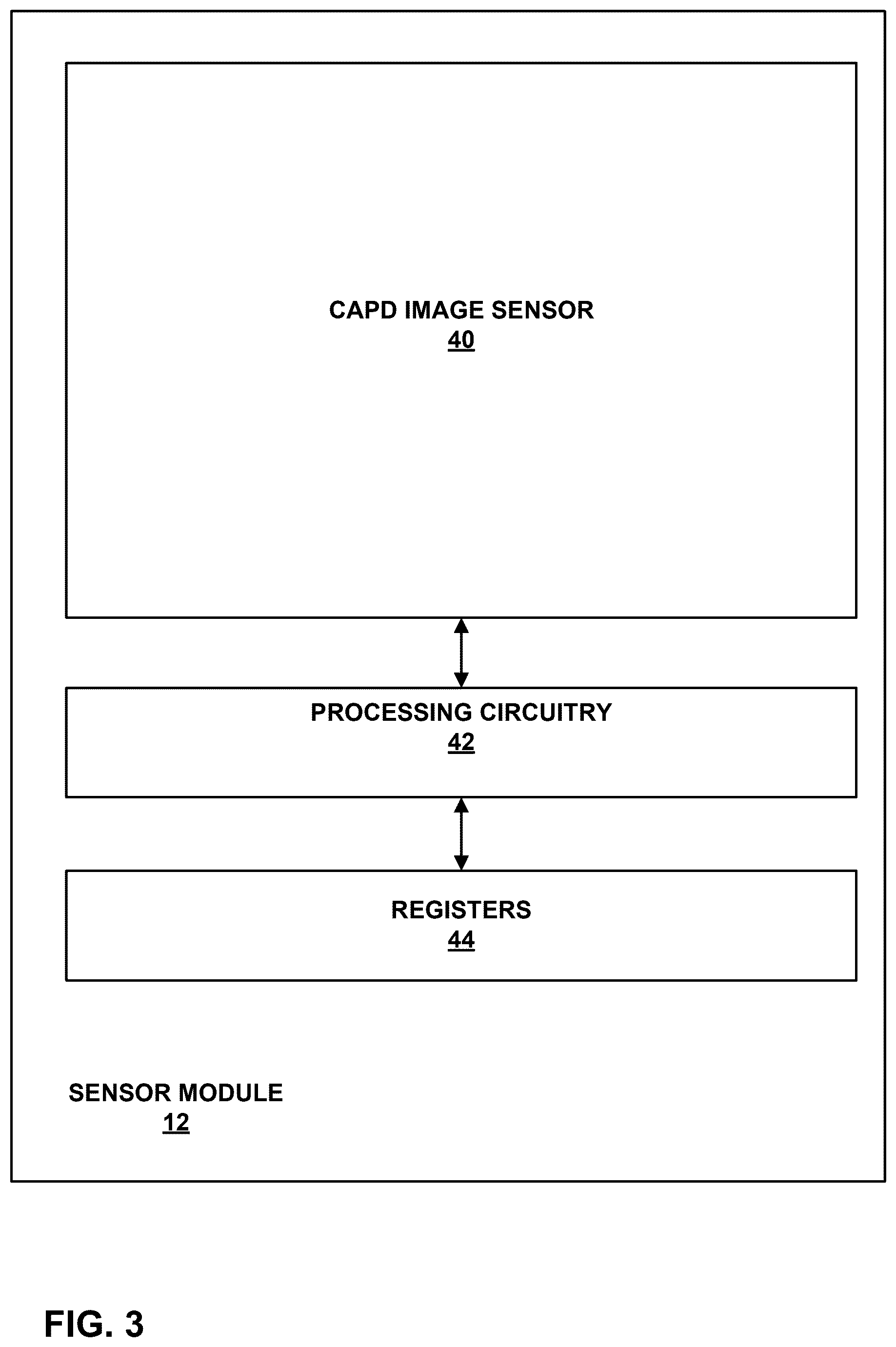

The sensor then hands both streams of image data to the processing circuitry, which can combine them into one high dynamic range (HDR) image. Because both exposures come from the same pixel at the same moment, there is no misalignment or motion artifact between the two layers.
An image sensor system for high dynamic range (HDR) imaging utilizes a current assisted photonic demodulator (CAPD) to address luminance capture challenges in varied lighting conditions.
Translation: This camera technology is designed to handle tricky lighting situations that mix very bright and dark areas.
What this means for phone cameras in tricky lighting

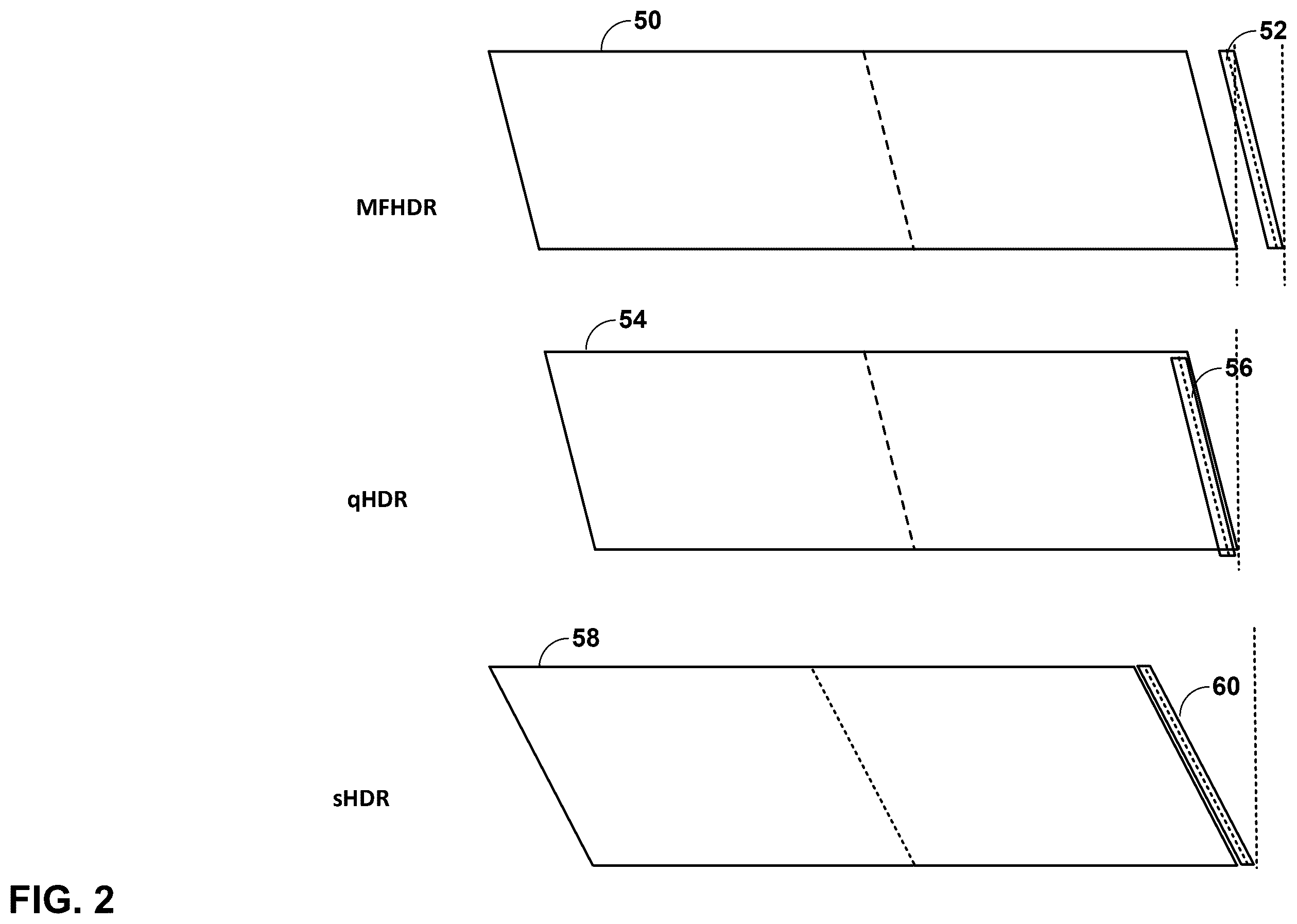

Phone and camera makers have been doing HDR imaging for years, but most approaches either take multiple sequential shots (which causes ghosting around moving subjects) or use paired rows of pixels with fixed exposure differences (which wastes resolution). A sensor that splits the exposure inside a single pixel, in real time, sidesteps both problems. If this design reaches production cameras, the practical payoff for you is photos that look more like what your eyes actually saw, even in difficult lighting, without the tell-tale halo or blurring that current HDR processing can produce.
Qualcomm's interest in computational imaging is consistent with where the company has to compete. Its Snapdragon processors already handle most of the camera processing on Android flagships, so owning more of the sensor pipeline is a logical direction. A proprietary CAPD design could become a selling point for phone makers licensing Qualcomm silicon.
That makes this Qualcomm's 19th filing we've tracked under our Camera patent coverage since May, a run that includes applications like one on radio signals aiding focus and one letting users control photo interpretation.
The problem this patent addresses is real and persistent. Bad lighting ruins more photos than any software algorithm can fully repair after the fact, and the limitations of sequential HDR are well understood by anyone who has photographed a moving subject. Solving it at the physics level rather than the software level is the right instinct.
The specific approach, adjusting the duty cycle of a control voltage to split exposure times within one pixel, is technically specific and not an obvious extension of existing HDR methods. That gives this filing more weight than a typical image-processing patent that just claims a new way to blend two frames in software.
The honest caveat is that CAPD sensors are still a relatively niche technology, and the gap between a solid patent claim and a shipping camera sensor that outperforms what Sony or Samsung already makes is significant. This is a well-aimed filing at a real problem, but the camera industry will need to see working hardware before it changes anything for consumers.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

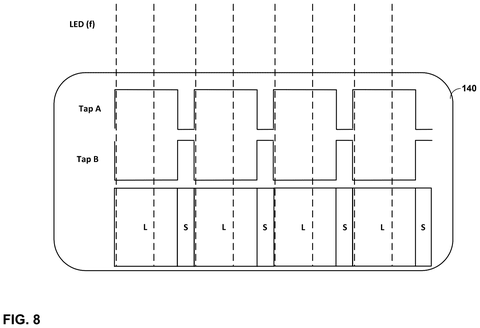

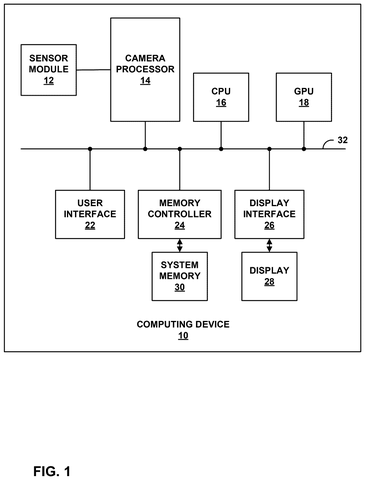

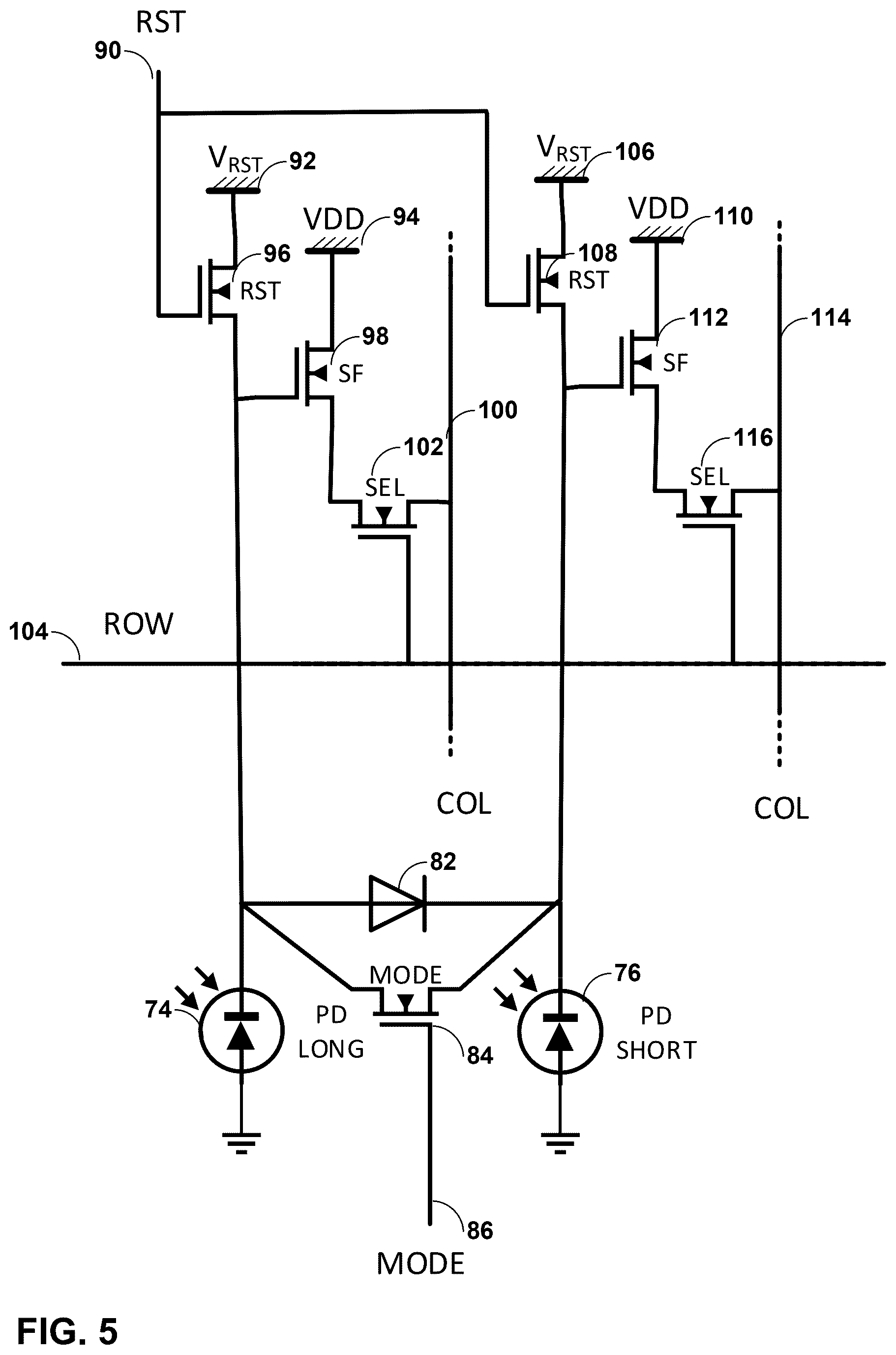

13 drawing sheets from US 2026/0281573 A1 · click any drawing to enlarge
