Qualcomm Patents a Way for Devices to Figure Out Their Location by Sharing Camera Clues
GPS is useless indoors, and most cameras don't know where they're pointing. Qualcomm's new patent describes a way for a device to figure out its exact position and camera angle by sharing visual clues with a second device that already knows the lay of the land.
How Qualcomm's visual landmark-sharing system finds your position
A security camera stares at an empty hallway all night, but it has no idea where in the building it actually is or which direction it is facing. That same problem applies to AR headsets, robots, and smartphones trying to do anything useful in the physical world.
Qualcomm's patent tackles this by splitting the job between two devices. Your device (the "tracking object") looks at the scene and picks out distinctive visual landmarks, like a corner of a door frame or a logo on a wall. It sends descriptions of those landmarks to a second device (the "target object") that has a map of the environment. The second device looks up where those landmarks sit in the real world and sends those coordinates back. Your device then uses both sets of information together to work out exactly where your camera is and which direction it is pointing.
The clever part is that your device never has to store a full map of the world. It just sends compact descriptions of what it sees and lets the other device do the heavy lookup work.

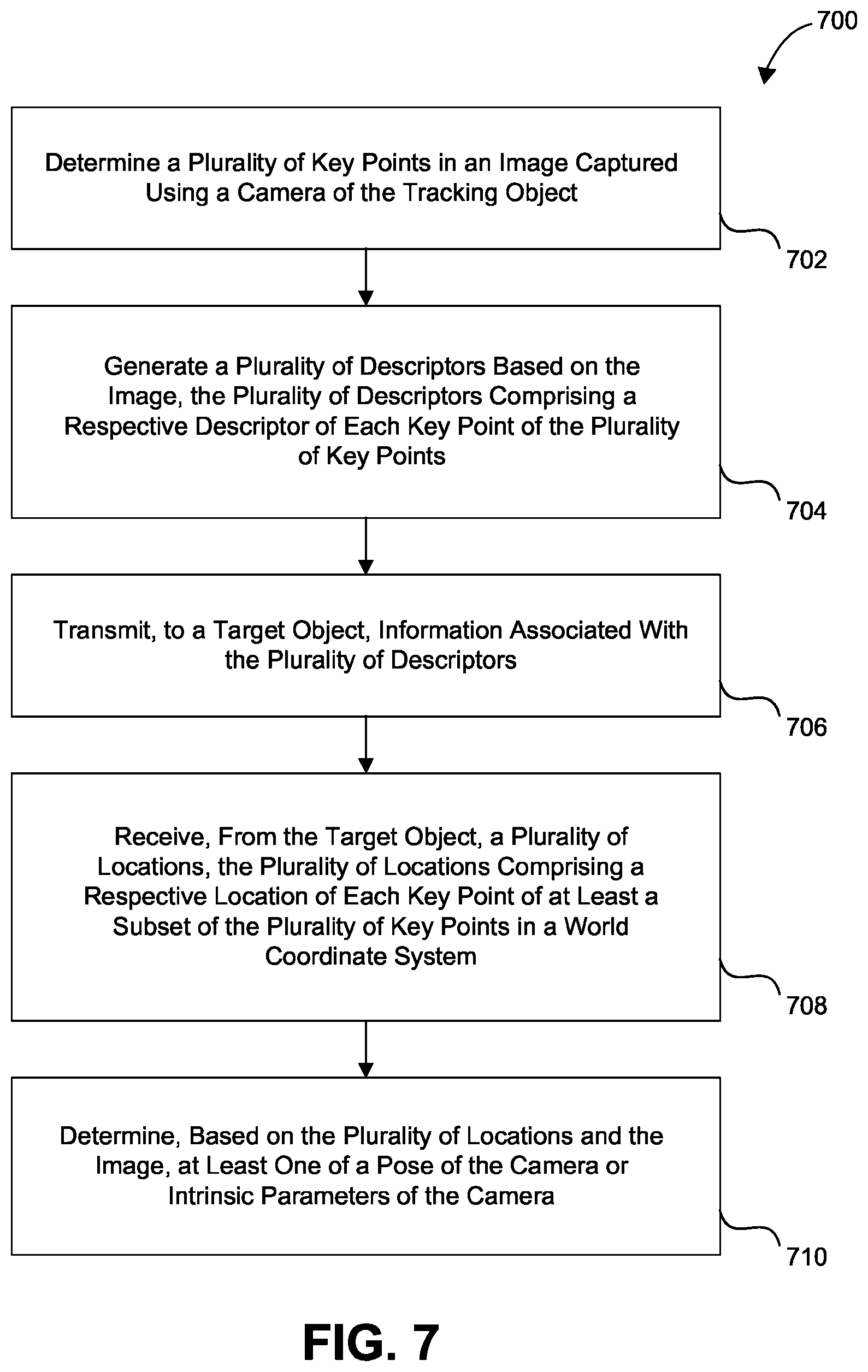

determine a plurality of keypoints in an image captured using a camera of the tracking object; generate a plurality of descriptors based on the image, the plurality of descriptors comprising a respective descriptor of each keypoint of the plurality of keypoints; …
Translation: The device analyzes a photo from its camera to spot and describe distinct visual features.

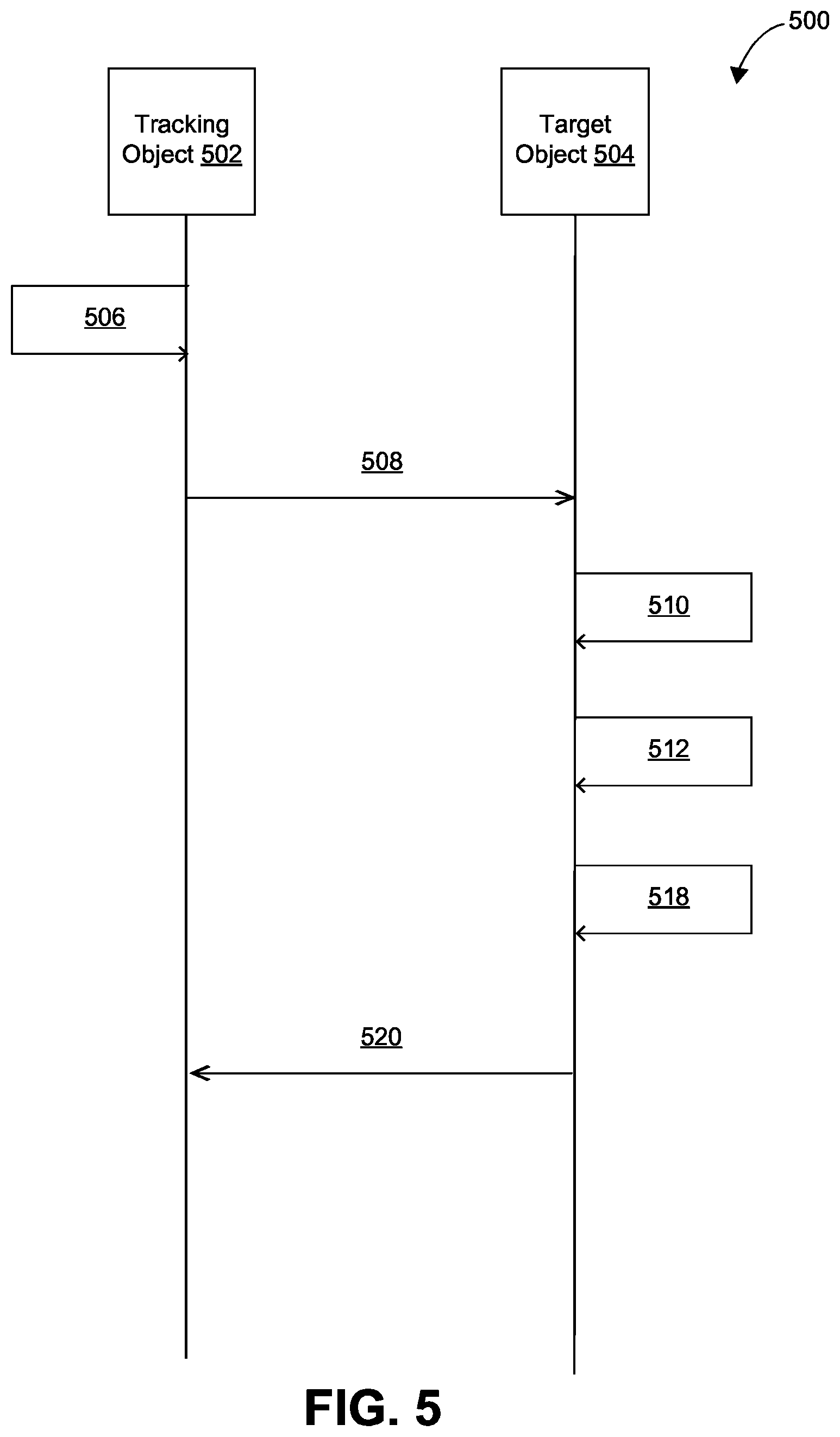

How keypoints and descriptors flow between devices

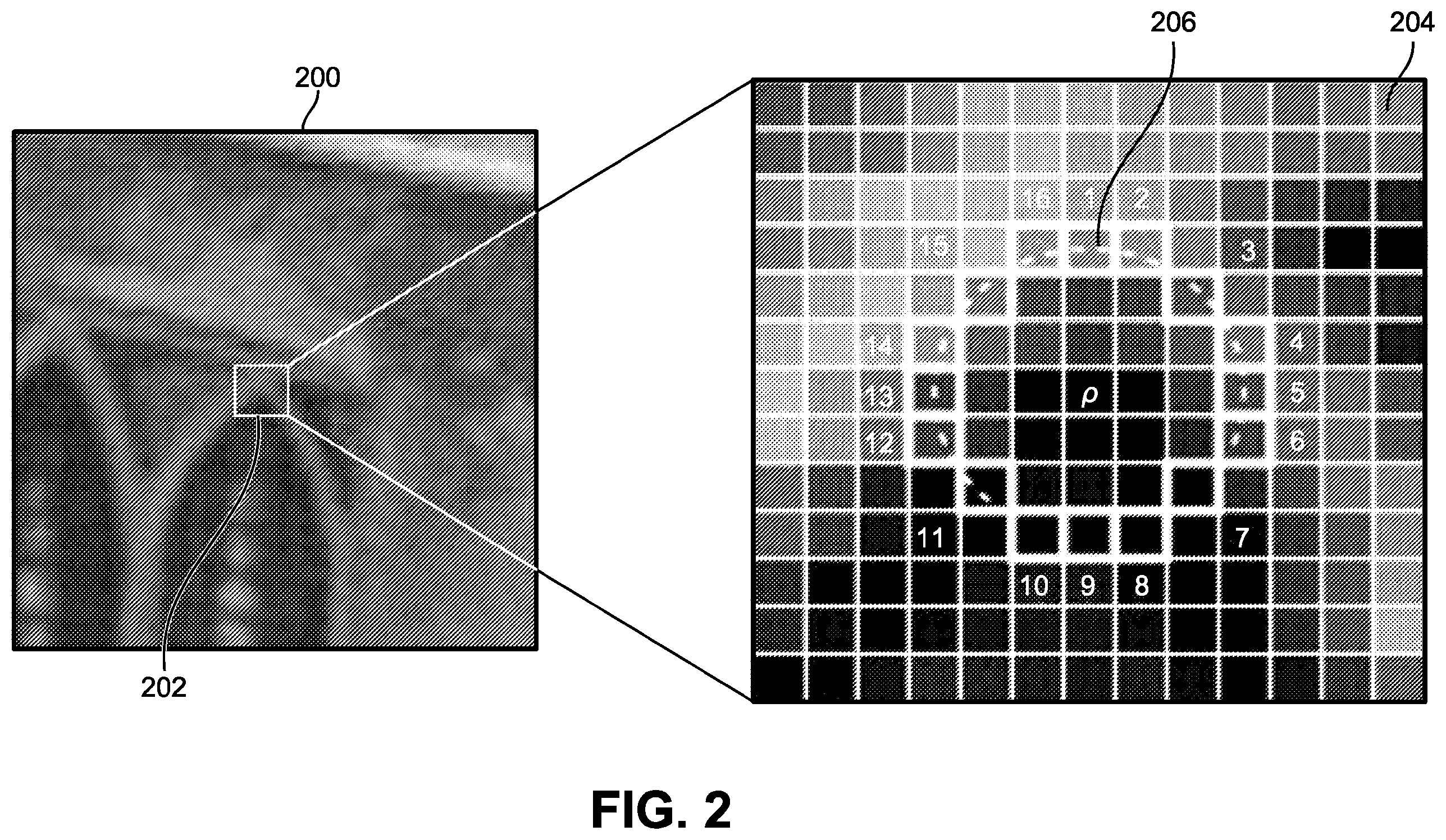

The system revolves around a technique called keypoint detection and description. When your device captures an image, software identifies a set of keypoints (distinctive spots in the image that are easy to recognize again, like sharp corners or high-contrast blobs). For each keypoint, it generates a descriptor, a compact numerical fingerprint that describes the local appearance around that spot.

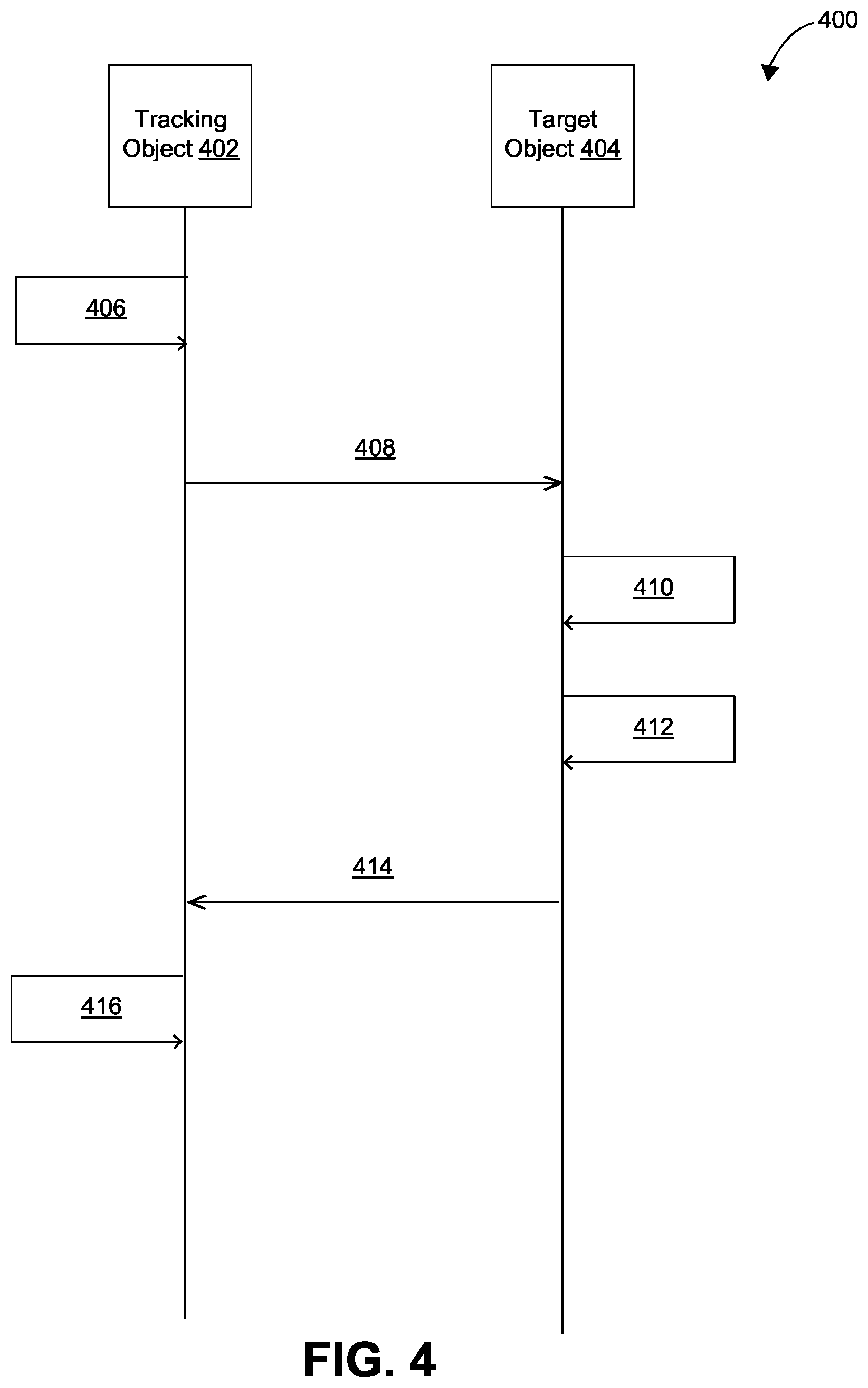

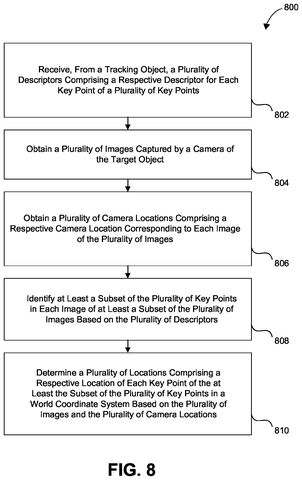

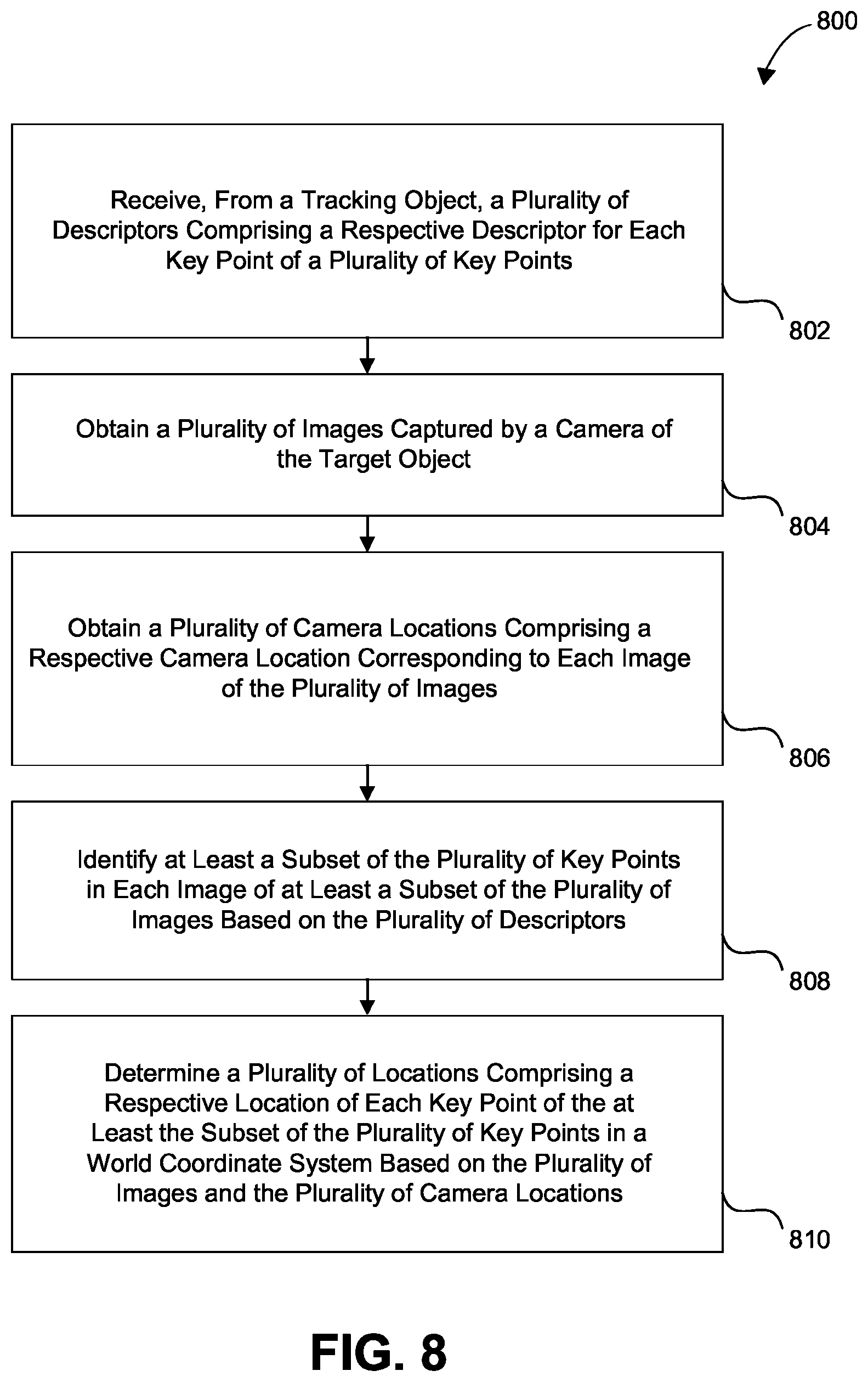

Those descriptors are transmitted to a second, more capable device. That device runs a matching process, comparing the incoming descriptors against a database of known 3D locations in a world coordinate system (think: a map where every point has an X, Y, Z address in real-world space). When it finds matches, it sends back the real-world coordinates of the matched keypoints.

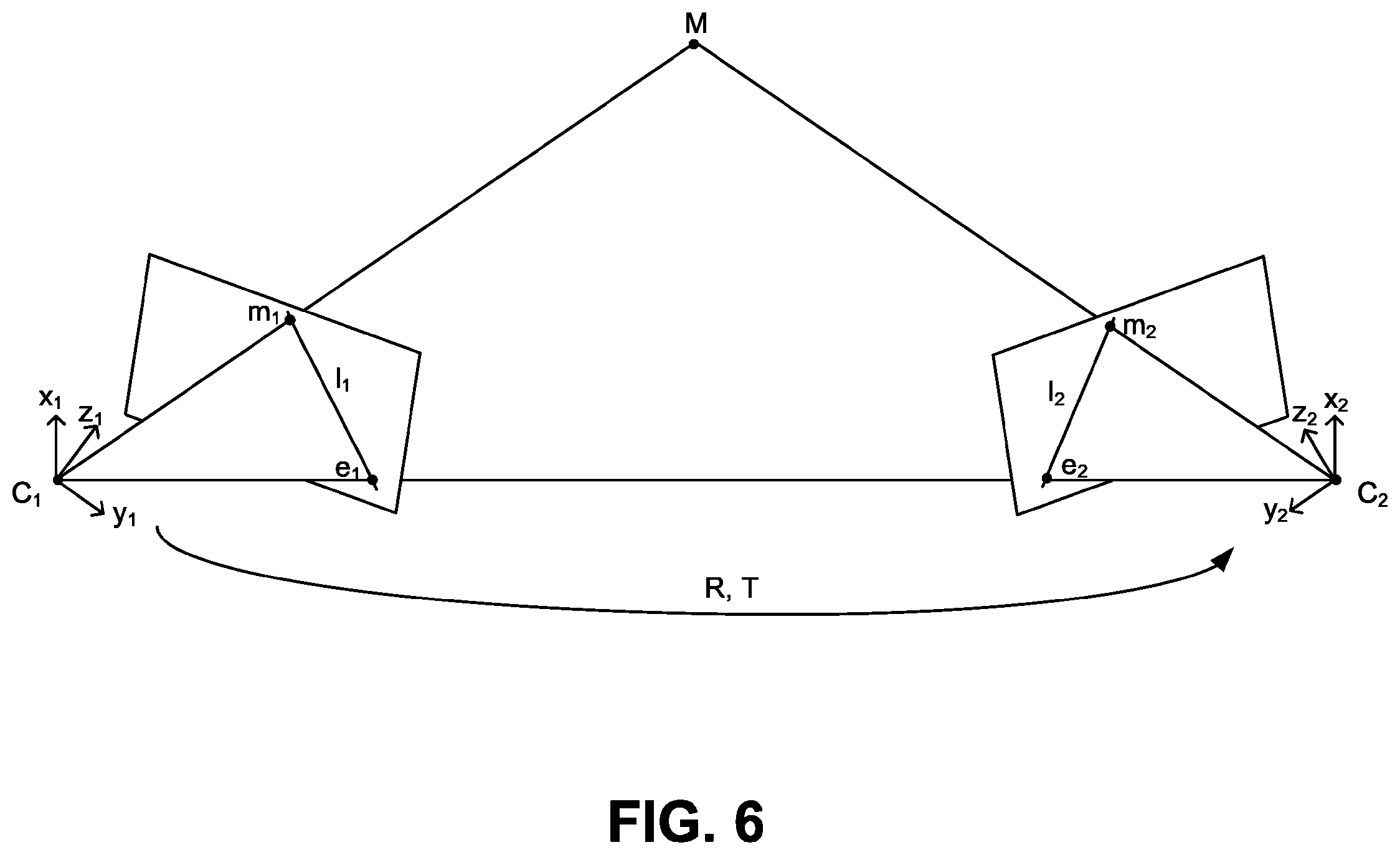

Your device now has two things: the pixel positions of keypoints in its own image, and the real-world 3D positions of those same keypoints. A standard algorithm called PnP (Perspective-n-Point) can use that pairing to solve for:
- Camera pose: where the camera is and which direction it faces
- Intrinsic parameters: internal lens properties like focal length that affect how the image is distorted
The architecture deliberately keeps the heavy map storage and matching computation on the "target" side, so the tracking device (which could be a lightweight headset or a phone) stays lean.
… transmitting, to a target object, information associated with the plurality of descriptors; receiving, from the target object, a plurality of locations, the plurality of locations comprising a respective location of each keypoint of at least a subset of the plurality of keypoints in a world coordinate system; …
Translation: It sends those visual clues to another device and gets back real world map coordinates for them.
What this means for AR headsets and camera-based navigation
Camera localization is one of the core unsolved problems in AR, robotics, and indoor navigation. GPS does not work reliably indoors or in dense urban canyons, and most visual localization systems today require each device to carry a large, pre-built 3D map. Offloading the map lookup to a server or a nearby device removes that storage burden and could make precise localization practical on thinner, cheaper hardware.
For Qualcomm, which sells the chips inside a large share of the world's AR headsets, drones, and Android phones, this kind of architecture fits directly into its chipset-plus-connectivity business. The patent also points toward a world where localization becomes a networked service rather than a self-contained app, which is a meaningful shift in how devices relate to their environment. Readers following latest Big Tech patents in the AR and spatial-computing space will recognize this as part of a steady push to move map intelligence off the device and into the network.
Qualcomm's 27th filing we've tracked in our AR glasses race watch since July builds on one on frame-timing buffers and one on phone-offloaded smoothing to push cloud-connected headset display work further.
Finding your exact location indoors is a hard problem, and solving it on a small, cheap device is harder still. The fix here is to store the map on a separate, more powerful machine nearby and let the headset or robot ask that machine for help. That is a reasonable idea, not a surprising one.
The real test is whether the connection between the two devices is fast enough that nothing feels slow or glitchy. This patent says nothing about that.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
9 drawing sheets from US 2026/0245240 A1 · click any drawing to enlarge
