Qualcomm Patents a Way for Wi-Fi Routers to Identify Which App Is Sending Your Data
Your Wi-Fi router currently treats a video call and a software update as roughly the same thing. Qualcomm is patenting a way for wireless devices to use machine learning to figure out exactly which app is behind each chunk of data, without needing the app to announce itself.
What Qualcomm's app-traffic detection actually does
A router sits in your living room shuffling data packets to every device in your home, with no real idea whether that traffic is a surgeon on a video call or someone downloading a podcast. It moves everything the same way, best-effort.
Qualcomm's filing describes a system where the router (or another wireless device) watches the shape of incoming signals, things like timing, size, and traffic patterns, and feeds those observations into a machine learning model. The model then guesses which app is behind the traffic, not just a broad category like "video" but the specific application.
Once the device knows it's looking at, say, a real-time call versus a background sync, it can handle those differently. The machine learning model can be trained locally on your device or shared from another device on the network, which means the system can improve over time as it sees more traffic.
… obtaining a prediction of an application associated with the signaling using a machine learning model, wherein the prediction is based at least in part on the set of features.
Translation: The router uses artificial intelligence to guess which app is sending your data based on how it looks.
How the ML model reads traffic signals and predicts the app

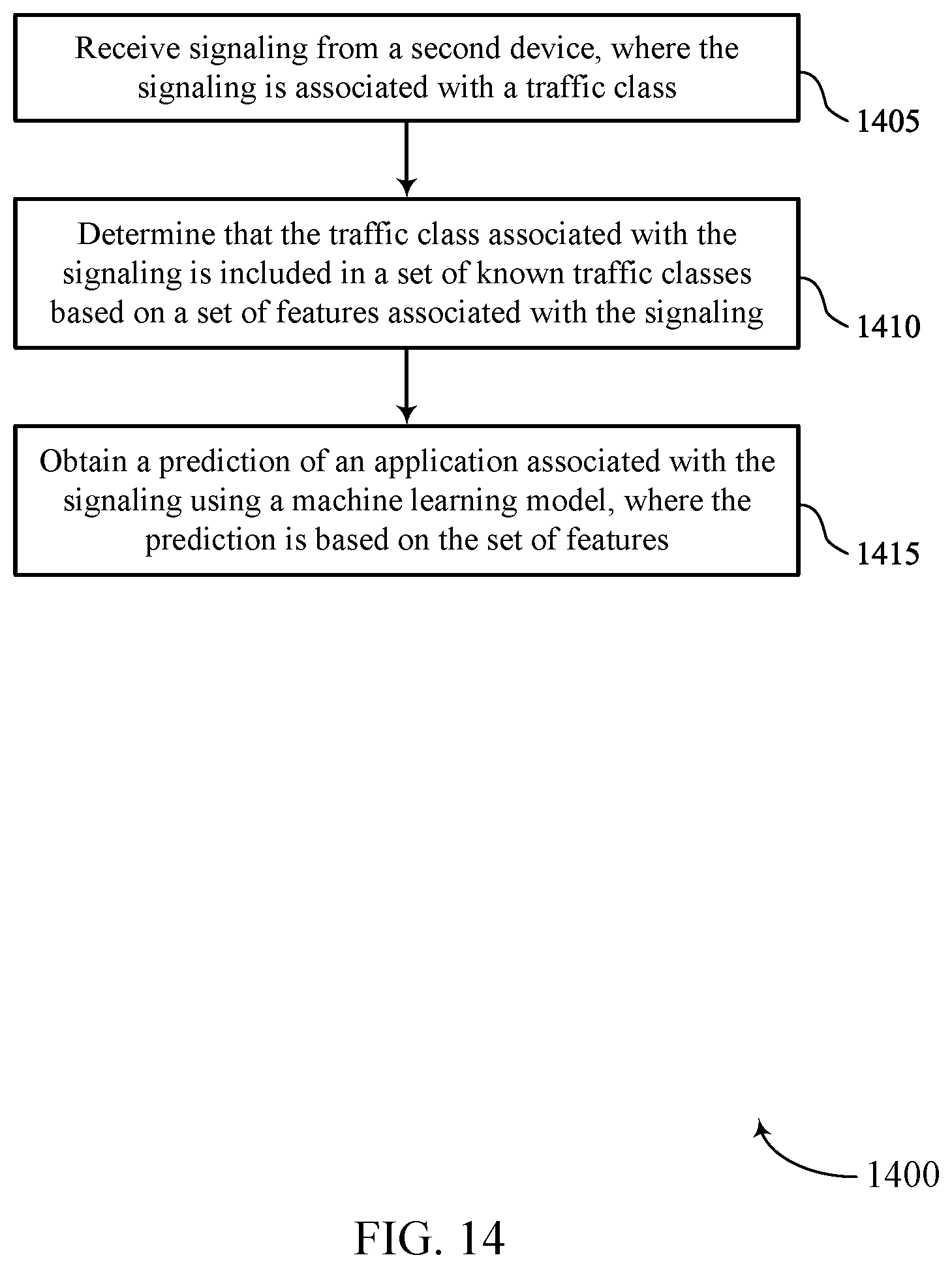

The patent describes a two-step process. First, the receiving device checks the incoming signal's traffic class (a broad label like "voice" or "best-effort" that Wi-Fi already uses) to confirm it's a type the system already understands. If it is, the device moves to step two.
In step two, a machine learning model analyzes a set of features extracted from the signaling. Features here means measurable properties of the data stream, things like packet arrival intervals, burst sizes, or timing patterns, not the actual content of what you're sending. Based on those features, the model produces a prediction of the specific application generating the traffic.

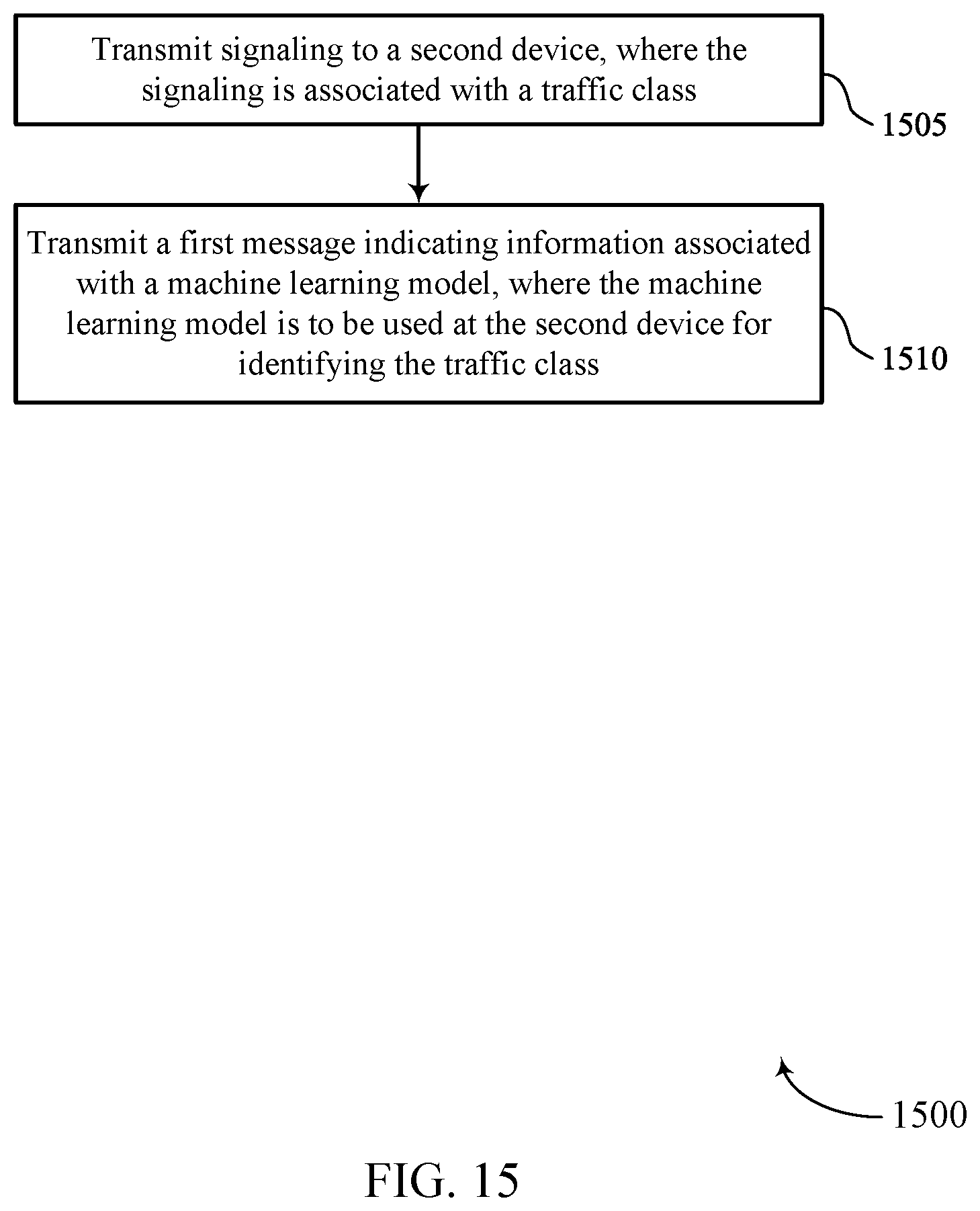

The patent also covers model sharing: one device can send another device information about its trained model. That means a phone could help a router learn, or an access point could push an updated model to client devices. The system is designed to work across both directions of the wireless link.
- Traffic class checked first as a filter
- Feature set extracted from signal properties
- ML model maps features to a predicted application
- Model can be trained locally or received from a peer device
The machine learning model may be trained at the first device or the second device. The first device may receive information associated with the machine learning model from the second device.
Translation: The AI brain can learn directly on your router or device and share updates between them.
What this means for your router's handling of video calls vs. Games
For most people, this would show up as better call quality during busy network moments. A router that knows your video call is a video call, not just "some UDP traffic," can give it priority over your roommate's software update without either of you needing to configure anything.
Qualcomm's steady investment in Wi-Fi intelligence The practical catch is that this works best when the traffic patterns are consistent enough for a model to learn them. Encrypted app traffic is increasingly hard to fingerprint this way, so the system's accuracy in real-world conditions, where apps change their behavior with every update, will determine whether this lands as a meaningful feature or stays on the spec sheet.
This is the 384th Qualcomm filing in our Qualcomm coverage since May, extending work seen in trimming video data for AI and predicting data before phones ask.
The person who benefits most from this is someone whose video call turns choppy the moment a family member starts downloading something in the next room. The router, currently, has no idea which traffic matters more. This would change that.
The real challenge is staying accurate over time. Apps update constantly, encrypt more of their data, and behave differently than they did a year ago. A model trained on older behavior may simply fail to recognize newer patterns, and the patent's answer, that updates can come from another device on the network, is promising but leaves open how often those updates would actually arrive.
If it works, you would never notice it. You would just stop having bad calls.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

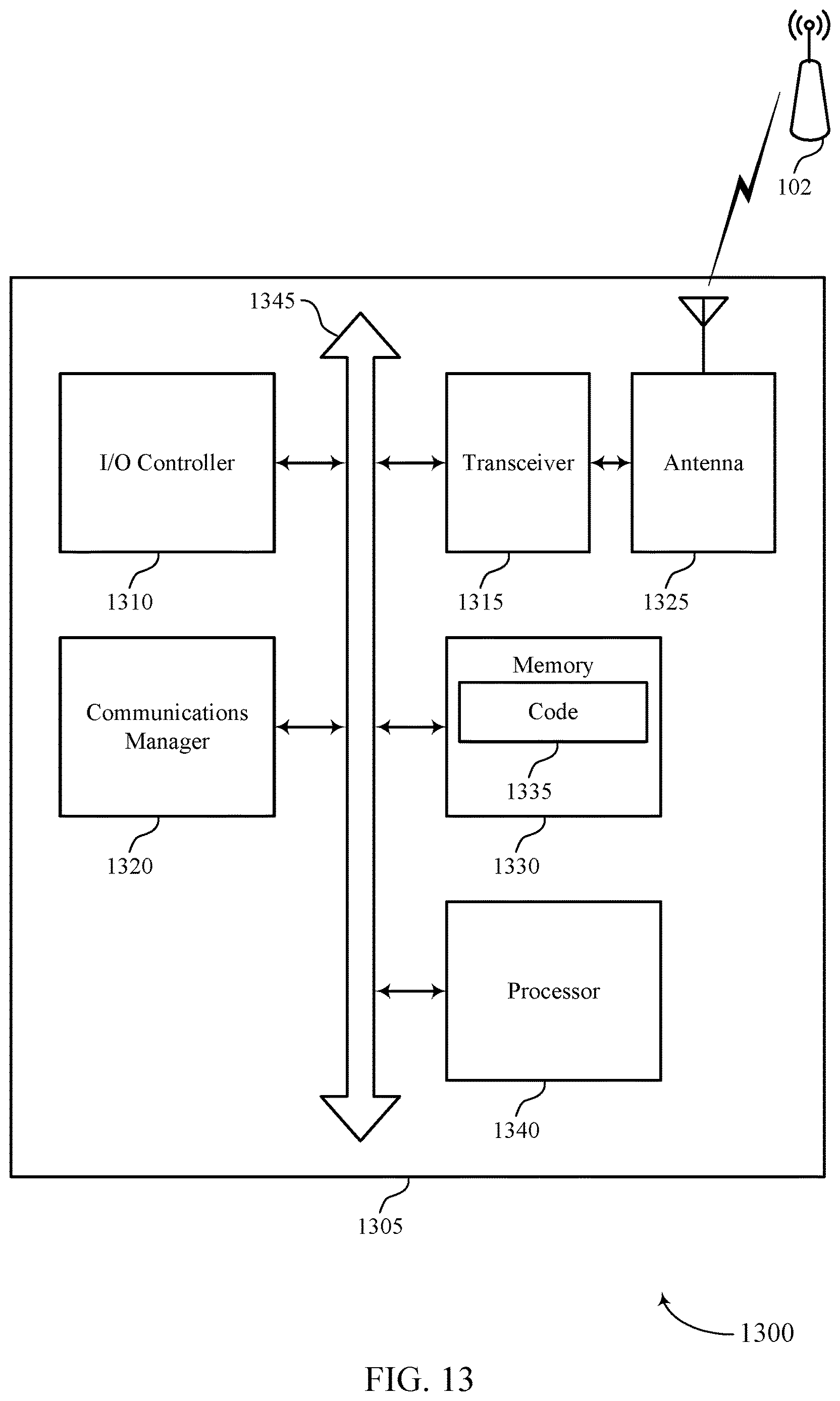

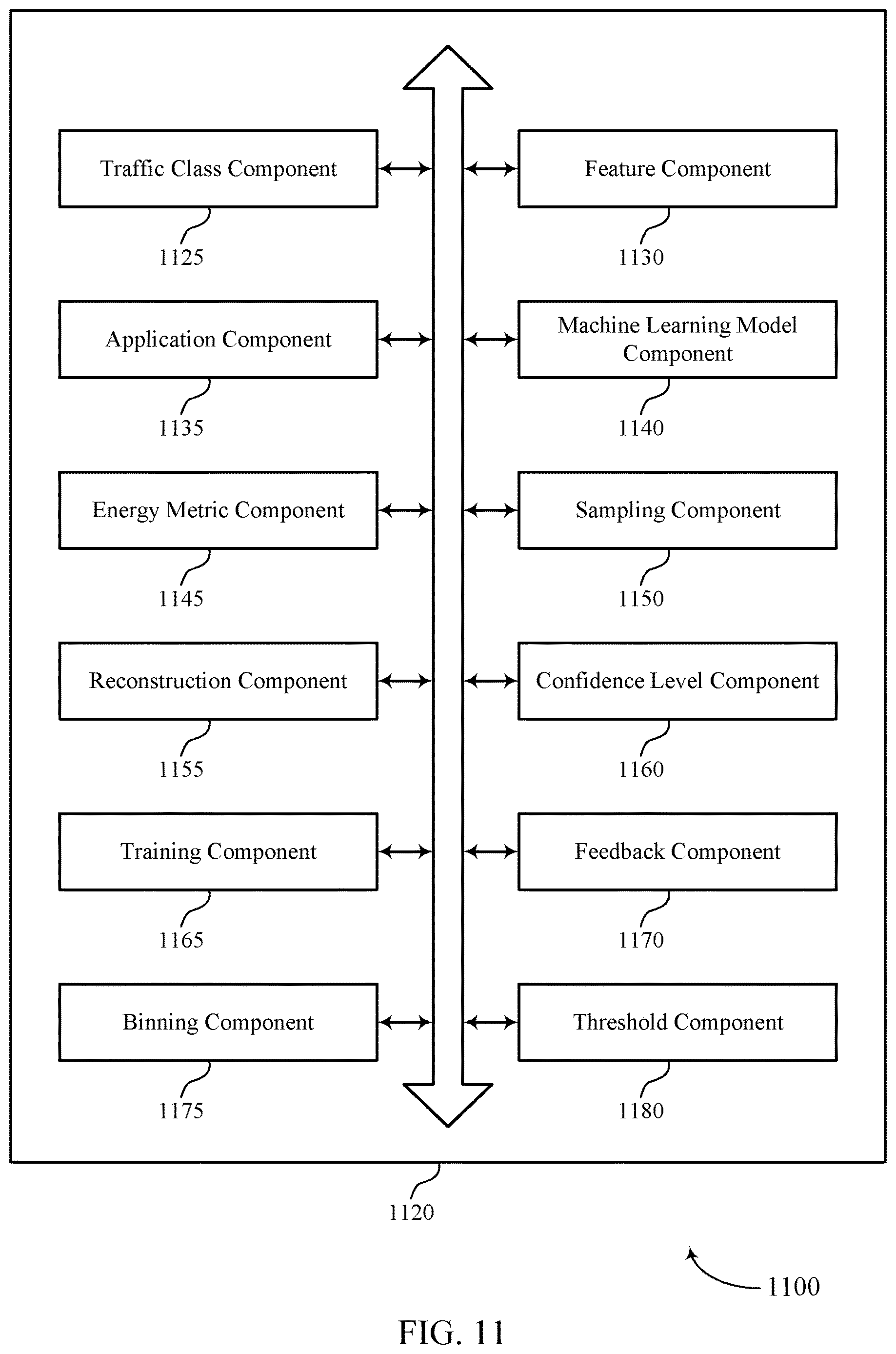

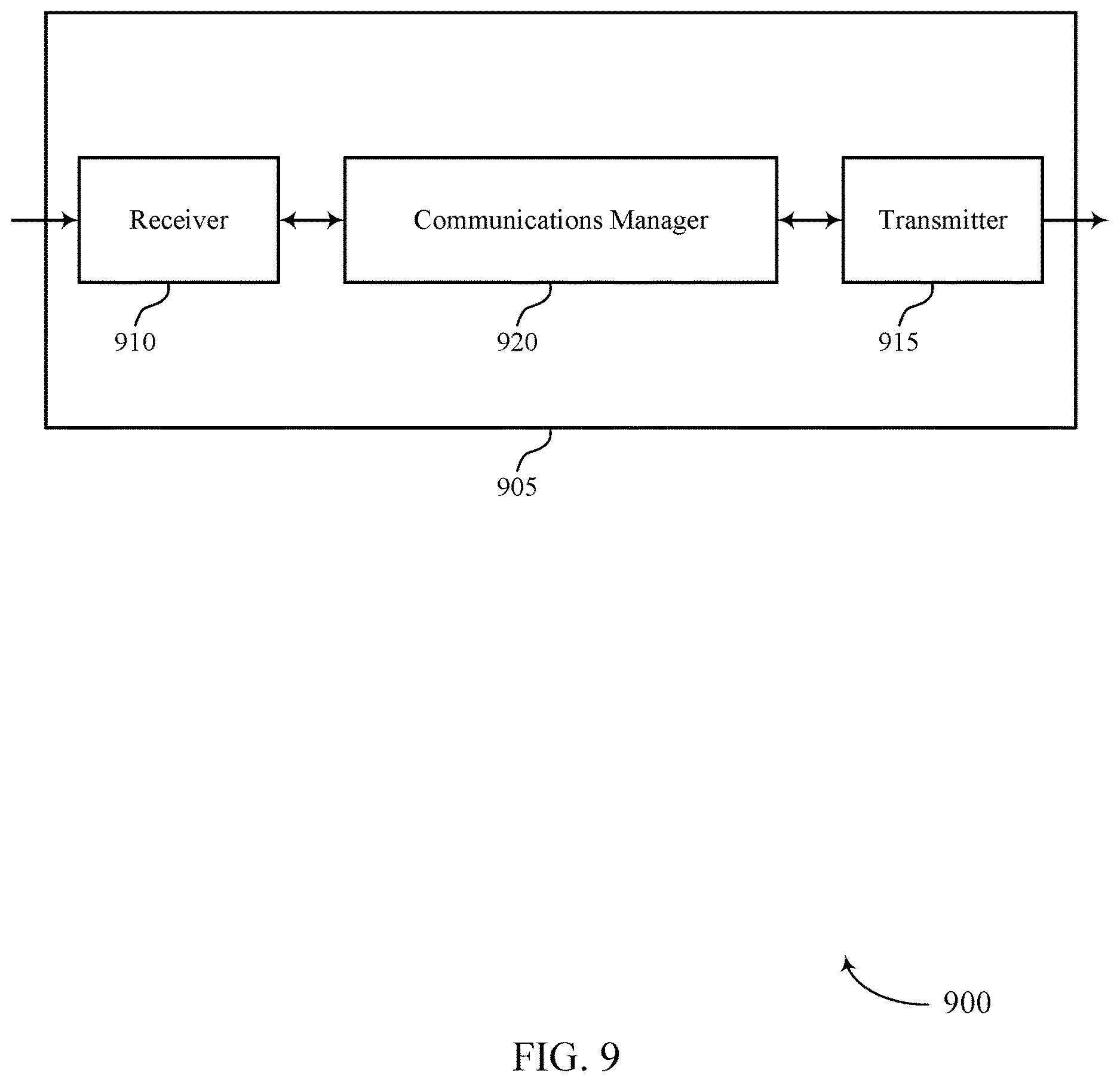

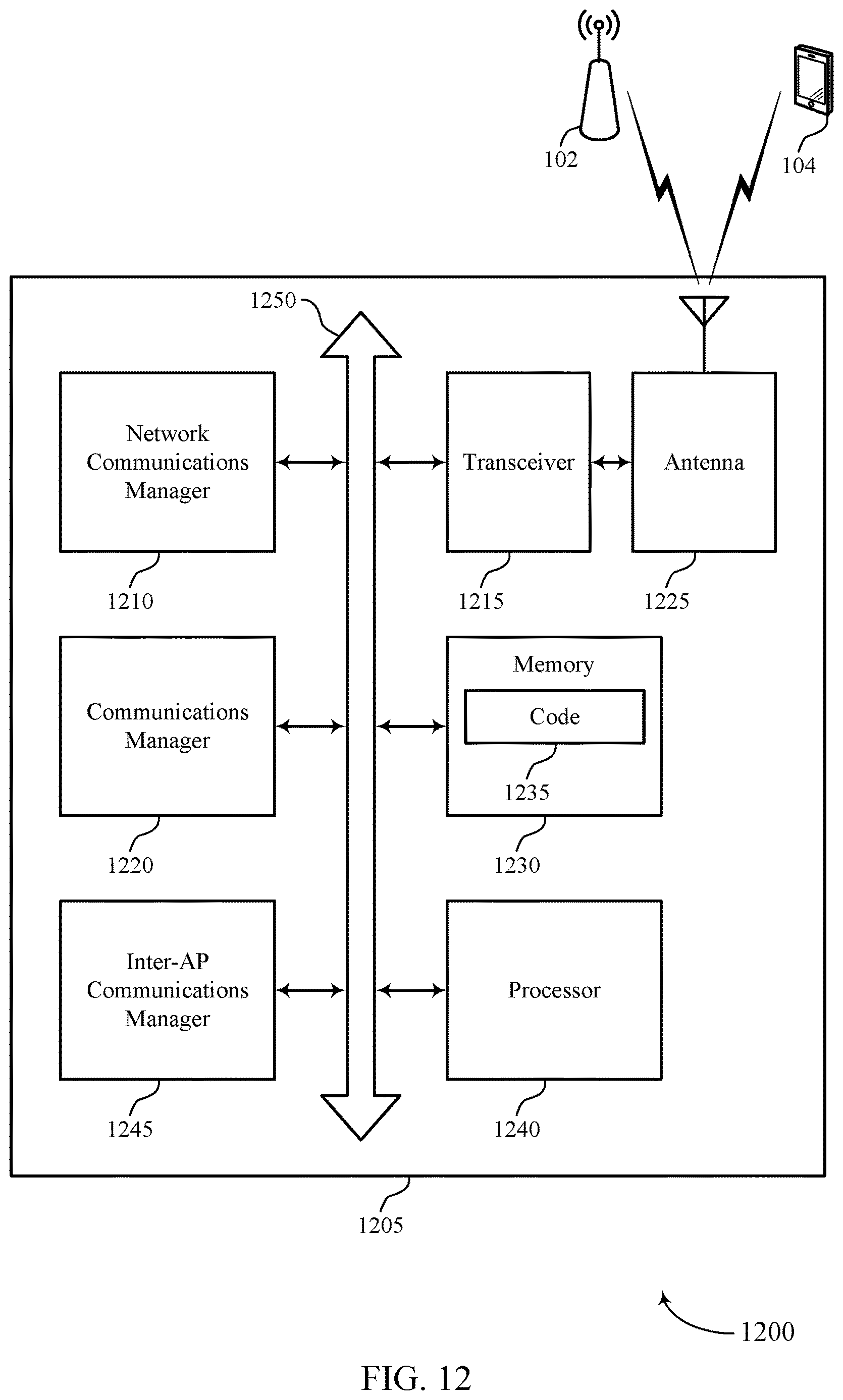

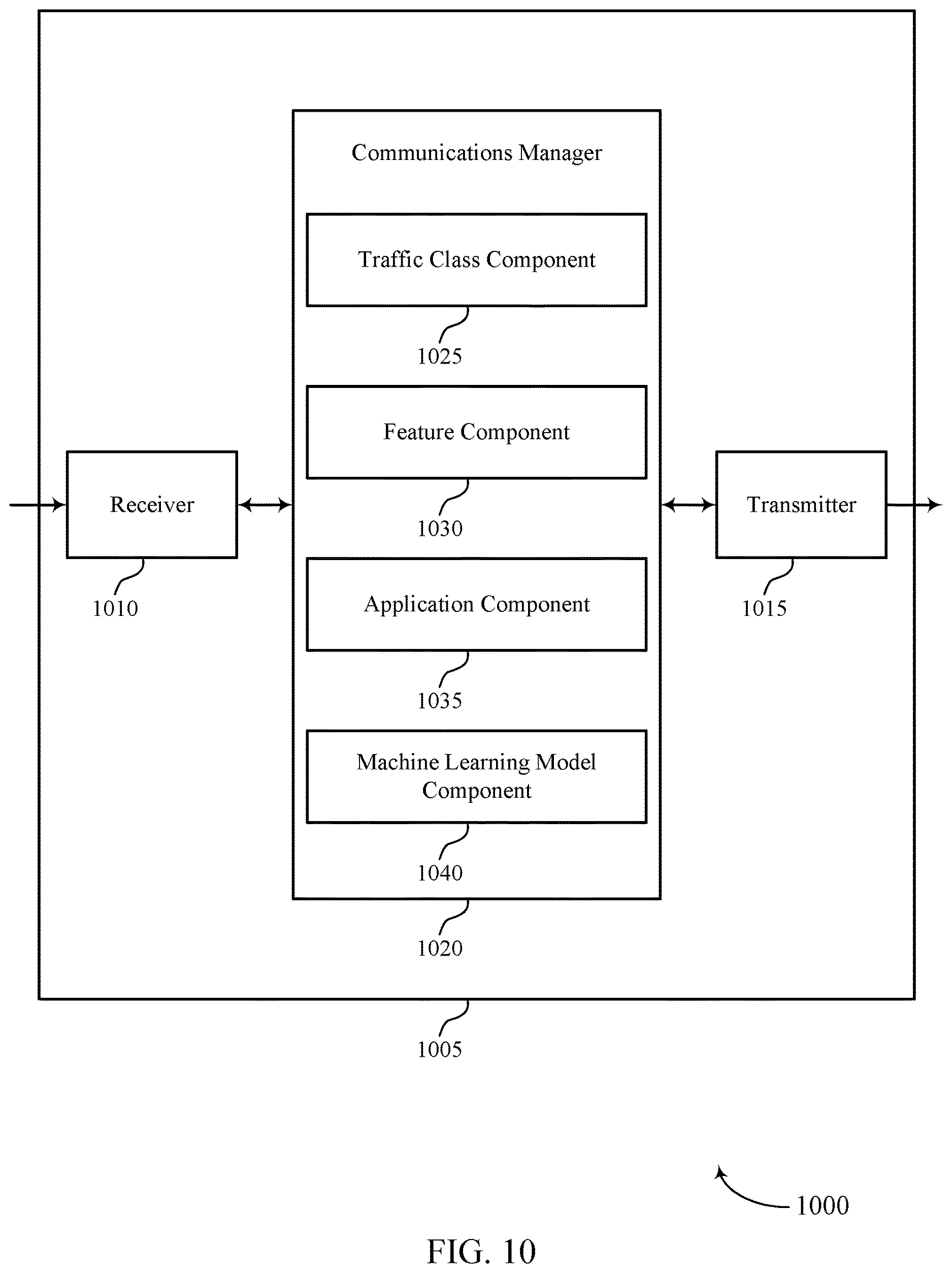

15 drawing sheets from US 2026/0270209 A1 · click any drawing to enlarge
