Qualcomm Patents a Fingerprint Sensor That Listens to Light Hitting Your Finger
Qualcomm's latest patent describes a fingerprint scanner that doesn't just shine light at your finger and photograph it. Instead, it fires light at an angle, waits for your finger to literally ring like a bell, and then listens to the ultrasonic sound that comes back.
What Qualcomm's sound-based fingerprint scanner actually does
Most fingerprint sensors on phones today either bounce light off your finger or use ultrasound to map the ridges on your skin. Each method has trade-offs: light-based sensors struggle under certain screen types, and ultrasonic ones can be expensive to get right.
Qualcomm's patent describes a system that combines both. A light source fires at a precise angle onto the surface where your finger rests. That burst of light heats a tiny patch of your fingertip so fast that it causes a microscopic pressure pulse, essentially a sound wave too high-pitched for you to hear. A separate array of ultrasonic receivers, also angled differently from the light, picks up that wave and uses it to build a map of your fingerprint.
The key detail is that the light and the receiver face different directions, with an acoustic waveguide channeling the waves toward the sensors. That separation is what the patent is protecting, and it's meant to get a cleaner, more accurate read of your finger's surface without the two systems interfering with each other.
… an ultrasonic receiver system configured to receive ultrasonic waves generated by the target object responsive to the light from the light source system …
Translation: It listens for sound waves created when light hits your finger.
How angled light and ultrasonic receivers map your fingerprint

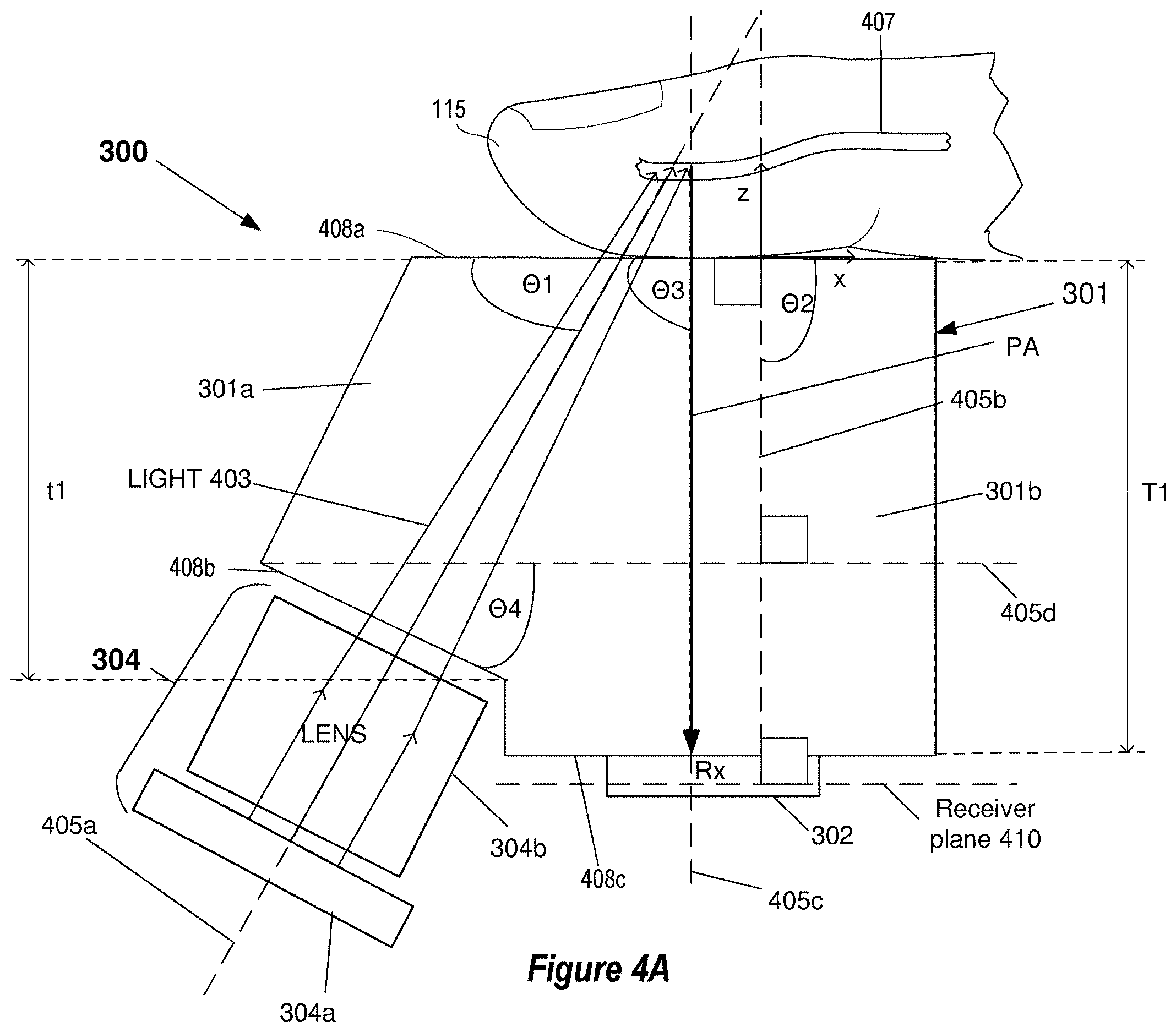

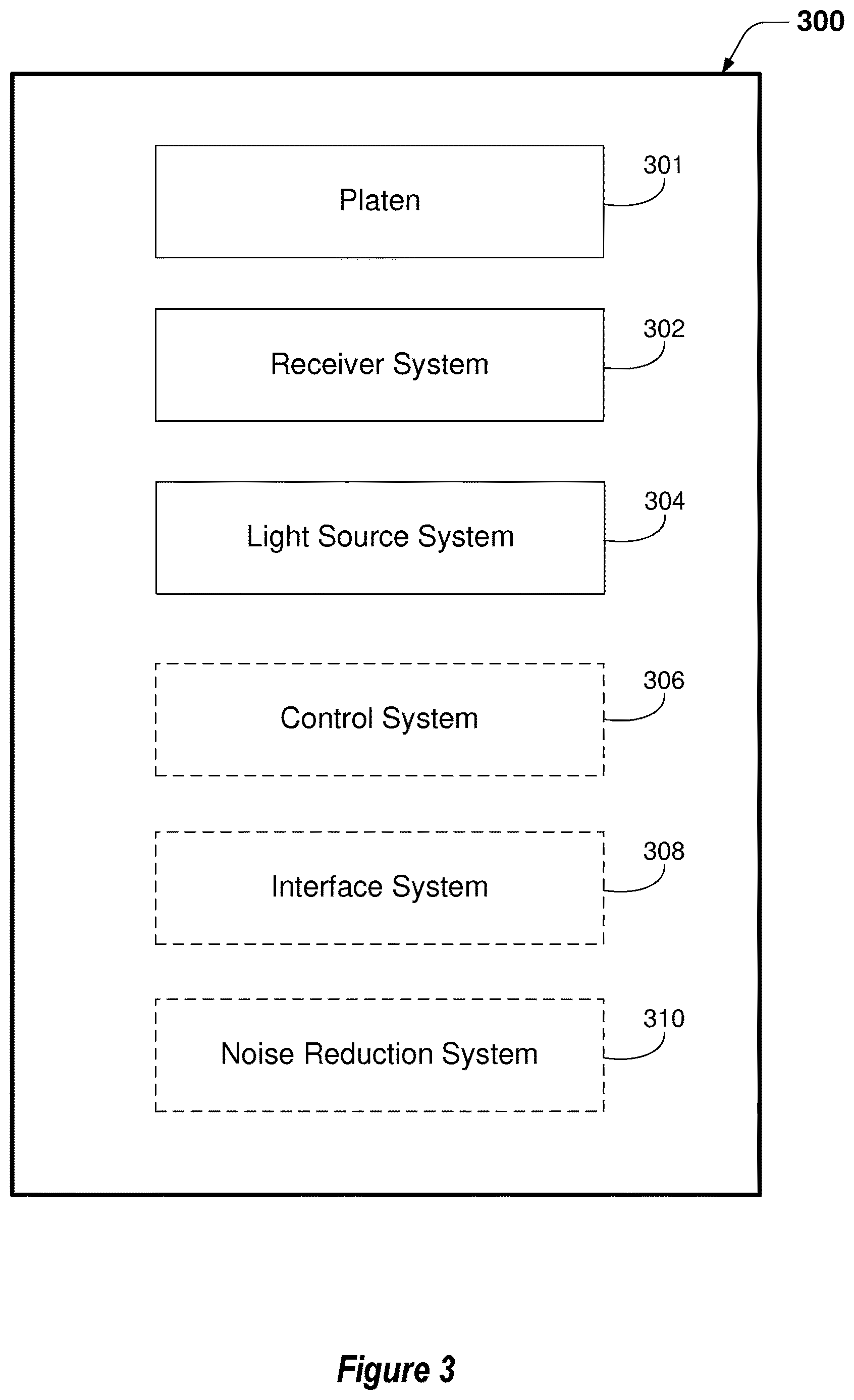

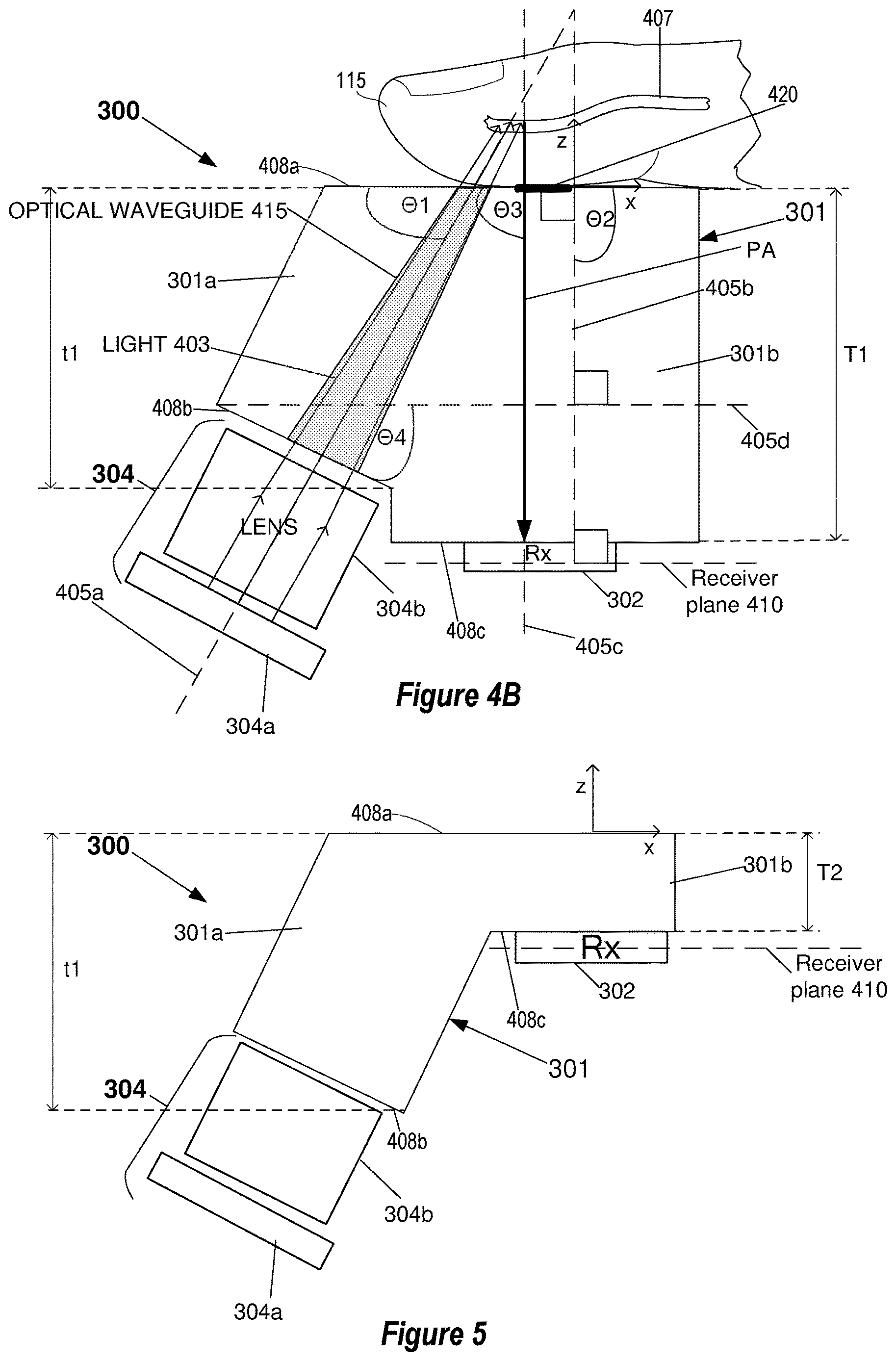

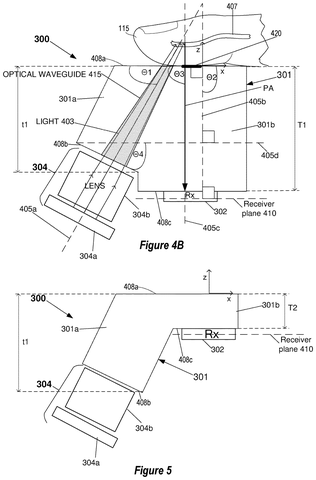

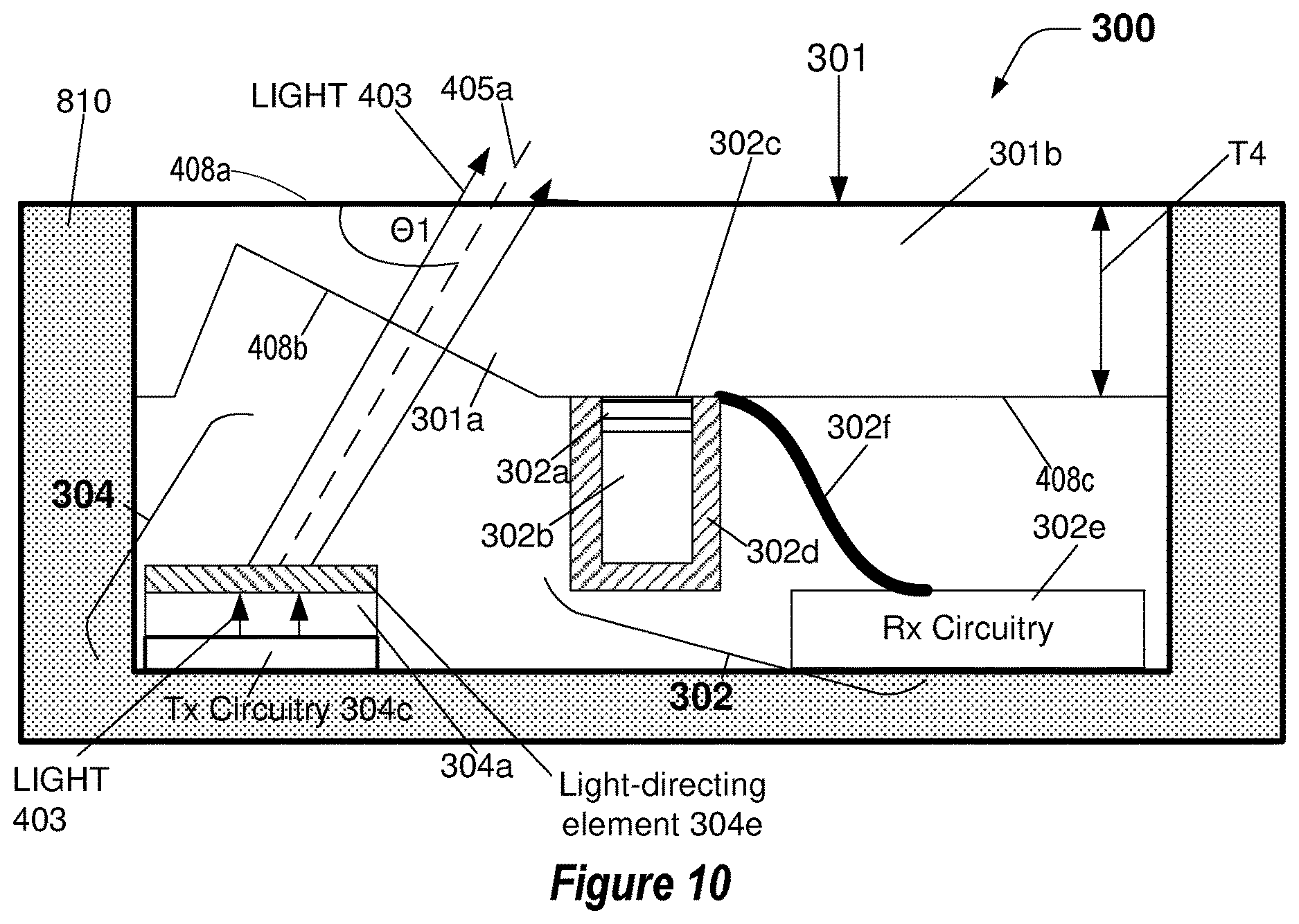

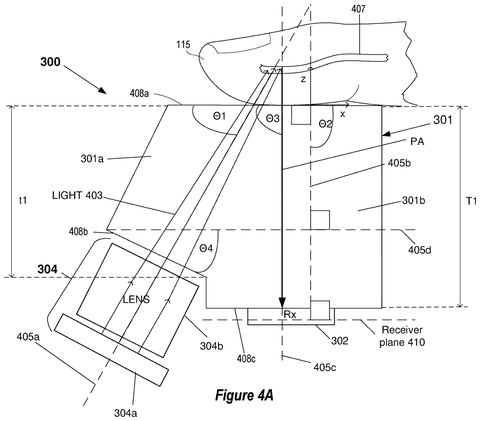

The system has three main components working together: a flat platen (the glass or surface you press your finger against), a light source angled at one precise degree relative to that surface, and an array of ultrasonic receivers angled at a different degree.

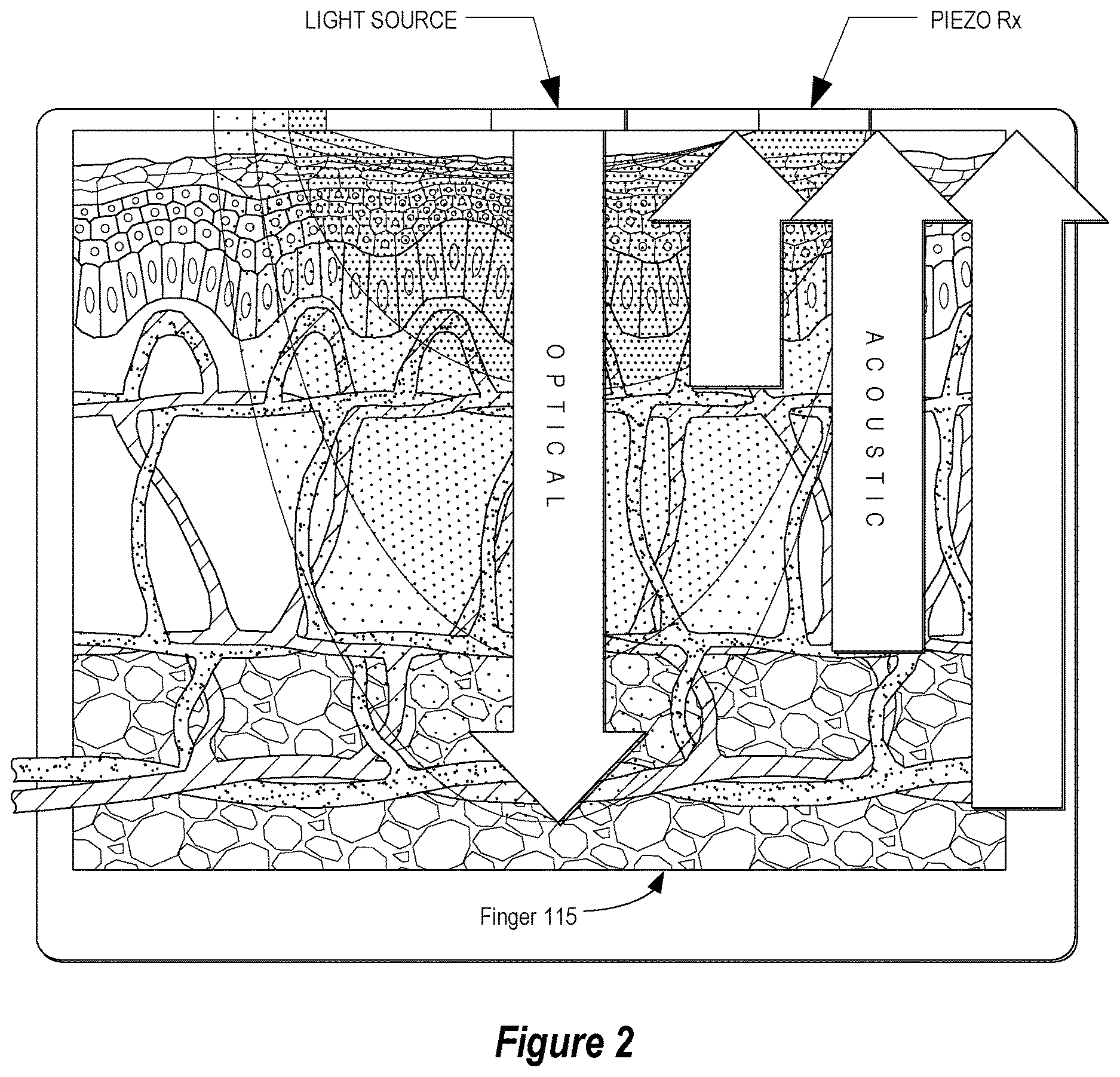

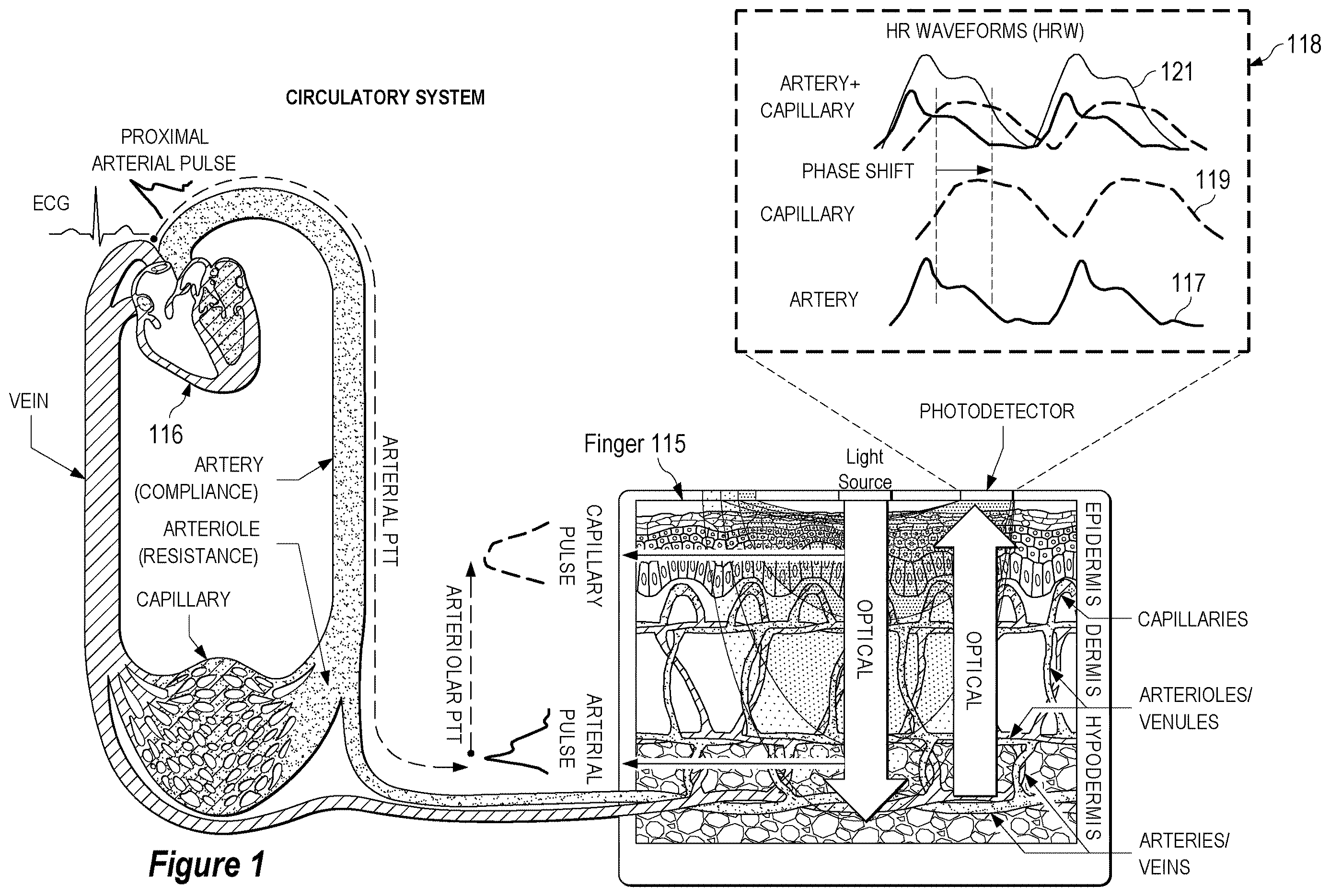

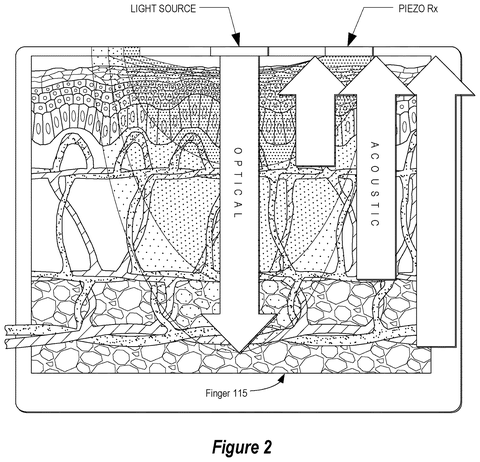

When light hits your fingertip at speed, it causes rapid local heating through a process called the photoacoustic effect (light energy converts to a pressure wave, the same principle used in some medical imaging devices). The ridges and valleys of your fingerprint respond differently to that wave, so the ultrasonic signal that comes back carries a detailed map of your print.

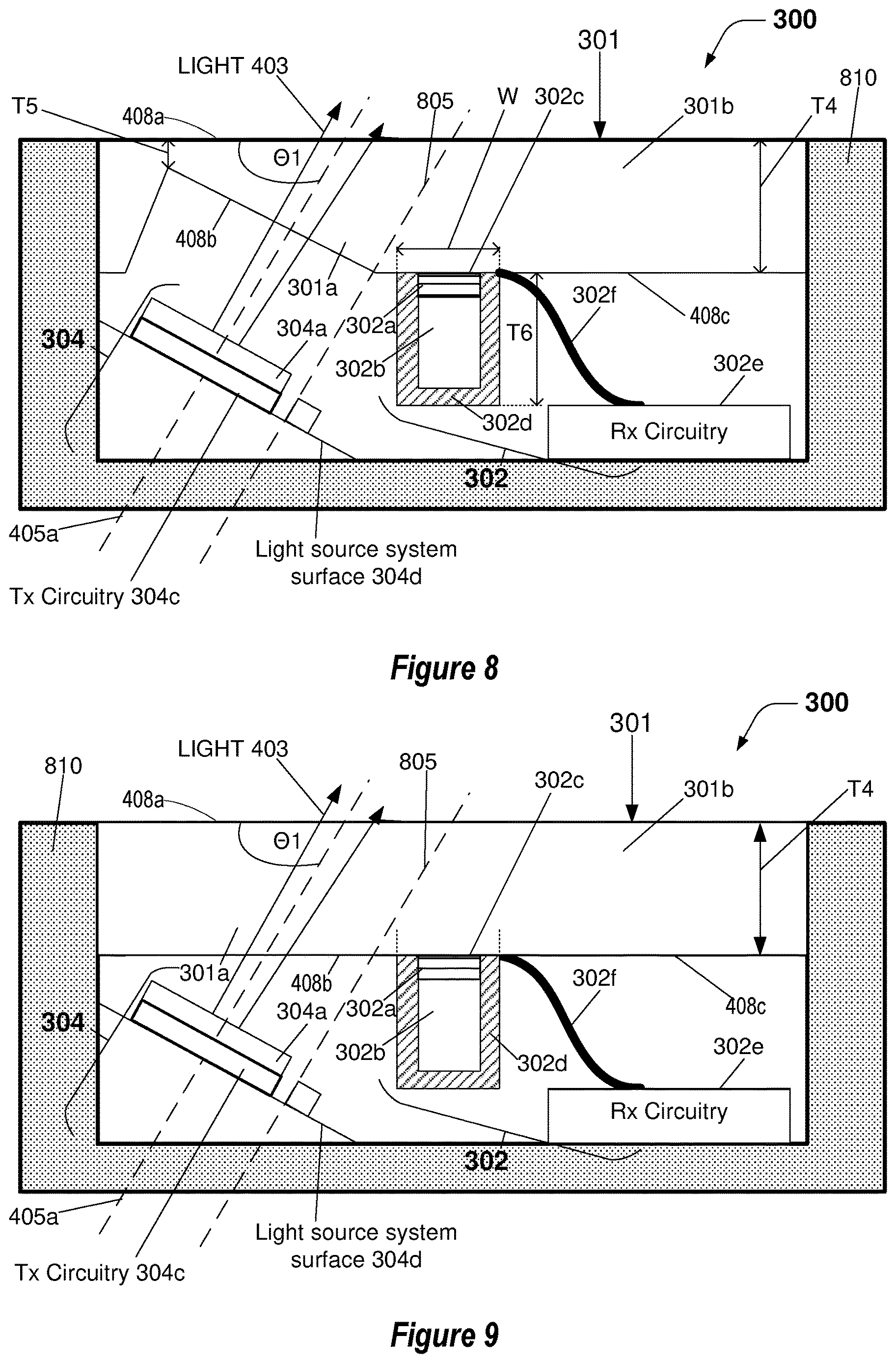

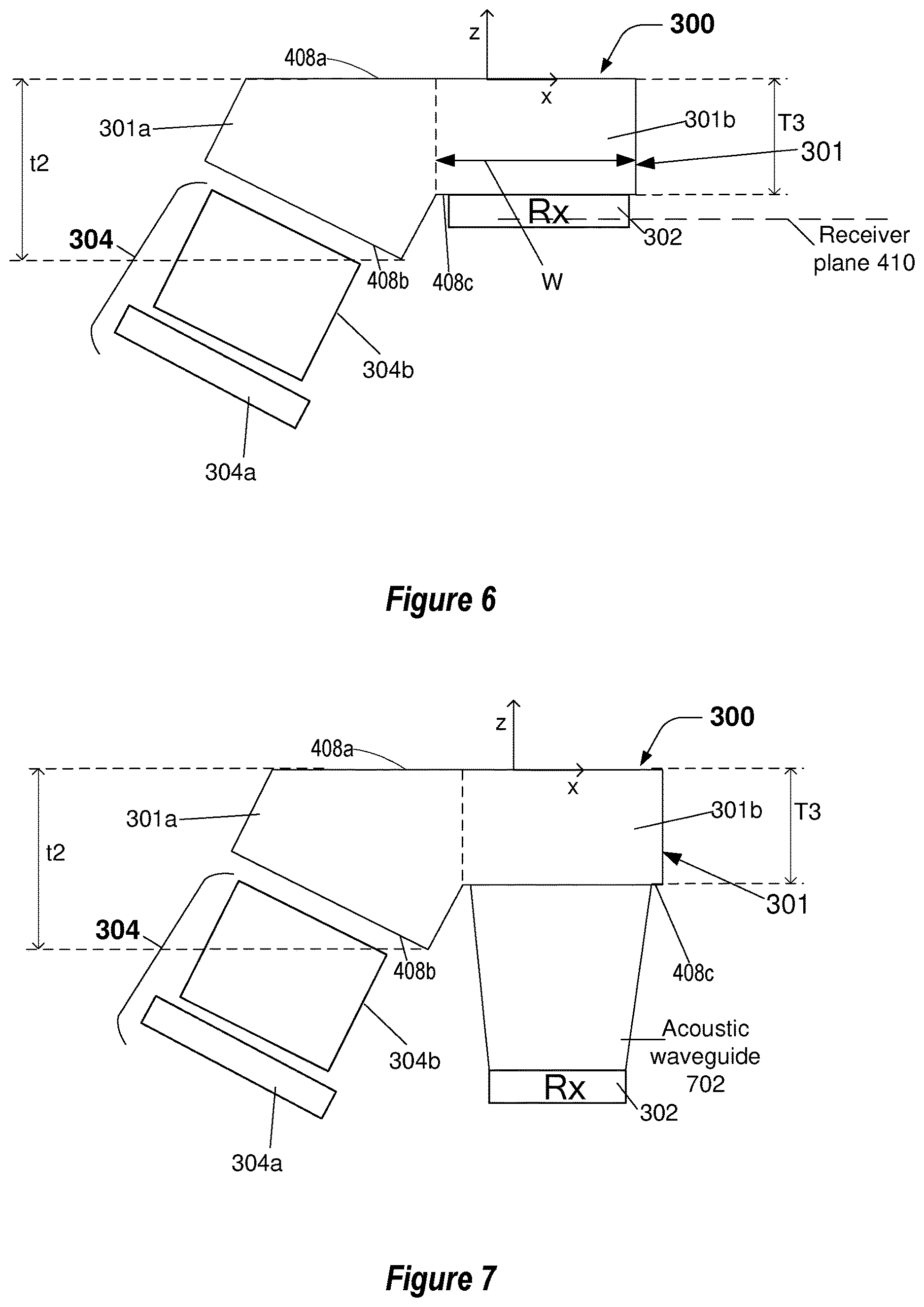

The patent's core claim is the geometry: the light travels in on one axis, and the receivers sit on a different axis, separated by design. An acoustic waveguide (essentially a shaped channel that steers sound the way a pipe steers water) funnels those ultrasonic waves toward the receiver elements so as little signal as possible is lost.
- Platen: the flat contact surface your finger rests on
- Light source system: fires at a defined angle to trigger the photoacoustic effect
- Ultrasonic receiver array: listens at a different angle for the returning sound waves
- Acoustic waveguide: routes the waves efficiently to the receivers
The light source system may be configured to provide light to a target object on an outer surface of the platen.
Translation: A light shines directly onto your finger placed on the scanner glass.
What this means for under-screen fingerprint readers
For you as a phone user, a better under-screen fingerprint sensor means fewer rejected reads, less pressing-and-waiting, and a scanner that works even if your fingers are slightly damp or the screen has a thick protective case on it. Ultrasonic fingerprint tech already has a reputation for working in conditions where optical sensors fail, and this design is aimed at making that system more precise.
the pattern in Qualcomm's biometric sensor filings points toward deeper integration of sensing hardware into the display stack itself. If this approach works at scale, it could allow thinner sensors that fit under more display types, which matters as phone makers push to shrink bezels and eliminate physical buttons entirely.
Qualcomm's 20th filing in our Camera patent coverage since May follows earlier applications like one on bright-dark scene capture and one on radio-guided focus, adding to a body of work we've tracked all year.
The practical promise here is a fingerprint sensor that works when you actually need it: wet thumb, odd angle, rushed unlock at a bad moment. Separating where the light hits your finger from where the sensor listens for the returning signal cuts down on the self-interference that makes sensors hesitate or fail.
Whether you ever notice this depends entirely on whether it reaches a phone you own. A patent on sensor geometry is a building block, not a product.
The real question is whether phone makers build it in, because that is the moment it stops being a lab result and starts being the reason your phone opens on the first try.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
20 drawing sheets from US 2026/0272307 A1 · click any drawing to enlarge
