Salesforce Patents a System That Flags Harmful Data Requests Before They Execute

Most database attacks succeed because a malicious query looks like any other SQL command until it's too late. Salesforce has filed a patent for a system that builds a statistical profile of normal queries and automatically blocks anything that falls too far outside the pattern.

By Patentlyze Team · Updated Aug 14, 2026 · 3 min read

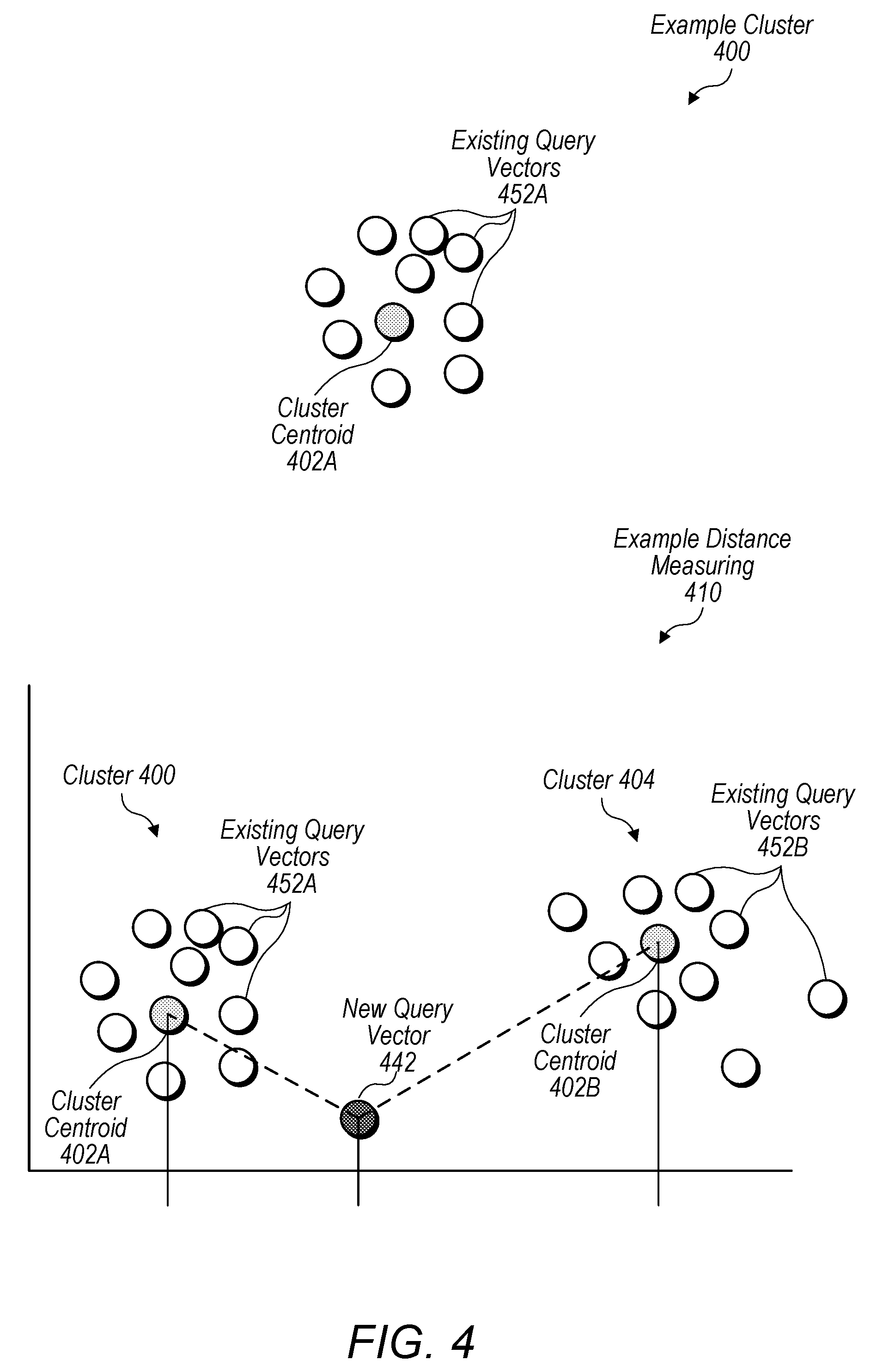

Spatial distribution map showing query vectors clustered around centroids to measure similarity. Drawing from patent filing US 2026/0236470 A1. — Spatial distribution map showing query vectors clustered around centroids to measure similarity.All 8 drawings ↓

Publication number: US 2026/0236470 A1(US20260236470A1)
Applicant: Salesforce, Inc.
Filed · Published: Apr 13, 2026 · Aug 13, 2026
Inventors: Anup Ghatage, Colm McHugh
Status when we published: Waiting for an examiner
Document: 20 claims
US classification: 707/719
Parent application: Continuation of 19/018,006 (filed Jan 13, 2025)(19018006)

How Salesforce's query-screening system actually works

Every large company's database fields thousands of queries per day, and most security tools only check whether a query is technically valid, not whether it's behaving strangely. A query asking for an unusual number of columns, or one that would cost the server far more computing power than normal, can slip right through.

Salesforce's patent describes a way to change that. Before any query actually runs, the system converts it into a kind of fingerprint made up of measurable traits: how many columns it touches, how expensive it would be to execute, and other factors pulled from the database's own query planner. That fingerprint is then compared against a map of all the fingerprints the system has seen before, grouped into clusters of similar queries.

If your new query lands too far from every existing cluster, it gets flagged or blocked automatically. The further it sits from anything "normal," the more suspicious it looks. The system uses tiered distance thresholds, so a slightly unusual query might just get logged, while a wildly outlying one gets stopped outright.

From the filing · CLAIM 1

… retrieving, by the server system prior to execution of the new query, an estimated execution plan from a query optimizer, the estimated execution plan specifying a plurality of estimated metrics; generating, by the server system, a multi-dimensional query vector for the new query based on a set of query aspects …

Translation: The system analyzes a query's predicted performance and technical characteristics before it actually runs.

How the clustering engine scores and flags each query

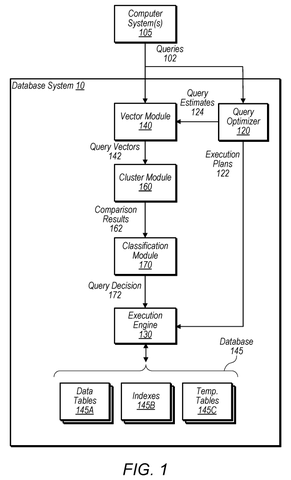

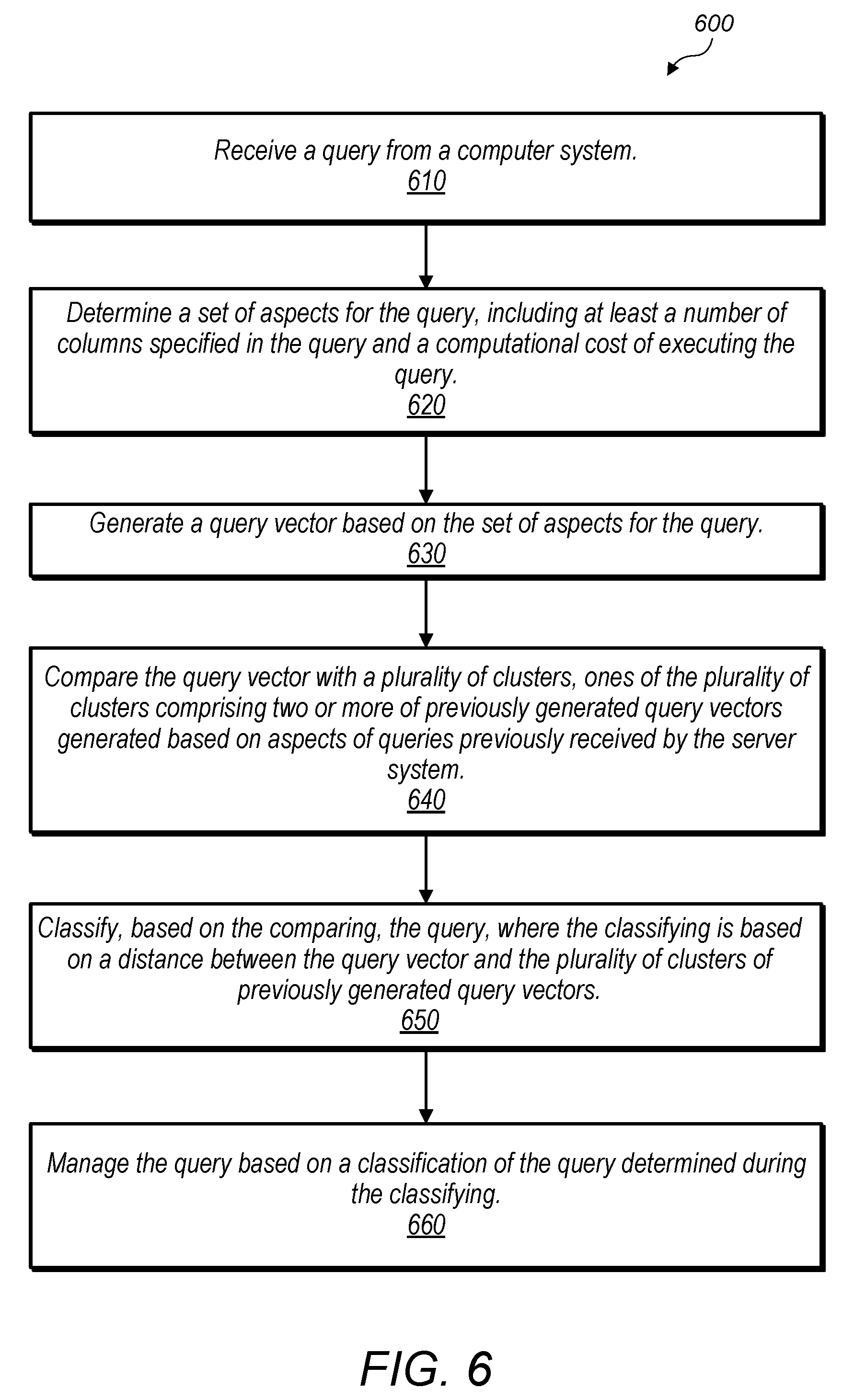

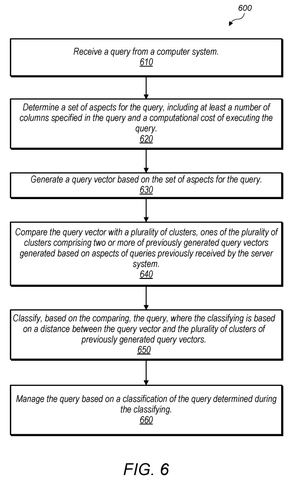

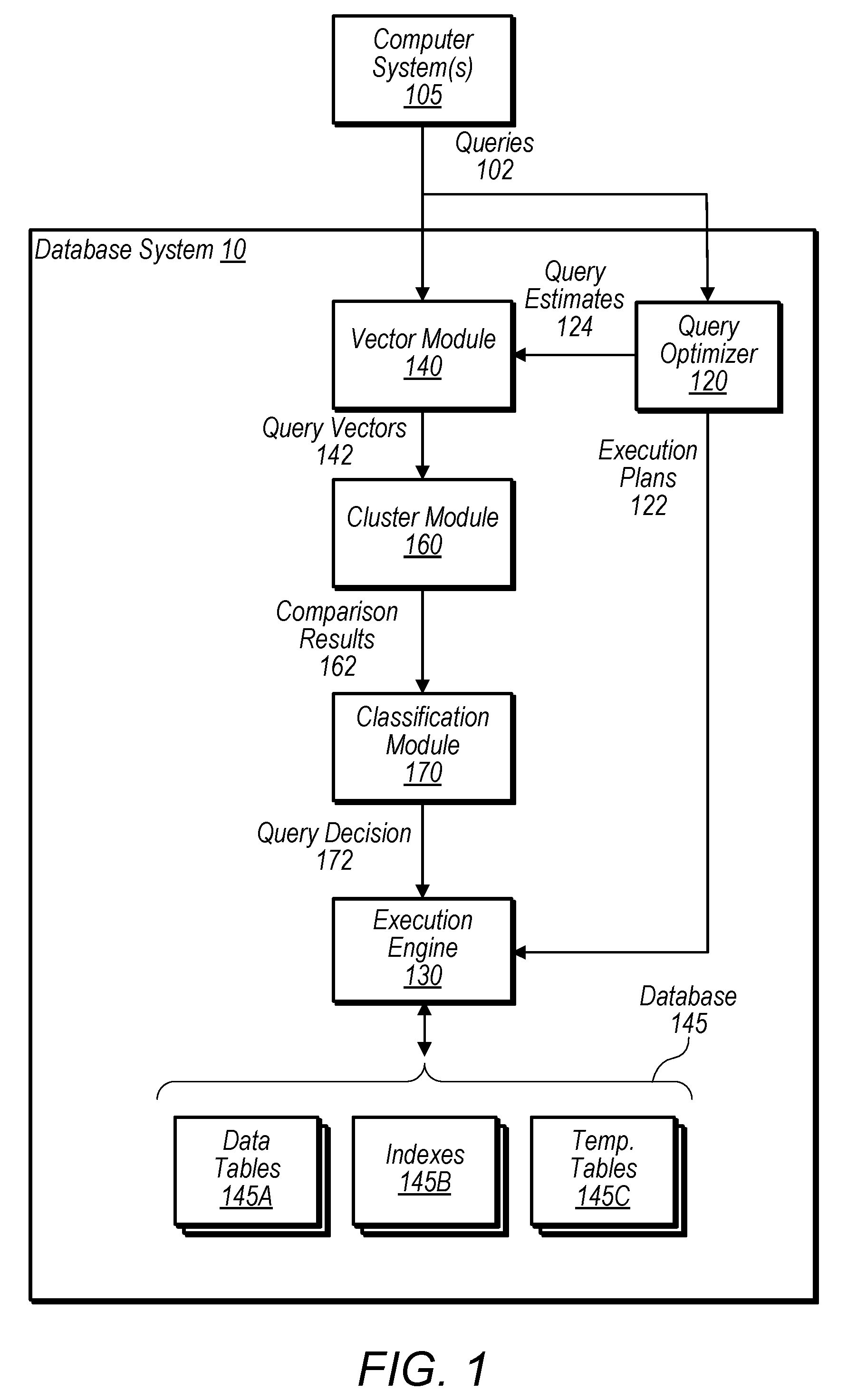

The patent describes a multi-step pipeline that runs between the moment a query arrives and the moment the database engine actually executes it.

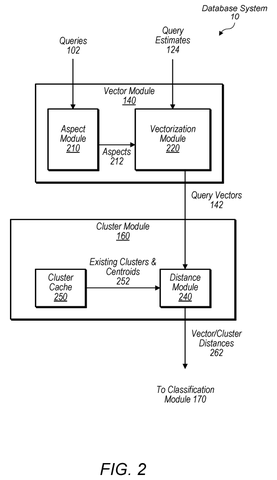

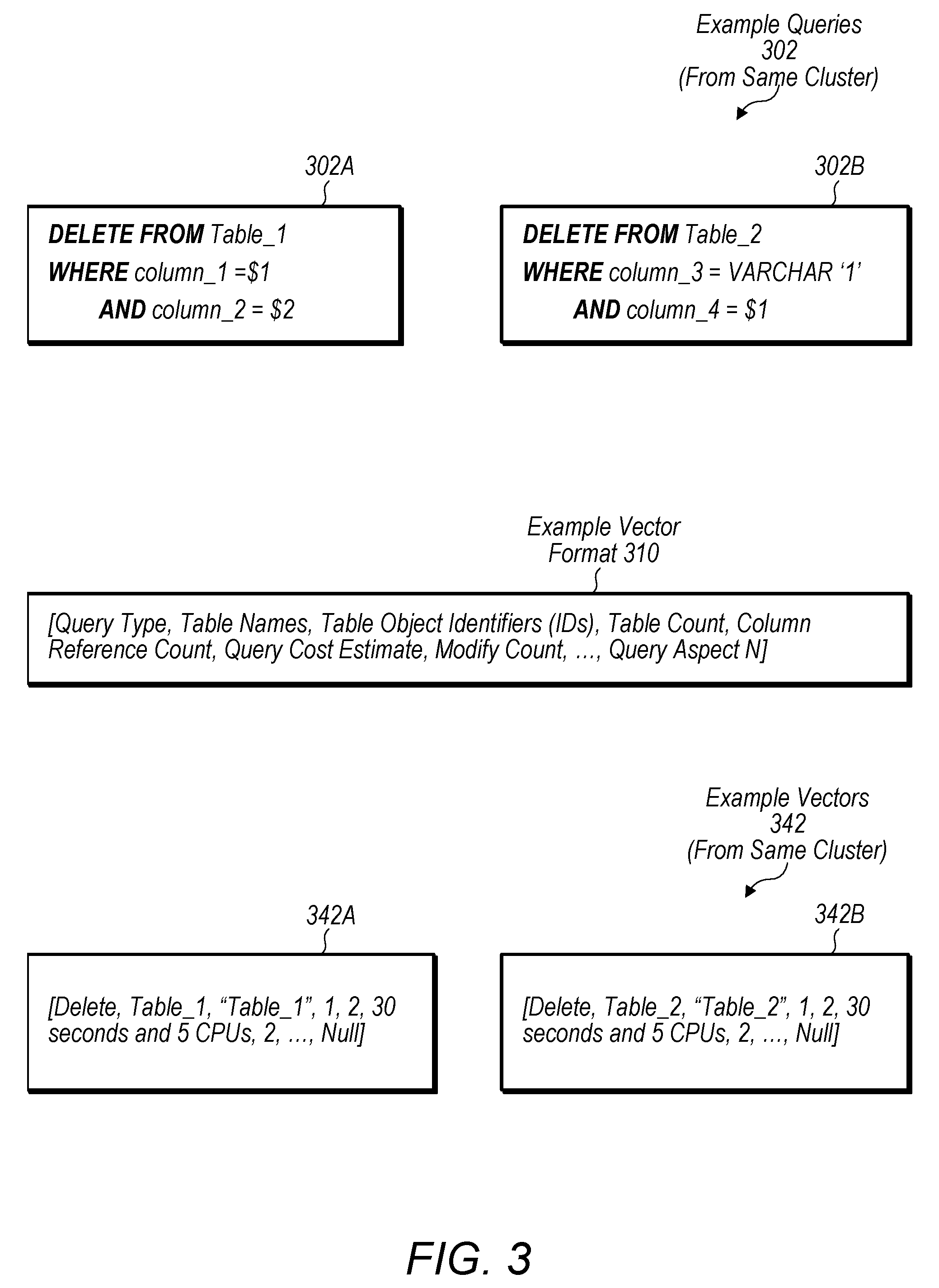

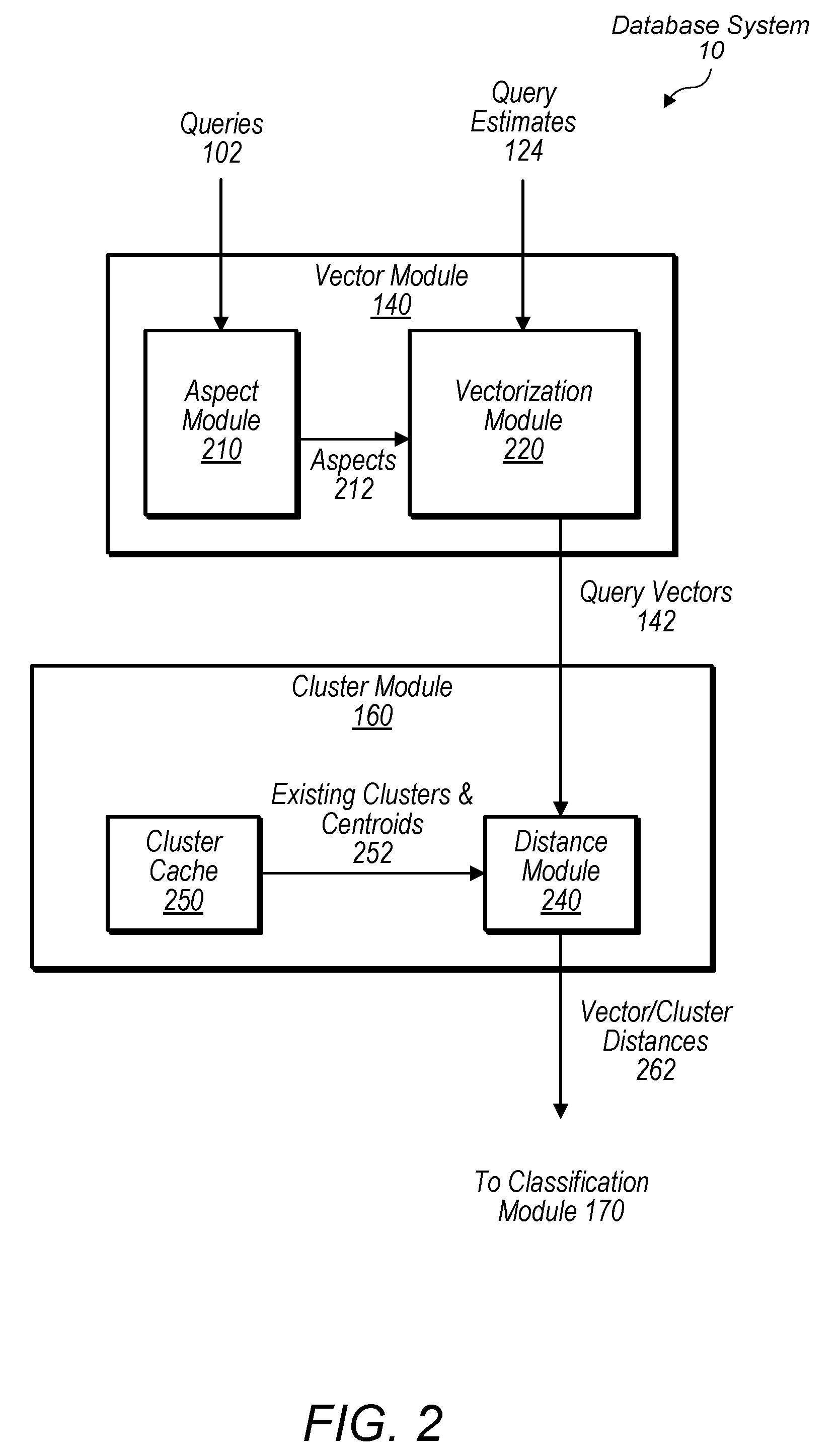

Step one: query vectorization. When a new query comes in, the server intercepts it and asks the database's own query optimizer (the internal component that estimates how long a query will take before running it) for an "estimated execution plan." That plan includes metrics like the number of rows the query would scan, the computational cost, and the columns involved. These metrics are combined into a multi-dimensional query vector, essentially a point in a mathematical space where each dimension represents one measurable trait of the query.

Step two: cluster comparison. The system maintains a library of clusters, where each cluster is a group of previously seen query vectors that resemble one another. For each new query vector, the system calculates the distance to the nearest cluster's center point (centroid). A short distance means the query looks like queries the system has handled many times before. A long distance means it's an outlier.

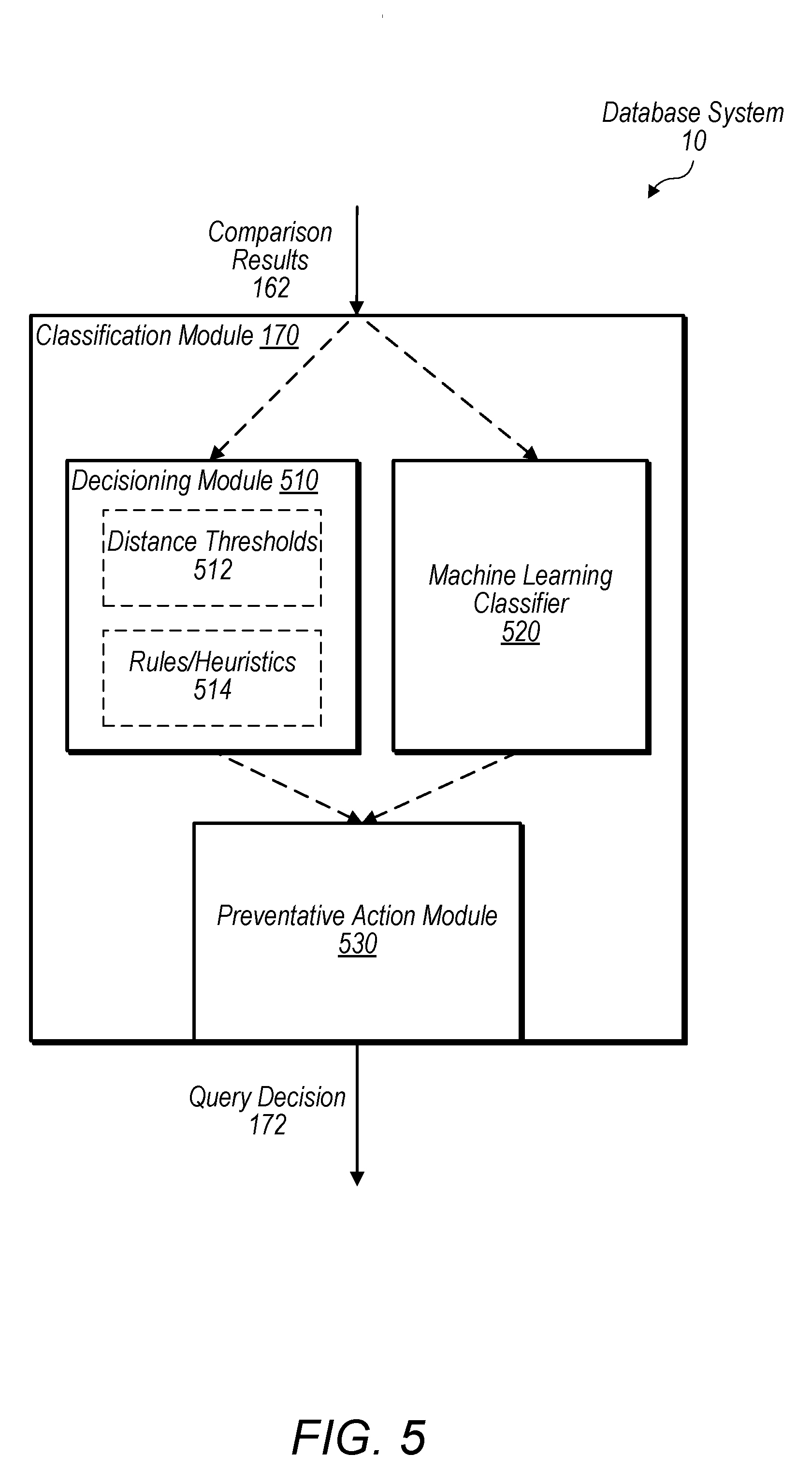

Step three: tiered classification. The distance is compared against a multi-level threshold, not a simple pass/fail. Queries that fall within a tight range are approved immediately. Queries at medium distance may trigger a review or a log entry. Queries far outside all known clusters are blocked before execution.

The whole process runs before execution, so the database never even tries to carry out a potentially harmful command.

From the filing · THE ABSTRACT

Based on the comparing, specifically a distance between the query vector and the plurality of clusters of previously generated query vectors, the system classifies the query. Based on a classification of the query determined during the classifying, the system manages the query.

Translation: The software compares new requests against patterns of past activity to decide how to handle them.

What this means for cloud database security

For companies running Salesforce's cloud database products, this kind of pre-execution screening could catch a category of attacks that traditional access controls miss entirely. A user who has legitimate credentials but is running a query that would scrape the entire customer table, or one designed to overwhelm the server, would still trip the anomaly detector because the shape of the query is wrong, even if the user's identity checks out.

The approach is mostly software-based, which means it could be deployed as a feature update rather than requiring new infrastructure, and the core mechanism (clustering against a learned baseline) is well-established in fraud detection and network security. The newest Big Tech patents in database security increasingly bet on behavioral baselines rather than rule lists, and this Salesforce filing fits squarely in that direction.

Source: US 2026/0236470 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
