Samsung Patents a Fix for Mismatched Brightness Across Foldable Phone Screens
Foldable phones have a subtle problem most people notice but can't name: the two halves of the screen can look like they're showing slightly different pictures even when they're not. Samsung's new patent targets exactly that.
What Samsung's split-screen brightness fix actually does
Ever noticed that one side of a foldable phone's display looks a little brighter or warmer than the other? It's a real issue, and it's more noticeable than manufacturers like to admit.
Samsung's patent describes a system that constantly checks the color values on each half of a foldable screen. When the two halves look different enough to be noticeable, the phone automatically adjusts the brightness of whichever half is off, so both sides appear consistent to your eye.
This kind of fix might sound minor, but it's the sort of detail that makes a foldable feel like a finished product rather than a prototype. When you're reading a document or watching a video across both halves, a brightness mismatch breaks the illusion that you're looking at one continuous screen.
… identify a color value of the first display area and a color value of the second display area …
Translation: The device checks the color levels on both sides of the screen.
How the device detects and corrects the color mismatch
The patent covers a foldable device where the display spans two hinged housings. Each half of the display can show a different image or a portion of the same image.

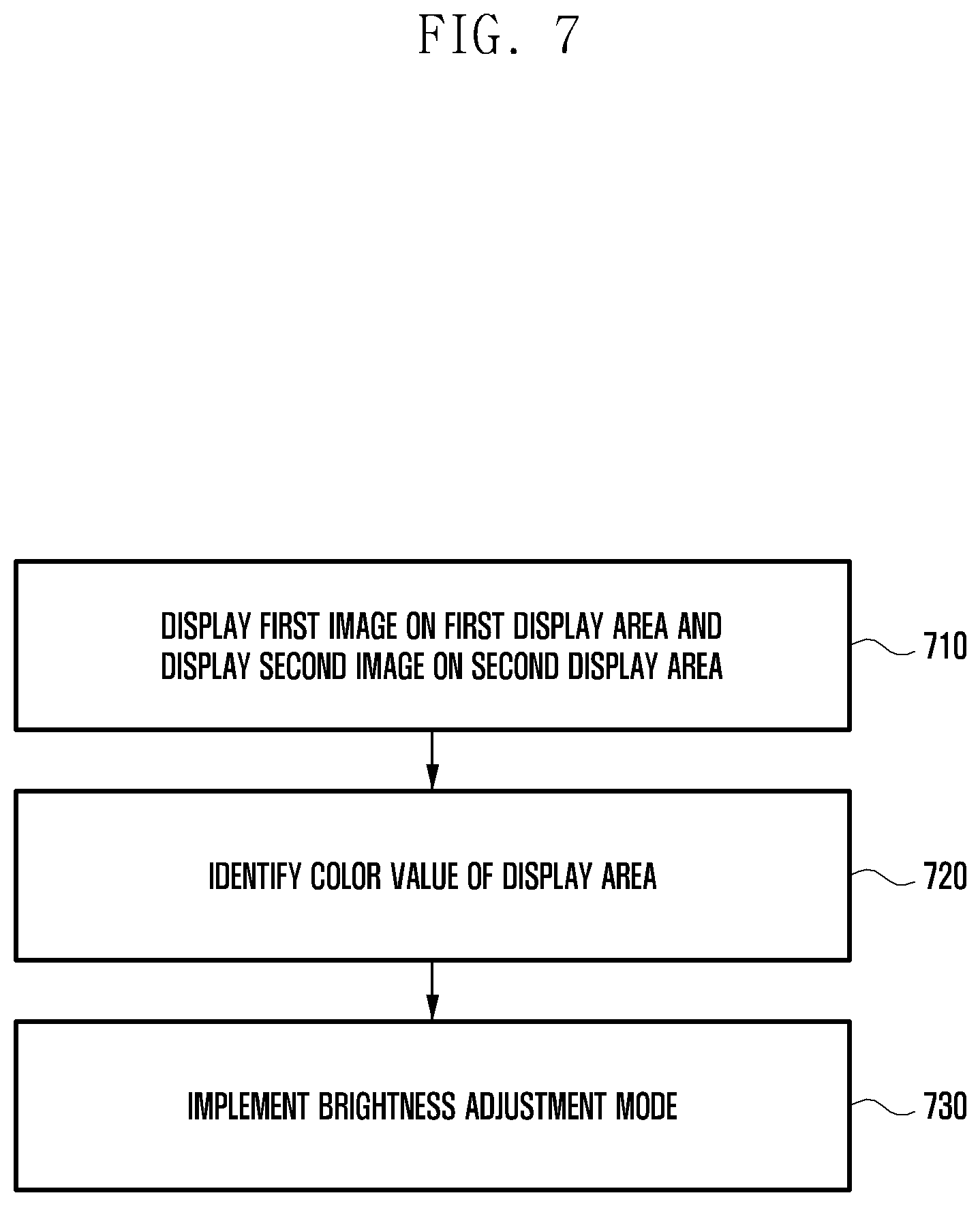

The core logic works like this: the device's processors read the color value (a measure of overall brightness and tone) from each display half. If the difference between those values crosses a preset threshold, the device enters a brightness adjustment mode that can tune each half independently.
- The system identifies color values for both screen sections continuously.
- A threshold check determines whether the gap is large enough to require correction.

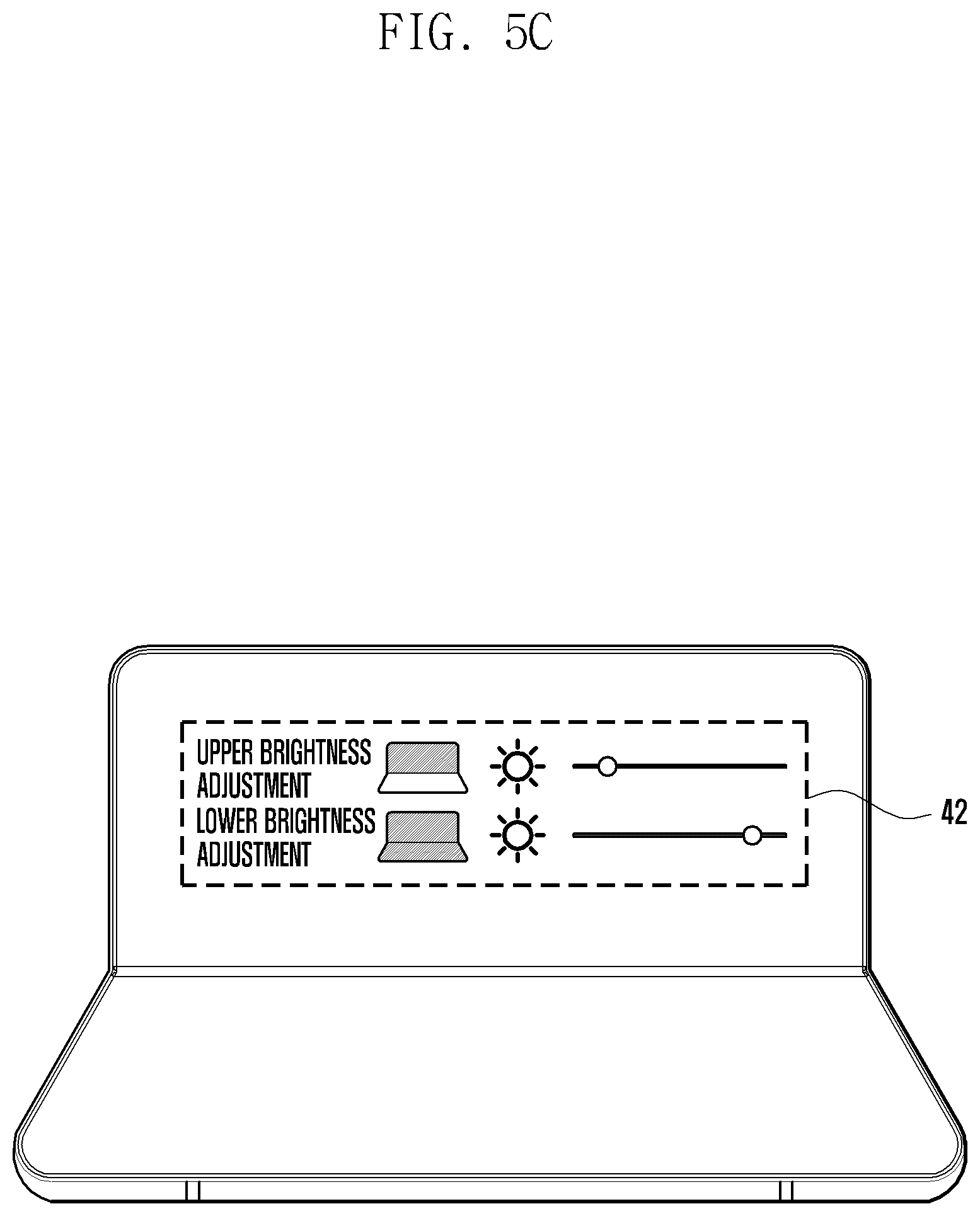

- If it is, the device adjusts the brightness of one or both halves individually, rather than applying a blanket change to the whole screen.

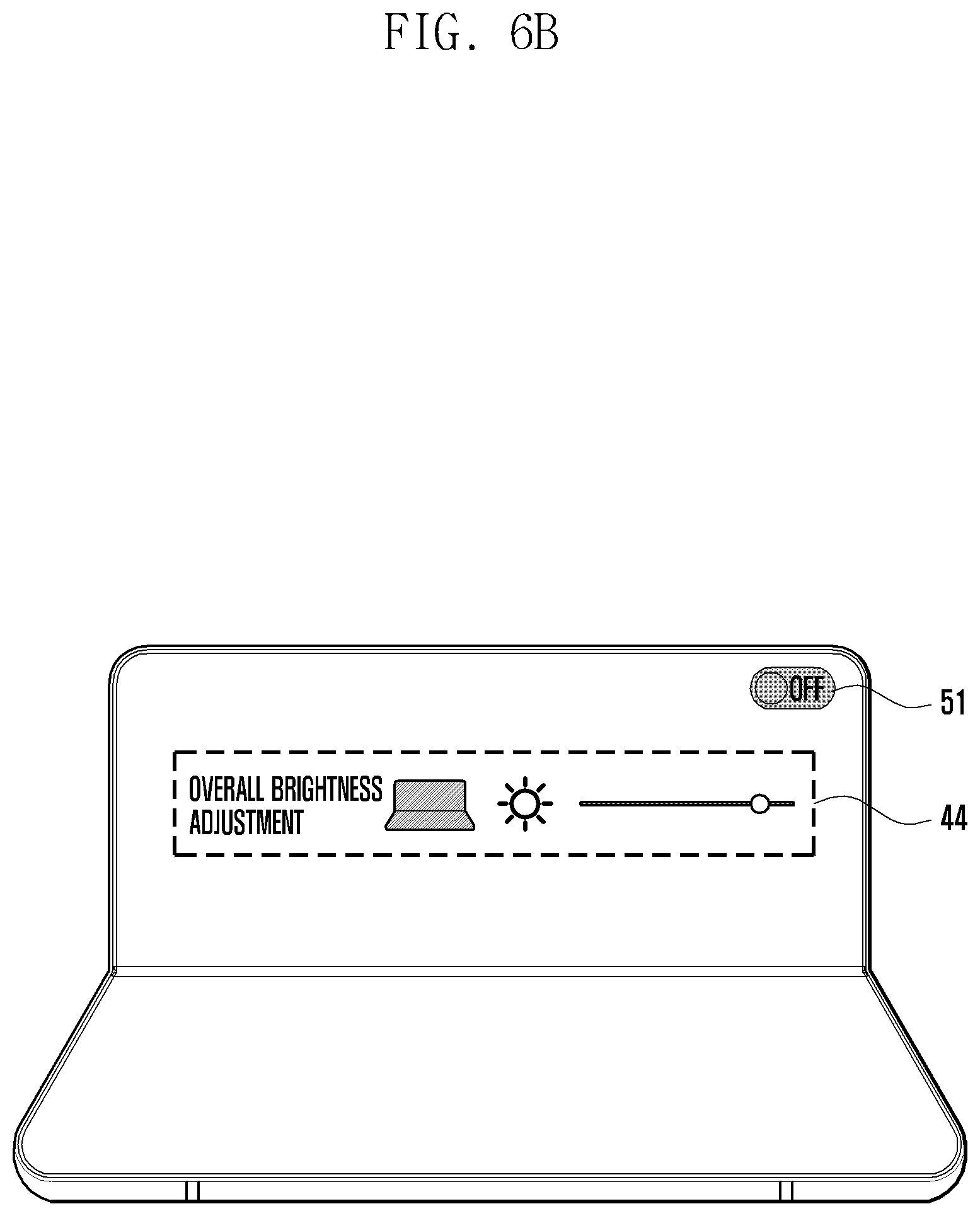

The key distinction is individual adjustment. Most display calibration treats the panel as one unit. This approach treats the two physical halves as separate targets, correcting each one based on its actual measured output rather than a single average.

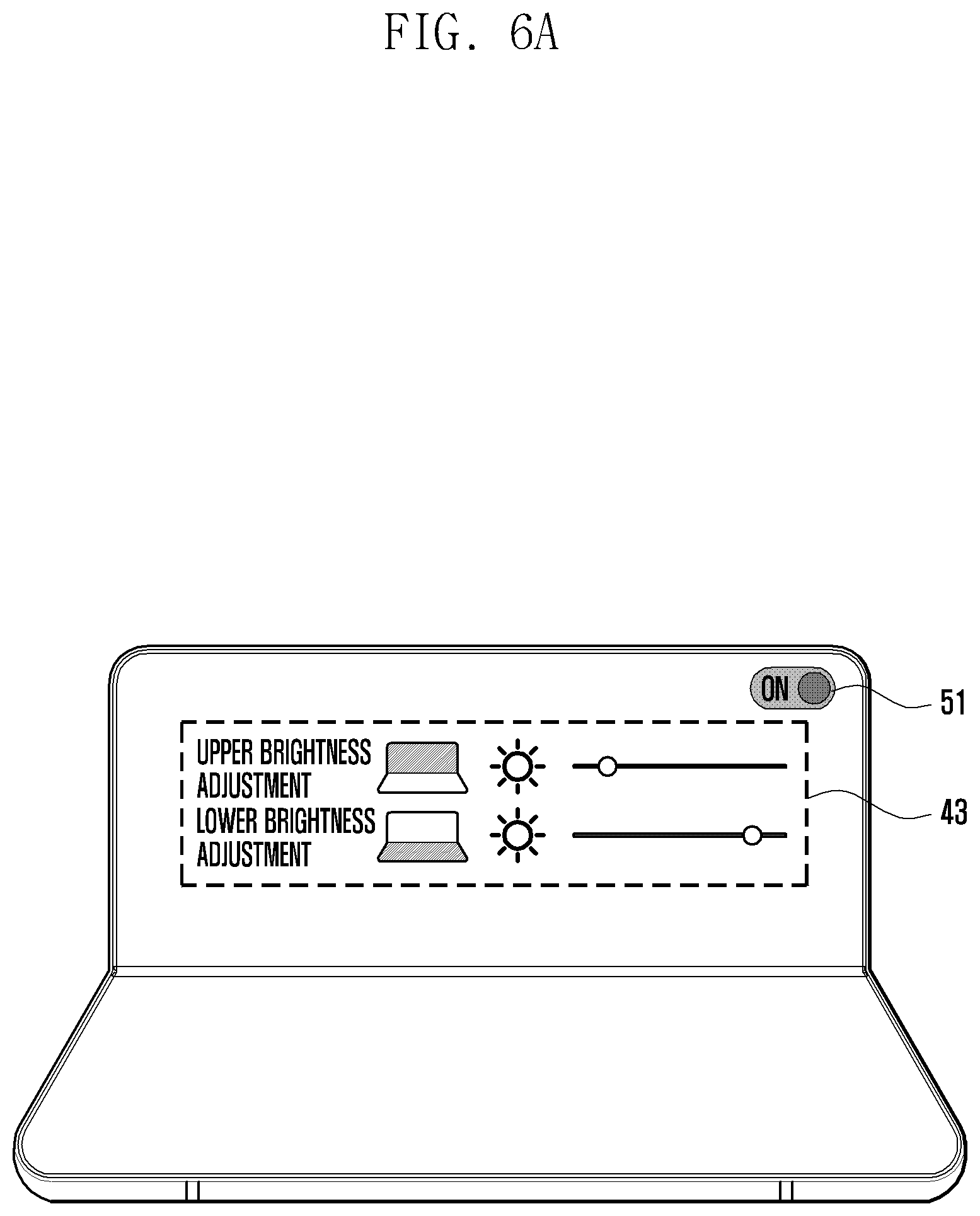

… execute a brightness adjustment mode for individually adjusting a brightness of the first display area or a brightness of the second display area …
Translation: It fixes the screen by tweaking the brightness on just one side if they do not match.
What this means for foldable phone display quality
For anyone who uses a foldable as a productivity device, where you might have a document on one half and a browser on the other, a brightness mismatch is a constant low-level irritation. Your eye keeps noticing the seam between the two halves, and the effect is tiring over a long session. A system that corrects that gap makes the form factor genuinely easier to use.
For Samsung, which sells the Galaxy Z Fold line and faces ongoing pressure to justify foldables as mature products, Samsung's steady investment in foldable display polish makes competitive sense. Display consistency is one of the areas where reviewers still ding foldables compared with conventional phones, so patents addressing it signal where engineering resources are going.
This is the 97th Samsung filing we've tracked in our display technology watchlist since May, building on work like the power-down chip patent and the wrap-around wrist display.
Splitting brightness control across two halves of a folding screen means each half corrects independently, which creates a new risk: the two sides slowly drift apart or flicker as they chase different targets. Nothing in this filing explains how the device keeps them visually locked together.
The filing also skips the timing question entirely. Correct too slowly and you've already noticed the mismatch; correct too fast and the screen looks restless and indecisive. Those choices determine whether this feels polished or annoying.
The underlying trade still reads as worth making. A visible brightness gap across a folding screen is a real problem, and ignoring it is worse than attempting a fix. Whether the fix actually feels seamless depends on engineering details this document declines to share.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
12 drawing sheets from US 2026/0268863 A1 · click any drawing to enlarge
Show the other 4 sheets
