Samsung · Display · Filed Feb 6, 2026 · USPTO published Aug 13, 2026 · Aug 13 release

Samsung Patents an Image Sensor That Shoots Video and Detects Motion at the Same Time

Samsung has filed a patent for an image sensor that pairs a standard color-capturing pixel with a motion-detecting pixel inside every group, letting a camera record normal images and track changes in light at the same time, without switching between modes.

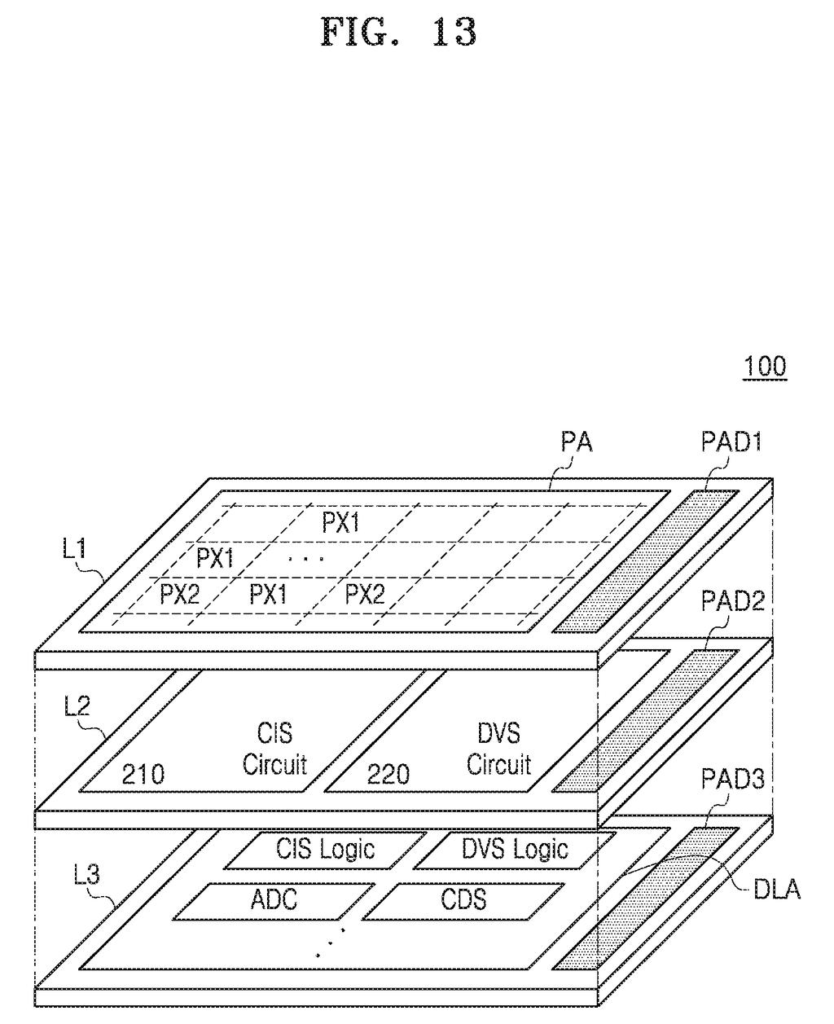

Stacked multi-layer architecture of the image sensor containing pixel arrays and processing circuits. Drawing from patent filing US 2026/0238894 A1.
Stacked multi-layer architecture of the image sensor containing pixel arrays and processing circuits.All 15 drawings ↓
Publication number
US 2026/0238894 A1(US20260238894A1)
Applicant
SAMSUNG ELECTRONICS CO., LTD.
Filed · Published
Feb 6, 2026 · Aug 13, 2026
Inventors
Hyounjee HA
Status when we published
Waiting for an examiner
Document
20 claims
US classification
348/272

What Samsung's dual-pixel motion sensor actually does

Imagine you're filming your kid's soccer game and the camera keeps blurring the exact moment they kick the ball. Most cameras take snapshots in rapid sequence, so fast motion in between frames gets smeared or lost entirely.

Samsung's patent describes a sensor where each small cluster of pixels contains two types: one pixel captures a full color image the way current cameras do, while its neighbor watches for any change in brightness, no matter how quick. Both pixels look at the same color of light, so their data lines up cleanly.

The motion-detecting pixel feeds into a special circuit that fires off a signal the instant it notices a change, rather than waiting for the next scheduled frame. Your device gets a continuous stream of motion cues layered on top of normal video, which means fast action leaves a trail of data instead of a blur.

From the filing · CLAIM 1
… a first pixel configured to generate image data and a second pixel configured to generate event data, and the first pixel and the second pixel included in a same pixel group are configured to receive an optical signal of a same color …

Translation: Neighboring pixels capture normal video and track movement using the exact same color of light.

How the DVS circuit reads motion from paired pixels

The patent covers an image sensor built around a pixel array divided into groups. Inside at least some of those groups, two distinct pixel types live side by side.

  • First pixel (image pixel): works the standard way, accumulating charge from light and handing it off as conventional image data at regular intervals.
  • Second pixel (event pixel): feeds a Dynamic Vision Sensor (DVS) circuit, a type of readout system borrowed from neuromorphic engineering that only fires when the light level it sees changes, not on a fixed schedule.
  • Color matching: both pixels in the same group sit behind a filter for the same color (say, both see green), so the image data and the event data describe the same slice of the scene.

The DVS circuit converts the electrical charge from the event pixel into an event signal, a timestamped spike that says "something changed here, right now." This is fundamentally different from a standard frame, which says "here is what everything looked like at time T."

The practical result is two parallel streams: a conventional video feed and a high-speed motion log, both geometrically aligned because the pixel pairs share a physical location on the sensor.

From the filing · THE ABSTRACT
… a dynamic vision sensor (DVS) circuit configured to generate an event signal, based on an electrical signal corresponding to charge generated from the second pixel …

Translation: A specialized circuit instantly detects motion by measuring tiny electrical changes in the movement pixels.

What this means for cameras that miss fast-moving moments

For anyone who has tried to photograph a hummingbird, catch a sports replay, or scan a fast-moving assembly line, the limiting factor has always been that standard cameras are blind between frames. A motion-event layer changes that: the sensor reports every meaningful flicker of movement the instant it happens, so software has much richer data to work with when it reconstructs or analyzes motion.

This kind of hybrid sensor architecture is an active area of investment across the camera and chip industry, and Samsung's approach of color-matching the two pixel types is a direct answer to a known problem where event data and image data don't align spatially. The new Big Tech patents covering image sensor design show how camera hardware competition has shifted from megapixel counts toward the quality of motion and low-light intelligence built into the silicon itself.

Source: US 2026/0238894 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 15 sheets

15 drawing sheets from US 2026/0238894 A1 · click any drawing to enlarge

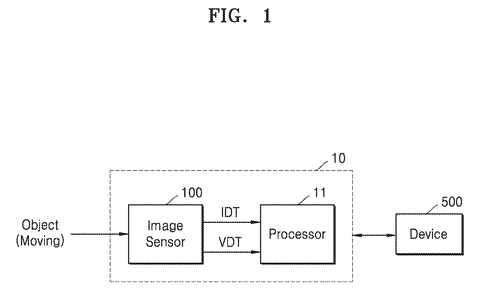

System block diagram of sensor, drawing sheet 1 from US 2026/0238894 A1
Sheet 1 System block diagram of sensor

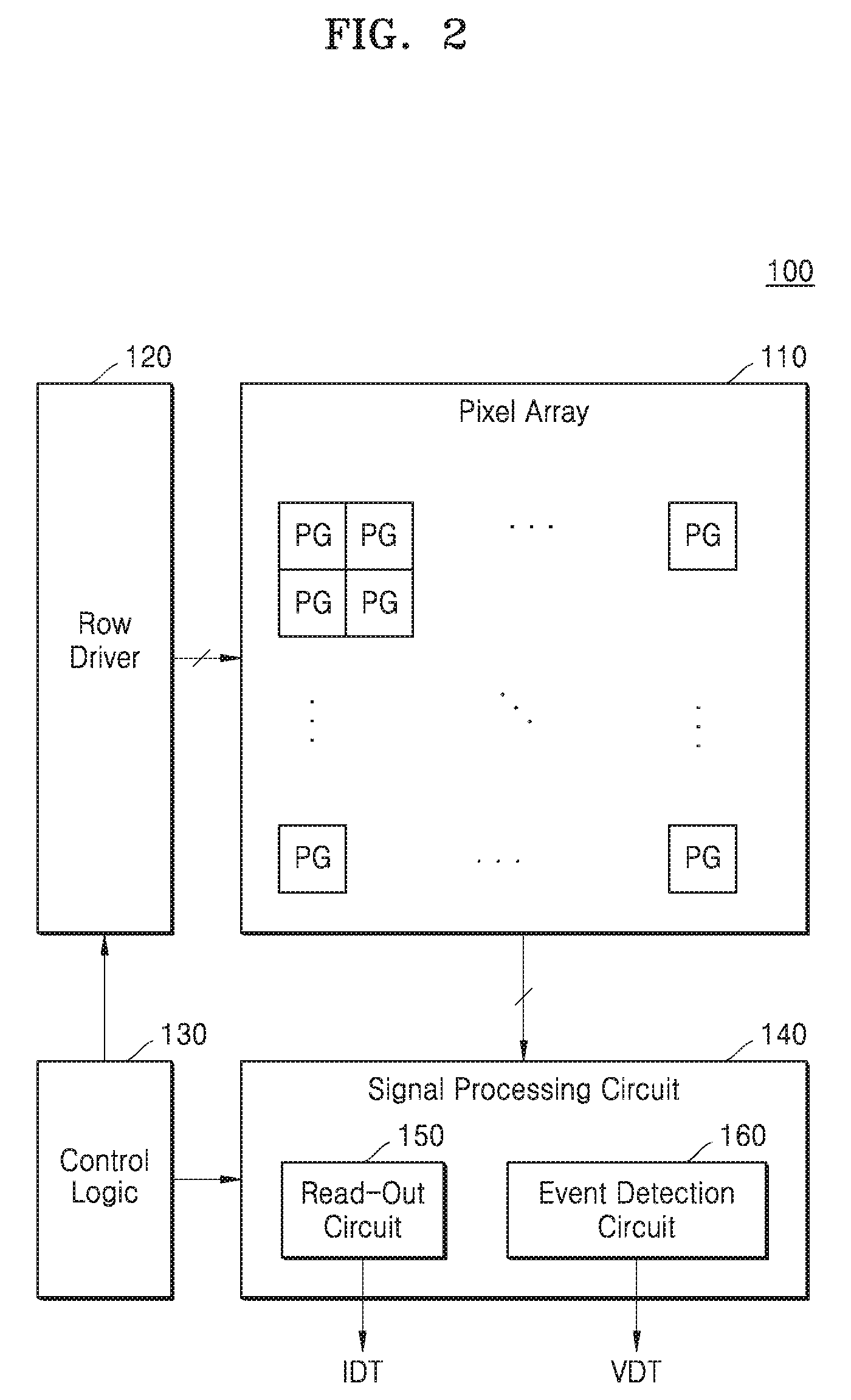

Pixel array and control logic, drawing sheet 2 from US 2026/0238894 A1
Sheet 2 Pixel array and control logic

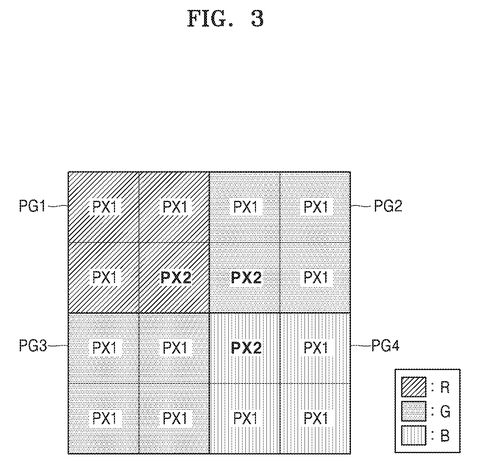

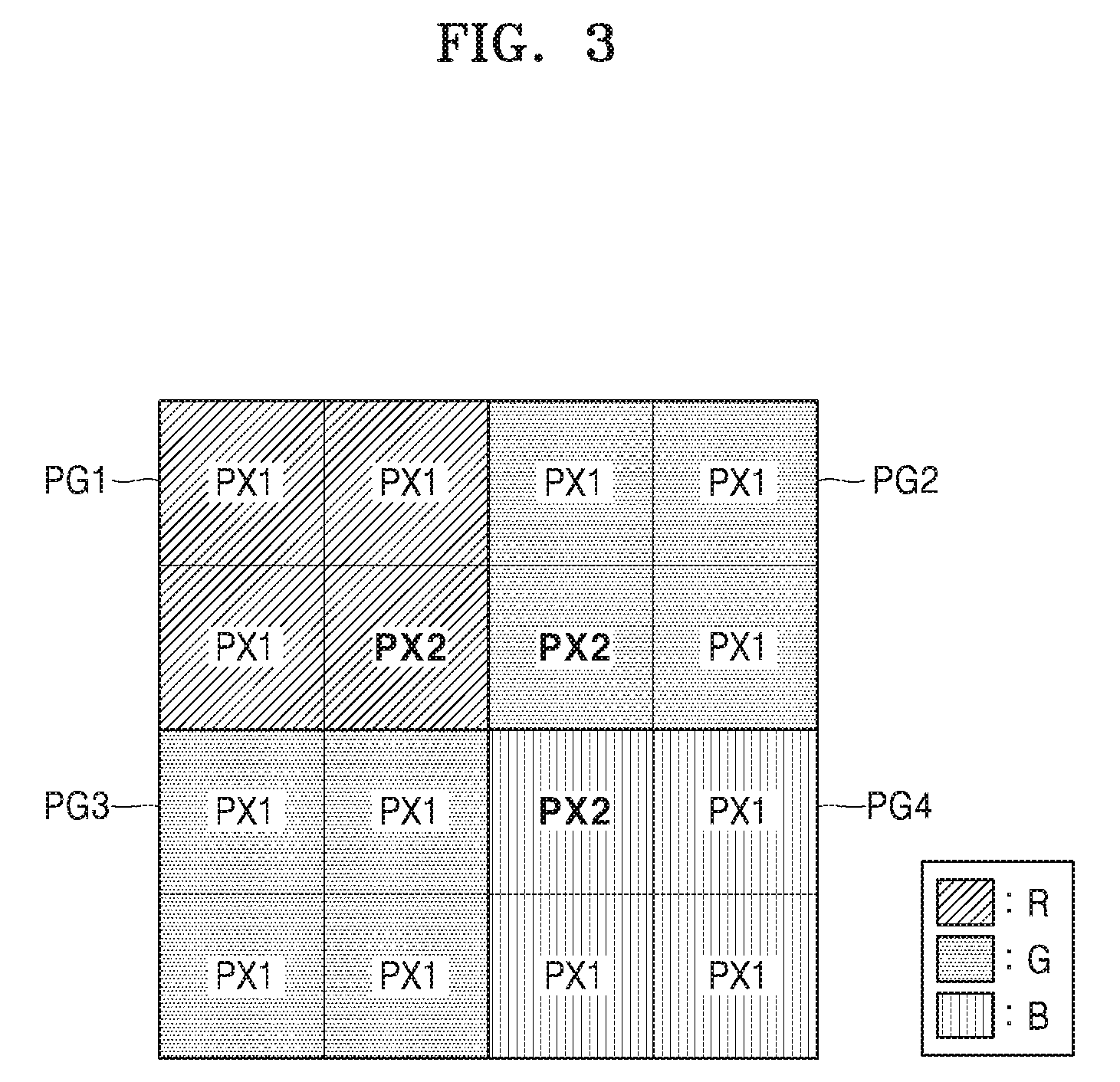

Color filter pixel grid pattern, drawing sheet 3 from US 2026/0238894 A1
Sheet 3 Color filter pixel grid pattern

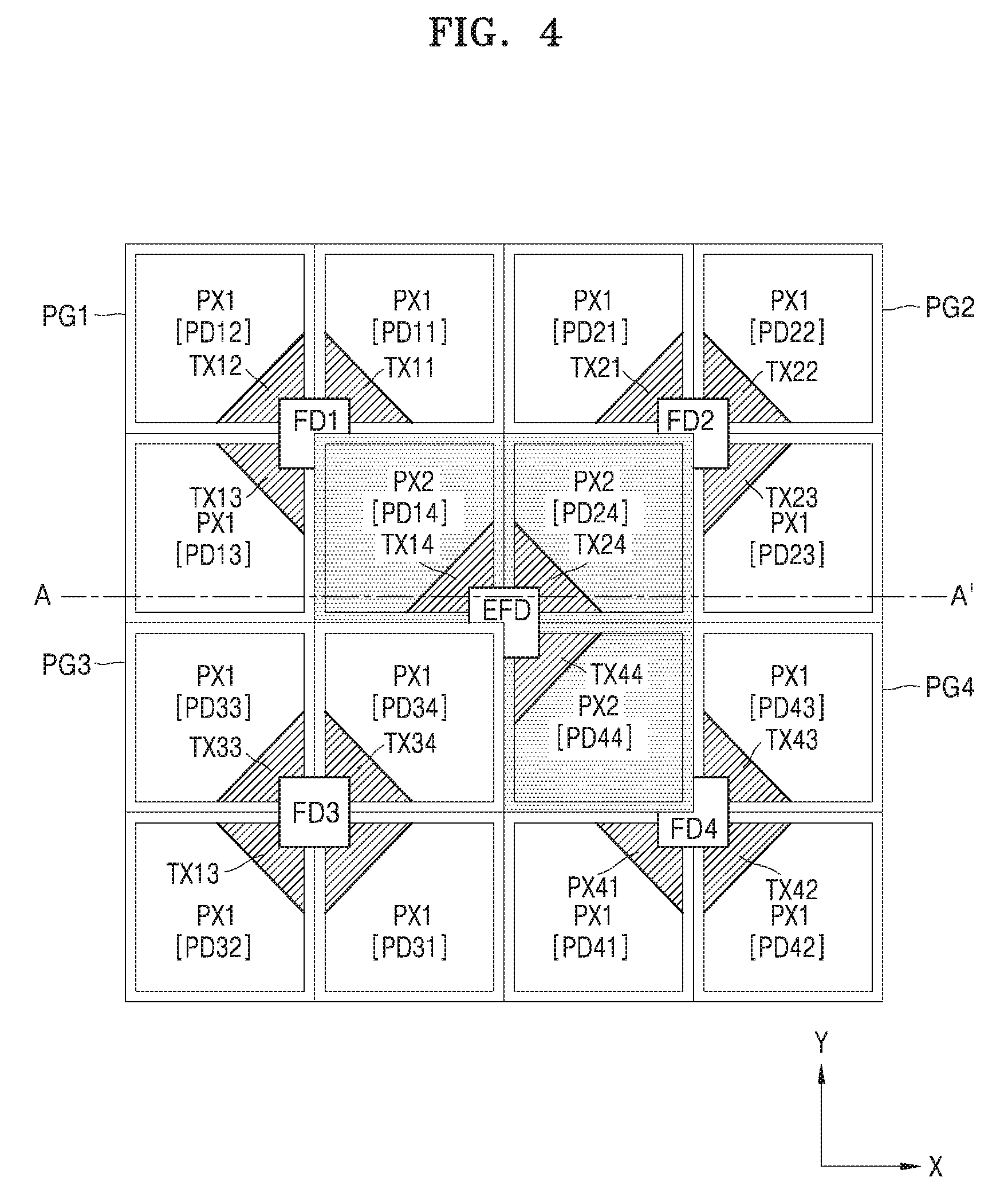

Detailed pixel layout and connections, drawing sheet 4 from US 2026/0238894 A1
Sheet 4 Detailed pixel layout and connections

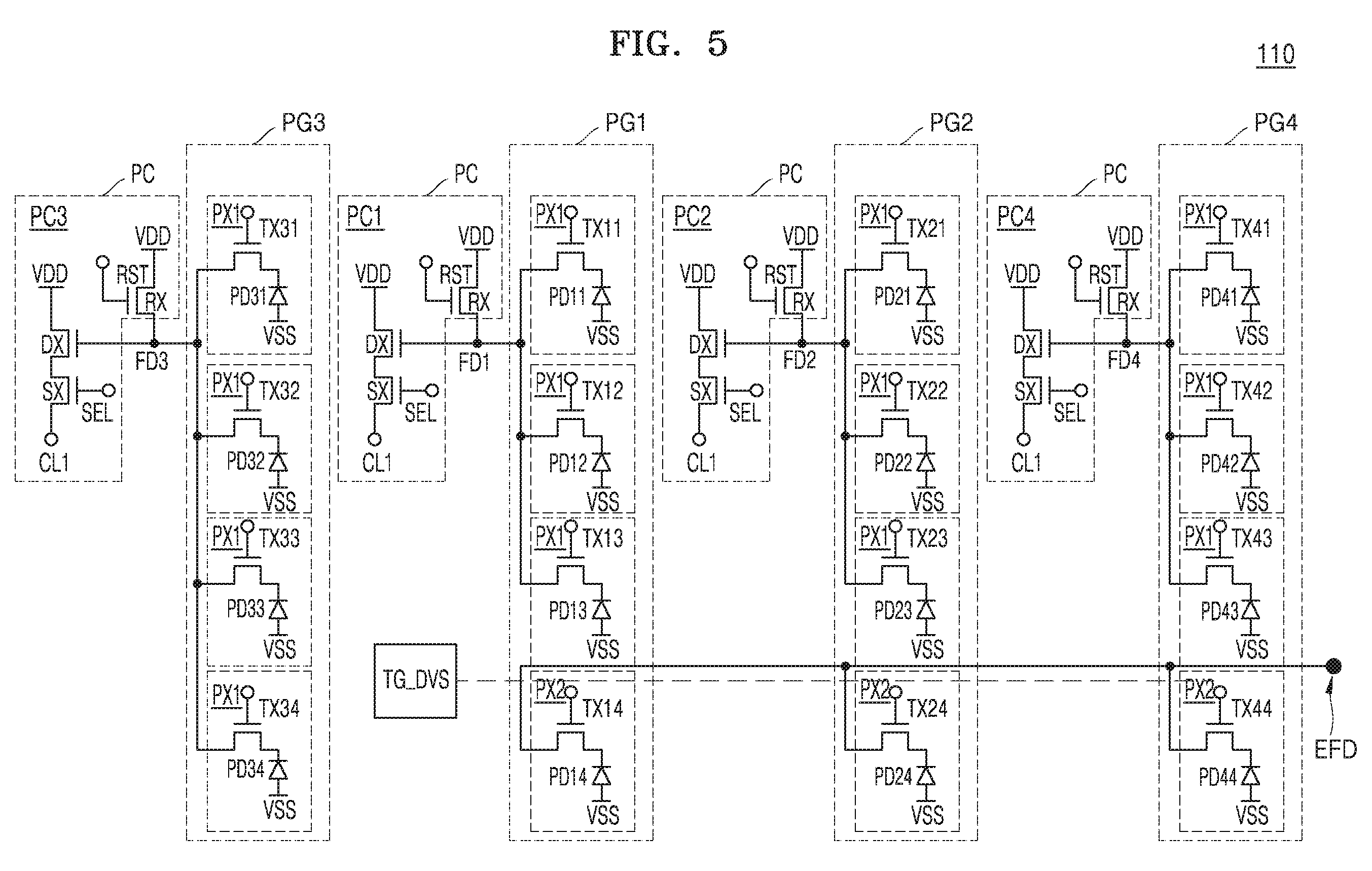

Electrical schematic of pixel circuits, drawing sheet 5 from US 2026/0238894 A1
Sheet 5 Electrical schematic of pixel circuits

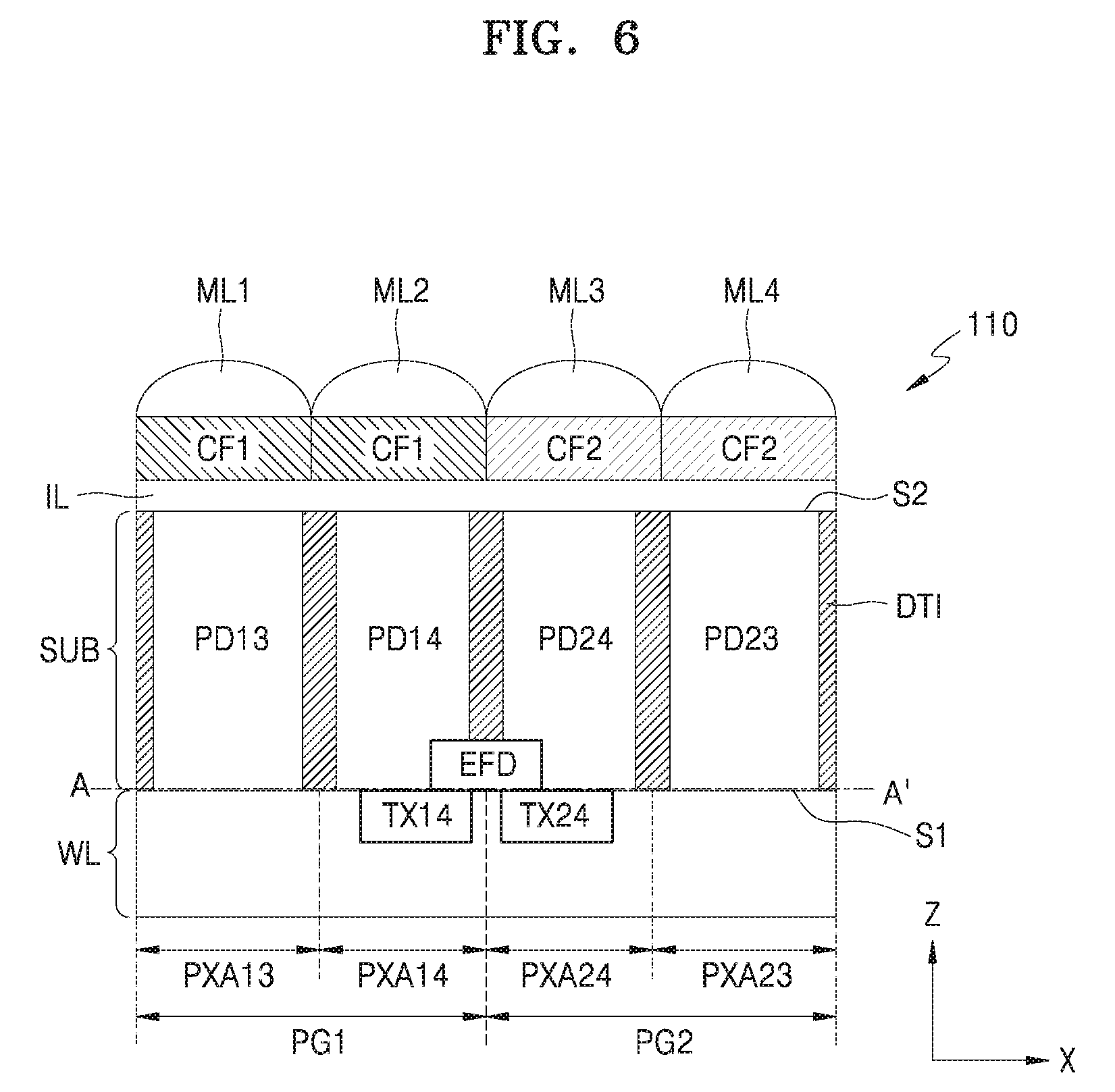

Cross-section view of sensor layers, drawing sheet 6 from US 2026/0238894 A1
Sheet 6 Cross-section view of sensor layers

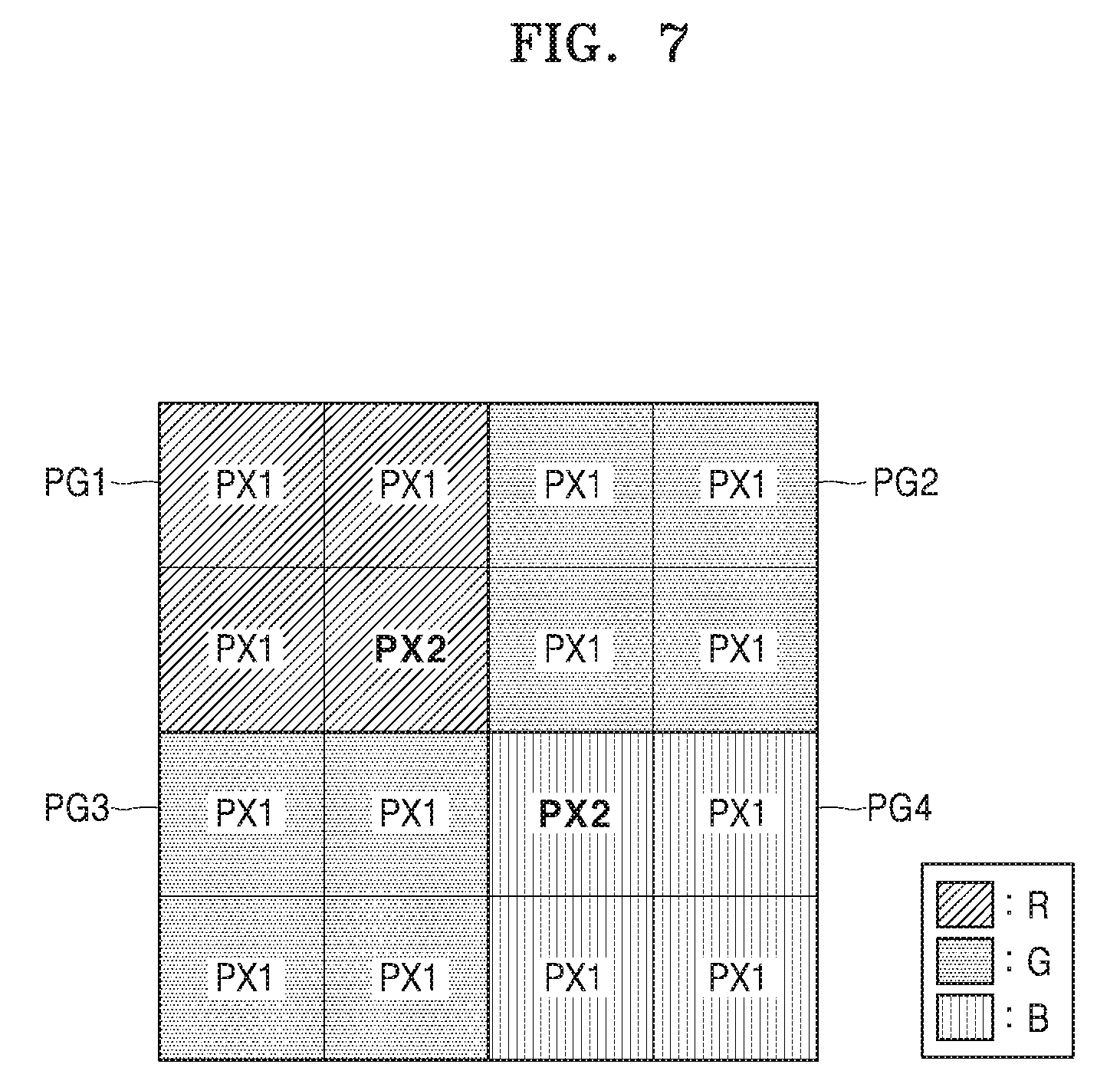

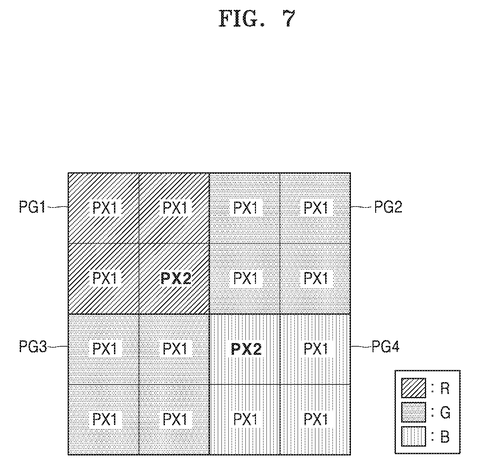

Color filter pixel arrangement variant, drawing sheet 7 from US 2026/0238894 A1
Sheet 7 Color filter pixel arrangement variant

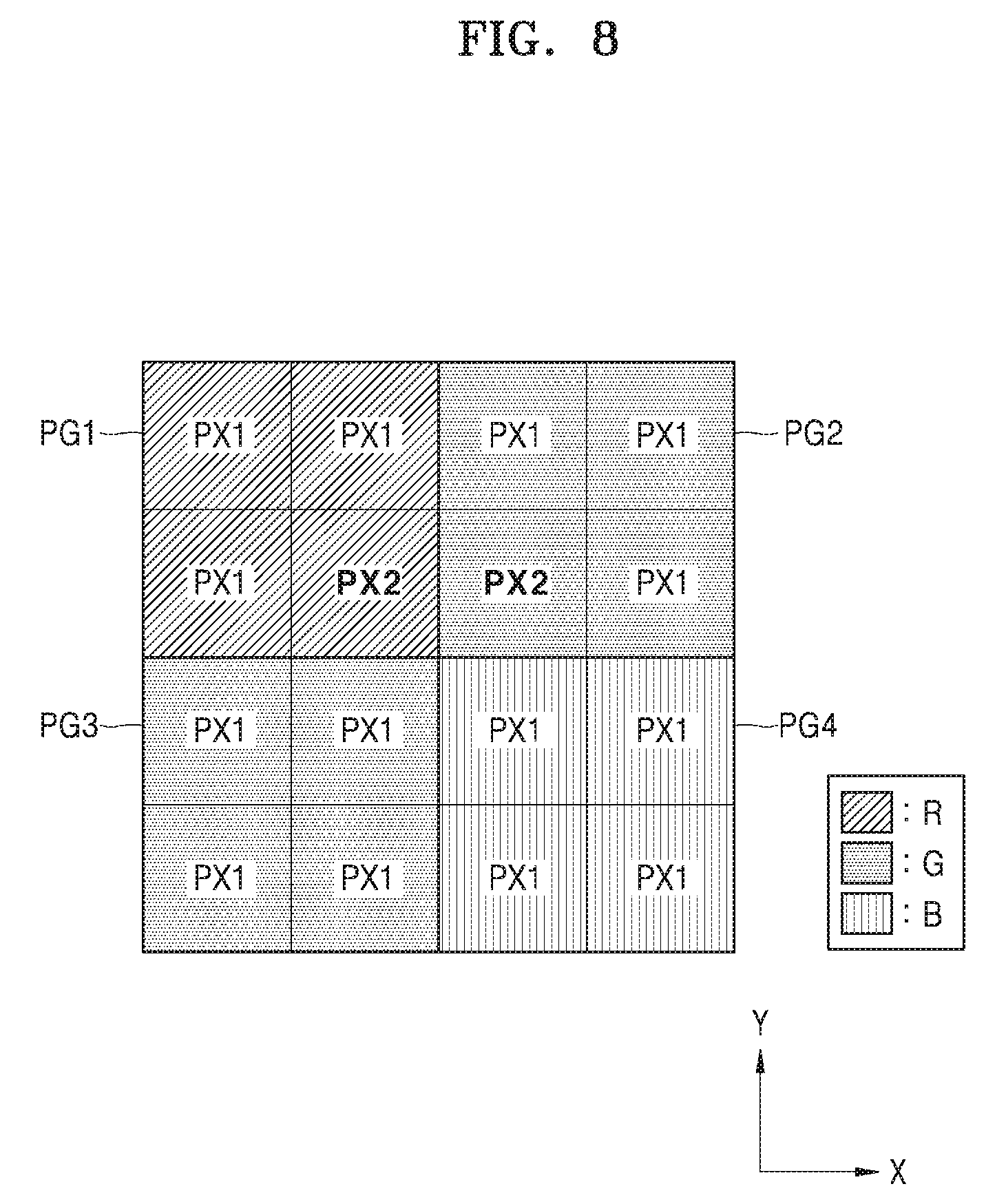

Color filter pixel arrangement variant, drawing sheet 8 from US 2026/0238894 A1
Sheet 8 Color filter pixel arrangement variant
Show the other 7 sheets
Samsung Patents an Image Sensor That Shoots Video and Detects Motion at the Same Time patent drawing, sheet 9
Sheet 9
Samsung Patents an Image Sensor That Shoots Video and Detects Motion at the Same Time patent drawing, sheet 10
Sheet 10
Samsung Patents an Image Sensor That Shoots Video and Detects Motion at the Same Time patent drawing, sheet 11
Sheet 11
Samsung Patents an Image Sensor That Shoots Video and Detects Motion at the Same Time patent drawing, sheet 12
Sheet 12
Samsung Patents an Image Sensor That Shoots Video and Detects Motion at the Same Time patent drawing, sheet 13
Sheet 13
Samsung Patents an Image Sensor That Shoots Video and Detects Motion at the Same Time patent drawing, sheet 14
Sheet 14
Samsung Patents an Image Sensor That Shoots Video and Detects Motion at the Same Time patent drawing, sheet 15
Sheet 15
