Samsung Files Patent for Phones That Fall Back to a Rougher Location on Their Own
Today, when your phone can't pin down your location as precisely as requested, the network can end up asking again with a looser target. Samsung's patent has the network list its acceptable levels up front, so one request covers them all.
What Samsung's multi-level location patent does
You're on the lower level of a parking garage and an app wants to know exactly where you are. Your phone can't get a precise reading down there, but it can get a rough one.

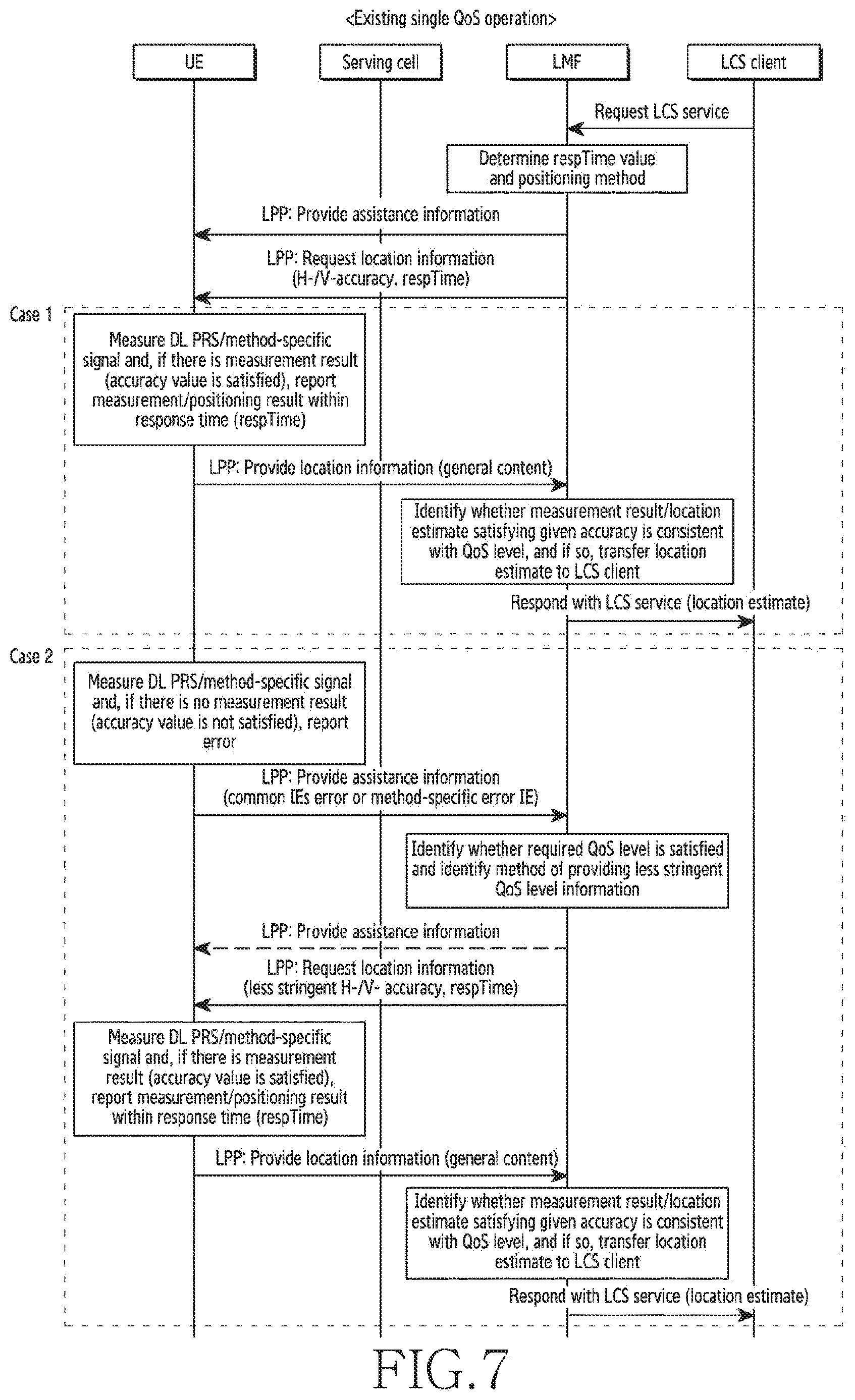

Today, according to the filing's own description, the phone reports a failure when it can't hit the requested precision. The network then asks again with a looser target, and each round trip eats time. Samsung's patent has the network send a ranked list of acceptable precision levels, plus a time limit, in a single request.
Your phone tries the most precise level first and works down the list. It then reports the best level it actually reached, or says that none worked, all within the deadline.
… performing sequential measurements for the multiple QoSs, based on the first message; and transmitting, to the LMF entity, a second message including a result of the sequential measurements …
Translation: The phone runs positioning checks one after another and sends the findings back to the network.
How the phone steps down through accuracy levels

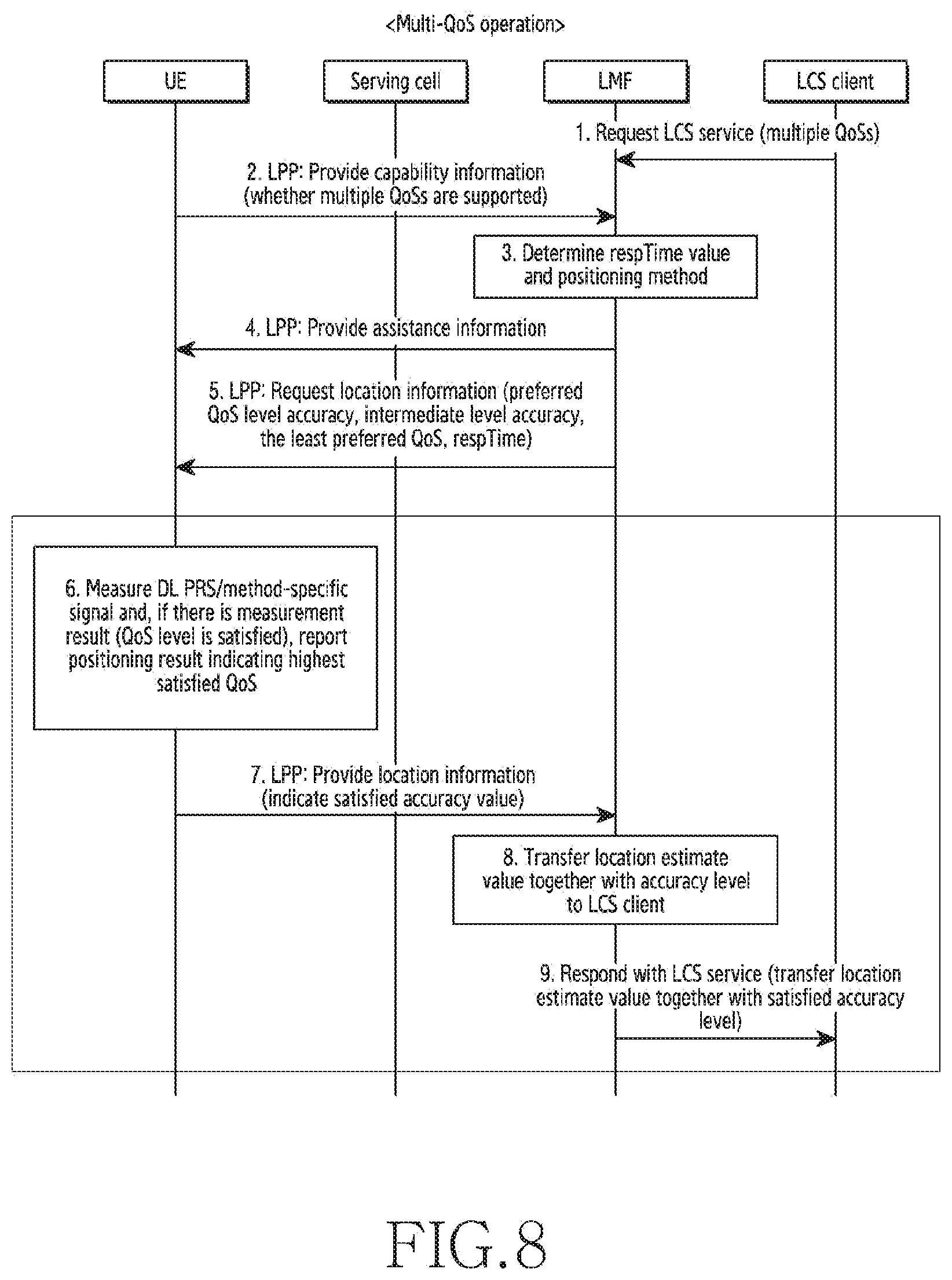

In the patent, the network side is a location management function (LMF), the server in a cellular network that works out where a phone is. An outside app or service, called a location services client, asks the LMF for a position. The LMF then sends the phone a first message listing several quality of service levels, which here simply means several accuracy targets, along with a response time limit.
The claims cover the phone's side, the server's side, and matching phone and server hardware. The phone runs sequential measurements: it measures against the first target, and if the result misses that accuracy value, it moves on to the next, all inside the response time. It then sends back a second message with its results. That reply can include:
- Which accuracy level was satisfied
- An indicator that no level was satisfied
- An error in the positioning procedure
The description gives examples: two or three accuracy values (a preferred one, an in-between one, and a minimum), each written as an error distance with a confidence, such as 3 meters at 99% probability. The response time can be one shared limit or one per level. The phone and network also swap a quick capability check first, so the network knows the phone supports the feature.
… sequentially performing measurement on the multiple QoS on the basis of the first message; and transmitting, to the LMF, a second message including a result of the measurement.
Translation: The device takes multiple measurements in order and reports the final results to the server.
Why Samsung's one-request approach saves time
For you, the payoff would be speed in awkward spots. The description says the goal is to cut the delay from trying one accuracy level after another, and to avoid extra signals when several levels are tried separately. Fewer messages between phone and network means an answer sooner when the ideal reading isn't available.
The patent doesn't name a product. It is written in the vocabulary of 5G cellular standards, so it reads as groundwork for how phones and network equipment exchange location requests. Any benefit would show up inside the apps and services that ask for your location, with no new button or setting to find.
Samsung's 85th filing we've tracked in our 5G and network push since May builds on work like faster signal data sharing and locating low-power devices.
Most people will never notice this one, and that is the point. If it works, the only sign is that your phone answers the question of where you are a little sooner when the signal is poor, say in a basement or a crowded mall, because nobody had to ask twice.
The benefit is small and specific: fewer retries when the ideal reading isn't available. It matters most to services that need a location quickly and can live with a rougher one.
For everyone else it is routine plumbing in the rulebook for how phones and networks talk, and it deserves to be judged as exactly that.
