Sony Patents a Camera Chip That Trims Color Data to Cut Costs

Sony's imaging division has patented a way to capture rich, multi-color scenes and then trim that data down inside the sensor itself, before it ever reaches the rest of the device. The goal is simple: keep image quality high without making the downstream hardware pay for it.

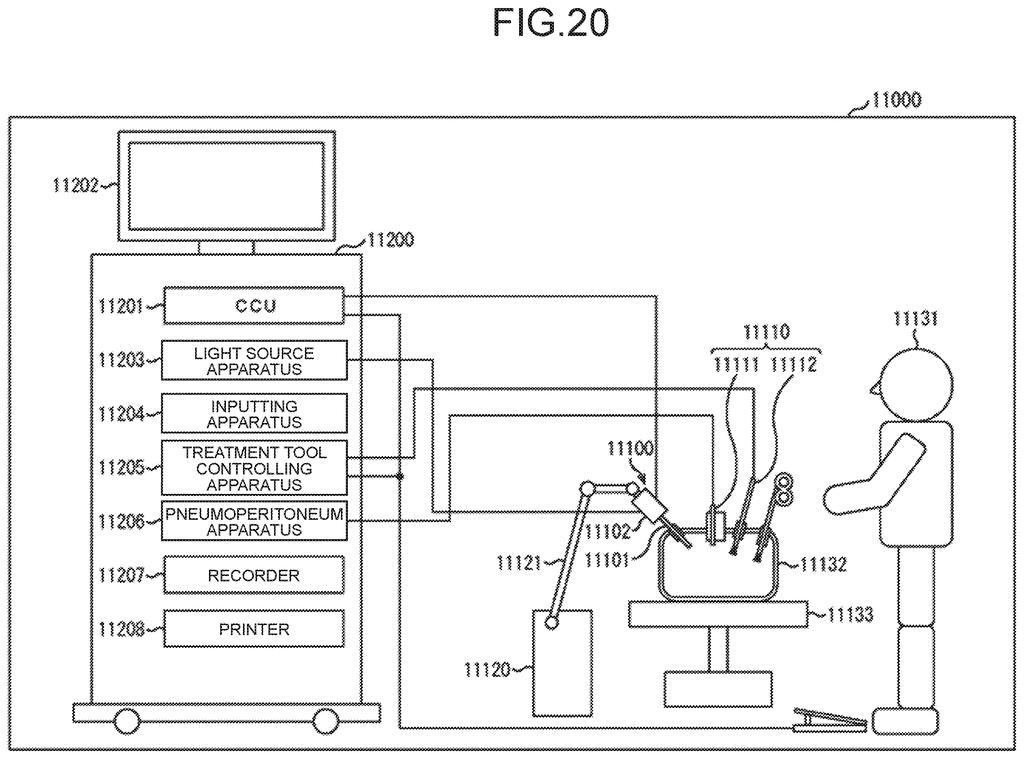

A complete surgical endoscopic camera system in a clinical operating room setting with display and medical equipment. Drawing from patent filing US 2026/0238891 A1.
A complete surgical endoscopic camera system in a clinical operating room setting with display and medical equipment.All 15 drawings ↓
Publication number
US 2026/0238891 A1(US20260238891A1)
Applicant
Sony Semiconductor Solutions Corporation
Filed · Published
Mar 25, 2026 · Aug 13, 2026
Inventors
Tsuyoshi Watanabe
Status when we published
Waiting for an examiner
Document
17 claims
US classification
348/273
Parent application
Continuation of 18/551,060 (filed Sep 18, 2023)(18551060)

What Sony's color-trimming image sensor actually does

A security camera stares at an empty hallway all night, capturing far more color detail than anything downstream can actually use. You end up paying for a chip that generates data most devices can't handle.

Sony's patent addresses that mismatch. The idea is to build a sensor that captures four or more color channels but then runs a conversion step right inside the chip, producing a simpler image with fewer colors. The rest of the device, the processor, the storage, the display, only ever sees the trimmed-down version.

The result is that you get the light-sensitivity benefits of a rich multi-color sensor without forcing every other part of the system to be built around that complexity. It's a way to put more capable sensors into more products without automatically inflating the bill of materials.

From the filing · THE ABSTRACT
… reduces the number of colors of the first image data obtained by the imaging section and generates second image data having a smaller number of colors than the first image data …

Translation: It simplifies the rich color information captured by the sensor into a more basic format to save money.

How the chip converts four-plus colors into a leaner output

Most consumer cameras capture three colors: red, green, and blue. Some specialized sensors capture four or more, picking up wavelengths like near-infrared or a dedicated yellow channel. Those extra channels improve accuracy in tricky lighting but create a problem: the rest of the system, processors, codecs, display pipelines, is almost always built around three-channel color.

Sony's patent describes a solid imaging device (the technical term for an image sensor chip) that handles this mismatch internally. The chip includes:

  • An imaging section that captures first image data in four or more color channels
  • A converting section that reduces the color count and outputs leaner second image data

The conversion happens on the sensor itself, not in a separate processor. That means the output that leaves the chip is already compatible with standard pipelines, so manufacturers don't need to add extra hardware or processing steps downstream.

The patent frames this explicitly as controlling cost increase, which in engineering terms means keeping the bill of materials from ballooning just because you've put a richer sensor at the front of the system.

What this means for the cost of high-end camera sensors

For device makers, the hidden cost of a better sensor is often everything that has to change around it. A processor that can handle four-channel video, memory bandwidth to move it, software stacks that understand it. Sony's approach pushes the compatibility work onto the sensor itself, so a manufacturer can drop in a higher-capability imager without redesigning the rest of the product.

That has real implications for cost-sensitive categories like security cameras, automotive cameras, and industrial vision systems, where multi-spectral sensing is useful but margins are tight. It's also relevant to Sony's own camera business. The imaging sensor market, where Sony holds a dominant share, increasingly competes on specs-per-dollar rather than raw capability alone. Coverage of new Big Tech patents in the imaging sensor space shows a broader pattern of companies trying to build more capability into the sensor layer rather than relying on downstream silicon to compensate.

Source: US 2026/0238891 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 15 sheets

15 drawing sheets from US 2026/0238891 A1 · click any drawing to enlarge

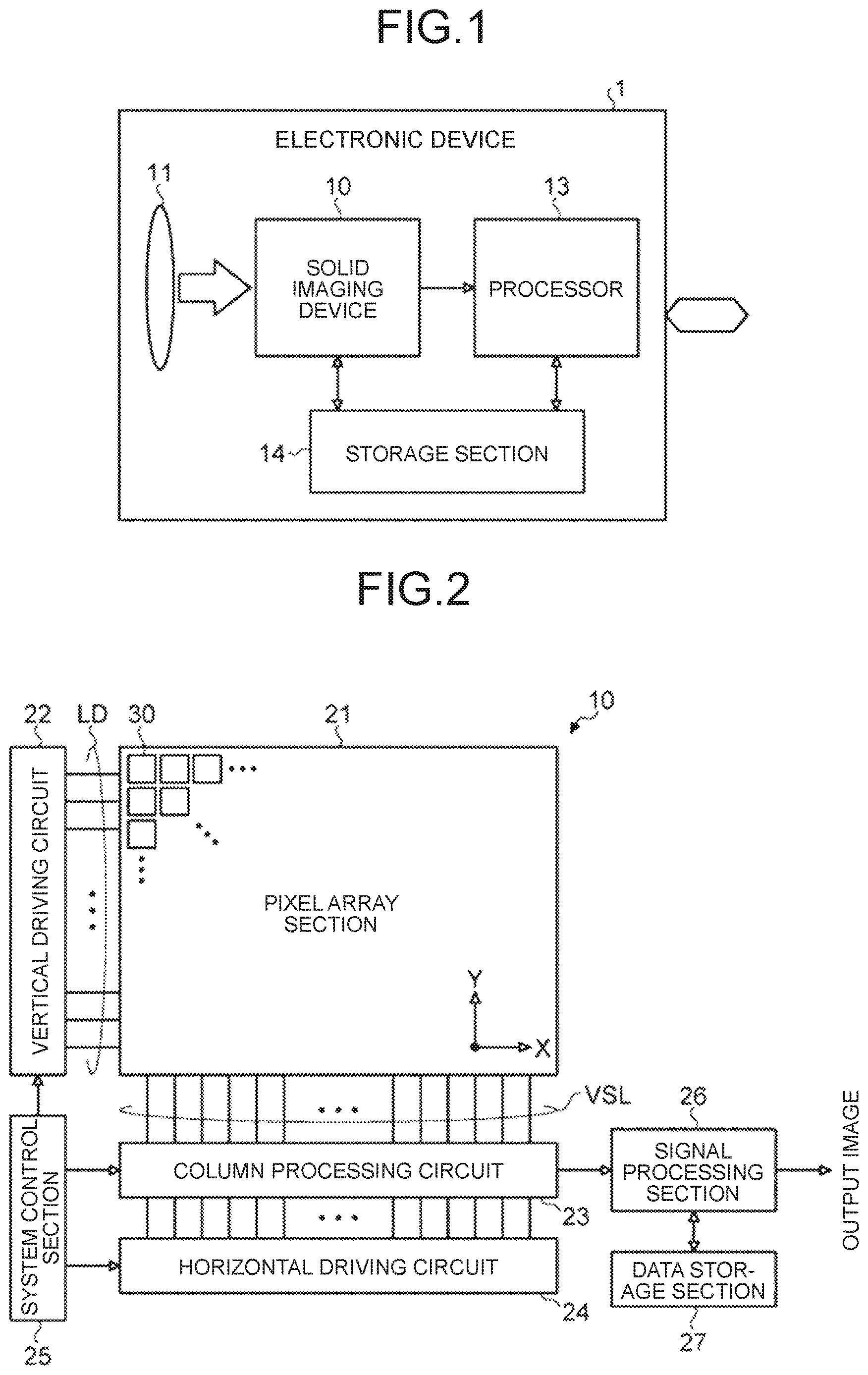

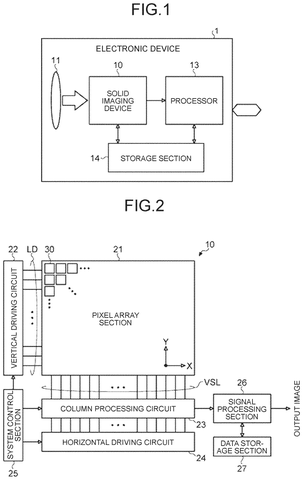

System overview block diagram, drawing sheet 1 from US 2026/0238891 A1
Sheet 1 System overview block diagram
Solid imaging device layout, drawing sheet 2 from US 2026/0238891 A1
Sheet 2 Solid imaging device layout

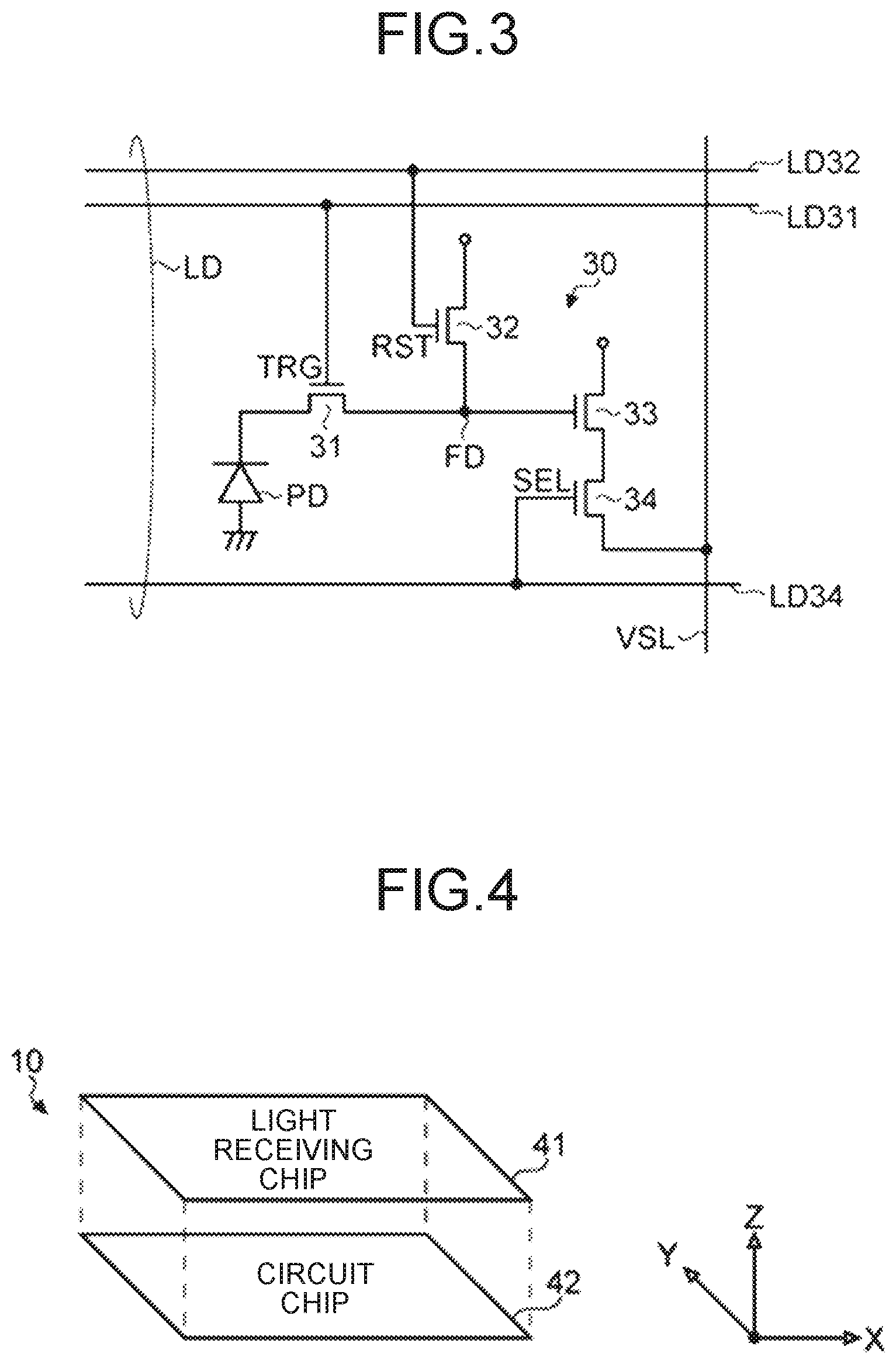

Pixel circuit wiring diagram, drawing sheet 3 from US 2026/0238891 A1
Sheet 3 Pixel circuit wiring diagram
Stacked chip architecture, drawing sheet 4 from US 2026/0238891 A1
Sheet 4 Stacked chip architecture

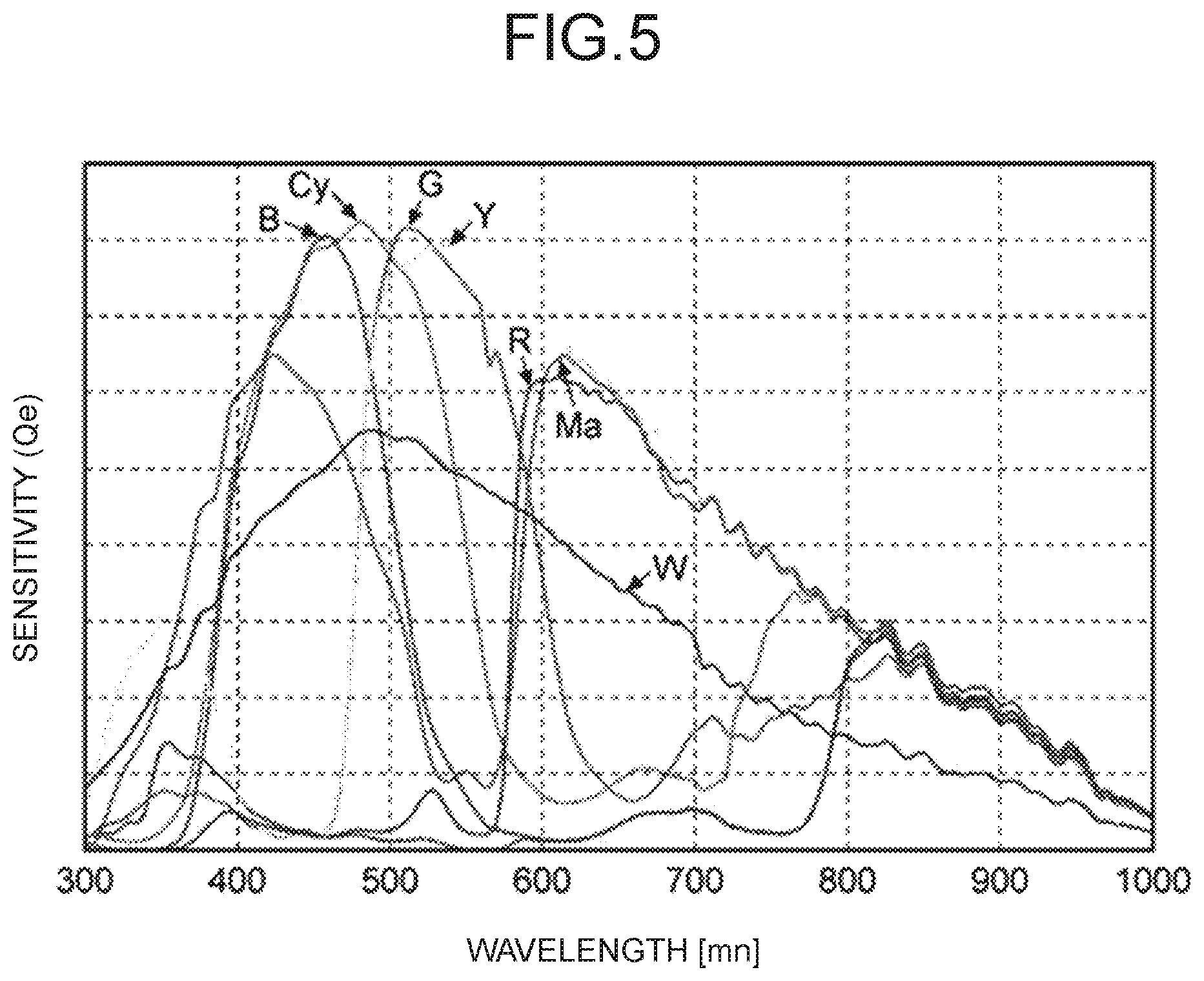

Color sensitivity wavelength graph, drawing sheet 5 from US 2026/0238891 A1
Sheet 5 Color sensitivity wavelength graph

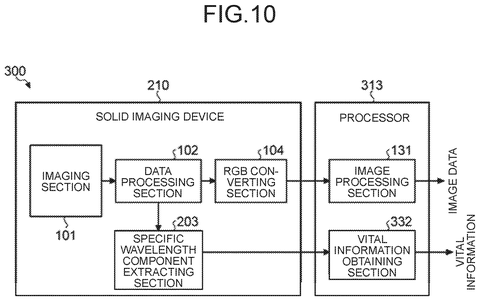

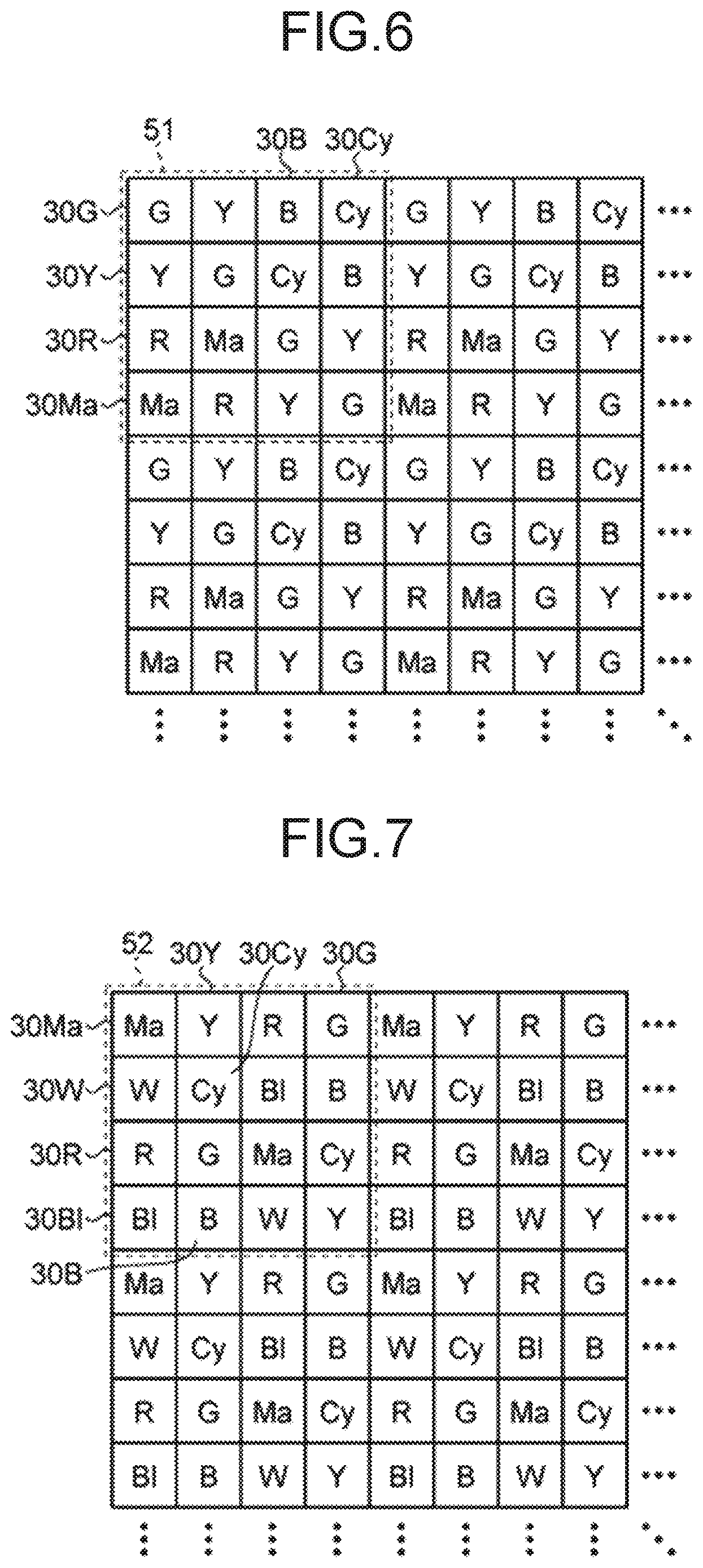

Pixel color filter array, drawing sheet 6 from US 2026/0238891 A1
Sheet 6 Pixel color filter array
Alternative color filter array, drawing sheet 7 from US 2026/0238891 A1
Sheet 7 Alternative color filter array

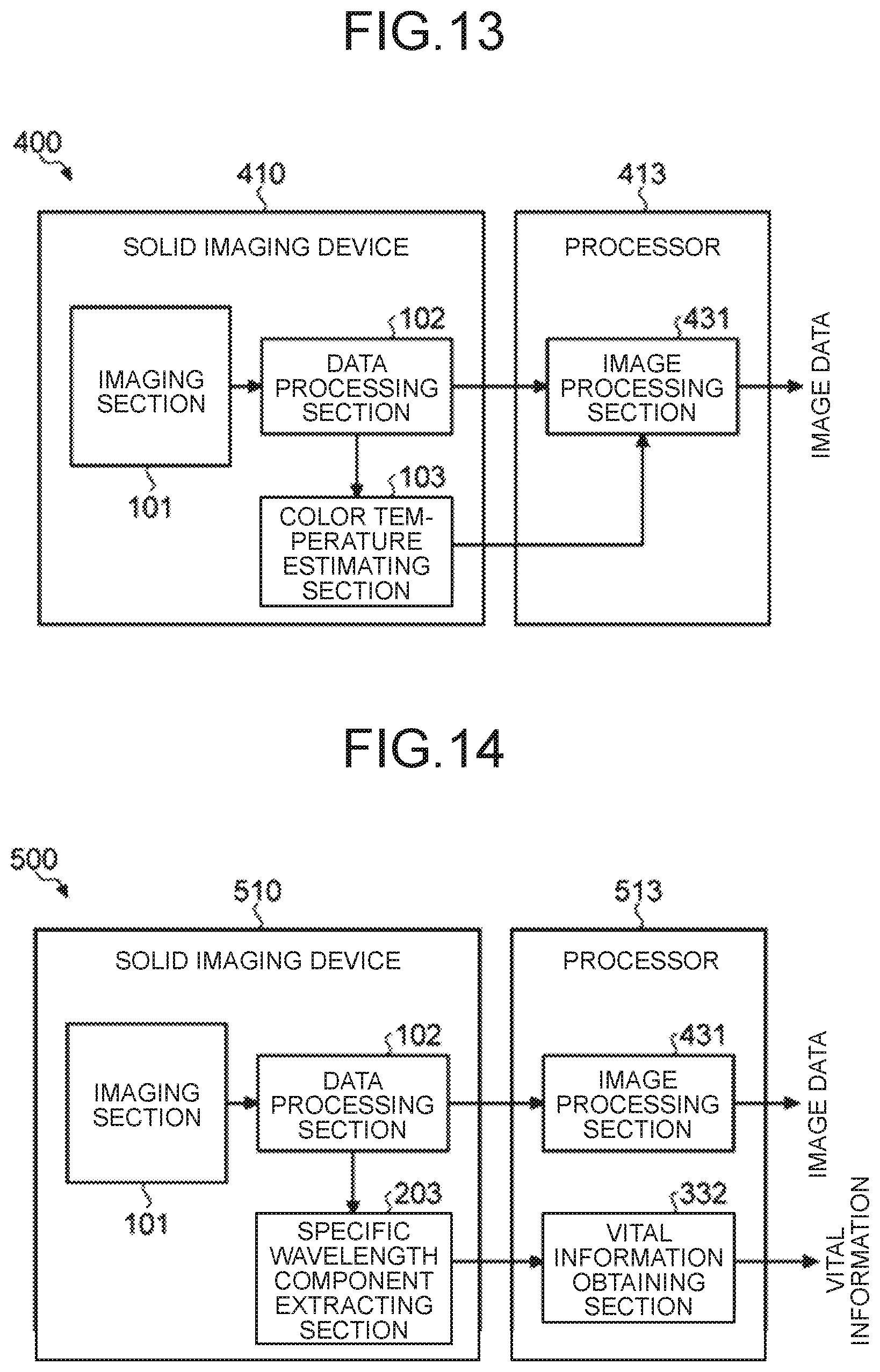

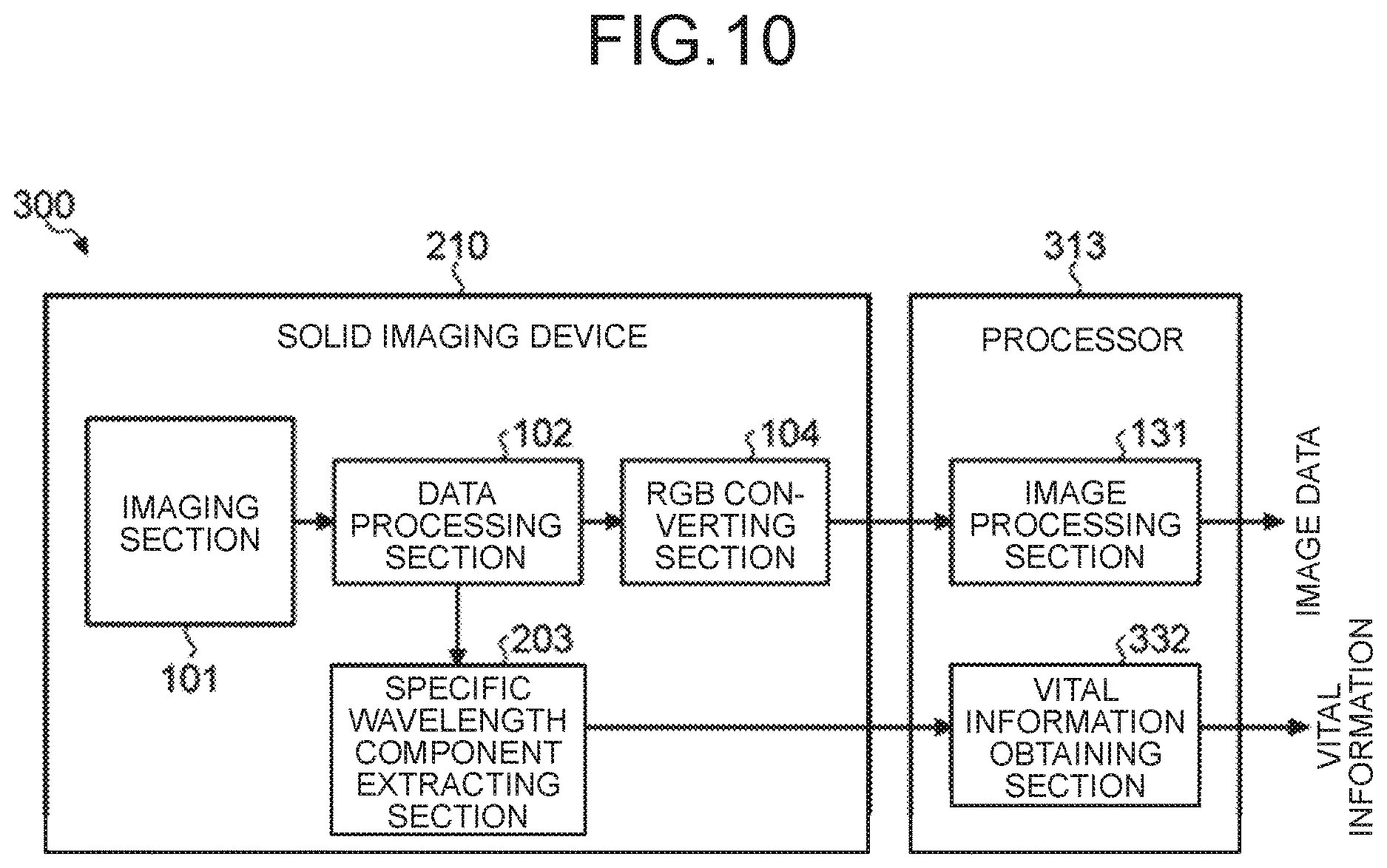

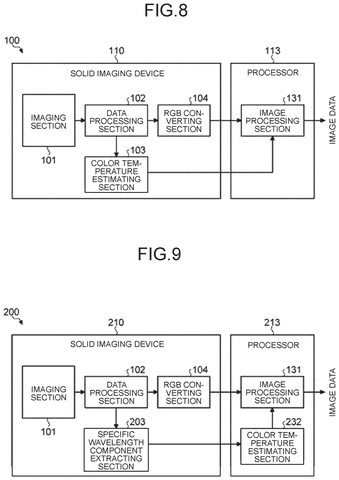

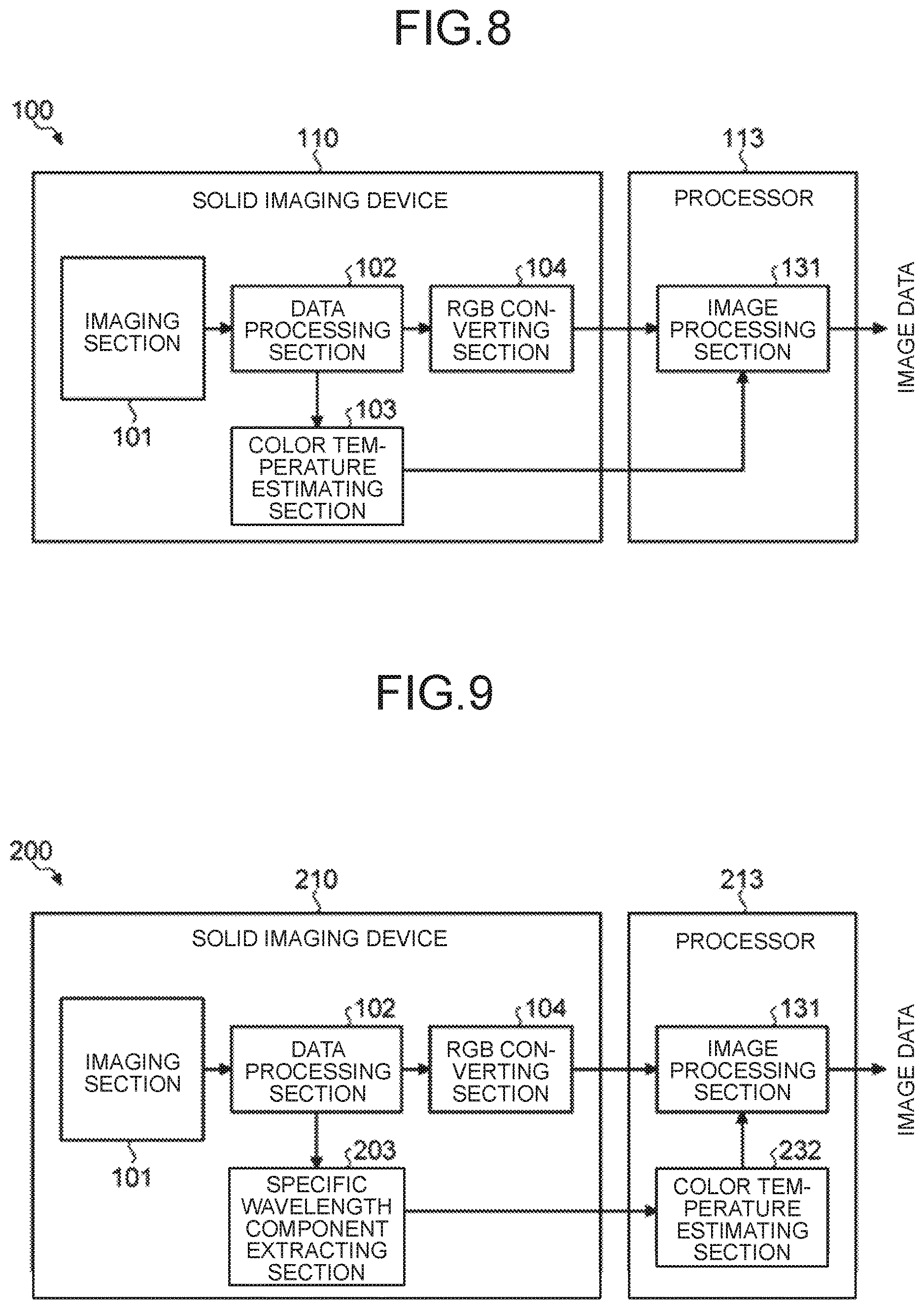

Data processing block diagram, drawing sheet 8 from US 2026/0238891 A1
