Sony Patents an Image Sensor Fix That Cuts Noise in Dark Photos

Dark photos that look grainy even when you barely moved the camera often trace back to a problem inside the sensor itself. Sony's latest patent targets that problem at the circuit level.

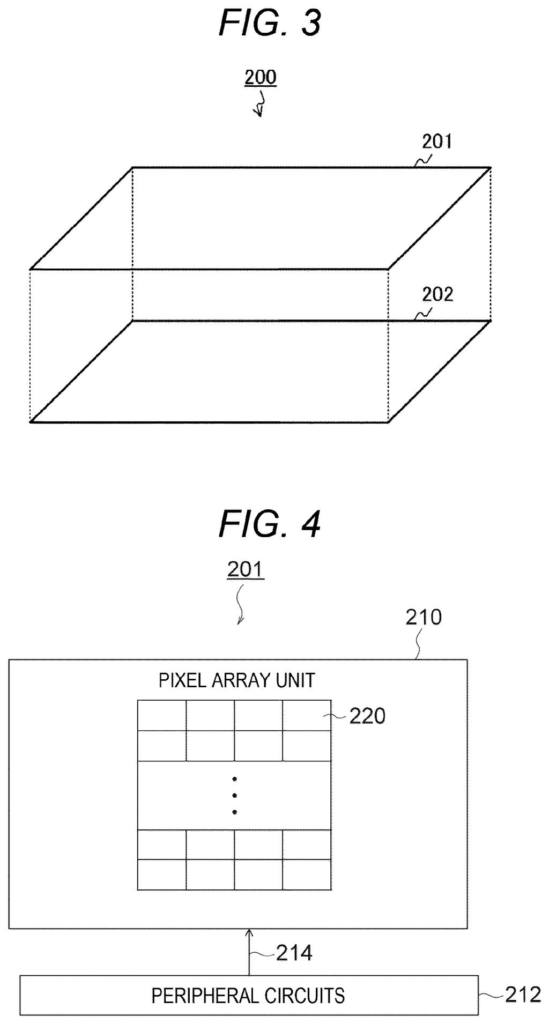

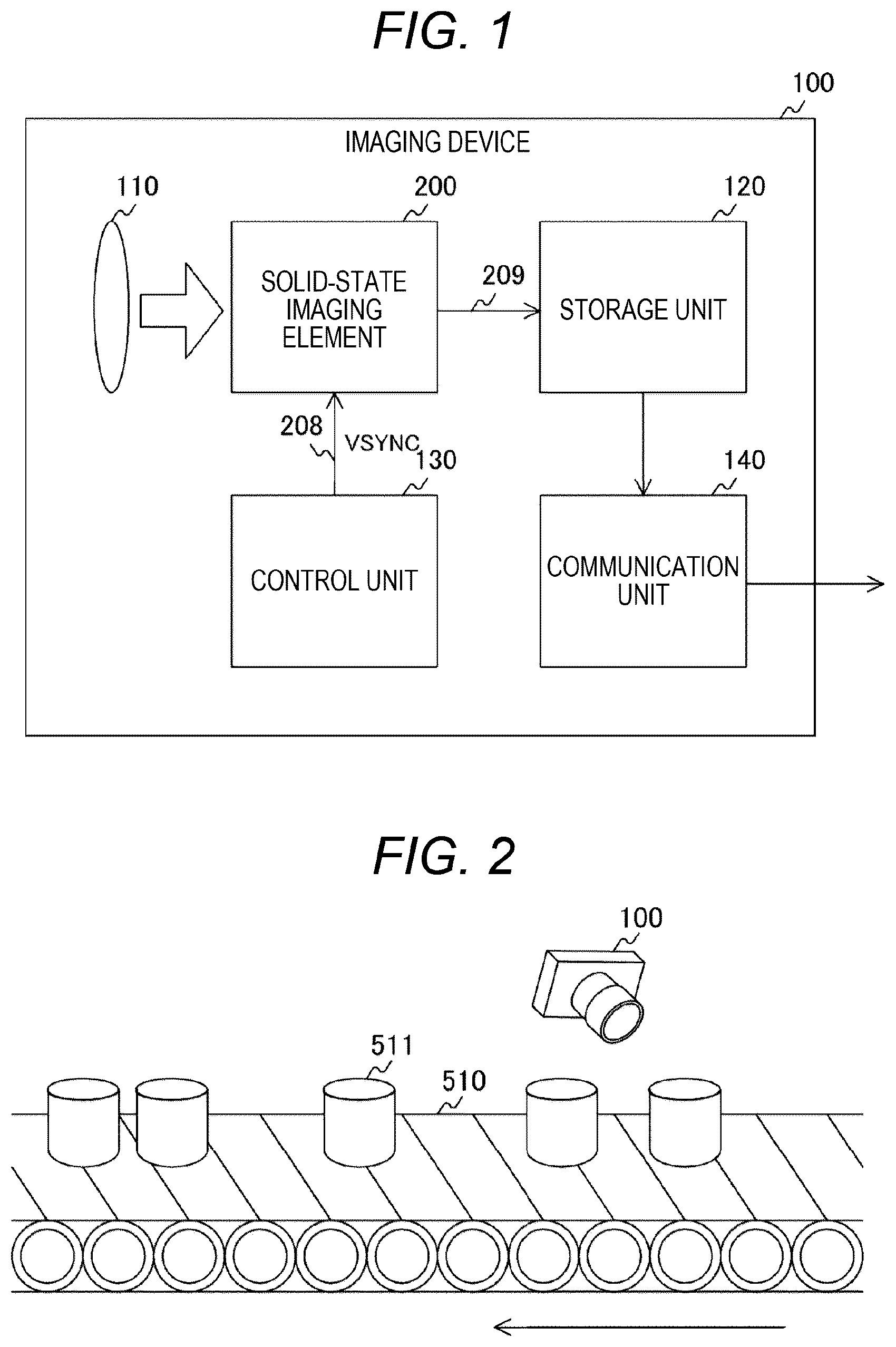

Sony Patent: Fixing Dark Current in Image Sensors — figure from US 2026/0230726 A1
Figure from the official USPTO publication.
See all 15 drawings from this filing ↓
Publication number US 2026/0230726 A1
Applicant SONY SEMICONDUCTOR SOLUTIONS CORPORATION
Filing date Aug 13, 2025
Publication date Aug 6, 2026
Inventors TAKANORI YAGAMI
CPC classification 348/308
Grant likelihood Medium
Examiner CENTRAL, DOCKET (Art Unit OPAP)
Status Docketed New Case - Ready for Examination (May 6, 2026)
Parent application is a National Stage Entry of PCTJP2024000782 (filed 2024-01-15)
Document 17 claims

What Sony's dark-current sensor fix actually does

Imagine taking a photo in a dimly lit restaurant and noticing a faint, blotchy haze in the image even where there should be pure black. That haze is called dark current, and it's essentially your camera sensor generating a tiny electrical signal even when no light is hitting it. The result is noise that makes dark areas look muddy.

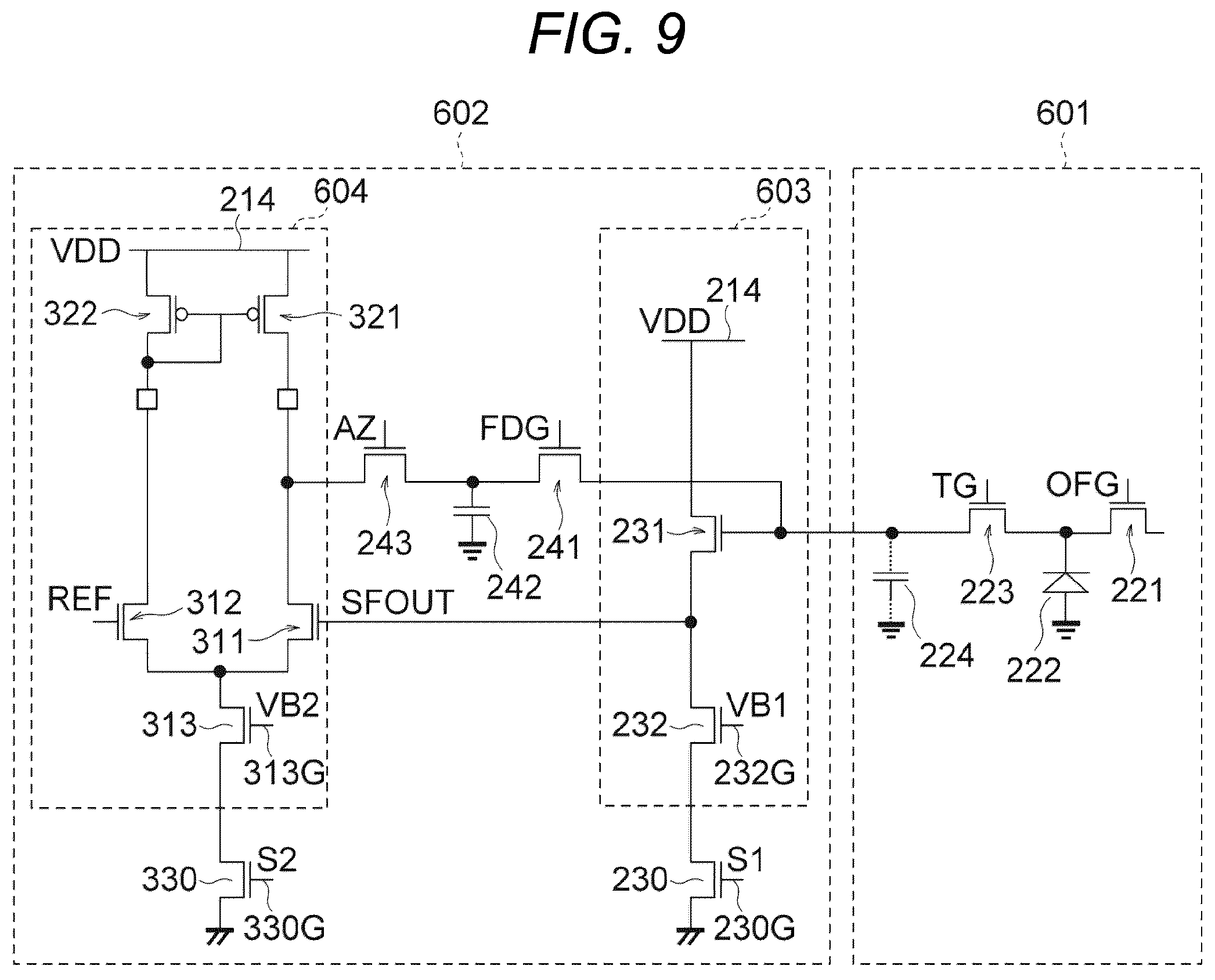

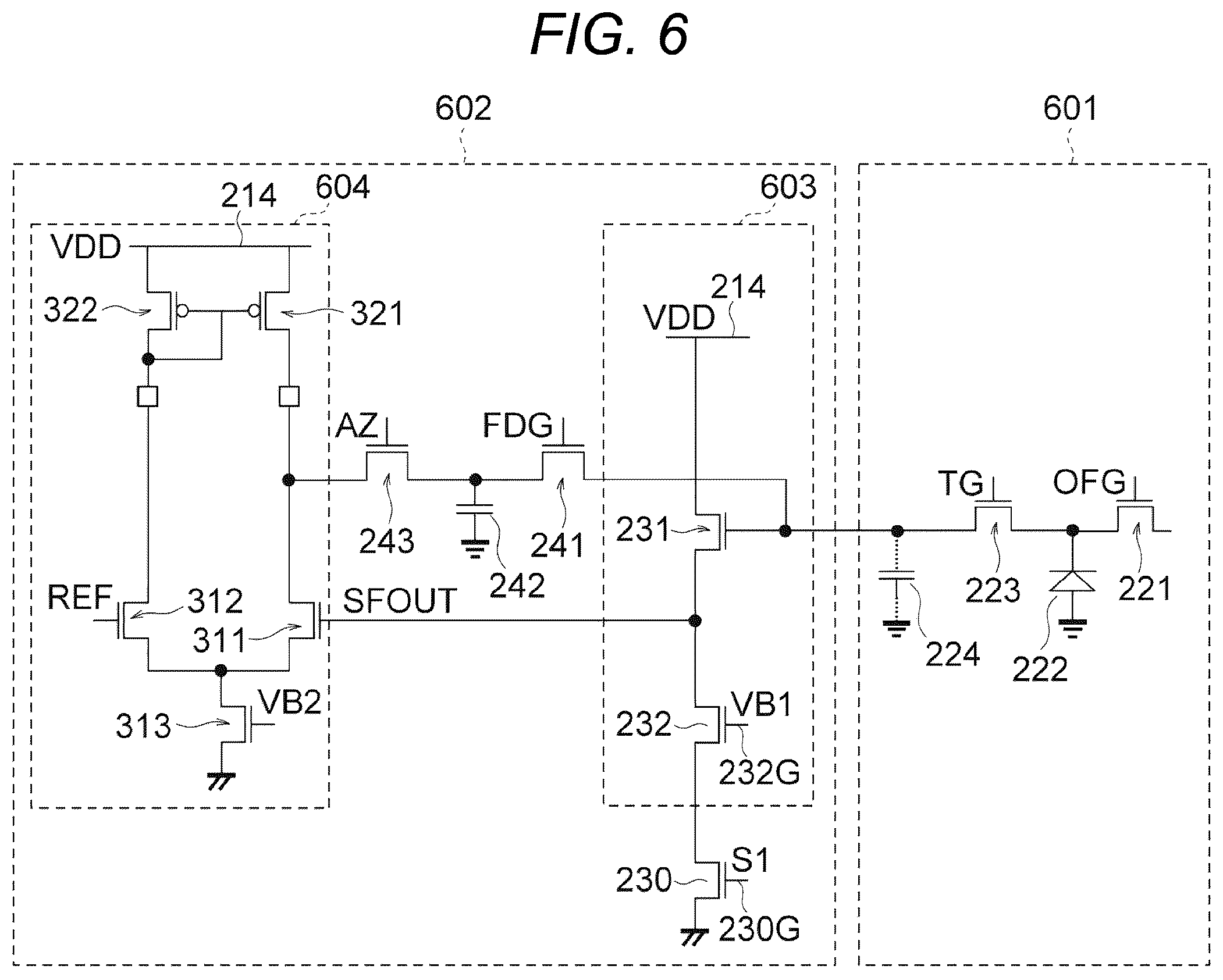

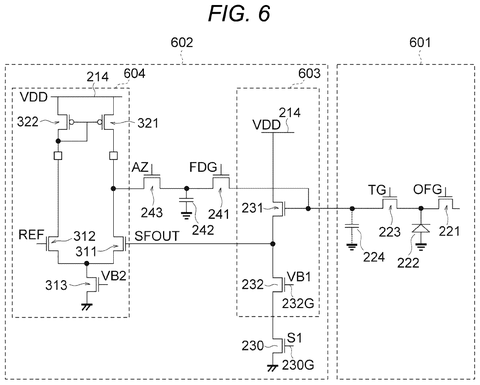

Sony's patent describes a small but targeted change to the circuit inside an image sensor. Specifically, it adds a switch element between a key transistor (which controls the electrical current used to read photo data) and the ground connection of the circuit. That switch can cut off an unwanted trickle of electricity that builds up over time and degrades image quality.

The fix is aimed at the reading side of the sensor, the part that interprets and passes along the signal after light has already been captured. By controlling when current flows through that part of the circuit, Sony hopes to keep dark areas looking clean and accurate.

How the switch elements block unwanted current flow

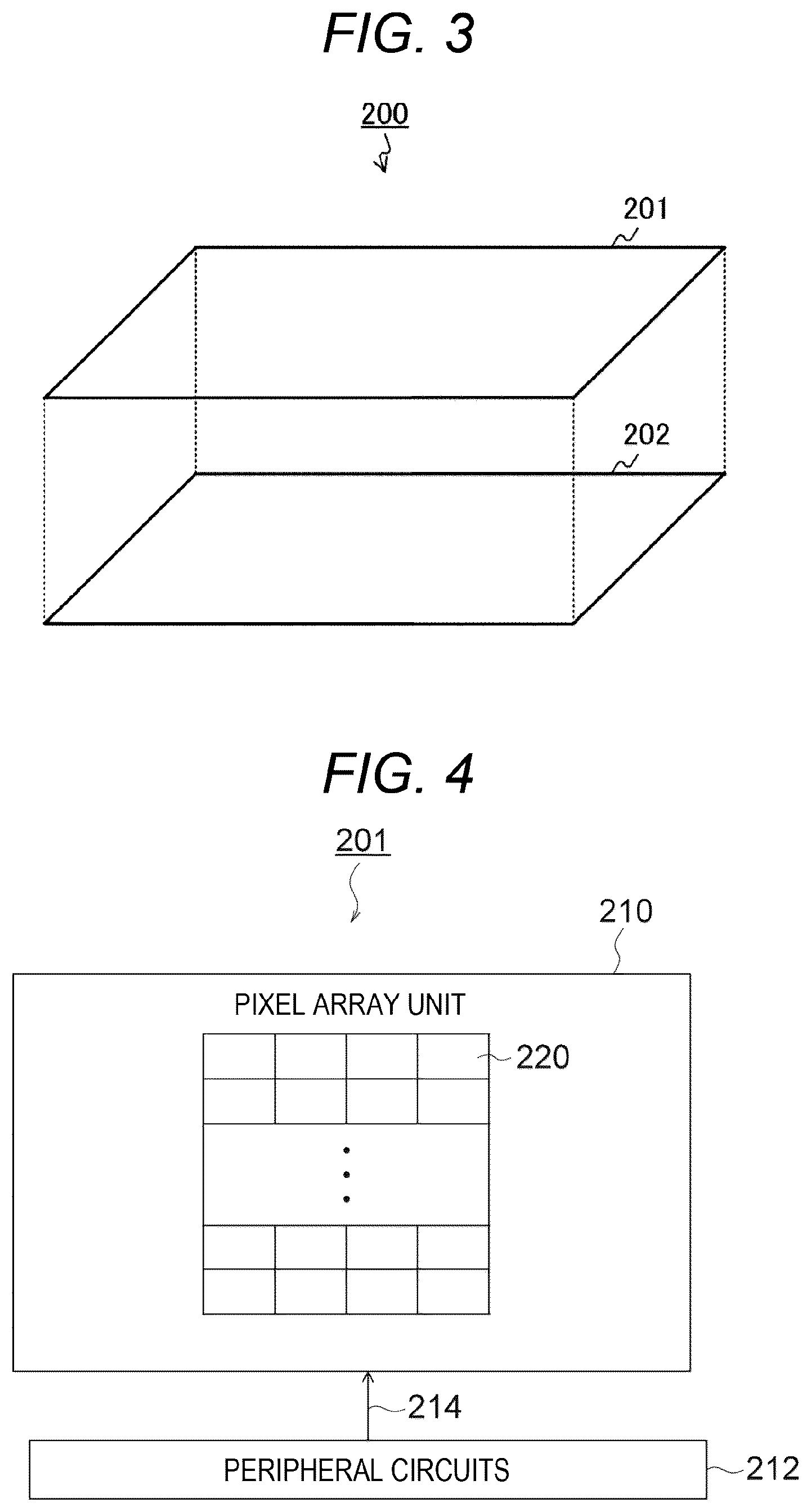

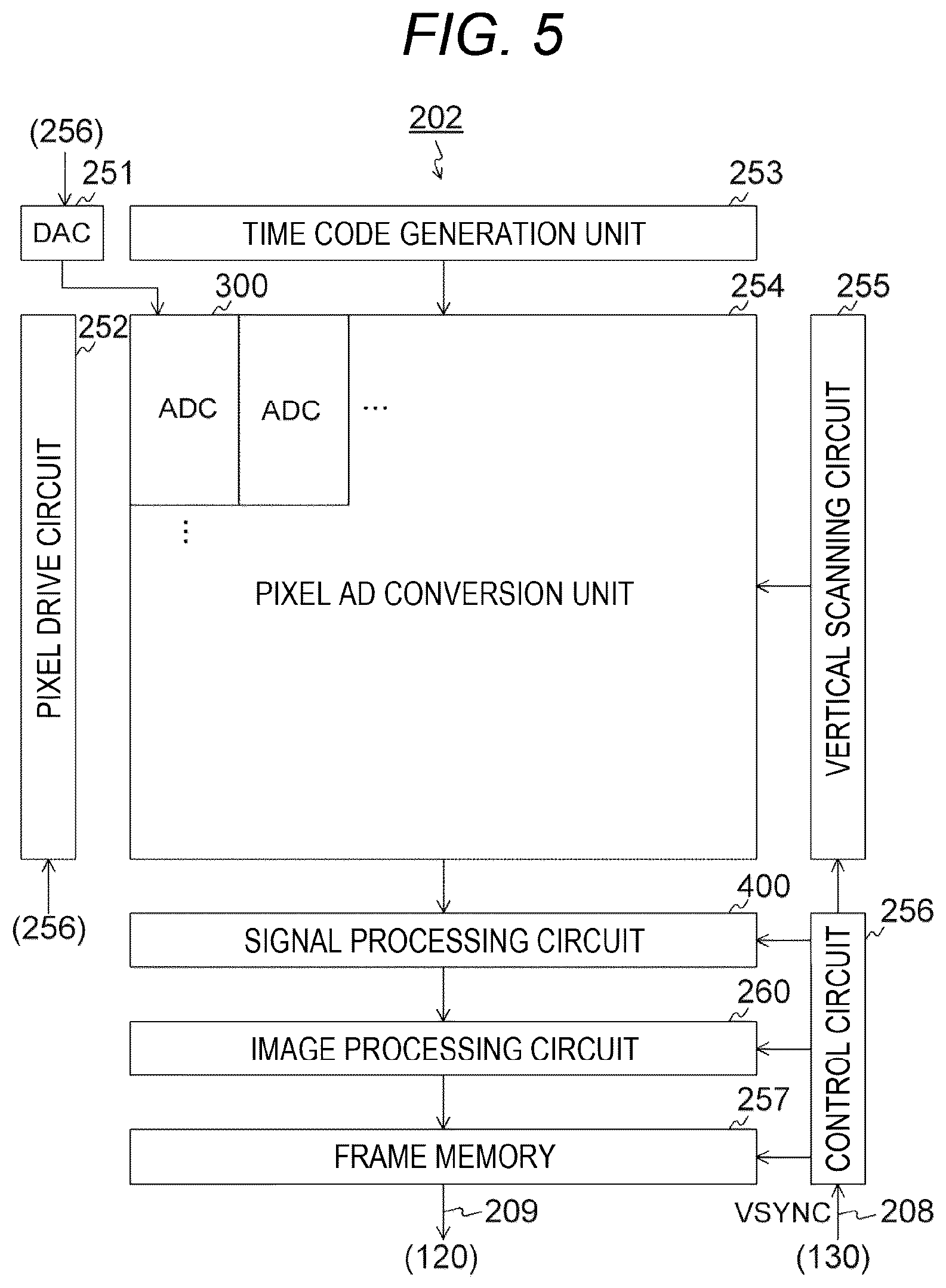

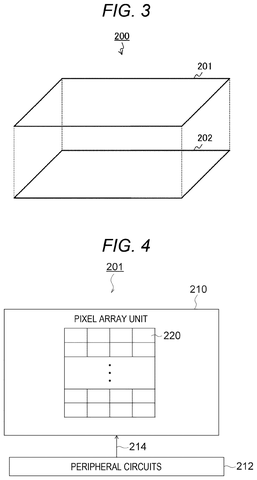

A solid-state image sensor (the chip inside every digital camera and smartphone camera) works in two stages: a light receiving circuit captures photons and converts them into an electrical signal (a process called photoelectric conversion), and a reading circuit then amplifies and transmits that signal for processing.

The reading circuit relies on current source transistors, which are small components that supply a steady, controlled electrical current to keep the signal stable during readout. The problem is that these transistors can develop dark current over time, meaning they leak a small electrical signal even when no light is present, corrupting the image.

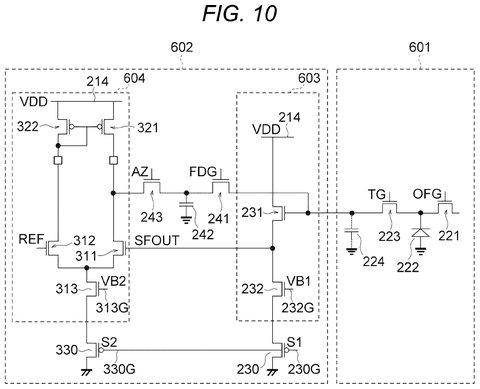

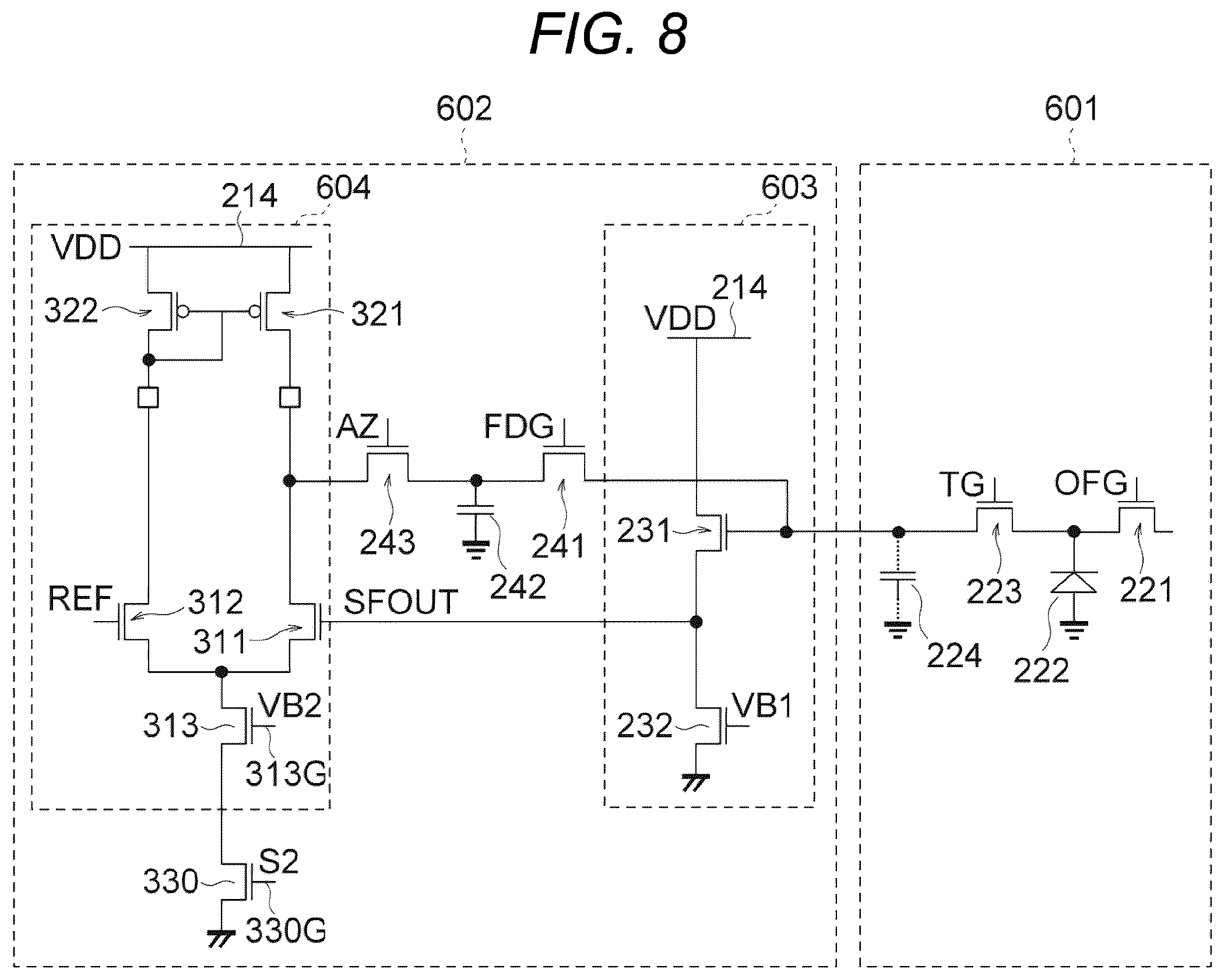

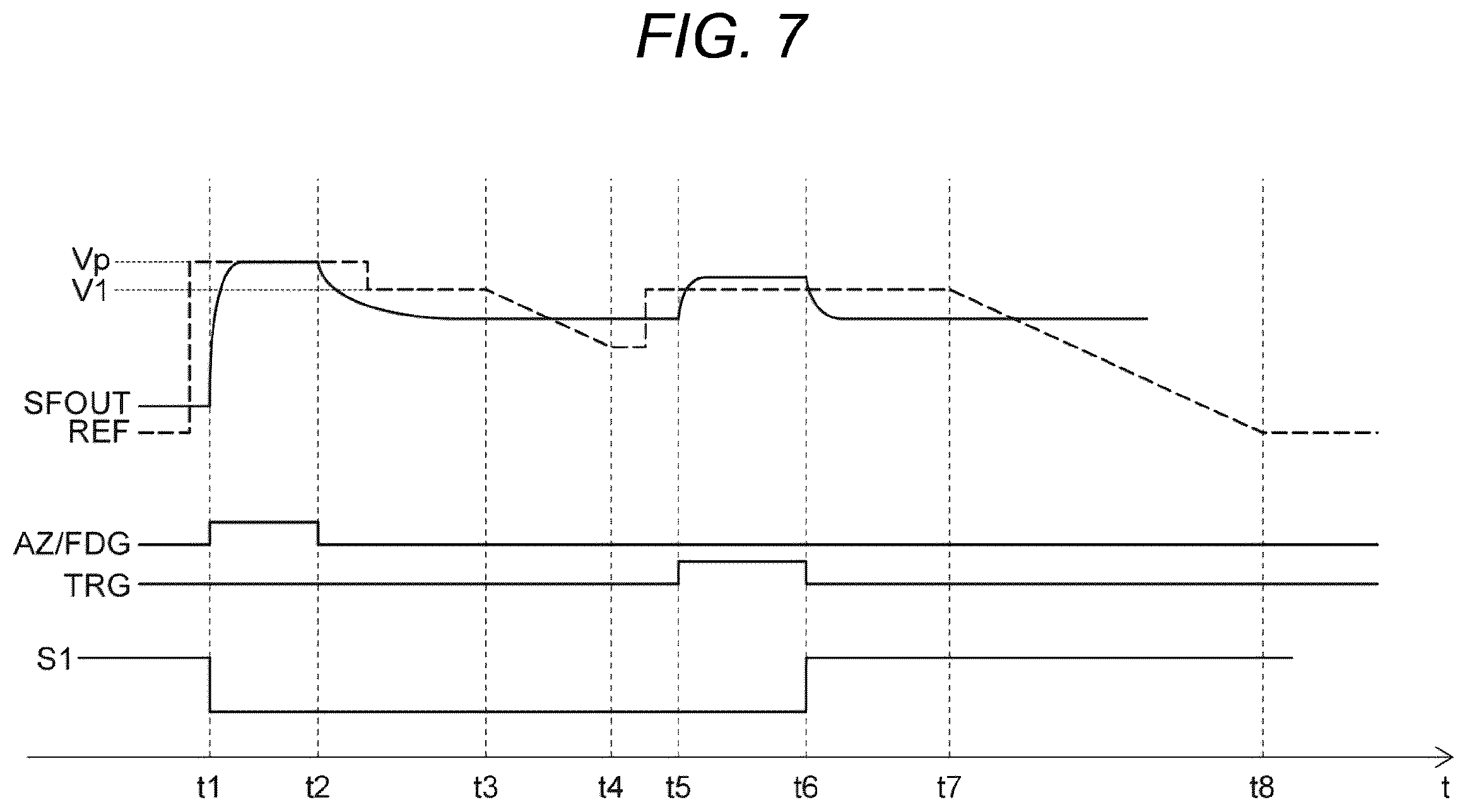

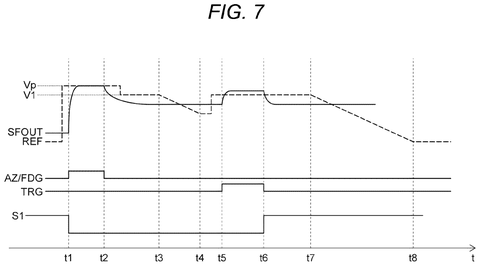

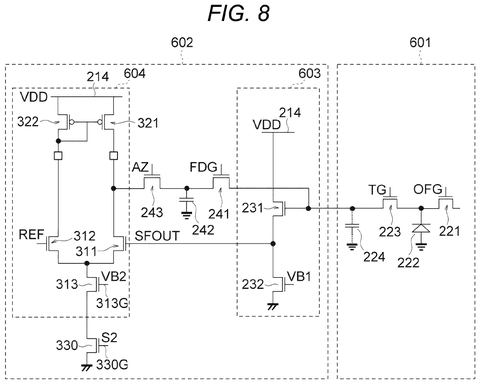

Sony's patent inserts switch elements between those transistors and the ground connection of the circuit. In electronics, grounding is where excess current flows to complete a circuit. By placing a controllable switch in that path, the design can cut off the transistor from ground when it doesn't need to be active, which reduces the conditions that cause dark current to build up.

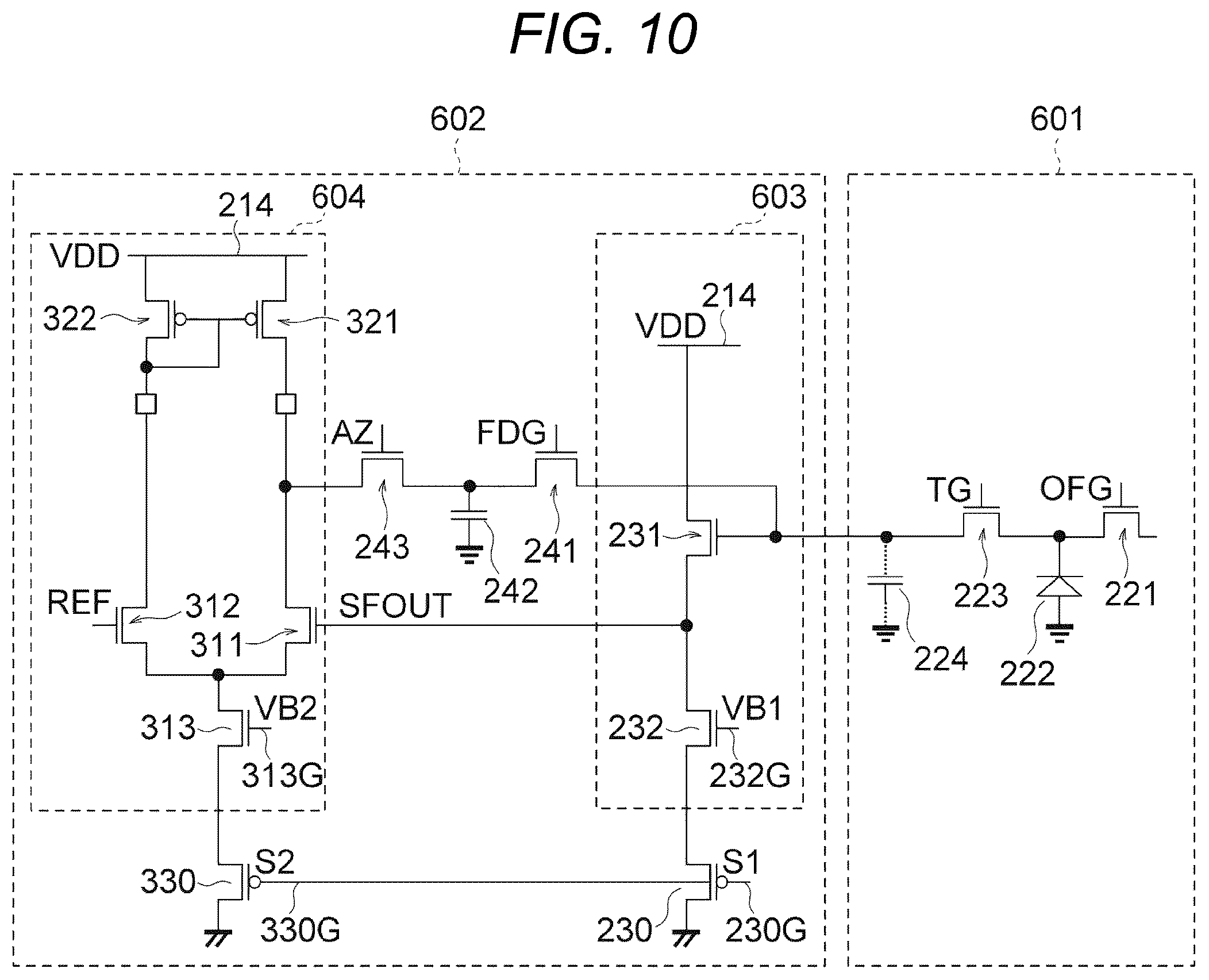

The claim is deliberately broad, covering sensors with one or more current source transistors and one or more switch elements, which suggests the approach is meant to apply across a range of sensor configurations rather than one specific product.

We find one patent like this every day. Get the best of each week in your inbox, free →

What this means for low-light camera performance

Dark current is one of the persistent annoyances in camera engineering, especially as sensors get smaller and pixel counts go up. Smaller pixels are more vulnerable to electrical interference, so any circuit-level technique that keeps unwanted current in check is genuinely useful for improving low-light photo quality.

Sony Semiconductor Solutions is the supplier behind image sensors used in many of the world's most popular cameras and smartphones, including devices from Apple and other major manufacturers. A change at this level of the sensor design, if it proves effective in production, could improve the baseline quality of photos taken in dark or indoor settings across a wide range of devices you might already own.

Editorial take

This is a narrow, infrastructure-level patent covering a specific transistor-circuit fix rather than a new imaging feature you'd see in a spec sheet. That said, dark current is a real and ongoing problem in sensor design, so the underlying goal is legitimate. It's the kind of incremental engineering work that rarely makes headlines but accumulates into noticeably better camera quality over product generations.
