Sony · Robotics · Filed Aug 13, 2025 · USPTO published Aug 13, 2026 · Aug 13 release

Sony Patents a Robot Body That Walks and Rolls Using the Same Motors

Most robots that can both roll on wheels and walk on legs need a separate motor for each job. Sony's new patent describes a way to share the work, cutting down the motor count by linking leg movement directly to wheel rotation.

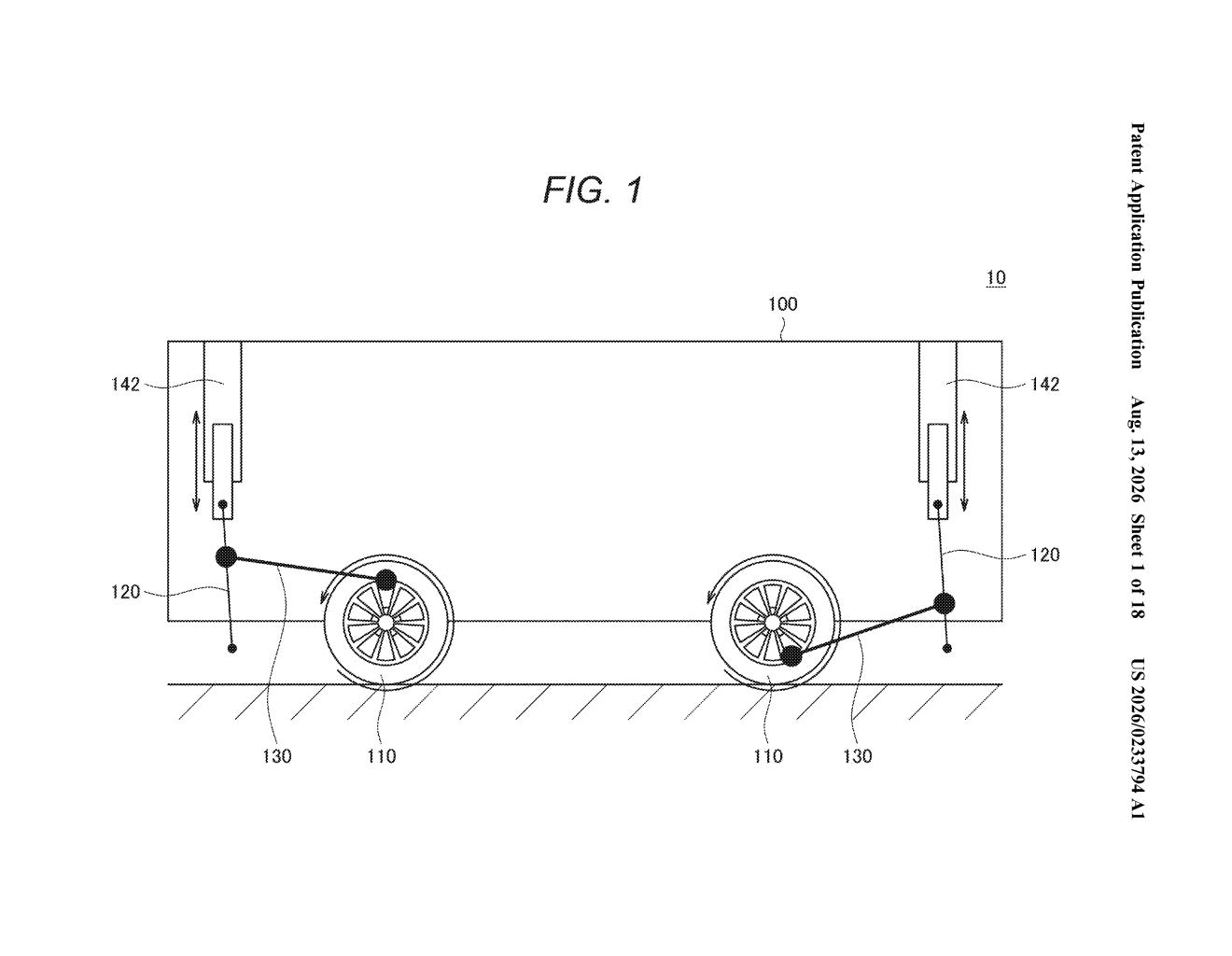

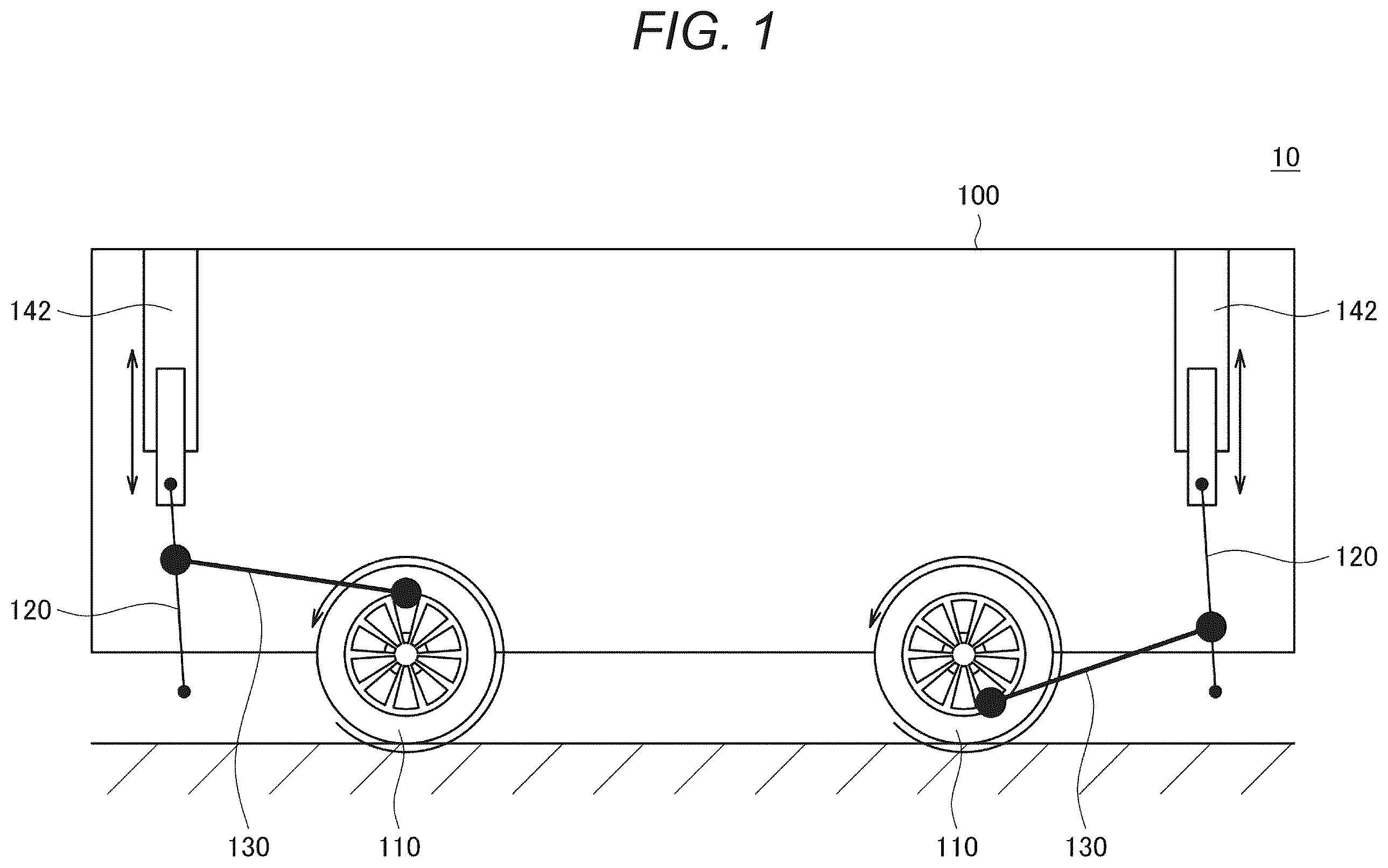

Side view of the robot body resting on wheels and ground-contact legs. Drawing from patent filing US 2026/0233794 A1.
Side view of the robot body resting on wheels and ground-contact legs.All 18 drawings ↓
Publication number
US 2026/0233794 A1(US20260233794A1)
Applicant
Sony Group Corporation
Filed · Published
Aug 13, 2025 · Aug 13, 2026
Inventors
Kazuo HONGO
Status when we published
Waiting for an examiner
Document
19 claims
US classification
180/8.3
Parent application
National Stage Entry of PCT/JP2024/003015 (filed Jan 31, 2024)(PCTJP2024003015)

How Sony's wheel-and-leg robot shares its motors

Ever wondered why robots are so heavy and expensive? A big reason is that every joint or wheel that needs to move usually needs its own motor, and motors are bulky, heavy, and power-hungry.

Sony's patent describes a mobile robot that can both roll on wheels and walk on legs, but without doubling up on the motors normally required. The key idea is that the legs don't have their own separate drive system for moving forward and backward. Instead, they're mechanically linked to the same wheels already doing the rolling. A separate, smaller mechanism handles only the up-and-down motion of each leg.

The result is a robot that can wheel across a flat floor efficiently, then lift its legs and step over an obstacle, all while using fewer motors than you'd typically expect. That matters for real-world robots, where every extra motor adds weight, cost, and one more thing that can break.

From the filing · CLAIM 1
… a leg part provided correspondingly to each of the drive wheels and moving forward and backward in accordance with rotation of the drive wheel …

Translation: Each wheel comes with a leg that moves back and forth as the wheel spins.

How the drive wheel controls the leg's forward-back motion

The patent describes a mobile body (Sony's term for the robot chassis) built around three main pieces working together.

  • Drive wheels: Standard motorized wheels attached to the main body. Each wheel is spun by a motor, just like a wheeled robot you'd recognize.
  • Leg parts: Each wheel has a corresponding leg. Critically, the leg's forward-and-backward motion (the stride) is driven by the rotation of that same wheel, not by a dedicated leg motor. The mechanical linkage converts wheel spin into a stepping motion.
  • Leg part drive unit: A separate control system handles only the up-and-down direction of each leg, letting the robot lift its foot to clear an obstacle or plant it on the ground.

By splitting the job this way, the design avoids needing a full set of independent leg motors. The wheel motor does double duty: it propels the robot when rolling, and it drives the stride cycle when walking. The vertical lift mechanism is the only additional actuation (movement system) required per leg.

The claim is written at a fairly high level of abstraction, covering any mobile body where leg forward-backward motion follows wheel rotation and a separate unit governs vertical leg movement.

From the filing · THE ABSTRACT
To reduce the number of motors mounted on a mobile body that can realize both wheel traveling and leg walking.

Translation: The goal is using fewer motors for a robot that can both roll and walk.

What this means for Sony's robotics ambitions

Fewer motors means a lighter, cheaper, and more reliable robot. For consumer or service robots that need to handle both smooth floors and stairs or uneven terrain, this kind of mechanical efficiency is a real design challenge. Sony has been investing in robotics for years, and patents like this point toward hardware that could eventually show up in home or logistics robots where cost and weight constraints are tight.

Claim 1 as written is broad. It doesn't specify the exact linkage mechanism, the number of legs, or the type of motor, which means, if granted, it could cover a wide range of wheel-walking hybrid designs. That breadth is worth noting for anyone building in this space, and it fits into the ongoing wave of Big Tech patent news around embodied robotics, where hardware architecture choices are becoming as contested as software ones.

Source: US 2026/0233794 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 18 sheets

18 drawing sheets from US 2026/0233794 A1 · click any drawing to enlarge

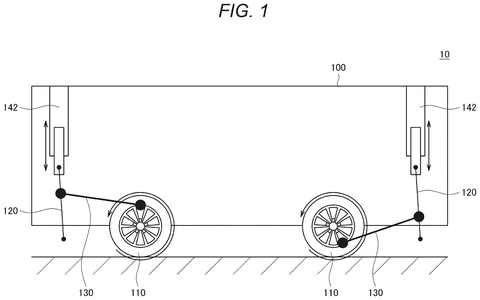

Robot body on wheels, drawing sheet 1 from US 2026/0233794 A1
Sheet 1 Robot body on wheels

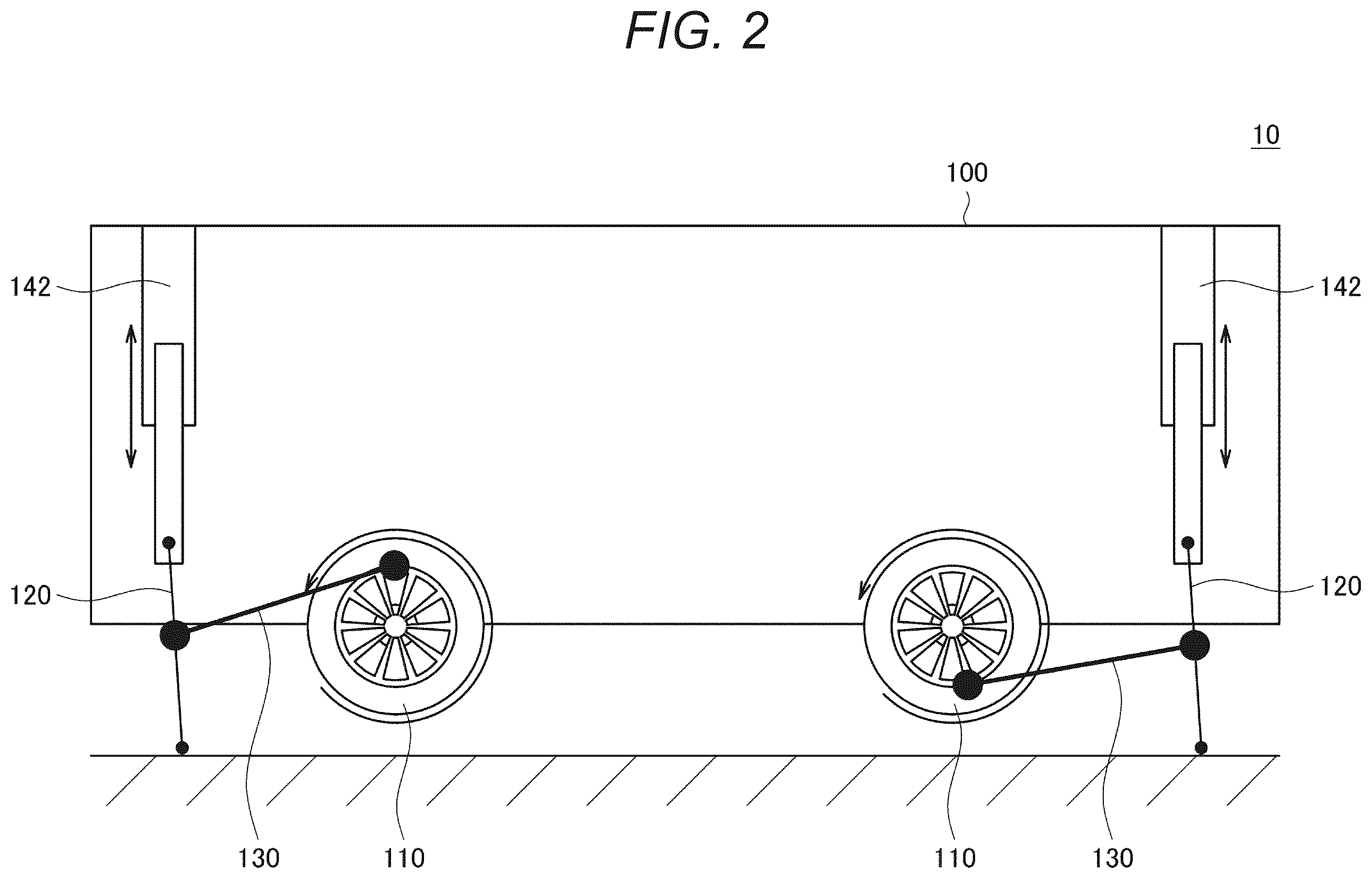

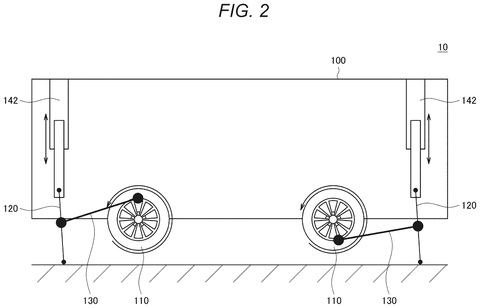

Robot body walking mode, drawing sheet 2 from US 2026/0233794 A1
Sheet 2 Robot body walking mode

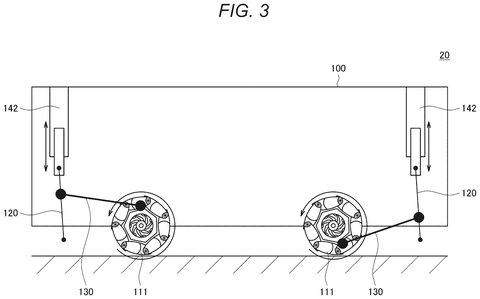

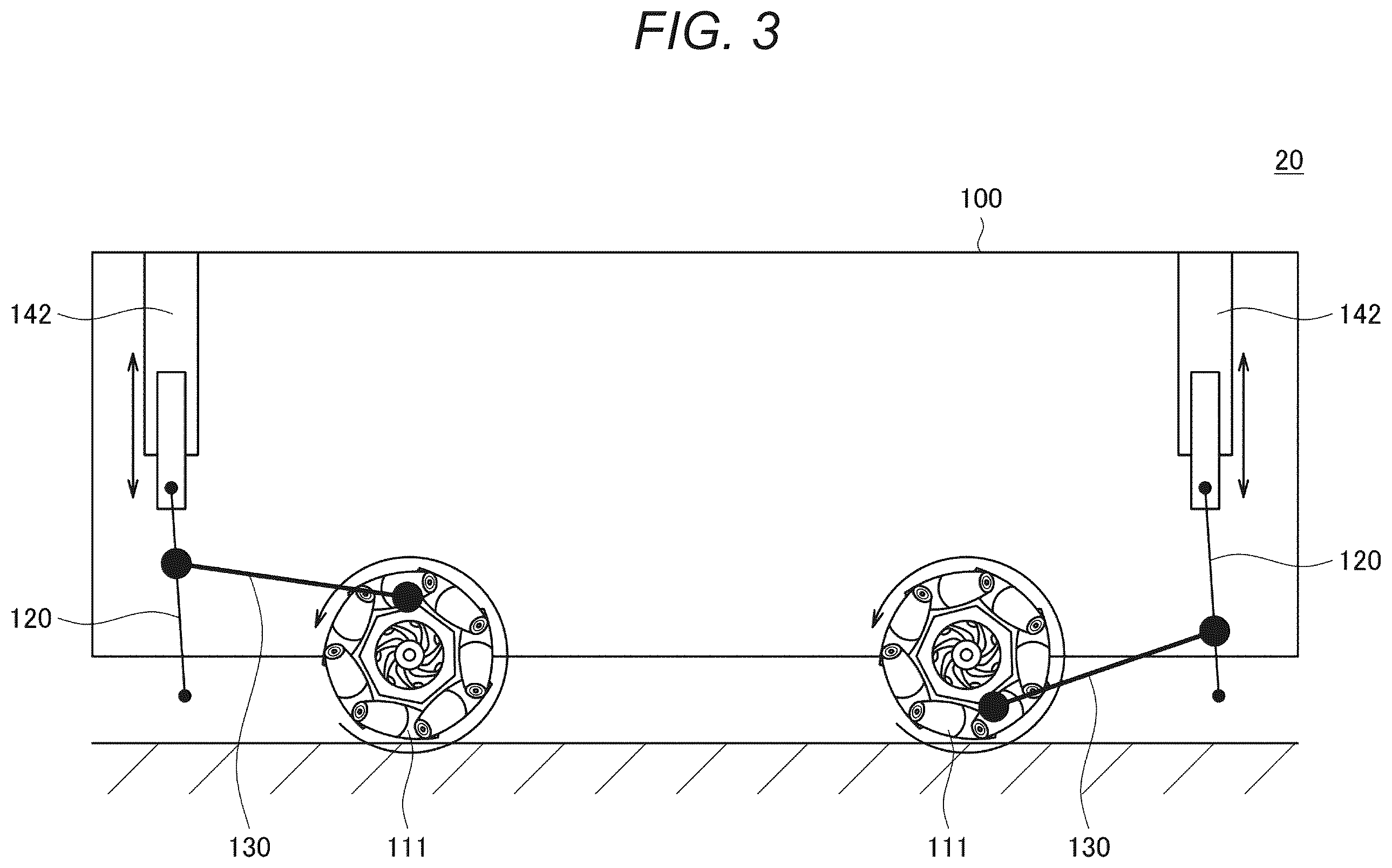

Robot body with omnidirectional wheels, drawing sheet 3 from US 2026/0233794 A1
Sheet 3 Robot body with omnidirectional wheels

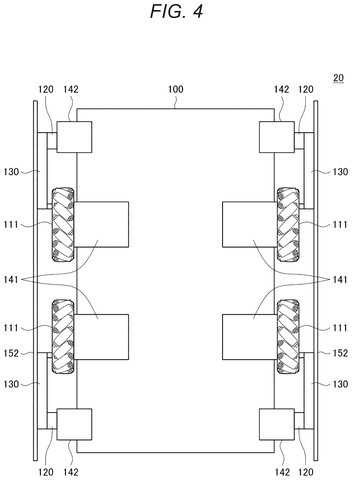

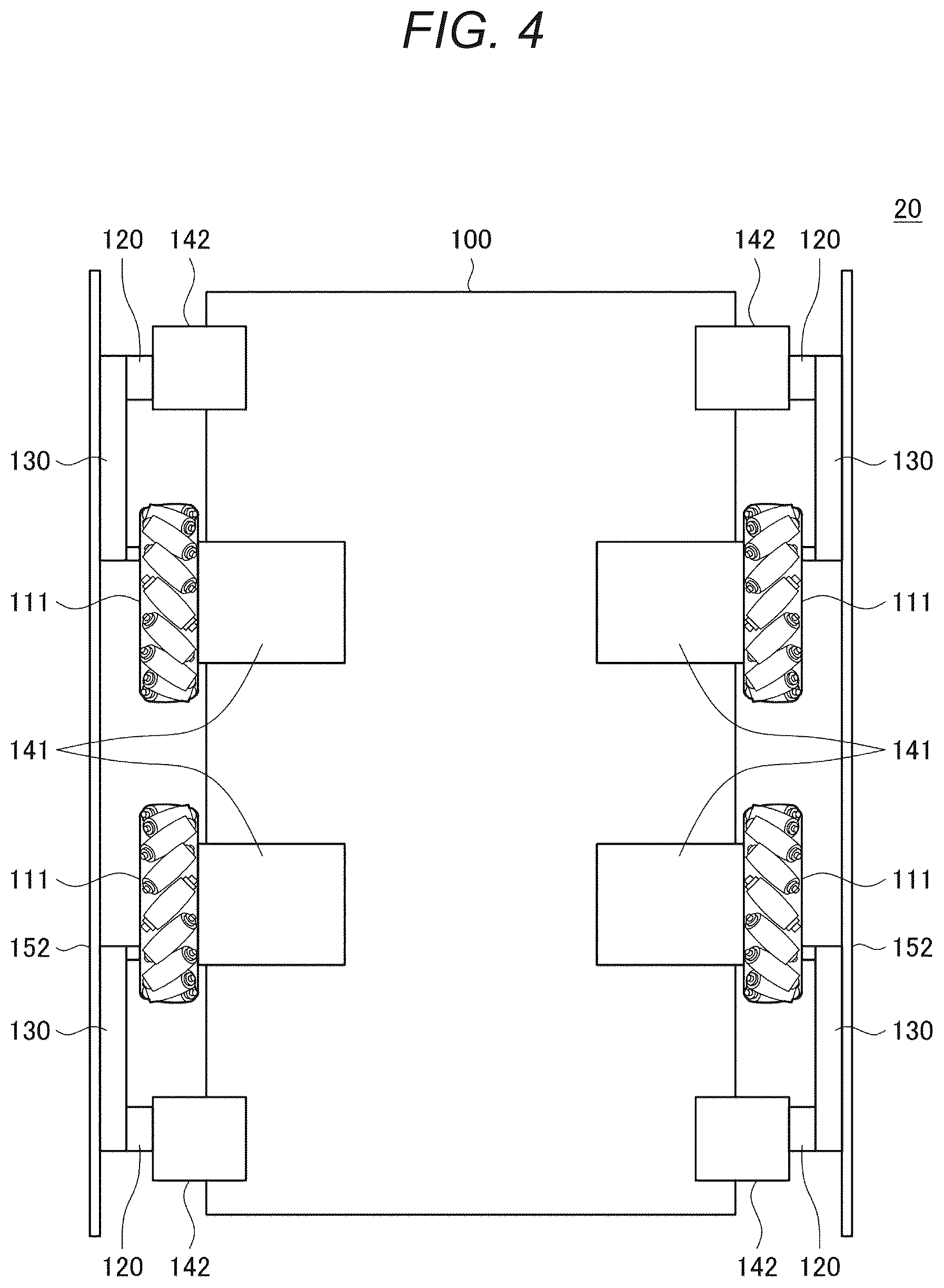

Underside view of omnidirectional wheels, drawing sheet 4 from US 2026/0233794 A1
Sheet 4 Underside view of omnidirectional wheels

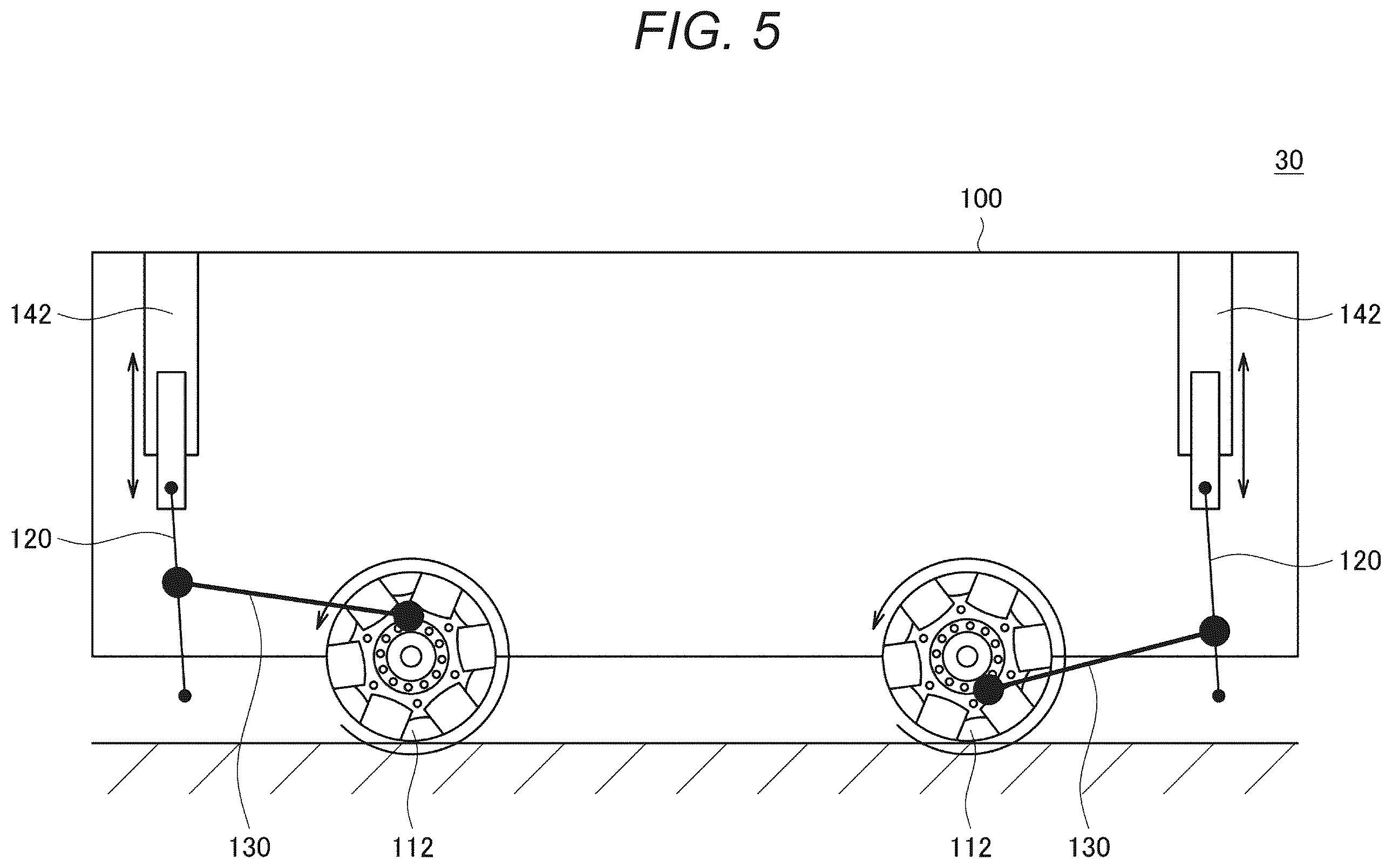

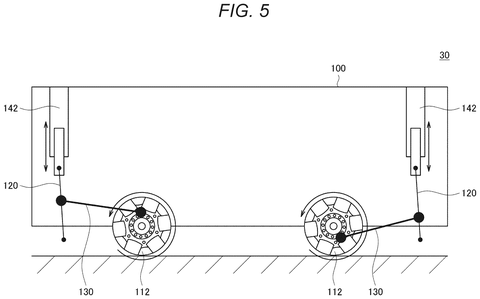

Robot body with specialized rollers, drawing sheet 5 from US 2026/0233794 A1
Sheet 5 Robot body with specialized rollers

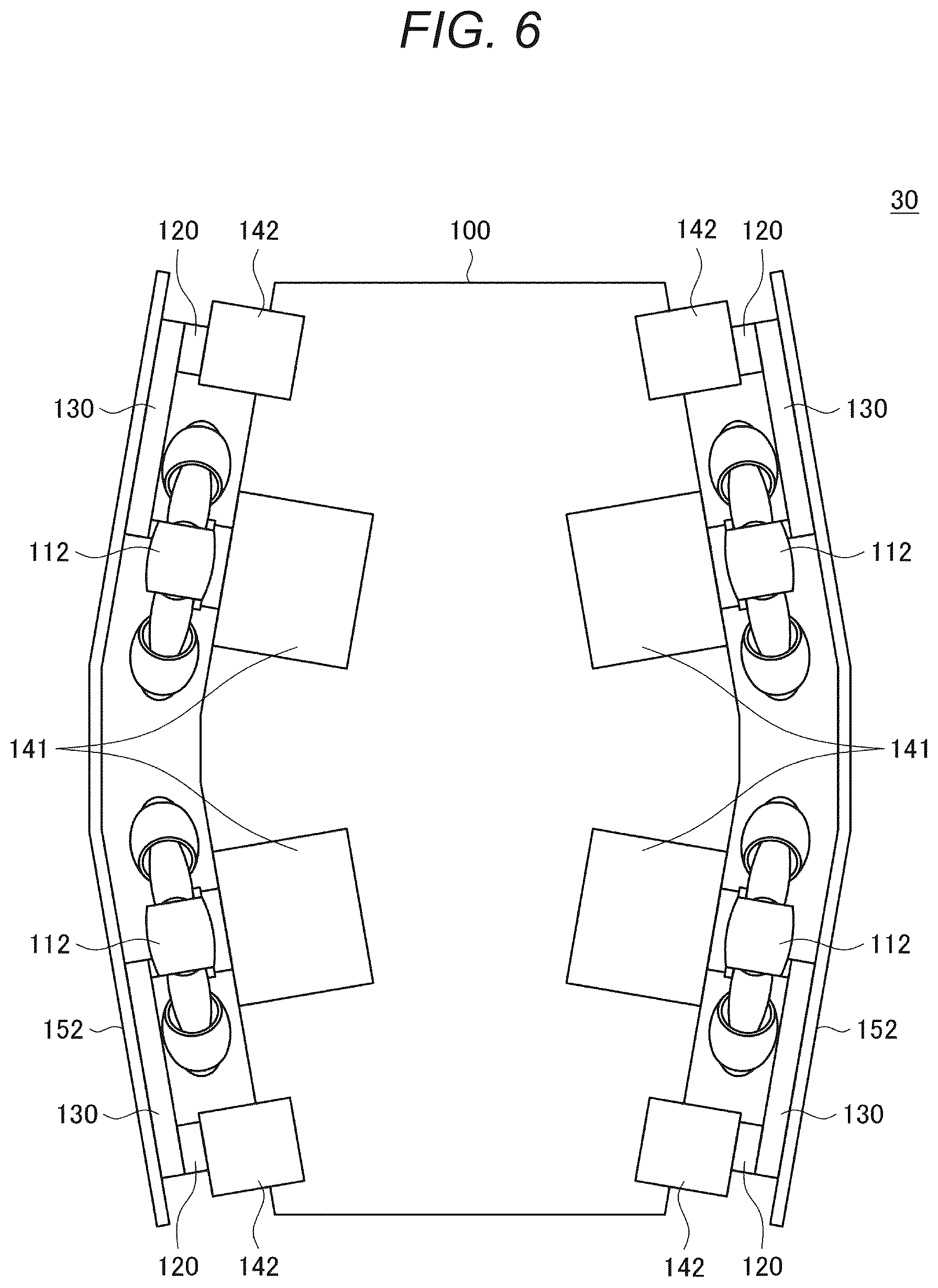

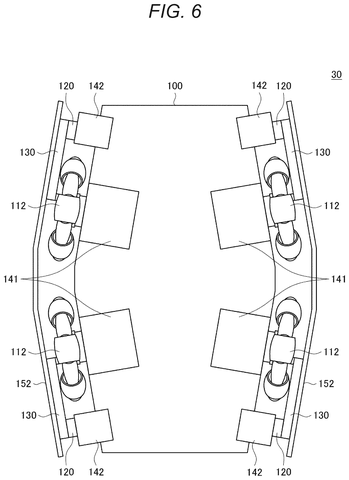

Underside view with specialized rollers, drawing sheet 6 from US 2026/0233794 A1
Sheet 6 Underside view with specialized rollers

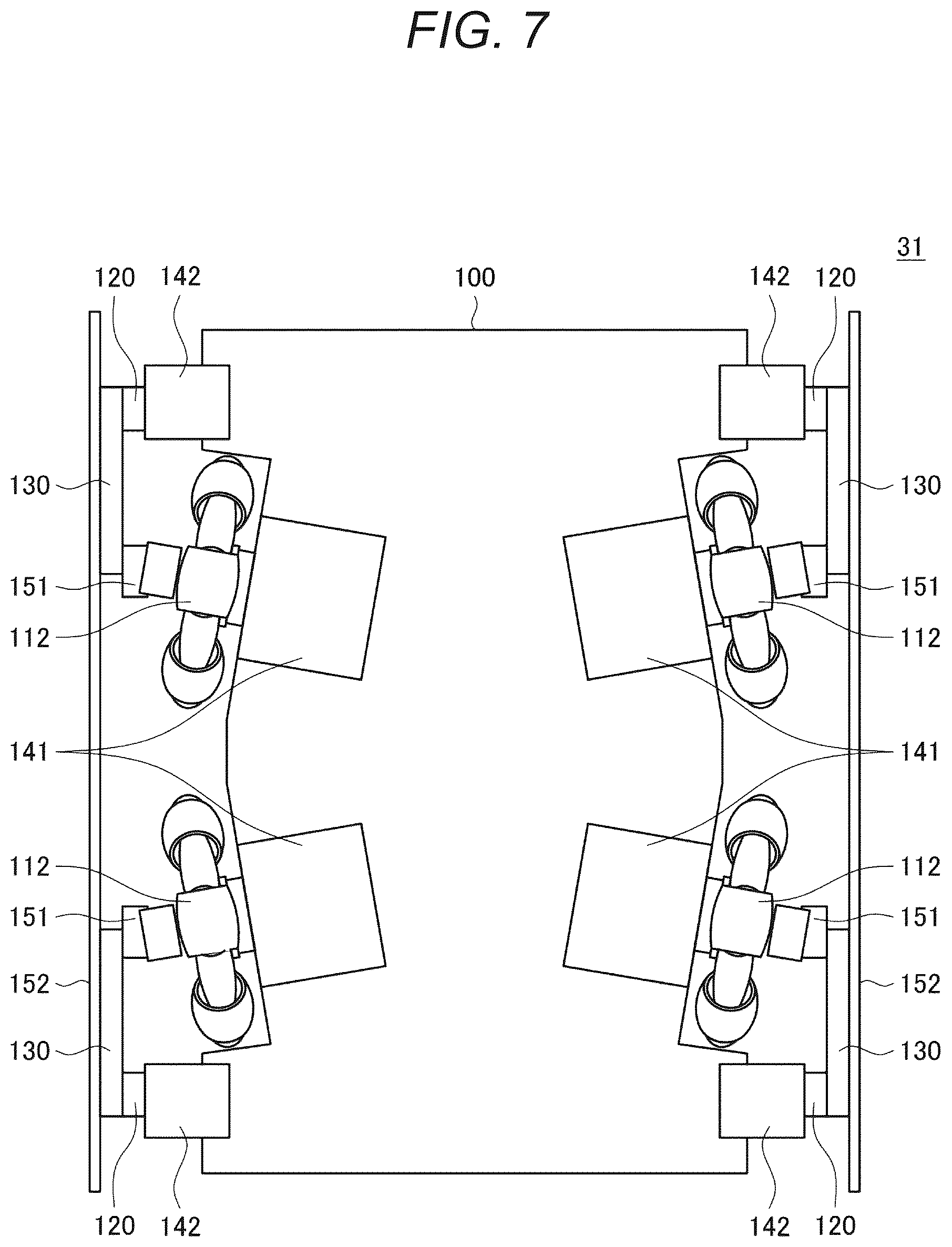

Underside view with angled wheels, drawing sheet 7 from US 2026/0233794 A1
Sheet 7 Underside view with angled wheels

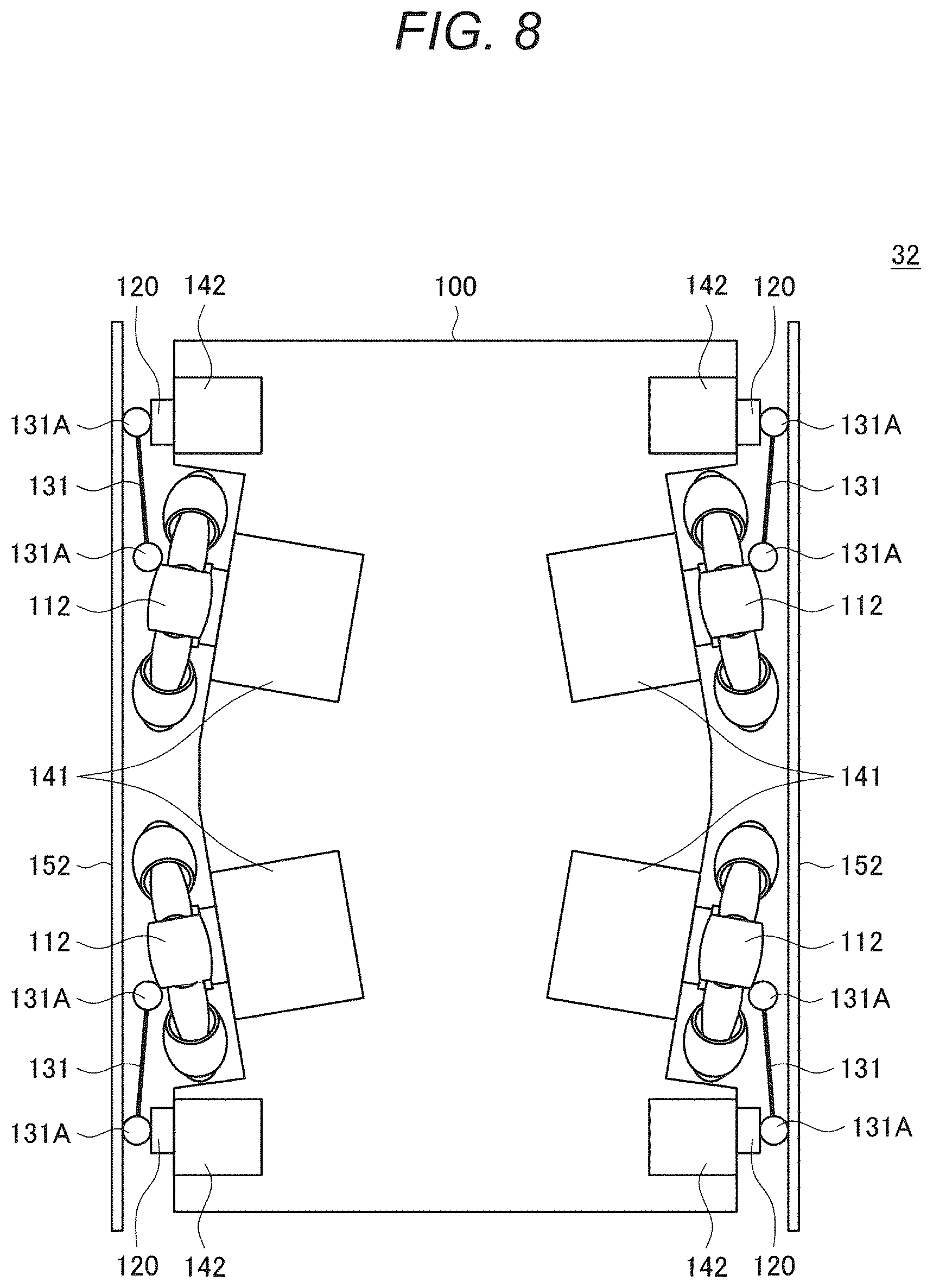

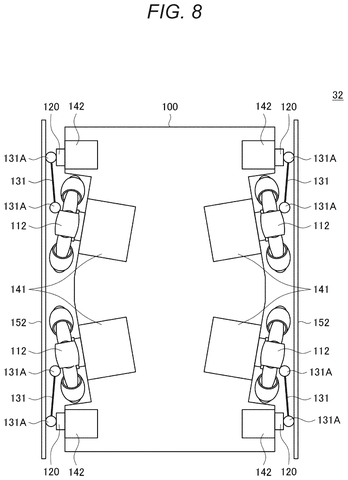

Underside view with link bars, drawing sheet 8 from US 2026/0233794 A1
Sheet 8 Underside view with link bars
Show the other 10 sheets
Sony Patents a Robot Body That Walks and Rolls Using the Same Motors patent drawing, sheet 9
Sheet 9
Sony Patents a Robot Body That Walks and Rolls Using the Same Motors patent drawing, sheet 10
Sheet 10
Sony Patents a Robot Body That Walks and Rolls Using the Same Motors patent drawing, sheet 11
Sheet 11
Sony Patents a Robot Body That Walks and Rolls Using the Same Motors patent drawing, sheet 12
Sheet 12
Sony Patents a Robot Body That Walks and Rolls Using the Same Motors patent drawing, sheet 13
Sheet 13
Sony Patents a Robot Body That Walks and Rolls Using the Same Motors patent drawing, sheet 14
Sheet 14
Sony Patents a Robot Body That Walks and Rolls Using the Same Motors patent drawing, sheet 15
Sheet 15
Sony Patents a Robot Body That Walks and Rolls Using the Same Motors patent drawing, sheet 16
Sheet 16
Sony Patents a Robot Body That Walks and Rolls Using the Same Motors patent drawing, sheet 17
Sheet 17
Sony Patents a Robot Body That Walks and Rolls Using the Same Motors patent drawing, sheet 18
Sheet 18
