Apple · AR / VR · Filed Nov 18, 2025 · USPTO published Aug 20, 2026 · Aug 20 release

Apple Patents a Way to Fix AR Colors by Borrowing Cameras from Nearby Devices

Apple's AR headset could one day borrow the cameras on your nearby iPhone or iPad to make sure digital objects look like they belong in the real room around you.

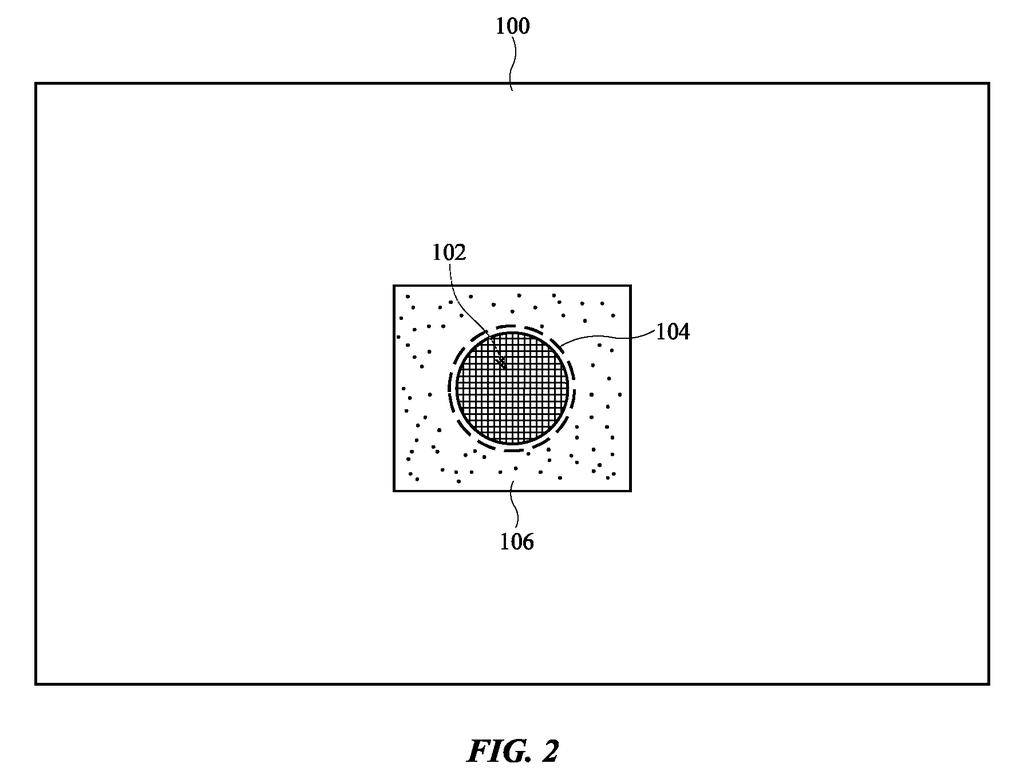

Augmented reality display screen showing a virtual content region overlaid onto a physical background. Drawing from patent filing US 2026/0245267 A1.
Augmented reality display screen showing a virtual content region overlaid onto a physical background.All 10 drawings ↓
Publication number
US 2026/0245267 A1(US20260245267A1)
Applicant
Apple Inc.
Filed · Published
Nov 18, 2025 · Aug 20, 2026
Inventors
Sivalogeswaran Ratnasingam, Anshul K. Jain, Anselm Grundhoefer
Status when we published
Waiting for an examiner
Document
20 claims
US classification
345/589
Parent application
Claims priority from a provisional application 63759937 (filed Feb 18, 2025)

How Apple's headset borrows your iPhone's camera for AR lighting

You're wearing an AR headset and you turn your head to look at something across the room. The virtual furniture overlaid on your floor suddenly looks weirdly lit, like it was rendered in a different room entirely. That mismatch is a common complaint with AR headsets today.

Apple's patent describes a fix: the headset tracks which direction your head is pointing, then asks nearby devices like an iPhone or iPad to snap a photo of that part of the room. The headset uses those photos to understand the real lighting conditions in your environment and adjusts the colors of the digital objects to match. Different devices cover different directions, so no single camera has to do all the work.

The end result, if it works, is that virtual objects should blend into your actual surroundings more convincingly no matter where you look. The system also uses the incoming photos to help figure out where in the room the headset is located.

From the filing · CLAIM 1
… directing a first device external to the head-mounted device to capture a first image; and in response to determining that the predicted pose of the head-mounted device is facing a second direction different than the first direction, directing a second device external to the head-mounted device to capture a second image.

Translation: The headset tells nearby gadgets to take pictures depending on which way you are looking.

How the headset coordinates cameras based on predicted head direction

The patent describes a method where a head-mounted device (a VR or AR headset) predicts its own orientation using onboard sensors, such as accelerometers and gyroscopes. Based on that predicted pose (meaning which direction the wearer's head is facing), it sends a command to a specific external device to take a photo.

If you're facing left, it might trigger an iPhone on the left side of the room. If you turn right, it triggers a different device on the right. The headset collects those images wirelessly and runs color correction on its AR content, which means it adjusts the hue, brightness, and tone of the digital overlays so they match the real-world lighting the camera actually captured.

The patent also mentions using the received images for localization, meaning the headset can cross-reference what those external cameras see to figure out its own position in the room. This is useful because headsets sometimes drift in their sense of where they are.

Key components the patent describes:

  • Sensor-based pose prediction to anticipate head direction before capturing
  • Wireless coordination of multiple external devices (phones, tablets, or other cameras)
  • Per-direction image capture to cover the full room as the user moves
  • Color correction of AR content applied per-frame based on the latest captured image
From the filing · THE ABSTRACT
… performing color correction of augmented reality (AR) content based on the first or second image. The color corrected AR content can be presented on a see-through display of the head-mounted device.

Translation: Those external photos are used to fix the colors on your headset screen so digital objects look right.

What this means for Apple Vision Pro's color accuracy

For AR to feel convincing, virtual objects need to look like they're bathed in the same light as everything else in the room. Today's headsets rely on cameras built into the device itself, which can only see what's directly in front of you. When you turn your head quickly or the lighting changes, the correction lags or simply misses what's behind you. Using distributed cameras across a room solves that coverage problem in a way that doesn't require strapping more hardware to your face.

The patent sits squarely in Apple's ongoing investment in spatial computing and AR displays, and it fits alongside other AR-focused entries in this week's Big Tech patents. The approach does require that you already own compatible Apple devices and that they're positioned around the room, which is a meaningful prerequisite. But for someone with a Vision Pro and a few iPhones already in their home, the infrastructure needed is already there.

Apple's 32nd filing we've tracked since May in our AR glasses watch builds on the color-fix camera patent and the 3D room video wrap.

Source: US 2026/0245267 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Apple patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 10 sheets

10 drawing sheets from US 2026/0245267 A1 · click any drawing to enlarge

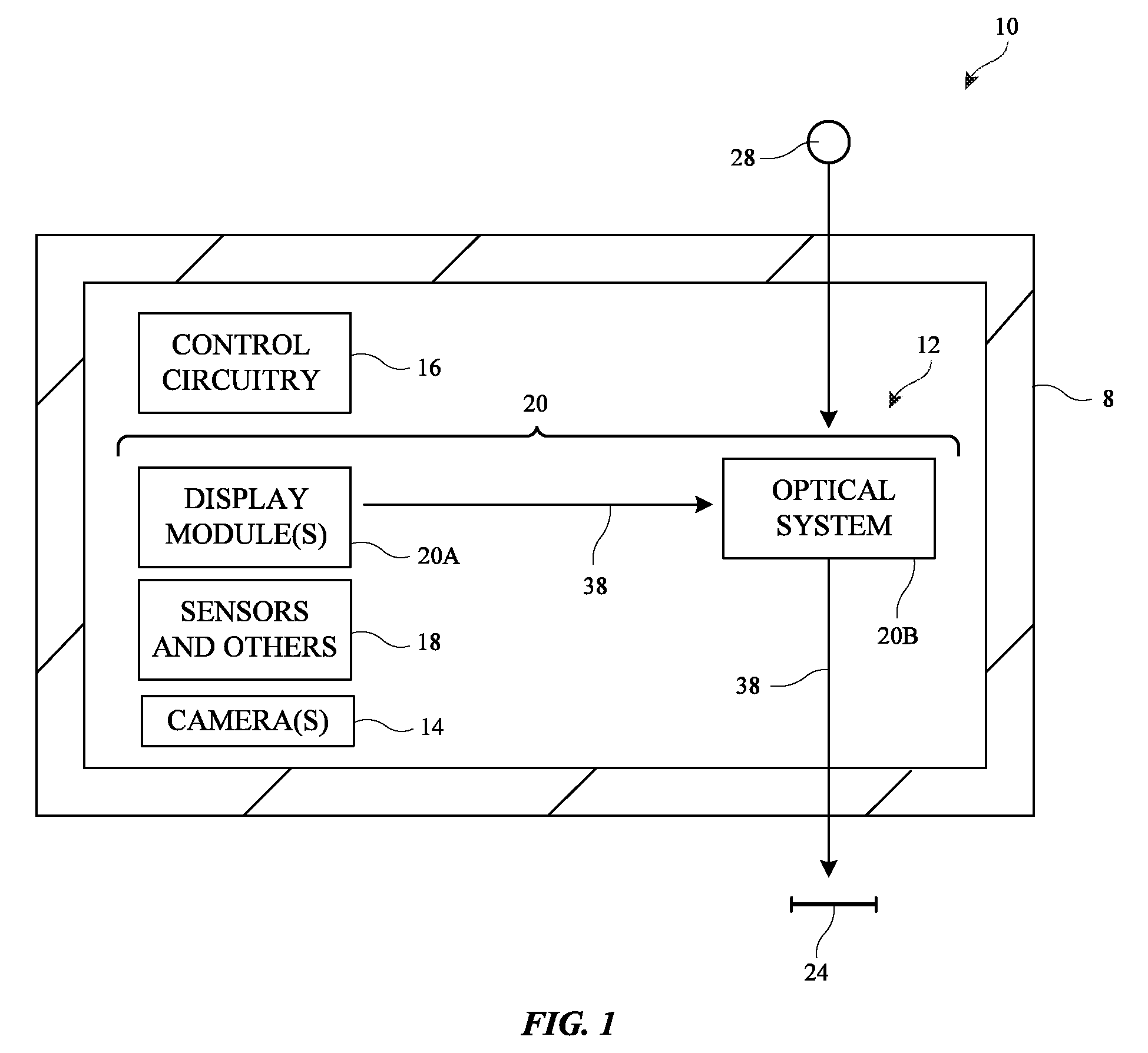

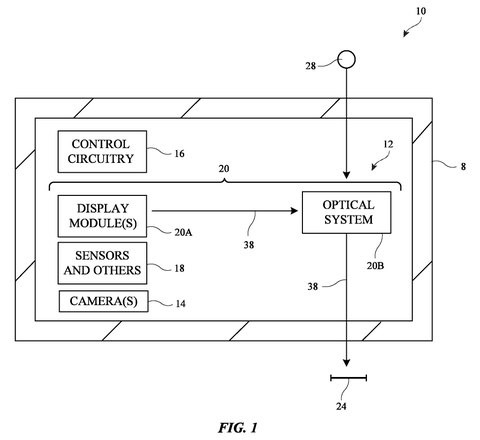

Control circuitry and optical system, drawing sheet 1 from US 2026/0245267 A1
Sheet 1 Control circuitry and optical system
Display screen with AR overlay, drawing sheet 2 from US 2026/0245267 A1
Sheet 2 Display screen with AR overlay

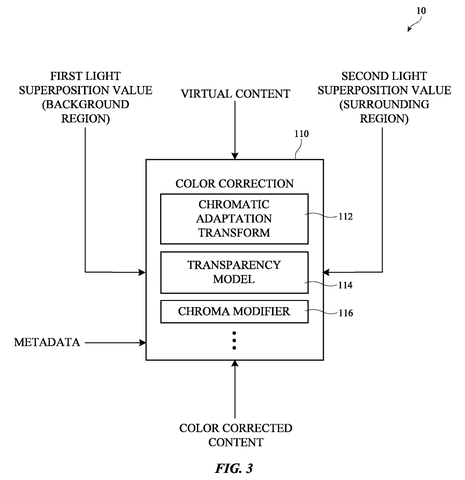

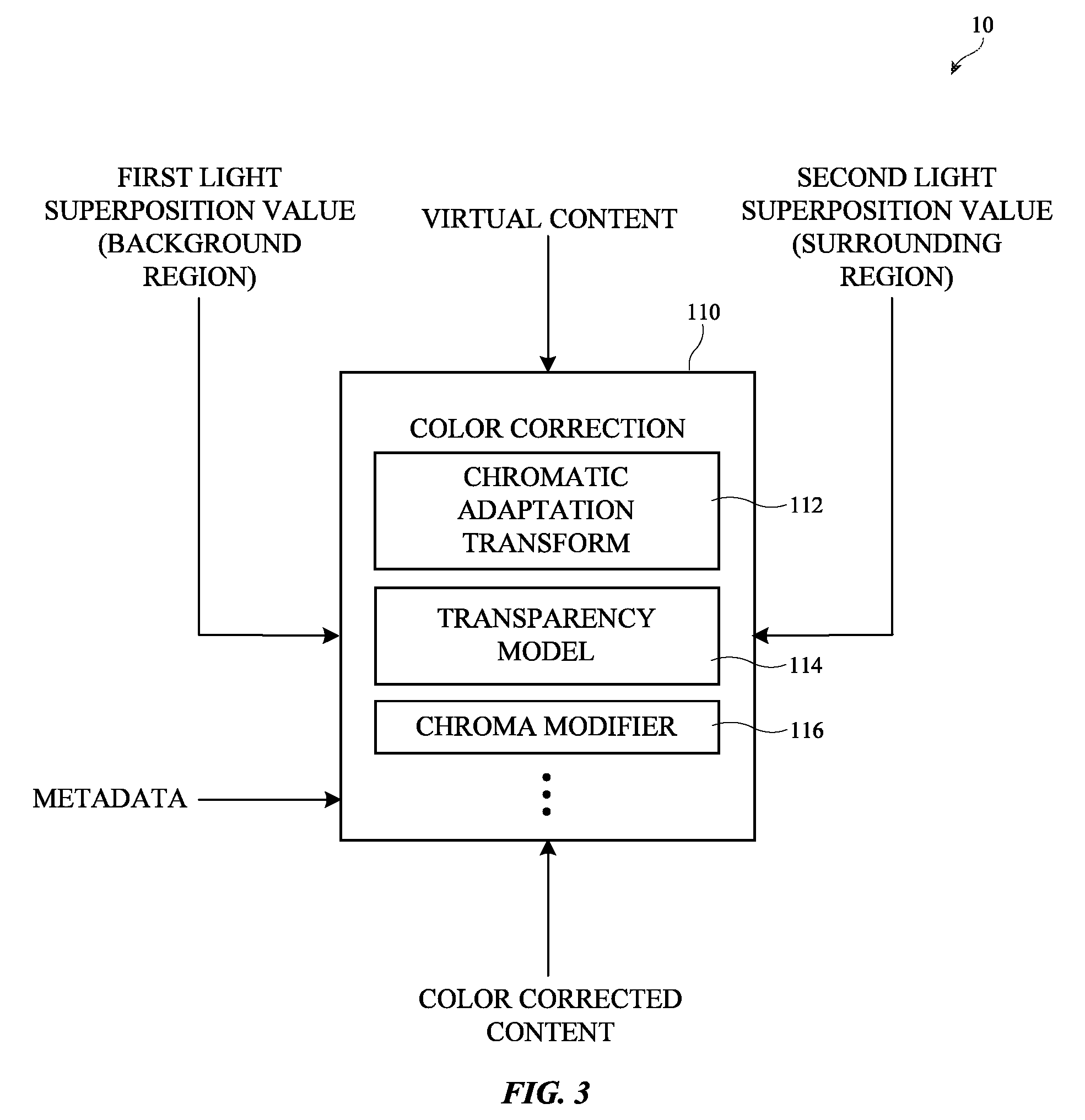

Color correction processing pipeline, drawing sheet 3 from US 2026/0245267 A1
Sheet 3 Color correction processing pipeline

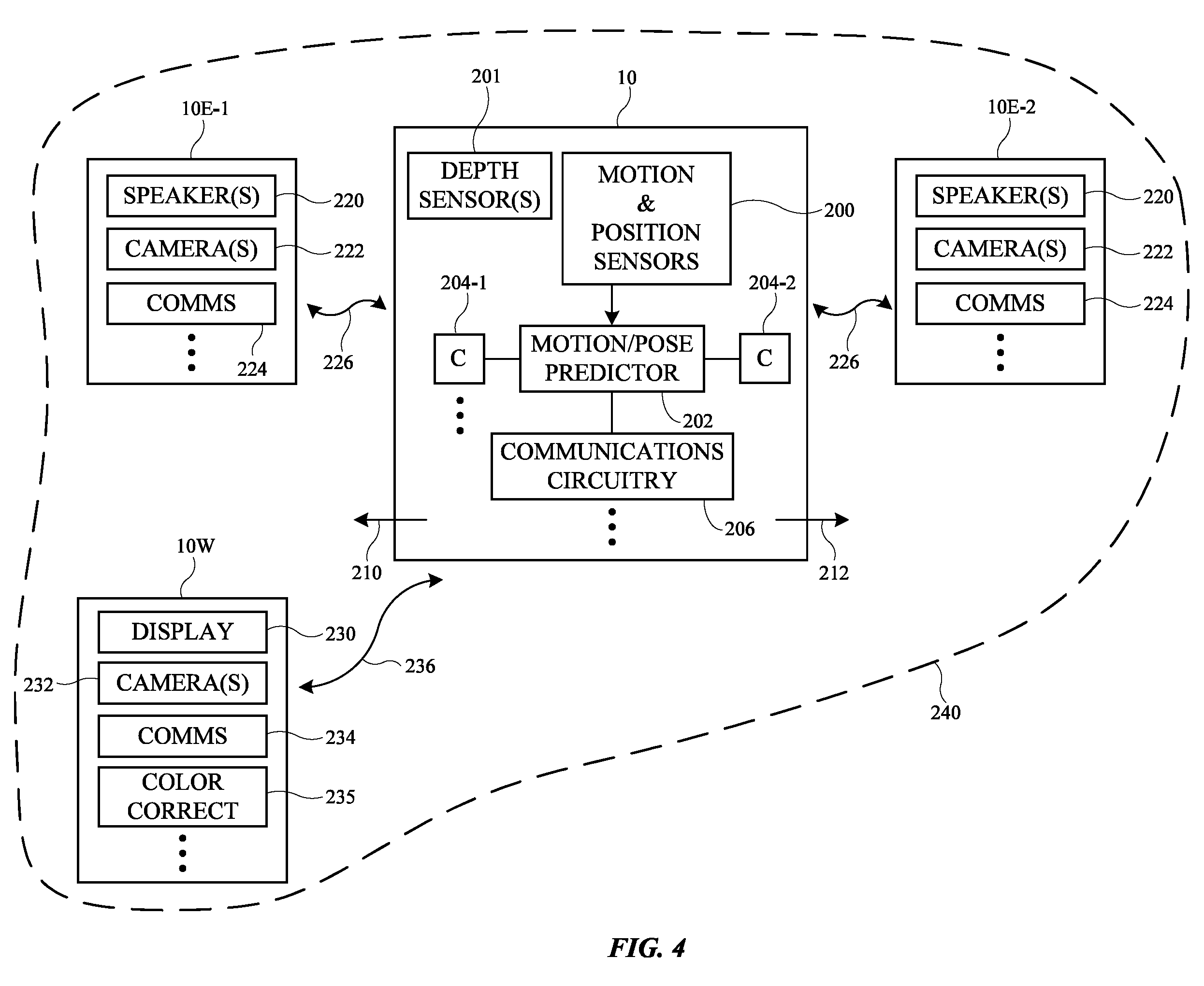

Network of connected devices, drawing sheet 4 from US 2026/0245267 A1
Sheet 4 Network of connected devices

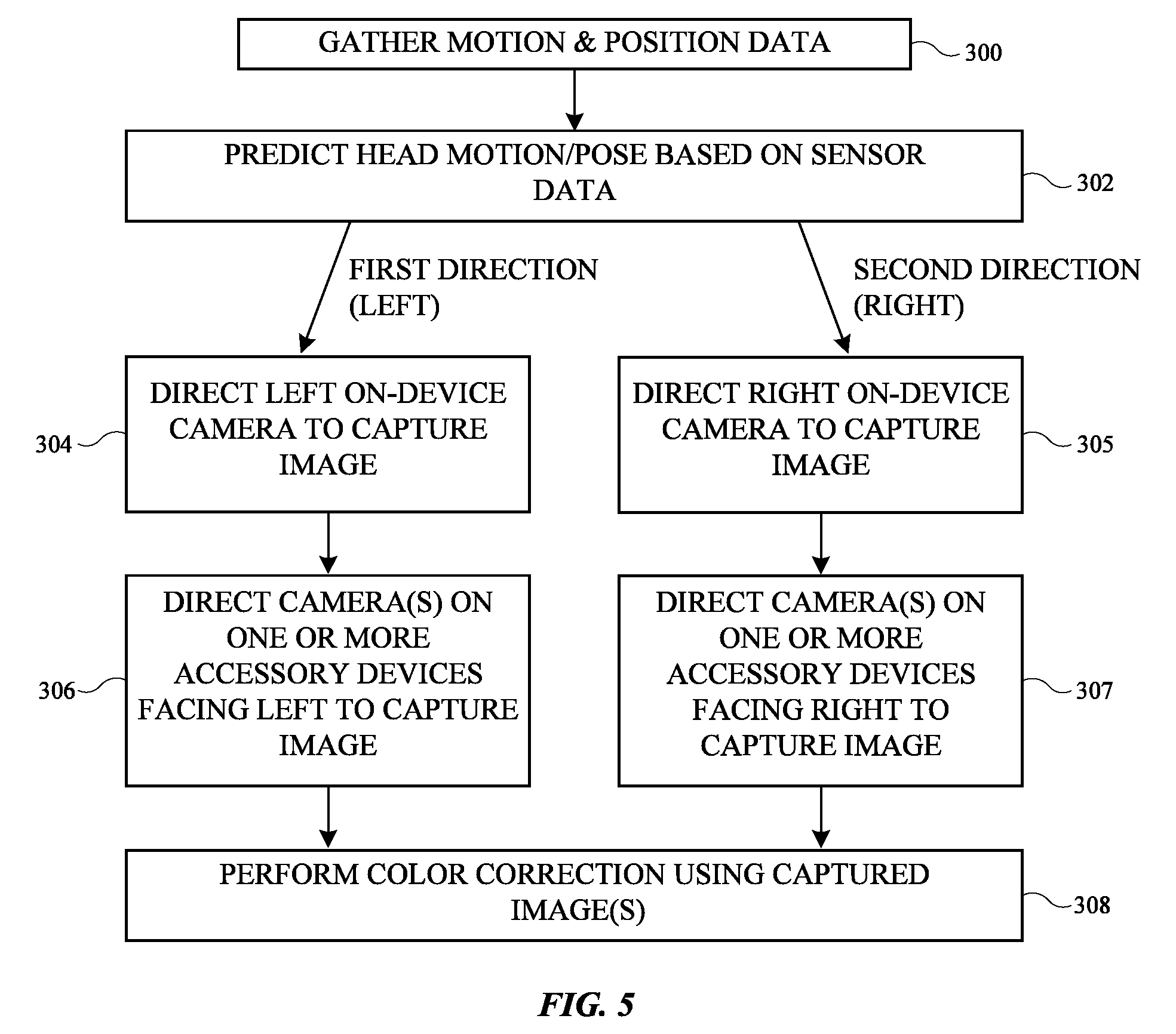

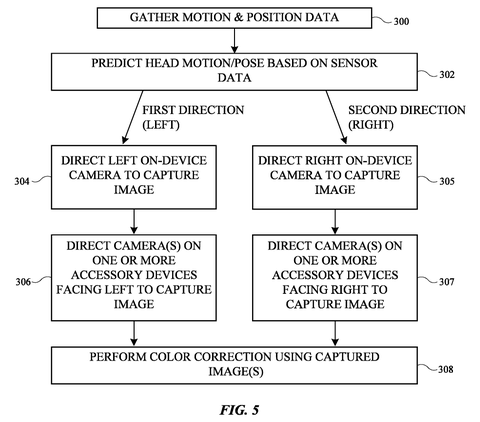

Motion and camera direction flowchart, drawing sheet 5 from US 2026/0245267 A1
Sheet 5 Motion and camera direction flowchart

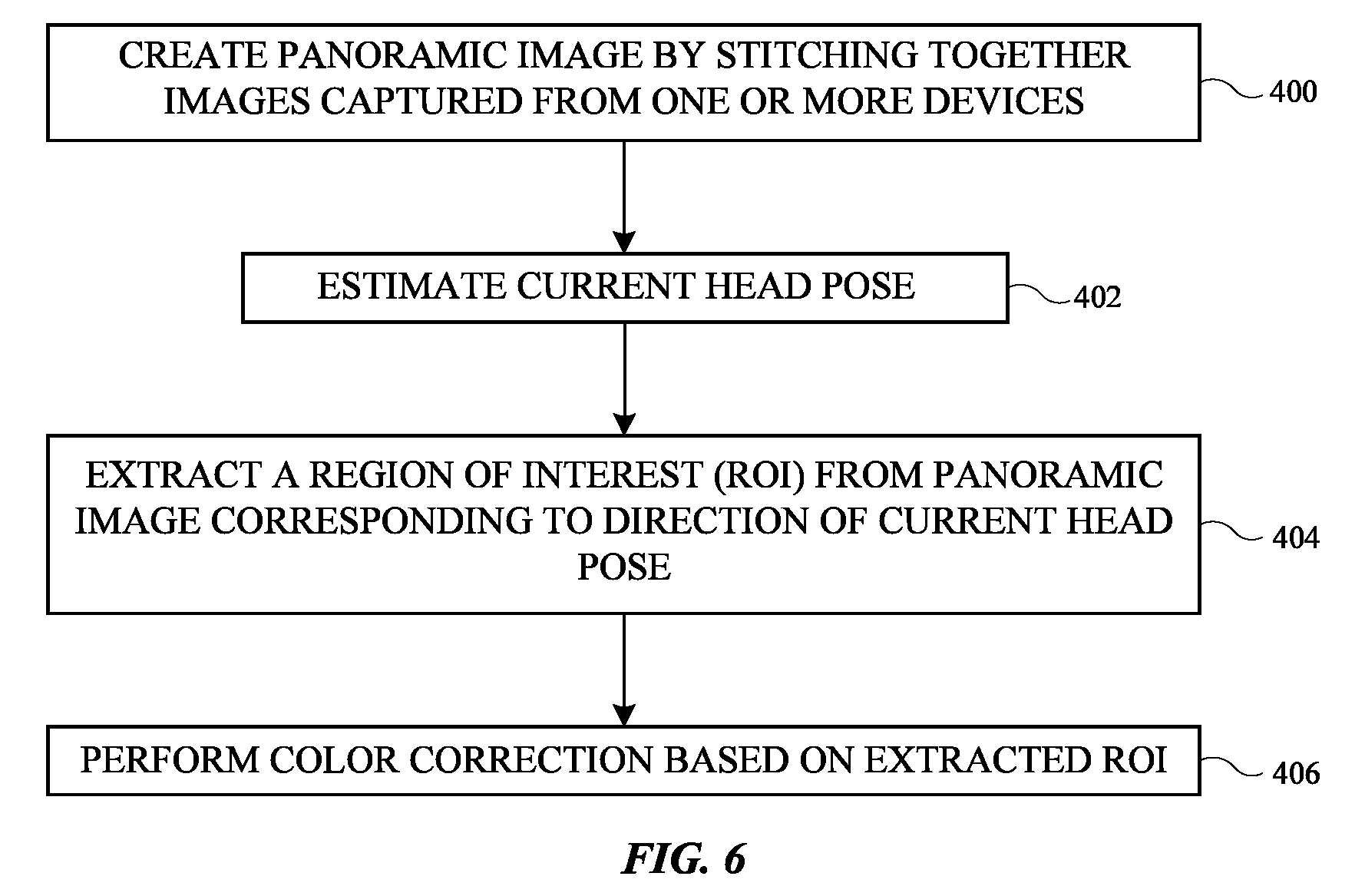

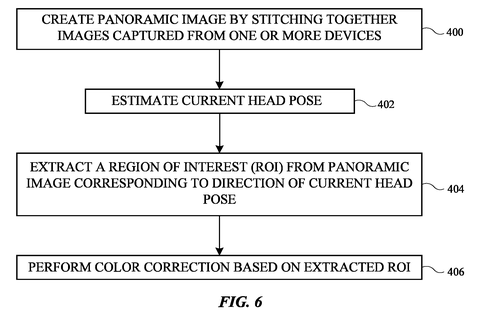

Panoramic image stitching workflow, drawing sheet 6 from US 2026/0245267 A1
Sheet 6 Panoramic image stitching workflow

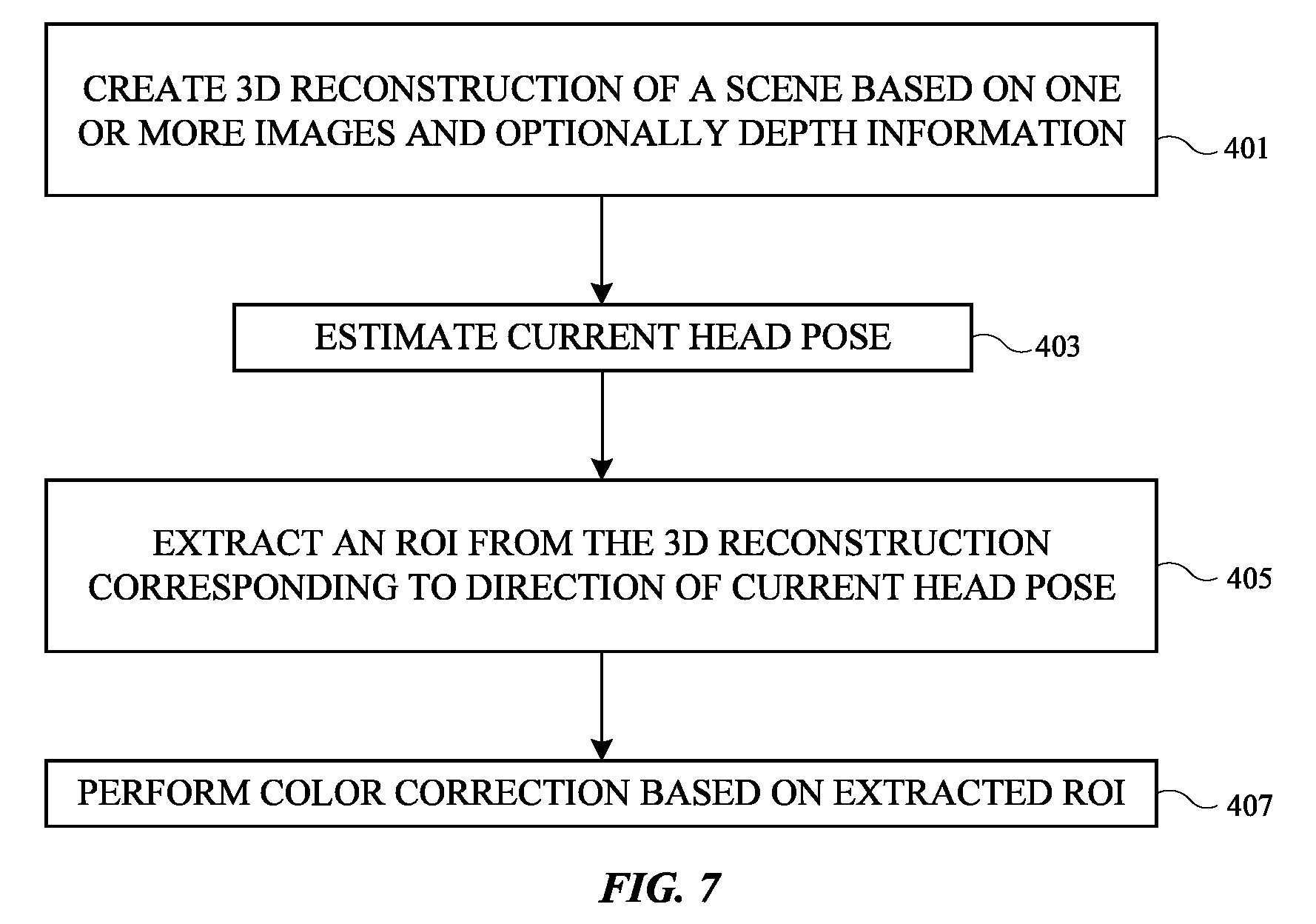

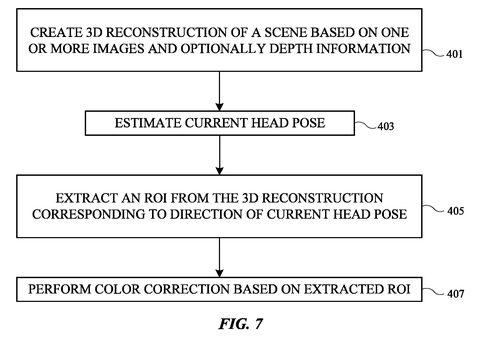

3D scene reconstruction process, drawing sheet 7 from US 2026/0245267 A1
Sheet 7 3D scene reconstruction process

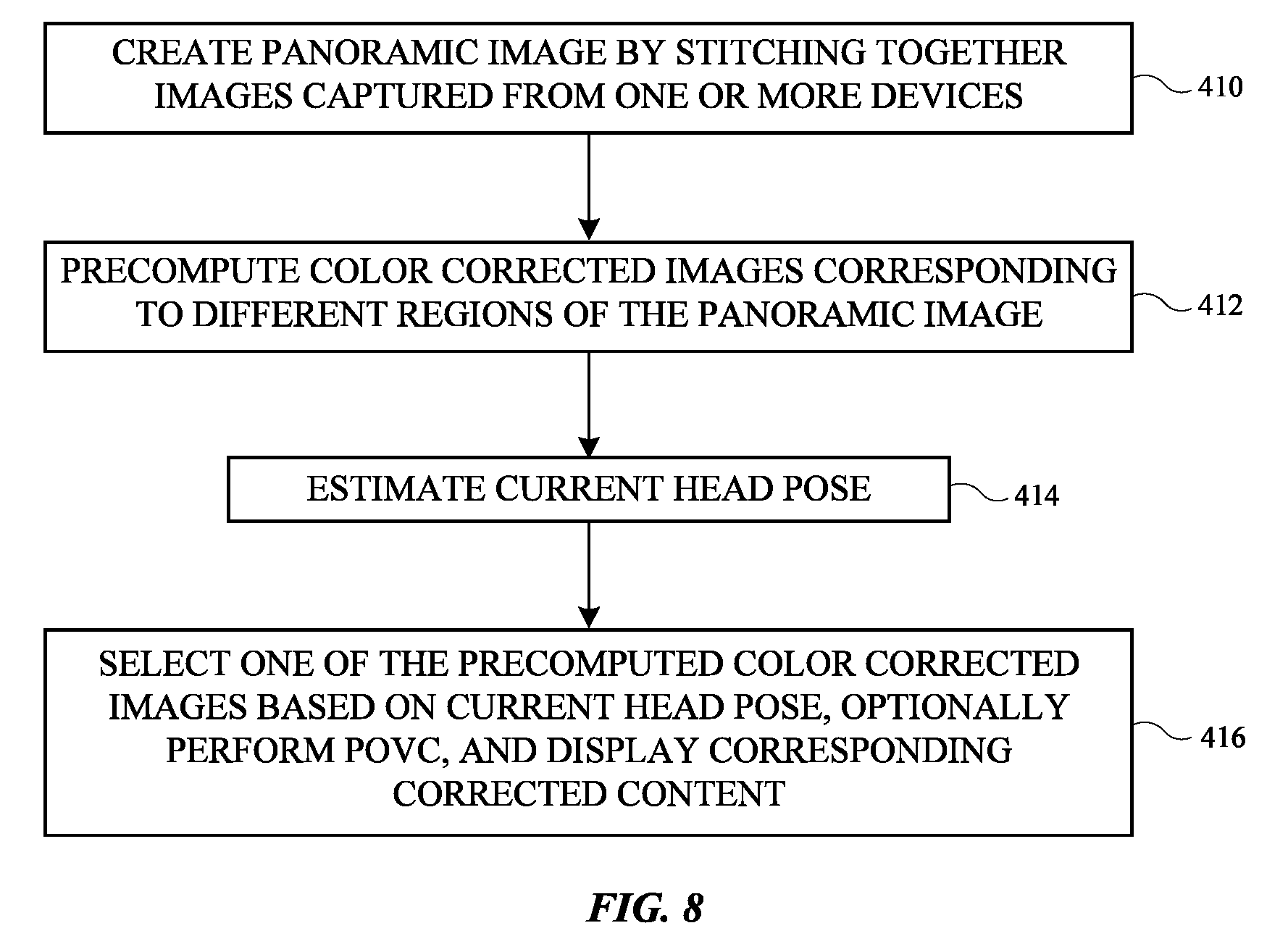

Precomputed color correction workflow, drawing sheet 8 from US 2026/0245267 A1
Sheet 8 Precomputed color correction workflow
Show the other 2 sheets
Apple Patents a Way to Fix AR Colors by Borrowing Cameras from Nearby Devices patent drawing, sheet 9
Sheet 9
Apple Patents a Way to Fix AR Colors by Borrowing Cameras from Nearby Devices patent drawing, sheet 10
Sheet 10
