Apple Patents a System That Decides Whether Your Tap Actually Counts

Moving your head while tapping a button in augmented reality is a recipe for phantom clicks. Apple's latest patent describes a system that watches how your device is moving and decides, based on that motion, whether your tap should actually do anything.

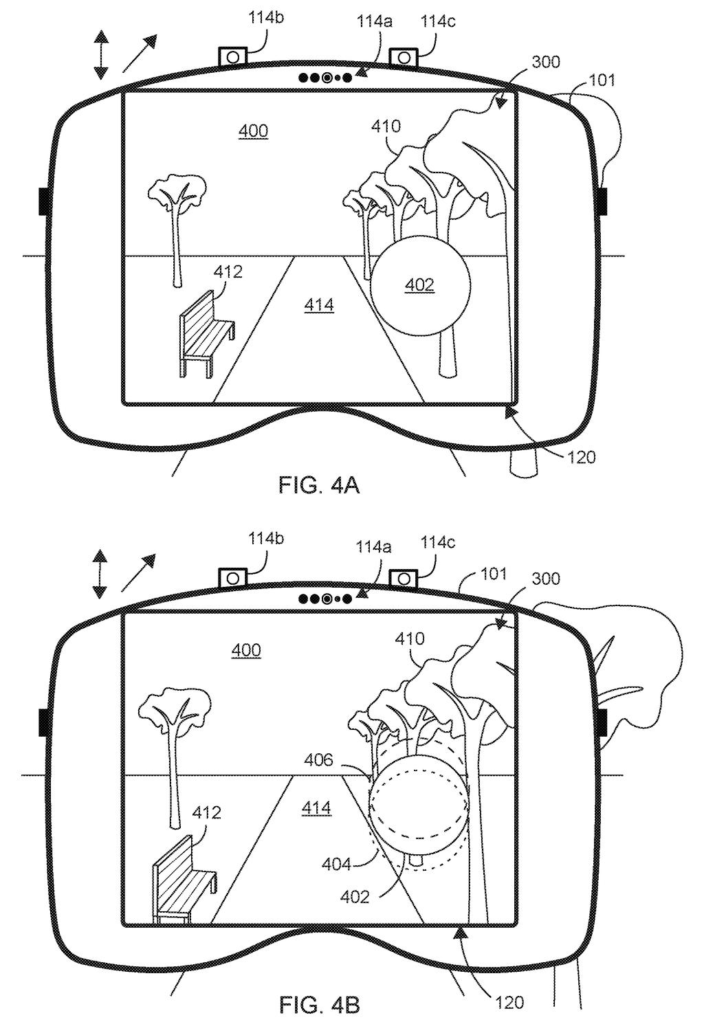

A headset displaying a virtual environment with trees and a path, demonstrating positional adjustment during movement. Drawing from patent filing US 2026/0244307 A1.
A headset displaying a virtual environment with trees and a path, demonstrating positional adjustment during movement.All 12 drawings ↓
Publication number
US 2026/0244307 A1(US20260244307A1)
Applicant
Apple Inc.
Filed · Published
Apr 8, 2026 · Aug 20, 2026
Inventors
Ioana NEGOITA, Ian PERRY, Trent A. GREENE, Thomas J. MOORE, David LOEWENTHAL, Brian W. TEMPLE, Gregory LUTTER, Allison W. DRYER, Thomas G. SALTER
Status when we published
Waiting for an examiner
Document
21 claims
US classification
345/156
Parent application
Continuation of 18/824,823 (filed Sep 4, 2024)(18824823)

How Apple's motion-aware tap filter works for AR

Every time you tap a button on a screen while walking, there's a small gamble: did you mean to press it, or were you just jostling the phone? In an augmented reality headset, that problem gets much worse, because your entire view shifts as your head turns.

Apple's patent describes a system that tracks how the device is moving in real space while also tracking the floating UI buttons you see in front of you. If you tap a button while the device is moving in a way that crosses a certain threshold, the system can decide your tap doesn't count and skip the action entirely.

The idea is that context matters. A tap during a calm, steady moment means something different than a tap during a sudden head turn. This system tries to tell the difference automatically, so you don't have to think about it.

From the filing · CLAIM 1
… moving the user interface element relative to the three-dimensional environment in accordance with the movement of the electronic device …

Translation: The system shifts the on-screen button or menu as you physically move your device around.

How movement data gates a UI action in Apple's system

The patent describes a method running on a device connected to one or more displays and input sensors. The device shows the user a three-dimensional environment anchored to the real physical world around them, with floating UI elements (buttons, menus, controls) positioned in that space relative to the user's viewpoint.

As the user moves, the device tracks that movement and updates where those floating UI elements appear, keeping them locked relative to the 3D scene. When the user provides an input (a tap, a gaze selection, a gesture), the system checks whether the device's motion at that moment satisfies a set of criteria (essentially: was the device moving in a way that suggests an intentional action, or not?).

  • If the movement passes the criteria, the system performs the action linked to that UI element.
  • If the movement fails the criteria, the system deliberately skips performing the action, treating the input as unintentional or ambiguous.

The claim is deliberately broad, covering any electronic device paired with displays and input sensors, which means it could apply to headsets, phones, or any device with motion sensors and a mixed-reality layer. The specific thresholds and criteria for what counts as "acceptable" motion are left to implementation.

From the filing · THE ABSTRACT
… in response to detecting the input, the electronic forgoes performing the operation in accordance with the user interface element.

Translation: Even if you tap a button, the system ignores it if you were shaking or moving too much.

What this means for AR headsets and spatial computing

Accidental inputs are one of the most common complaints in any hands-free or head-tracked interface. If Apple is building spatial computing products where you interact with floating menus, a system that can distinguish intentional taps from incidental ones is a basic quality-of-life requirement, not a luxury.

The patent sits squarely in Apple's broader push into spatial interfaces, and it reflects a design problem that every AR platform will eventually have to solve. Patentlyze covers plain-English patent summaries across Apple's AR and spatial-computing filings, where this motion-gating approach appears as a recurring thread in how the company thinks about input reliability in 3D space.

Apple's 36th filing we've tracked since May in our AR glasses work, following dimming 3D content controls and per-eye image feeding, adds another piece to the picture.

Source: US 2026/0244307 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Apple patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 12 sheets

12 drawing sheets from US 2026/0244307 A1 · click any drawing to enlarge

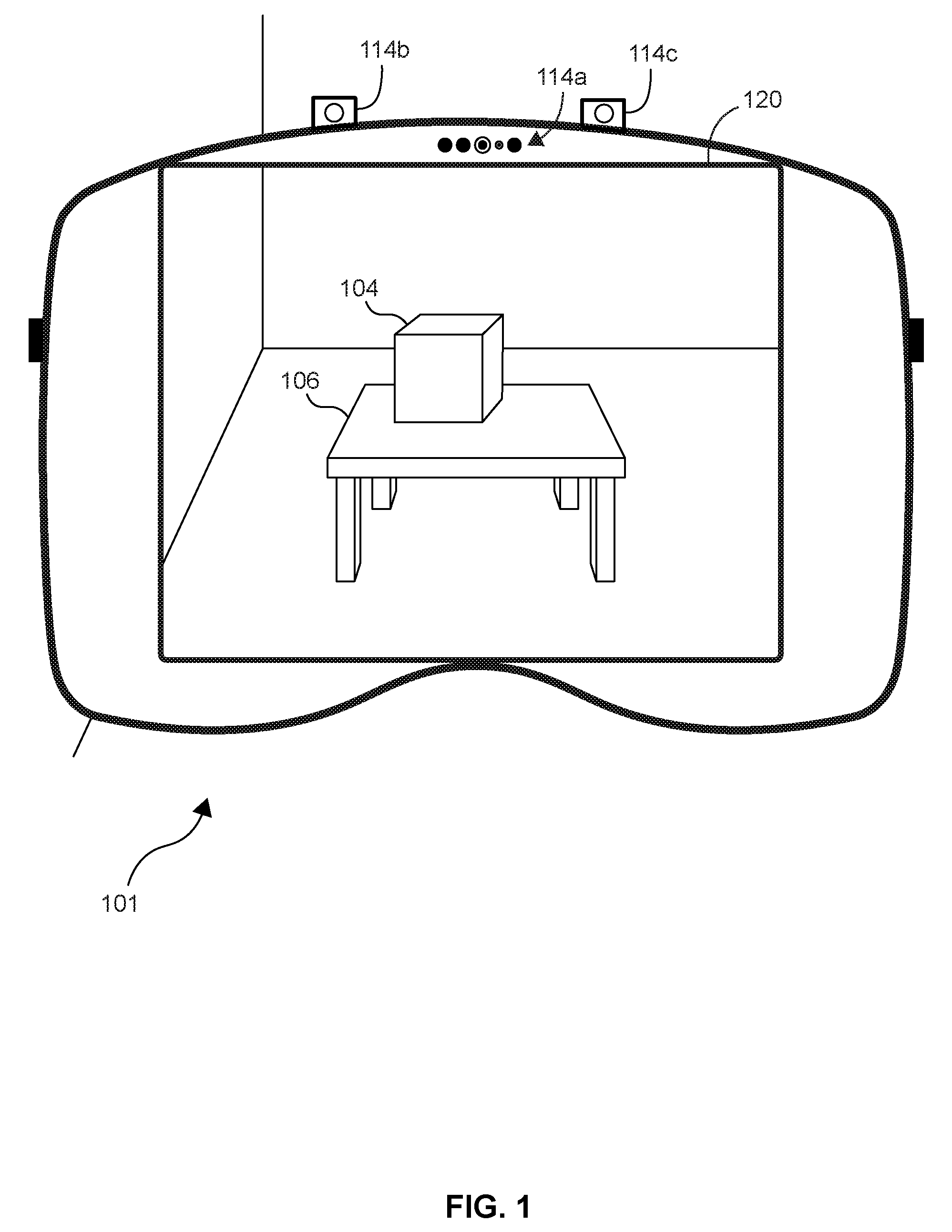

A headset displaying a room, drawing sheet 1 from US 2026/0244307 A1
Sheet 1 A headset displaying a room

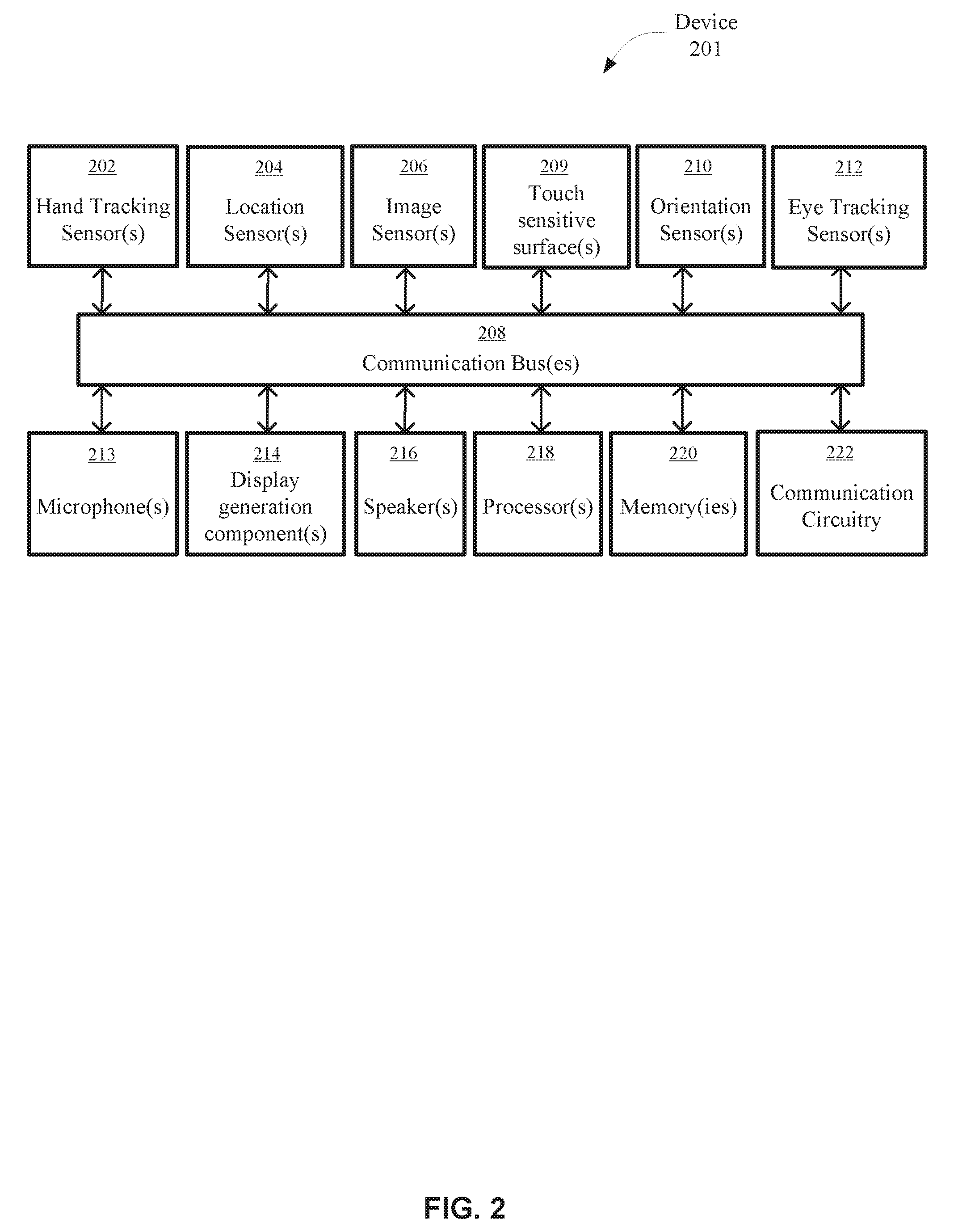

System architecture block diagram, drawing sheet 2 from US 2026/0244307 A1
Sheet 2 System architecture block diagram

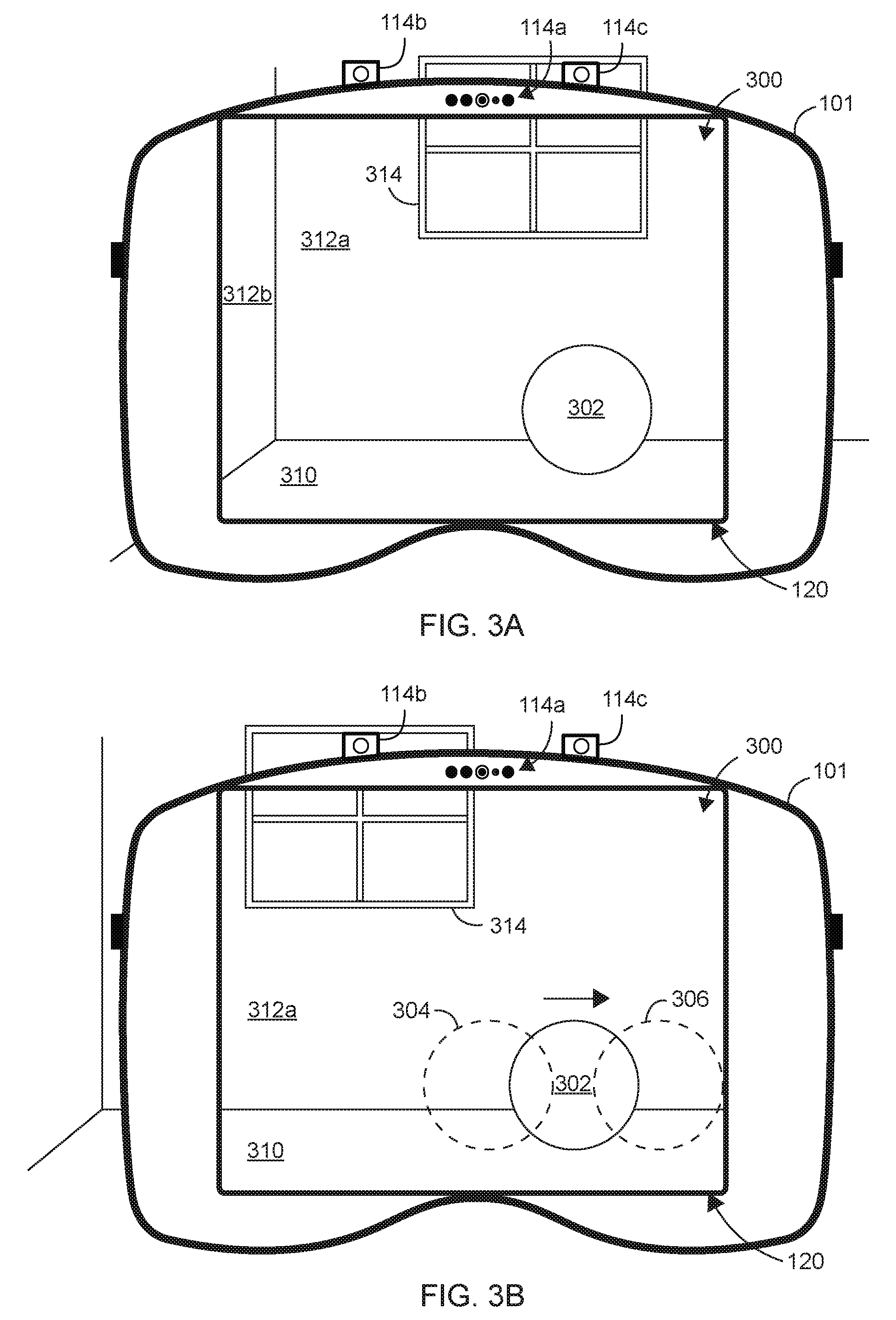

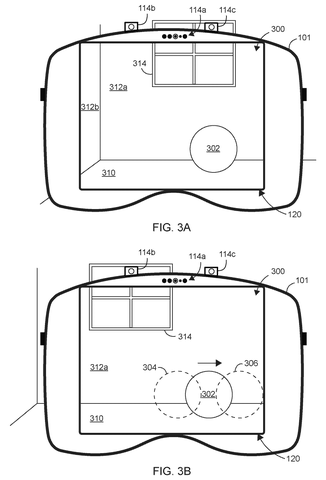

Sequential movement of an interface element, drawing sheet 3 from US 2026/0244307 A1
Sheet 3 Sequential movement of an interface element

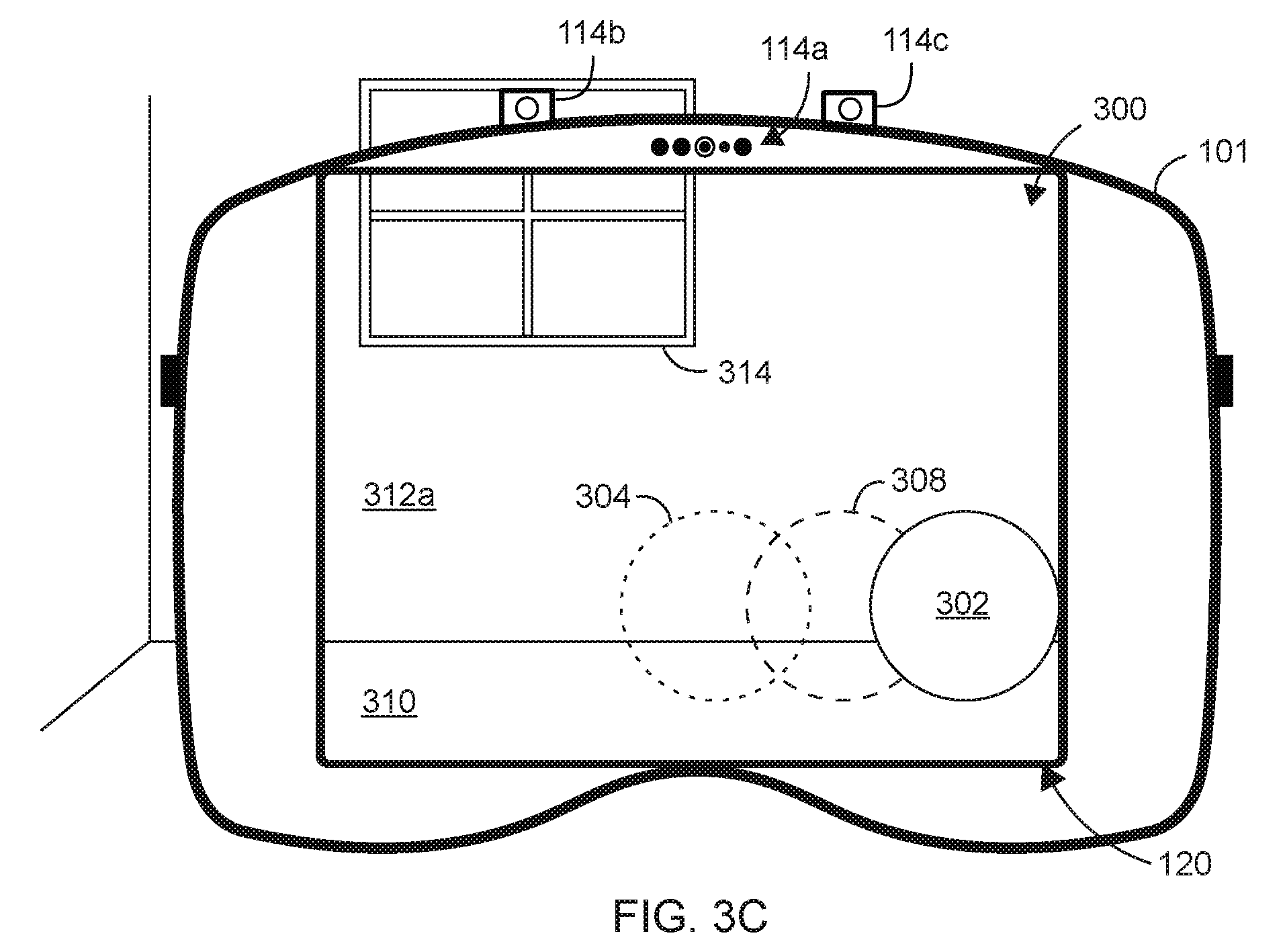

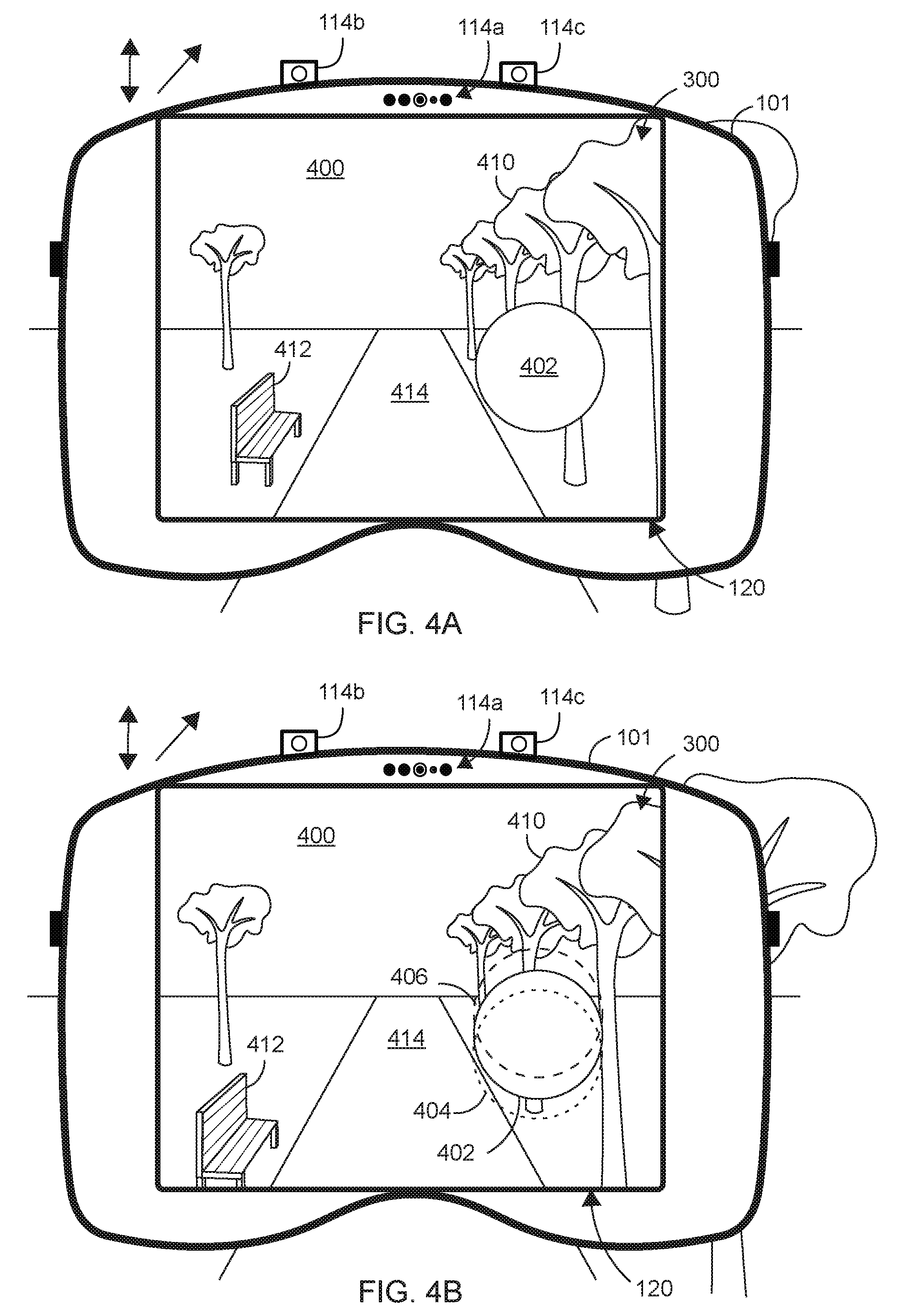

Element movement during scene displacement, drawing sheet 4 from US 2026/0244307 A1
Sheet 4 Element movement during scene displacement

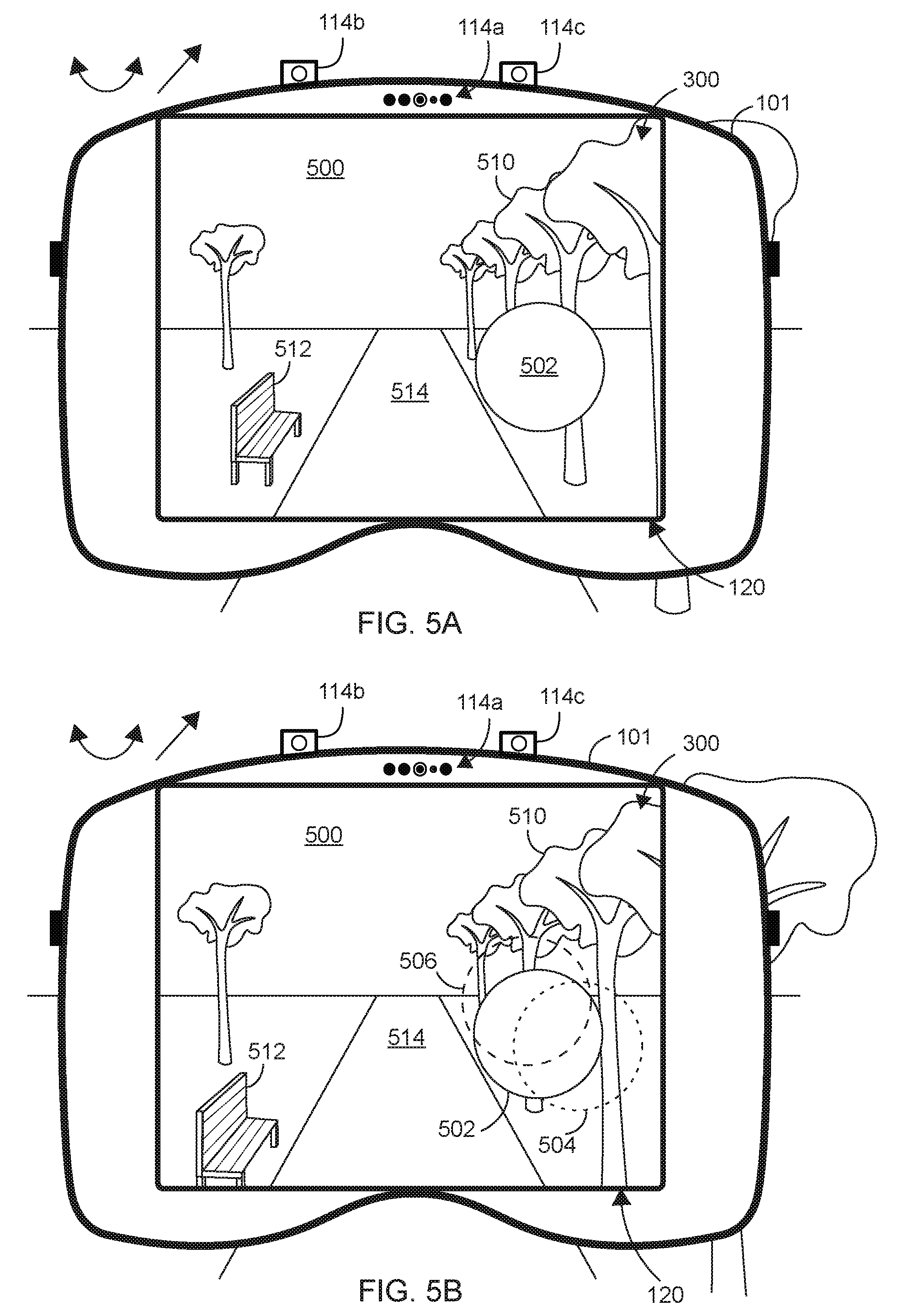

Positional adjustment during movement, drawing sheet 5 from US 2026/0244307 A1
Sheet 5 Positional adjustment during movement

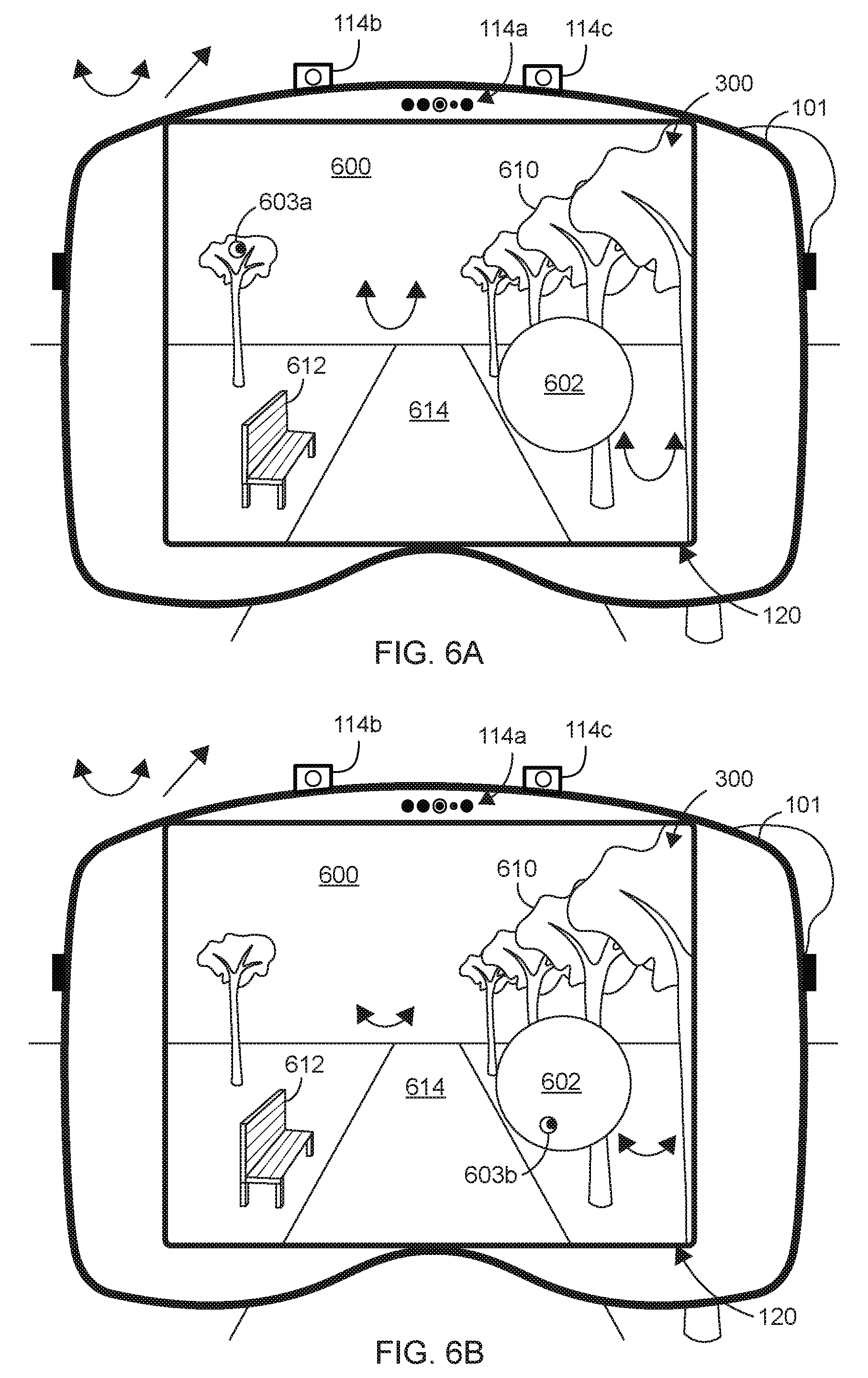

Directional tracking within the virtual environment, drawing sheet 6 from US 2026/0244307 A1
Sheet 6 Directional tracking within the virtual environment
Multi-button interface element interaction, drawing sheet 7 from US 2026/0244307 A1
Sheet 7 Multi-button interface element interaction

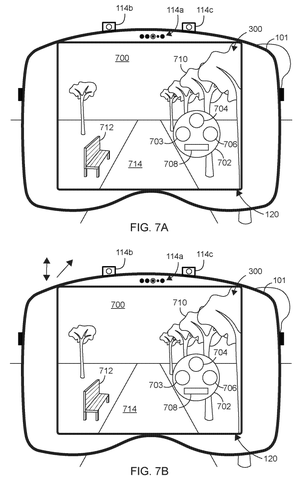

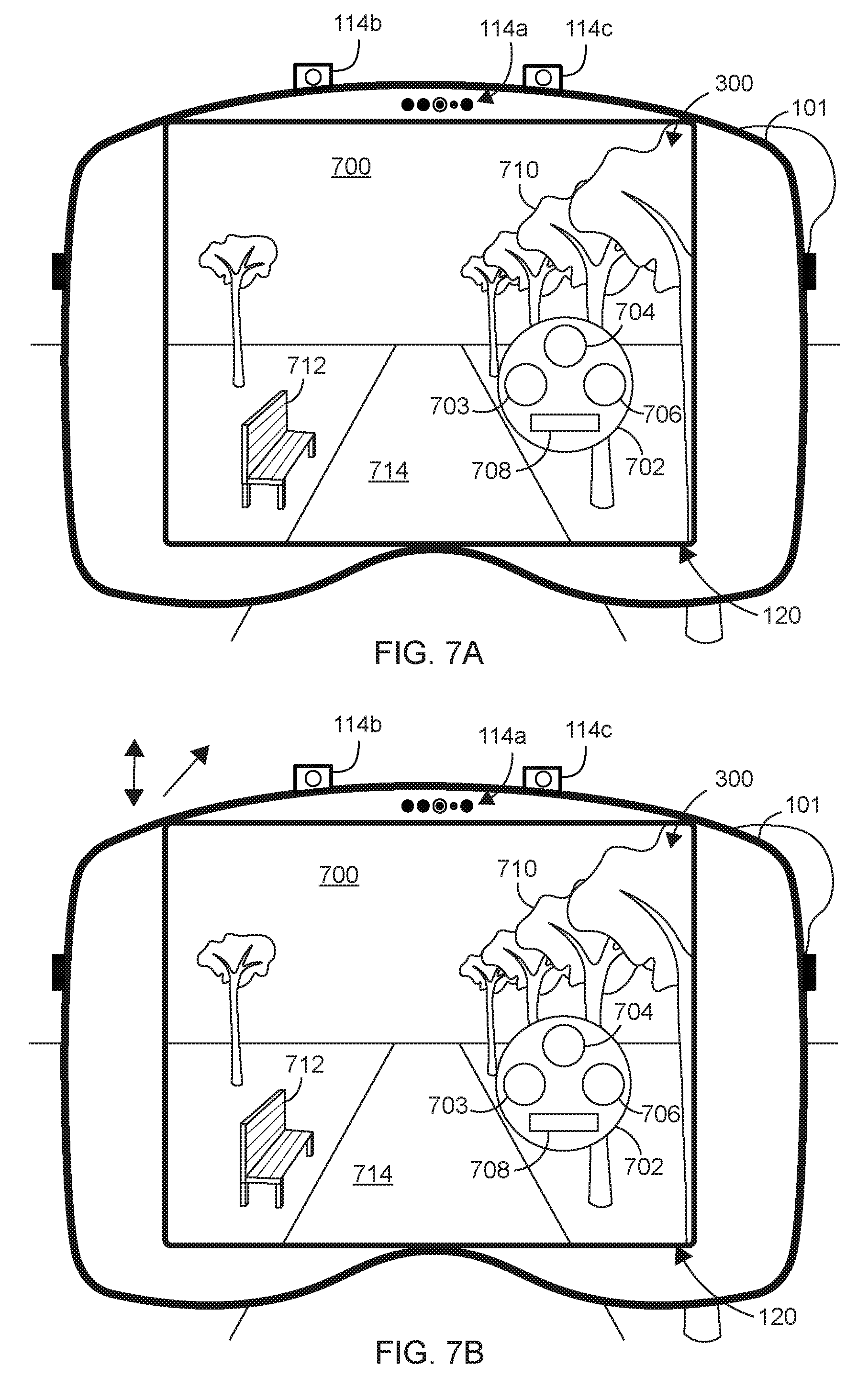

Scaled interface movement behavior, drawing sheet 8 from US 2026/0244307 A1
Sheet 8 Scaled interface movement behavior
Show the other 4 sheets
Apple Patents a System That Decides Whether Your Tap Actually Counts patent drawing, sheet 9
Sheet 9
Apple Patents a System That Decides Whether Your Tap Actually Counts patent drawing, sheet 10
Sheet 10
Apple Patents a System That Decides Whether Your Tap Actually Counts patent drawing, sheet 11
Sheet 11
Apple Patents a System That Decides Whether Your Tap Actually Counts patent drawing, sheet 12
Sheet 12
