Apple Patents a Differential Drive Touch Panel to Cut Noise
Touch screens have a noise problem — and Apple thinks the fix is sending two opposing signals at once, then listening for the difference. It's a classic analog trick, now baked into the electrode geometry itself.
What Apple's differential touch sensing actually does
Imagine trying to have a quiet conversation in a loud coffee shop. One trick is to use two microphones — one picks up your voice and the background noise, the other picks up only the background noise — and then you subtract one from the other. What's left is mostly just your voice.

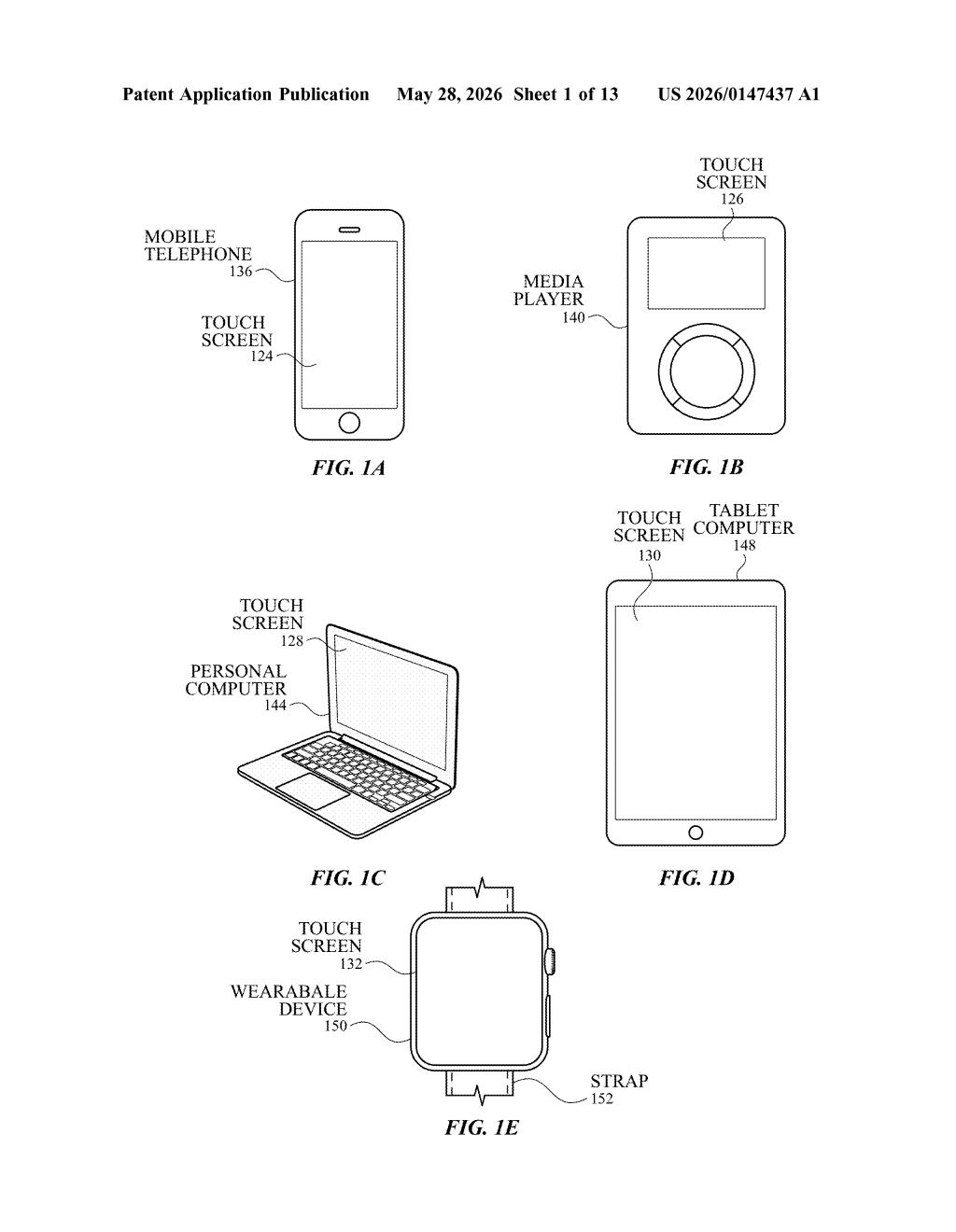

That's essentially what this Apple patent does for touchscreens. Instead of driving each column of touch electrodes with a single signal, the panel sends two complementary signals — think of them as electrical opposites — to neighboring electrodes in the same column. When the sensing circuitry reads the result, common electrical interference cancels out, leaving a cleaner touch signal behind.
The practical payoff is a better signal-to-noise ratio (SNR), which means the display can detect your finger more accurately, even in electrically noisy environments — like when the phone is charging, or sitting next to another device. Thinner panels and lower power draw are potential side benefits.
How complementary drive signals cancel out noise
The patent describes a mutual capacitance touch sensor panel — the standard tech inside modern touchscreens — redesigned around a differential drive-and-sense architecture.
In a conventional panel, each drive electrode in a column is fed the same signal. Here, Apple splits the column into two interleaved sets: first touch electrodes receive one drive signal, while second touch electrodes in the same column receive a complementary (inverted) drive signal. The key twist is that these two sets of nodes are connected by routing that runs in a third diagonal direction — not along the usual row or column axes — allowing the panel to wire neighboring nodes together across the grid in a novel geometric pattern.
On the sensing side, differential sense circuitry reads the output from each row. Because common-mode noise (interference that hits both electrodes equally) gets subtracted out, only the asymmetric capacitance change caused by a real finger touch survives.
- Differential drive: Complementary signals applied to interleaved electrodes in each column
- Diagonal routing: Nodes connected in a third geometric direction to enable the pairing
- Differential sense: Circuitry that subtracts shared noise before reporting touch data
What this means for future iPhone and iPad displays
Better SNR in touch sensing has real downstream effects. A cleaner signal means the firmware can run at lower drive voltages or shorter scan intervals — both of which reduce power consumption. It also helps with scenarios Apple has historically struggled to improve: touch accuracy while charging, multi-touch precision near display edges, and responsiveness on thinner panels where electrode areas shrink.
For users, this is mostly invisible infrastructure — you won't see a "differential sensing" spec sheet on Apple's website. But it's the kind of engineering that compounds over time: slightly lower latency, more reliable palm rejection, and touch that keeps working well as displays get thinner and more power-constrained.
This is quiet, unglamorous display engineering — the kind Apple files dozens of variants on every year. What makes it worth a second look is the diagonal routing geometry, which is an unusual structural choice and suggests Apple is willing to rethink electrode topology, not just drive circuitry. Don't expect a press release, but do expect this approach to quietly show up in future ProMotion panels.
