Apple Patents a Single Animation System That Drives 2D and 3D Graphics Together
Mixing flat icons with three-dimensional scenes on a screen sounds simple until you realize the two graphics systems powering them barely speak the same language. Apple's new patent describes a way to make one animation definition drive both at once.
What Apple's unified animation layer actually does
You're watching an app transition where a flat icon spins into a 3D object mid-animation. Behind the scenes, the phone is juggling two completely different graphics engines, one for flat 2D elements and one for 3D scenes, and they have to stay in perfect sync or the animation breaks.
Apple's patent describes a system where a developer writes one animation instruction, and the device automatically translates it into two versions: one for the 2D engine and one for the 3D engine. Both engines get their own copy of the playbook, each in a format they understand, and they both run the animation at the same time.
The result is that a flat layer and a 3D scene can animate together as if they were one thing, without the developer having to manually coordinate two separate systems. It's the kind of plumbing work that users never see but notice immediately when it's missing, because animations stutter or desync.
… executing a 3D animation application process including a 3D animation definition defining an animation changing a target property of a 2D layer of an entity from a first value at a first time to a second value at a second time.
Translation: A three-dimensional tool updates properties on a flat two-dimensional layer over time.
How one animation definition feeds two separate rendering engines

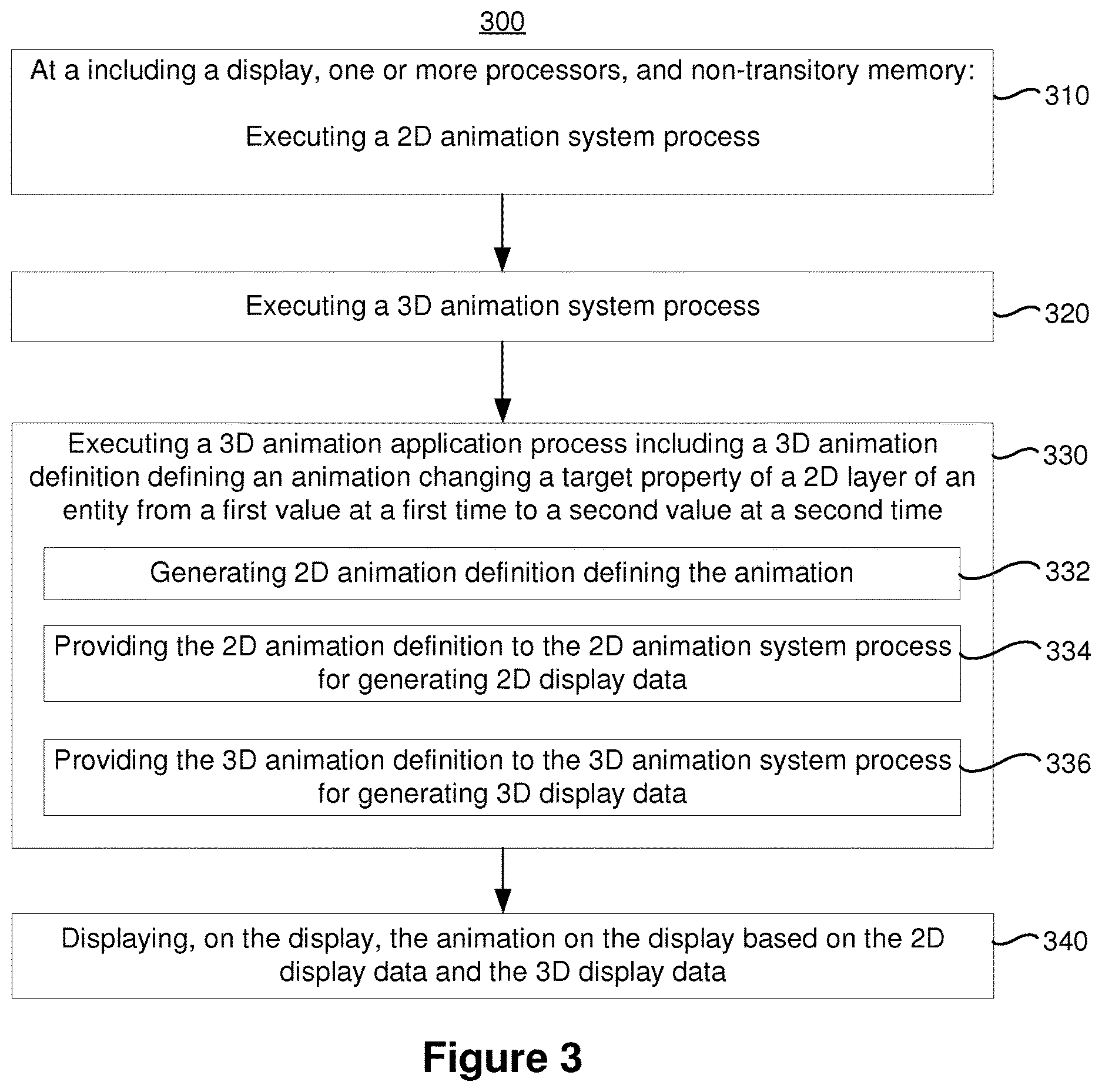

The patent describes a three-process architecture running simultaneously on the device.
- A 2D animation system process handles flat display data, the kind used for icons, text layers, and interface elements.
- A 3D animation system process handles depth and spatial rendering, the kind used for objects that rotate and move in three-dimensional space.
- A 3D animation application process acts as the coordinator: it holds the original animation definition and is responsible for translating it into formats the other two processes can consume.
When an animation is triggered, the coordinator process takes a single 3D animation definition (a description of how a property, say the position or opacity of a layer, should change over time) and generates two outputs from it. The 2D animation definition goes to the 2D engine to produce flat display data; the original 3D definition goes to the 3D engine to produce spatial display data.
The final frame the user sees is composited from both outputs, meaning the flat and the 3D elements appear to animate as one unified object. The key claim is that a single source of truth drives both pipelines, rather than developers writing and maintaining separate animation logic for each renderer.
What this means for developers building mixed 2D and 3D apps
For developers, maintaining two animation systems for a single on-screen effect is error-prone and time-consuming. A unified API means fewer places for a stutter or timing mismatch to hide, and less code to write when you want a flat interface element to interact visually with a 3D scene.
Apple's steady investment in graphics and rendering APIs points to a broader push around spatial computing and visionOS, where mixed 2D and 3D interfaces are the default rather than the exception. If this system ships in a future SDK, it could lower the bar for developers trying to build apps that feel native to those environments without doubling their animation code.
This is the 398th Apple filing in our Apple coverage since May, adding to a camera and AR thread that includes the AR glasses shoot path and the guest-tracking home camera.
The tradeoff here is real: to make animation feel seamless for developers, Apple has to build a background translator that takes one animation instruction and secretly produces two, then keeps both in perfect agreement. That is new machinery that did not exist before, and new machinery means new ways to fail.
The risk is that flat screen movement and three-dimensional movement follow different rules about timing and physics, so the translation between them may not always be lossless. If it slips, the result is animations that feel slightly wrong in ways that are hard to trace and almost impossible for a developer to fix.
Whether the trade reads as worth it depends entirely on how reliable that hidden translation turns out to be in practice. If it holds, developers get real simplicity and users get smoother screens. If it does not, the cost shows up as subtle visual glitches that nobody can easily explain or repair.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

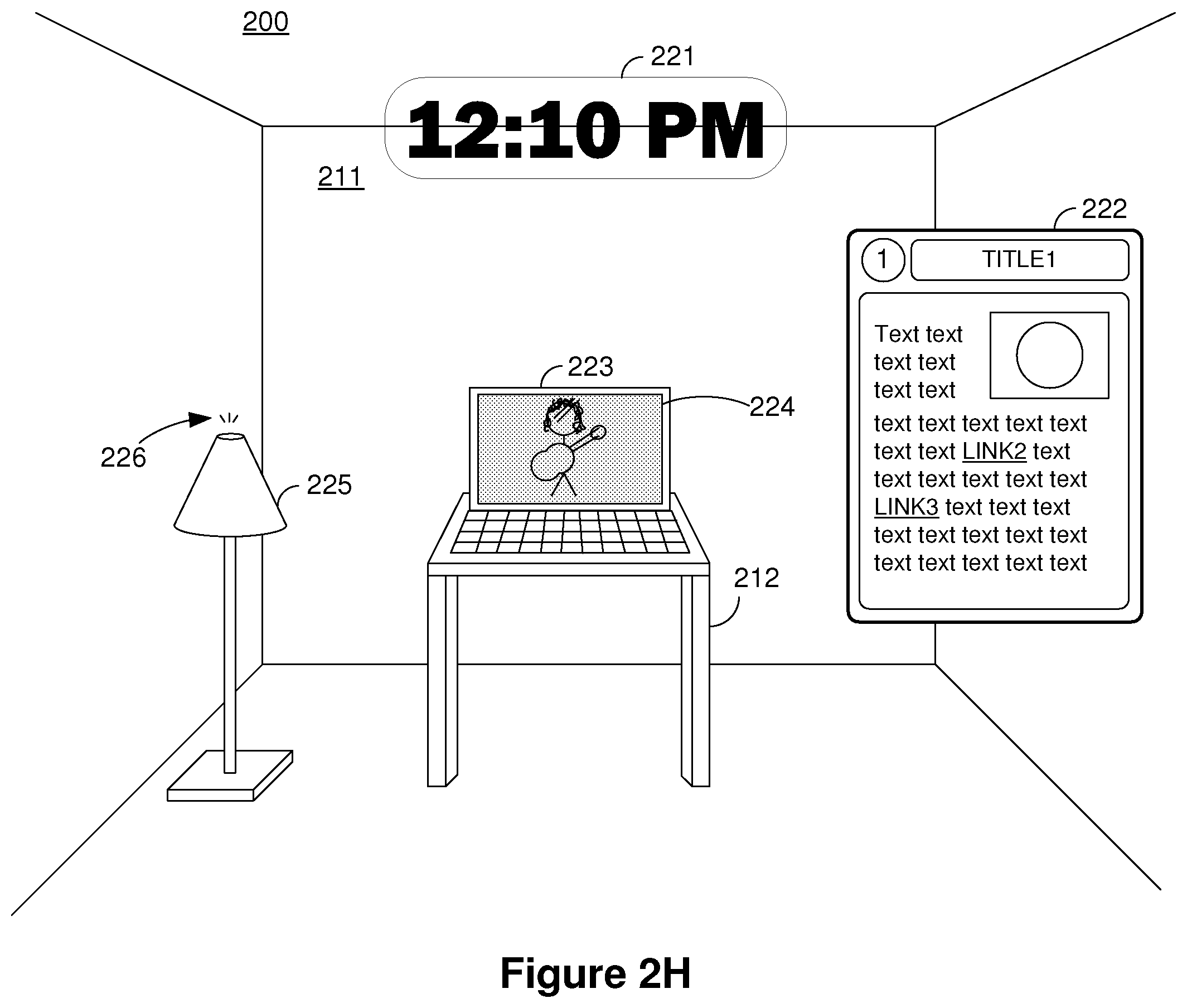

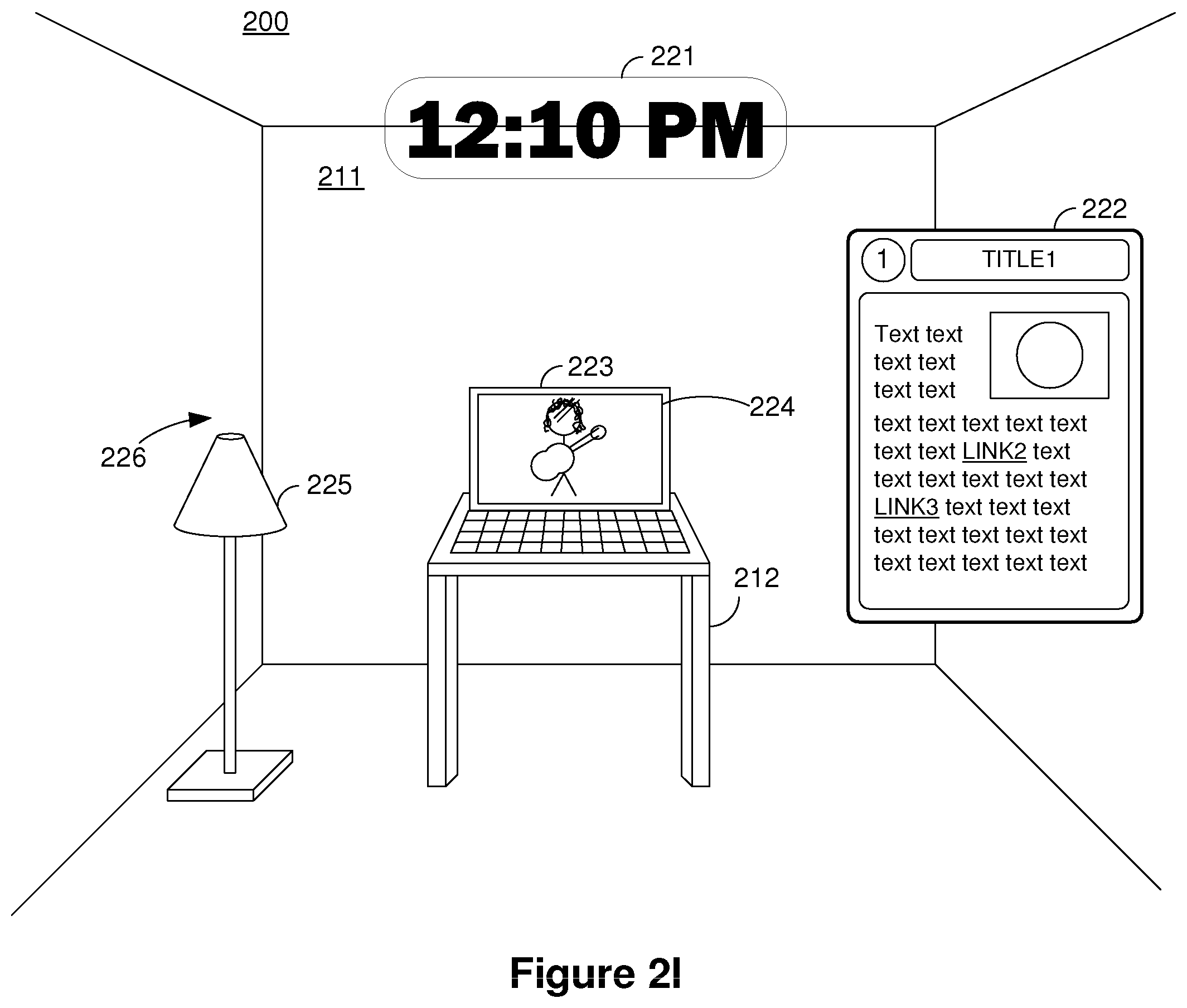

The drawings
