Apple Patents a Watch Face That Uses a Moving Indicator to Track Elapsed Time
Apple has filed a patent describing a new way to start and display a timer directly on an analog-style watch face, using a graphical indicator that visually locks onto a clock hand to show how much time has passed.
What Apple's animated watch face indicator actually does
On most smartwatch displays today, starting a timer means leaving your watch face entirely, opening a separate app, and then losing sight of the time while you wait. Apple is working on a way to fold that experience right into the watch face itself.

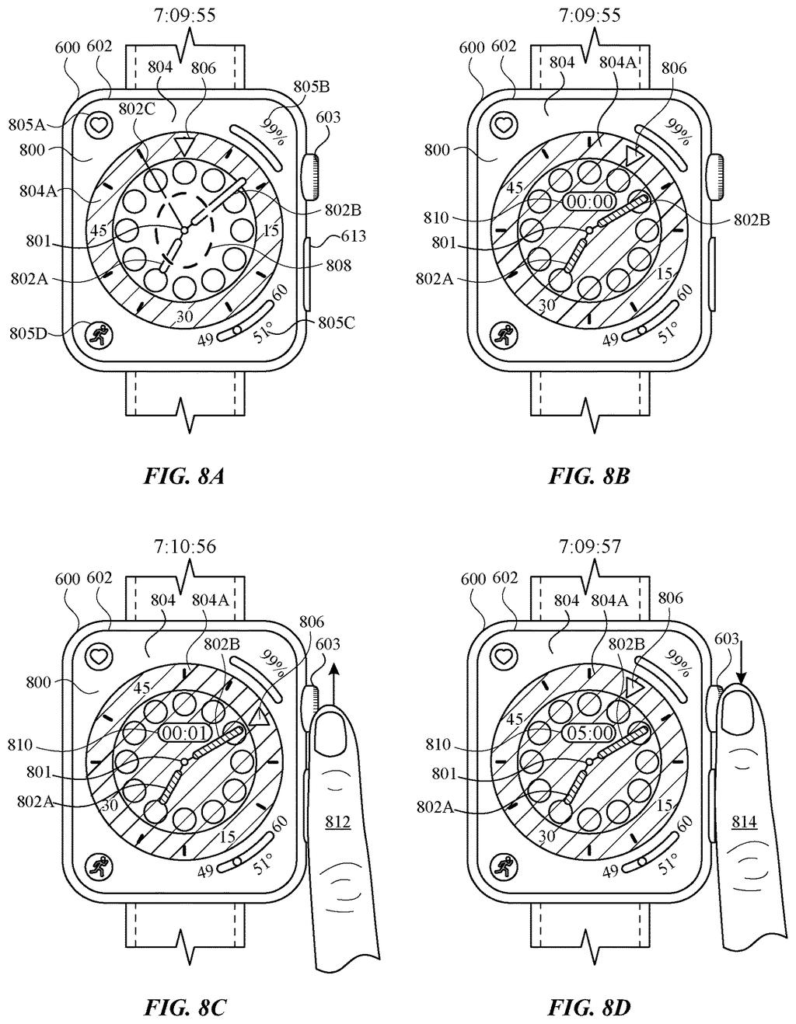

The patent describes an analog clock face with a special graphic that can move around the dial. When you trigger a timer or counter, that graphic snaps into alignment with one of the clock hands. From that moment on, the face shows you both the current time and how long the counter has been running, all in the same view.
The filing also covers related ideas: adjusting which time zone the watch displays, putting a character or illustration on the face, and customizing the background and app layout. It reads like a broad refresh of the building blocks behind Apple Watch faces.
… moving the graphical indicator to a second position relative to the analog clock face such that the graphical indicator is aligned with the first clock hand …
Translation: The watch snaps a timer marker into place right next to the current clock hand when you trigger it.
How the graphical indicator snaps to the clock hand
The core claim describes a watch user interface on a screen that shows an analog clock face, a standard clock hand, and a separate graphical indicator, think of it as a second marker sitting on the dial.
When the system detects a specific user input (a tap, a press, or a gesture), it moves that graphical indicator until it lines up with the clock hand. Once aligned, the display shows an elapsed-time readout reflecting how long ago the counter was started. The setup lets users read the running duration without leaving the watch face or opening a stopwatch app.
Beyond the timer feature, the patent bundles several related interface ideas:
- Displaying and adjusting a time zone directly on the watch face
- Showing a character graphic as part of the face design
- Displaying the current time inside a custom UI built around that character
- Letting users configure the background and choose which app shortcuts appear on the face
The patent is filed as a computer system claim, meaning the described behavior could run on existing display hardware with a software update rather than requiring new chips or sensors.
What this means for Apple Watch timekeeping features
For Apple Watch users, the most immediate impact would be having a stopwatch-style counter that lives on your watch face rather than inside a separate app. You start timing something, glance at your wrist, and the face itself tells you both the time of day and how long you've been waiting, running, cooking, or parking.
The broader set of claims, covering time zones, custom backgrounds, character illustrations, and app layout, suggests Apple is filing a wide protective perimeter around watch face customization as a whole. Apple's long bet on watch-face personalization has intensified since third-party complications became available, and this filing adds another layer of control to what watchOS faces can do for you.
Apple's 438th filing in our Apple coverage since May follows applications like tossing video between screens and splitting a screen across two devices.
The timer idea in this filing needs no new chips, no new sensors, and no changes to how the watch is built. A simple software update could add the ability for a progress indicator to snap onto a clock hand and travel with it, turning a familiar face into a live countdown.
The rest of the document covers time zone adjustments, themed characters, and background customization. These are real features, but they read as Apple reserving legal ground around things it likely already has in development, not as previews of something dramatic.
The elapsed-time indicator on an analog face is the filing's clearest idea because it solves a small, real frustration with nothing more than a new animation and a state change in software. The path from document to product here is about as short as it gets.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Apple patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

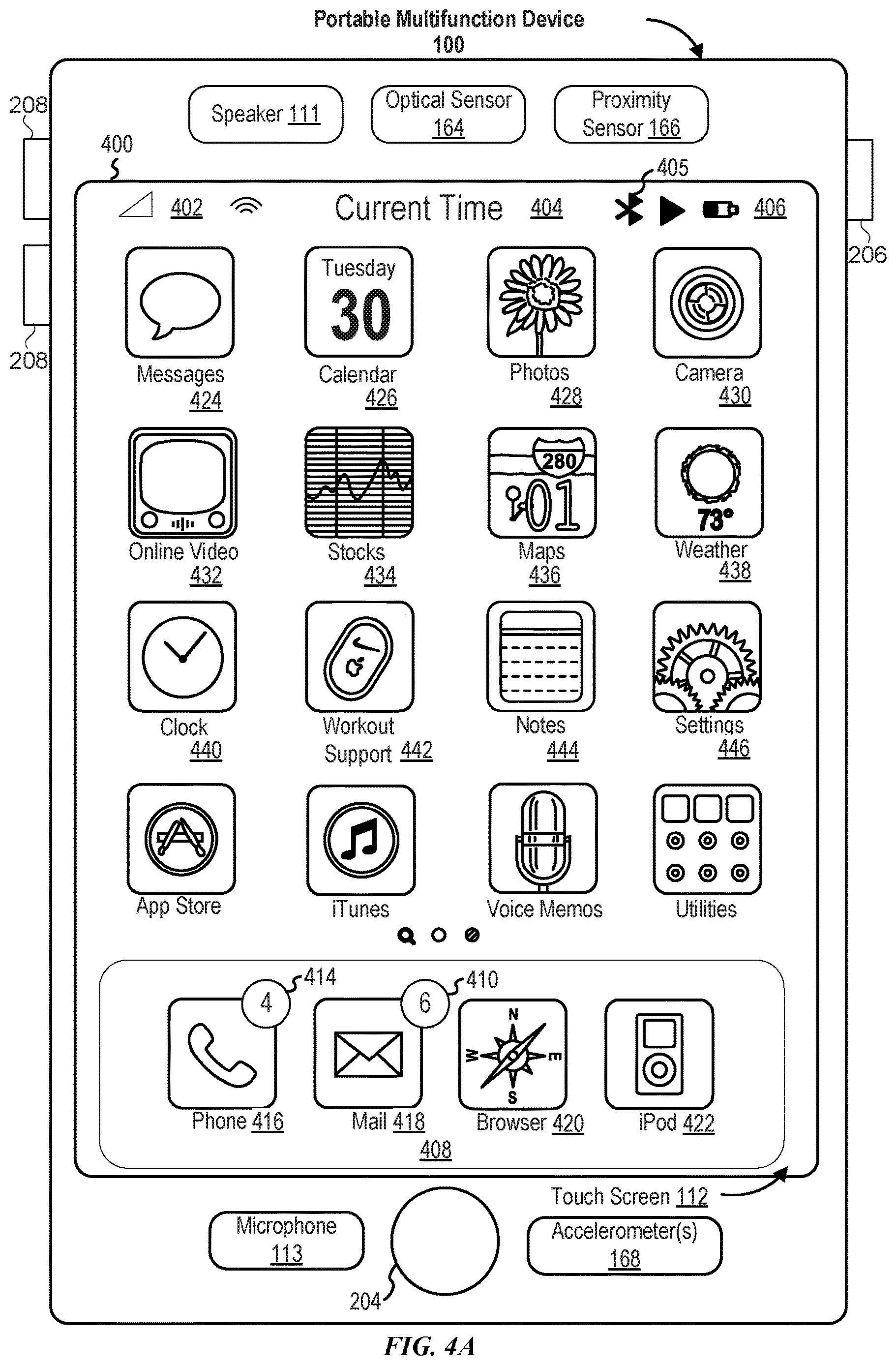

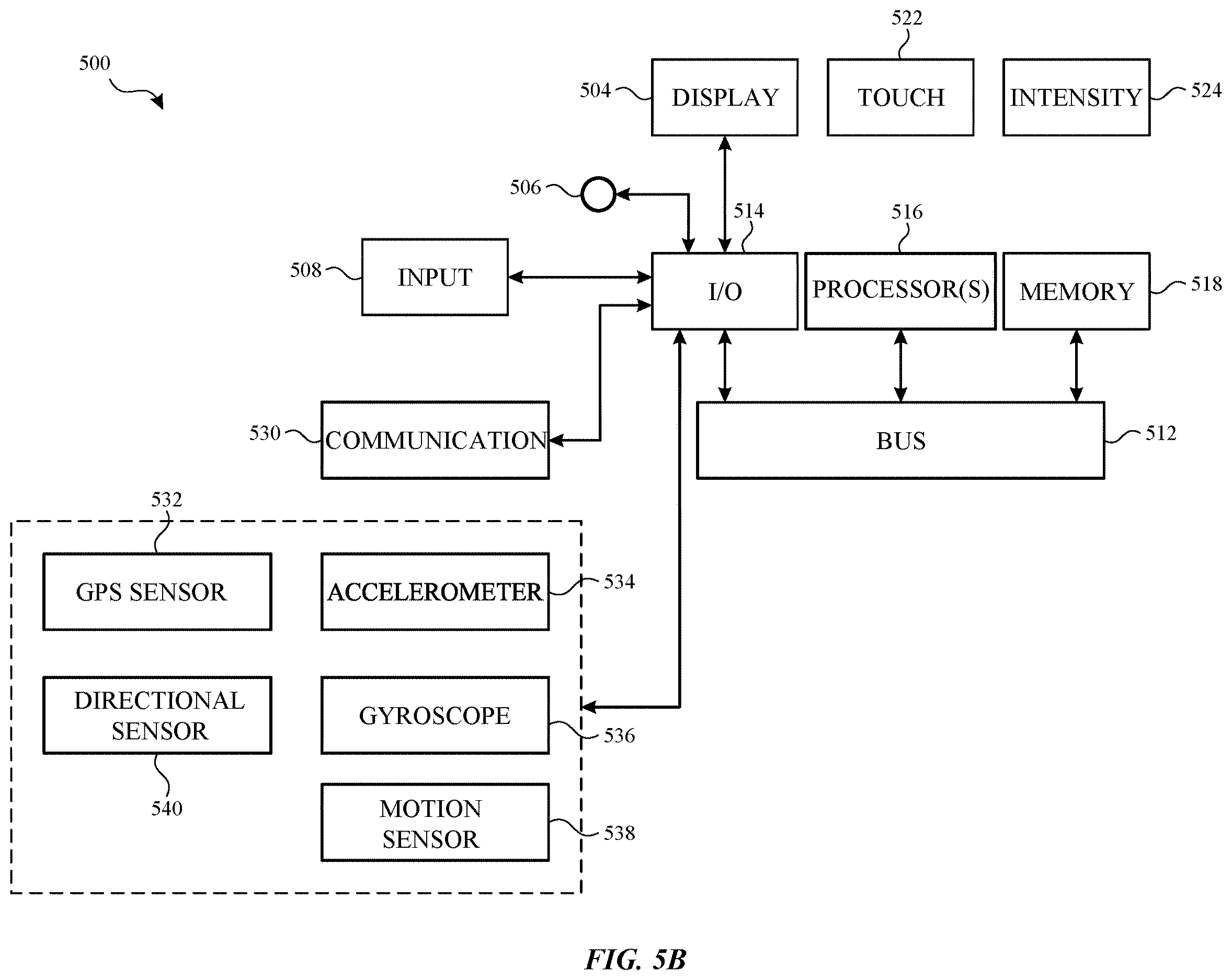

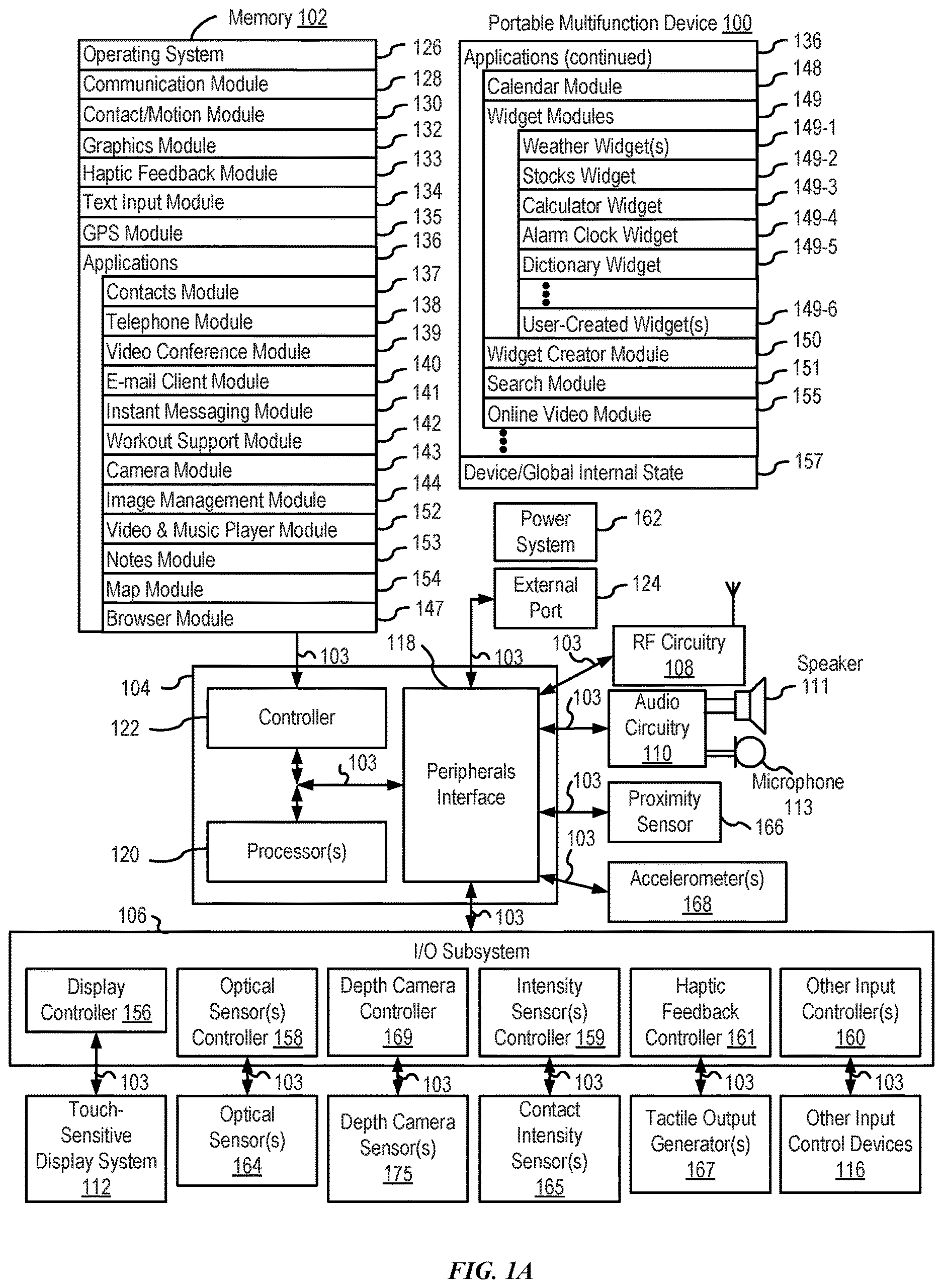

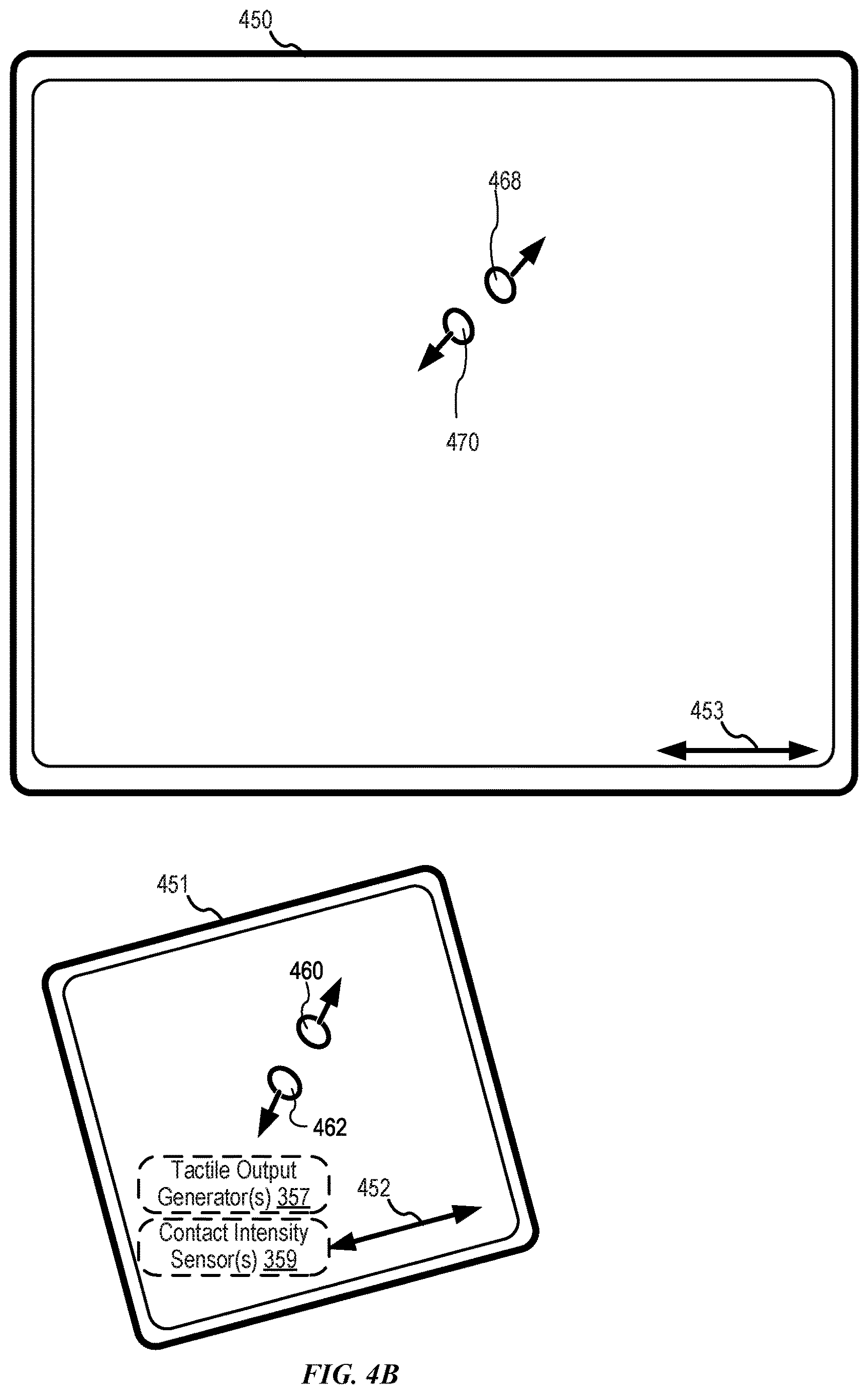

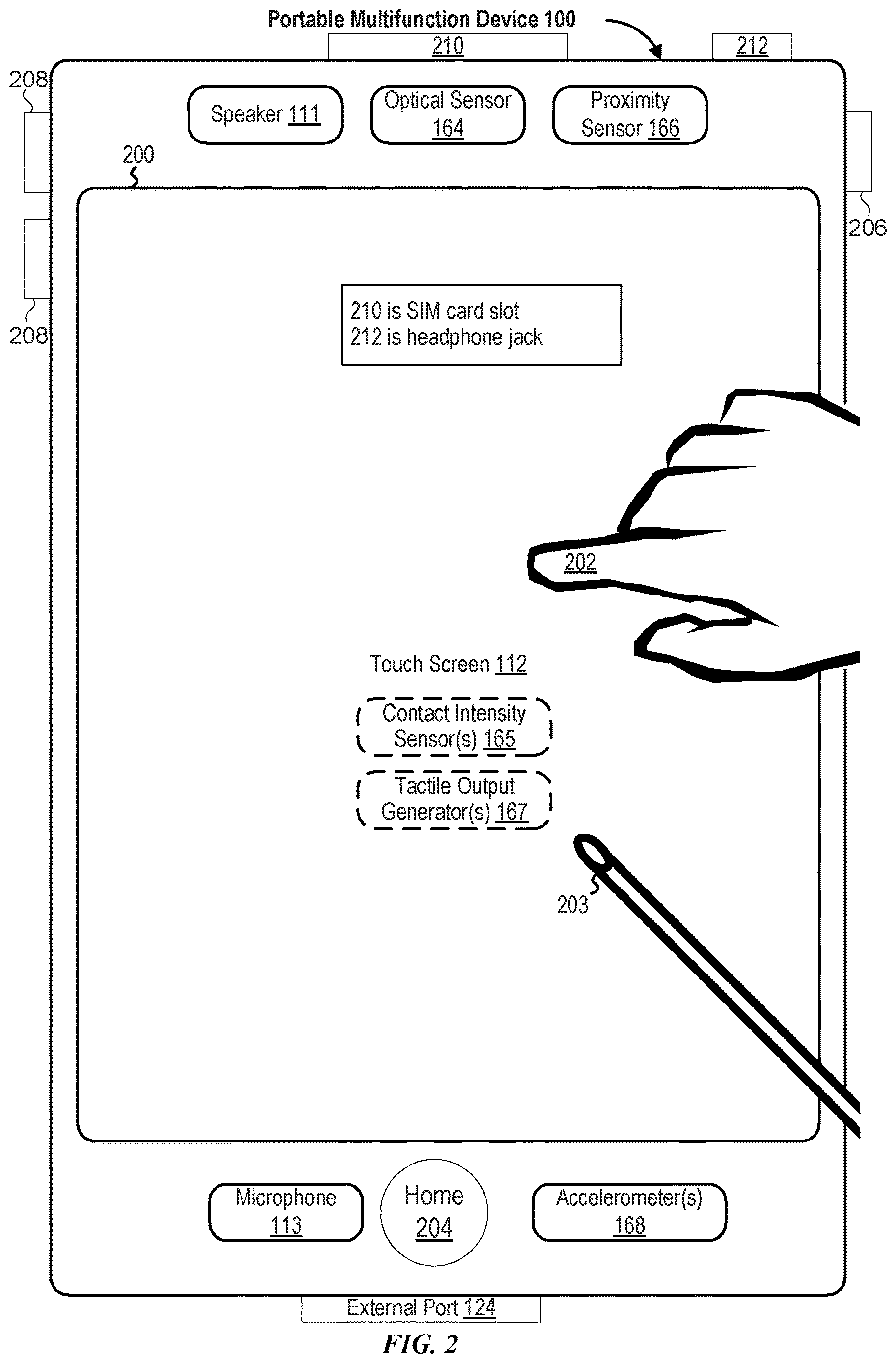

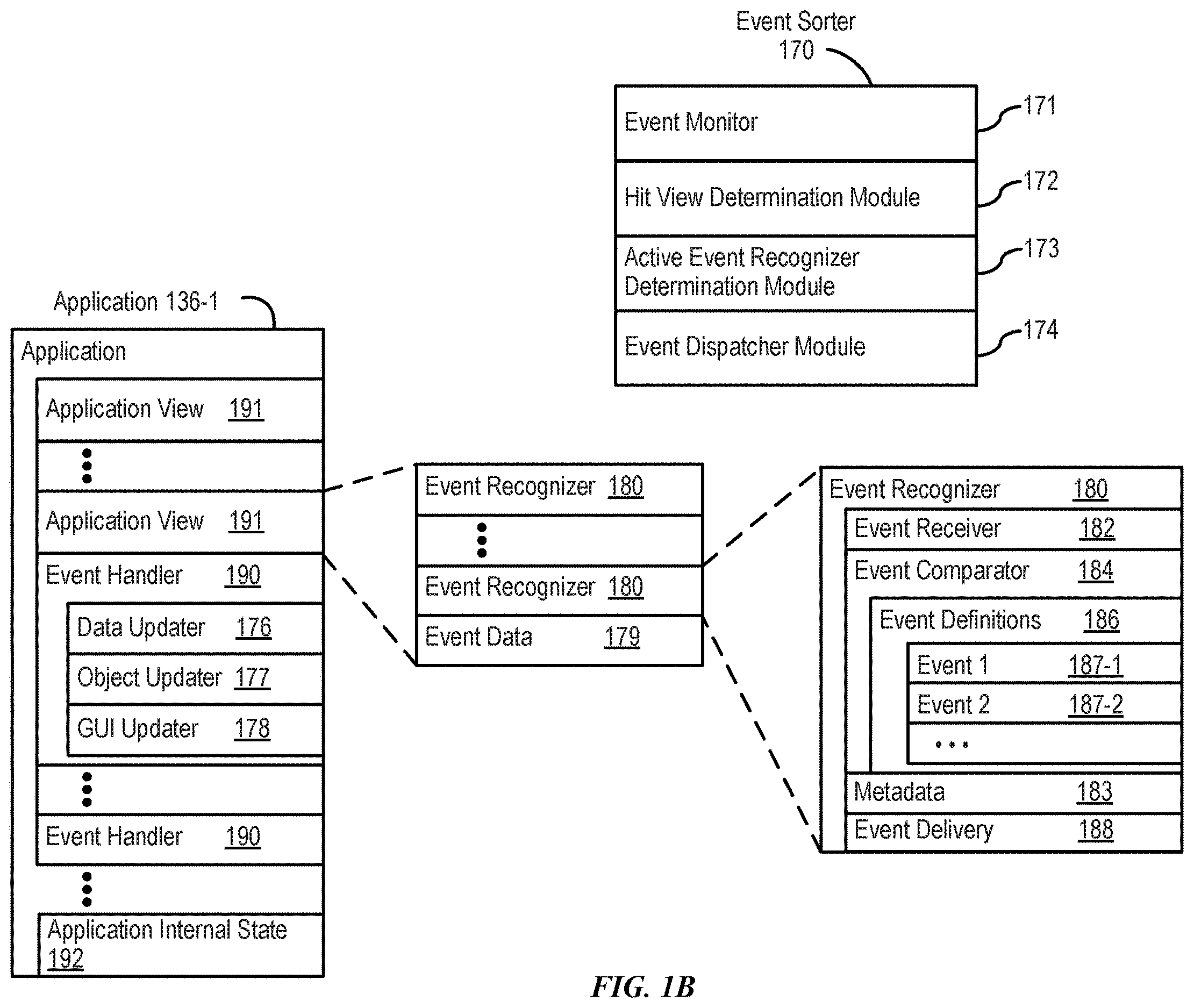

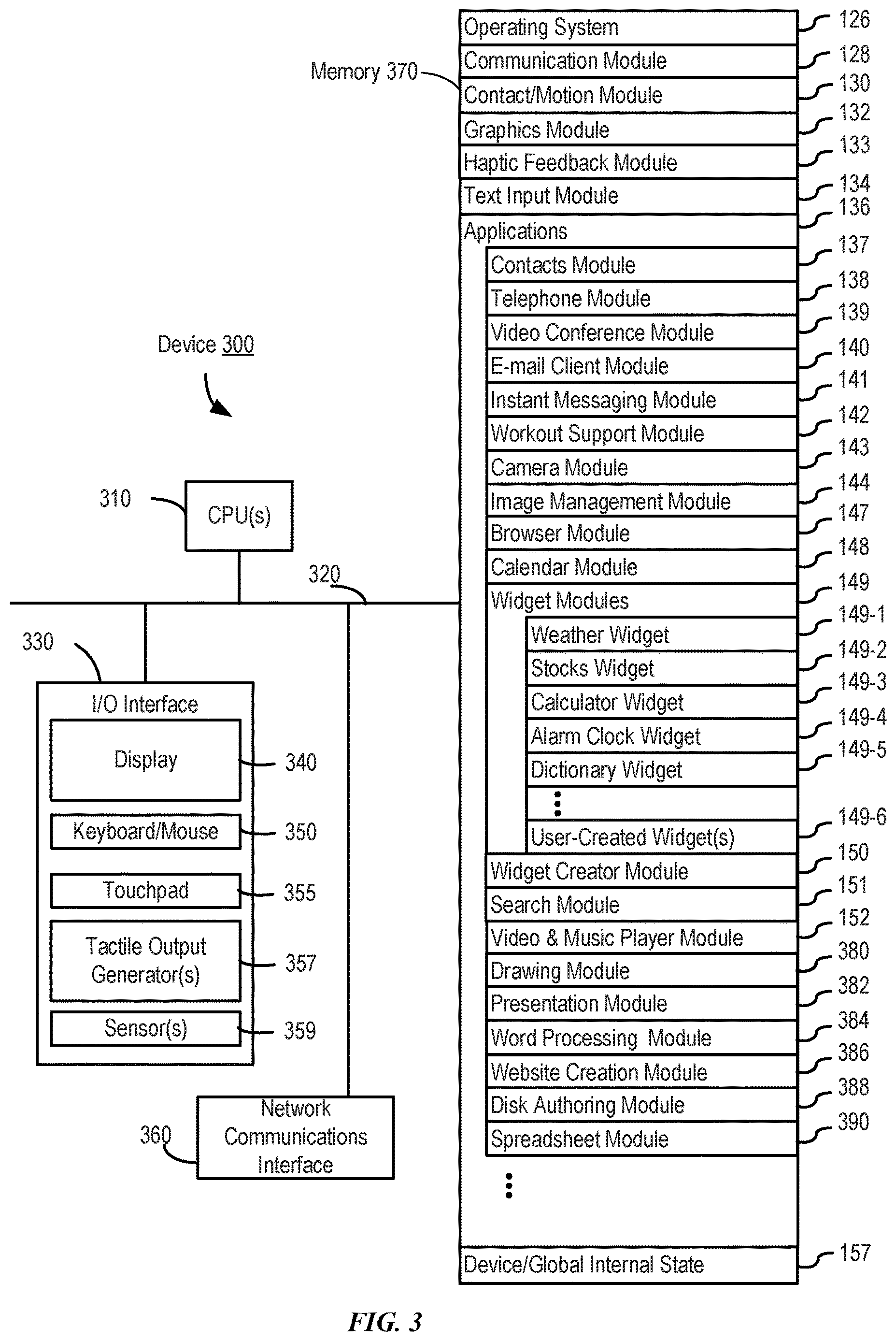

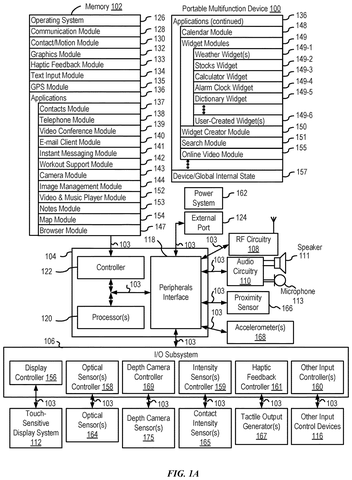

74 drawing sheets from US 2026/0277428 A1 · click any drawing to enlarge
Show the other 52 sheets
Sheets 61 to 74 are in the full USPTO filing.
